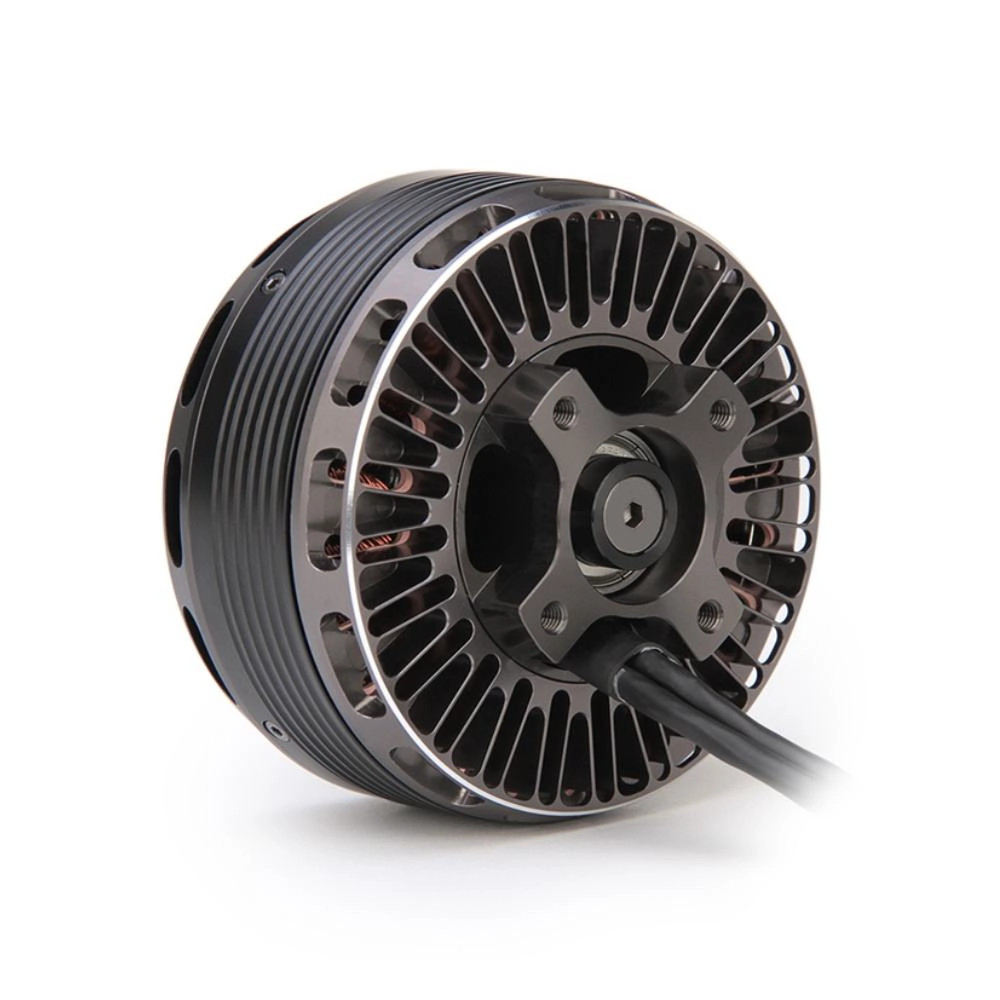

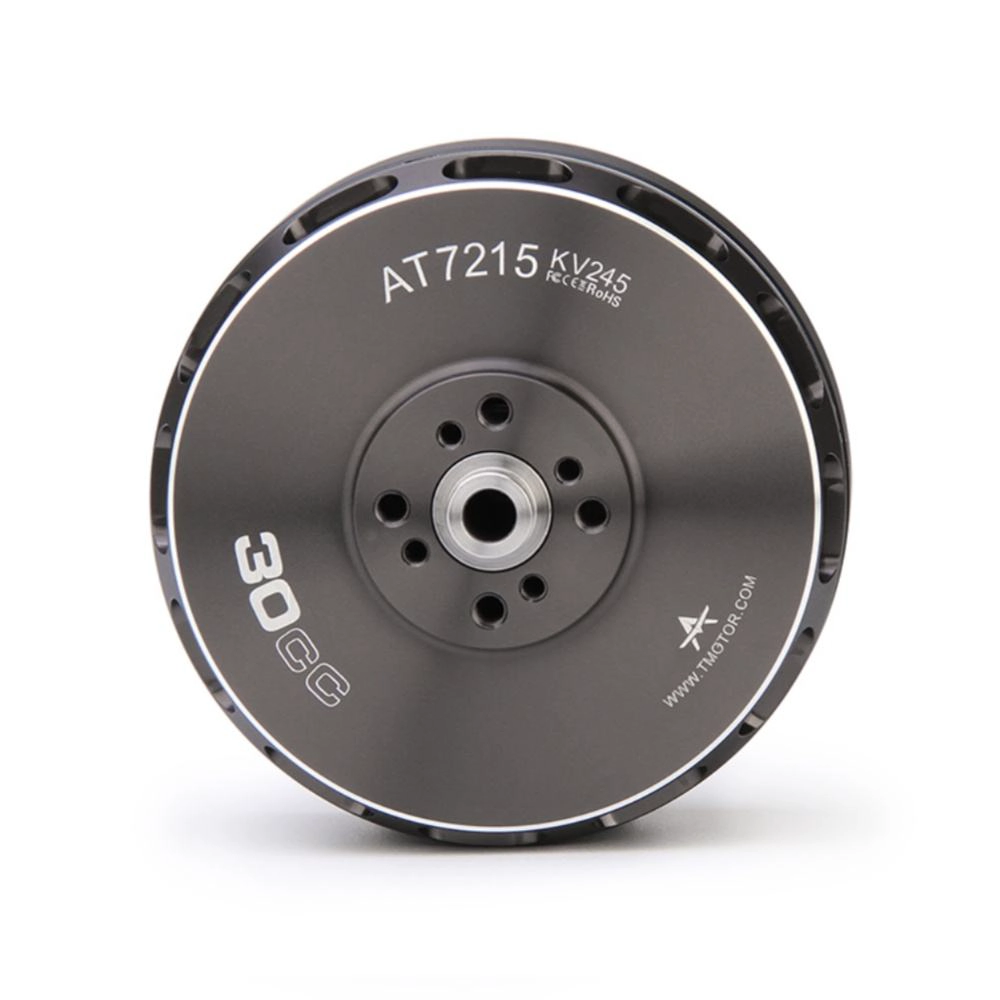

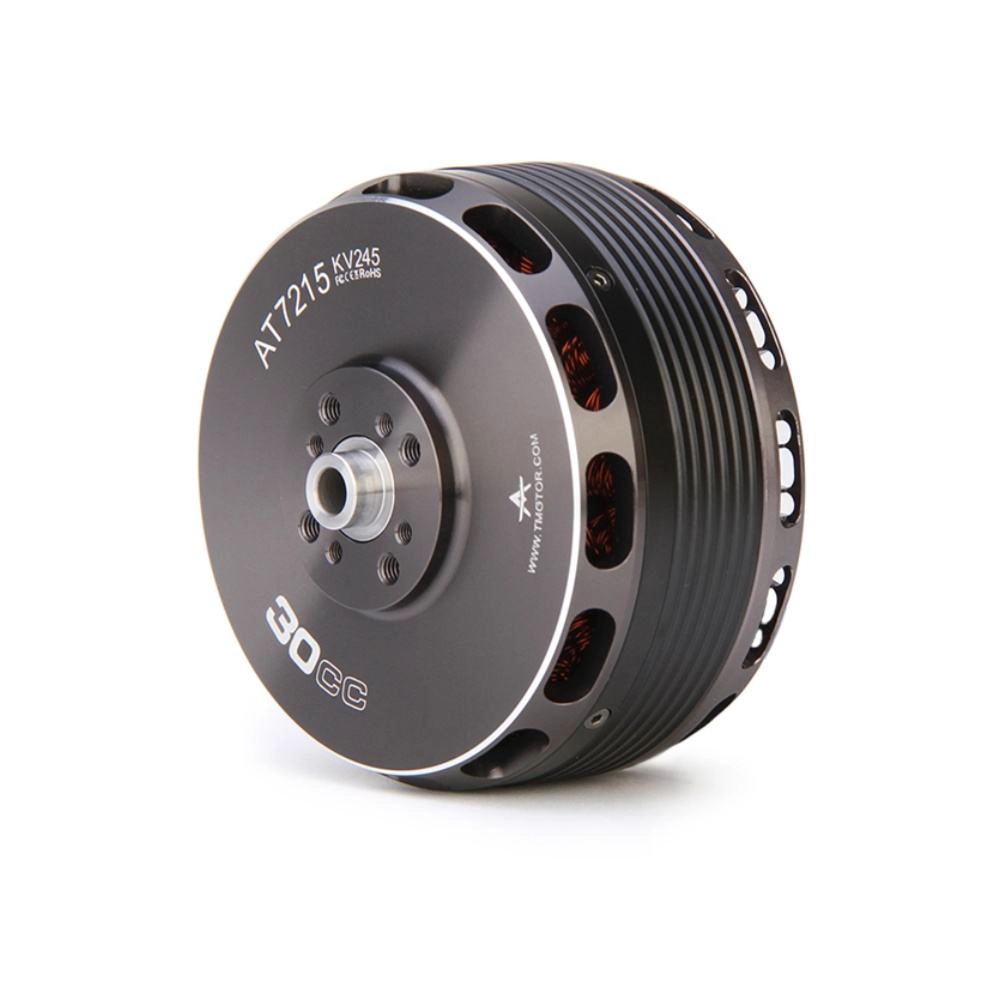

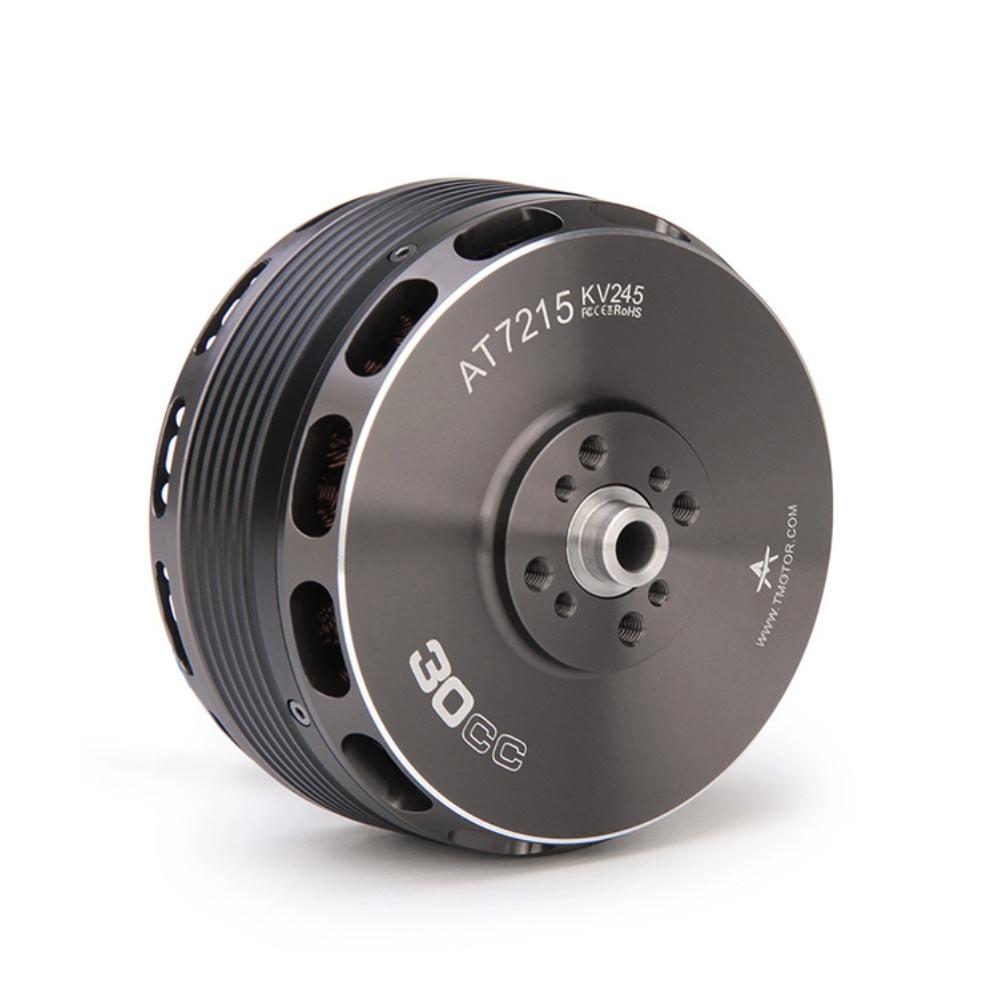

AT7215 30CC T-MOTOR Brushless DC VTOL UAV Fixed Wing Aircraft Motor for Drone
- 1.KV200
- 2.KV220
- 3.KV245
- 4.KV270
The T-Motor AT7215 30CC is a high-performance electric motor for drones, designed as a professional power solution for outdoor aircraft. As a reliable fixed wing UAV motor and efficient VTOL UAV brushless motor, it delivers up to 5000W maximum power to support 30-40CC platforms. It features flexible propeller installation, effective heat dissipation, dual anti-loosening structure, and stable control, ensuring safe, durable, and smooth flight. Compatible with 8-12S LiPo batteries, it works perfectly with AT115A ESC for stable and long-lasting operation.
AT7215 30CC Highlights:
- Designed for VTOL & fixed-wing UAVs
- 5000W peak power output
- Flexible propeller mounting
- High-temperature resistance
- Dual anti-loosening design
- Stable & smooth control
- Compatible with 8-12S LiPo

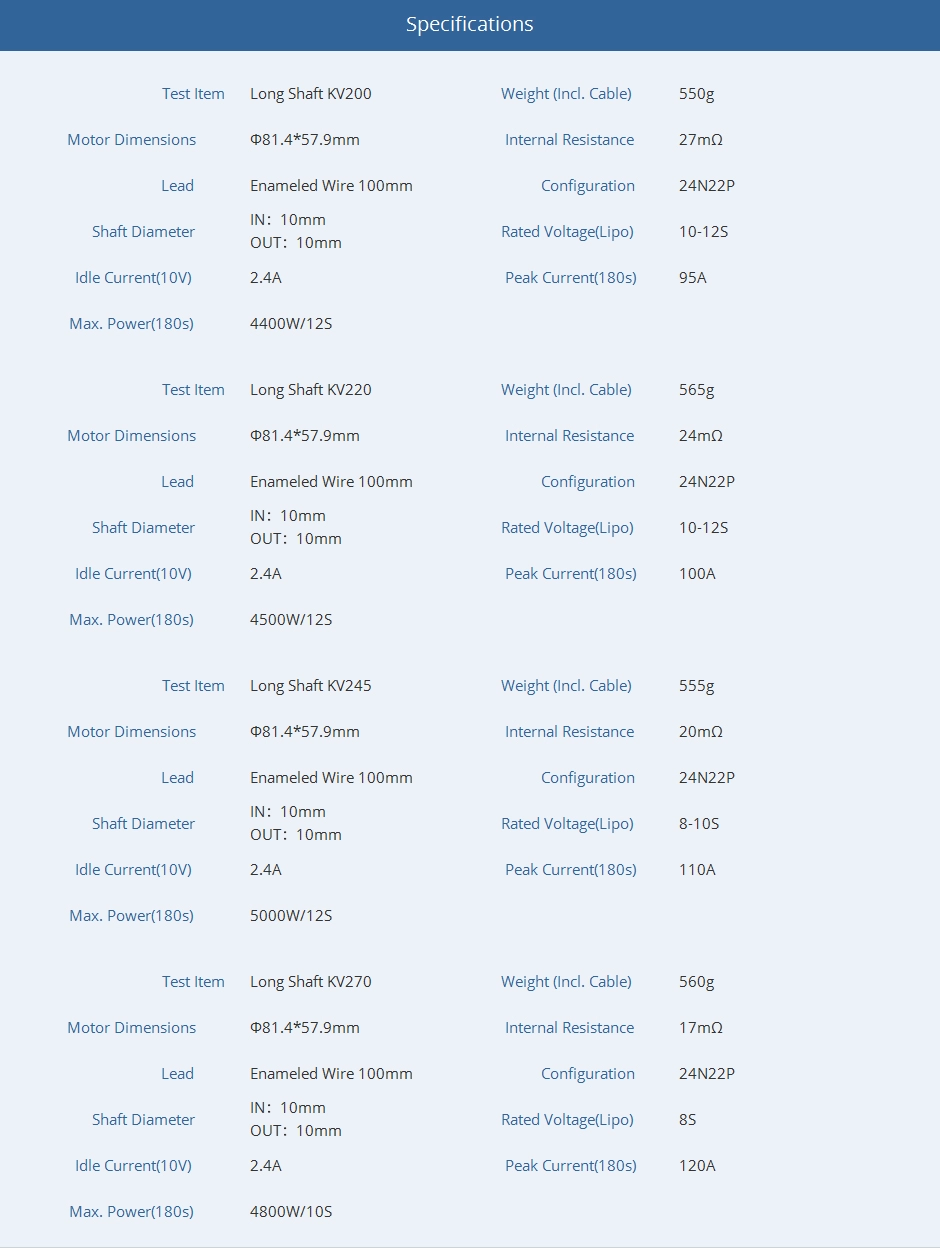

| AT7215 KV200 | |

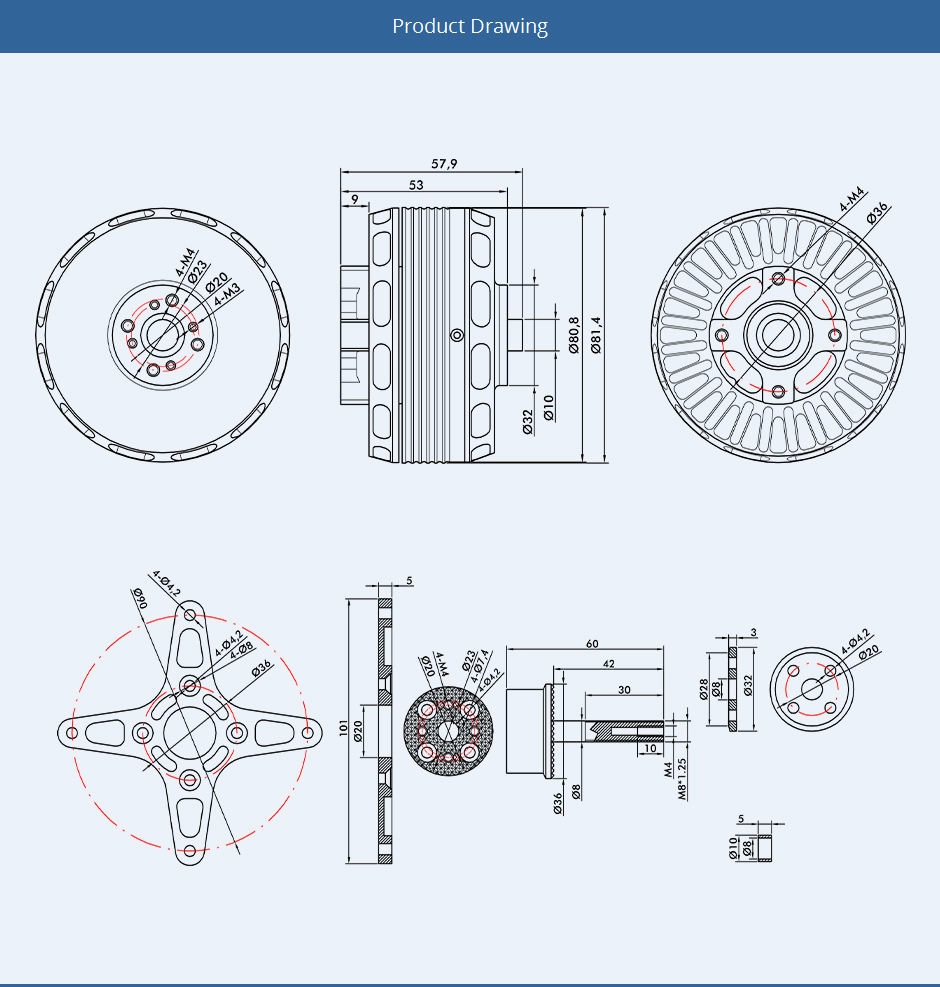

| Motor Size(mm) | Φ81.4*57.9mm |
| Lead | Enameled Wire 100mm |
| Shaft Diameter | IN：10mm OUT：10mm |
| Idle Current(10V) | 2.4A |
| Max. Power(180s) | 4400W |
| Weight (Incl. Cable) | 550g |
| Internal Resistance | 27mΩ |
| Configuration | 24N22P |
| Rated Voltage(Lipo) | 10-12S |
| Peak Current(180s) | 95A |
| AT7215 KV220 | |
| Motor Size(mm) | Φ81.4*57.9mm |
| Lead | Enameled Wire 100mm |
| Shaft Diameter | IN：10mm OUT：10mm |
| Idle Current(10V) | 2.4A |
| Max. Power(180s) | 4500W |
| Weight (Incl. Cable) | 565g |
| Internal Resistance | 24mΩ |
| Configuration | 24N22P |
| Rated Voltage(Lipo) | 10-12S |
| Peak Current(180s) | 100A |
| AT7215 KV245 | |
| Motor Size(mm) | Φ81.4*57.9mm |
| Lead | Enameled Wire 100mm |
| Shaft Diameter | IN：10mm OUT：10mm |
| Idle Current(10V) | 2.4A |
| Max. Power(180s) | 5000W |
| Weight (Incl. Cable) | 555g |
| Internal Resistance | 20mΩ |
| Configuration | 24N22P |
| Rated Voltage(Lipo) | 8-10S |
| Peak Current(180s) | 110A |
| AT7215 KV270 | |
| AT7215 KV270 | Φ81.4*57.9mm |
| Lead | Enameled Wire 100mm |
| Shaft Diameter | IN：10mm OUT：10mm |
| Idle Current(10V) | 2.4A |
| Max. Power(180s) | 4800W |
| Weight (Incl. Cable) | 560g |
| Internal Resistance | 17mΩ |
| Configuration | 24N22P |
| Rated Voltage(Lipo) | 8S |
| Peak Current(180s) | 120A |
