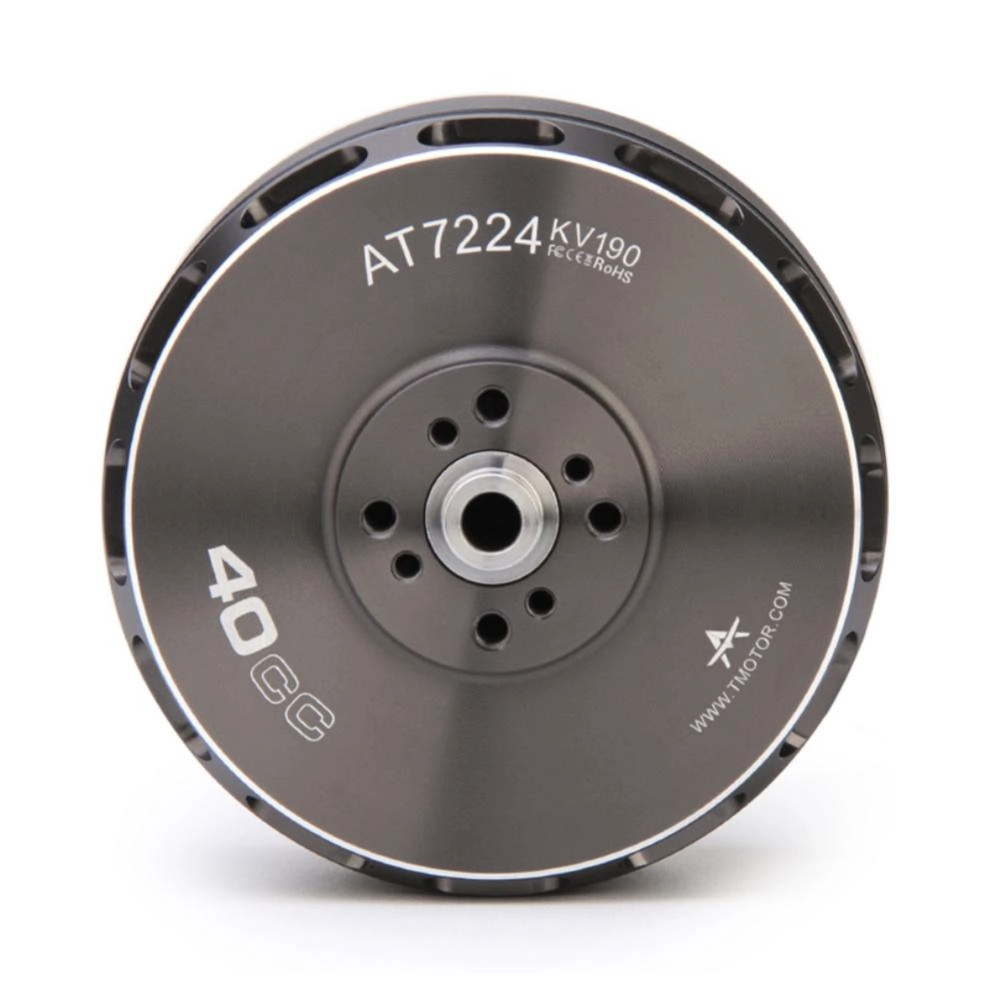

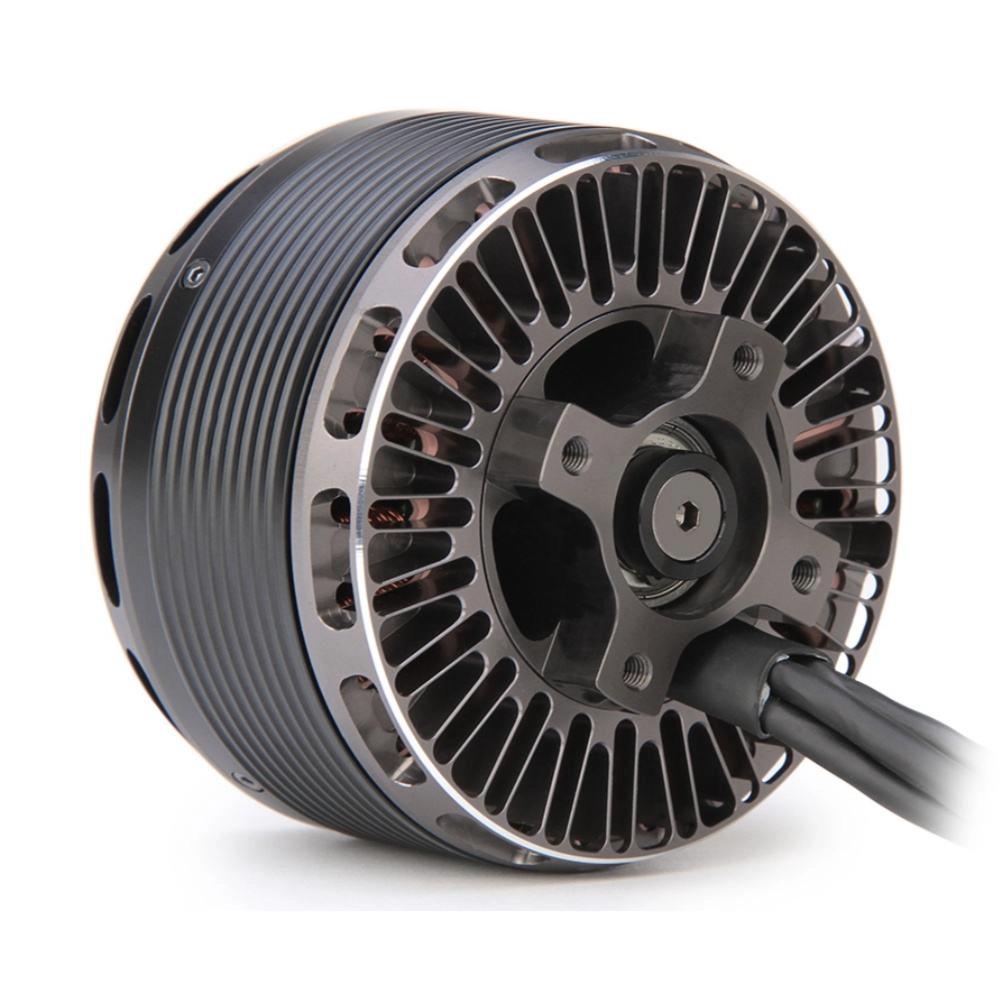

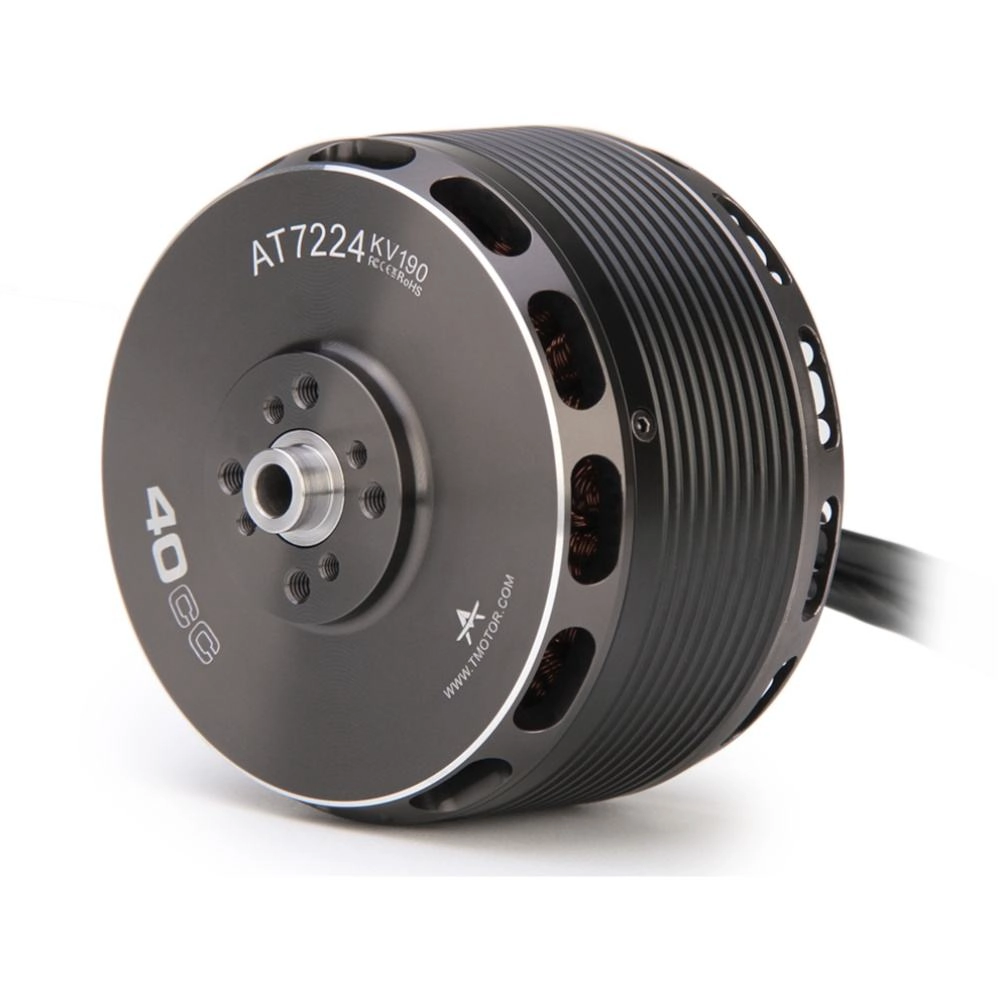

The AT7224 is a high-end DC brushless motor designed for fixed‑wing and VTOL UAVs. It delivers up to 6000W power and 17.72kg thrust, making it a high-performance heavy lift motor ideal for 40CC aircraft. With a high efficiency motor structure, detachable propeller mount, 220℃ heat-resistant wiring, efficient heat dissipation, and anti-loose design, it ensures stable, reliable performance and extended service life.
AT7224 Highlights:
- High power, strong thrust

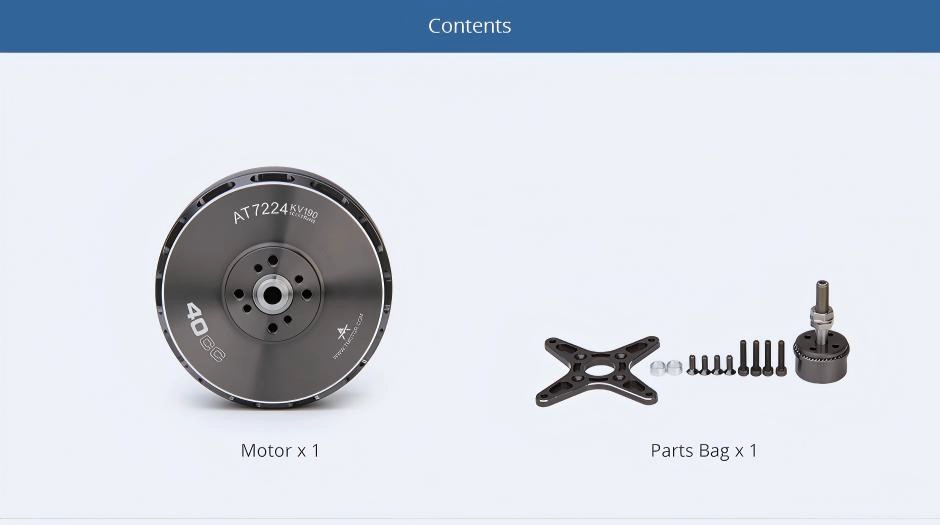

- Detachable mount, wide adaptability
- High heat resistance, long lifespan
- Efficient heat dissipation, stable operation
- Anti-loose design, reliable safety
- Linear power, smooth control
- Premium bearings, high durability

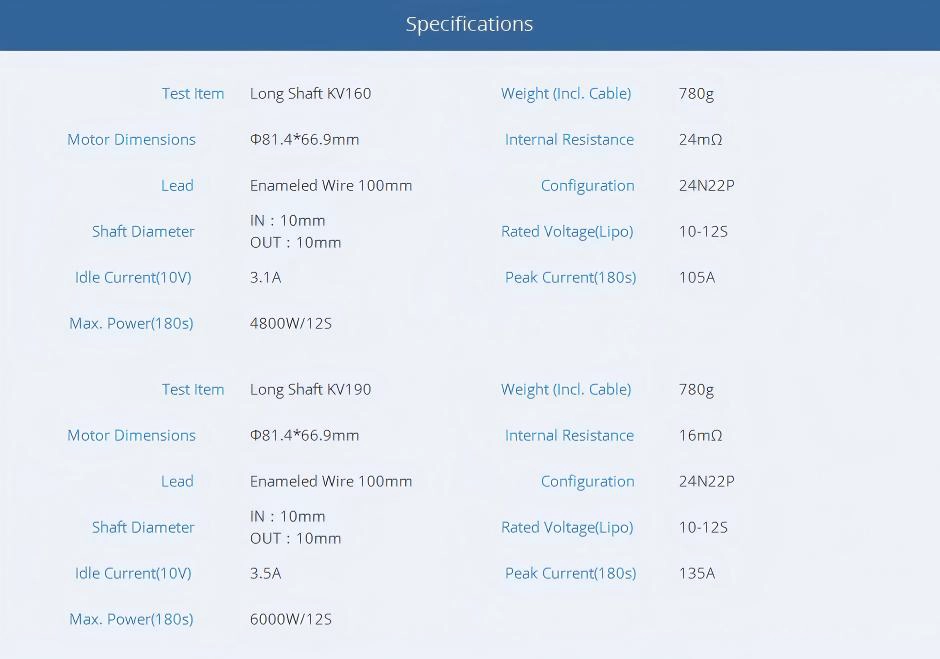

| AT7224 KV160 | |

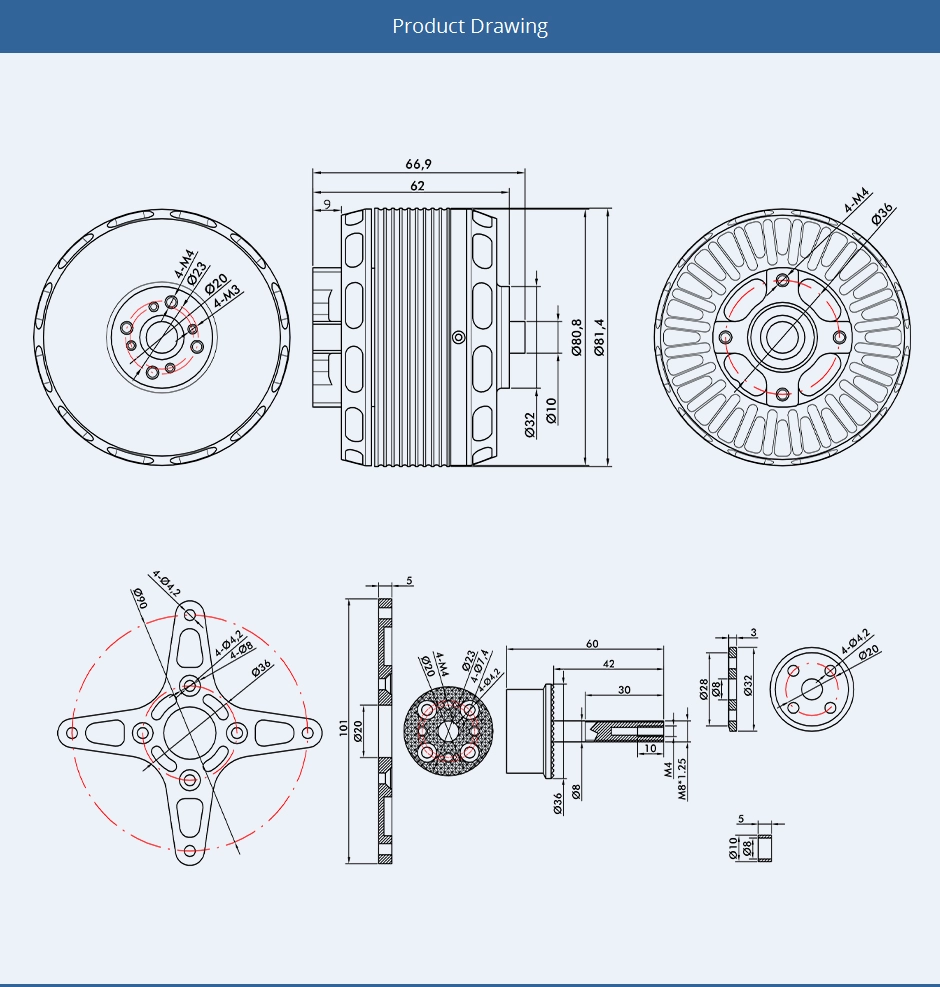

| Motor Size(mm) | Φ81.4*66.9mm |
| Lead | Enameled Wire 100mm |
| Shaft Diameter | IN：10mm OUT：10mm |
| Idle Current(10V) | 3.1A |
| Max. Power(180s) | 4800W |
| Weight (Incl. Cable) | 780g |
| Internal Resistance | 24mΩ |
| Configuration | 24N28P |
| Rated Voltage(Lipo) | 10-12S |
| Peak Current(180s) | 105A |
| AT7224 KV190 | |
| Motor Size(mm) | Φ81.4*66.9mm |
| Lead | Enameled Wire 100mm |
| Shaft Diameter | IN：10mm OUT：10mm |
| Idle Current(10V) | 3.5A |
| Max. Power(180s) | 6000W |
| Weight (Incl. Cable) | 780g |
| Internal Resistance | 16mΩ |
| Configuration | 24N28P |
| Rated Voltage(Lipo) | 10-12S |
| Peak Current(180s) | 135A |
