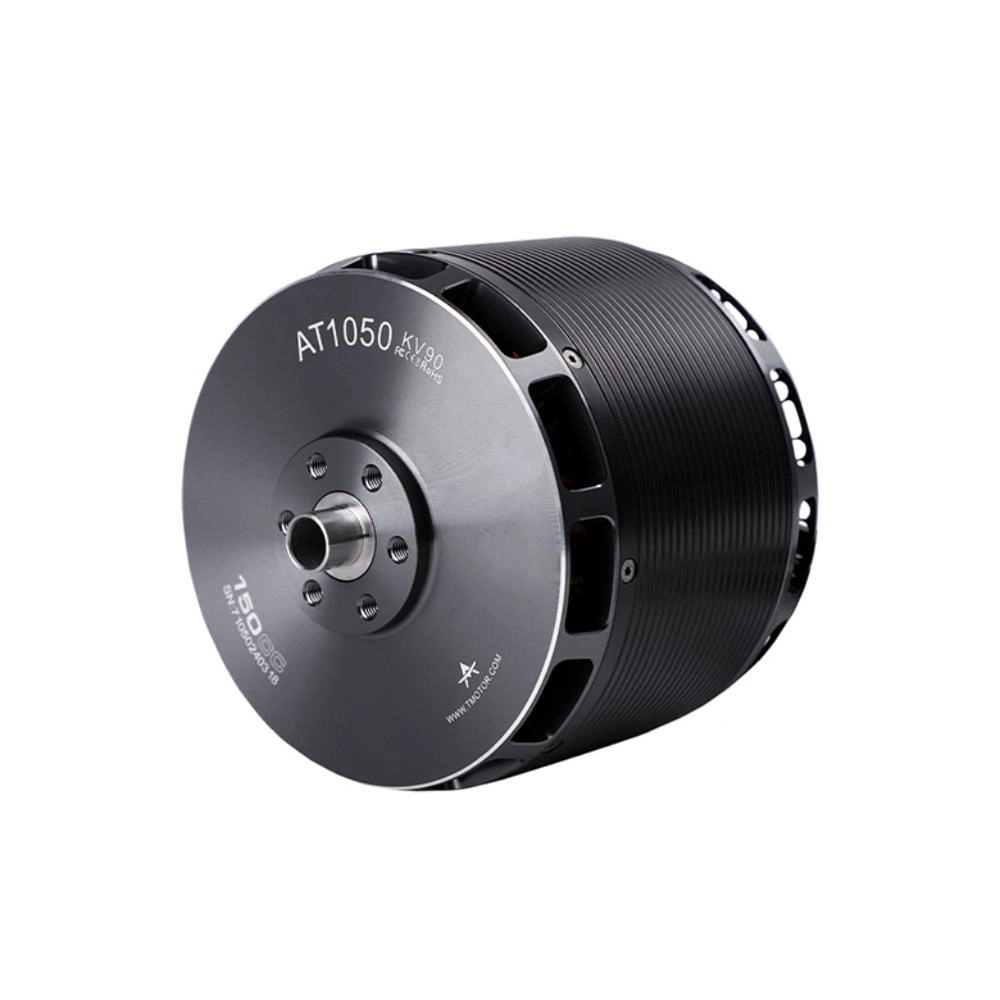

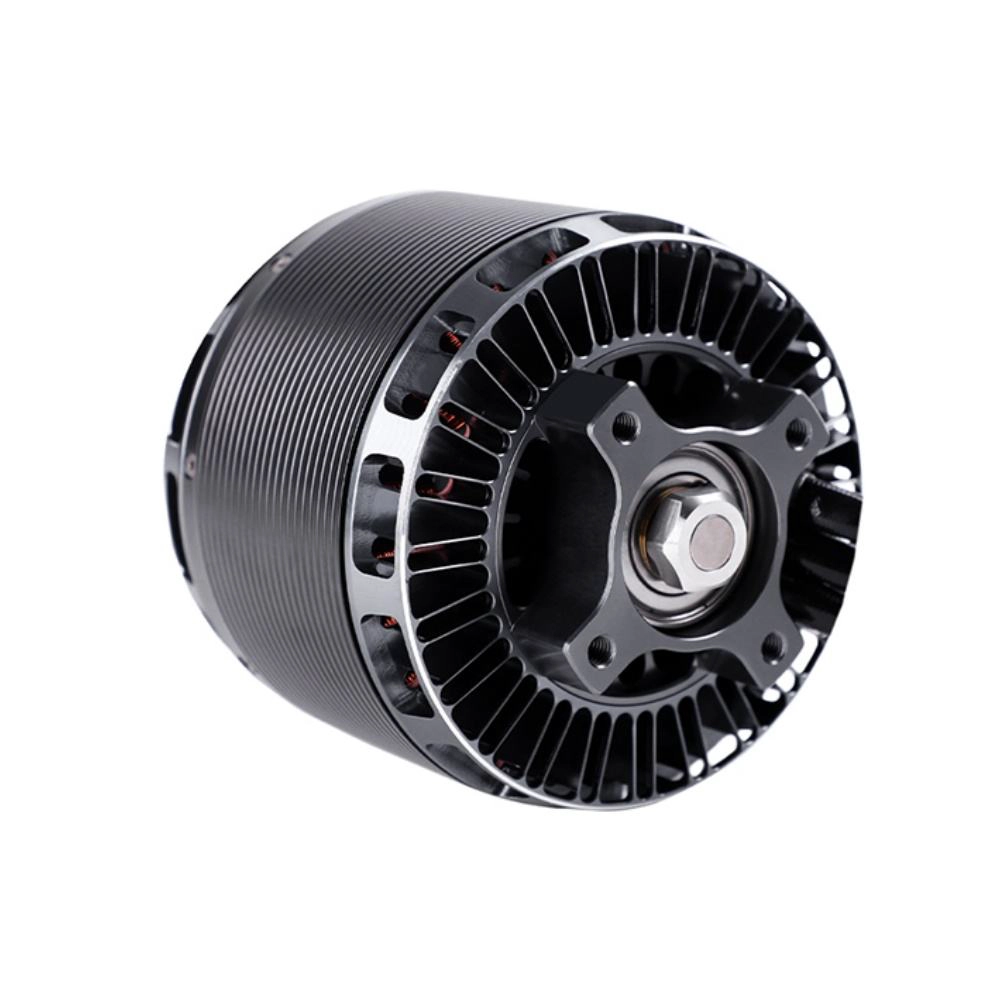

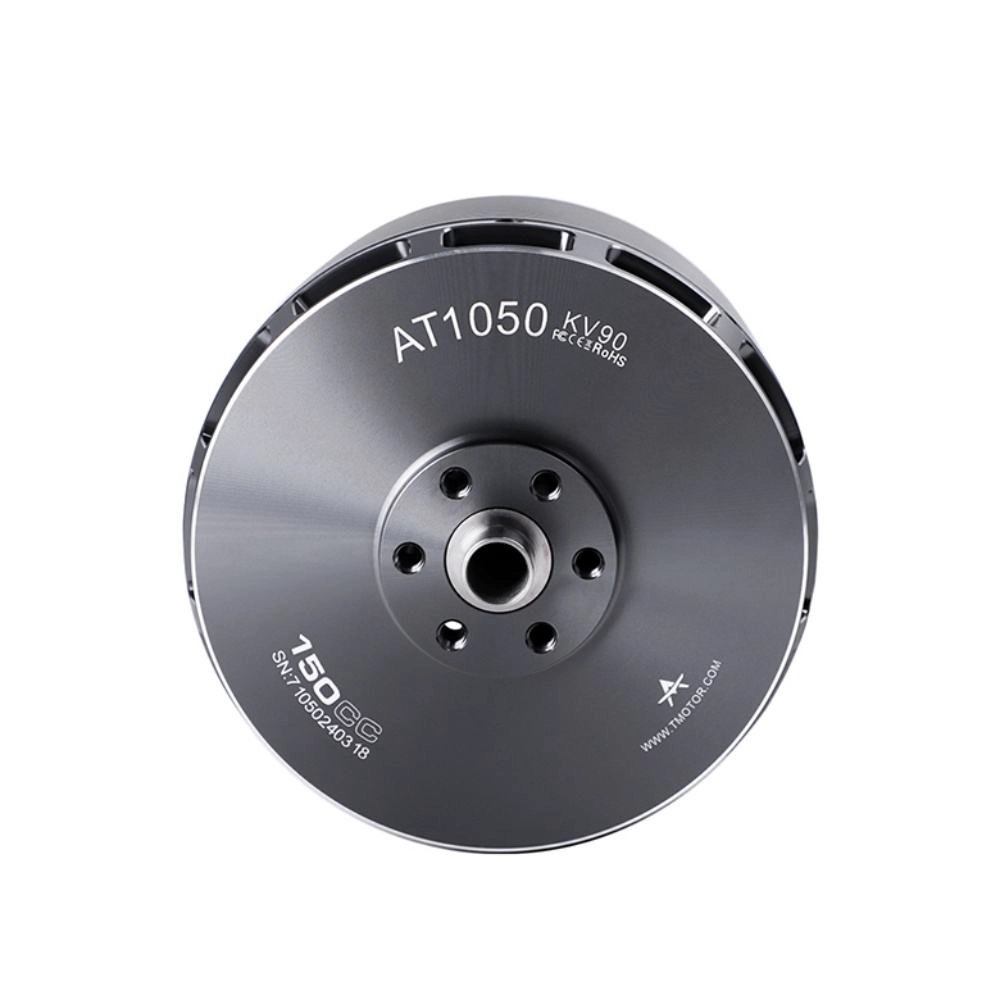

AT1050 150CC T-MOTOR Heavy Duty High Power Brushless Motor

1.KV90

The T-Motor AT1050 is a professional high performance UAV motor dedicated to fixed-wing and VTOL UAVs. Equipped with a 24S power system, it provides max 8000W output and 36kg thrust to replace 150CC engines efficiently. With low noise, reliable cooling and versatile mounting, it works as a dependable stable flight motor and powerful large load drone motor for safe and heavy-lift operations.

AT1050 150CC Highlights:

- 24S brushless DC motor
- Max 8000W power output
- Max 36KG thrust
- 150CC engine replacement
- For fixed-wing/VTOL UAVs
- Low noise operation
- Efficient heat dissipation

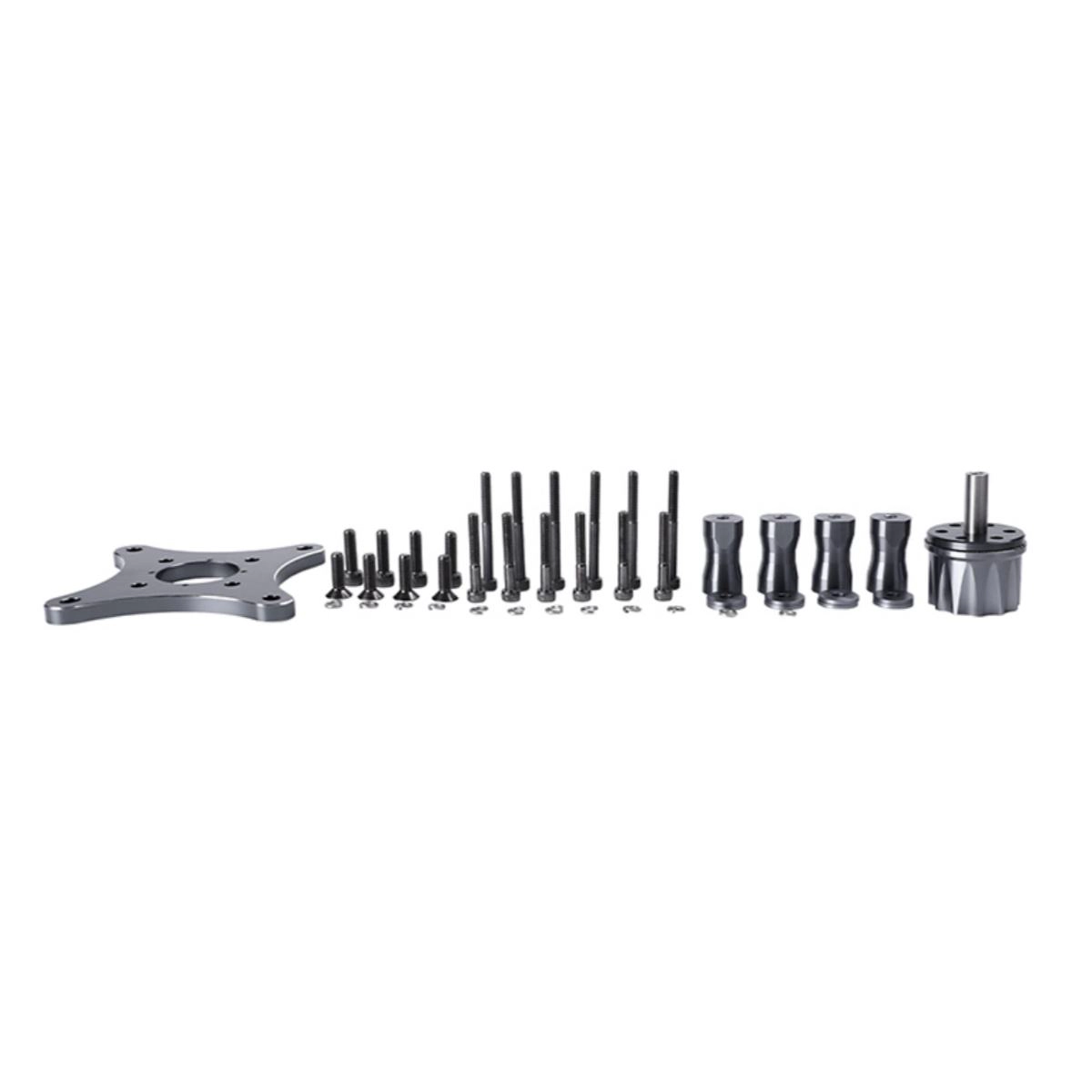

- Versatile mounting options
- Real-time speed monitoring
- Stable heavy-lift operation

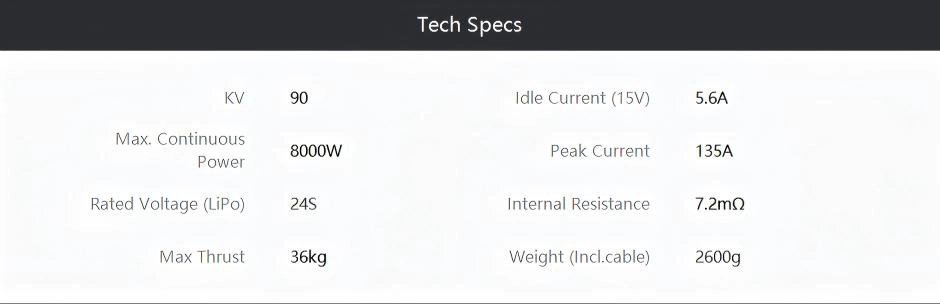

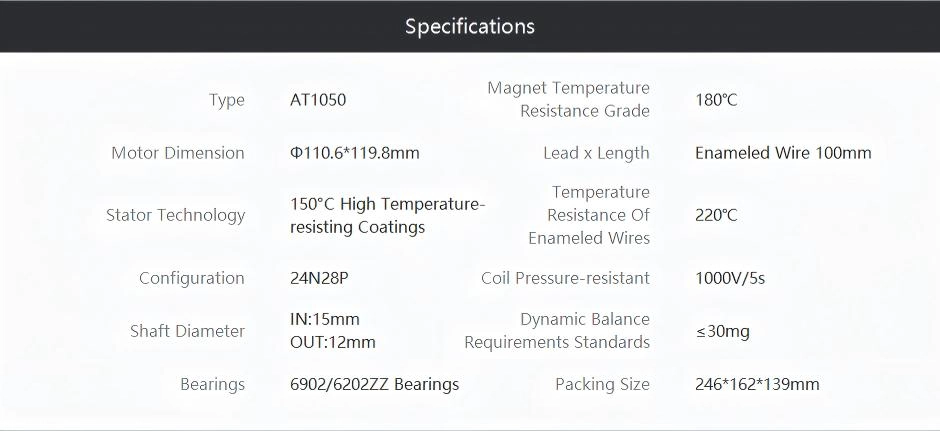

AT1050 KV90

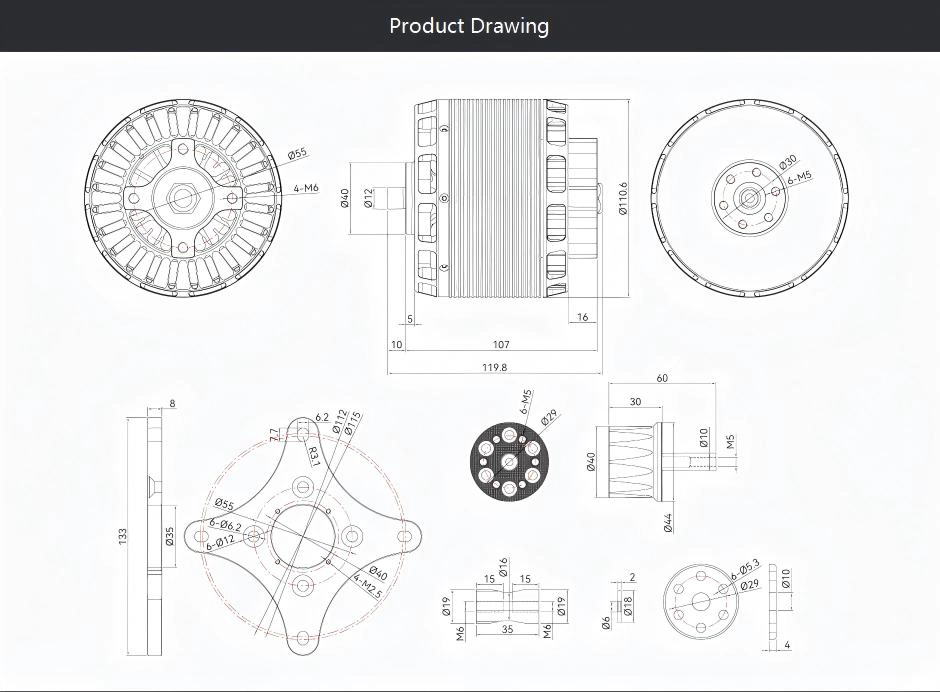

Motor Size	A110.6*119.8mm
Configuration	24N28P
Shaft Diameter	IN:15mm OUT:12mm
Bearing	6902/6202ZZ Bearings
Lead Cable	Enameled Wire 100mm
Coil Pressure-resistant	1000V/5s
Temperature Resistance Of Enameled Wires	220℃
Stator Technology	150℃ High Temperature-resisting Coatings
Dynamic Balance Requirements Standards	≤30mg
IP	IP45
Internal Resistance	7.2mΩ
