Discover the T-Motor AT Series: the definitive high-performance brushless motor solution engineered explicitly for fixed-wing and VTOL unmanned aircraft. Renowned for exceptional power output, unmatched reliability, and superior thermal management, the AT Series spans a complete size spectrum—from lightweight 3D aerobatic models to heavy-lift industrial drones. This category consolidates the entire AT Series ecosystem, providing the robust, efficient propulsion needed for long-endurance mapping, surveying, surveillance, and specialized aerobatic missions.
Core Structure & Performance:
-
Mil-Spec Reliability & Cooling: Featuring a 4-5mm hardened steel shaft, dual/triple bearing support, and side cooling vents for extreme durability and heat dissipation. Built with 220°C high-temperature windings and precision dynamic balancing (≤30mg) for smooth, stable operation in demanding conditions.
-
Superior Power & Efficiency: Proprietary arc-shaped magnets and hand-wound stators deliver up to 5% higher torque density and linear throttle response. The modular propeller hub design ensures secure attachment and compatibility with various propeller types.
-
Full-Size Application Coverage: From the compact AT23 series for sub-1kg models to the powerhouse AT1040 series for drones up to 65kg MTOW, there’s an AT motor precisely engineered for your airframe’s weight, voltage, and performance requirements.
Key Selection Parameters:
-
Voltage & Power Range: Covers 2S to 14S LiPo, with power from 87W to over 10,000W.
-
KV Options: Low KV (160-500) for large propellers and high thrust; Medium KV (500-1000) for balanced performance; High KV (1000-2300) for lightweight, high-RPM models.
-
Typical Applications: Perfect for F3P indoor aerobatics, 3D/FAI pattern planes, gasoline engine replacement (20-40CC equivalents), and critical industrial UAVs for long-endurance missions.
Fixed Wing UAV - AT Series Motor
-
-

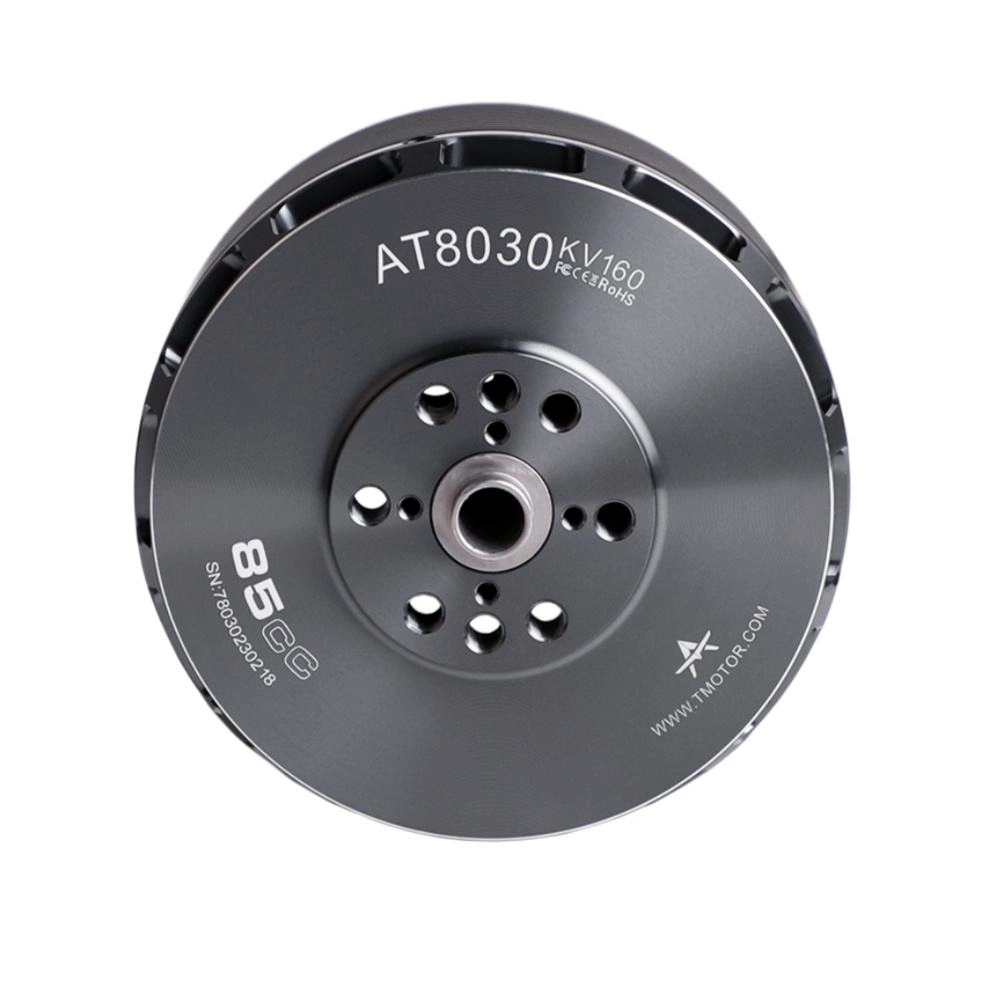

AT8030 85CC T-MOTOR VTOL Fixed Wing Long Shaft Electric Airplane motor
The T-Motor AT8030 is a high-performance brushless DC motor designed for fixed-wing and VTOL UAVs. Weighing only 1110g, it delivers up to 25kg of thrust and a max power of 6800W, ideal for 55kg takeoff weight drones. It features low noise, reliable performance, and easy installation, making it a perfect engine alternative for industrial UAV applications.
More
-
-

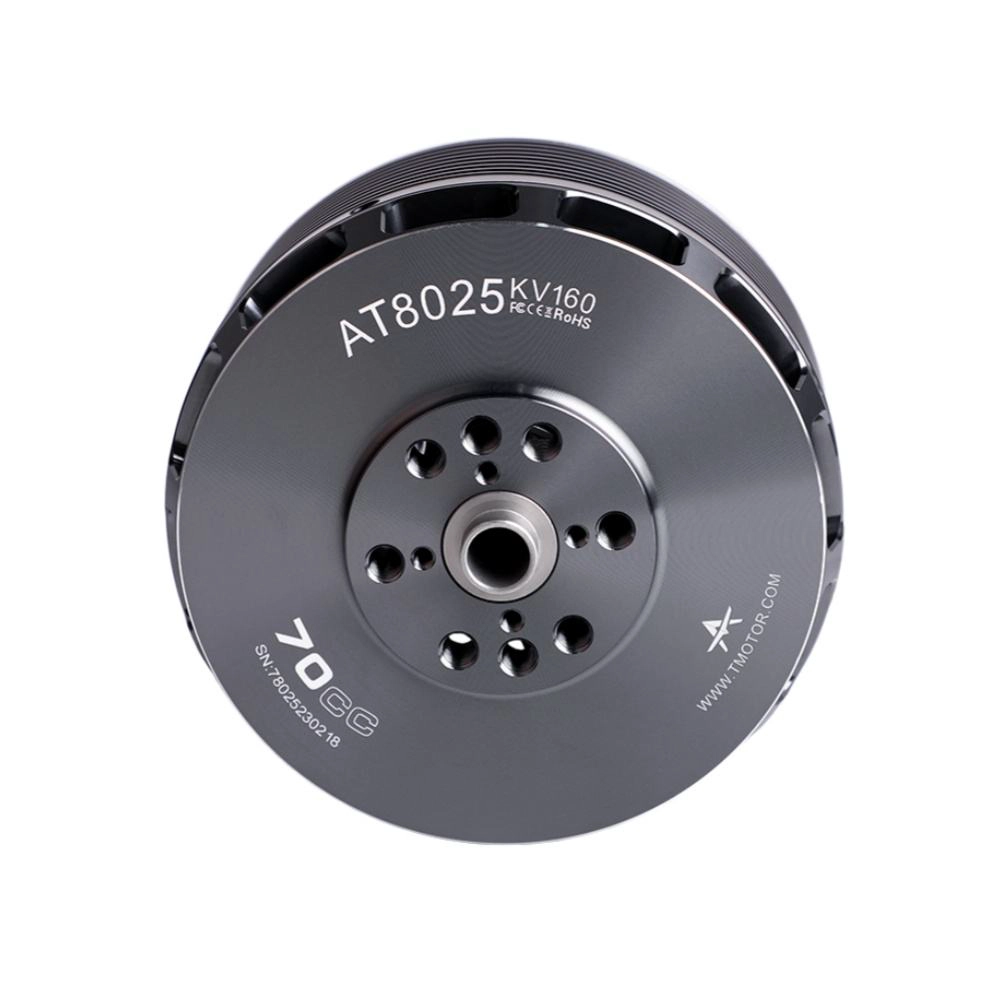

AT8025 70CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160/KV190
The T-Motor AT8025 is a high-performance brushless DC motor designed for fixed-wing and VTOL UAVs. It delivers up to 5000W power and 21kg thrust, replacing 70-85CC engines. With robust construction, military-grade wiring, and low noise, it ensures reliable heavy-lift performance for 3-3.6m wingspan UAVs.
More
-
-

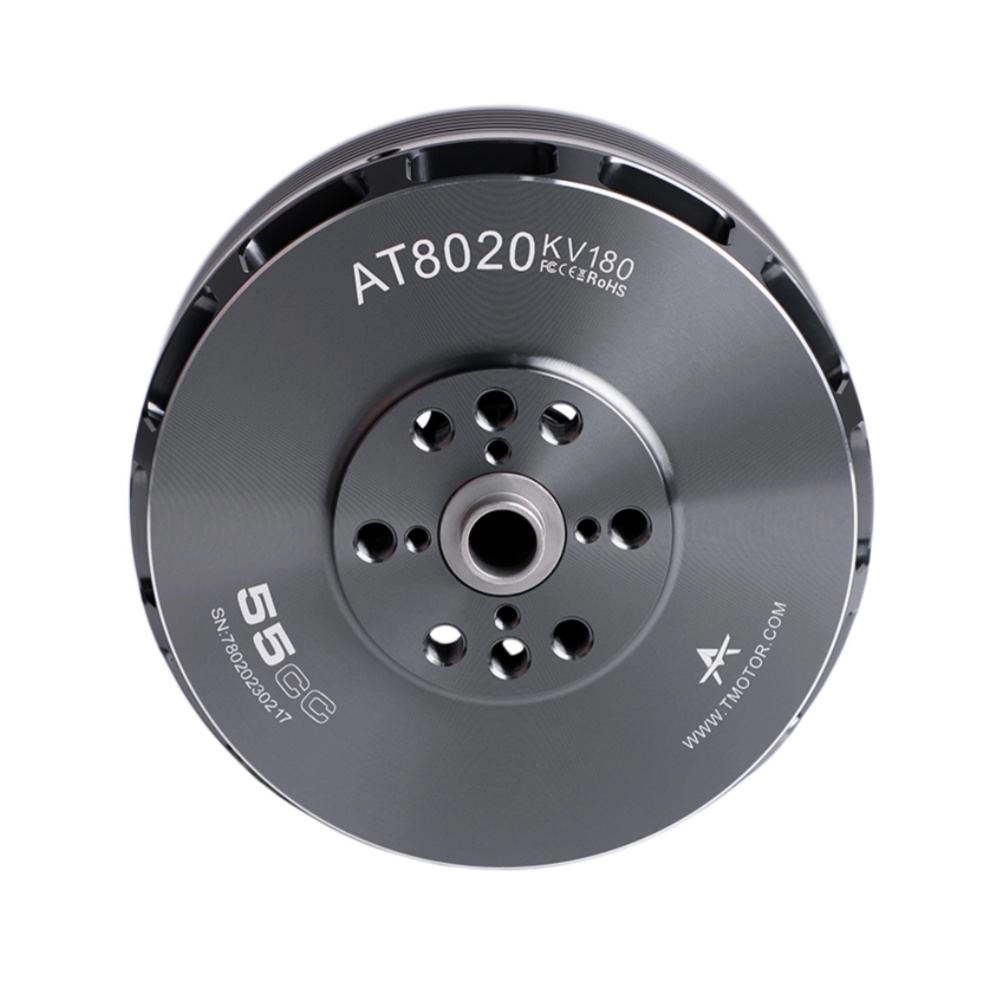

AT8020 55CC T-MOTOR Powerful VTOL UAV Fixed Wing Aircraft Long Shaft Motor
The T-Motor AT8020 is a high-end brushless DC motor designed for fixed-wing and VTOL UAVs with a wingspan of 2.2–3.3m and a takeoff weight of ~40kg. Weighing only 870g, it delivers a maximum thrust of 18kg and a peak power of 5500W. It features efficient heat dissipation, versatile mounting options, and compatibility with 10–12S batteries, ensuring reliable and powerful performance for professional drone applications.
More
-
-

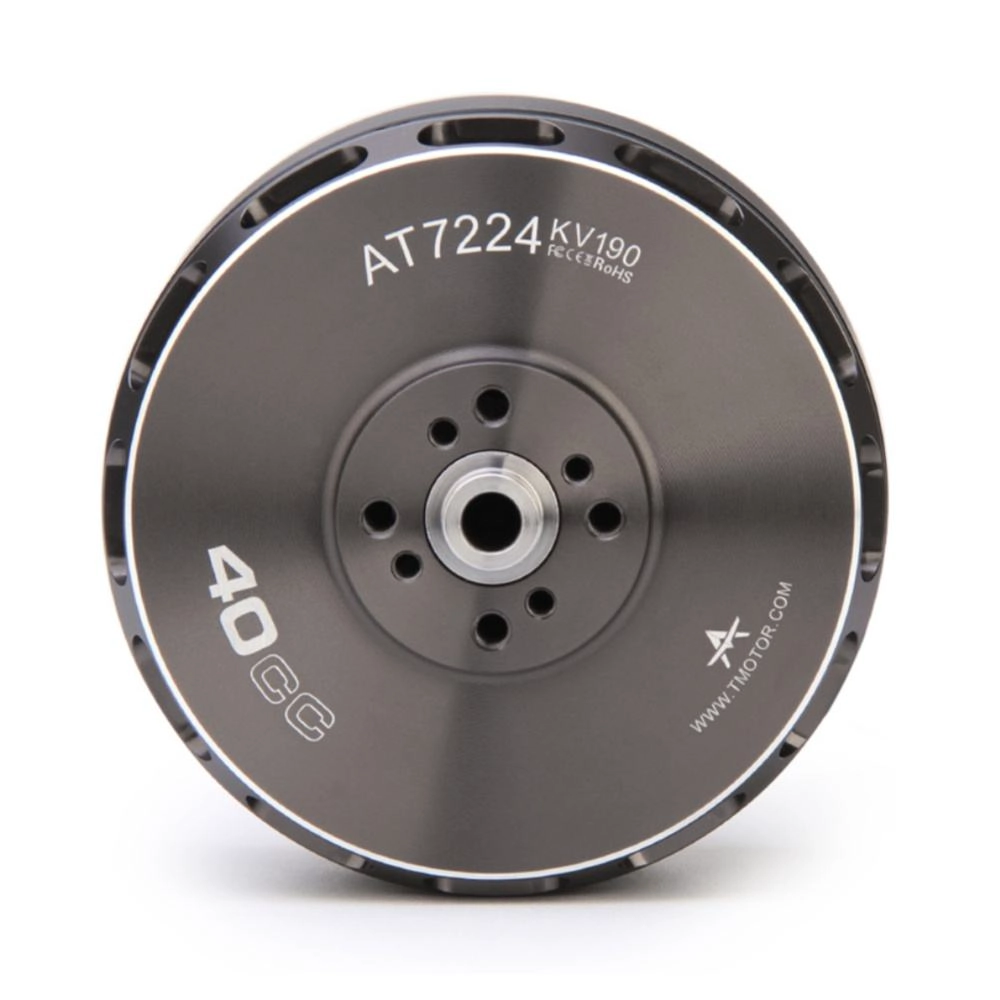

AT7224 T-MOTOR Long Shaft Brushless DC High Thrust Fixed Wing Drone Motor
The AT7224 is a high-end brushless DC motor for fixed-wing and VTOL UAVs, delivering up to 6000W power and 17.72kg thrust for 40CC aircraft. It features a detachable propeller mount, 220℃ heat-resistant wiring, efficient heat dissipation, and anti-loose design, ensuring reliable performance and extended service life.
More
-
-

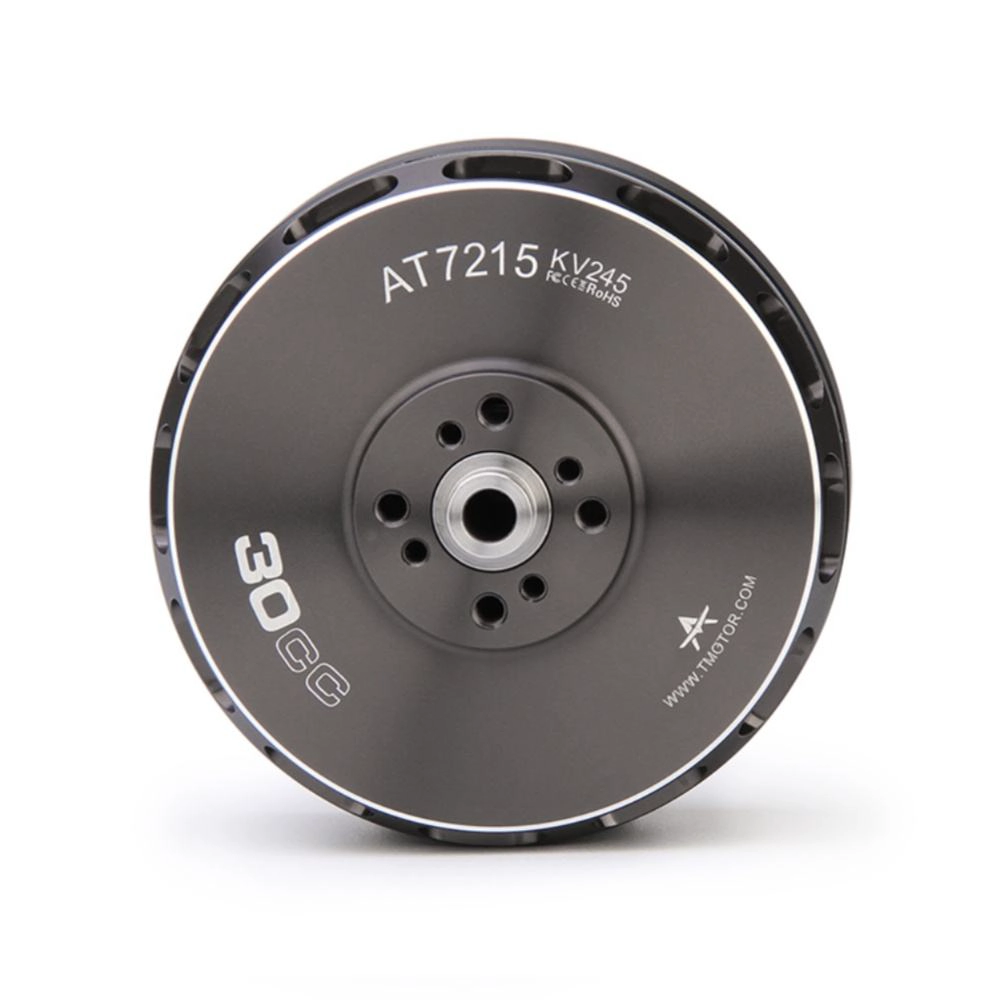

AT7215 30CC T-MOTOR Brushless DC VTOL UAV Fixed Wing Aircraft Motor for Drone
The T-Motor AT7215 30CC is a high-end brushless motor tailored for outdoor VTOL and fixed-wing UAVs. Boasting a max power of 5000W, it delivers robust power for 30-40CC aircraft. With versatile propeller mounting, efficient heat dissipation, dual anti-loosening design, and stable control, it ensures safe, durable, and smooth flight performance, supporting 8-12S lipos and matching AT115A ESC.
More
-
-

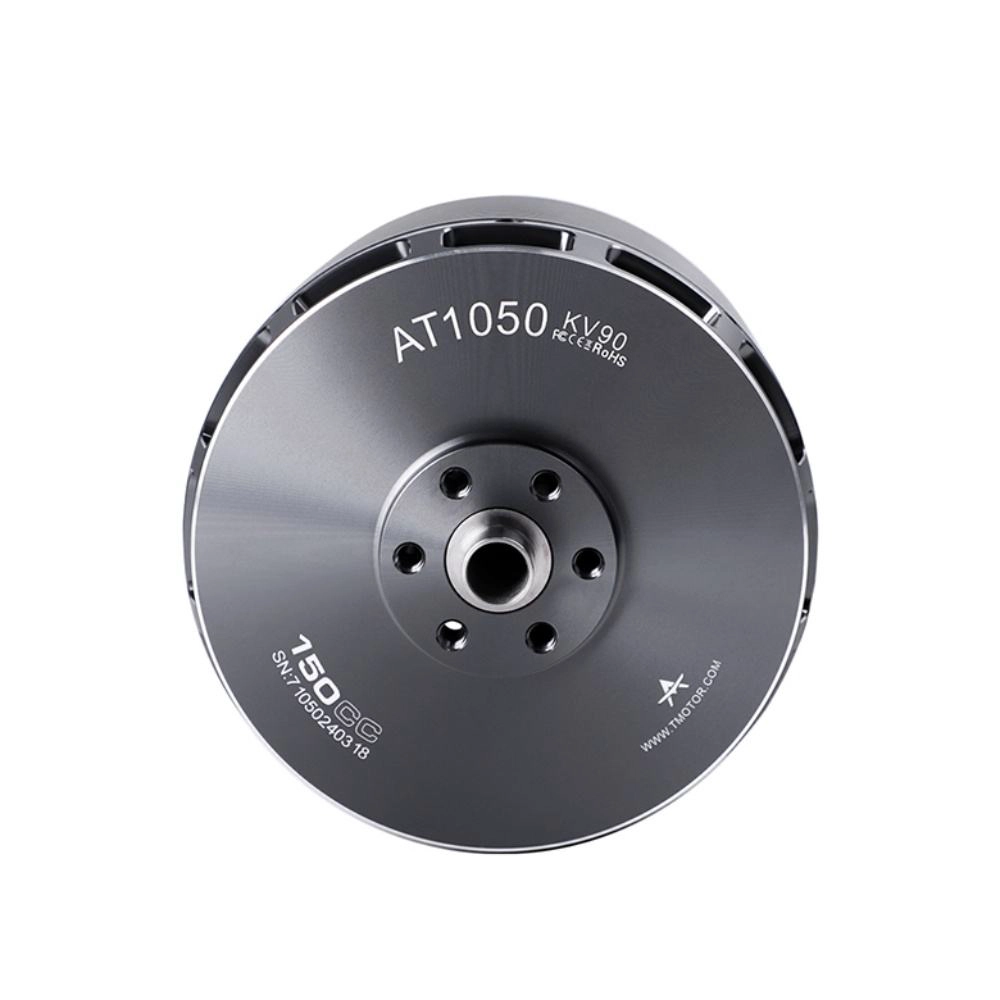

AT1050 150CC T-MOTOR Heavy Duty High Power Brushless Motor
The T-Motor AT1050 is a high-performance brushless DC motor designed for fixed-wing and VTOL UAVs. With a 24S power system, max 8000W output and 36kg thrust, it efficiently replaces 150CC engines. Featuring low noise, reliable cooling, and versatile mounting options, it ensures stable flight and safe operation for heavy-lift drone applications.
More
-
-

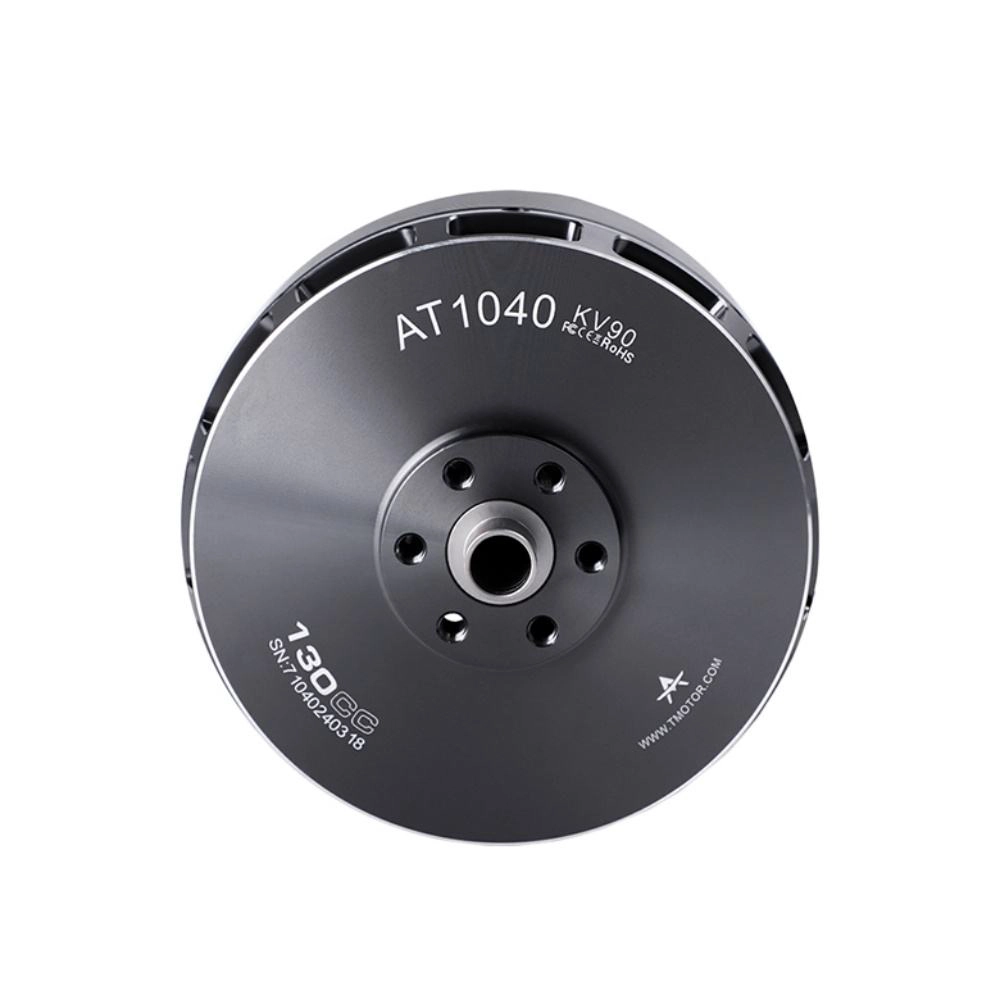

AT1040 130CC T-MOTOR DC High Payload Capacity Motor Brushless Drone Motor
The T-Motor AT1040 is a high-performance brushless DC motor designed for fixed-wing and VTOL UAVs. With a 24S configuration, it delivers up to 6000W power and 32kg thrust, featuring reliable metal construction and certifications (CE, ROHS, FCC, ISO). Ideal for heavy-lift industrial drone applications.
More
-
-

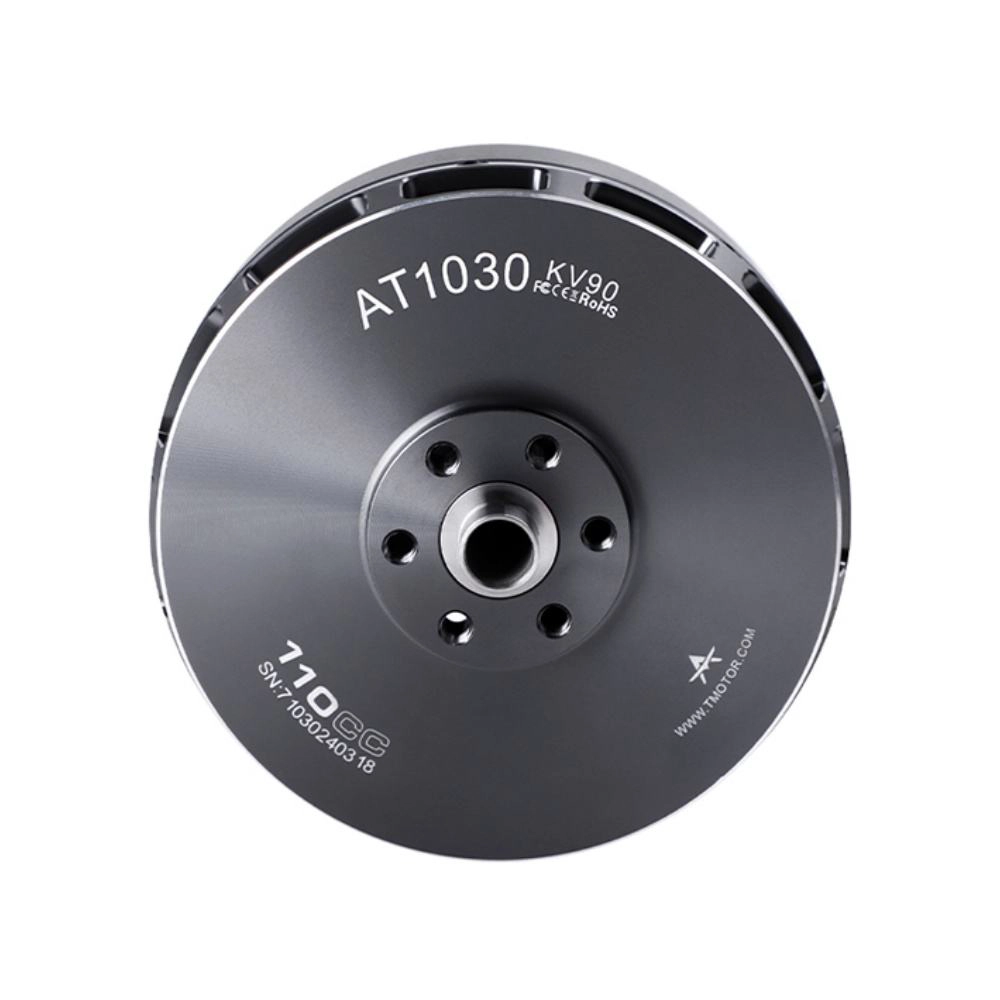

AT1030 110CC T-MOTOR Powerful Brushless BLDC Load Basic Fixed Wing Drone Motor
The T-Motor AT1030 is a high-performance brushless DC motor designed for fixed-wing and VTOL UAVs, offering a max thrust of 28kg and 4000W power. It features low noise, efficient heat dissipation, and durable construction, ideal as a 110cc engine alternative. Certified CE, ROHS, FCC, and ISO, it ensures reliable, long-lasting operation for professional unmanned aerial applications.
More
-
-
VAT4130 Long Shaft Fixed Wing VTOL Motor
VX-Motor VAT4130 Long Shaft Motor
A professional long-shaft motor engineered for Fixed-Wing VTOL. Delivers the perfect blend of high thrust for takeoff and maximum efficiency for long-endurance flight.
More
-
-
VAM600 Fixed Wing Brushless Motor Stronger, Lighter, Cooler
VX-Motor VAM600 Fixed Wing Motor
The definitive motor for elite 3D aerobatics. Engineered to be stronger, lighter, and cooler, it delivers the ultimate advantage in power and precision.
More
