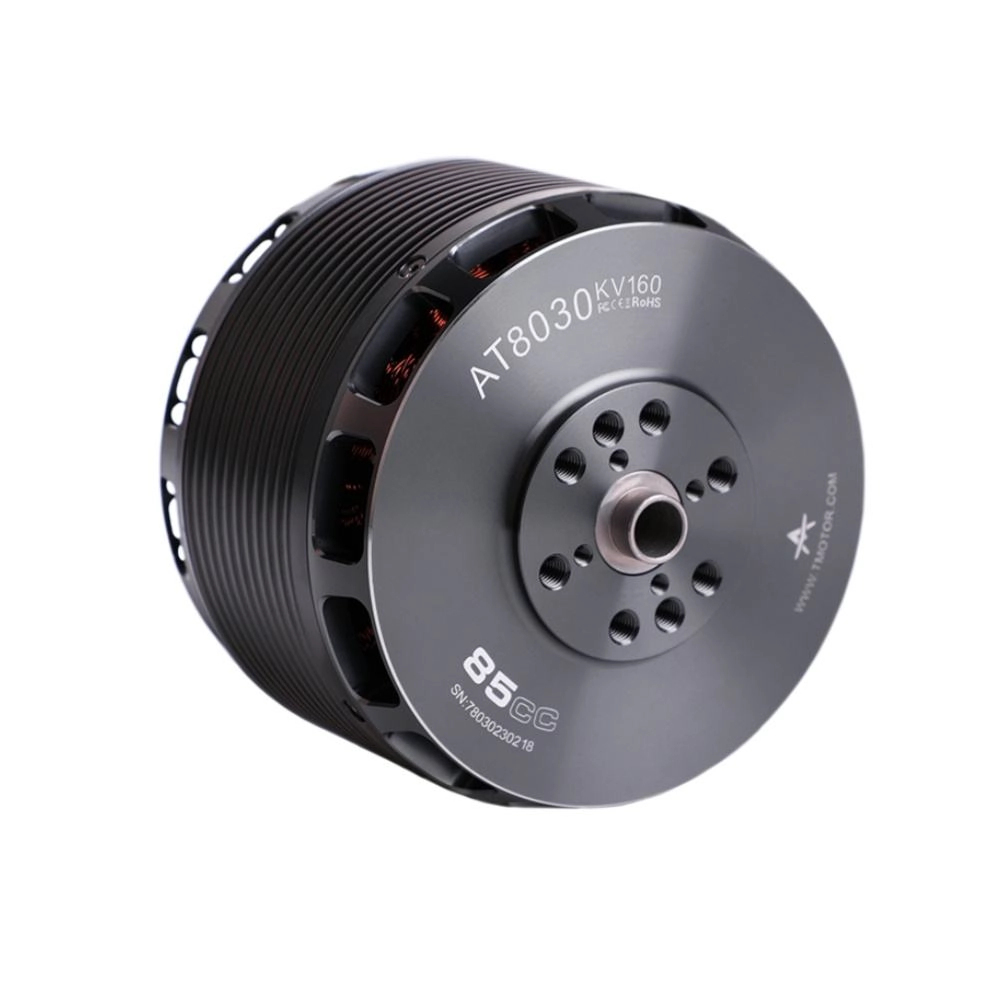

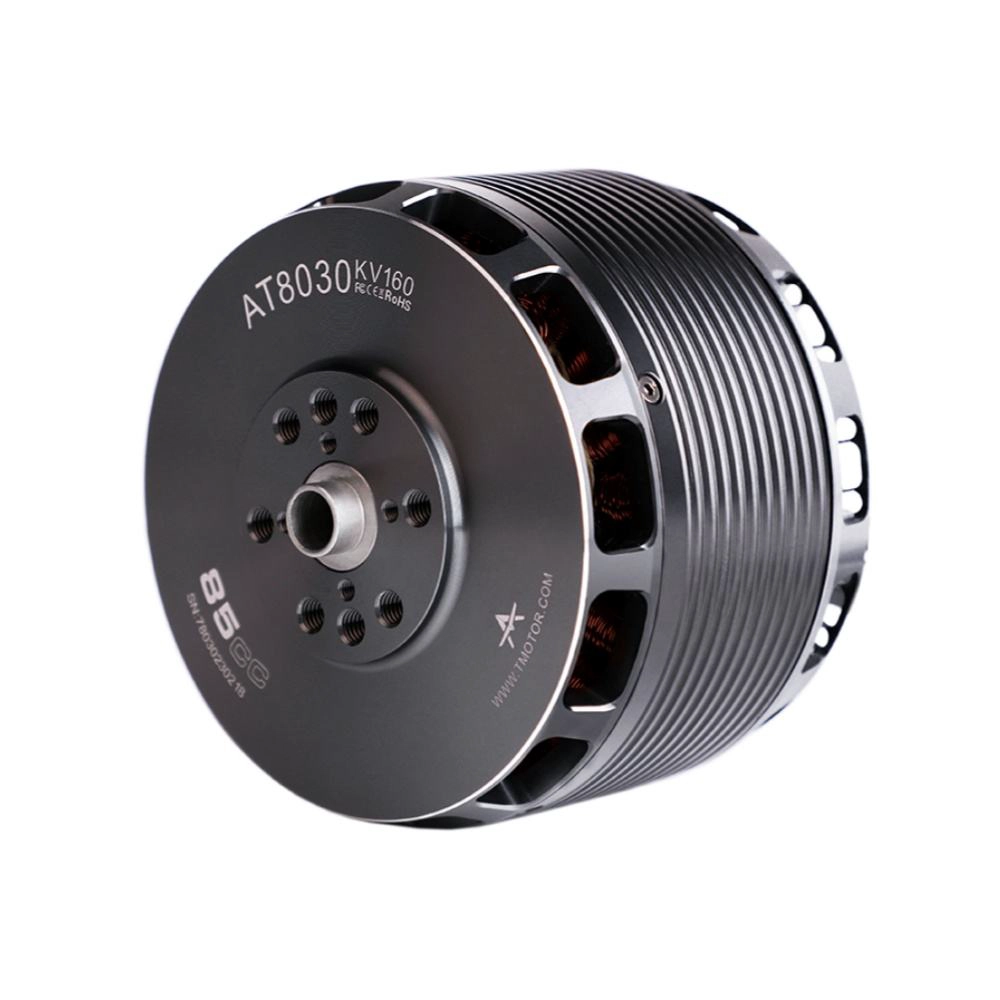

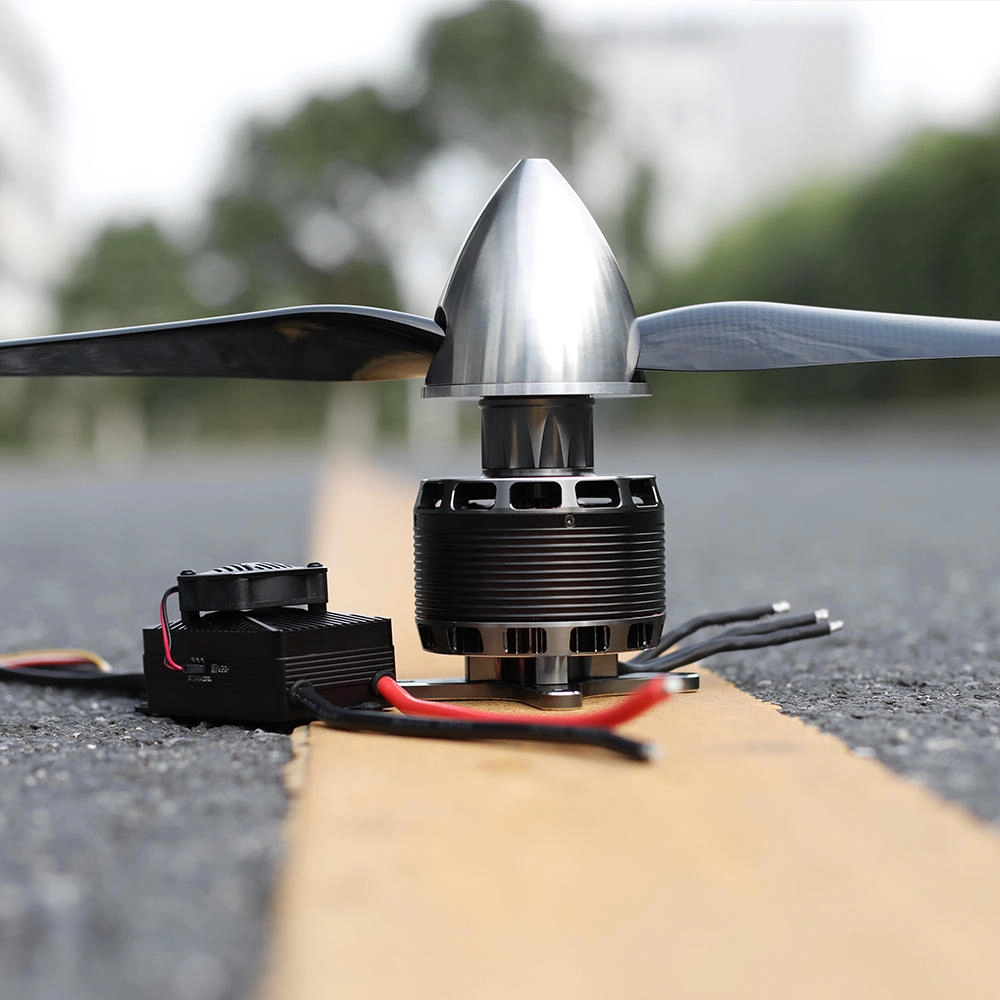

AT8030 is a hi-end motor suitable for VTOL UAV fixed wings with a wingspan of 3.5-4.2m and a take-off weight of about 55kg.
Its 1100g weight can produce a powerful motor with a maximumthrust of 25kg. The maximum power is 6800w. It is suitable for 10-12s and AT195A ESC.

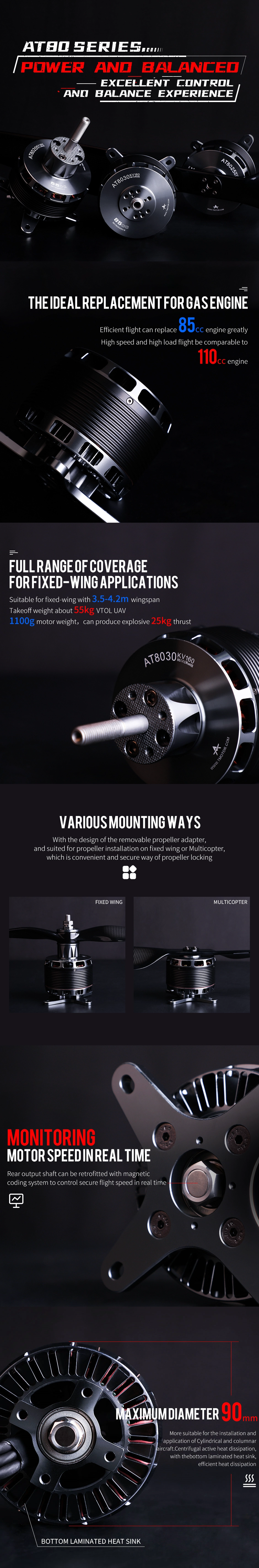

AT8030 85CC Highlights:
1.AT8030 can replace the 85cc engine in high-efficiency flight conditions, and can replace the 110cc engine in high-speed and high-load flight conditions.
2.The detachable propeller seat is suitable for the installation of fixed-wing and multi-rotor props, providing convenient and safe propeller locking. Method
3.The rear output shaft can pretend to be a magnetic braiding system and try to control the safe flight speed.

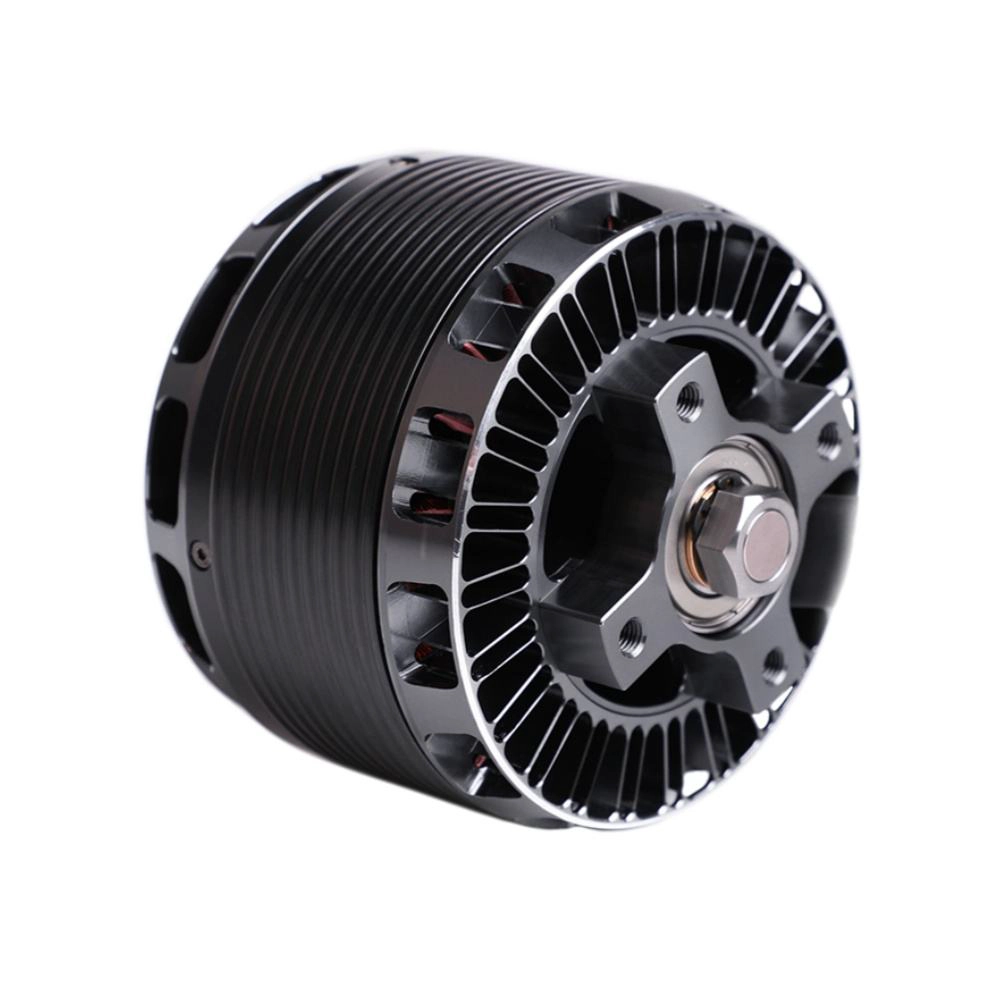

4.Use centrifugal active heat dissipation and fit the heat sink at the bottom of the motor for efficient heat dissipation.

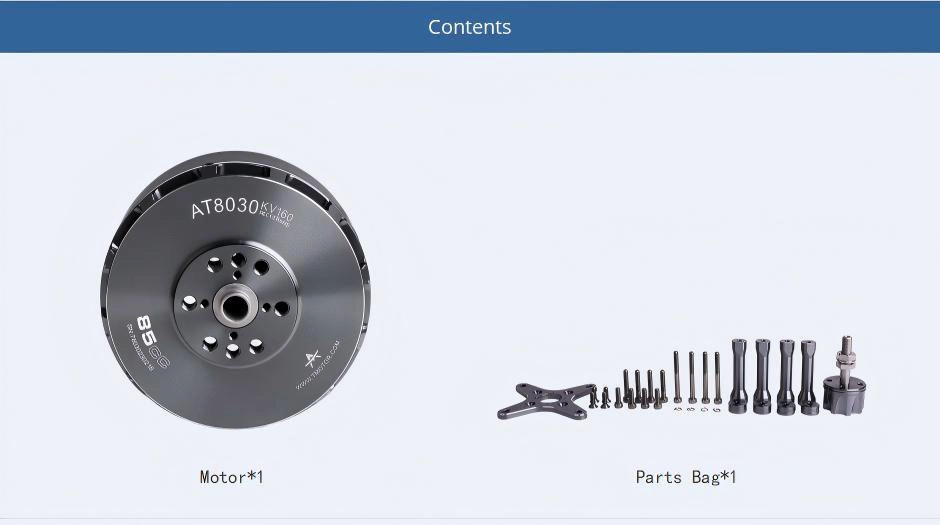

Packing List Includes:
1x T-Motor AT8030 Motor
1x Hardware Kit

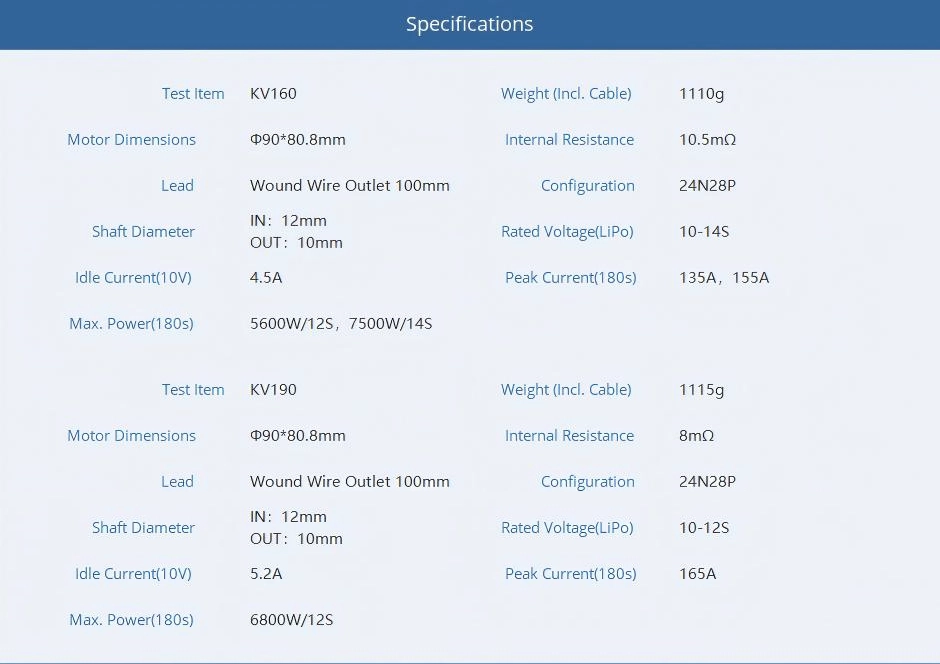

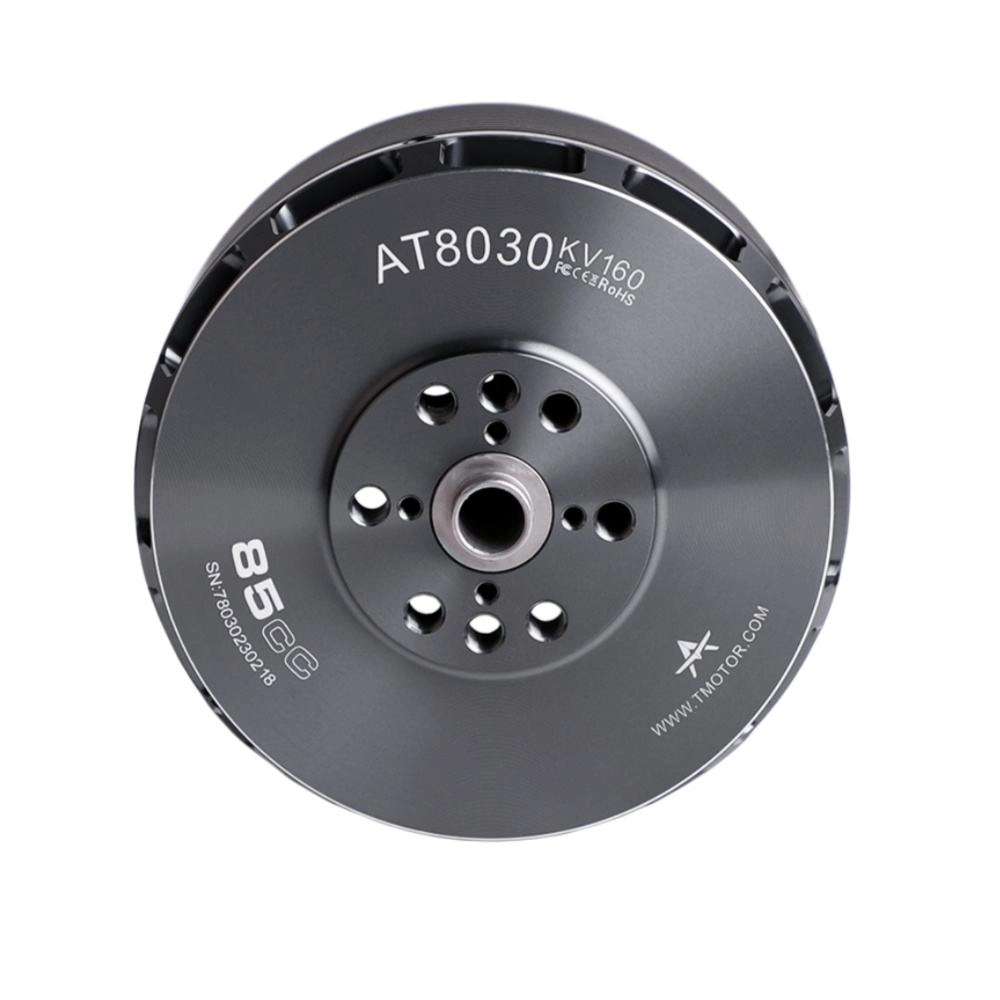

| AT8030 KV160 | |

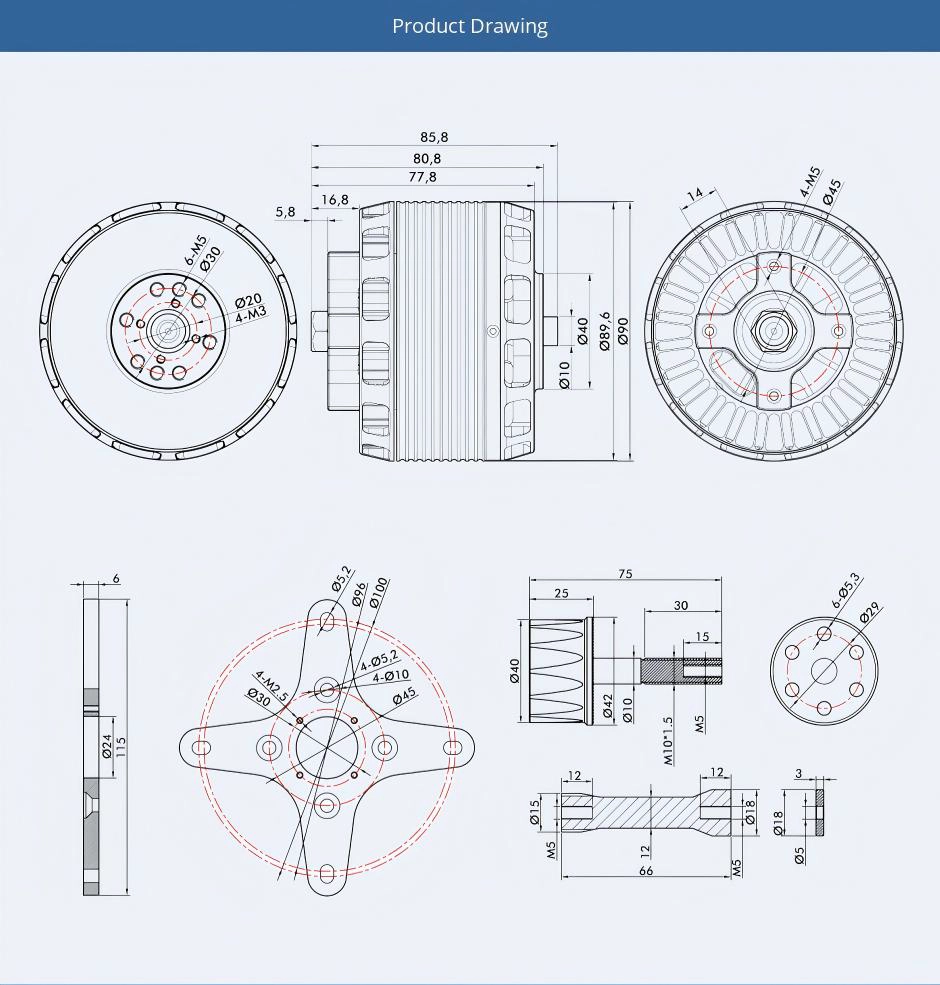

| Motor Size(mm) | Φ90*80.8mm |
| Lead | Enameled Wire 100mm |
| Shaft Diameter | IN：12mm OUT：10mm |
| Idle Current(10V) | 4.5A |
| Max. Power(180s) | 5600W/12S，7500W/14S |
| Weight (Incl. Cable) | 1110g |
| Internal Resistance | 10.5mΩ |
| Configuration | 24N28P |
| Rated Voltage(Lipo) | 10-14S |
| Peak Current(180s) | 135A，155A |
| AT8030 KV190 | |
| Motor Size(mm) | Φ90*80.8mm |
| Lead | Enameled Wire 100mm |
| Shaft Diameter | IN：12mm OUT：10mm |
| Idle Current(10V) | 5.2A |
| Max. Power(180s) | 6800W/12S |
| Weight (Incl. Cable) | 1115g |
| Internal Resistance | 8mΩ |
| Configuration | 24N28P |
| Rated Voltage(Lipo) | 10-12S |
| Peak Current(180s) | 165A |
