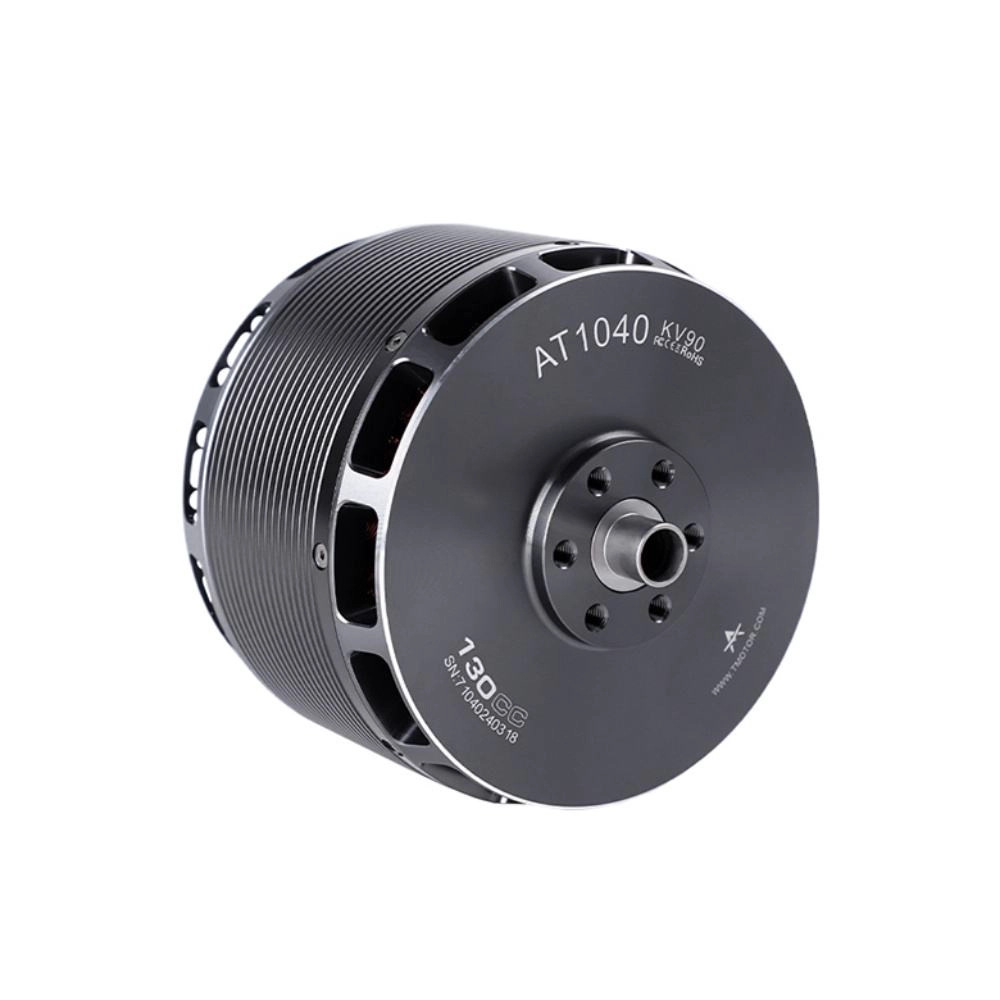

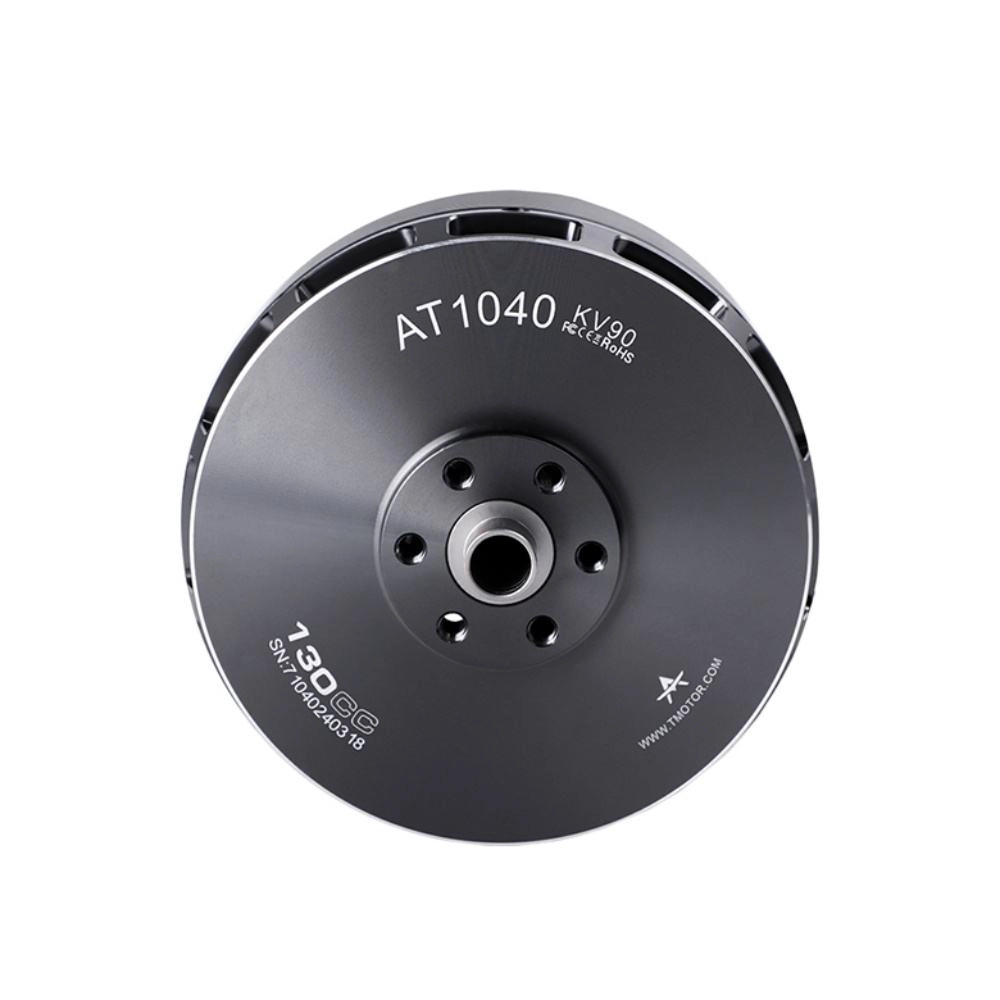

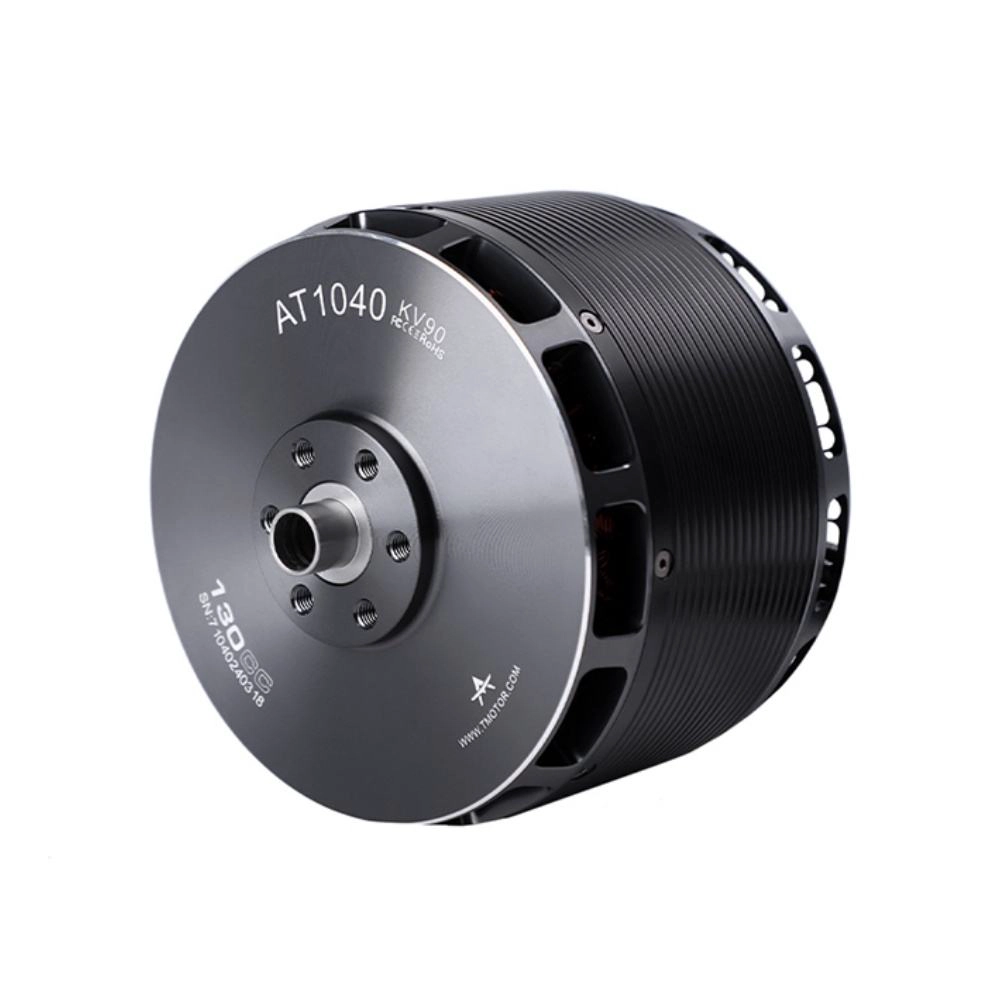

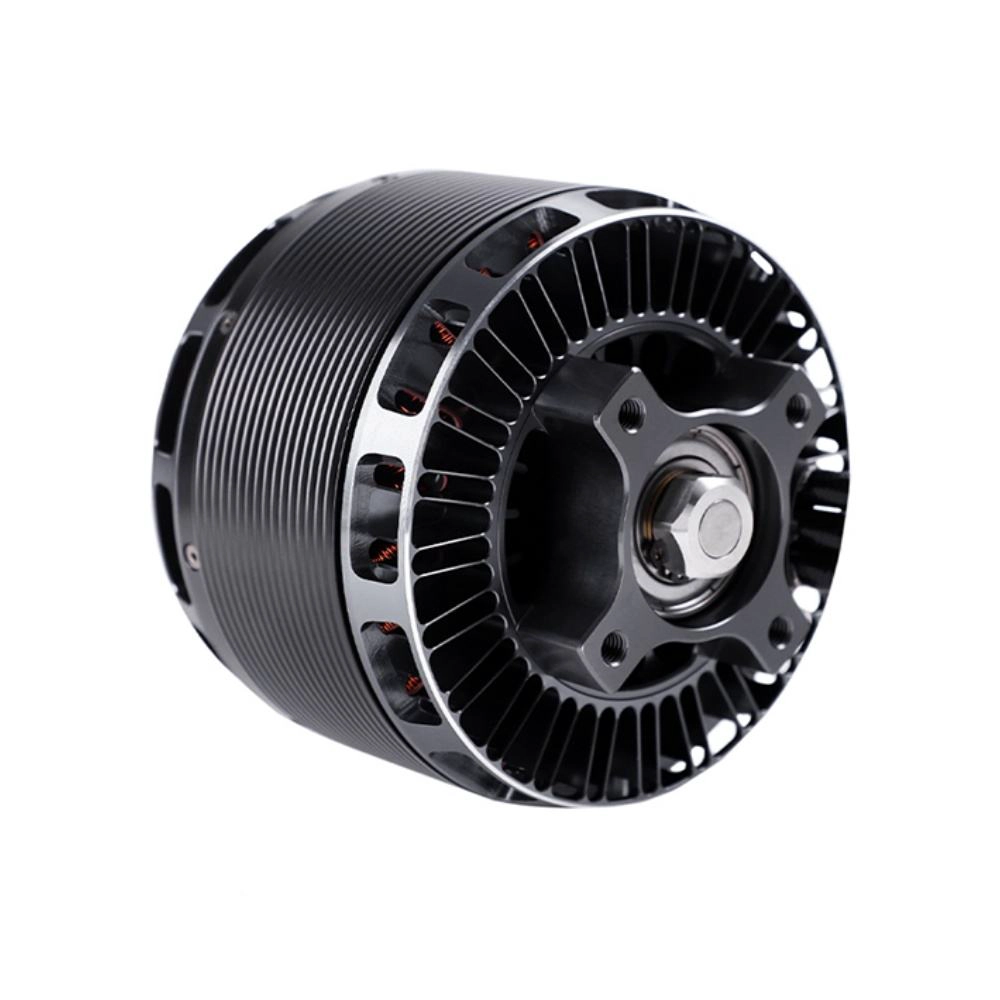

AT1040 130CC T-MOTOR DC High Payload Capacity Motor Brushless Drone Motor

1.KV90

The T-Motor AT1040 is a high-performance brushless DC motor built for fixed‑wing and VTOL UAVs. As a high power brushless motor, it adopts a 24S design, delivering up to 6000W power and 32kg thrust. With sturdy metal structure and CE, ROHS, FCC, ISO certifications, it serves as a dependable industrial drone motor perfect for heavy‑lift industrial applications.

AT1040 130CC Highlights:

- Suitable for fixed-wing/VTOL UAVs
- 24S DC brushless design
- Peak power 6000W
- Max thrust 32kg
- Sturdy metal construction
- Multiple safety certifications
- Industrial heavy-duty use
- High reliability & long life

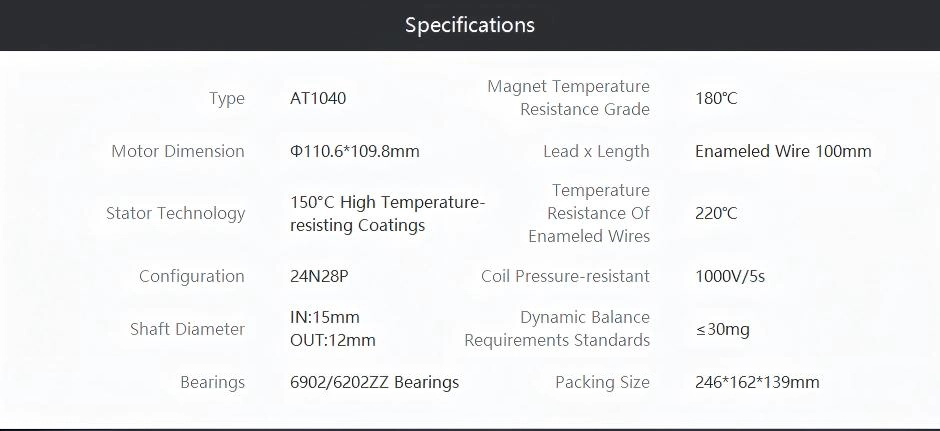

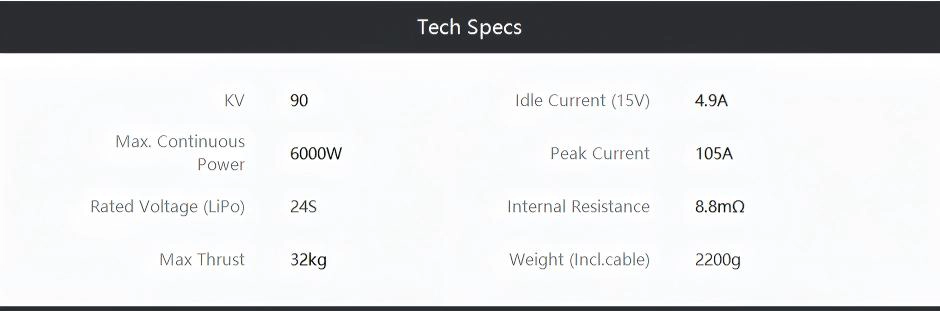

AT1040 KV90

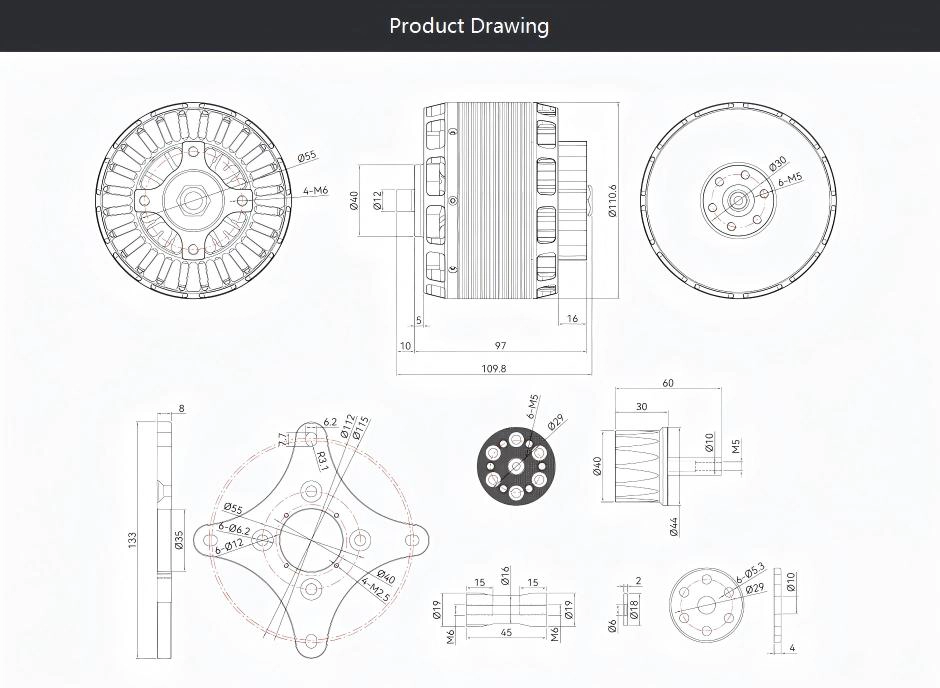

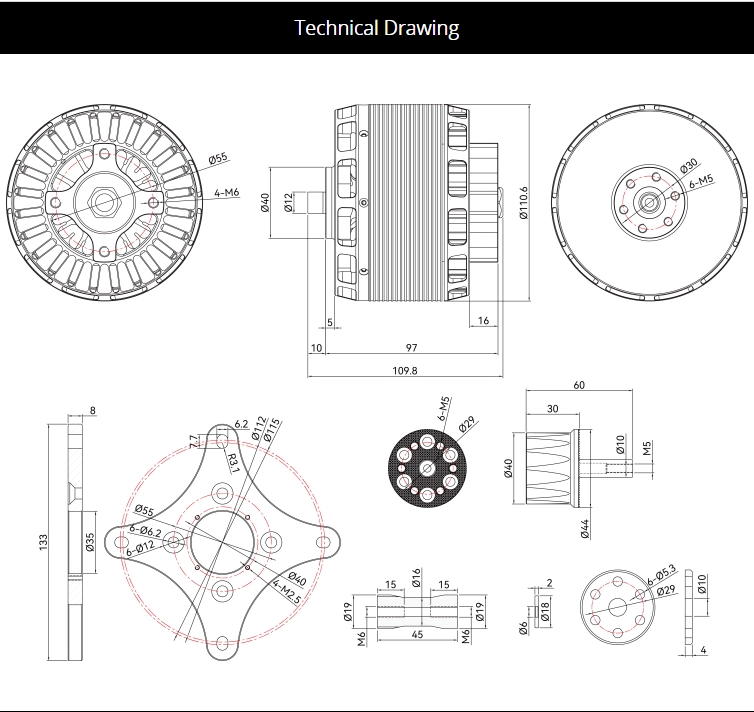

Motor Size(mm)	Φ110.6*109.8mm
Lead	Enameled Wire 100mm
Shaft Diameter	IN：15mm OUT：12mm
Idle Current (15V)	4.9A
Max. Power(180s)	6000W
Weight (Incl. Cable)	2200g
Internal Resistance	8.8mΩ
Configuration	24N28P
Rated Voltage(Lipo)	24S
Peak Current(180s)	105A
