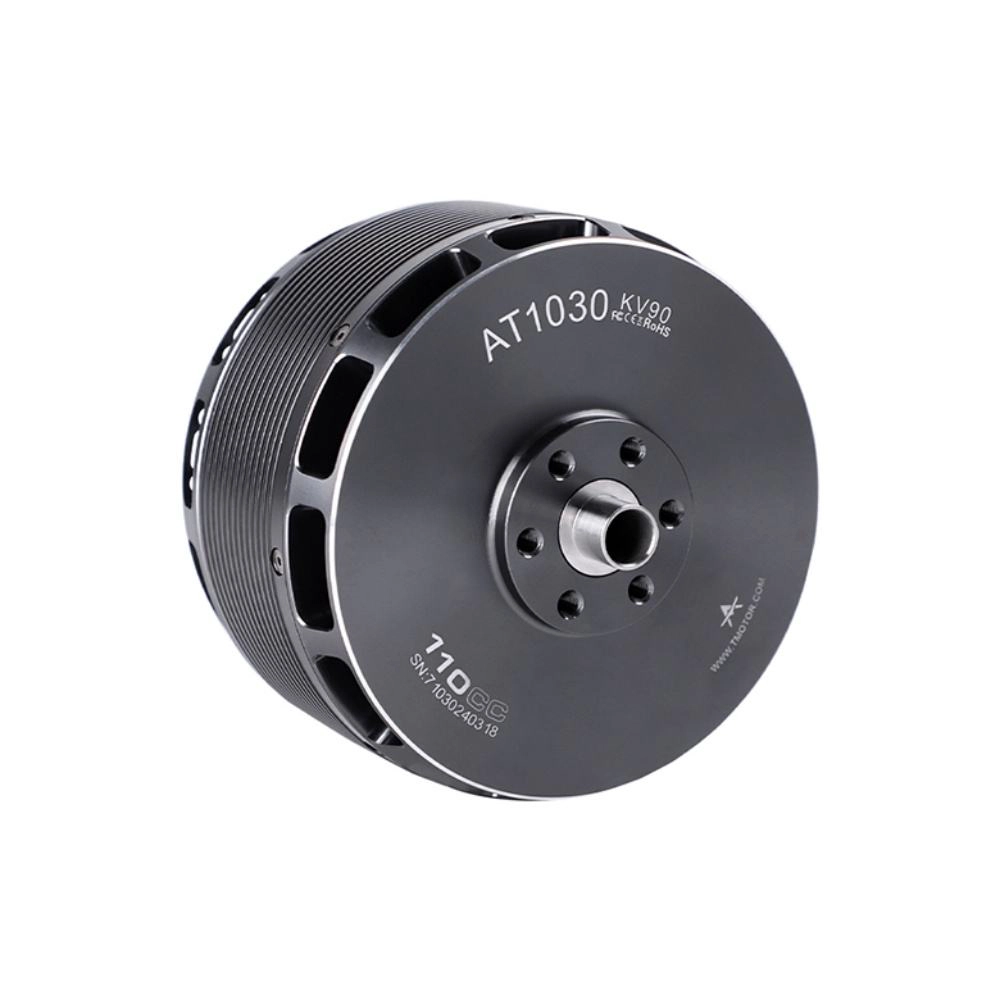

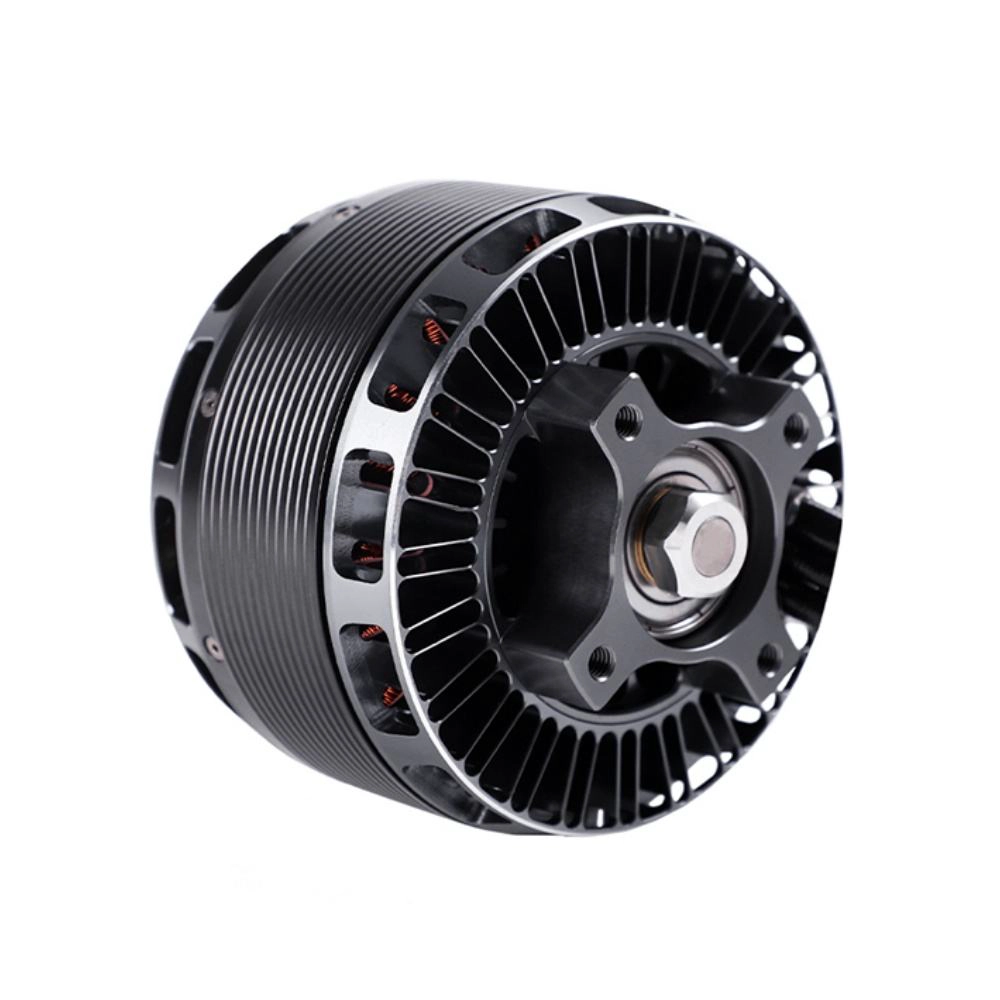

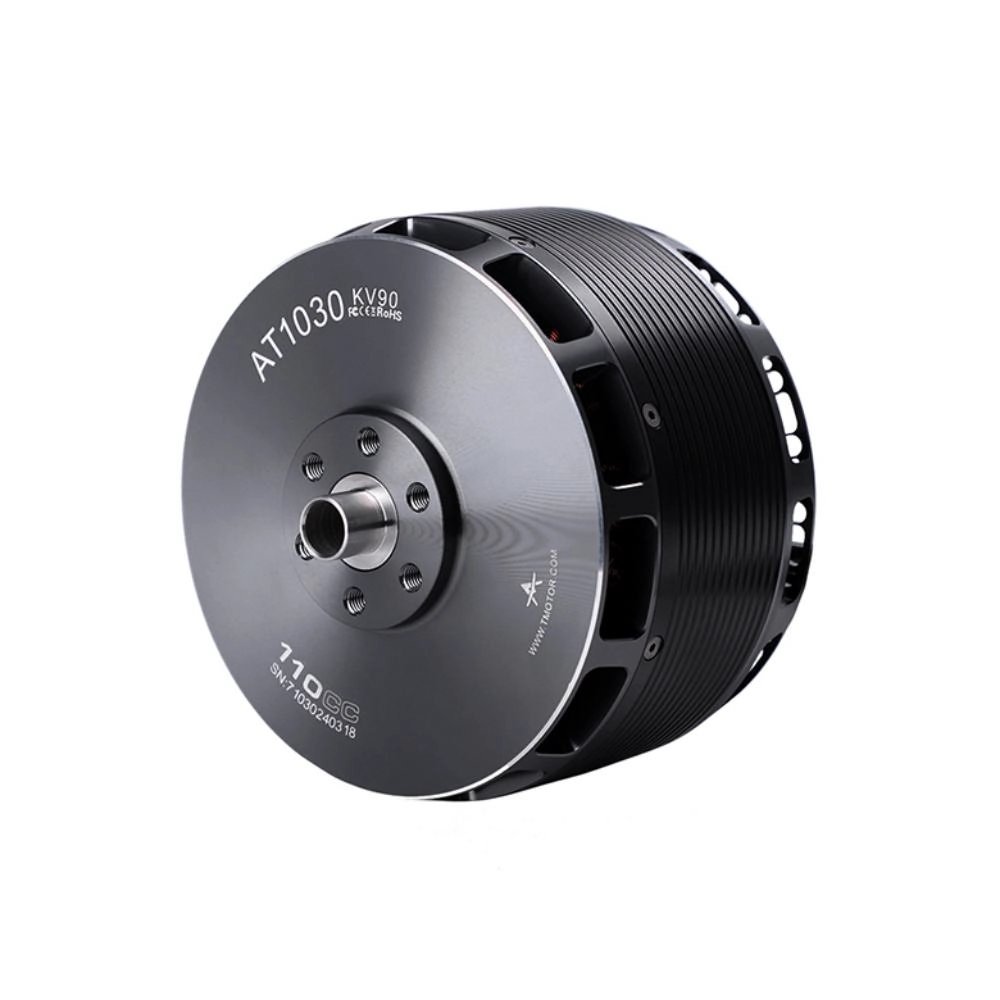

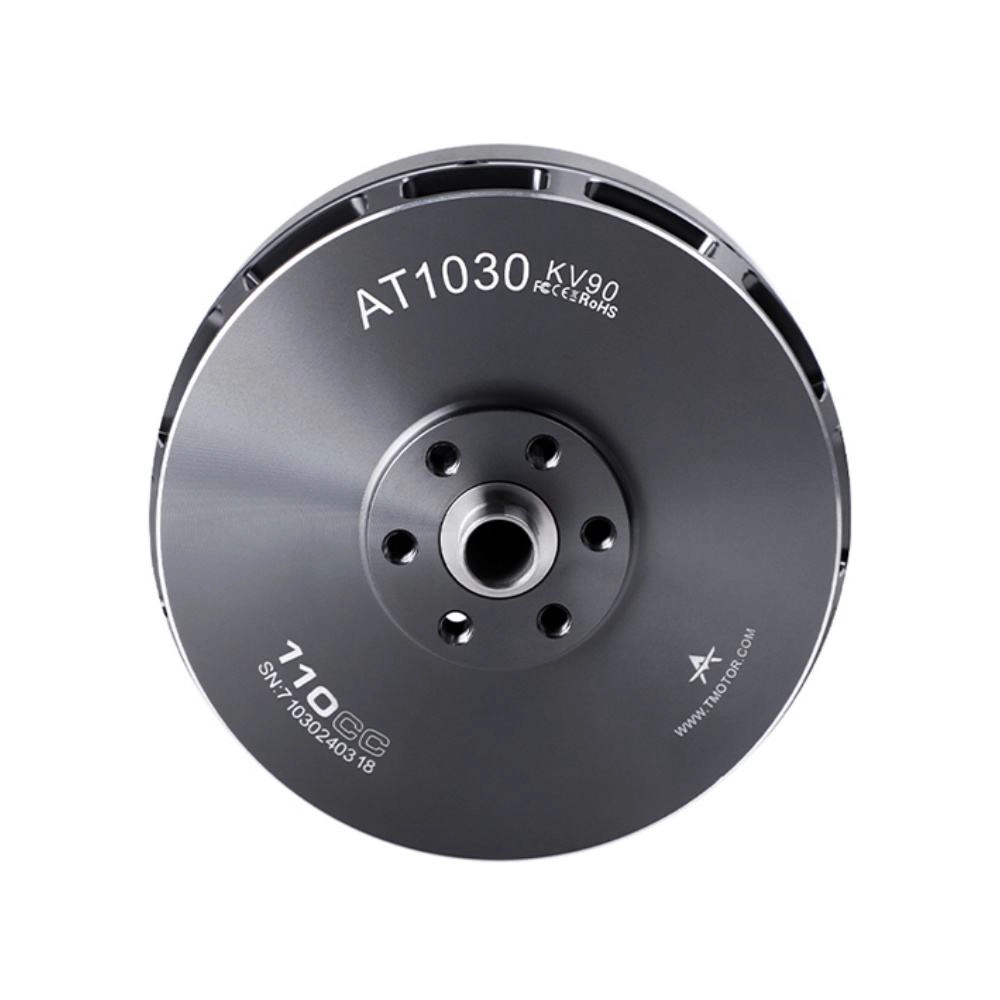

AT1030 110CC T-MOTOR Powerful Brushless BLDC Load Basic Fixed Wing Drone Motor

  • 1. KV90

The T-Motor AT1030 is a high-performance UAV motor and premium brushless DC motor built for fixed‑wing and VTOL UAV platforms. Delivering up to 28kg thrust and 4000W power, it combines low noise, excellent heat dissipation, and rugged build quality. As a reliable 110cc engine alternative, this long life brushless motor carries CE, ROHS, FCC, and ISO certifications, guaranteeing stable, long‑lasting performance for professional unmanned aerial applications.

AT1030 110CC Highlights:

* Suitable for fixed-wing/VTOL
* 110cc engine alternative
* Max thrust 28kg
* 4000W high power
* Low noise & high efficiency
* Long lifespan & reliability
* Multiple global certifications

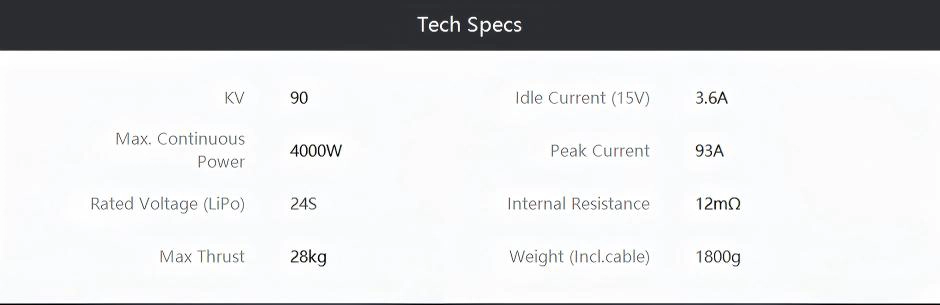

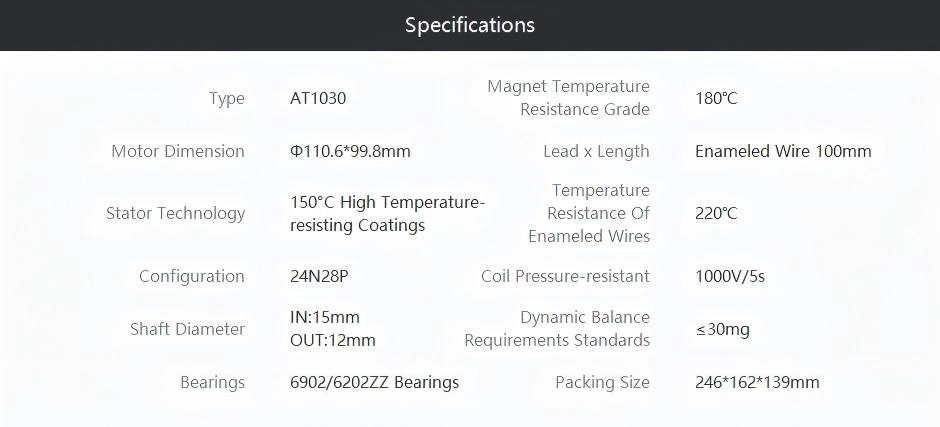

AT1030  KV90

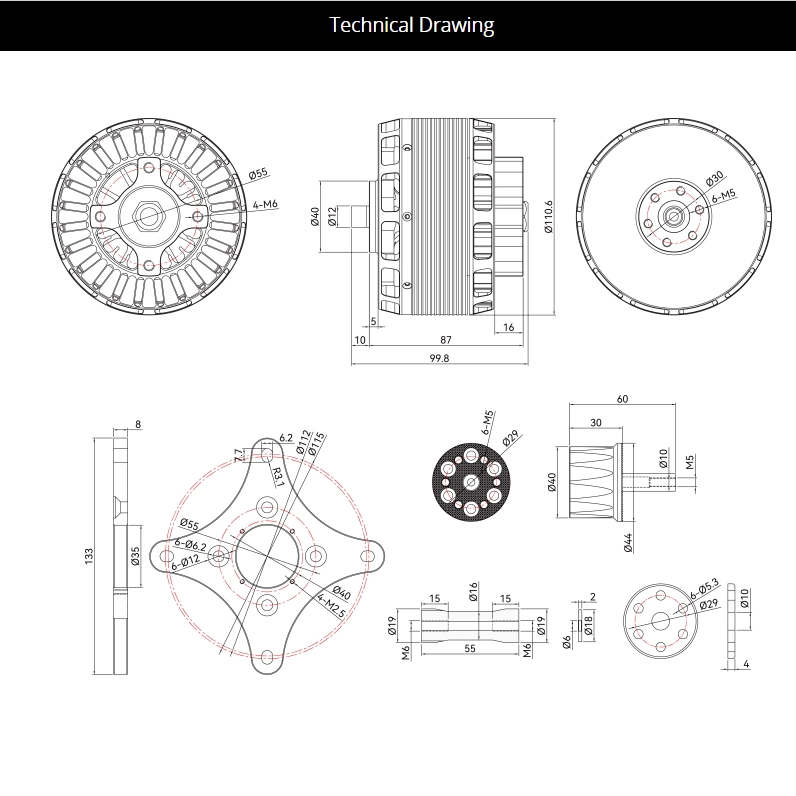

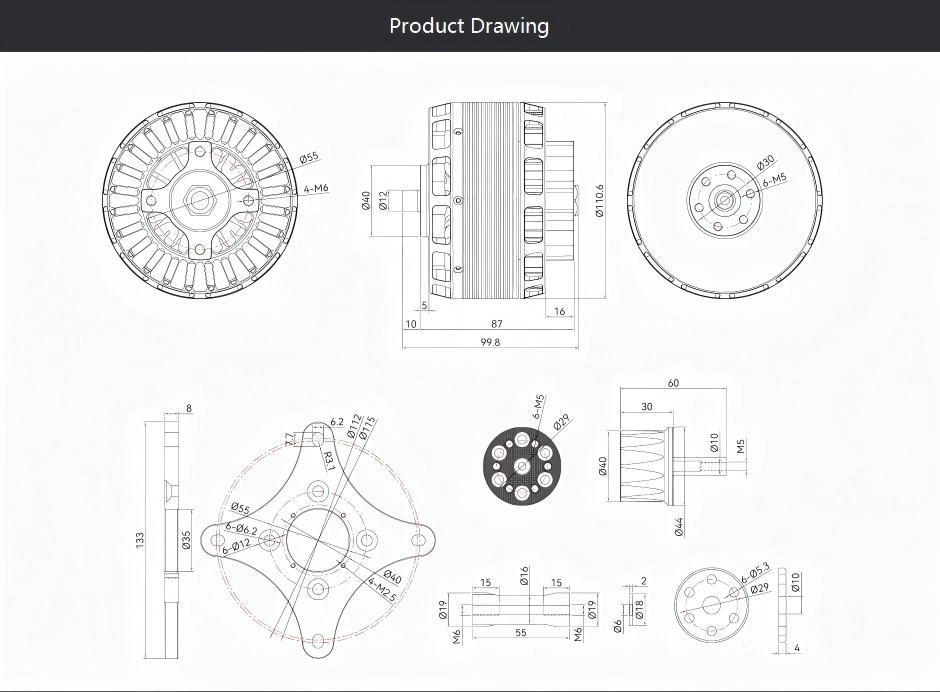

Motor Size A110.6*99.8mm
Configuration 24N28P
Shaft Diameter IN:15mm OUT:12mm
Bearing 6902/6202ZZ  Bearings
Lead Cable Enameled Wire 100mm
Coil Pressure-resistant 1000V/5s
Temperature Resistance Of Enameled Wires 220℃
Stator Technology 150℃ High Temperature-resisting Coatings
Dynamic Balance Requirements Standards ≦30mg
IP IP45
Internal Resistance 12mΩ
