AT8020 55CC T-MOTOR Powerful VTOL UAV Fixed Wing Aircraft Long Shaft MotorAT8020 55CC T-MOTOR Powerful VTOL UAV Fixed Wing Aircraft Long Shaft MotorAT8020 55CC T-MOTOR Powerful VTOL UAV Fixed Wing Aircraft Long Shaft MotorAT8020 55CC T-MOTOR Powerful VTOL UAV Fixed Wing Aircraft Long Shaft MotorAT8020 55CC T-MOTOR Powerful VTOL UAV Fixed Wing Aircraft Long Shaft MotorAT8020 55CC T-MOTOR Powerful VTOL UAV Fixed Wing Aircraft Long Shaft Motor

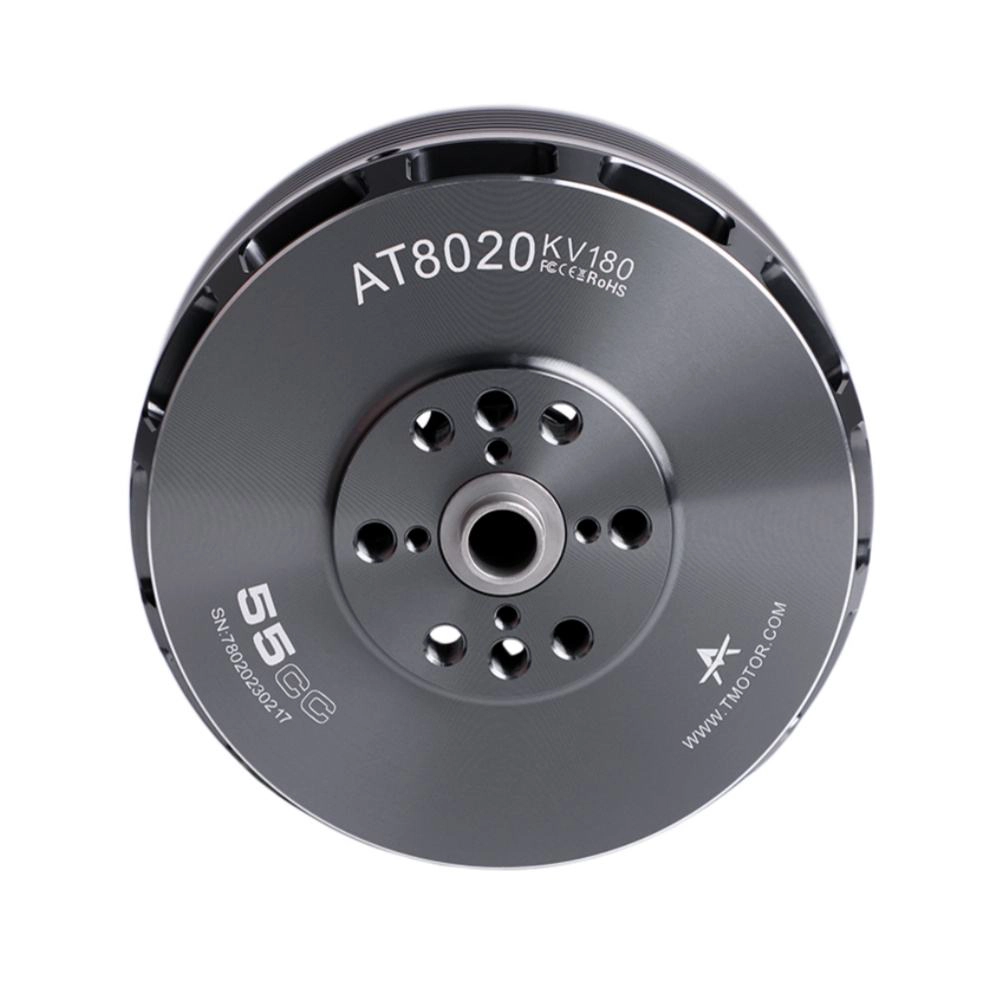

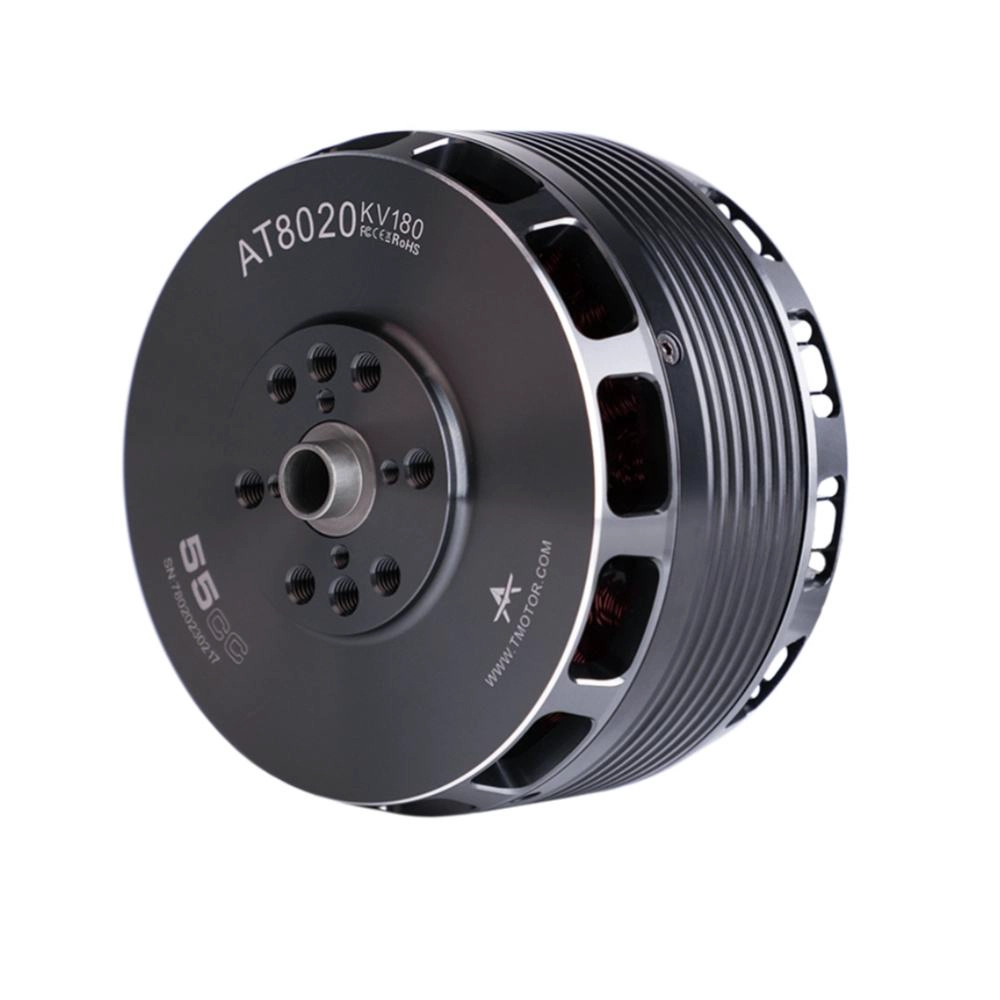

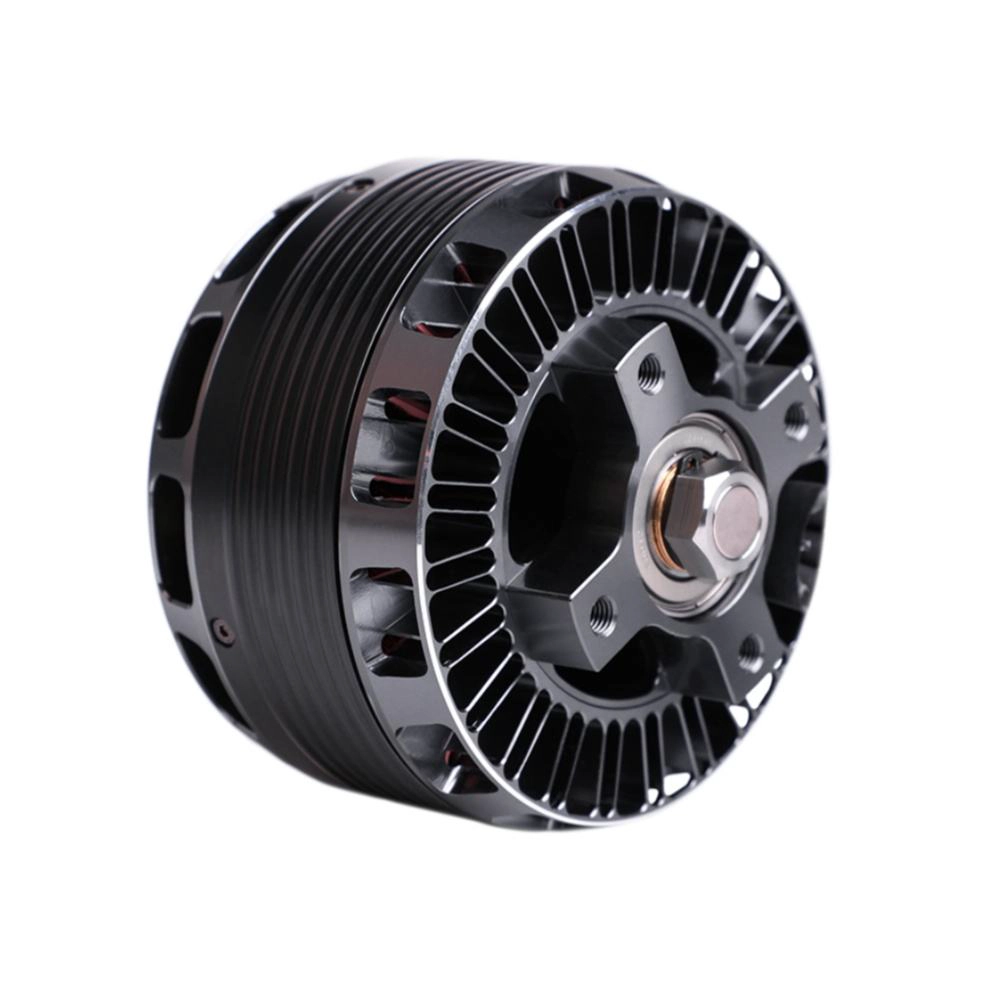

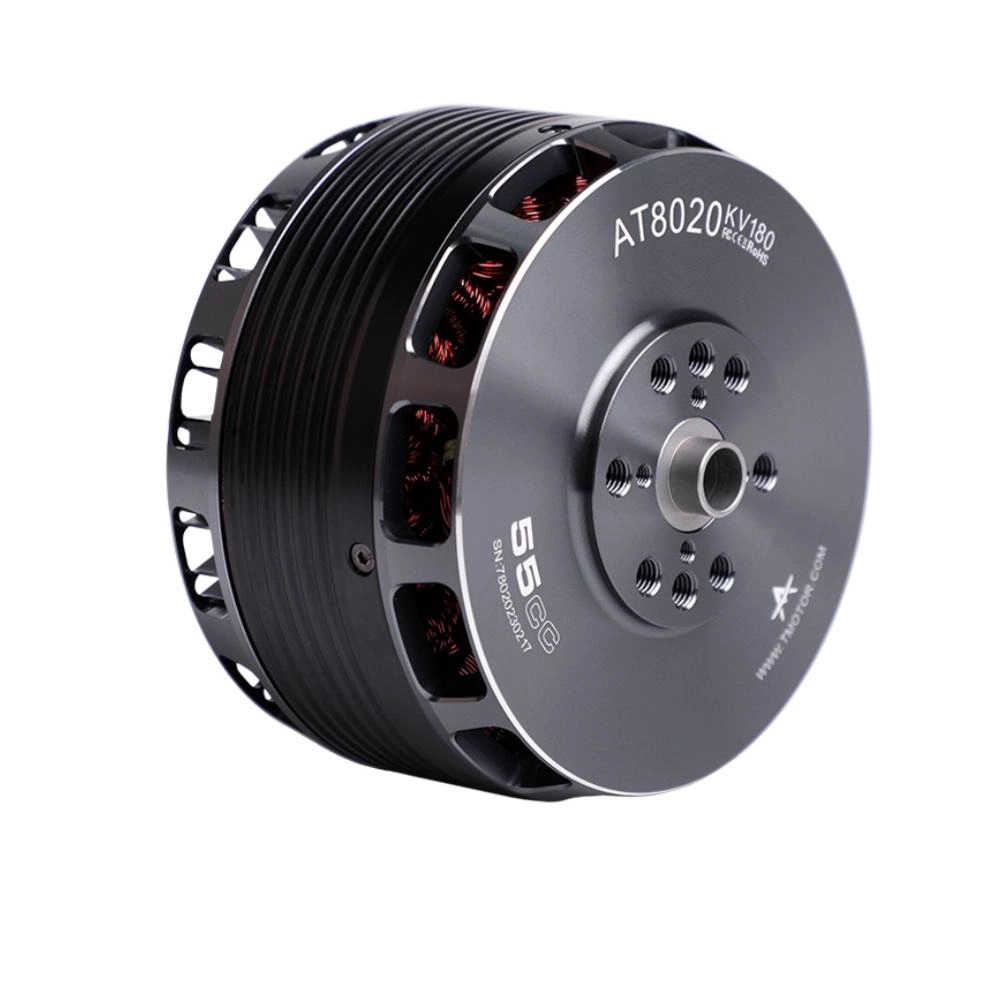

AT8020 55CC T-MOTOR Powerful VTOL UAV Fixed Wing Aircraft Long Shaft Motor

  • 1.KV180
  • 2.KV210

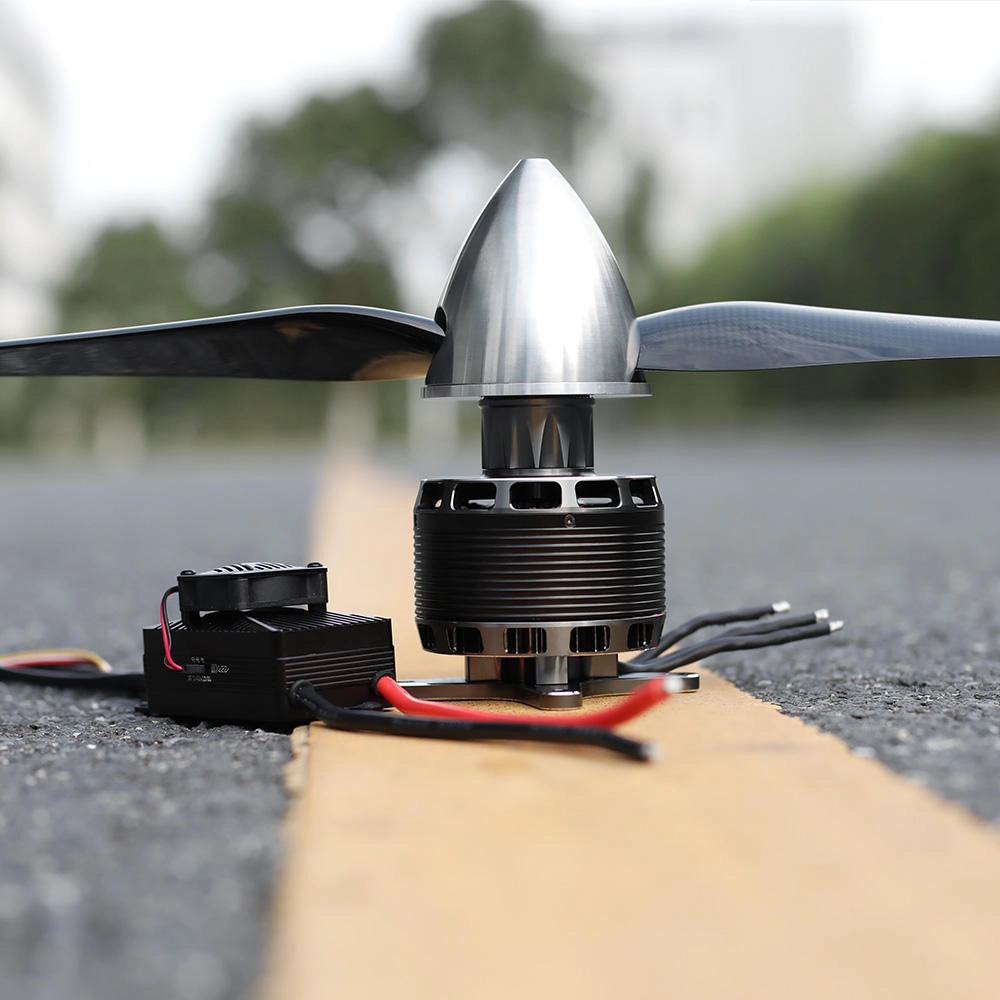

The T-Motor AT8020 is a high-end brushless DC motor for fixed-wing and VTOL UAVs, serving as an ideal Fixed wing UAV power motor and Large UAV brushless motor. With 18kg thrust and 5500W power, it delivers excellent performance as a High power density motor. It features efficient heat dissipation, versatile mounting and 10–12S battery compatibility for professional drone applications.

AT8020 55CC Highlights:

- Designed for fixed-wing/VTOL UAVs
- Max thrust: 18 kg
- Peak power: 5500 W
- Fits 2.2–3.3m wingspan
- Efficient heat dissipation
- Supports 10–12S LiPo
- Lightweight 870g body

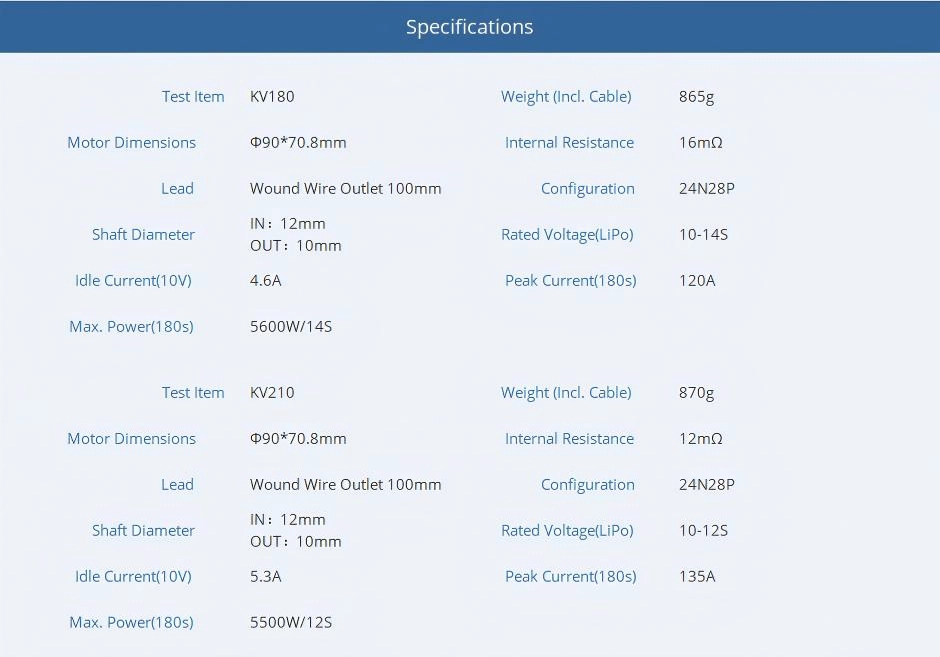

AT8020 KV180

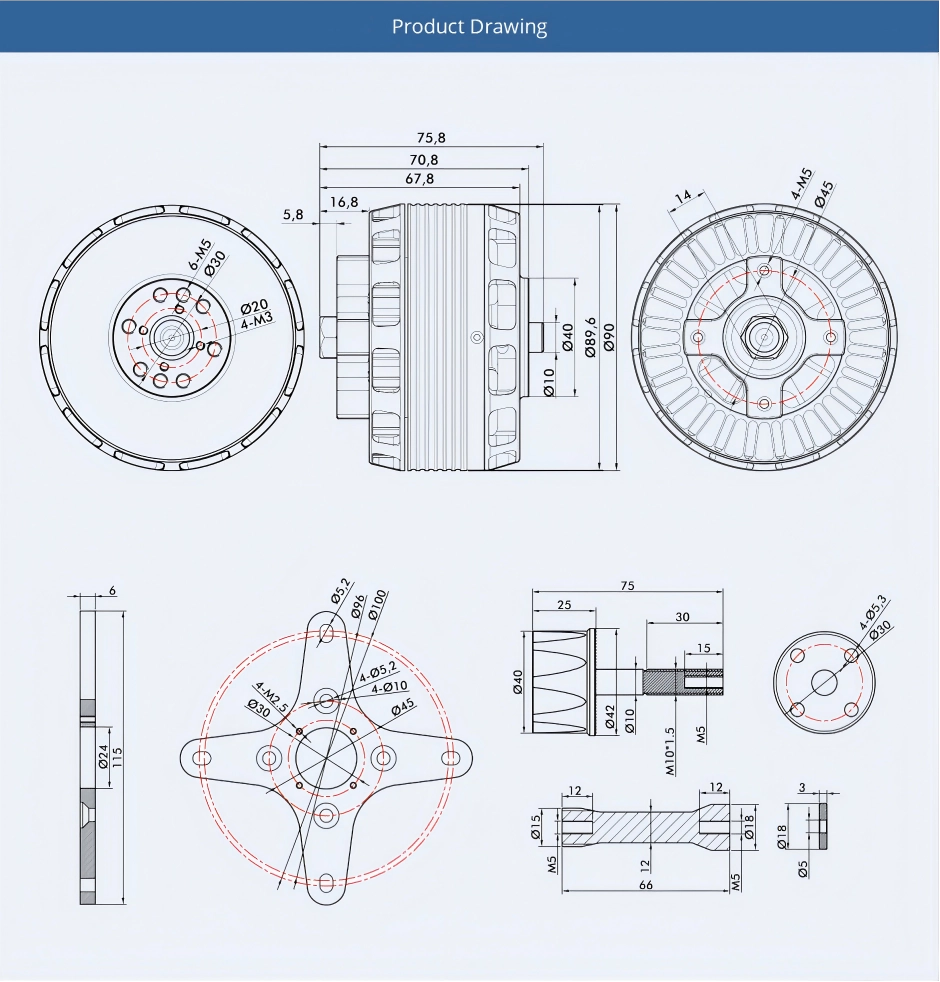

Motor Size(mm) Φ90*70.8mm
Lead Enameled Wire100mm
Shaft Diameter IN：12mm   OUT：10mm
Idle Current(10V) 4.6A
Max. Power(180s) 5600W/14S
Weight (Incl. Cable) 865g
Internal Resistance 16mΩ
Configuration 24N28P
Rated Voltage(Lipo) 10-14S
Peak Current(180s) 120A
AT8020 KV210
Motor Size(mm) Φ90*70.8mm
Lead Enameled Wire100mm
Shaft Diameter IN：12mm OUT：10mm
Idle Current(10V) 5.3A
Max. Power(180s) 5500W/12S
Weight (Incl. Cable) 870g
Internal Resistance 12mΩ
Configuration 24N28P
Rated Voltage(Lipo) 10-12S
Peak Current(180s) 135A
