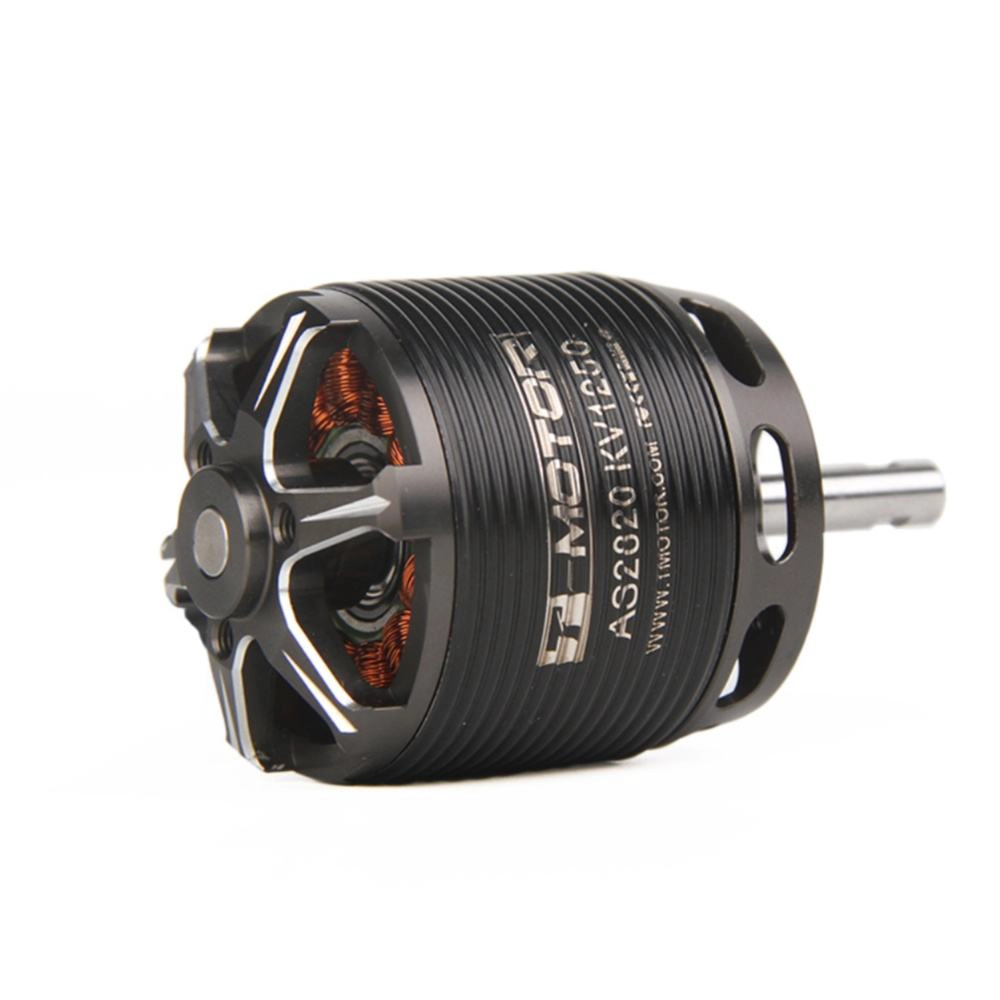

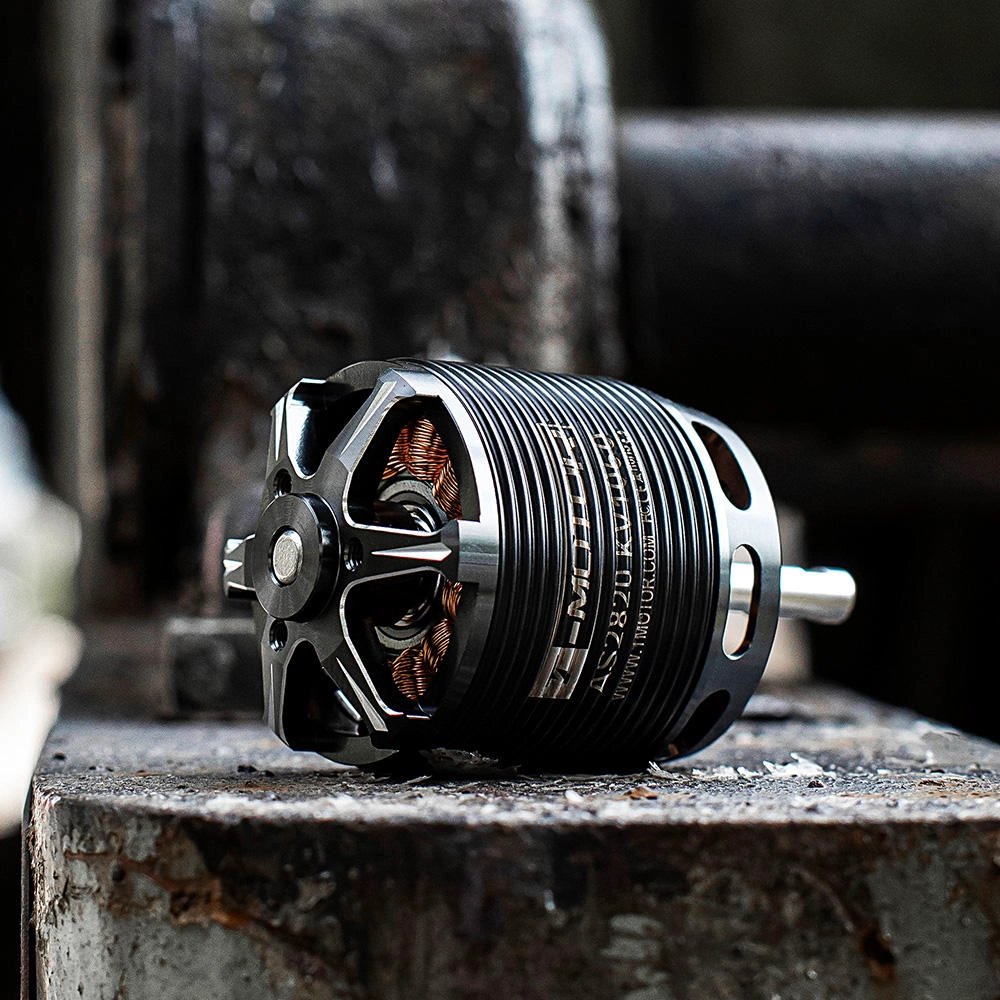

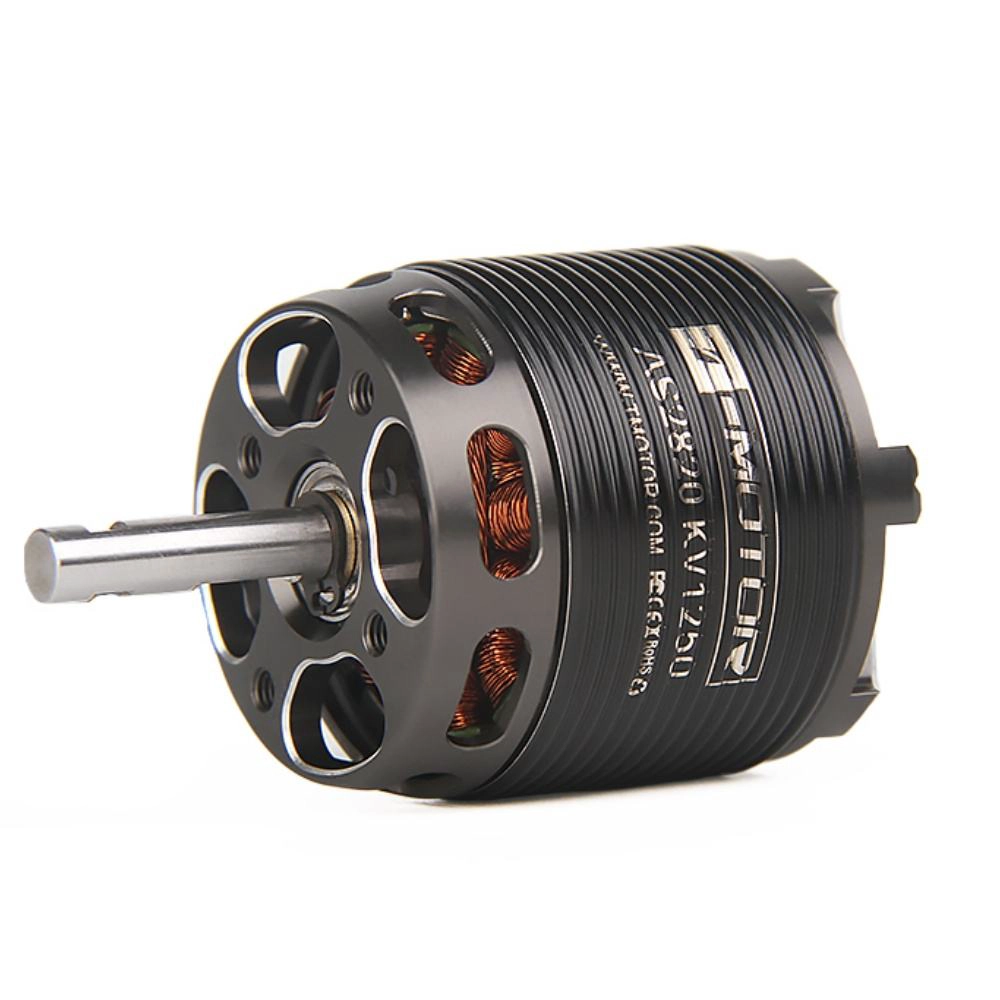

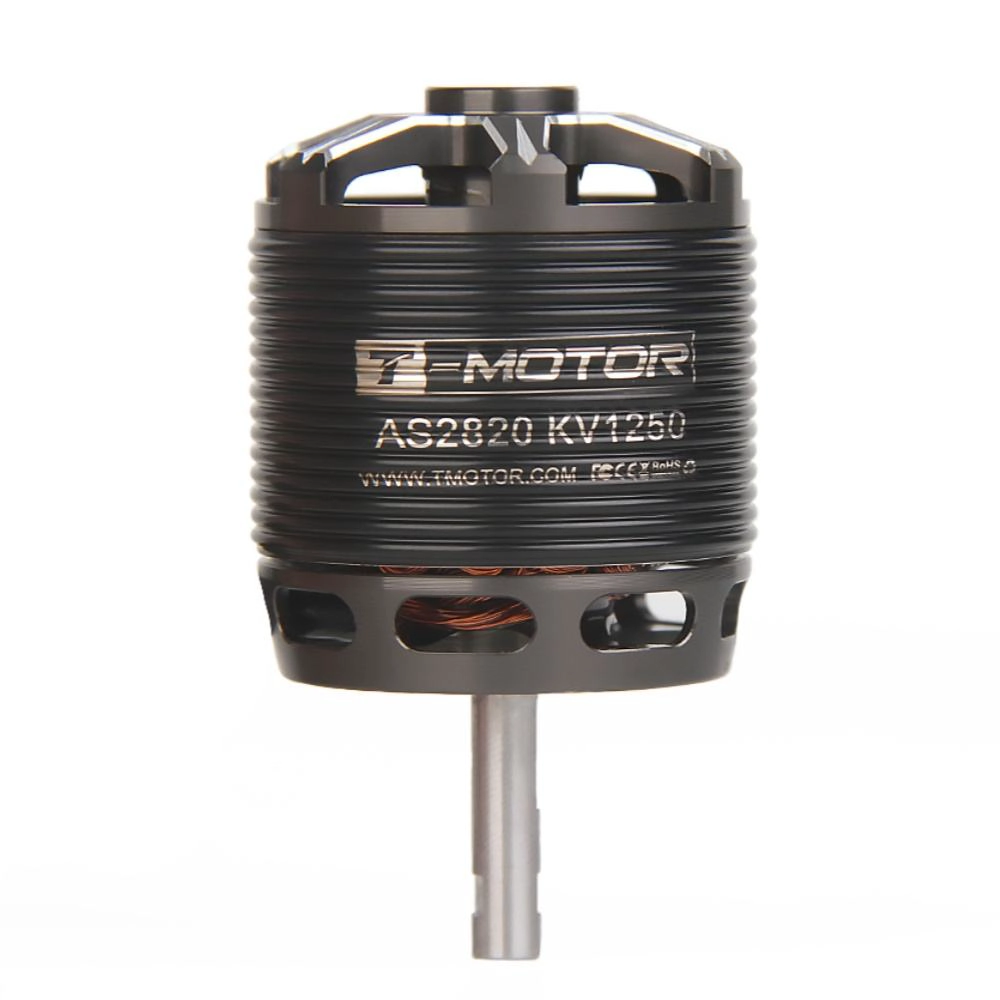

AS2820 T-Hobby High Speed BLDC Brushless Drone Motor for Fixed Wing

1.KV880
2.KV1250
3.KV1400
4.Long Shaft

The T-Motor AS2820 long-shaft fixed-wing motor is a high-performance fixed wing drone motor built for reliable flight. As a professional training aircraft motor, it delivers precise throttle linearity and strong thrust for stable control. With premium imported bearings, it acts as a long-lasting durable brushless motor for model aircraft and VTOL platforms. Offered in KV880, KV1250, and KV1400 versions, it supports 3-4S batteries, outputs up to 1092W max power, and runs with low noise.

AS2820 Highlights:

* Fixed-wing brushless motor
* Precise throttle linearity
* High-thrust design
* Durable with imported bearings
* Multiple KV options available
* Compatible with 3-4S batteries
* Low noise operation
* Lightweight structure

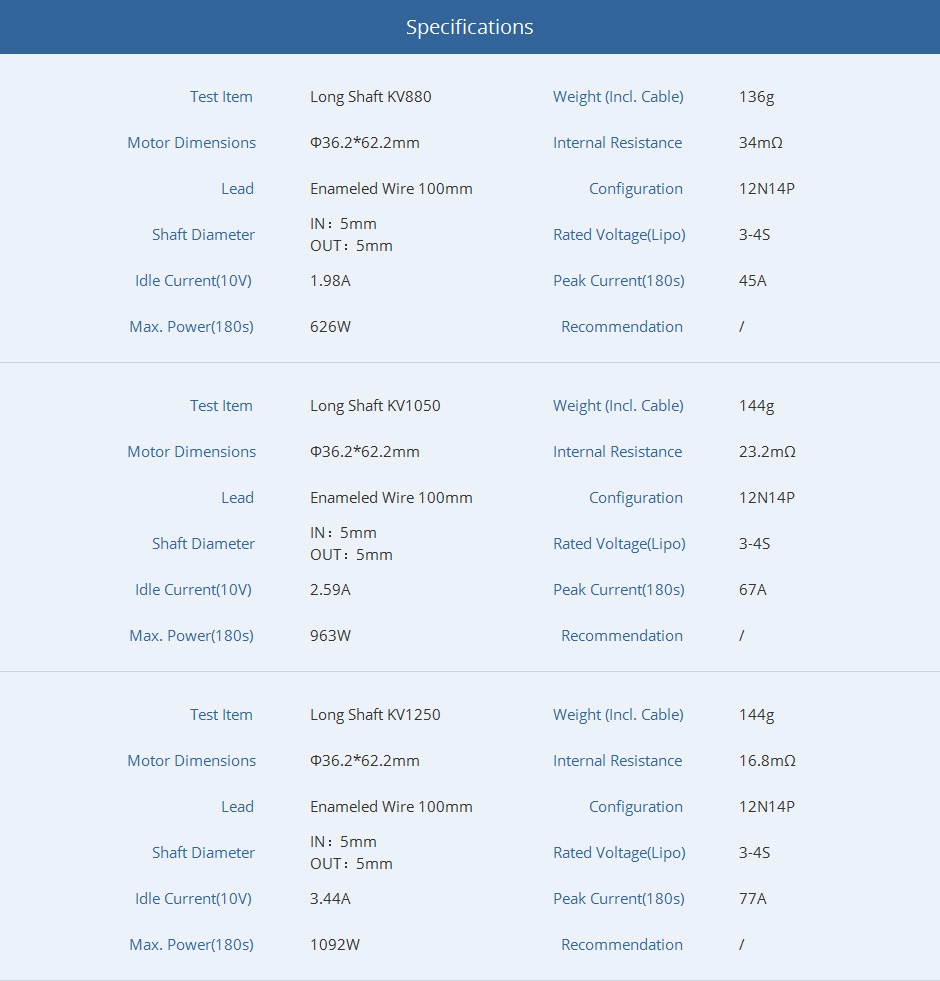

AS2820 KV880

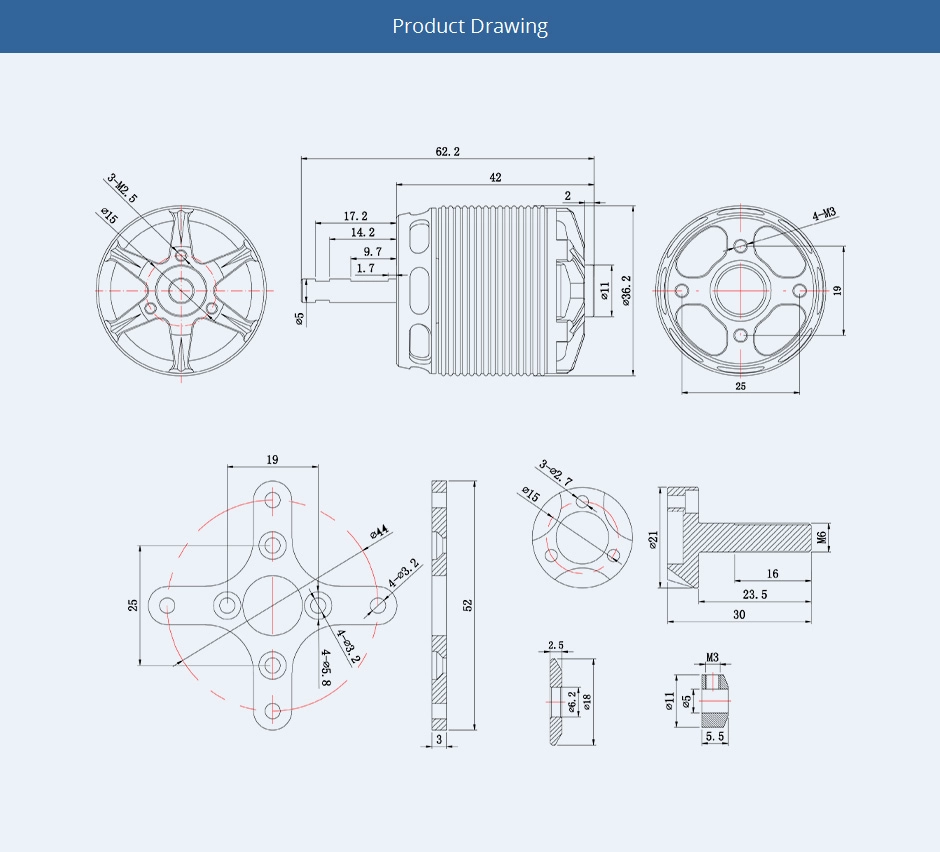

Motor Size(mm)	Φ36.2*62.2 mm
Lead	20#AWG 100mm
Shaft Diameter	IN：5 mm OUT: 5 mm
Idle Current(10V)	1.98A
Max. Power(60s)	626W
Weight (Incl. Cable)	136g
Configuration	12N14P
Rated Voltage(Lipo)	3-4S
Peak Current(180s)	45A
AS2317 KV1250
Motor Size(mm)	Φ36.2*62.2 mm
Lead	20#AWG 100mm
Shaft Diameter	IN：5 mm OUT: 5 mm
Idle Current(10V)	2.59A
Max. Power(60s)	963W
Weight (Incl. Cable)	136g
Configuration	12N14P
Rated Voltage(Lipo)	3-4S
Peak Current(180s)	67A
AS2317 KV1400
Motor Size(mm)	Φ36.2*62.2 mm
Lead	20#AWG 100mm
Shaft Diameter	IN：5 mm OUT: 5 mm
Idle Current(10V)	3.44A
Max. Power(60s)	1092W
Weight (Incl. Cable)	136g
Rated Voltage(Lipo)	3-4S
Peak Current(180s)	77A
