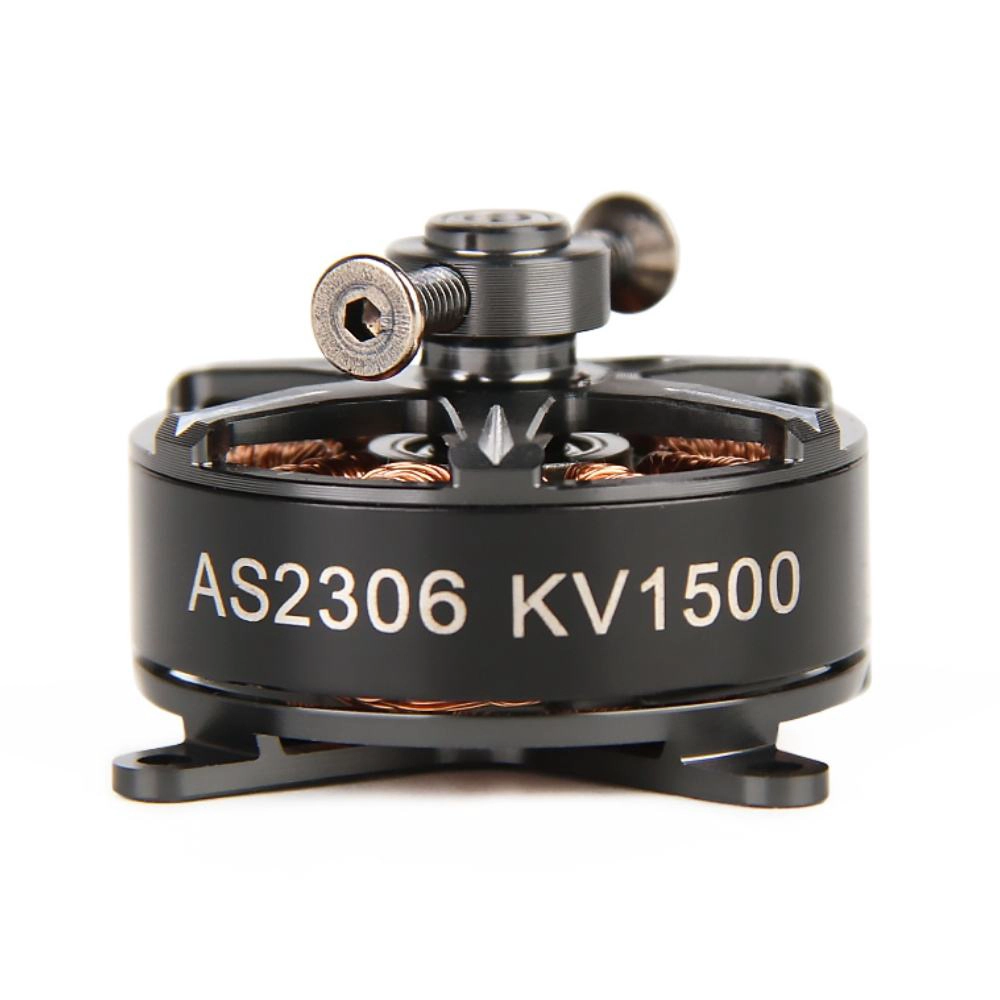

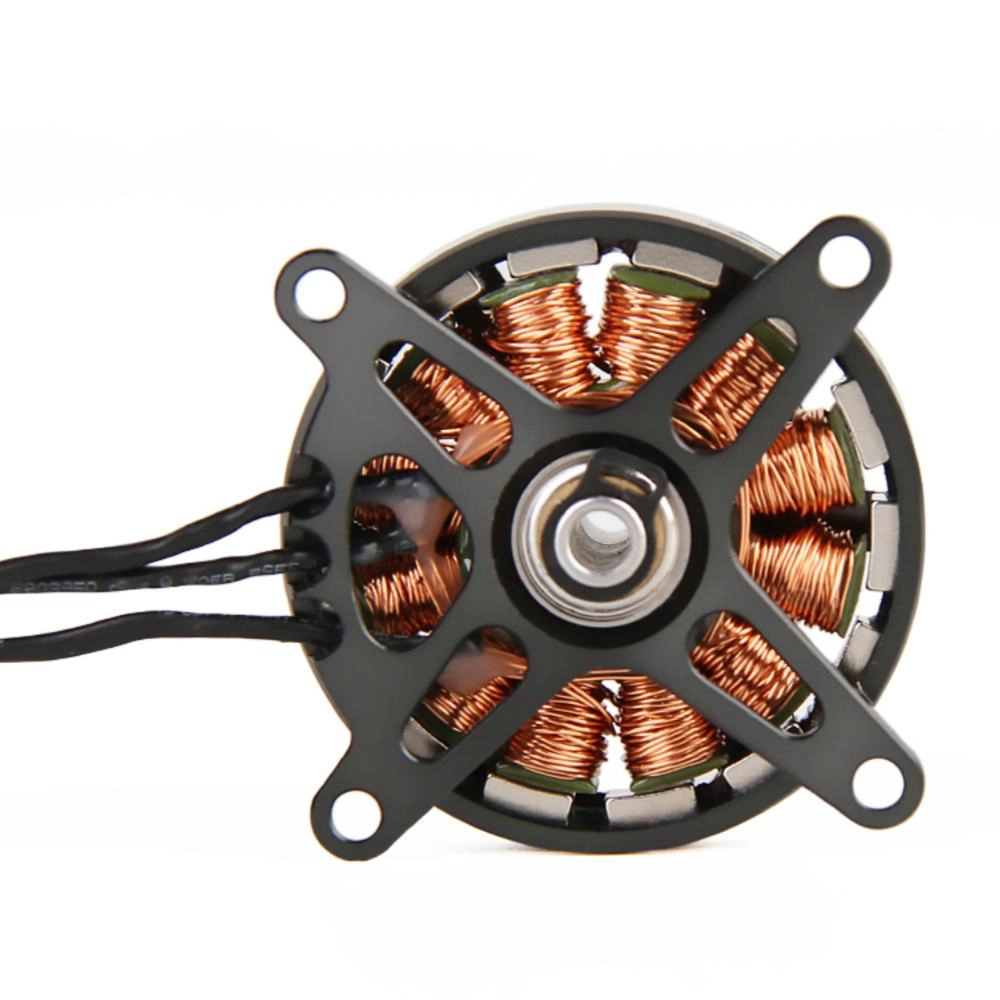

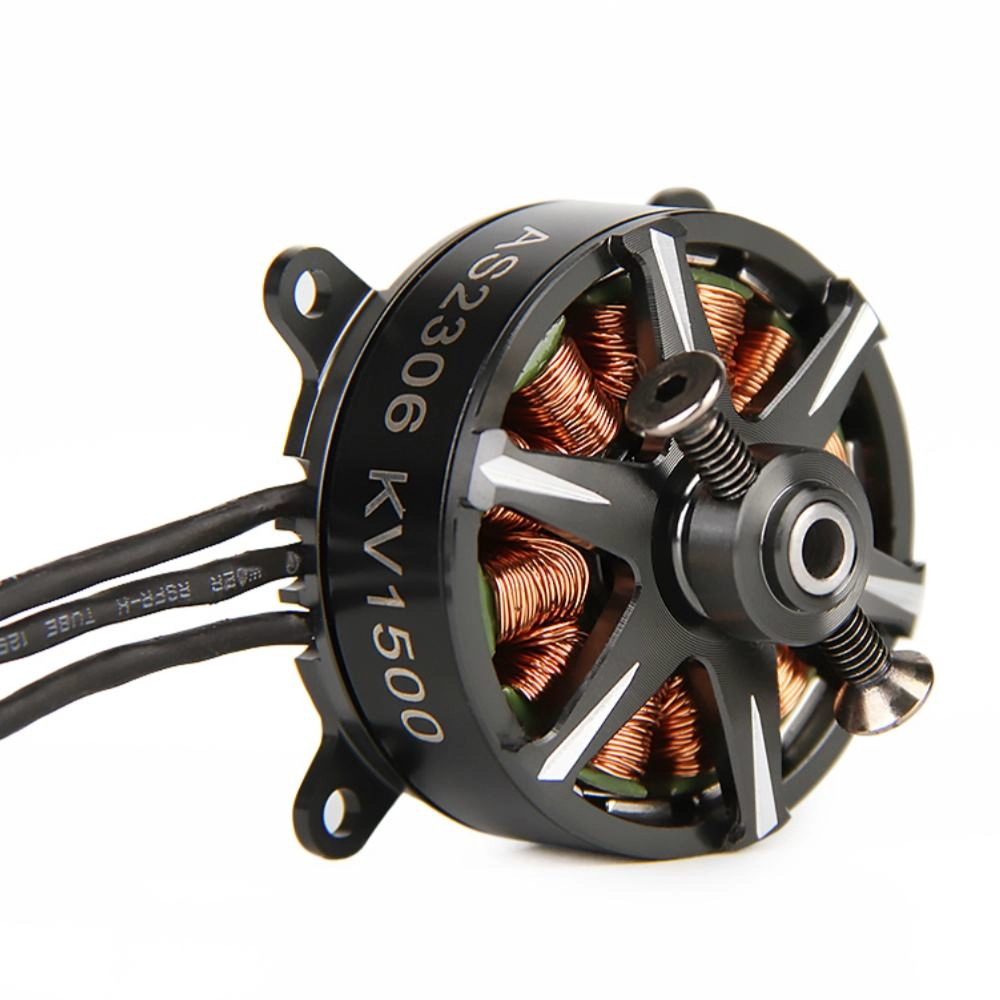

AS2306 T-Hobby Professional Short Shaft F3P Indoor Rc Plane Motor

1.KV1500
2.KV1900
3.KV2300

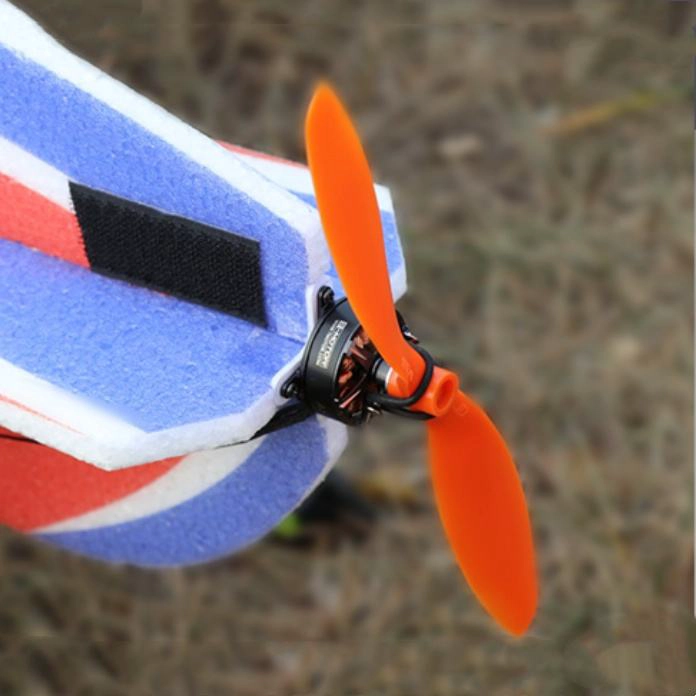

The T-Motor AS2306 short-shaft brushless motor is a high-performance model airplane motor designed for fixed-wing drone and remote control aircraft training. As a precision-engineered remote control aircraft motor, it features a lightweight build and optimized magnetic circuit, delivering smooth, precise performance and rapid response. Available in KV1500, KV1900, and KV2300 variants, this reliable fixed wing drone motor supports 2-3S power inputs, making it ideal for high-speed, dependable flight operations.

AS2306 Highlights:

*Designed for precision F3P

*Lightweight, powerful, agile

*Low inertia, instant response

*Precise, smooth operation

*Permanent magnet brushless

*For drones and models

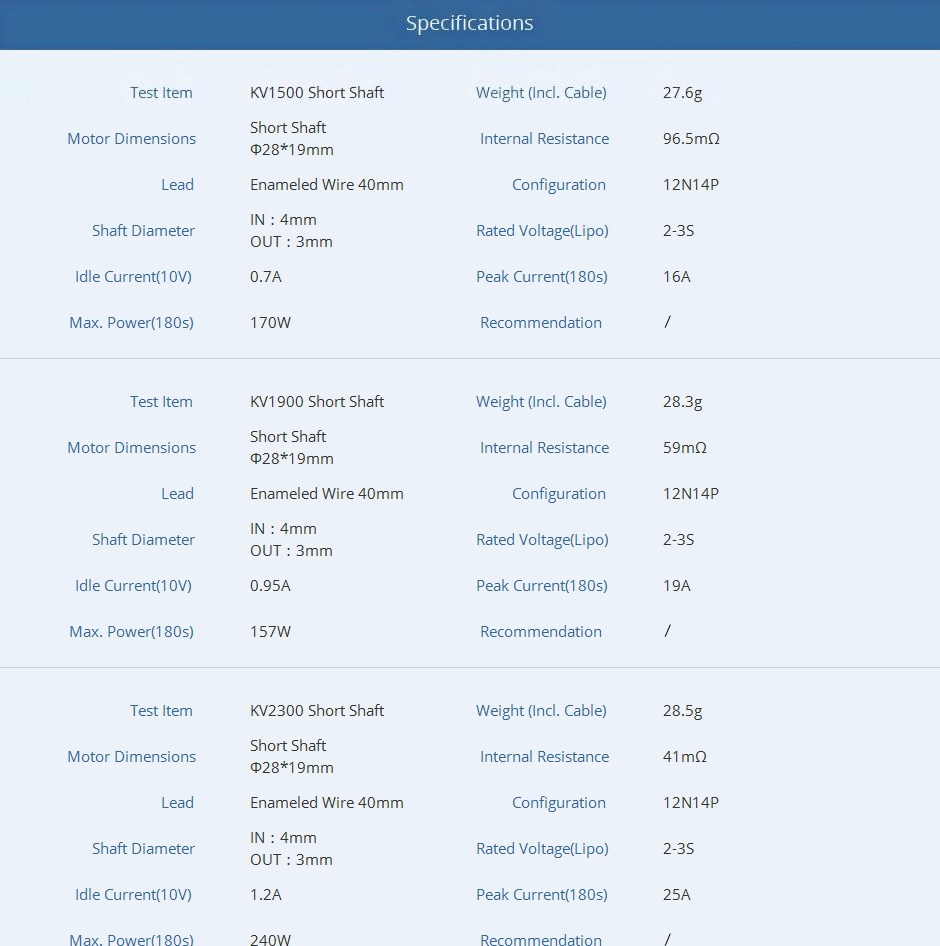

AS2306 KV1500

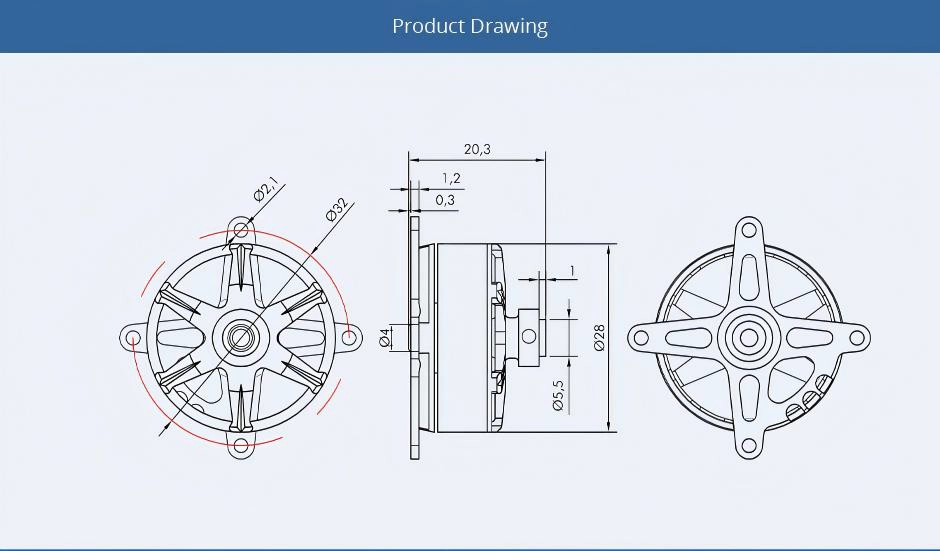

Motor Size(mm)	Φ28*19mm
Lead	Enameled Wire 40mm
Shaft Diameter	IN：4mm
Idle Current(10V)	0.7A
Max. Power(60s)	170W
Weight (Incl. Cable)	27.6g
Configuration	12N14P
Rated Voltage(Lipo)	2-3S
Peak Current(180s)	16A
AS2306 KV1900
Motor Size(mm)	Φ28*19mm
Lead	Enameled Wire 40mm
Shaft Diameter	IN：4mm
Idle Current(10V)	0.95A
Max. Power(60s)	157W
Weight (Incl. Cable)	28.3g
Configuration	12N14P
Rated Voltage(Lipo)	2-3S
Peak Current(180s)	19A
AS2306 KV2300
Motor Size(mm)	Φ28*19mm
Lead	Enameled Wire 40mm
Shaft Diameter	IN：4mm
Idle Current(10V)	1.2A
Max. Power(60s)	240W
Weight (Incl. Cable)	28.3g
Rated Voltage(Lipo)	2-3S
Peak Current(180s)	25A
