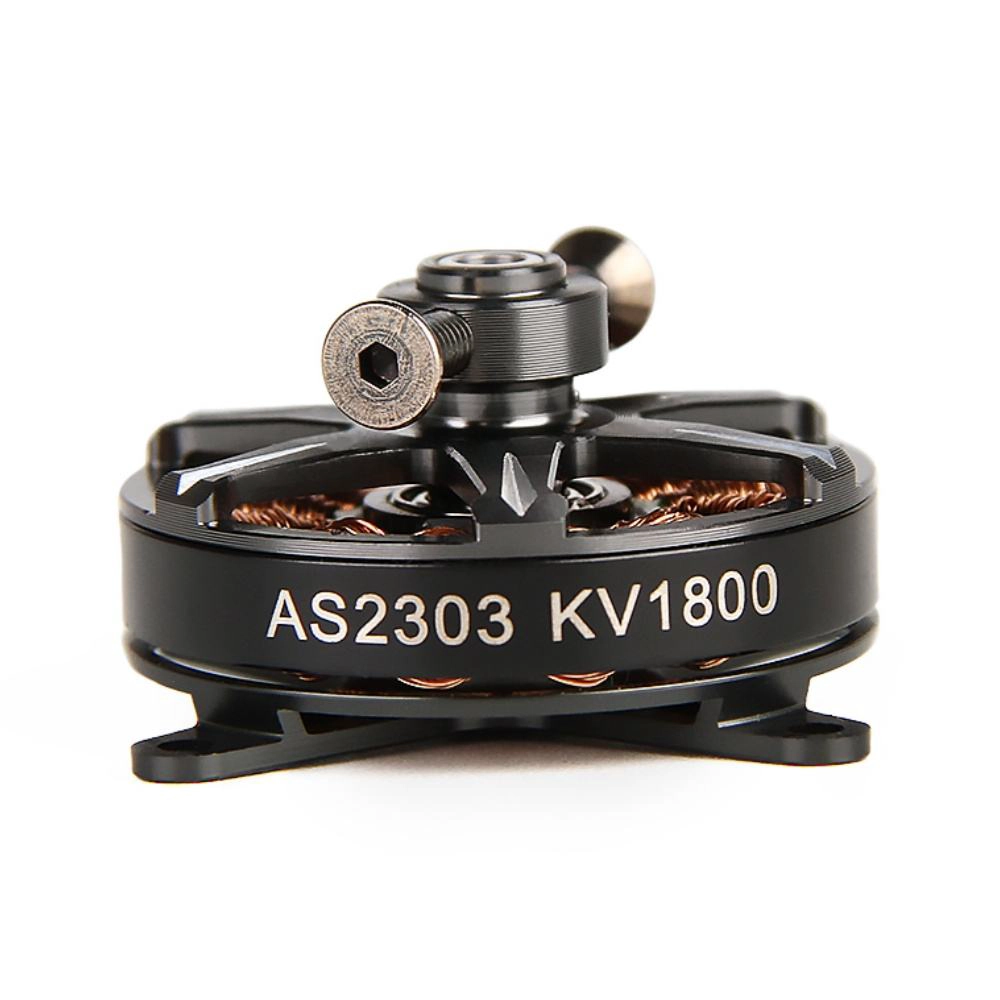

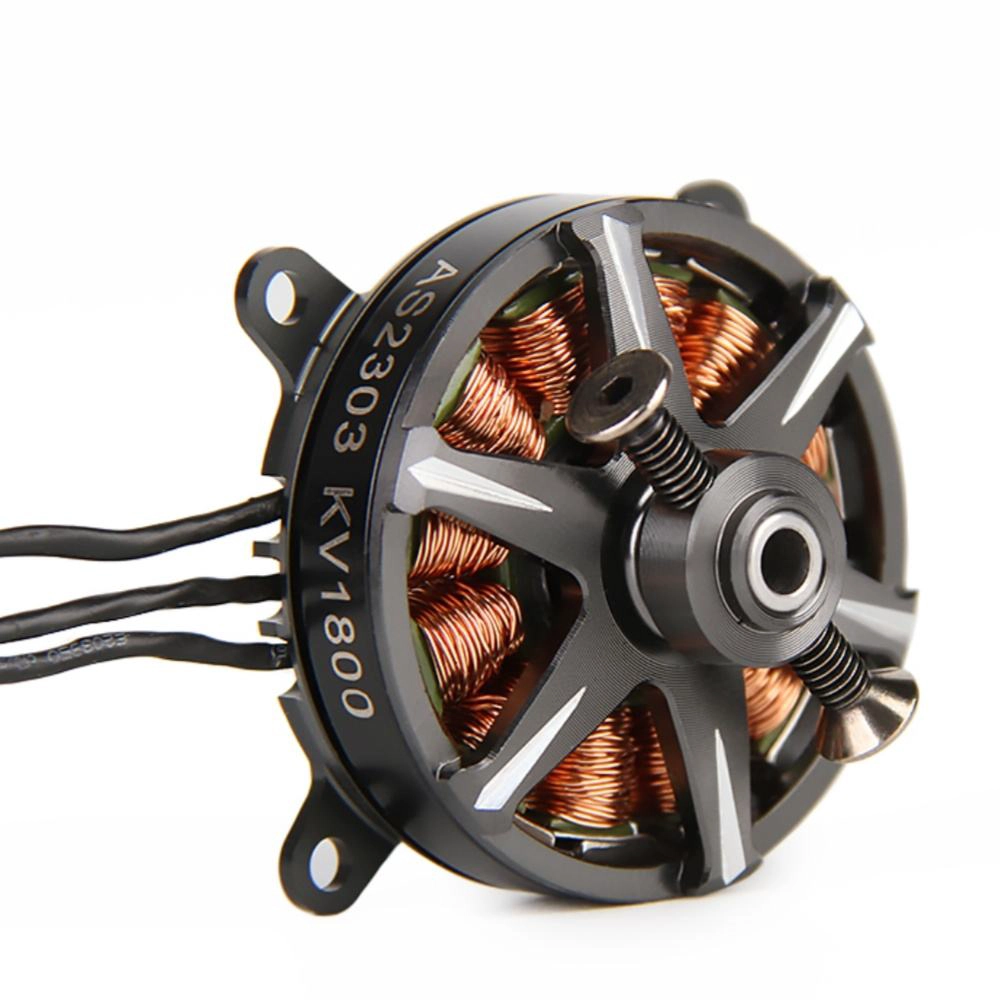

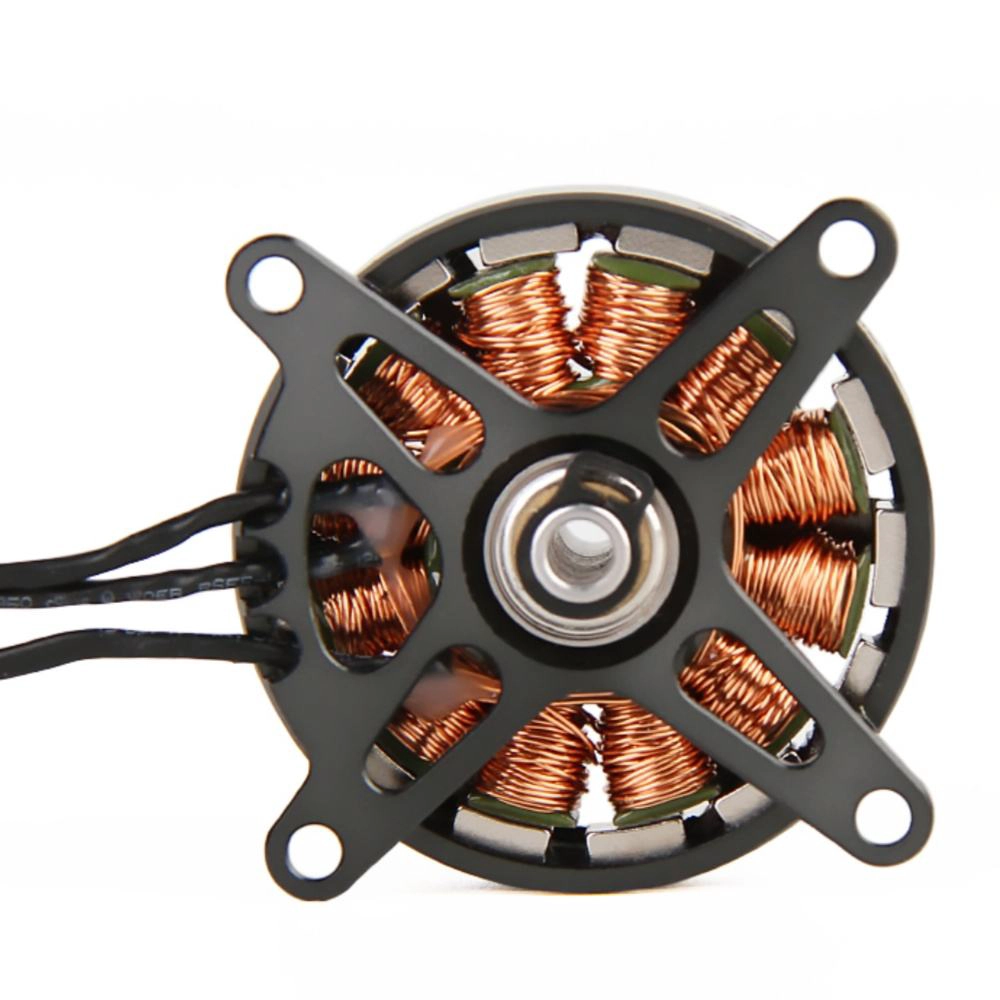

AS2303 T-MOTORHOBBY F3P Indoor RC Plane Brushless Motor Short Shaft

1.KV1500
2.KV1800
3.KV2300

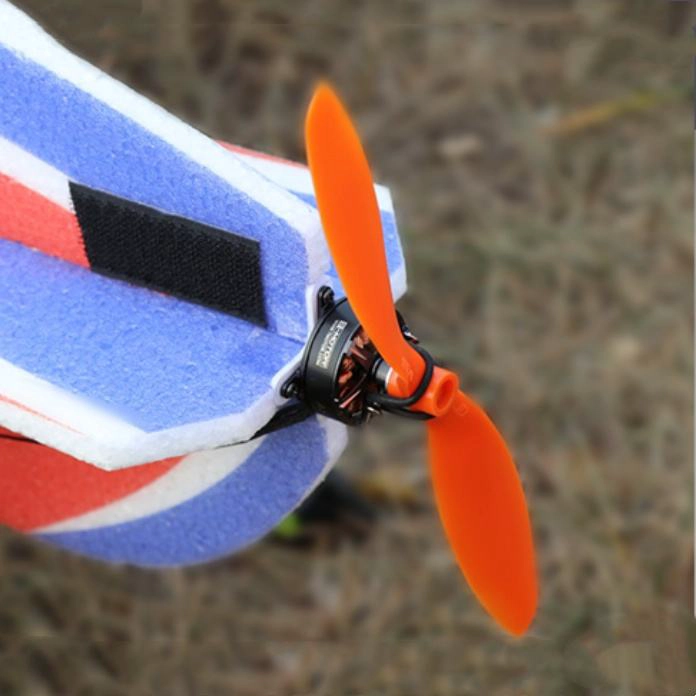

The T-Motor AS2303 short-shaft is a precision-engineered rc model motor designed for fixed-wing aircraft. As a high-performance fixed wing motor, it features a lightweight build that delivers agile flight performance. Its optimized magnetic circuits ensure smooth, responsive control, while durable construction and efficient power output make this lightweight brushless motor the ideal choice for training and F3P fixed-wing enthusiasts.

AS2303 Highlights:

*Lightweight & compact design

*Low inertia for agility

*Optimized magnetic circuit

*Durable metal construction

*Efficient power output

*Ideal for F3P & fixed-wing

*Smooth, precise control

*Versatile for training & racing

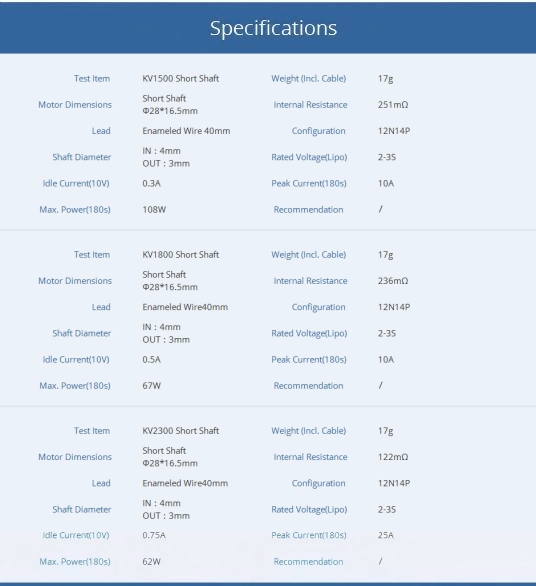

AS2303 KV1500

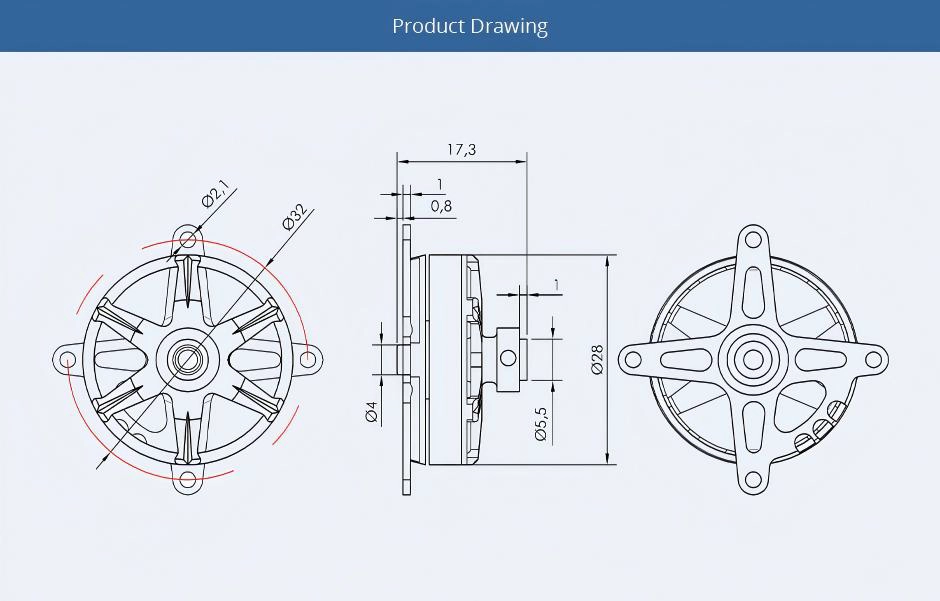

Motor Size(mm)	Φ28*16.5mm
Lead	Enameled Wire 40mm
Shaft Diameter	IN：4mm
Idle Current(10V)	0.3A
Max. Power(60s)	108W
Weight (Incl. Cable)	17g
Configuration	12N14P
Rated Voltage(Lipo)	2-3S
Peak Current(180s)	10A
AS2303 KV1800
Motor Size(mm)	Φ28*16.5mm
Lead	Enameled Wire 40mm
Shaft Diameter	IN：4mm
Idle Current(10V)	0.5A
Max. Power(60s)	67W
Weight (Incl. Cable)	17g
Configuration	12N14P
Rated Voltage(Lipo)	2-3S
Peak Current(180s)	10A
AS2303 KV2300
Motor Size(mm)	Φ28*16.5mm
Lead	Enameled Wire 40mm
Shaft Diameter	IN：4mm
Idle Current(10V)	0.75A
Max. Power(60s)	62W
Weight (Incl. Cable)	17g
Rated Voltage(Lipo)	2-3S
Peak Current(180s)	25A
