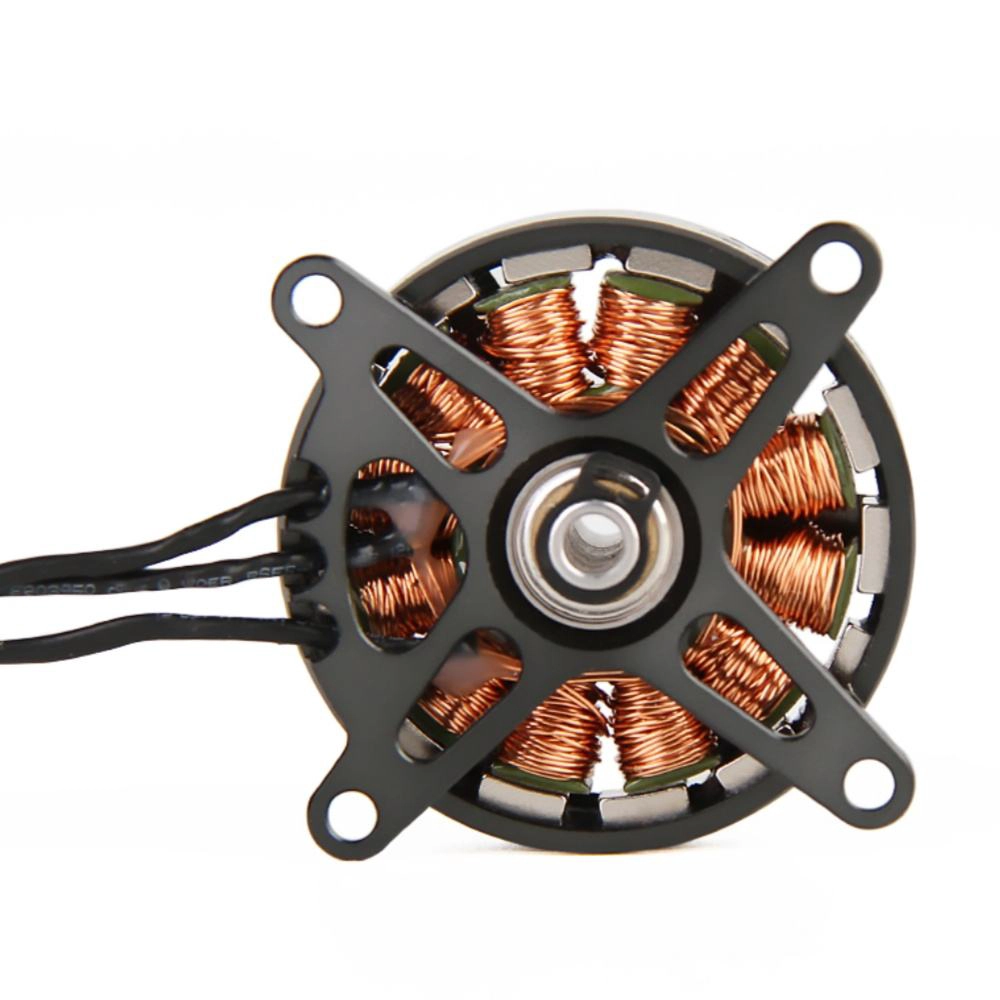

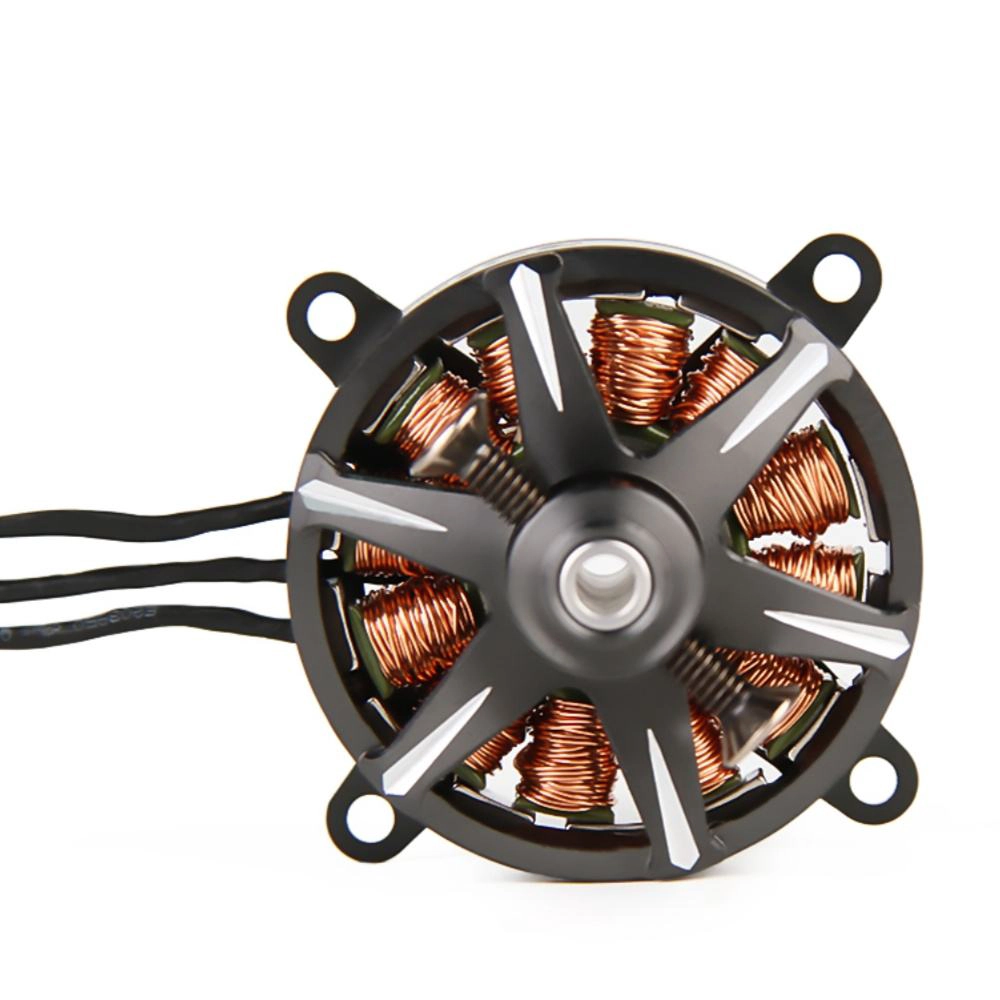

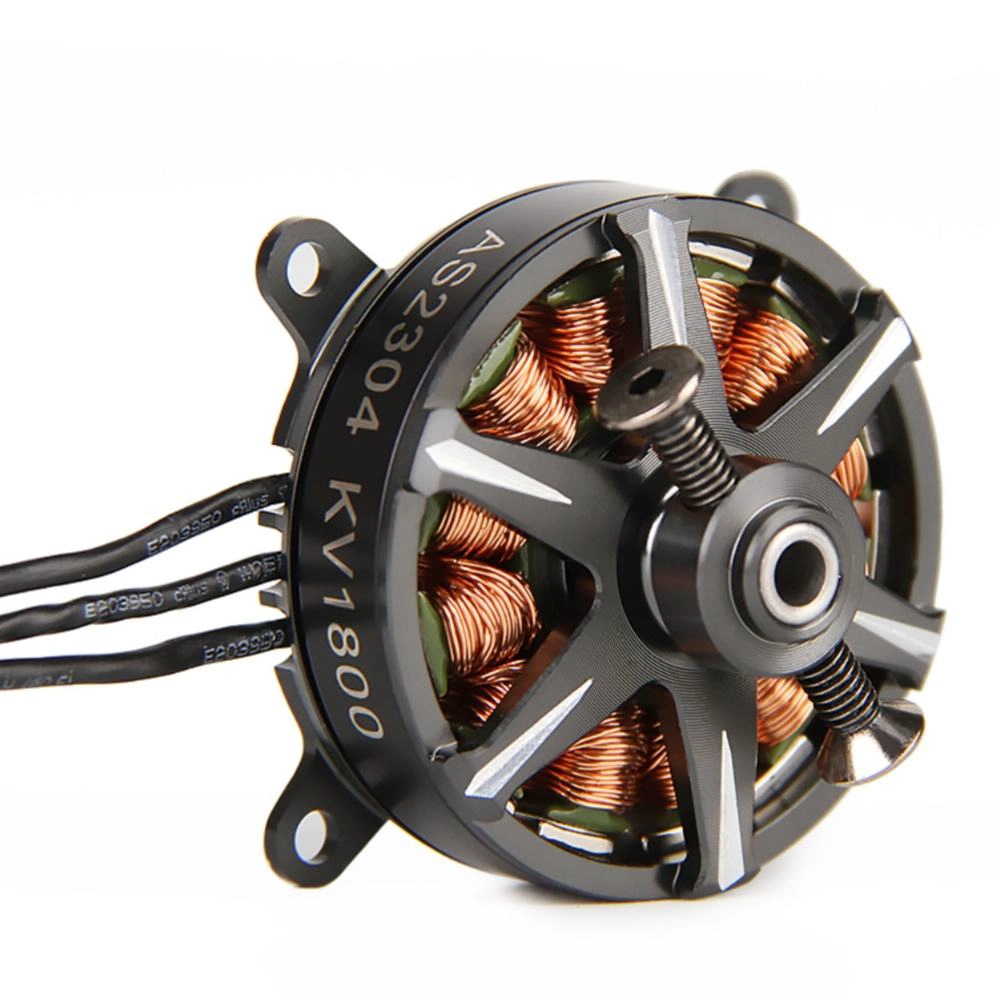

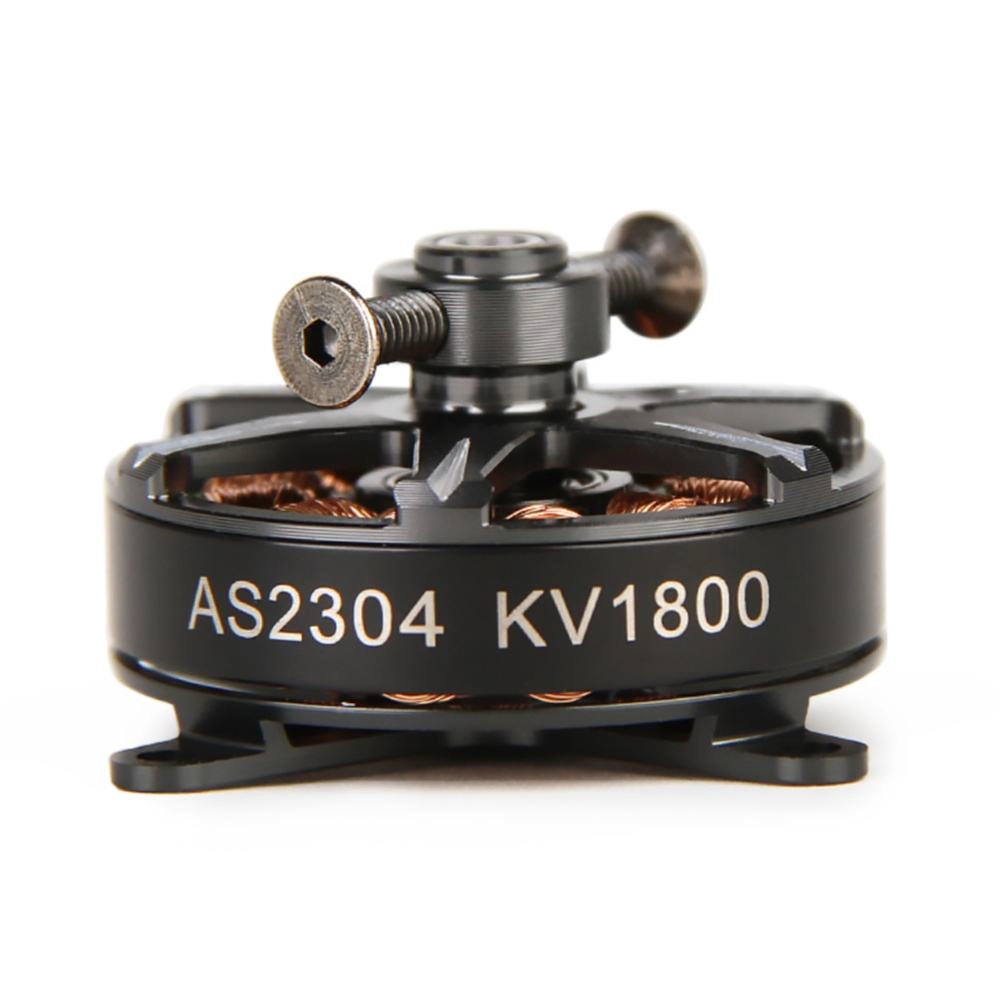

AS2304 T-Hobby Aircraft Model Glider Fixed Wing Aircraft Motor

1.KV1500
2.KV1800
3.KV2300

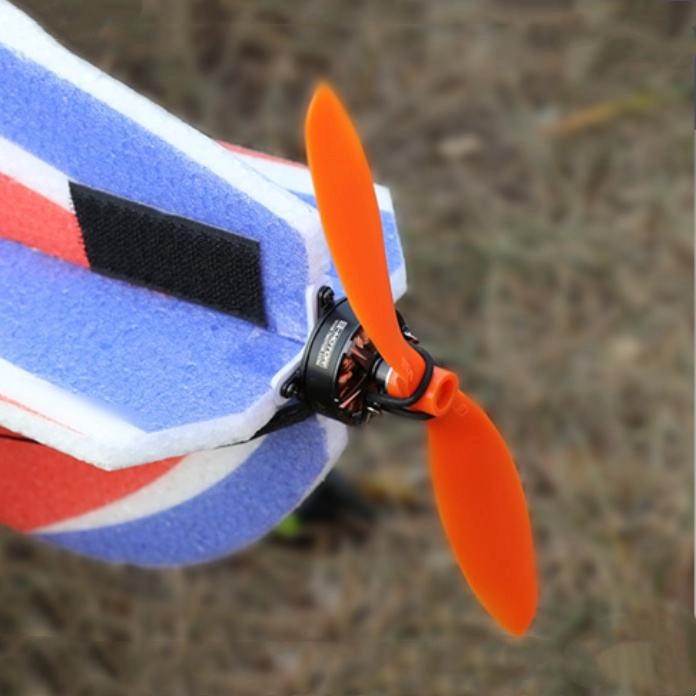

The T-Motor AS2304 is a short shaft brushless motor engineered for fixed-wing training and precision flight. As a low inertia brushless motor, it delivers instant responsiveness with minimal rotational mass, while optimized magnetic circuits establish it as a high efficiency brushless motor—ideal for fixed-wing drones, model aircraft, and F3P training, where reliable power and smooth control are paramount.

AS2303 Highlights:

*Designed for F3P fixed-wing

*1500KV/1800KV/2300KV Three KV options available

*Compatible with 2-3S batteries

*Ultra-light 20g body

*Low inertia for fast response

*Optimized magnetic circuit

*CE/ROHS/FCC certified

*For drones & models

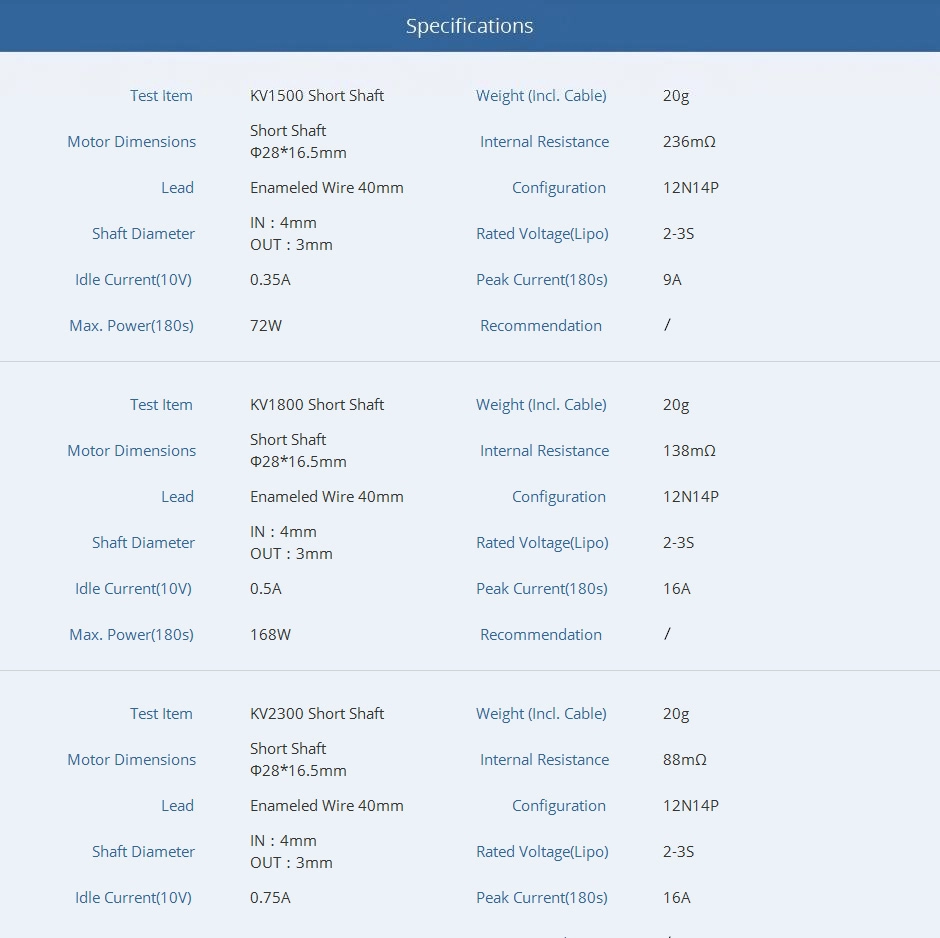

AS2304 KV1500

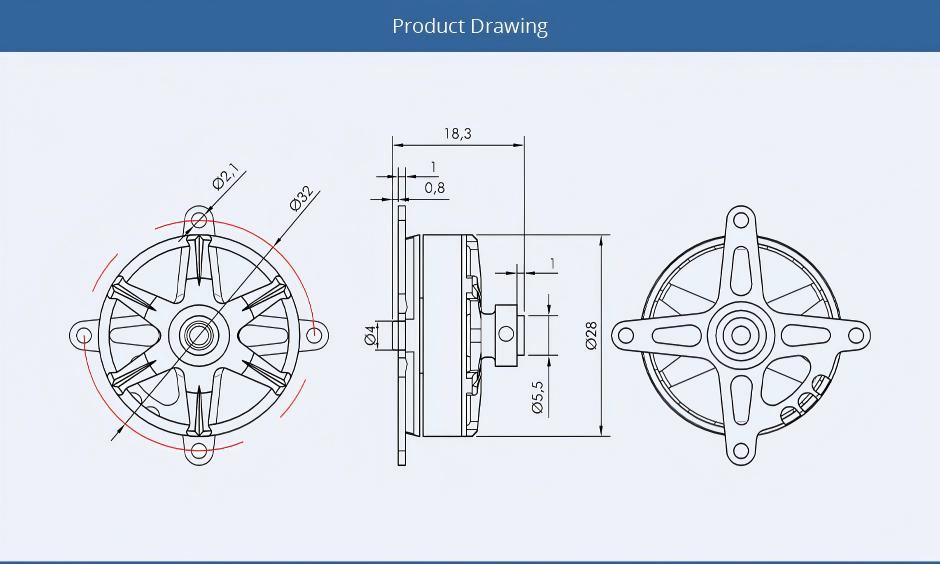

Motor Size(mm)	Φ28*16.5mm
Lead	Enameled Wire 40mm
Shaft Diameter	IN：4mm
Idle Current(10V)	0.35A
Max. Power(60s)	72W
Weight (Incl. Cable)	20g
Configuration	12N14P
Rated Voltage(Lipo)	2-3S
Peak Current(180s)	9A
AS2304 KV1800
Motor Size(mm)	Φ28*16.5mm
Lead	Enameled Wire 40mm
Shaft Diameter	IN：4mm
Idle Current(10V)	0.5A
Max. Power(60s)	168W
Weight (Incl. Cable)	20g
Configuration	12N14P
Rated Voltage(Lipo)	2-3S
Peak Current(180s)	16A
AS2304 KV2300
Motor Size(mm)	Φ28*16.5mm
Lead	Enameled Wire 40mm
Shaft Diameter	IN：4mm
Idle Current(10V)	0.75A
Max. Power(60s)	108W
Weight (Incl. Cable)	20g
Rated Voltage(Lipo)	2-3S
Peak Current(180s)	16A
