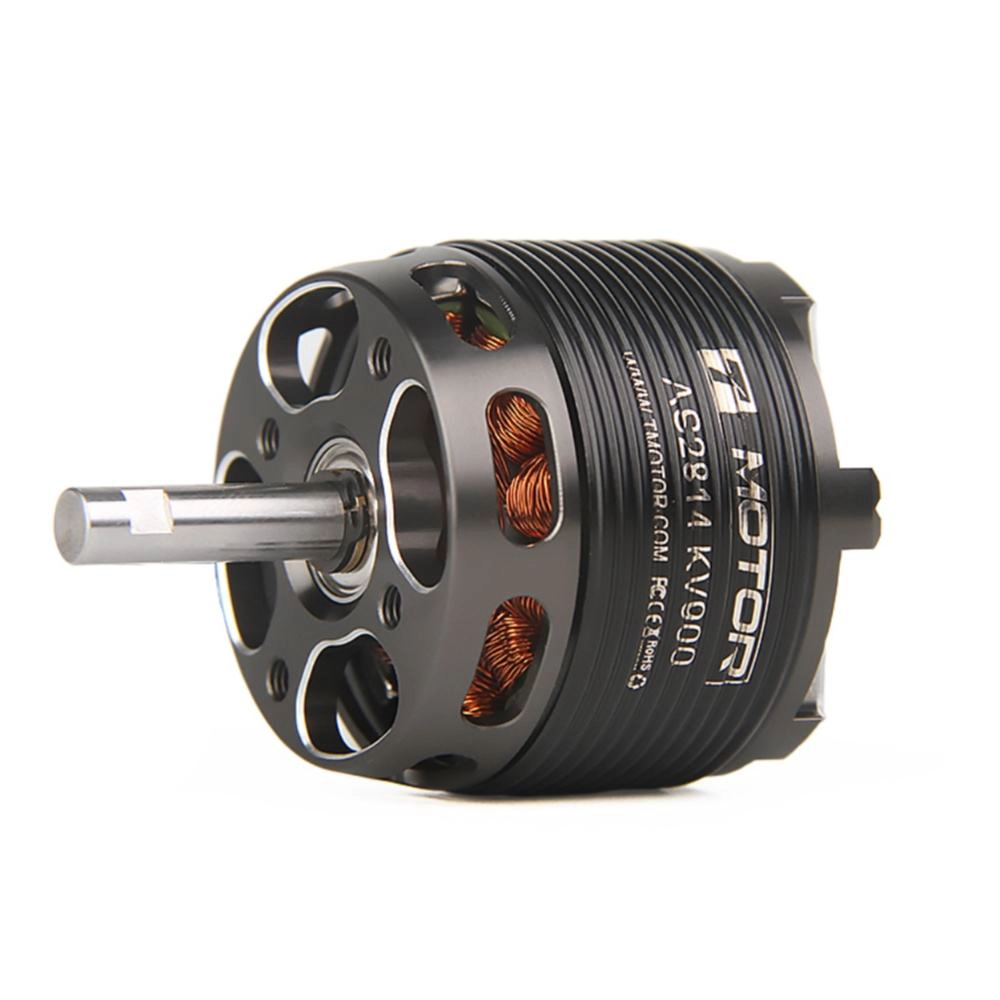

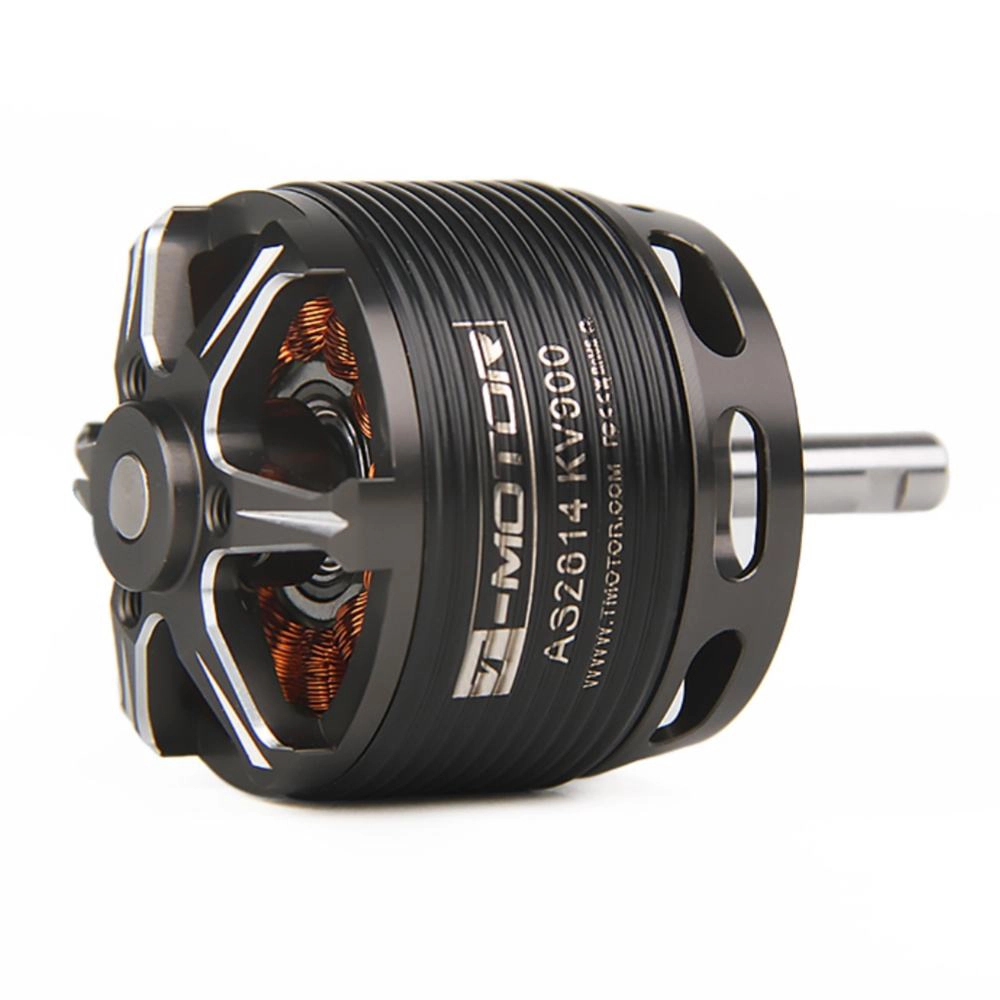

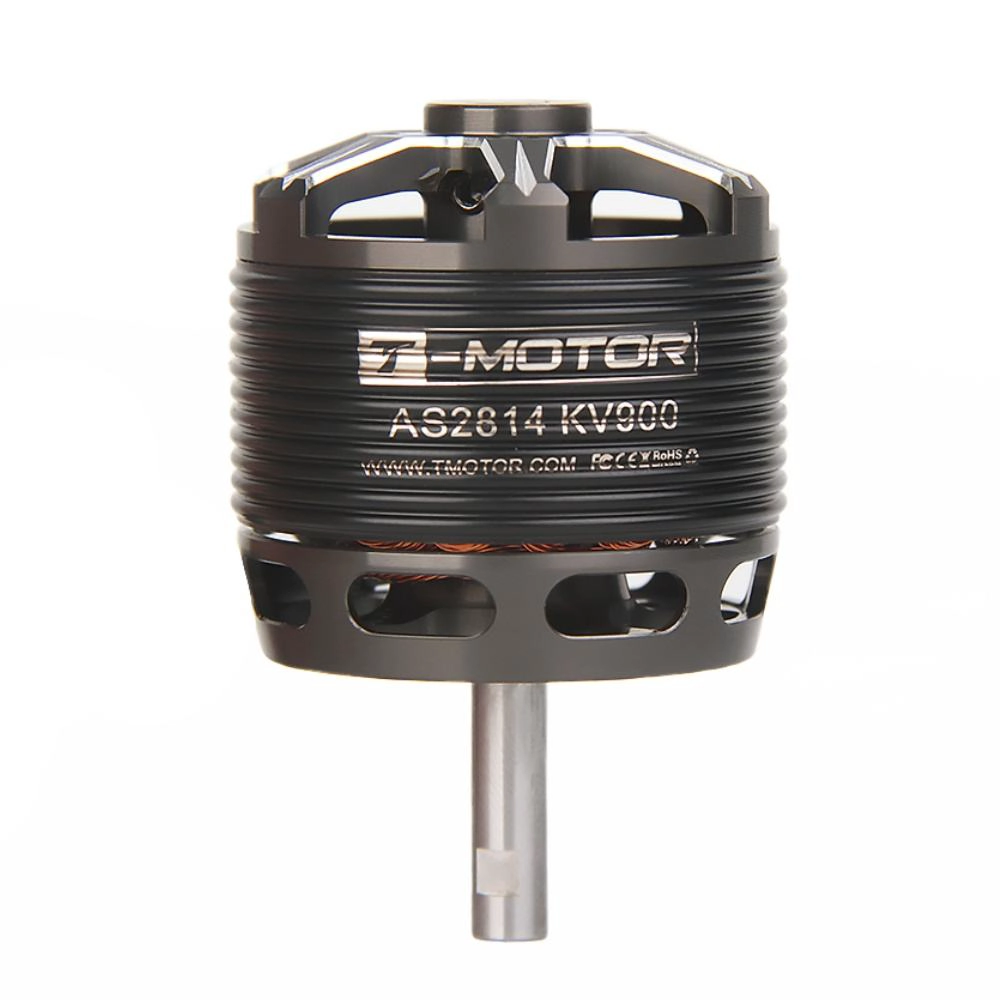

AS2814 T-Hobby 3D Electric Aircraft Model Drone Motor for RC Fixed Wing Aircraft
- 1.KV900
- 2.KV1050
- 3.KV1200
- 4.KV2000
- 5.Long Shaft
This premium brushless motor for fixed‑wing is specially designed for fixed-wing aircraft and model planes. As a stable and efficient long shaft brushless motor, it provides precise throttle linearity for smooth flight control and excellent power performance. Featuring the advantages of a high thrust brushless motor, it boasts durable construction with premium imported bearings. Certified with CE, ROHS, FCC, and ISO, it ensures reliable and long-lasting flight performance.
AS2814 Highlights:
* Precise throttle linearity
* High-power strong thrust
* Durable and crash-resistant
* Dedicated fixed-wing design
* Multi-certified high quality
* Low-noise operation
* Permanent magnet brushless
| AS2814 KV900 | |

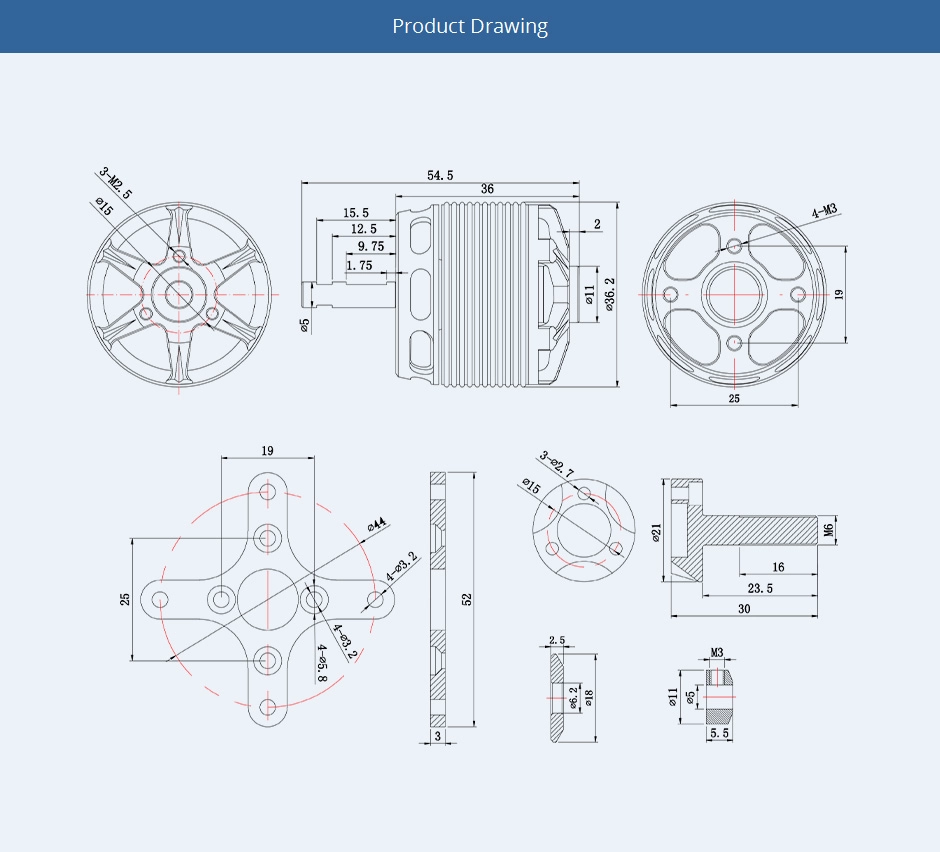

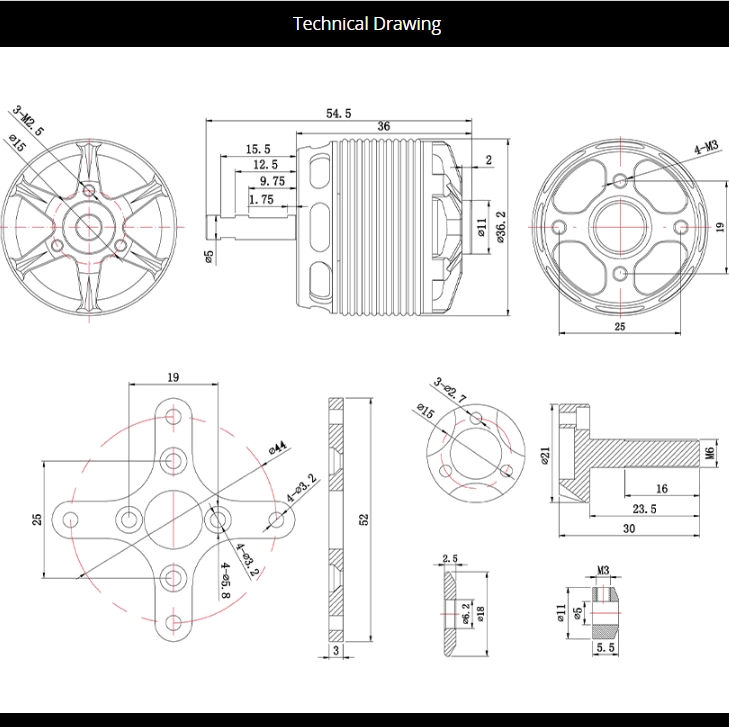

| Motor Size(mm) | Φ36.2*54.5mm |
| Lead | 20#AWG 100mm |
| Shaft Diameter | IN：5 mm OUT: 5 mm |
| Idle Current(10V) | 1.35A |
| Max. Power(60s) | 553W |
| Weight (Incl. Cable) | 110g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 37A |
| AS2814 KV1050 | |
| Motor Size(mm) | Φ36.2*54.5mm |
| Lead | 20#AWG 100mm |
| Shaft Diameter | IN：5 mm OUT: 5 mm |
| Idle Current(10V) | 1.35A |
| Max. Power(60s) | 718W |
| Weight (Incl. Cable) | 112g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 49A |
| AS2814 KV1200 | |
| Motor Size(mm) | Φ36.2*54.5mm |
| Lead | 20#AWG 100mm |
| Shaft Diameter | IN：5 mm OUT: 5 mm |
| Idle Current(10V) | 2.21A |
| Max. Power(60s) | 885W |
| Weight (Incl. Cable) | 112g |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 61A |
| AS2814 KV2000 | |
| Motor Size(mm) | Φ36.2*54.5mm |
| Lead | 20#AWG 100mm |
| Shaft Diameter | IN：5 mm OUT: 5 mm |
| Idle Current(10V) | 4.5A |
| Max. Power(60s) | 441W |
| Weight (Incl. Cable) | 116g |
| Rated Voltage(Lipo) | 2-3S |
| Peak Current(180s) | 42A |
