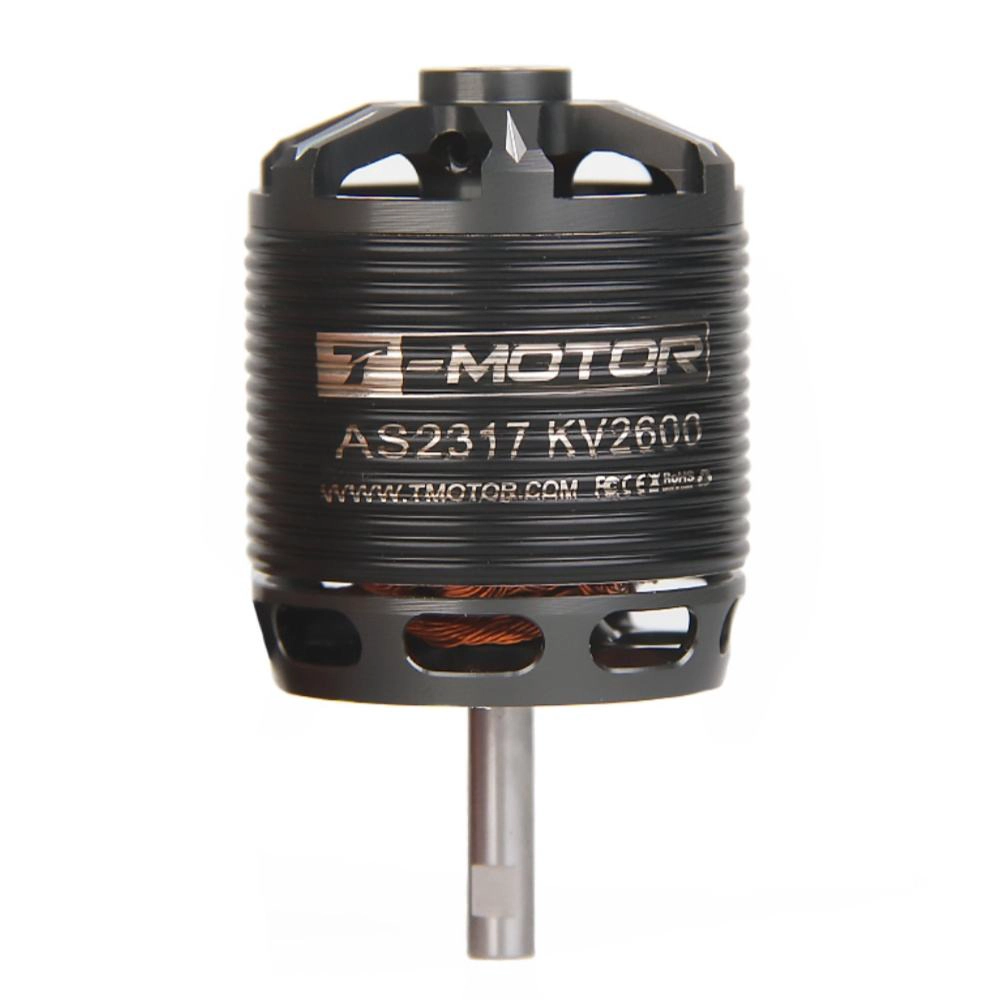

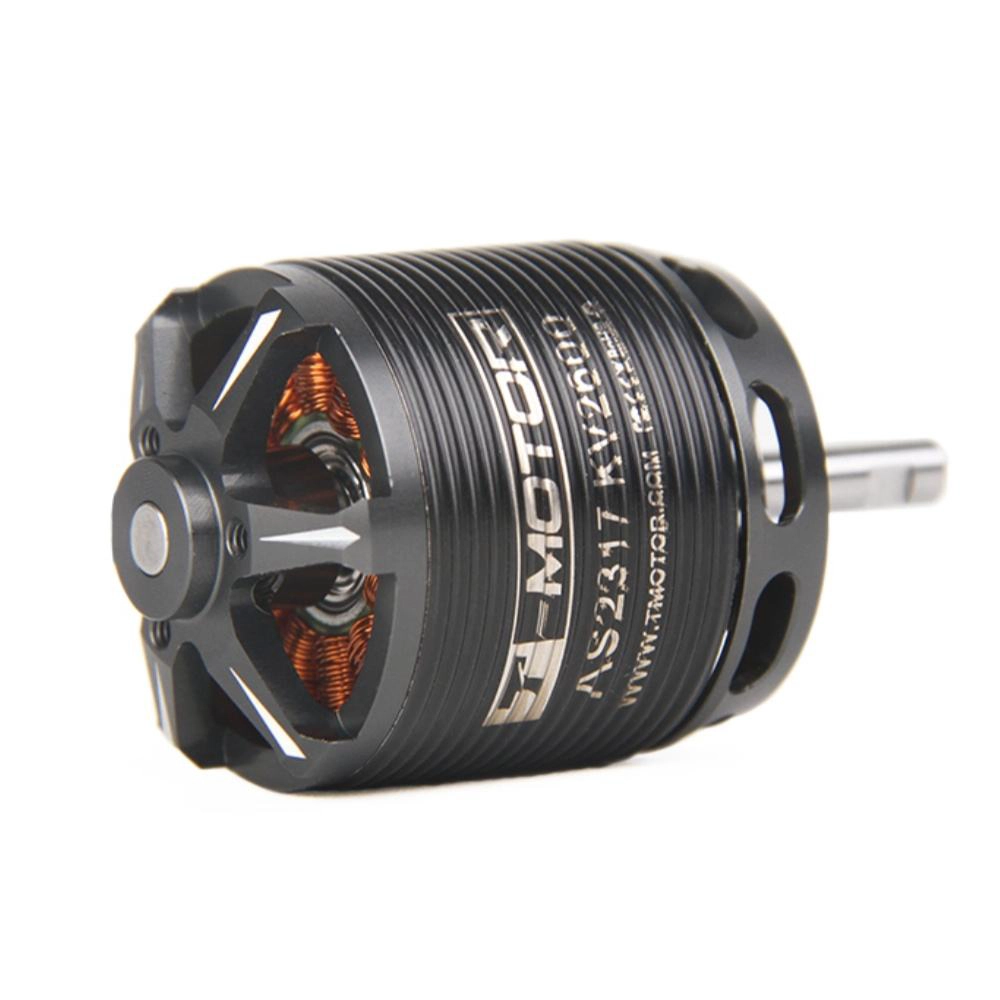

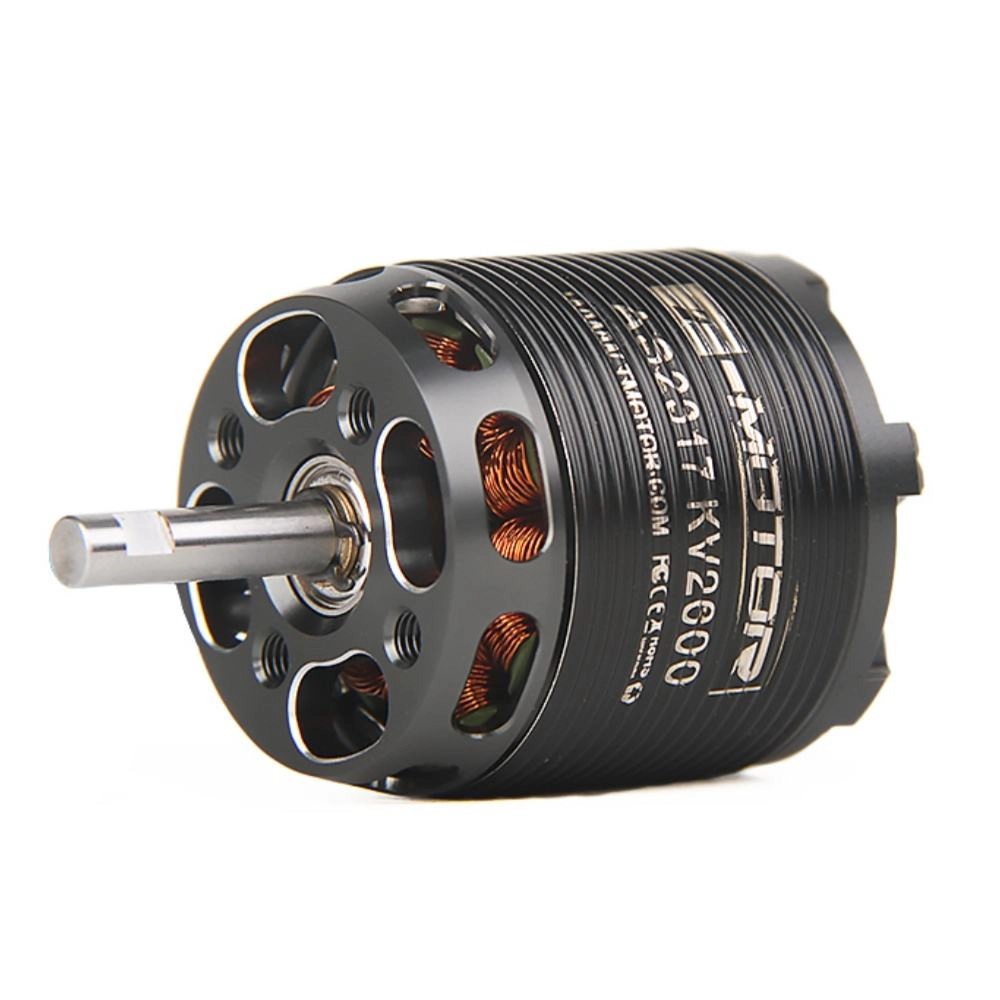

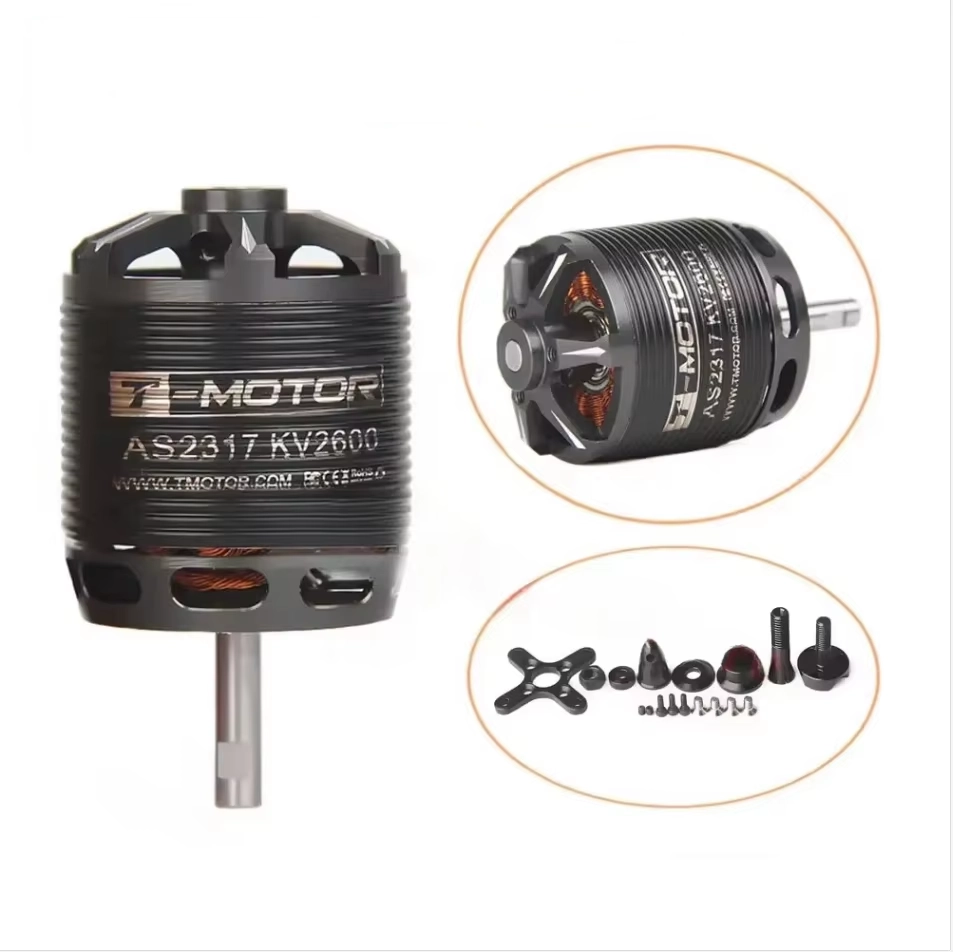

AS2317 T-Hobby Fixed Wing Aircraft Trainer Airplane Waterproof Brushless Motor
- 1.KV880
- 2.KV1250
- 3.KV1400
- 4.Long Shaft

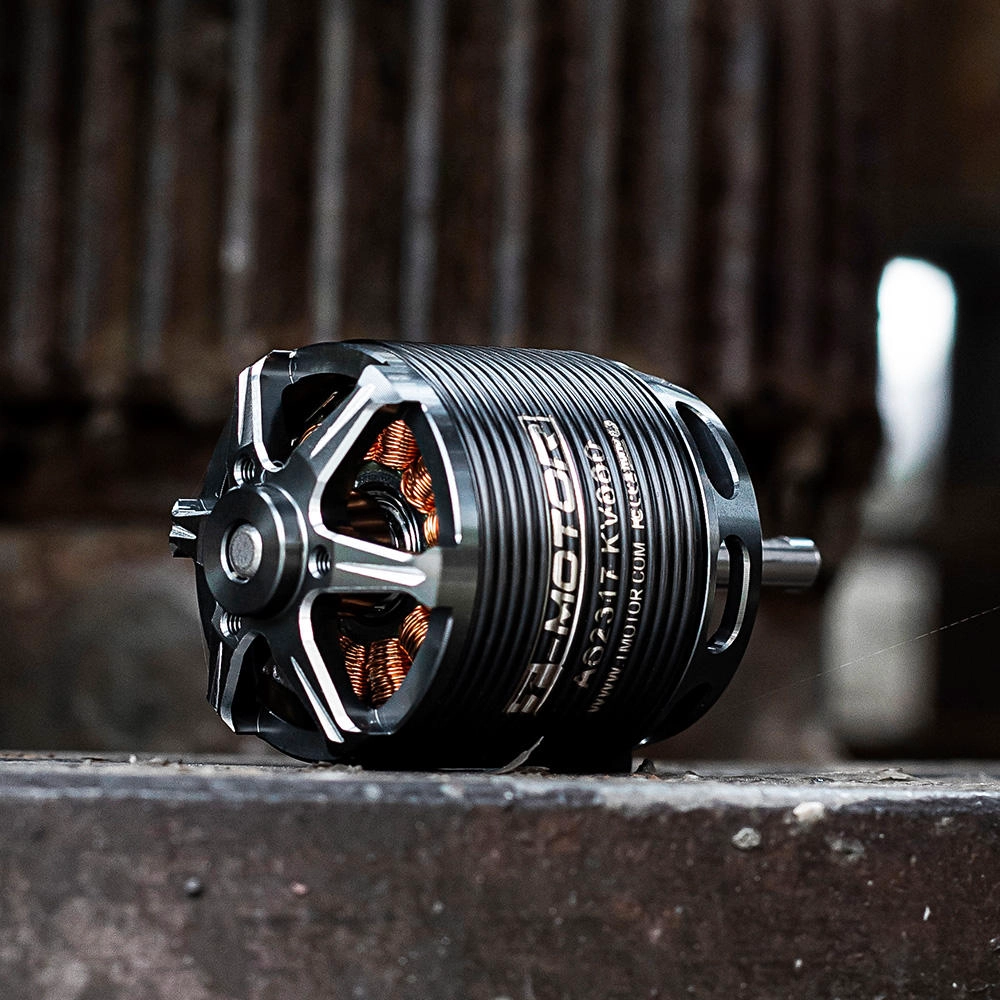

The T-Motor AS2317 long-shaft fixed-wing brushless motor is a reliable RC aircraft power motor designed for fixed-wing model aircraft. It provides precise throttle linearity for stable flight control, high-torque output for smooth and strong performance, and durable structure with premium imported bearings for long service life. As a low noise brushless motor, it runs quietly and steadily. This high performance motor is available in KV880, KV1250, and KV1400 versions, supports 3-4S power inputs, and meets CE, ROHS, FCC, and ISO standards.
AS2317 Highlights:
* Precise throttle linearity
* High torque output
* Premium imported bearings
* High structural durability
* Multiple KV options available
* 3-4S voltage compatibility
* International safety certifications
* Low noise operation
* Lightweight design
* Fixed-wing application

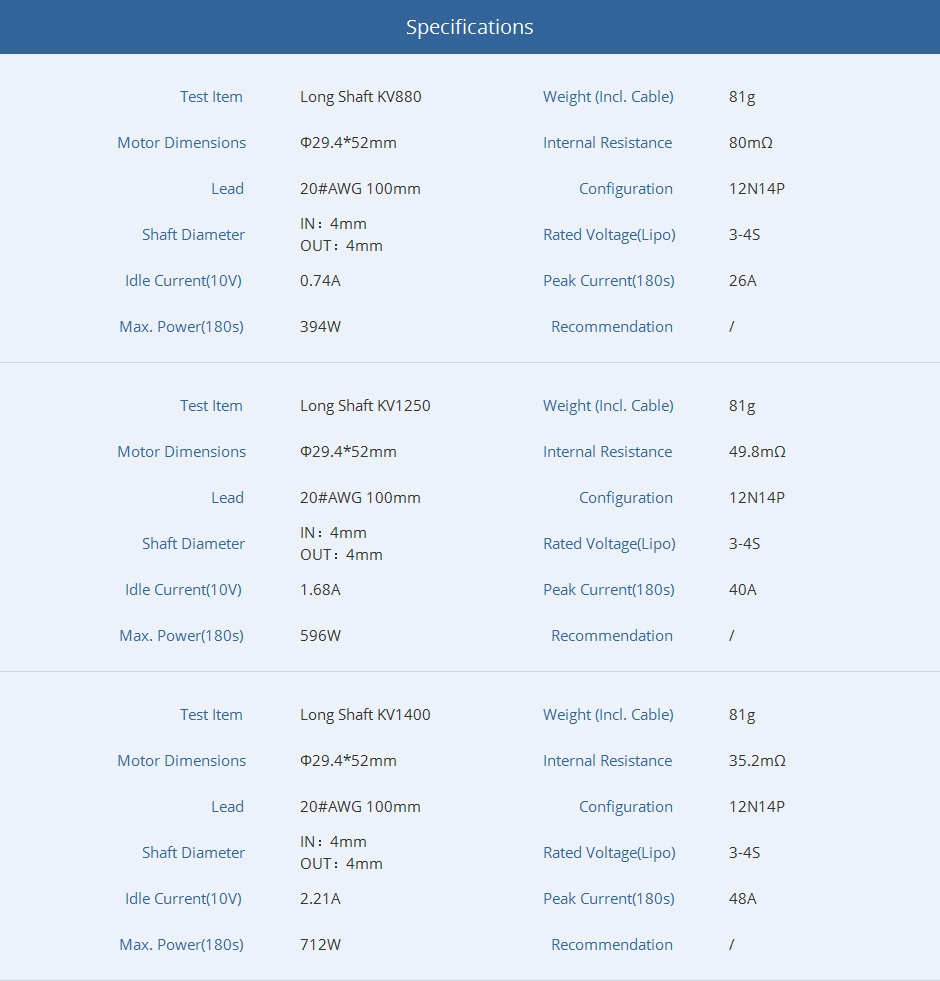

| AS2317 KV880 | |

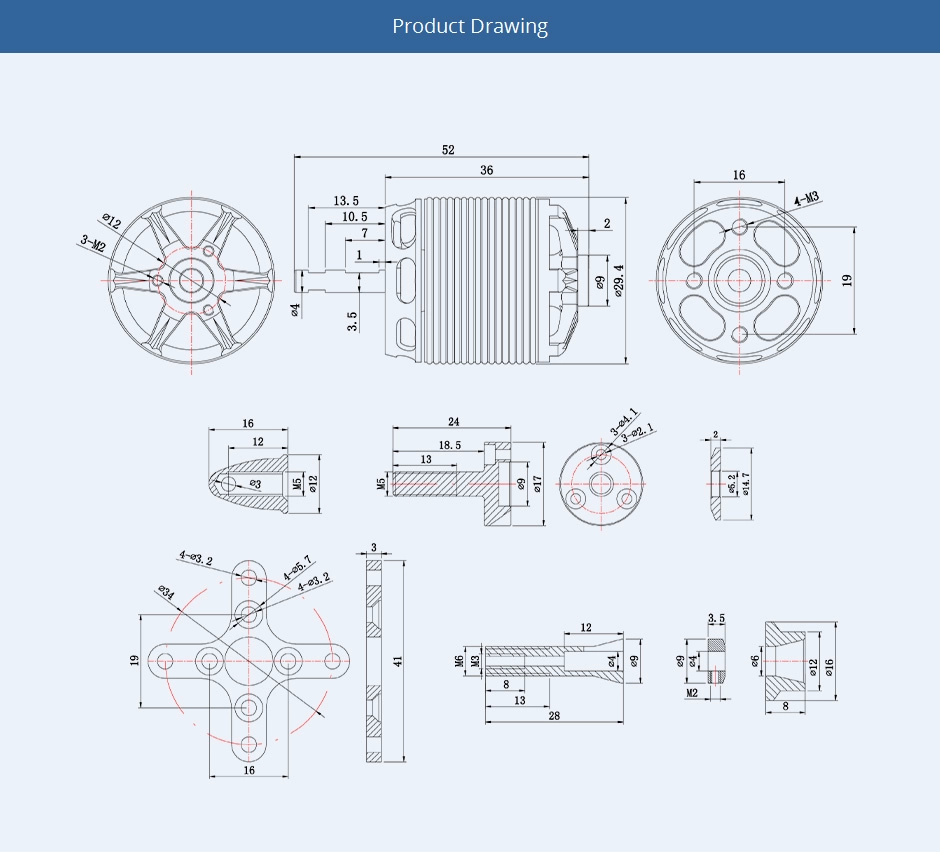

| Motor Size(mm) | Φ29.4*52mm |
| Lead | 20#AWG 100mm |
| Shaft Diameter | IN：4mm OUT: 4mm |
| Idle Current(10V) | 0.74A |
| Max. Power(60s) | 394W |
| Weight (Incl. Cable) | 81g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 26A |
| AS2317 KV1250 | |
| Motor Size(mm) | Φ29.4*52mm |
| Lead | 20#AWG 100mm |
| Shaft Diameter | IN：4mm OUT: 4mm |
| Idle Current(10V) | 1.68A |
| Max. Power(60s) | 596W |
| Weight (Incl. Cable) | 81g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 40A |
| AS2317 KV1400 | |
| Motor Size(mm) | Φ29.4*52mm |
| Lead | 20#AWG 100mm |
| Shaft Diameter | IN：4mm OUT: 4mm |
| Idle Current(10V) | 2.21A |
| Max. Power(60s) | 712W |
| Weight (Incl. Cable) | 81g |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 48A |
