The AS series is aimed at hobby pilots who are looking for equipment with a good price/performance ratio. Even so, it can offer nice finish, arc magnets and quality bearings.
1.flexible control,fly at will
2.Powerful and violent
3.Durable and safe

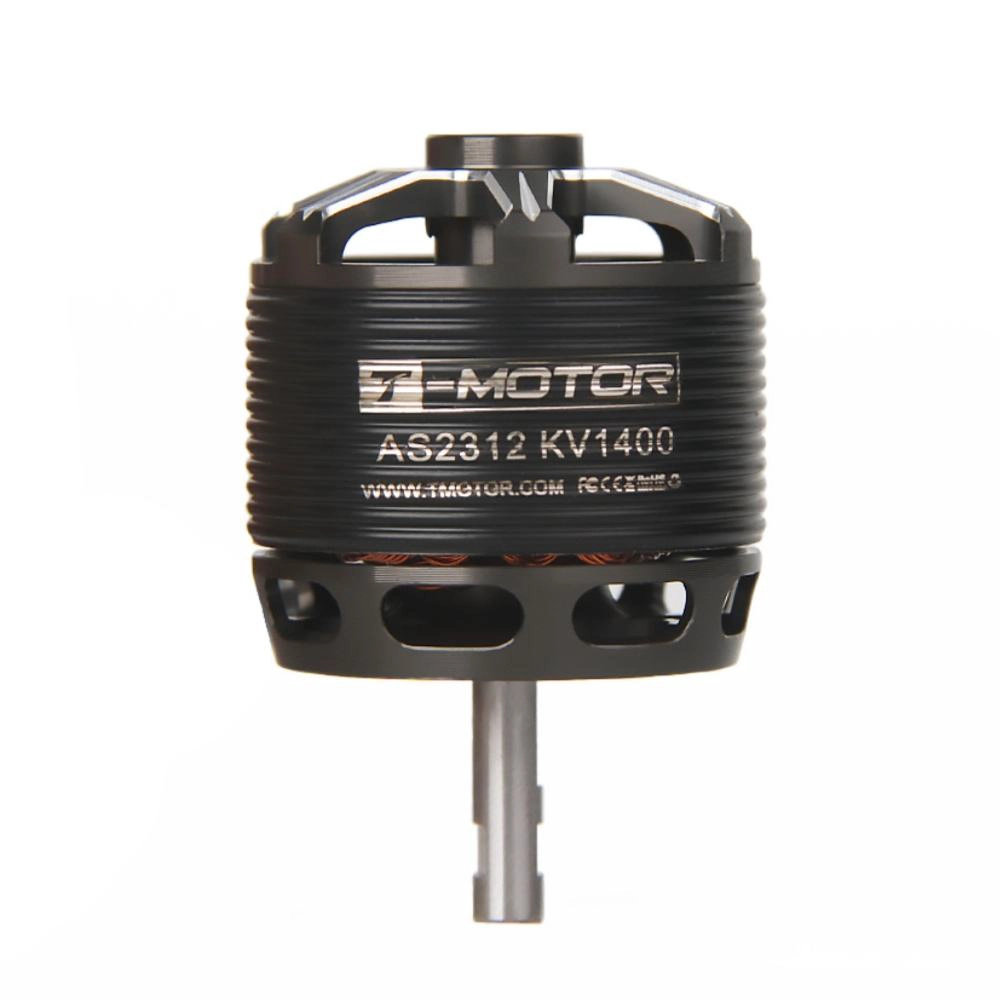

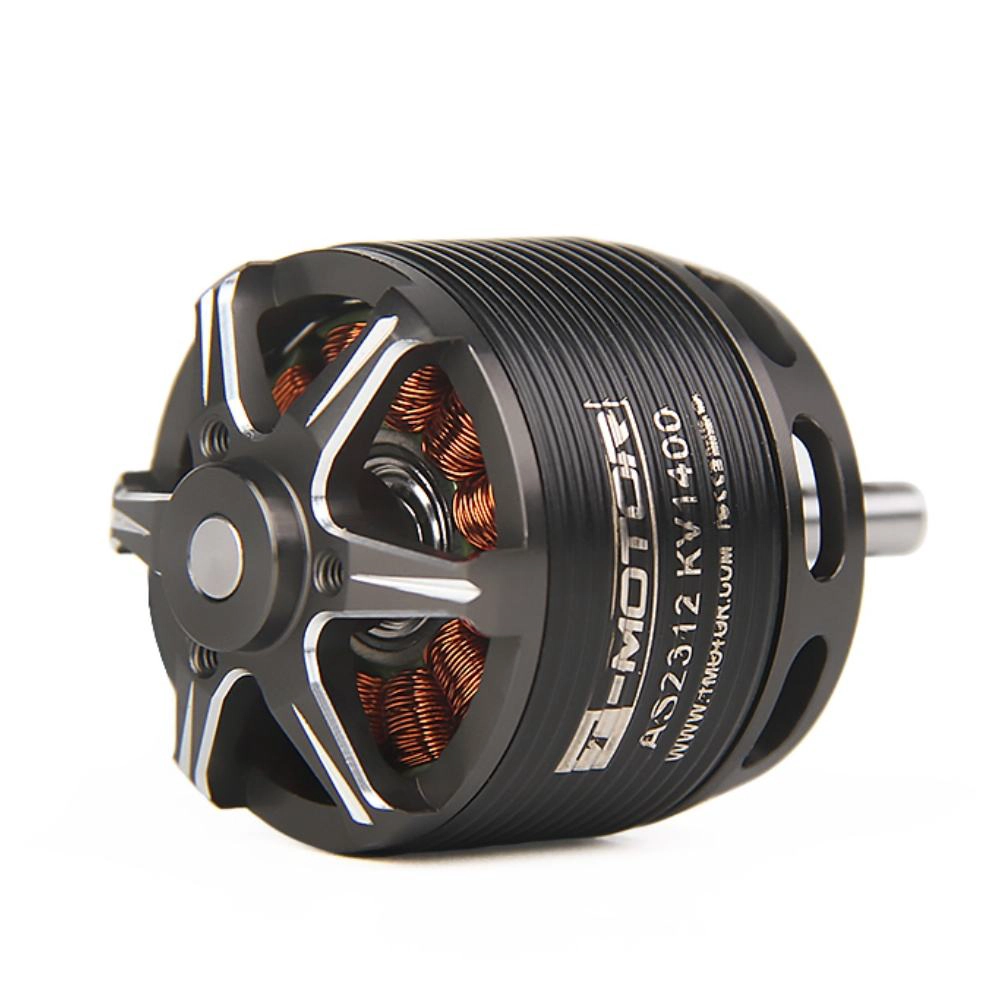

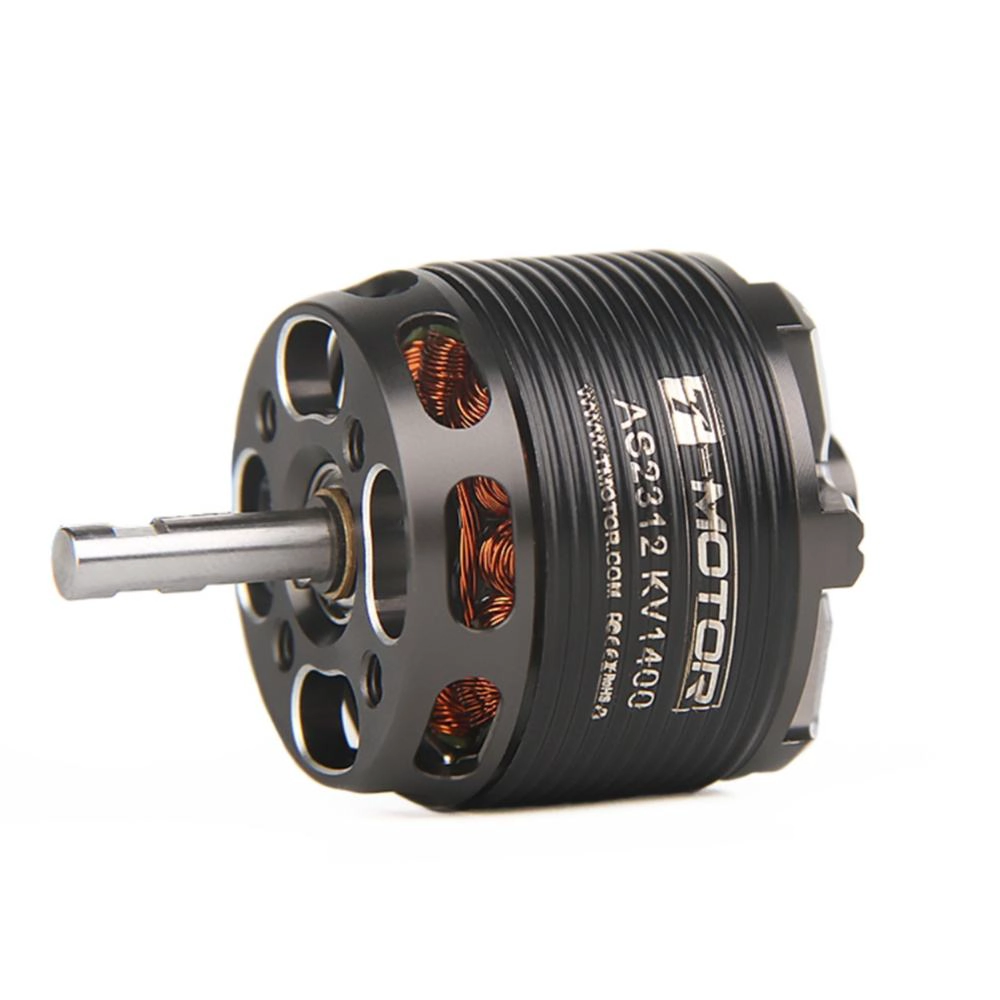

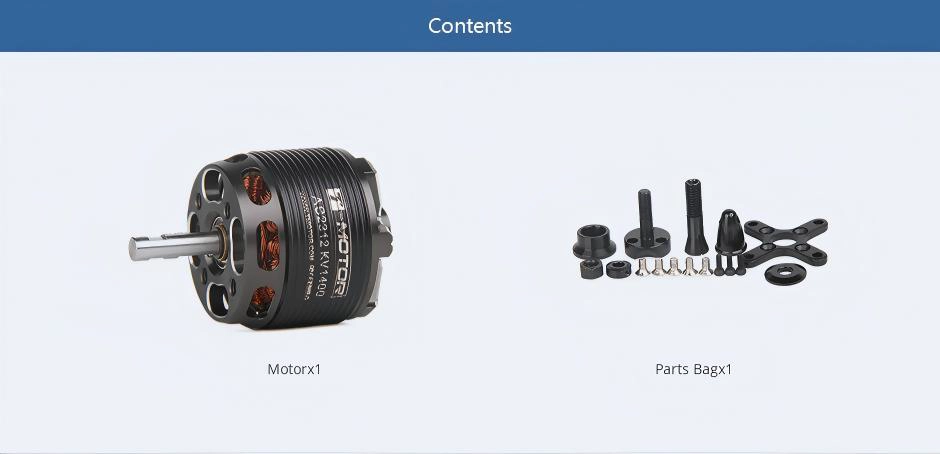

The T-Motor AS2312 long-shaft is a high-performance fixed wing motor engineered for fixed-wing aircraft, sailplanes, and trainer RC planes,which is a great motor suitable for Outdoor airplanes. As a precision-engineered rc aircraft motor, it delivers exceptional throttle linearity for precise flight control, powerful thrust for dynamic performance, and durable construction with premium bearings for reliable, long-lasting operation. This high efficiency motor is ideal for high-speed flight and training applications.
AS2312 Highlights:
*Long-shaft brushless design
*Precise control response
*Powerful thrust burst
*Durable and reliable structure

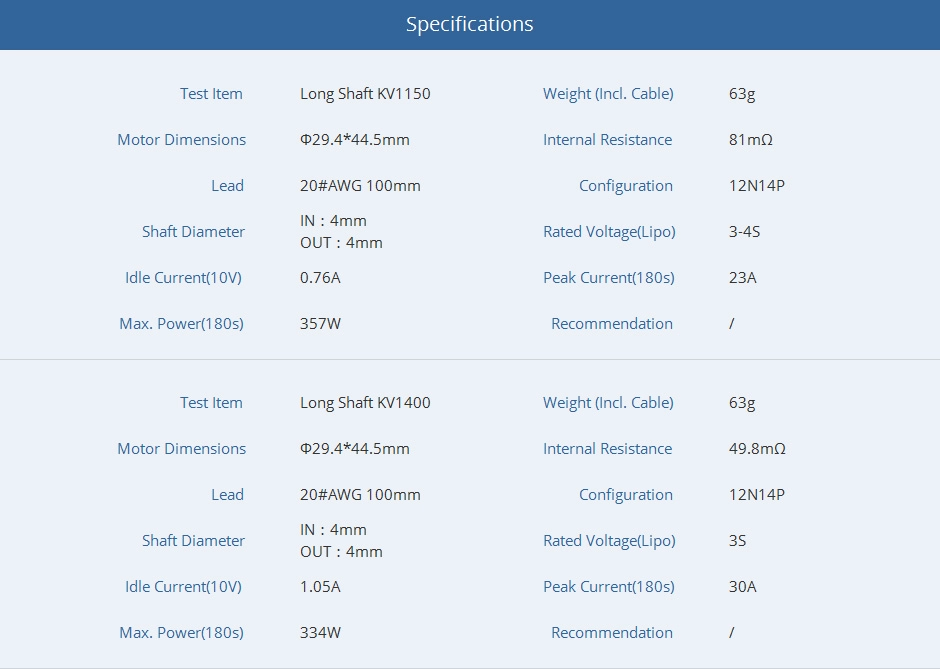

| AS2312 KV1150 | |

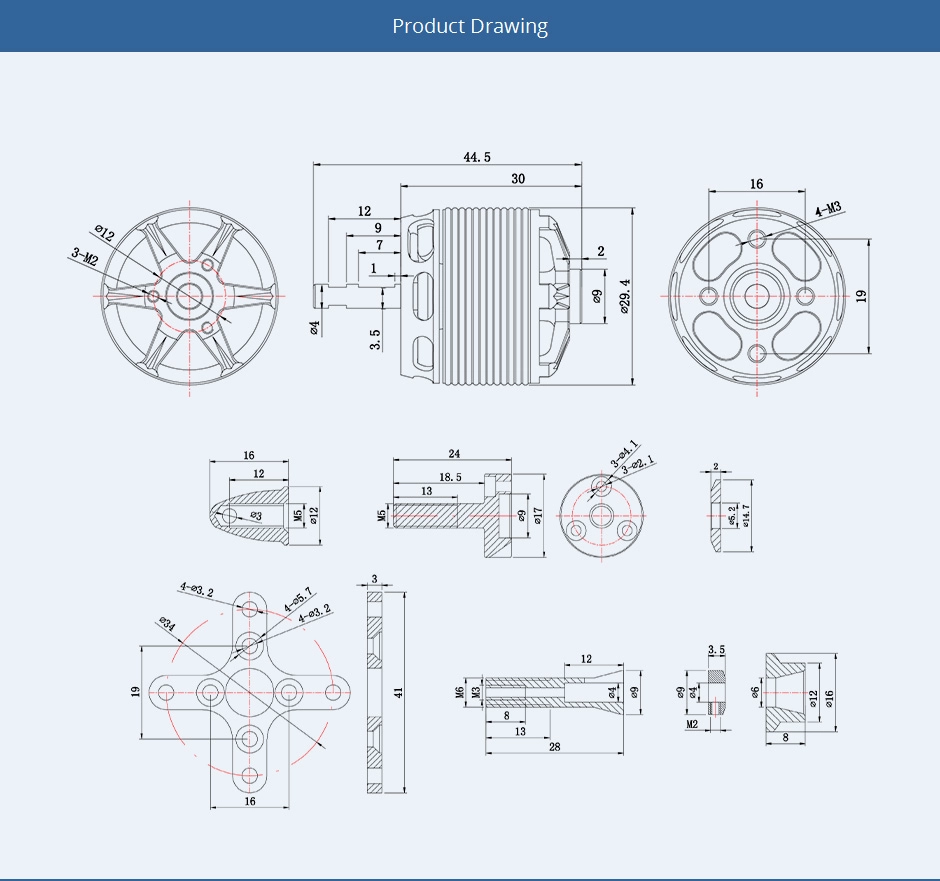

| Motor Size(mm) | Φ29.4*44.5mm |
| Lead | 20#AWG 100mm |
| Shaft Diameter | IN：4mm OUT: 4mm |
| Idle Current(10V) | 0.76A |
| Max. Power(60s) | 357W |
| Weight (Incl. Cable) | 63g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 23A |
| AS2312 KV1400 | |
| Motor Size(mm) | Φ29.4*44.5mm |
| Lead | 20#AWG 100mm |
| Shaft Diameter | IN：4mm OUT: 4mm |
| Idle Current(10V) | 1.05A |
| Max. Power(60s) | 334W |
| Weight (Incl. Cable) | 63g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 3S |
| Peak Current(180s) | 30A |
