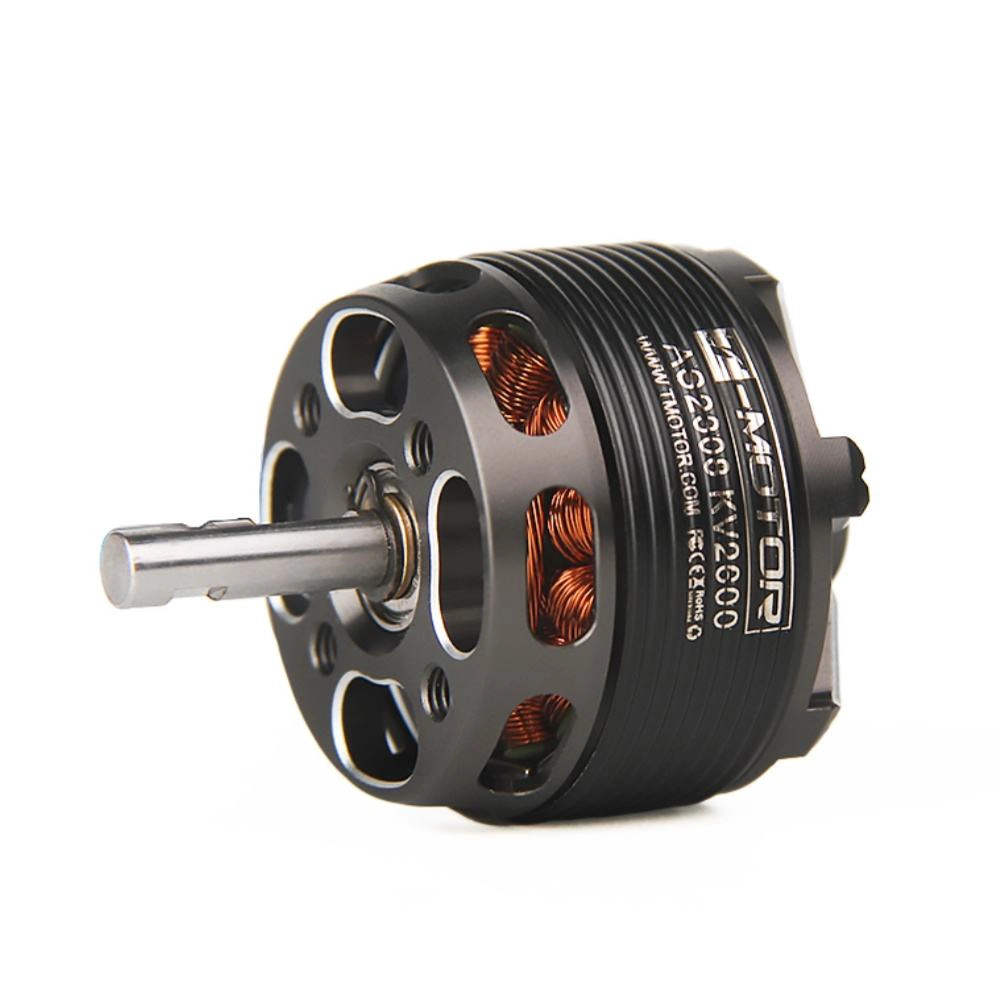

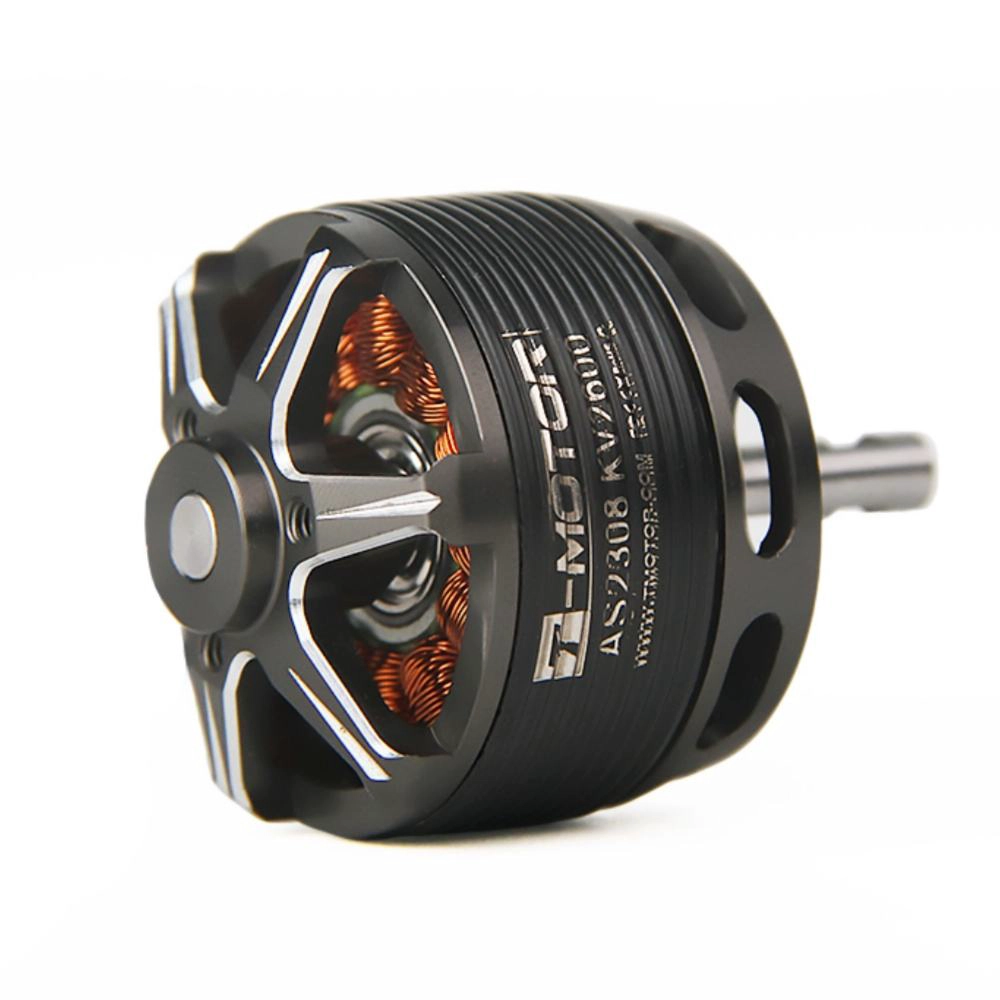

AS2308 T-Hobby Long Shaft Outrunner Brushless Motor for RC Aircraft Plane Drone Motor
- 1.KV1450
- 2.KV2600
- 3.Long Shaft
The T-Motor AS2308 long-shaft fixed-wing motor is a high efficiency brushless motor ideal for fixed-wing aircraft, trainers and VTOL drones. It comes in KV1450/KV2600 versions, supports 3-4S batteries and delivers 326W peak power. As a stable power brushless motor, it weighs only 49g with low noise and durable bearings. It also acts as a precision control brushless motor with smooth throttle response for reliable flight performance.
AS2308 Highlights:
* Compatible with fixed-wing/trainer/VTOL
* Dual KV versions: 1450/2600
* Supports 3-4S batteries
* Max power: 326W
* Lightweight: only 49g
* Linear throttle control
* Durable bearings, crash-resistant
* Low noise, stable operation

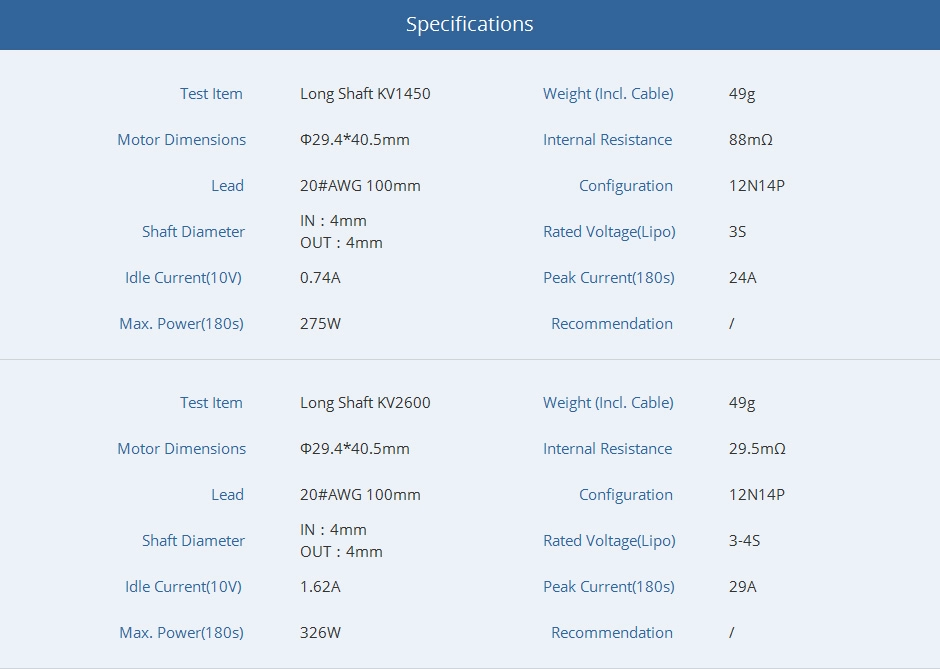

| AS2308 KV1450 | |

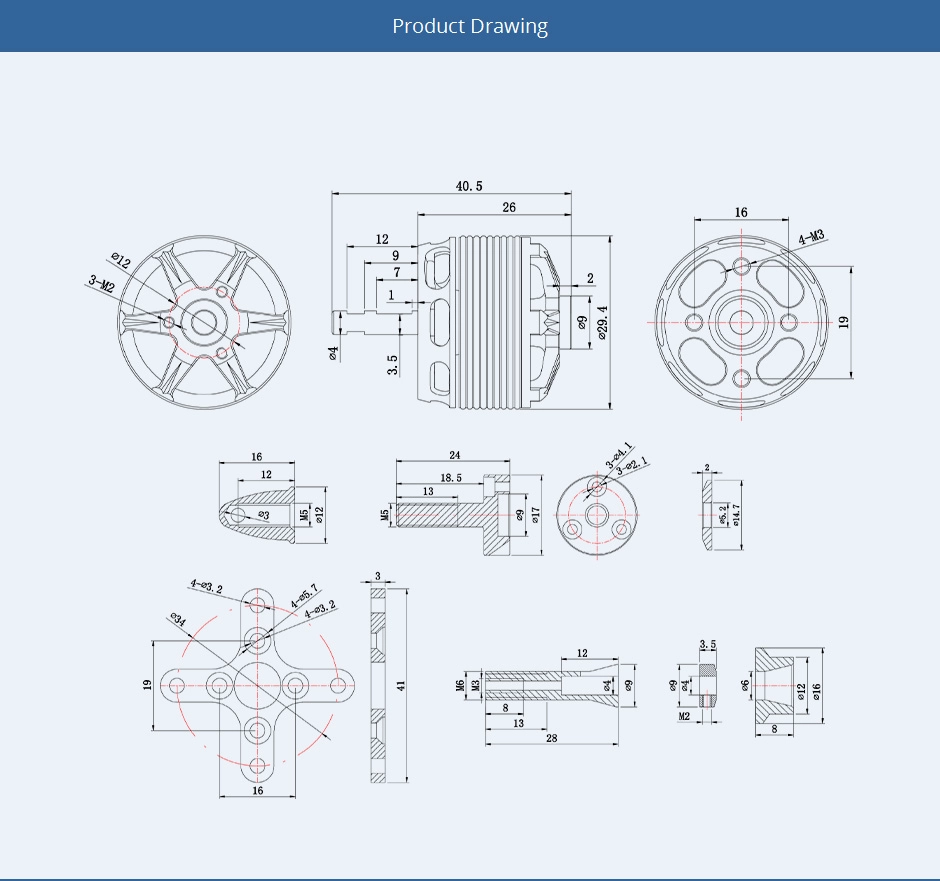

| Motor Size(mm) | Φ29.4*40.5mm |
| Lead | 20#AWG 100mm |
| Shaft Diameter | IN：4mm OUT: 4mm |
| Idle Current(10V) | 0.74A |
| Max. Power(60s) | 275W |
| Weight (Incl. Cable) | 49g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 3S |
| Peak Current(180s) | 24A |

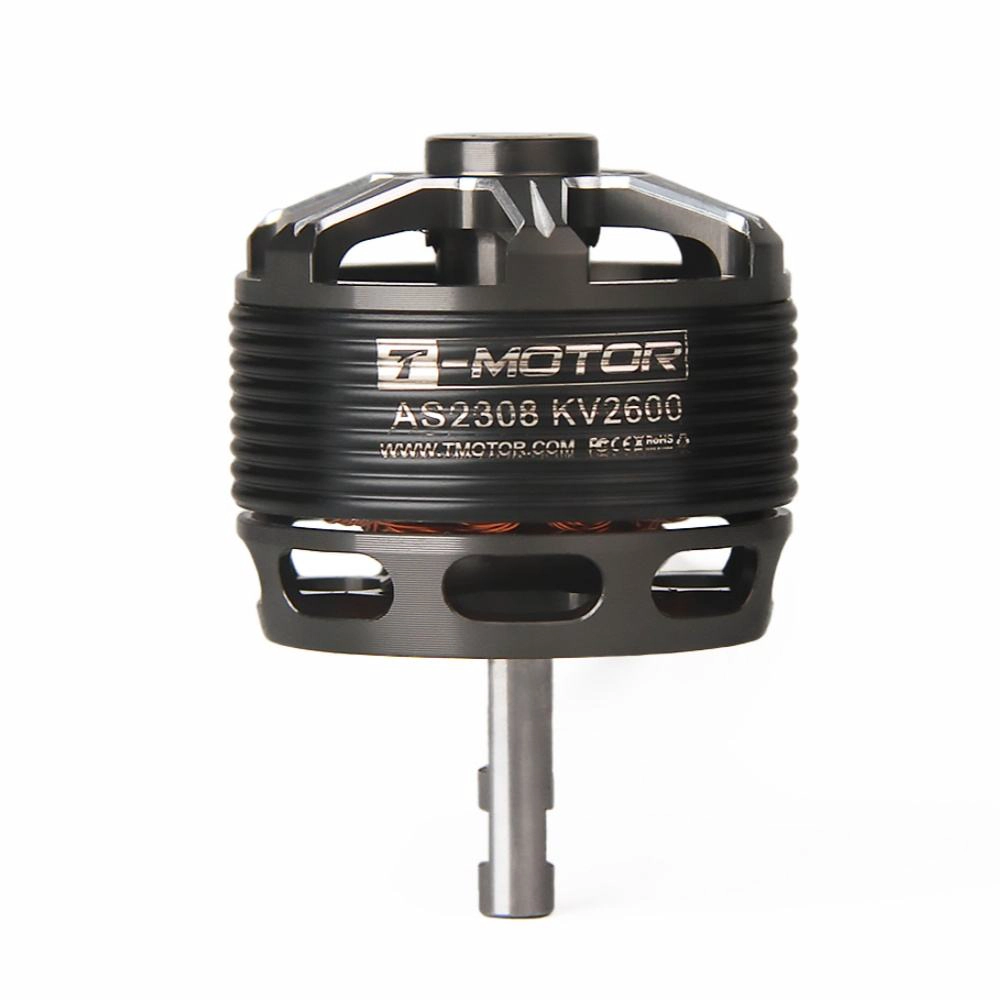

| AS2308 KV2600 | |
| Motor Size(mm) | Φ29.4*40.5mm |
| Lead | 20#AWG 100mm |
| Shaft Diameter | IN：4mm OUT: 4mm |
| Idle Current(10V) | 1.62A |
| Max. Power(60s) | 326W |
| Weight (Incl. Cable) | 49g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 29A |
