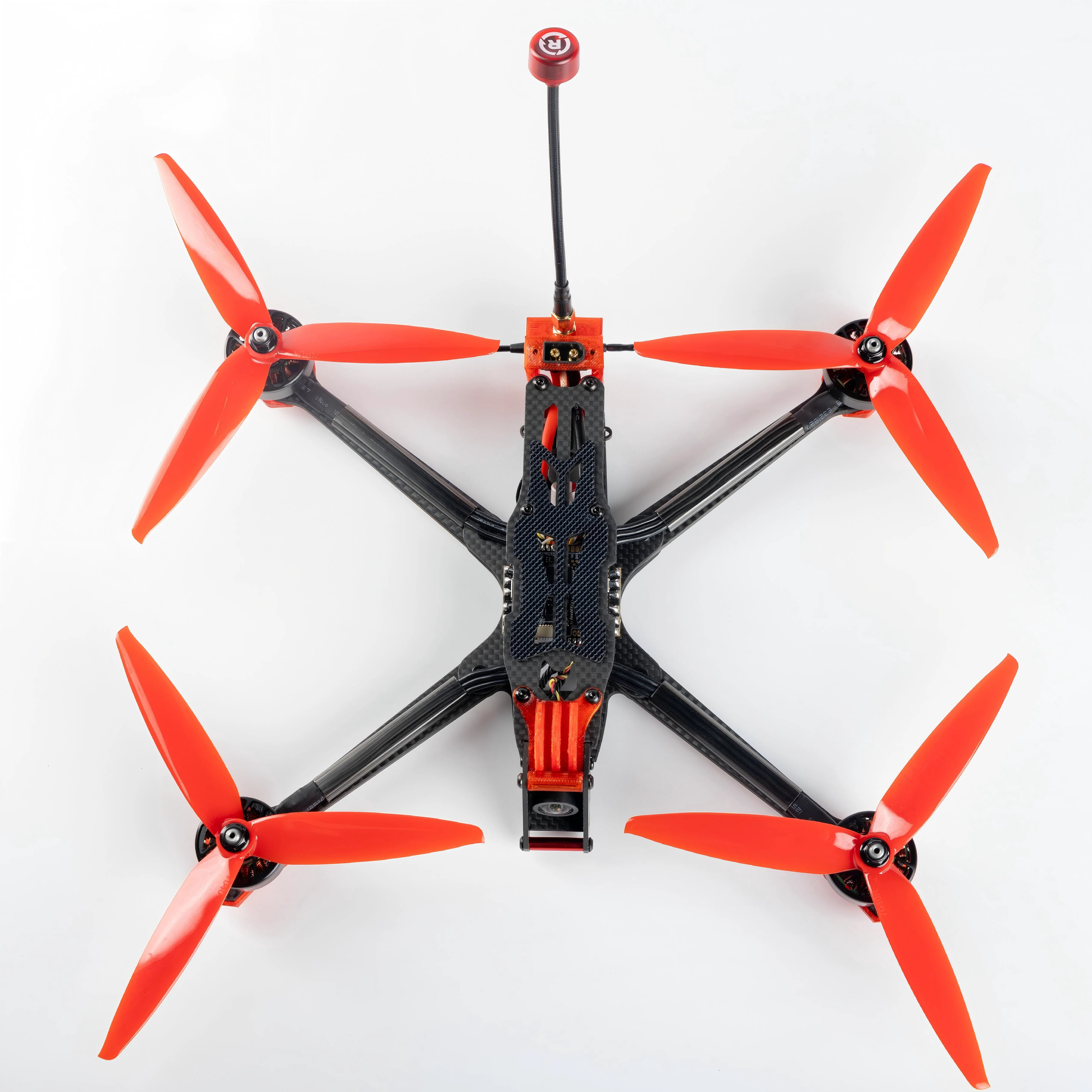

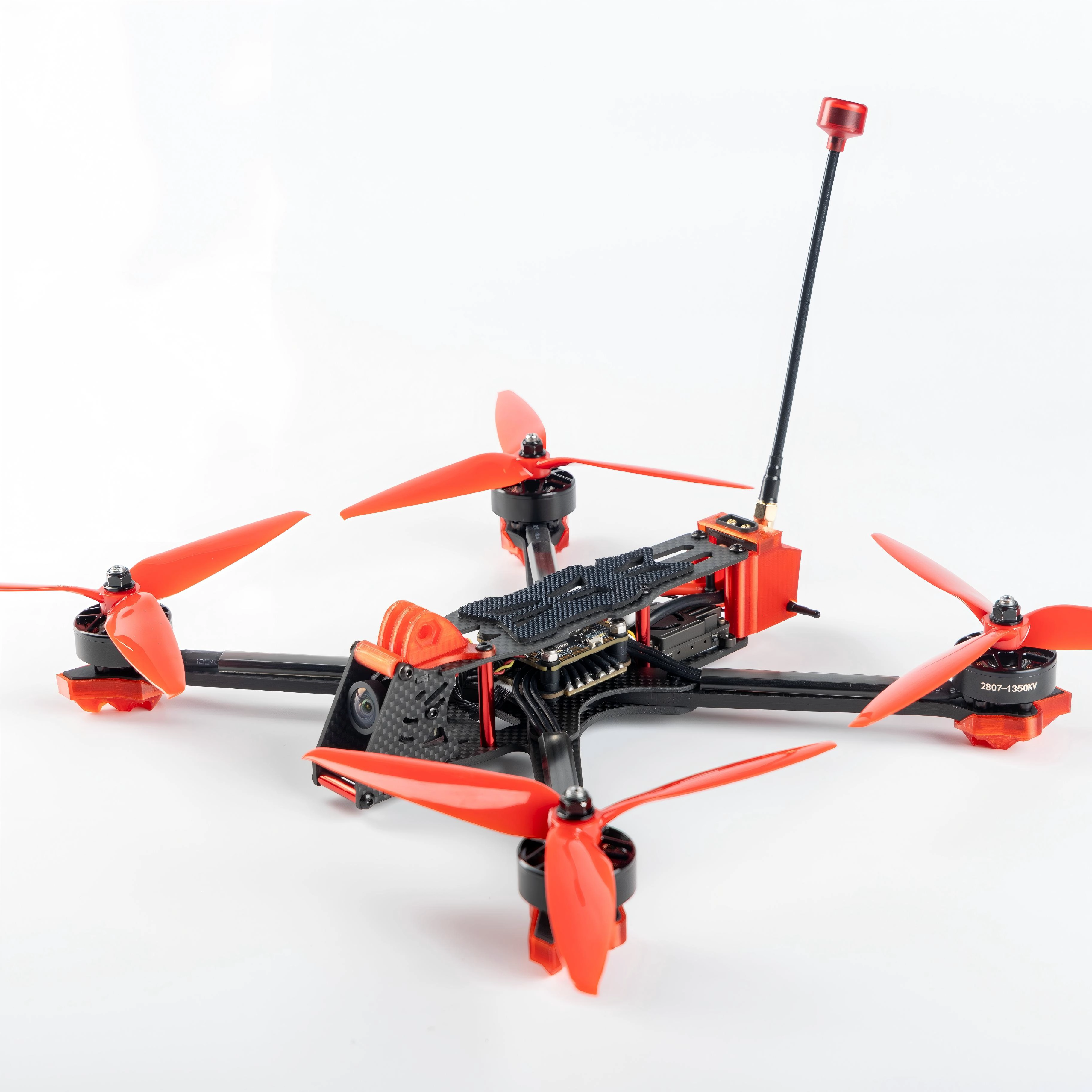

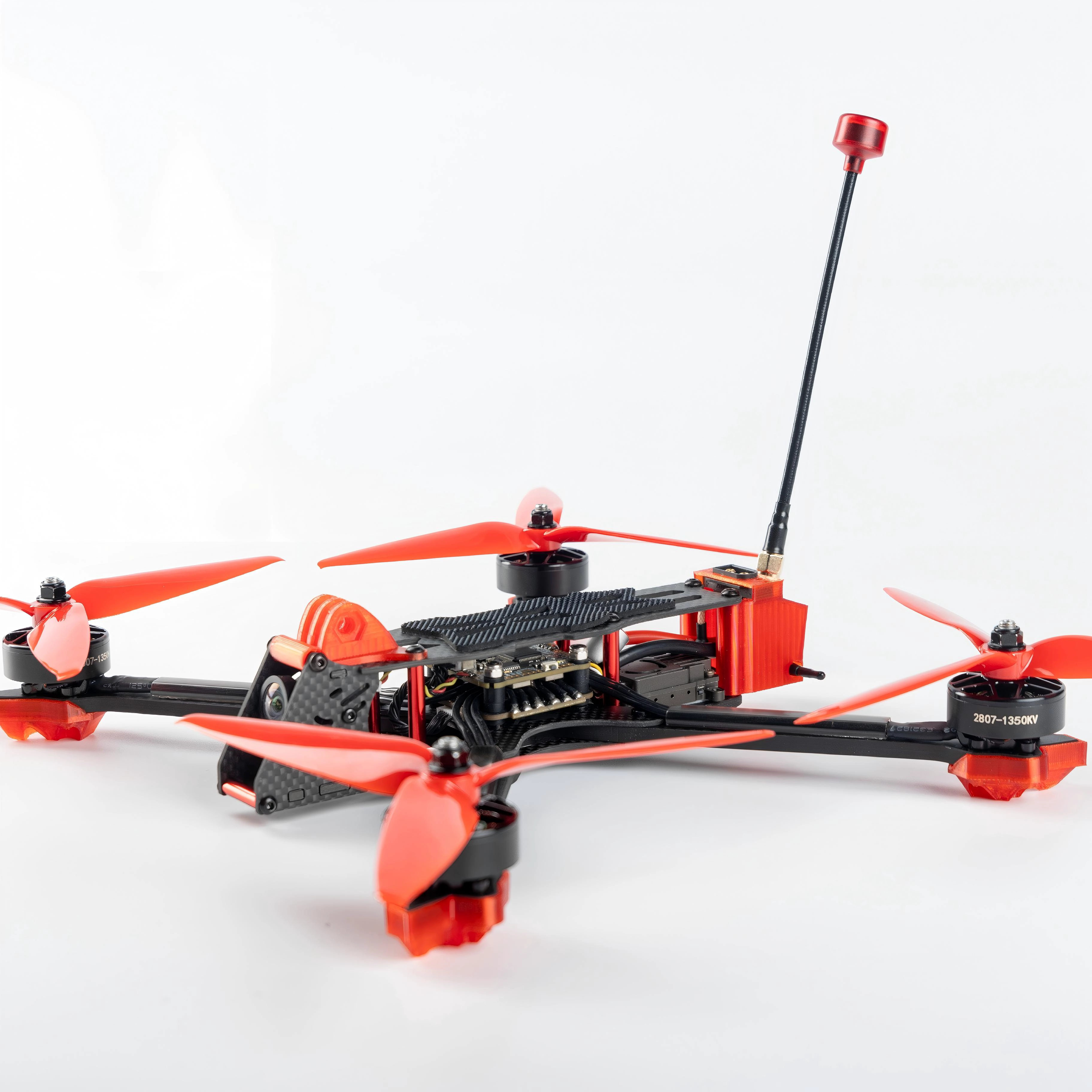

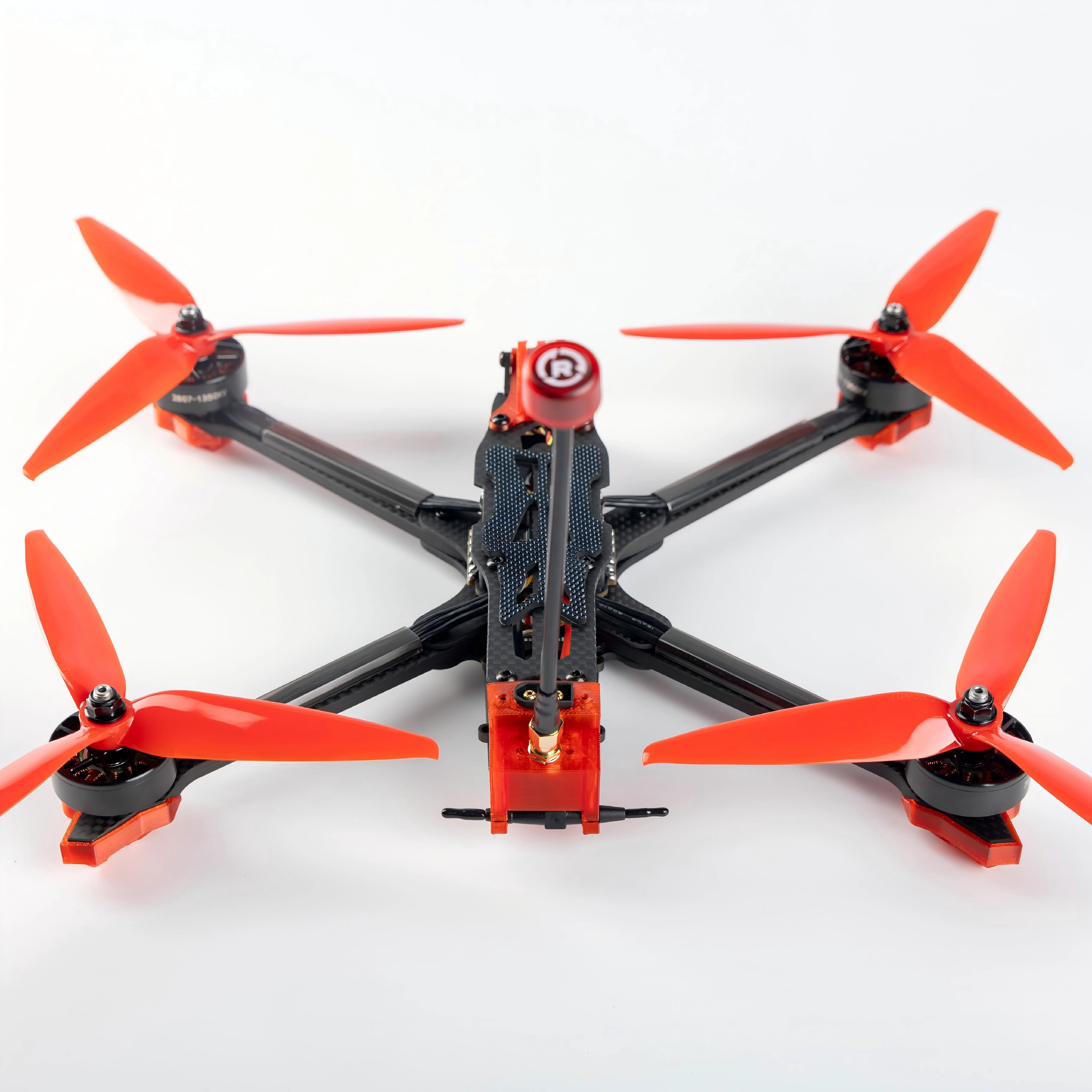

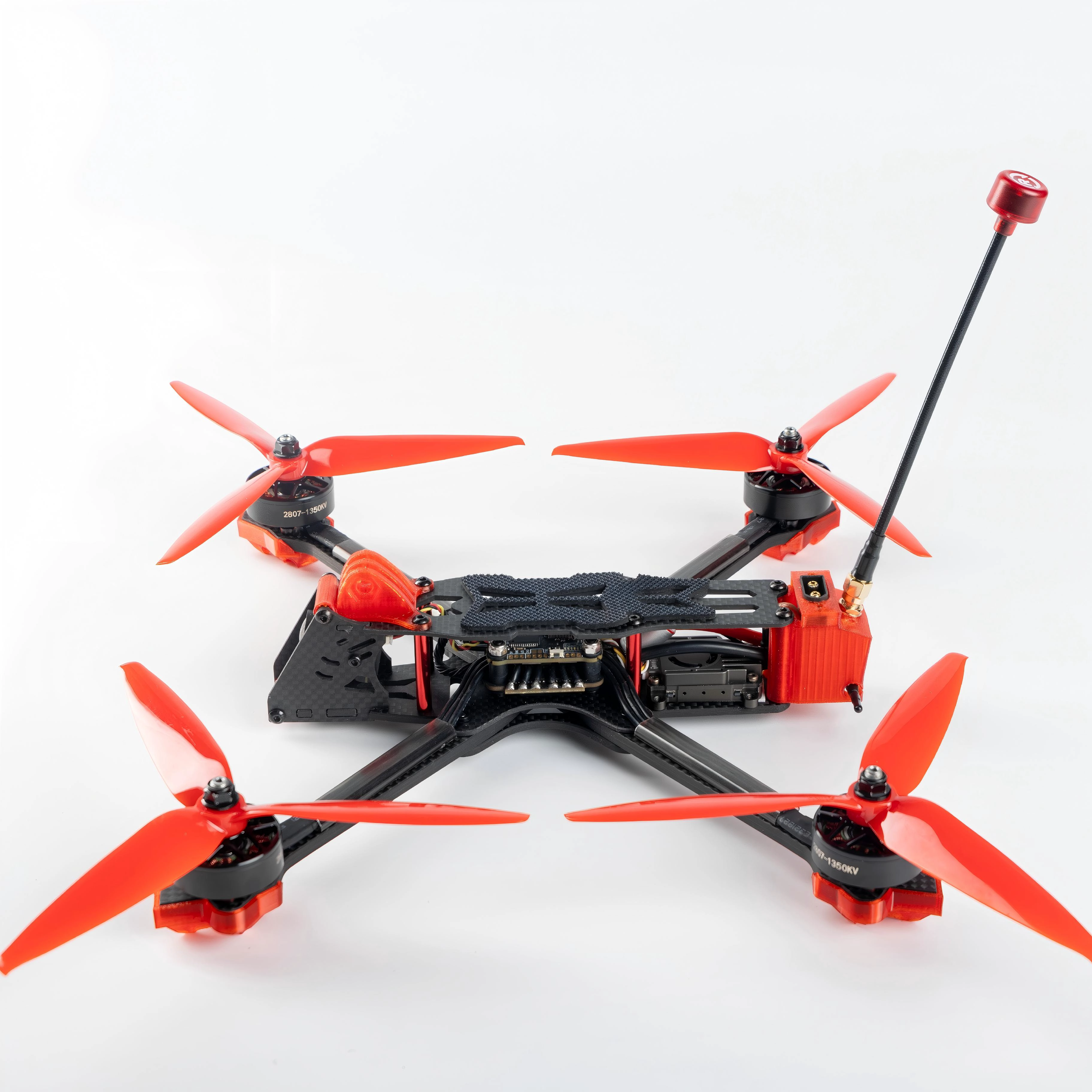

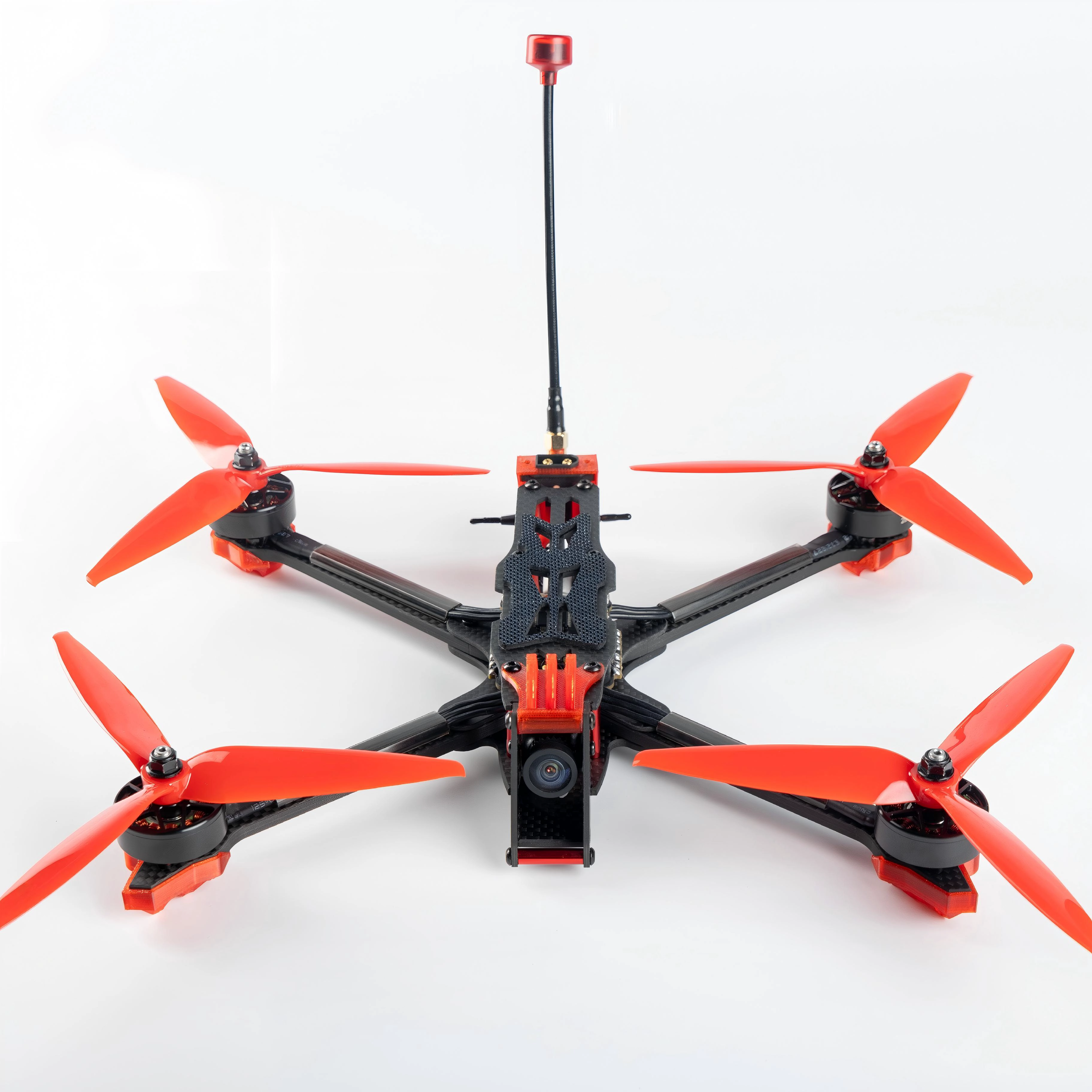

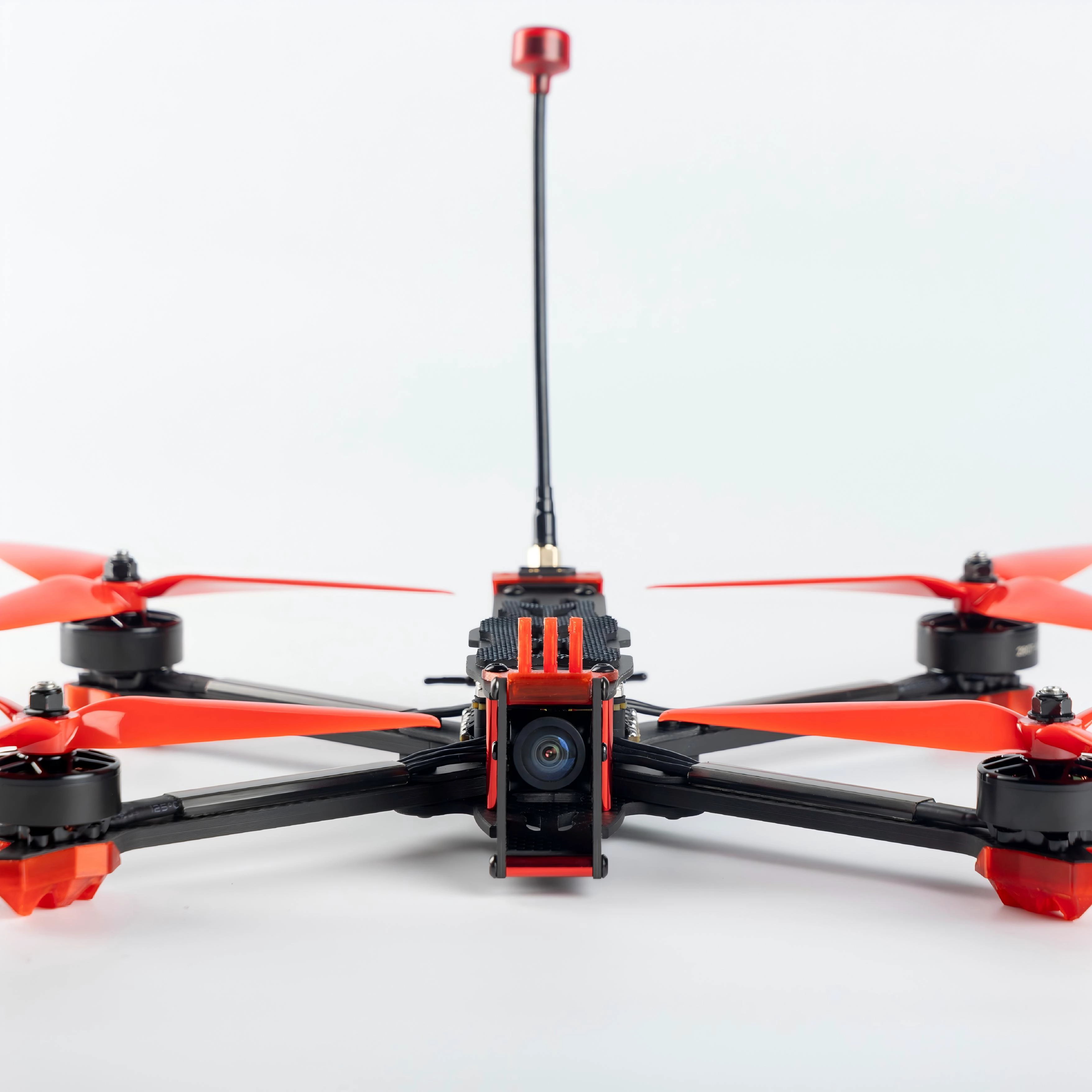

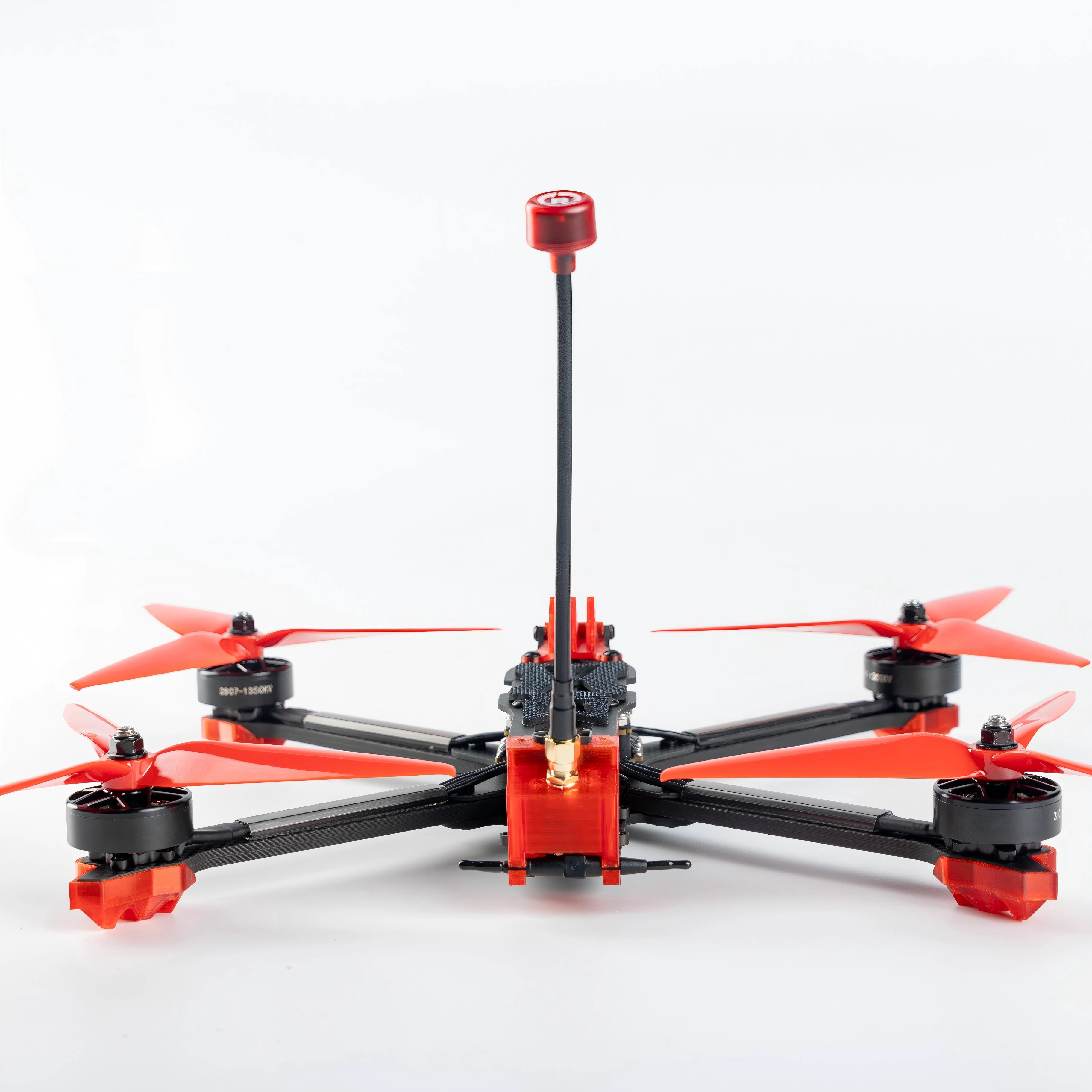

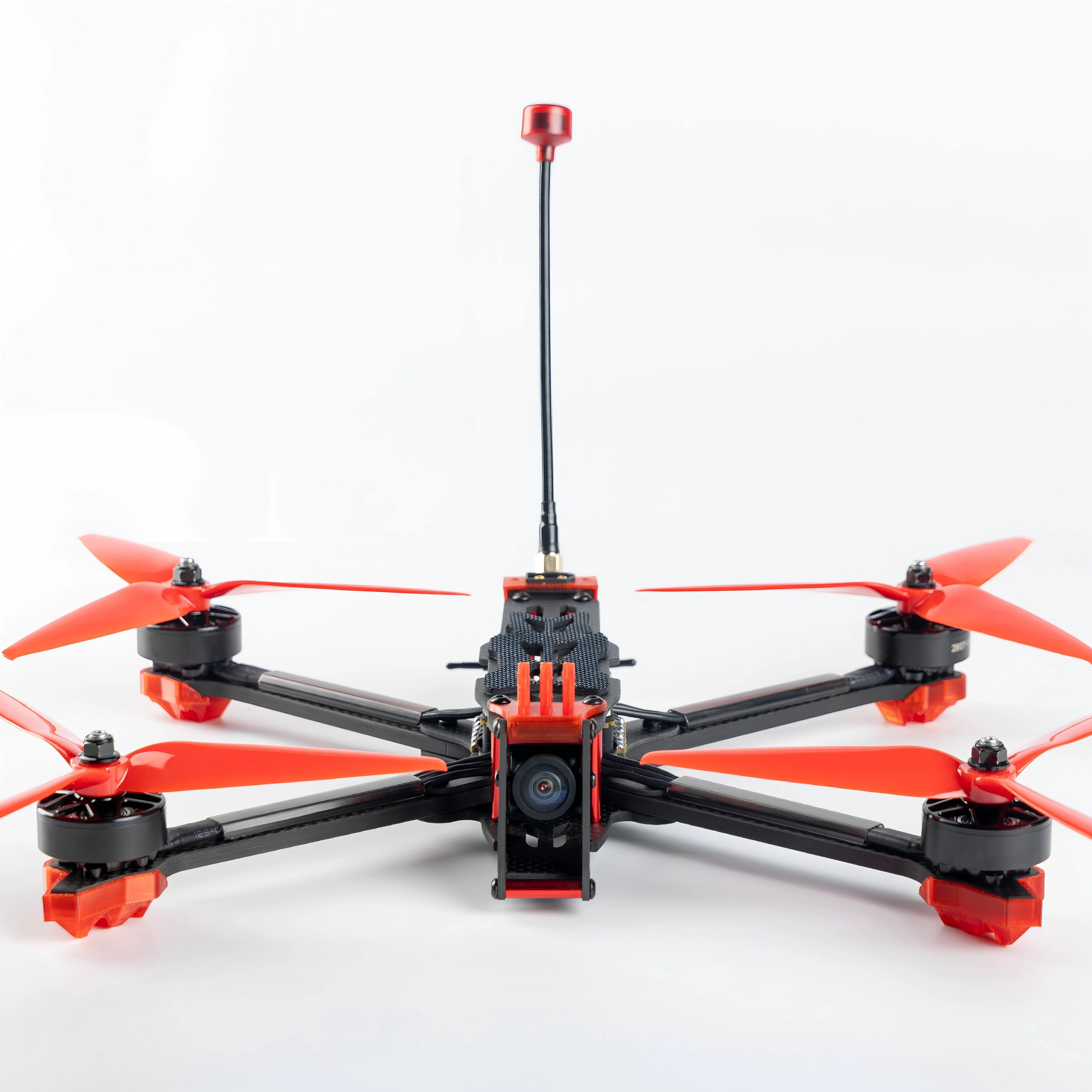

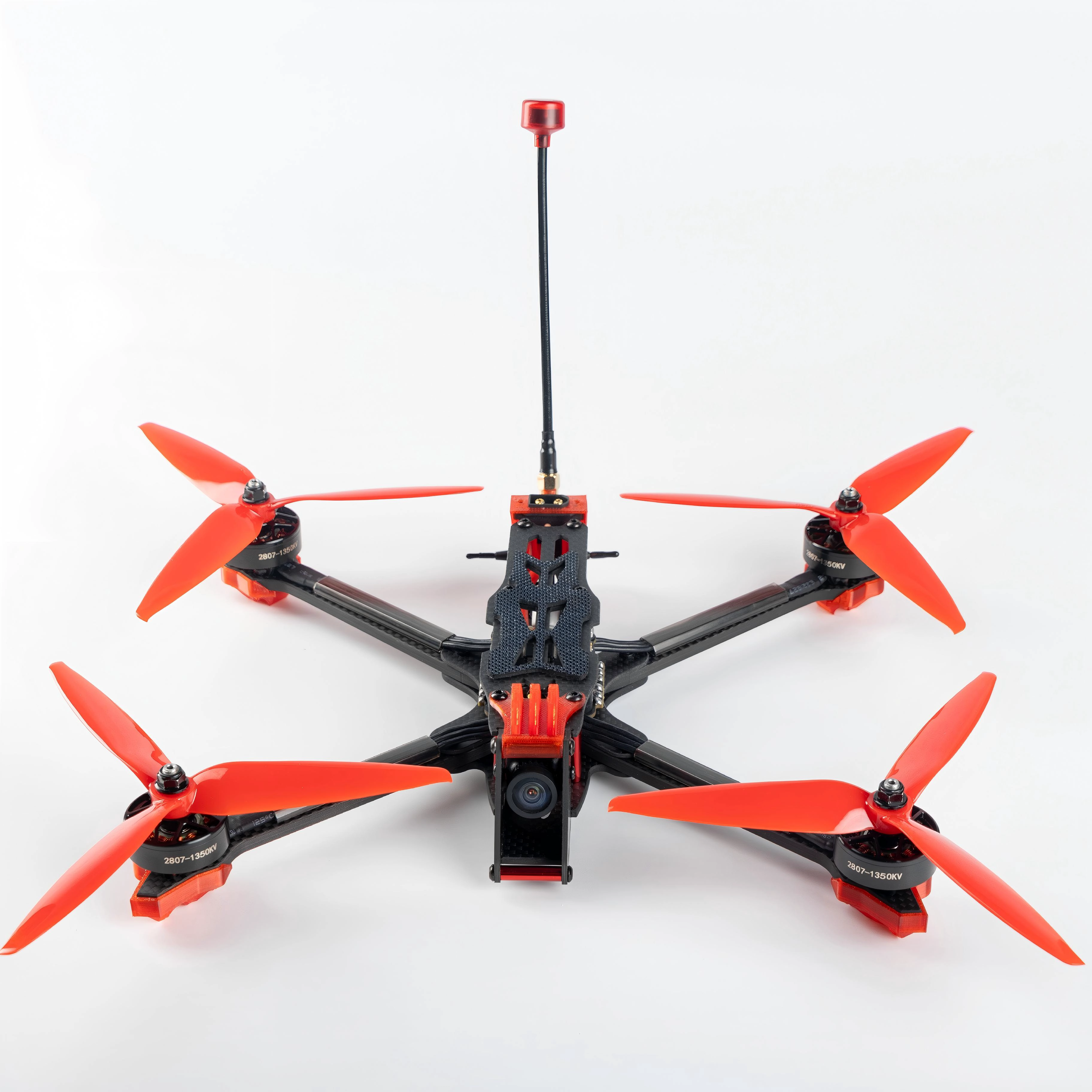

This multi-scenario FPV balances maneuverability and stability with 7-inch propellers, a reliable Heavy Load Drone (2kg rated, 5kg max load, 4.2kg max take-off weight). As a Long Endurance Drone, it offers 29min no-load and 13min loaded flight. The 460g carbon fiber fuselage hits 140km/h, with 3KM 5.8G transmission for a Long Range Drone, plus dual-band control and F405 controller for diverse tasks.
X7 Highlight:
- Strong load capacity for stable operation
- Long endurance with balanced load capacity
- Balance between stability and maneuverability
- Lightweight, portable and rapid response
- HD image transmission with strong anti-interference
| Specification： | |
| Net Weight | 460g |
| Frame | 7-inch frame |
| Wheelbase | 295mm |
| Dimensions | L220mm × W260mm × H40mm |
| Material | Carbon fiber plate |
| Input Voltage | 6S |
| Flight Controller | F405 |
| ESC | AM32 4-in-1 brushless 55A ESC |
| VTS | 5.8G 1.6W |

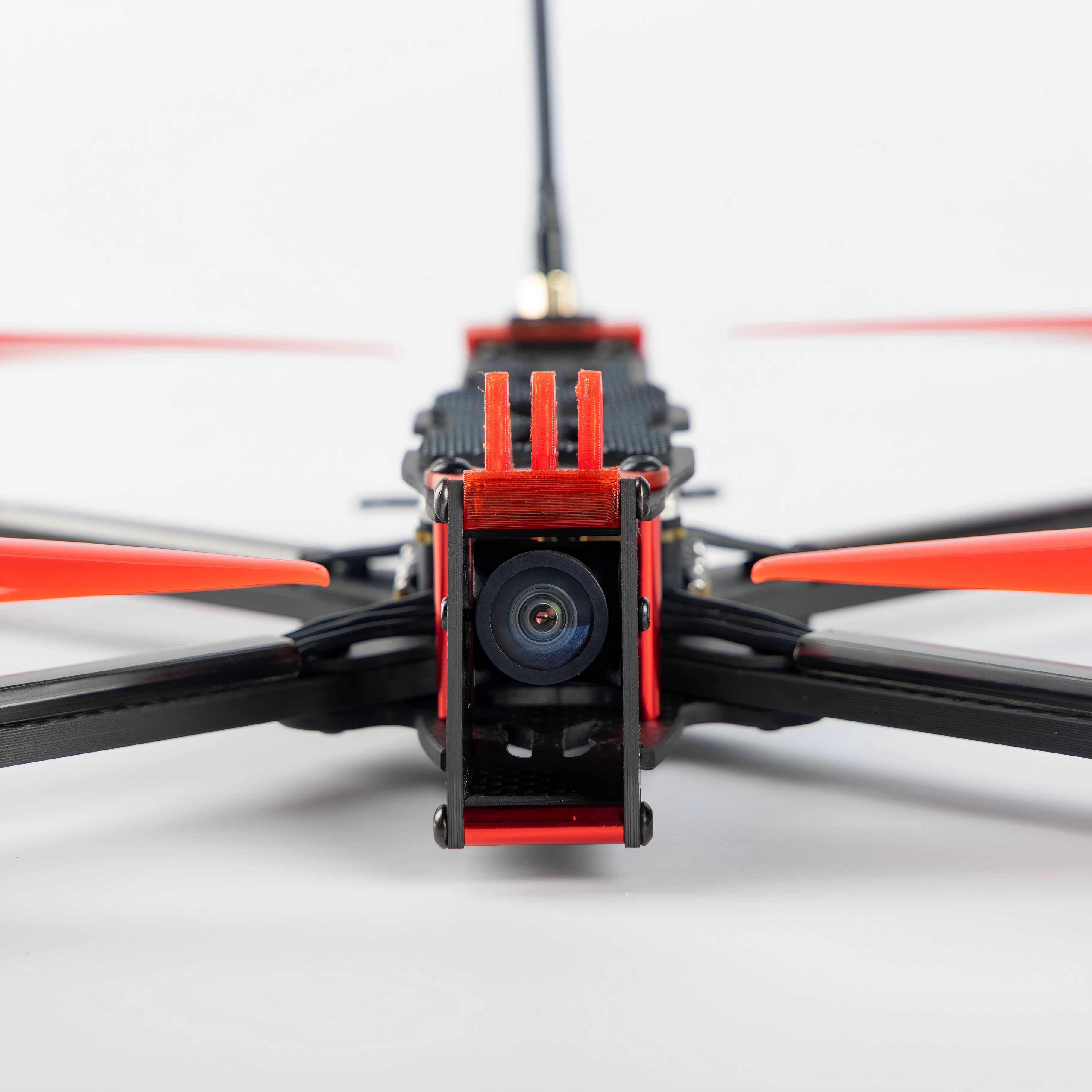

| Camera | 1500TVL, 1/3" CMOS; DC 5-25V |
| Receiver | Express LRS 2.4G/915MHz |

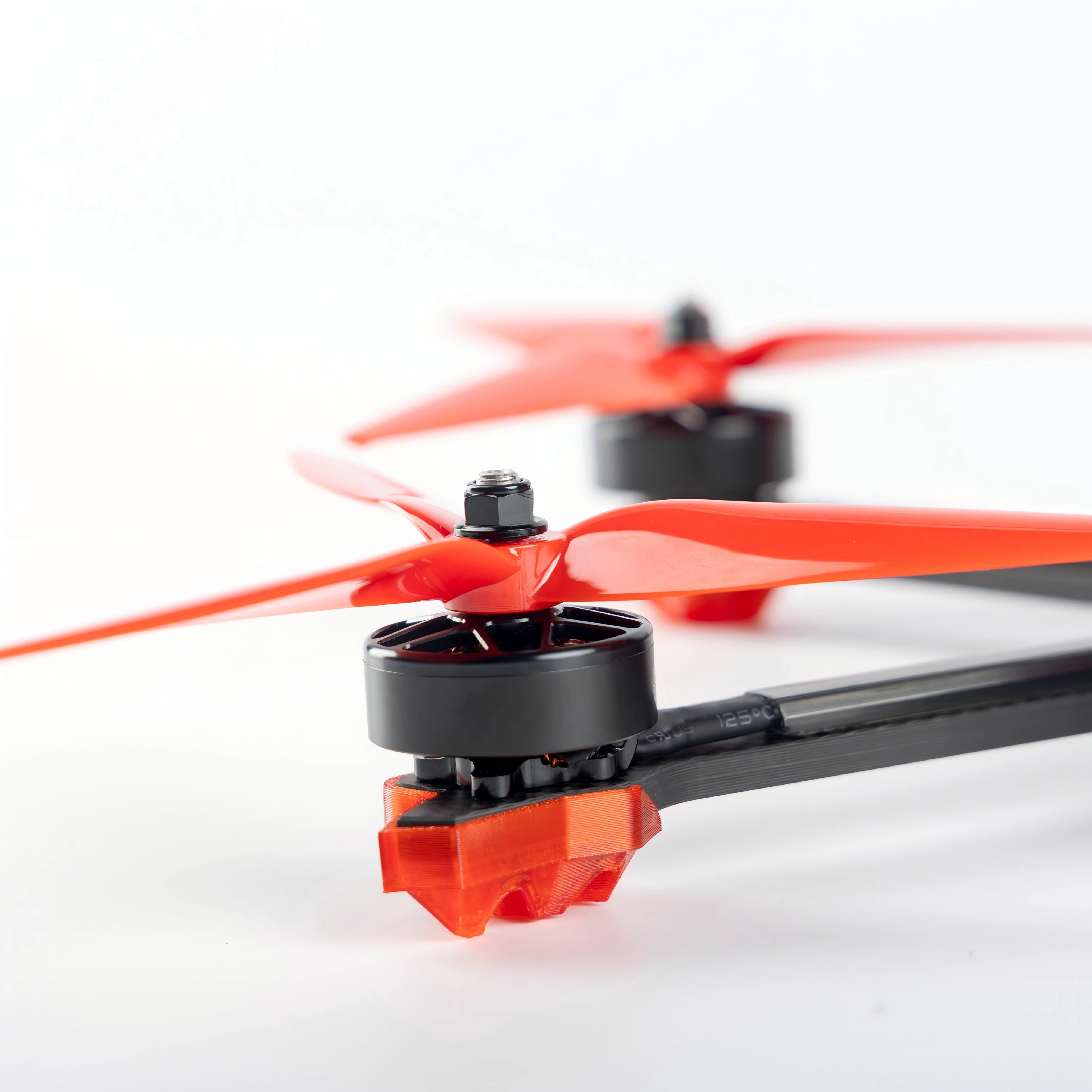

| Motors | #2812, KV 1300 |

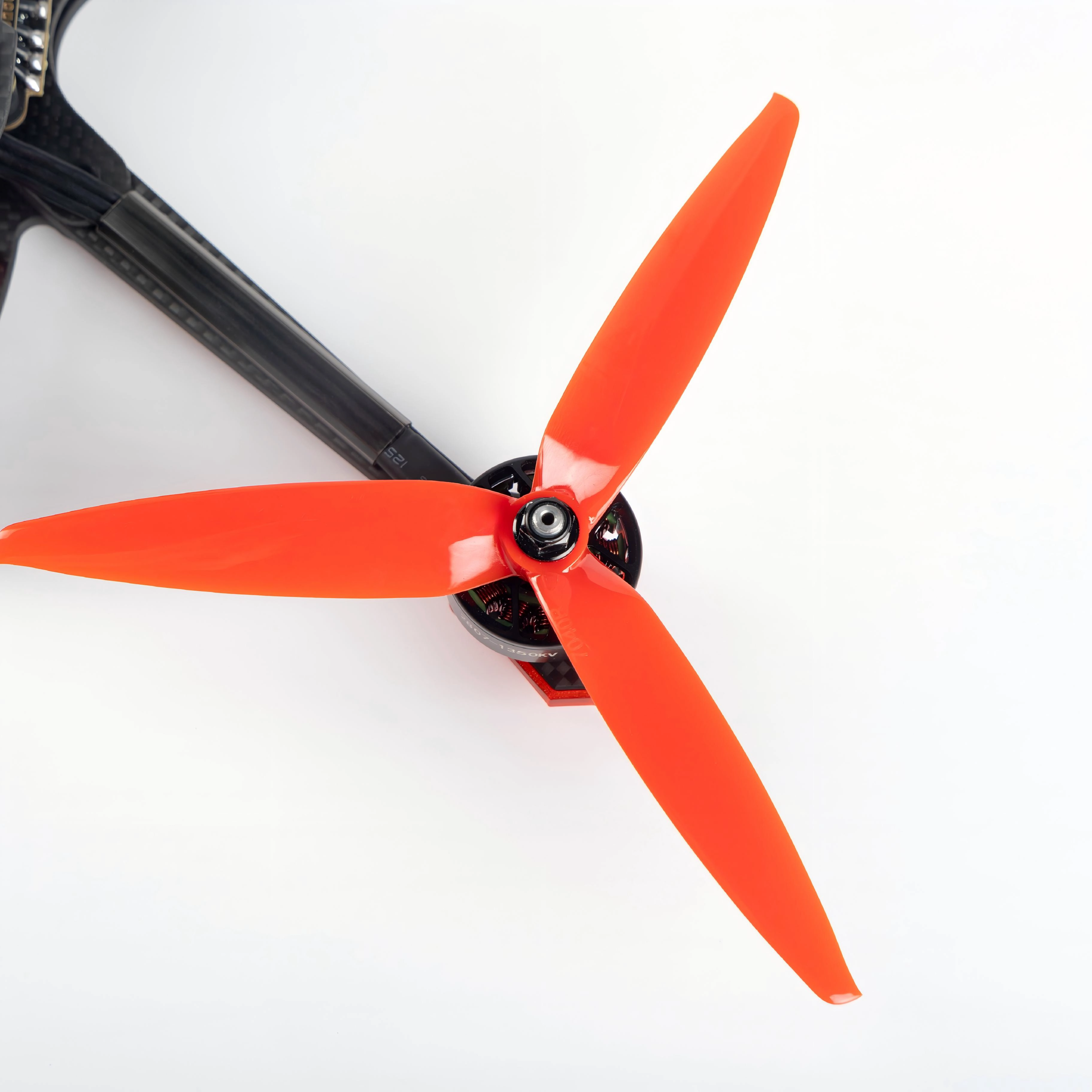

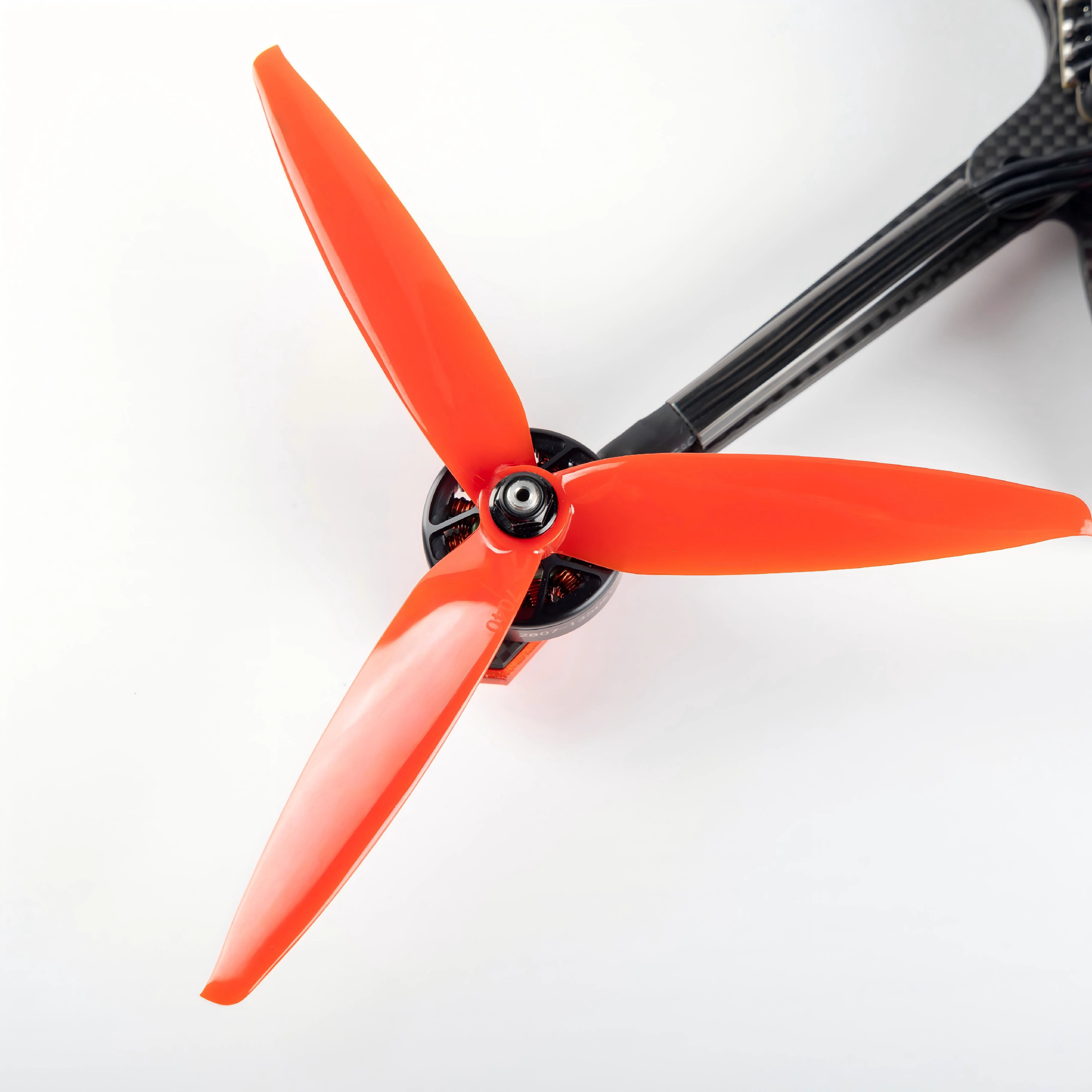

| Propellers | 7-inch, 3-blade |
| Recommended Battery | 6S 5000mAh, XT60 Connector |
| Control Range | 3KM |
| Operating Temperature | -20°C to 70°C |
| Max Speed | 140 km/h |
| Max Flight Range | 10km |
| Rated Payload | 2000g |
| Maximum Payload | 5000g |
| Max Takeoff Weight | 4200g |
| Empty Flight Duration | 29min (6S 8000mAh, 1.72kg) |
| Rated Flight Duration | 13min (6S 10000mAh, 3.5kg) |
| Accessories： | |
| *5.8GHz Long-Range Antenna*1 | |
| *20mm×300mm Battery Strap*1 | |
| *Propeller 7050 (Carbon Fiber Nylon) - CW/CCW (1 pack) | |
| Optional Modules： | |
| *AI Targeting Module (Optional) | |
| *Infrared Thermal Imaging Module | |
| *Fiber-Optic Communication Link (Radio-Interference Resistant): Available in 3km, 5km, 10km, 15km lengths | |
| *Payload Release System (Max 7kg) | |
| Packing info: | |
| Product net weight (g) | 460 |
| Product dimension (mm) | 220*260*40 |
| Box gross weight (g) | 568 |
| Box dimension (mm) | 300*270*70 |
| Carton weight (kg) | 13kg |
| Carton dimension (mm) | 550*450*400(5 sets) |
