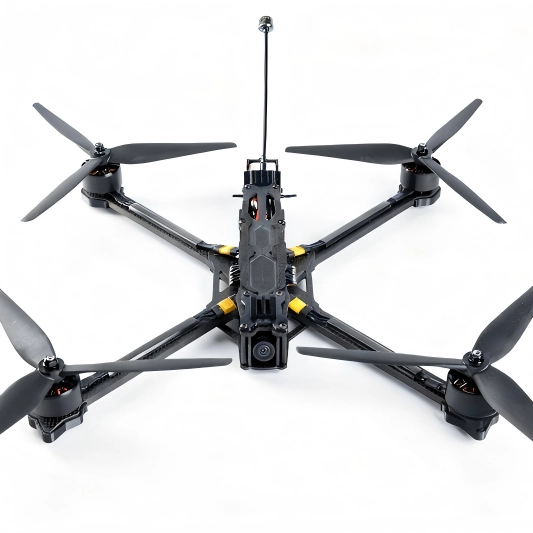

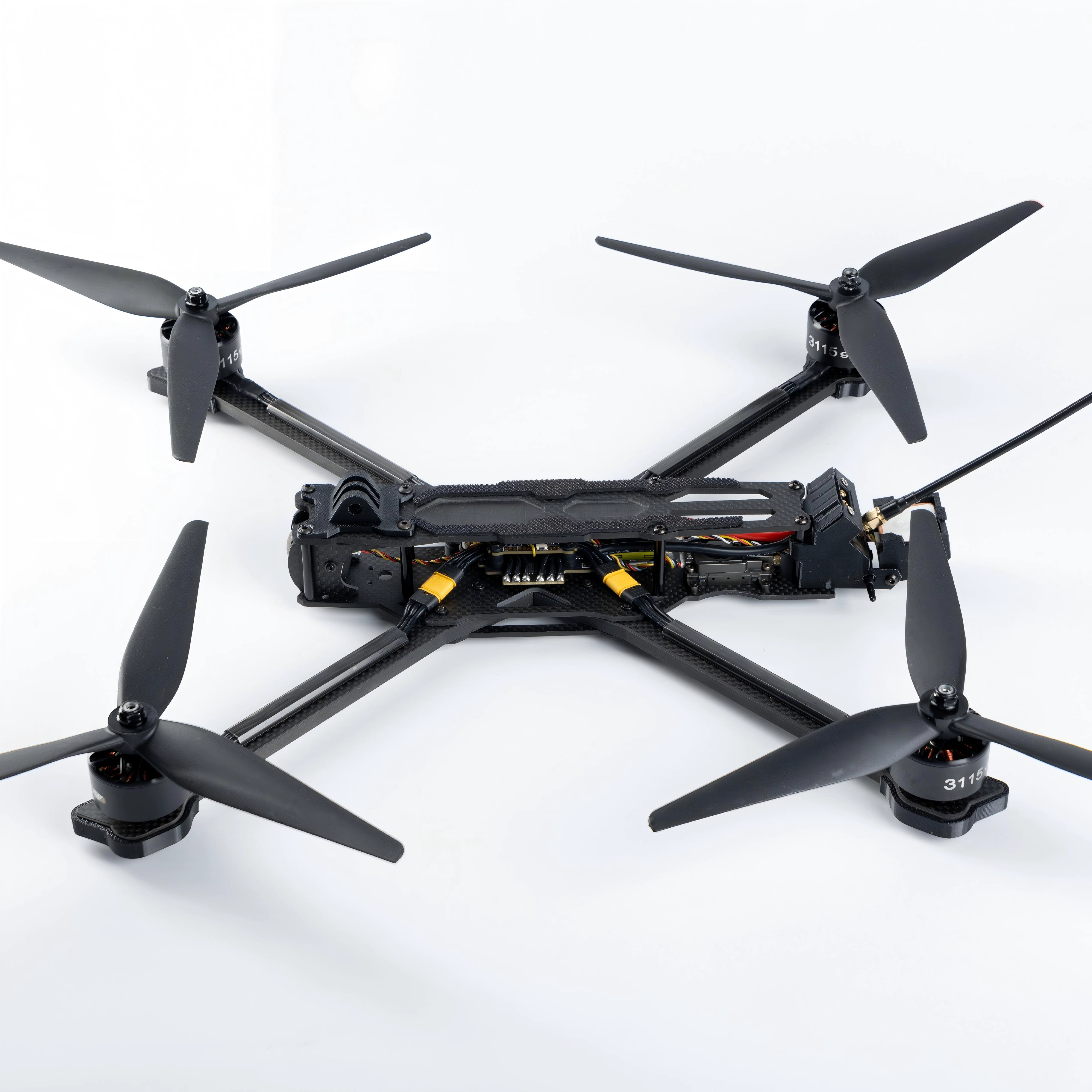

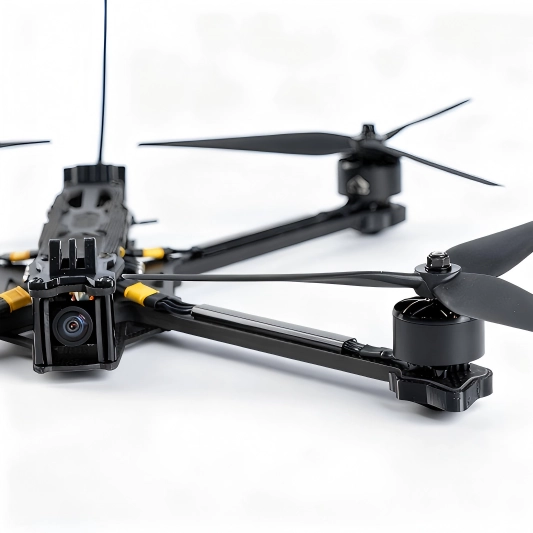

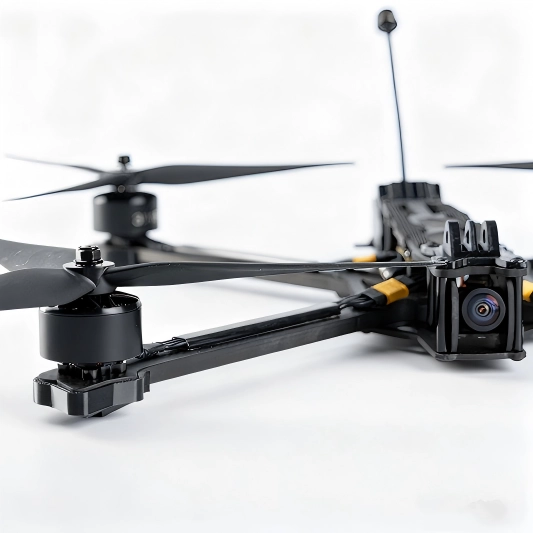

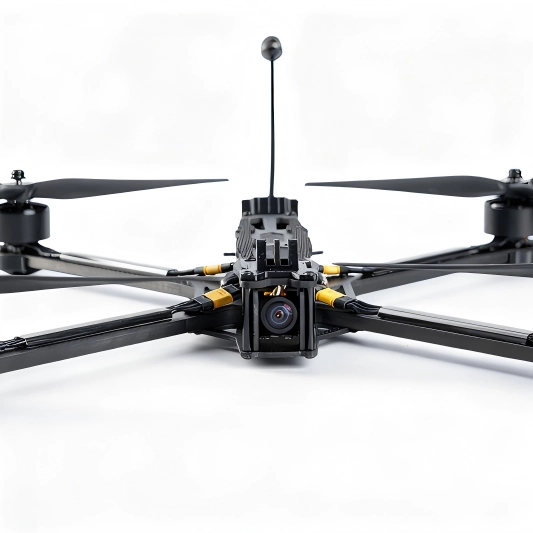

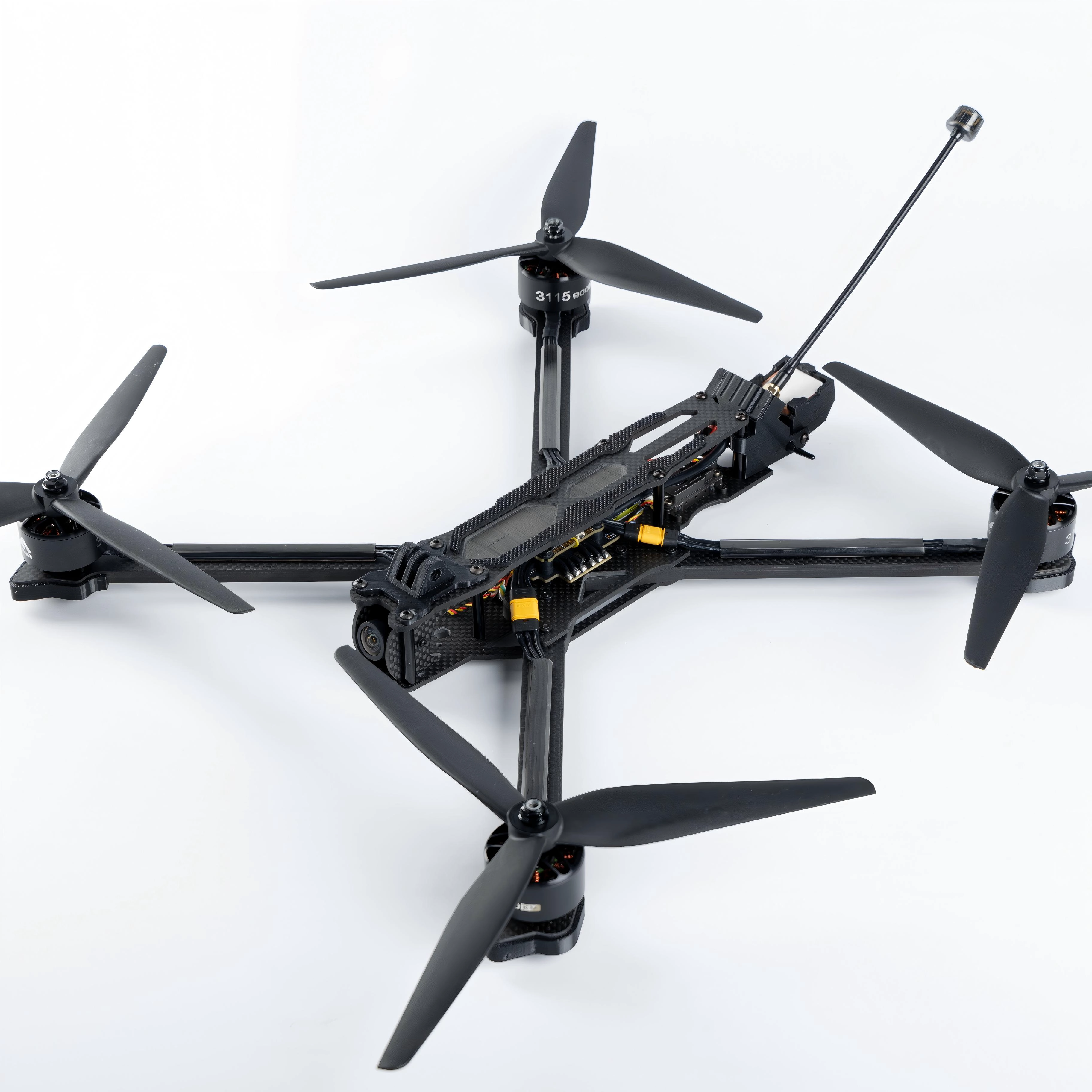

This high-performance professional FPV drone is a Carbon Fiber Drone, with a lightweight body balancing endurance and mobility. As an HD Image Transmission Drone, it offers 10KM transmission & control, 5.8G signal and 1500TVL HD feedback. A reliable Heavy-Lift Drone with 3-5kg load capacity, it suits inspection, rescue and more, supporting AI/infrared expansion and custom tuning.
X10 Highlight:
- Medium and long-distance reliable operation
- Strong load capacity for stable hovering
- Rapid response and efficient maneuverability
- Fiber-optic communication with anti-interference
- Open flight control with in-depth customization
- Adaptable to complex electromagnetic environments
| Specification： | |
| Net Weight | 1028g |
| Dimensions (mm) | L350mm × W340mm × H40mm |
| Frame | 10-inch frame |
| Wheelbase | 420mm |
| Material | Carbon Fiber Plate |
| Input Voltage | 6S |
| Flight Controller | F405 |
| ESC | AM32 4-in-1 Brushless 55A ESC |
| VTS | 5.8G 2.5W |
| Camera | 1500TVL Low-Latency FPV Camera |
| Receiver | Express LRS 2.4G/915MHz |
| Motors | #3115, KV900 |
| Propellers | 10-inch, 3-blade |
| Recommended Battery | 6S 10000mAh 45C XT60 XT90 connectors |
| Control Range | 10KM |
| Operating Temperature | -20°C to 70°C |
| Max Flight Range | 10km |
| Rated Payload | 3000g |
| Maximum Payload | 5000g |
| Max Takeoff Weight | 6000g |
| Empty Flight Duration | 28min 6s10000mAh 2.2kg |
| Rated Flight Duration | 10min20s 6s10000mAh 5.5kg |
| Accessories： | |
| *5.8GHz Long-Range Antenna*1 | |
| *20mm×300mm Battery Strap*1 | |
| *Propeller 1050 (Carbon Fiber Nylon) - CW/CCW (1 pack) | |
| Optional Modules： | |
| *AI Targeting Module (Optional) | |
| *Infrared Thermal Imaging Module | |
| *Fiber-Optic Communication Link (Radio-Interference Resistant): Available in 3km, 5km, 10km, 15km lengths | |
| *Payload Release System (Maximum 7kg) | |
| Packing info: | |
| Product net weight (g) | 1028 |
| Product dimension (mm) | 350*300*65 |
| Box gross weight (g) | 1194 |
| Box dimension (mm) | 350*350*80 |
| Carton weight (kg) | 20kg |
| Carton dimension (mm) | 650*550*450(4 sets) |
