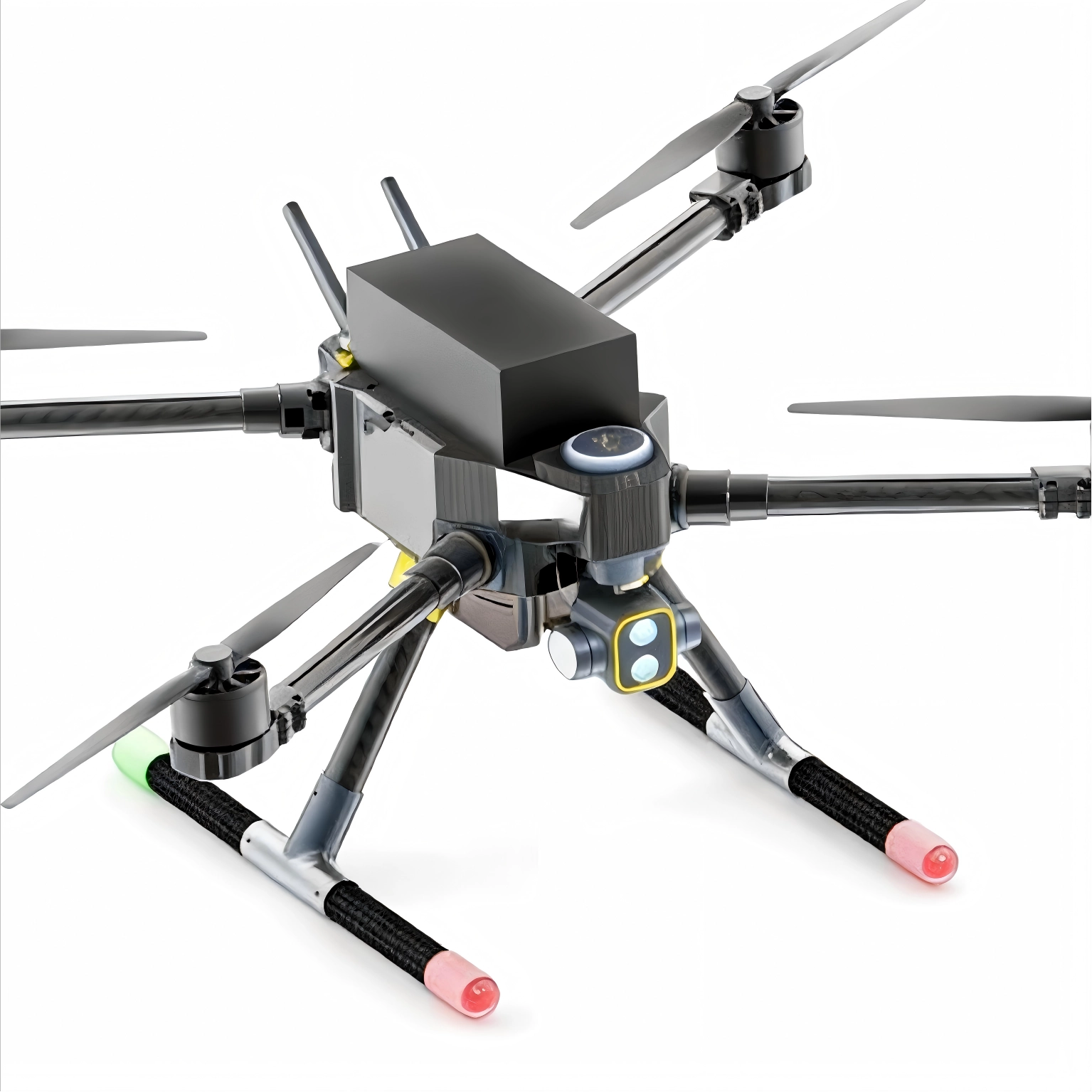

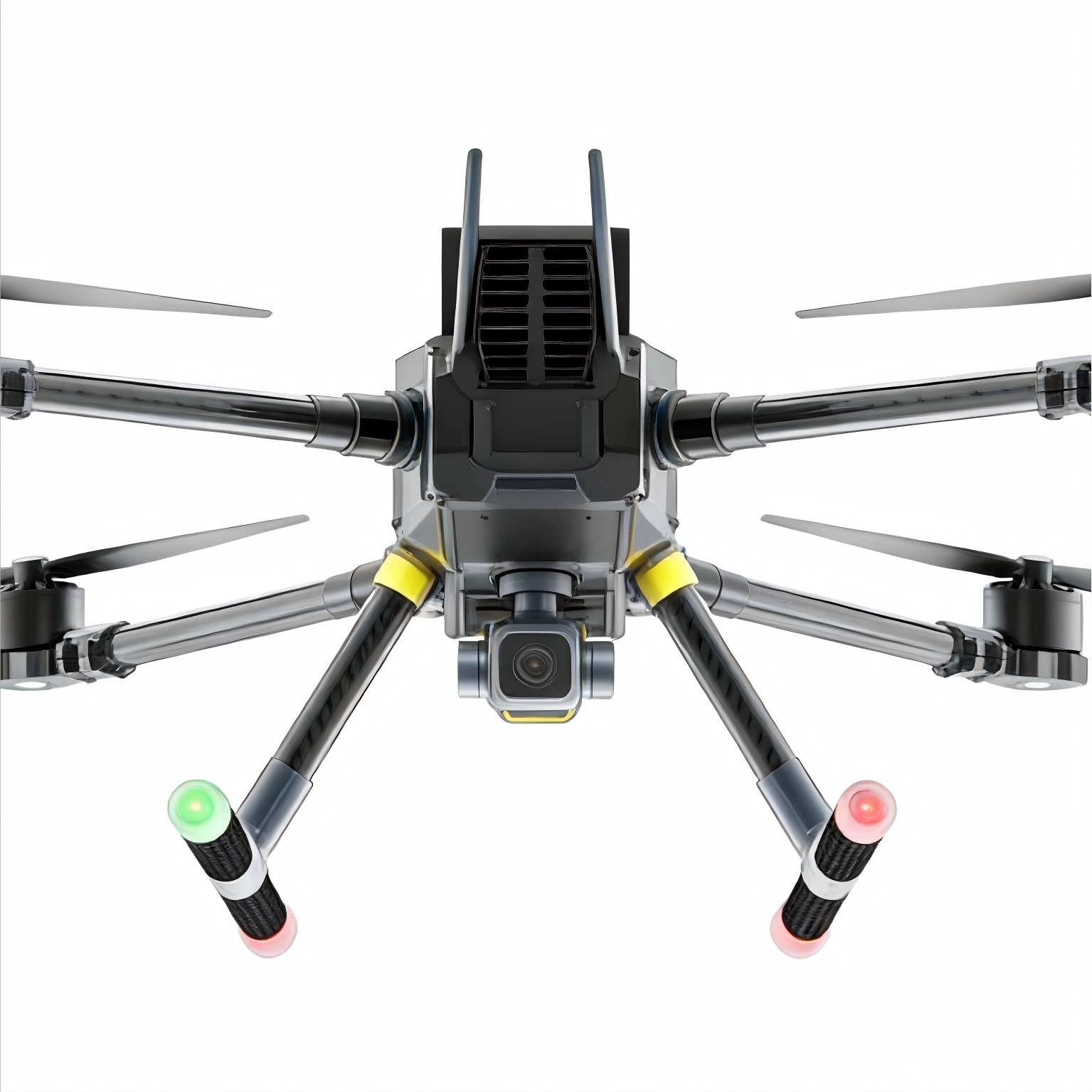

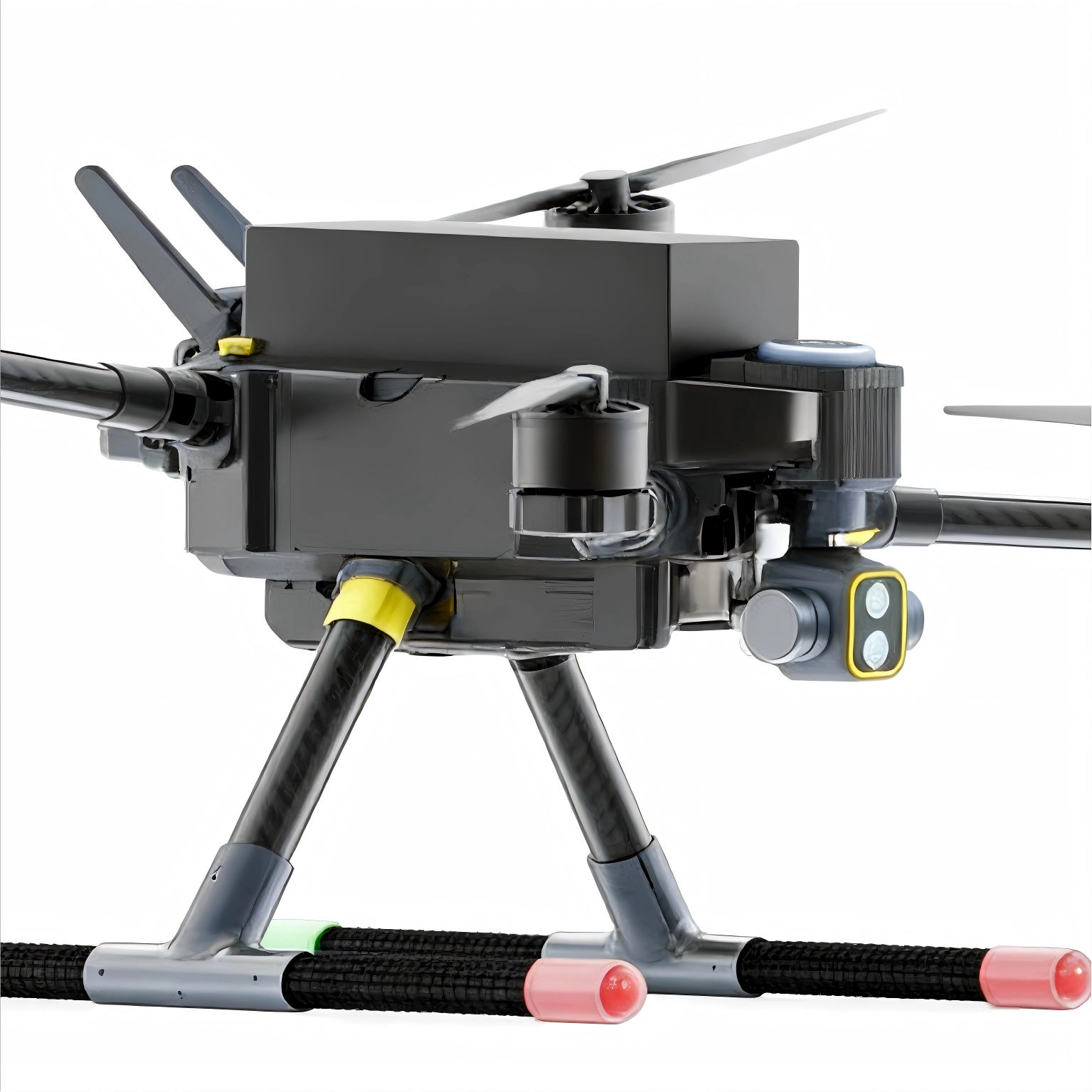

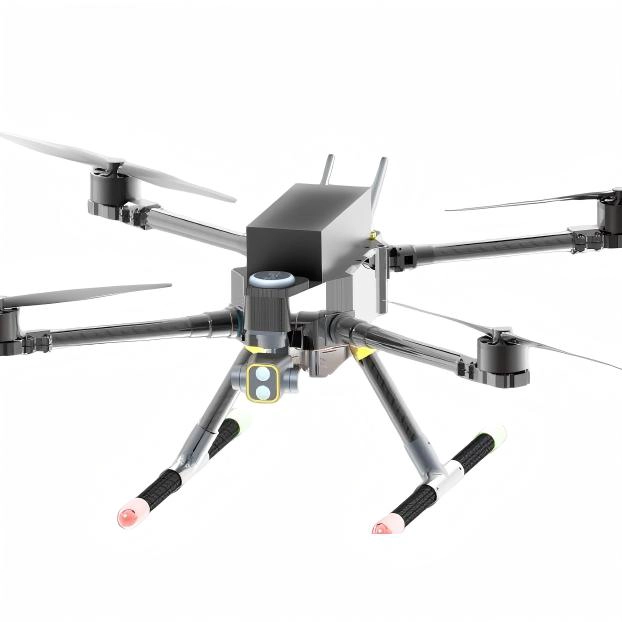

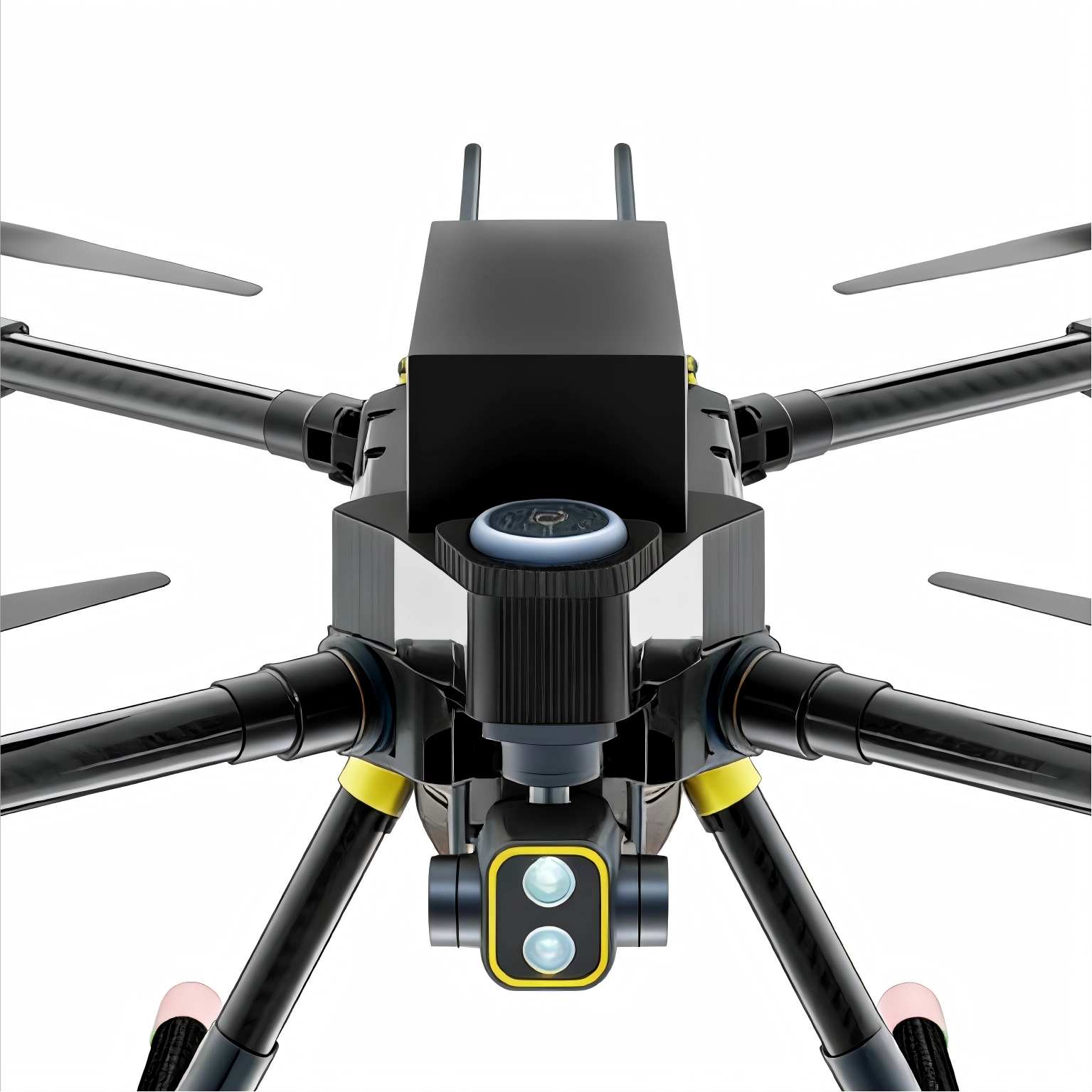

HY-YTZD PRO VX-Motor Foldable FPV Drone with 3-axis Gimbal & HD Digital FPV Transmission & Infrared Thermal Imaging Module
- Infrared Thermal Imaging Module
The VX-Motor HY-YTZD Pro is an industrial drone with S2 Pro F407 flight controller, serving as a quality 4K Infrared Thermal Imaging Module Camera Drone. This reliable FPV Drone supports 15km dual-link HD transmission (25km range) and optional infrared thermal imager camera. It's a foldable drone with camera, its carbon-fiber frame (680mm wheelbase) balances portability and stability, with 120km/h speed, 13kg max takeoff weight, 8kg payload, 32min flight, and optional AI tracking/anti-interference links for industrial tasks.
VX-Motor HY-YTZD Pro Highlight:
- Ultra-long distance operation and reconnaissance capability
- High-speed maneuverability and rapid response
- Strong load capacity and durable operation
- Professional anti-interference image transmission
- Full-scenario industrial-grade applications
| Specification： | |
| Weight | 2.6 kg |
| Input Voltage | 6S |
| Frame | Industrial-grade frame |
| Wheelbase | 680mm |
| Dimensions | L446mm × W516mm × H280mm |
| Material | Carbon fiber plate |
| Flight Controller | S2 Pro Edition F407 |
| ESC | AM32 4-in-1 Brushless 100A ESC |
| VTS | 15km HD digital video transmission(integrated into flight controller)5.8G & 2.4G Dual-Link Transmission |
| Camera | Infrared Thermal Imaging Module |
| Motors | #4216 KV:380 |
| Propellers | Tuofei 15-inch Propellers |
| Control Range | 25km |
| Max Speed | 120km/h |
| Max Flight Range | 25km |
| Rated Payload | 7000g |
| Maximum Payload | 8000g |
| Max Takeoff Weight | 13000g |
| Empty Flight Duration | 32 min 6s (1000mAh) |
| Payload Flight Duration | 14 min 6s (10000mAh) at 3kg |
| Accessories： | |
| *Remote controller, batteries, charger5.8GHz long-range antenna*1 | |
| *25mm×350mm battery strap*1 | |
| *Propeller 1507 (carbon fiber nylon) - CW/CCW (1 pack) | |
| Optional Modules： | |
| *AI Targeting Module (Optional) | |
| *Fiber-Optic Communication Link (Radio-Interference Resistant): Available in 3km, 5km, 10km, 15km lengths | |
| *Payload Release System (Maximum 7kg) | |
| Packing info: | |
| Product net weight (g) | 2600g |
| Product dimension (mm) | 446mm × 516mm × 280mm |
| Box gross weight (g) | 2970g |
| Box dimension (mm) | 530*530*140 |
| Carton weight (kg) | 5.08 |
| Carton dimension (mm) | 433*330*330(1 set) |
