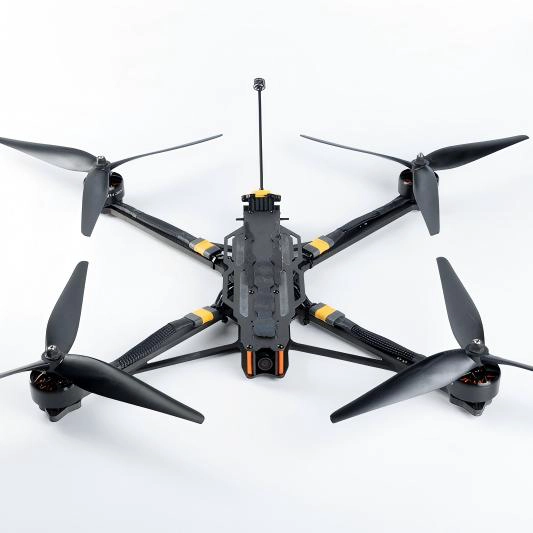

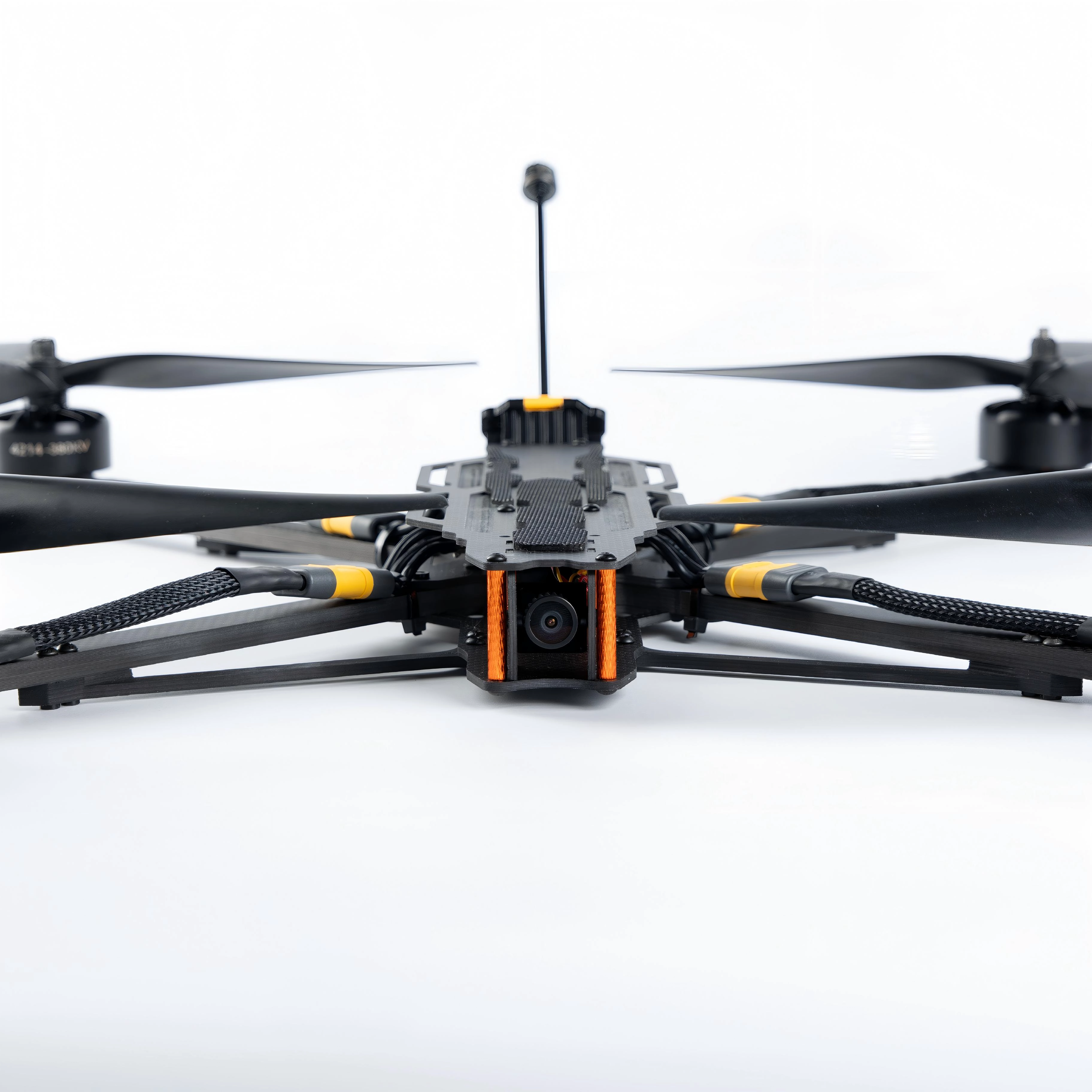

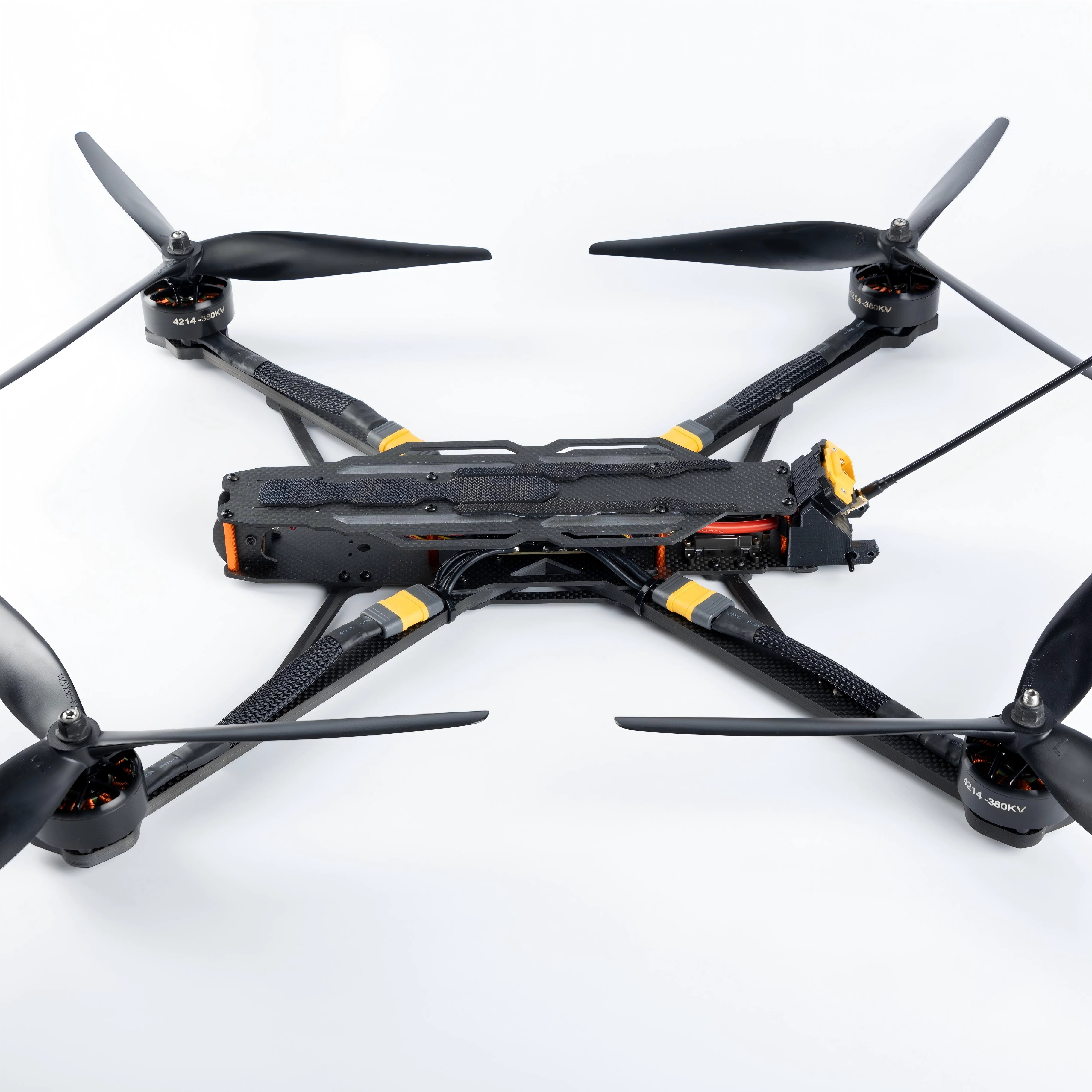

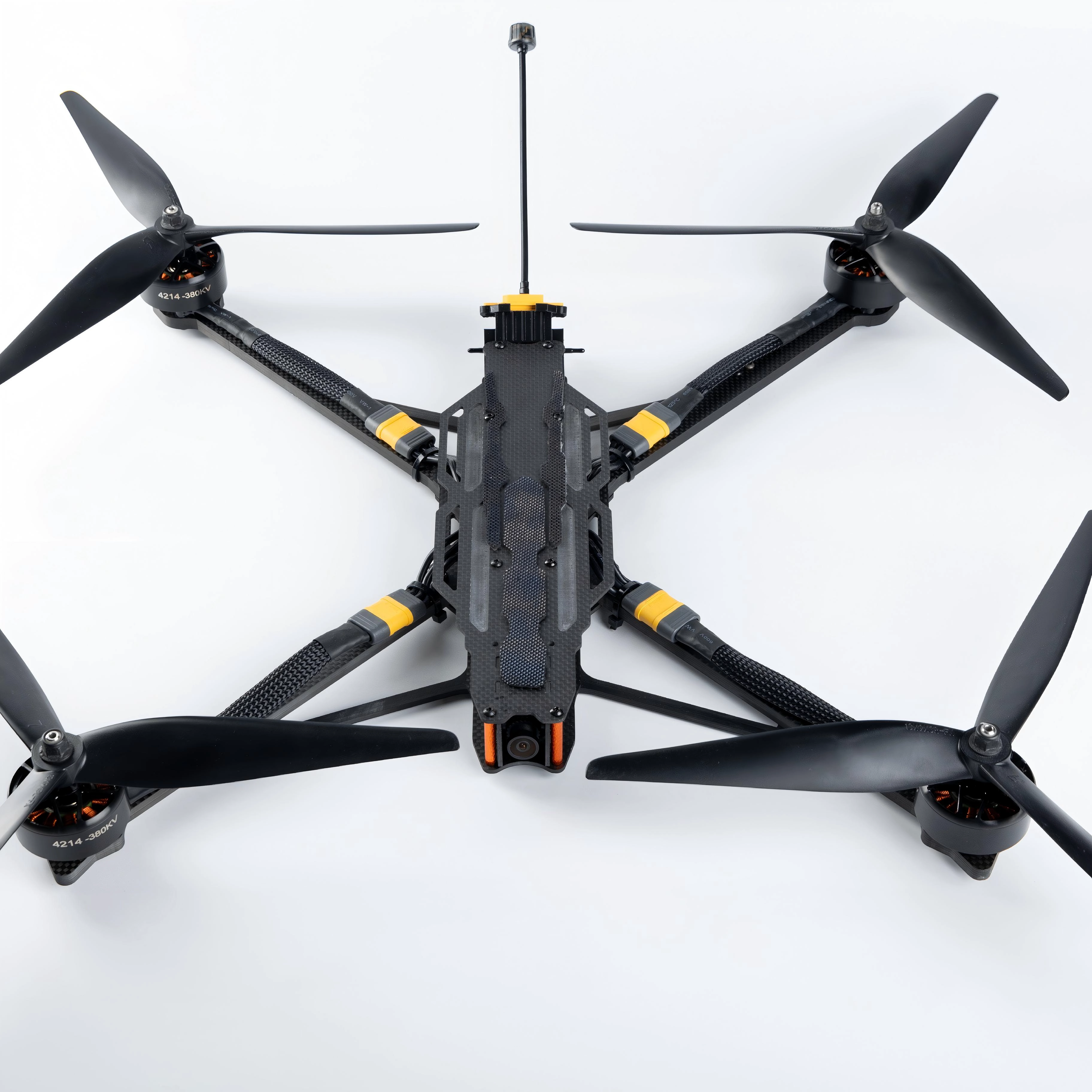

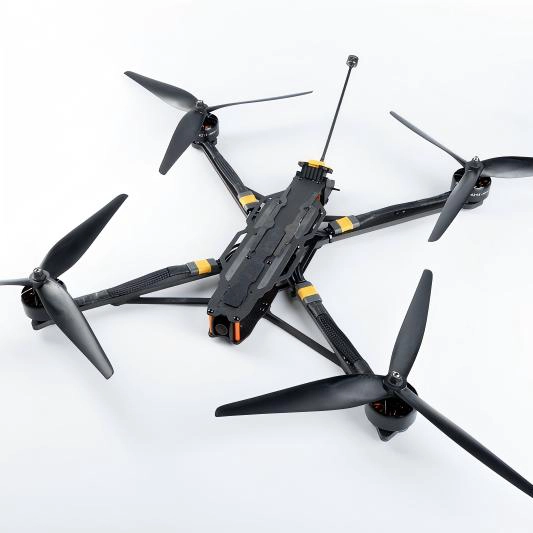

This multi-functional FPV drone is a reliable long-endurance platform, featuring a 6kg rated payload (7kg maximum). It offers a flight time of up to 36 minutes unloaded and 11 minutes with a full 6kg load. Powered by an 8S high-voltage battery, it ensures stable operation with a 20km video transmission range and strong anti-interference capability. The airframe is constructed from carbon fiber, weighing 1980g. It supports optional AI targeting/infrared modules and an F405 flight controller, making this FPV drone well-suited for delivery, inspection, rescue, and research applications.
X13 Highlight:
- Stable transportation with heavy load
- Ultra-long distance reliable control
- Powerful power supporting heavy load
- Flexible expansion of multiple functions
- Fiber-optic communication for complex environments
- Open system with in-depth optimization
| Specification： | |
| Net Weight | 1980g |
| Frame | 13-inch frame |
| Wheelbase | 536mm |
| Dimensions | L489mm*W489mm*H80mm |
| Material | Carbon fiber plate |
| Input Voltage | 8S |
| Flight Controller | F405 |
| ESC | AM32 4-in-1 Brushless 80A ESC |
| VTS | 5.8G 3W |
| Camera | 1500TVL Low-Latency FPV Camera |
| Receiver | Express LRS 2.4G/915MHz |
| Motor | #4214 KV 680 |
| Propeller | 13-inch, 3-blade |
| Recommended Battery | 8S 16000mAh 50C XT90 Plug |
| Control Range | 20km |
| Operating Temperature | -20°C to 70°C |
| Maximum Speed | 133 km/h |
| Maximum Flight Distance | 20km |
| Rated Payload | 6000g |
| Maximum Payload | 7000g |
| Max Takeoff Weight | 11300g |
| Empty Flight Duration | 36min (8S 16000mAh, 5.2kg) |
| Payload Flight Duration | 11min (8S 16000mAh, 11kg) |
| Accessories： | |
| *5.8GHz Long-Range Antenna*1 | |
| *25mm×350mm Battery Strap*1 | |
| *Propeller 1507 (Carbon Fiber Nylon) - CW/CCW (1 pack) | |
| Optional Modules | |
| *AI Targeting Module (Optional) | |
| *Infrared Thermal Imaging Module | |
| *Fiber-Optic Communication Link (Radio-Interference Resistant): Available in 3km, 5km, 10km, 15km lengths | |
| *Payload Release System (Maximum 7kg) | |
| Packing info: | |
| Product net weight (g) | 1980 |
| Product dimension (mm) | 489*489*80 |
| Box gross weight (g) | 2250 |
| Box dimension (mm) | 530*530*140 |
| Carton weight (kg) | 25kg |
| Carton dimension (mm) | 850*800*500(3 sets) |
