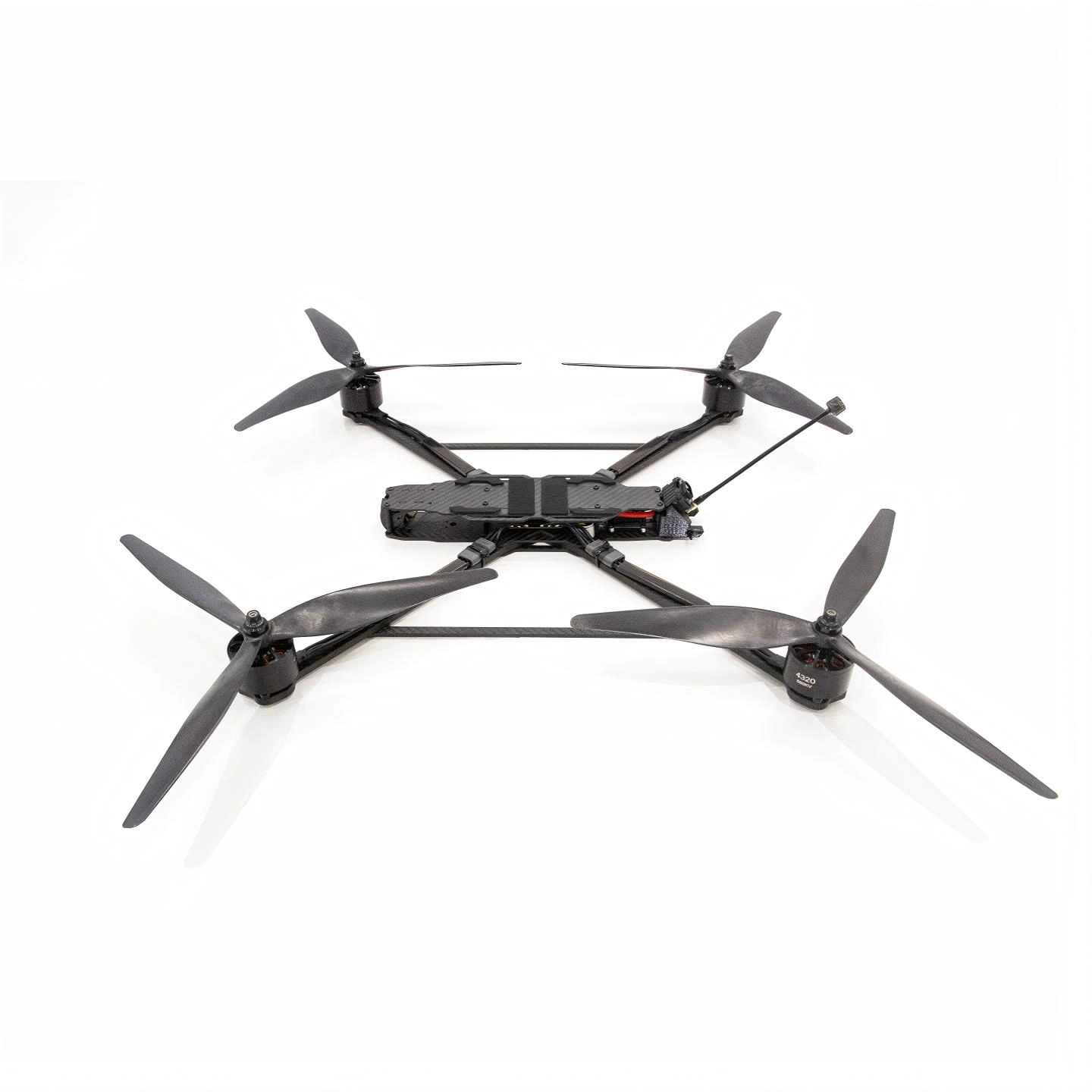

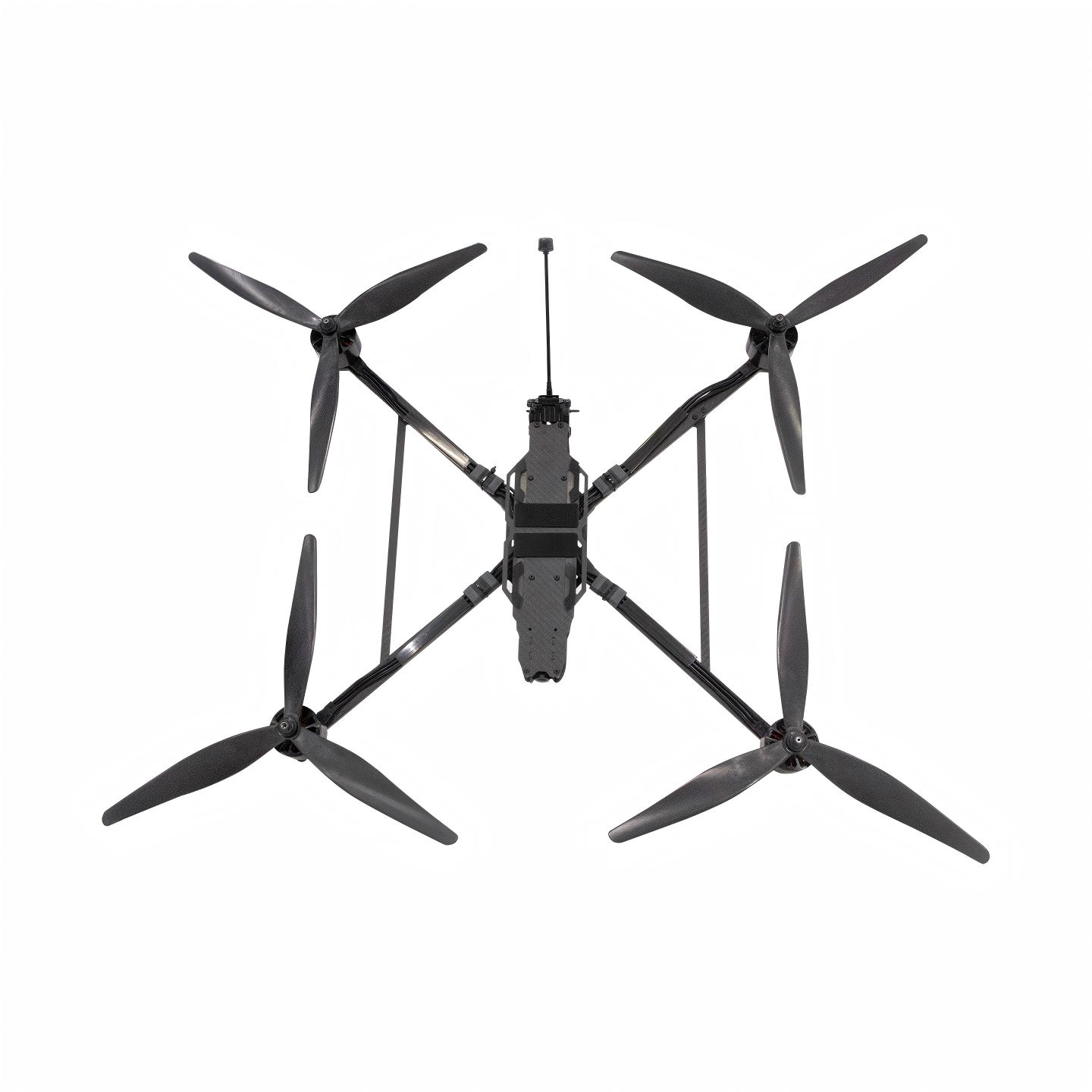

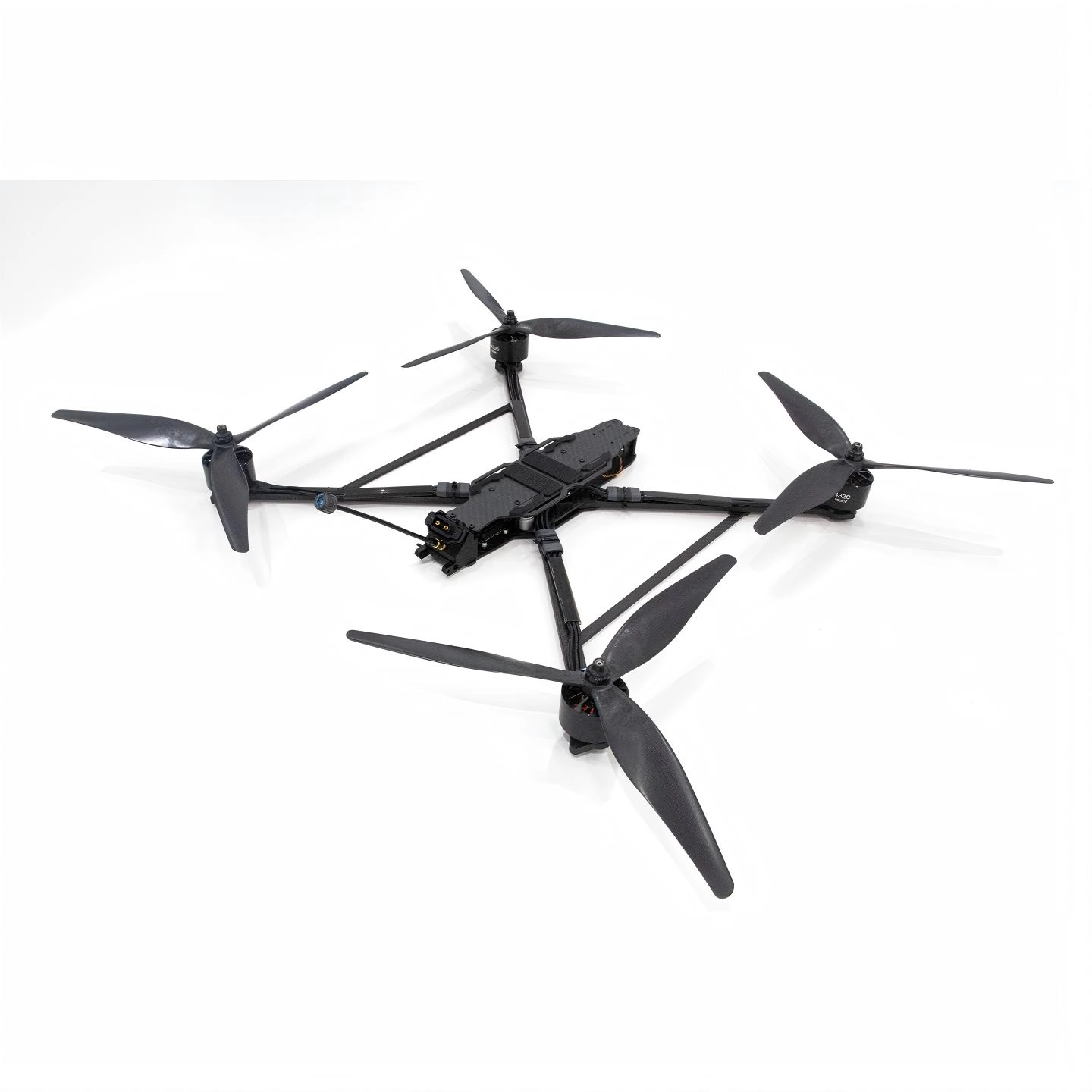

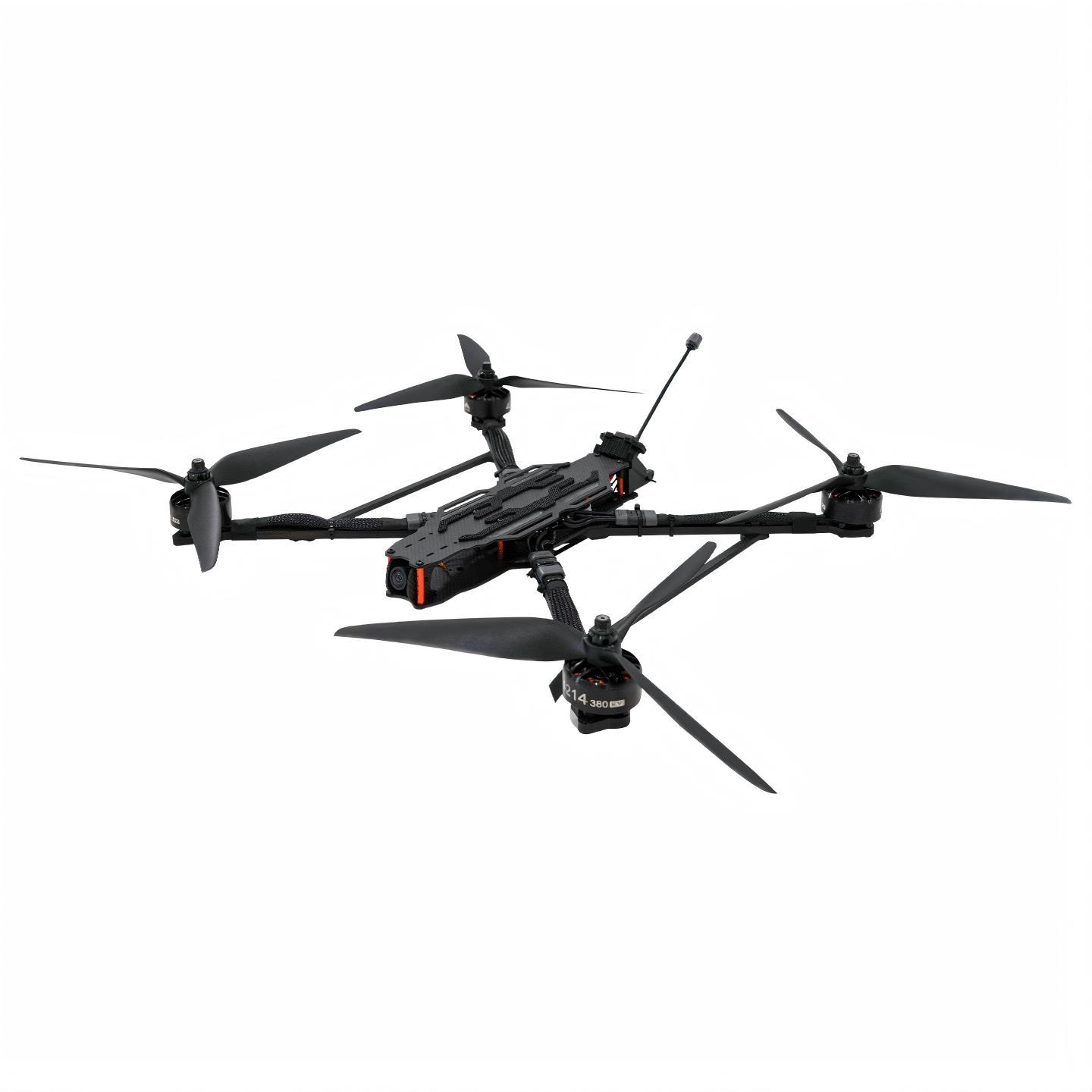

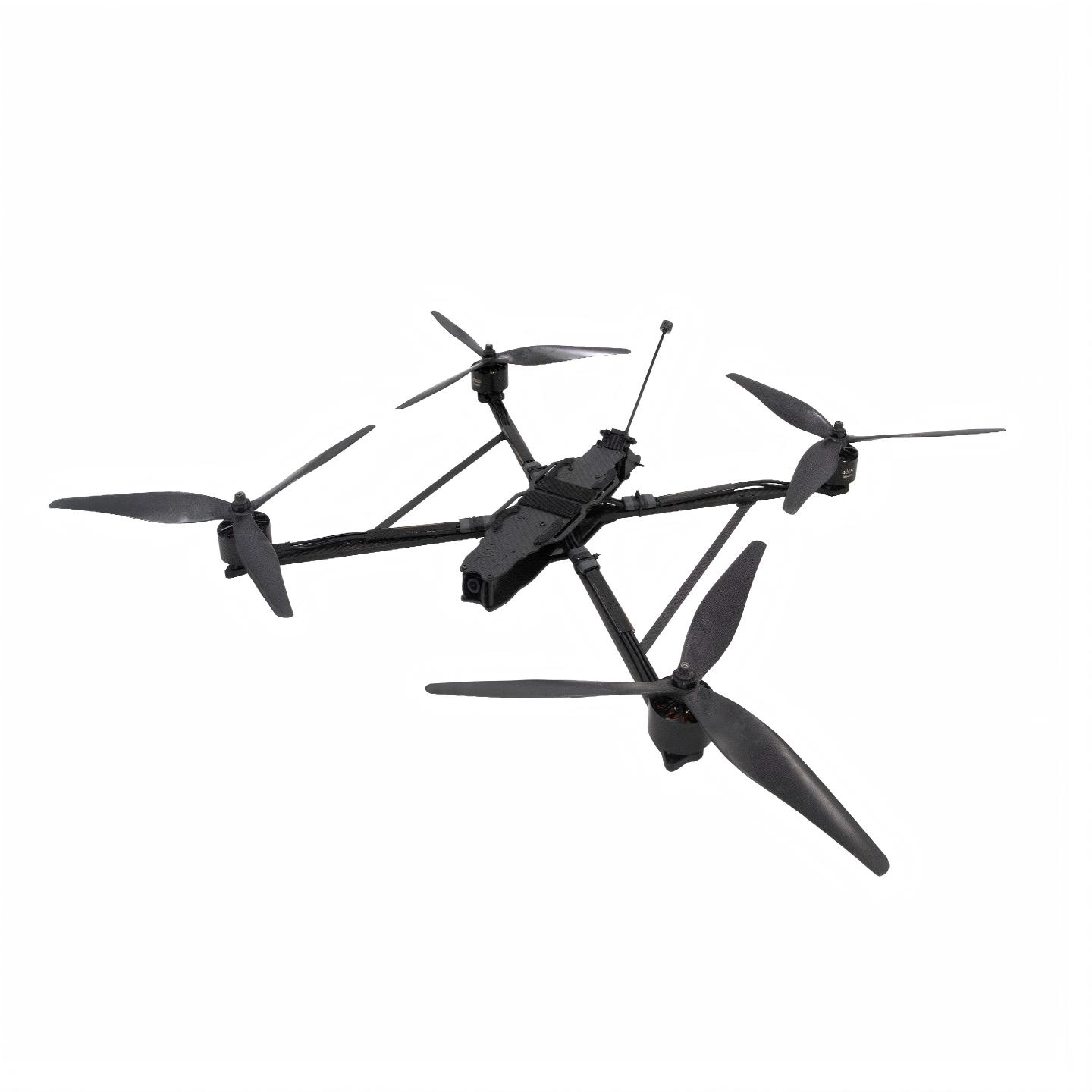

This industrial-grade drone, a versatile Special Operations Drone, has 7kg rated load (max 8kg, 13kg take-off) and 42min no-load endurance (12min at 11.8kg). As a High-Power Motor Drone, it uses #4216 motor, 15-inch propellers and 8S battery for stable power. It supports 20KM transmission (5.8G 6W) and 1500TVL 1/3” sensor visuals. Carbon fiber body (2080g/2450g, 647mm wheelbase) enables AI targeting/Infrared Thermal Imaging Module , fiber link and 7kg load release. With F405 flight controller, Betaflight tuning and full kits, it's a practical industrial-grade drone for transport, inspection, patrol and research.
X15 Highlight:
- Strong load capacity for multi-task execution
- Ultra-long distance control and image transmission
- Powerful power for stable heavy load
- Fiber-optic communication with strong anti-interference
- Open system with in-depth customization
- Sturdy, lightweight and strong wind resistance
| Specifications： | |
| Net Weight | 2080g |
| Frame | 15-inch frame |
| Wheelbase | 647mm |
| Dimensions | L517mm × W517mm × H80mm |
| Material | Carbon fiber plate |
| Input Voltage | 8S |
| Flight Controller | F405 |
| ESC | 100A single-channel ESC |
| VTS | 5.8G 6W |
| Camera | 1500TVL FPV-specific analog camera |
| Receiver | Express LRS 2.4G/915MHz |
| Motor | #4216 KV 380 |
| Propeller | 15-inch, 3-blade |
| Battery | 8S 16000mAh 50C XT90 Connector |
| Control Range | 20km |
| Operating Temperature | -20°C to 70°C |
| Maximum Speed | 130km/h |
| Maximum Flight Distance | 20km |
| Rated Payload | 7000g |
| Maximum Payload | 8000g |
| Max Takeoff Weight | 13000g |
| Empty Flight Duration | 42 min (8s 16000mAh, 4.9kg) |
| Payload Flight Duration | 12 min (8s 16000mAh, 11.8kg) |
| Accessories： | |
| *5.8GHz Long-Range Antenna*1 | |
| *25mm×350mm Battery Strap*1 | |
| *Propeller 1507 (Carbon Fiber Nylon) - CW/CCW (1 pack) | |
| Optional Modules | |
| *AI Targeting Module (Optional) | |
| *Infrared Thermal Imaging Module | |
| *Fiber-Optic Communication Link (Radio-Interference Resistant): Available in 3km, 5km, 10km, 15km lengths | |
| *Payload Release System (Maximum 7kg) | |
| Packing info: | |
| Product net weight (g) | 2080g |
| Product dimension (mm) | 517*517*80 |
| Box gross weight (g) | 2450g |
| Box dimension (mm) | 530*530*140 |
| Carton weight (kg) | 30 kg |
| Carton dimension (mm) | 900*850*300(3 sets) |
