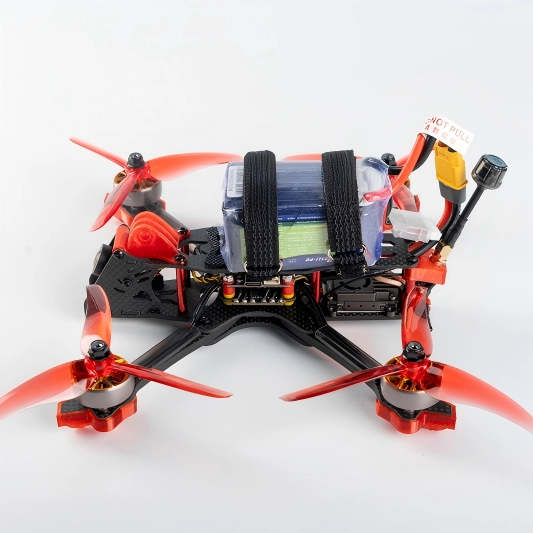

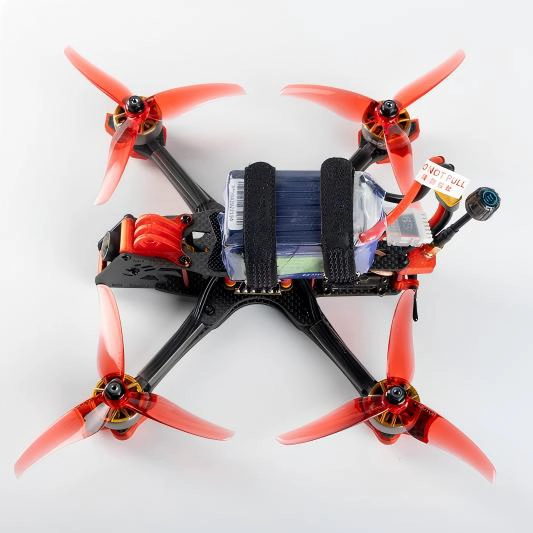

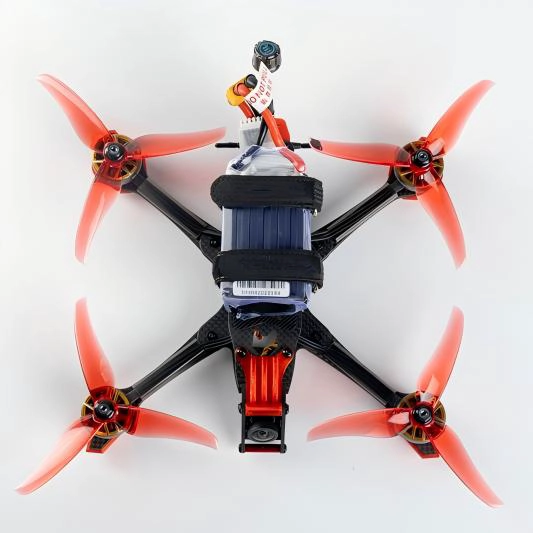

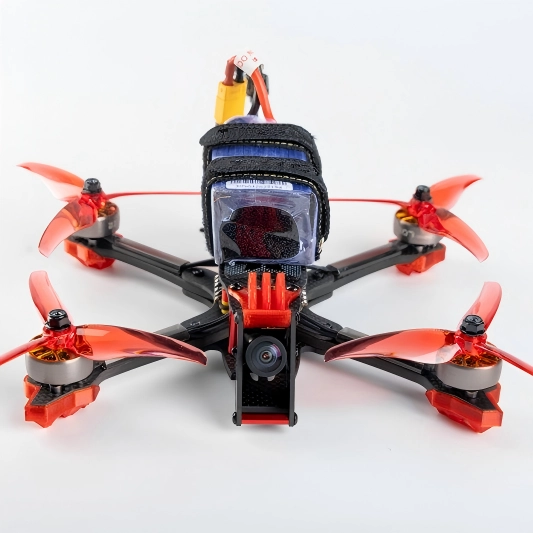

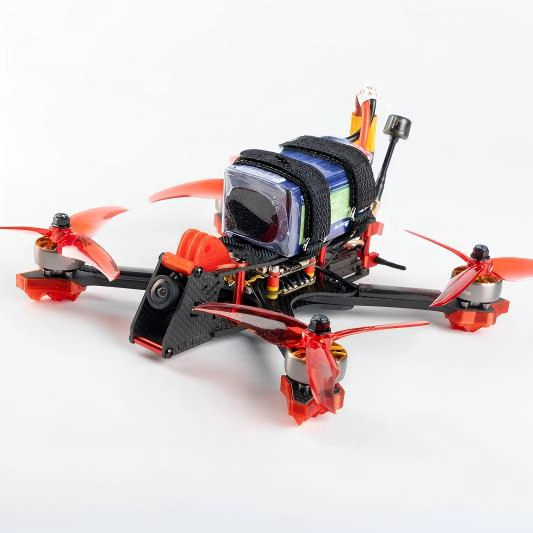

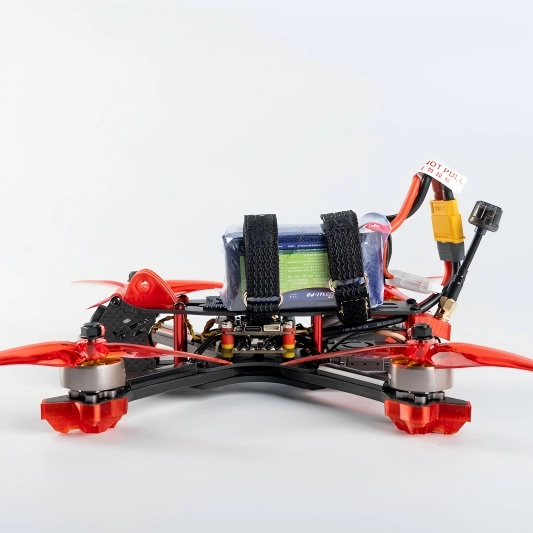

The X5 High-Speed FPV Drone blends portability, professionalism and expandability. This Carbon Fiber Drone (406g bare/514g packaged, 165×192×38mm, 226mm wheelbase) balances lightness and durability. Powered by a #2207 1960KV motor, it hits 150km/h, with 29mins no-load flight (14mins at 1.5kg) and 6S 2300mAh compatibility. As a reliable Anti-Interference FPV Drone, it has 5.8G 1.6W HD VTX (3KM, 1500TVL, dual-band). It’s also a capable HD Camera Drone, paired with F405 controller and 2300g max load, for racing, inspection and security.
X5 Highlight:
- Extremely lightweight and rapid deployment
- Flexible flight in narrow spaces
- HD stable image transmission
- Dual-band anti-interference communication
- Open system with in-depth customization
- Strong load capacity for stable flight
| Specifications: | |
| Net Weight | 406g |
| Frame | 5-inch frame |
| Wheelbase | 226mm |
| Dimensions | L165mm × W192mm × H38mm |
| Material | Carbon fiber plate |
| Input Voltage | 6S |
| Flight Controller | F405 |
| ESC | AM32 4-in-1 Brushless 55A ESC |
| VTS | 5.8G 1.6W |

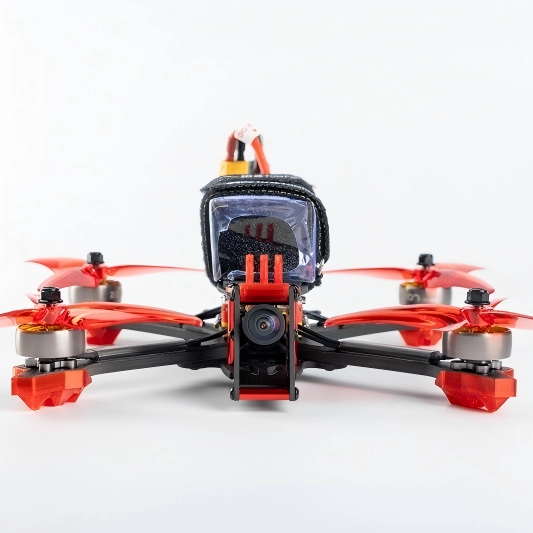

| Camera | 1500TVL, 1/3" CMOS; DC 5-25V |
| Receiver | ELRS Open-Source Receiver 2.4G/915MHz |

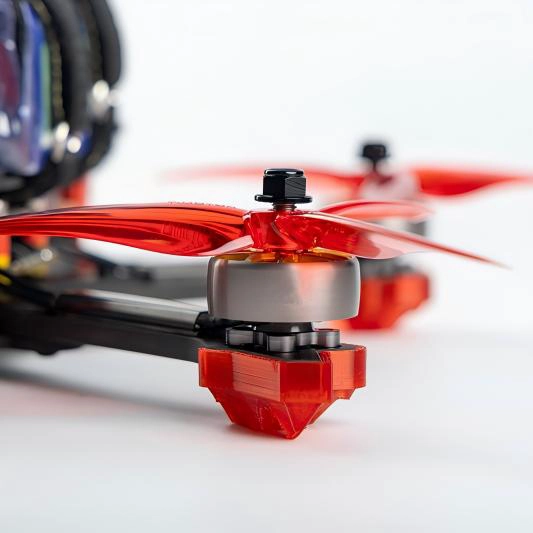

| Motors | #2207, KV1960 |
| Propellers | 5-inch propellers |

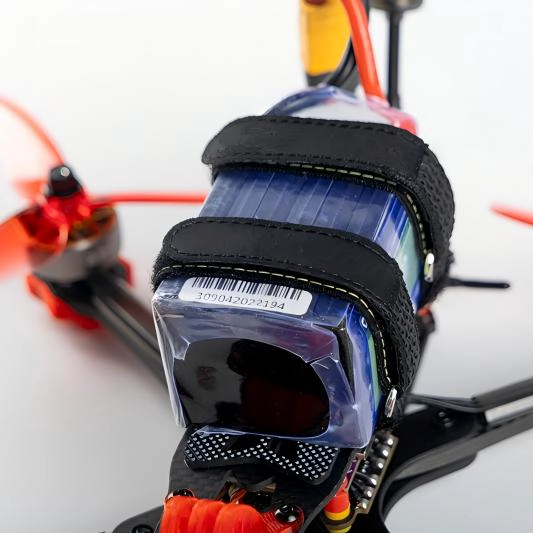

| Recommended Battery | 6S 2300mAh, 6S XT60 connector |
| Control Range | 3KM |
| Operating Temperature | -20°C to 70°C |
| Maximum Speed | 150 km/h |
| Maximum Flight Distance | 10km |
| Rated Payload | 1500g |
| Maximum Payload | 2300g |
| Max Takeoff Weight | 3300g |
| Empty Flight Duration | 29min (6S 8000mAh, 1.68kg) |
| Payload Flight Duration | 14min (6S 10000mAh, 3.2kg) |
| Accessories : | |
| *5.8GHz Long-Range Antenna*1 | |
| *15mm×250mm Battery Strap*1 | |
| *Propeller 7050 (Carbon Fiber Nylon) - CW/CCW (1 pack) | |
| Optional Modules: | |
| * AI Targeting Module (Optional) | |
| * Infrared Thermal Imaging Module | |
| * Fiber-Optic Communication Link (Radio-Interference Resistant): Available in 3km, 5km, 10km, 15km lengths | |
| *Payload Release System (Maximum 7kg) | |
| Packing info: | |
| Product net weight (g) | 406g |
| Product dimension (mm) | 165*198*38mm |
| Box gross weight (g) | 514g |
| Box dimension (mm) | 300*270*70 |
| Carton weight (kg) | 10kg |
| Carton dimension (mm) | 550*450*400 (5 units) |
