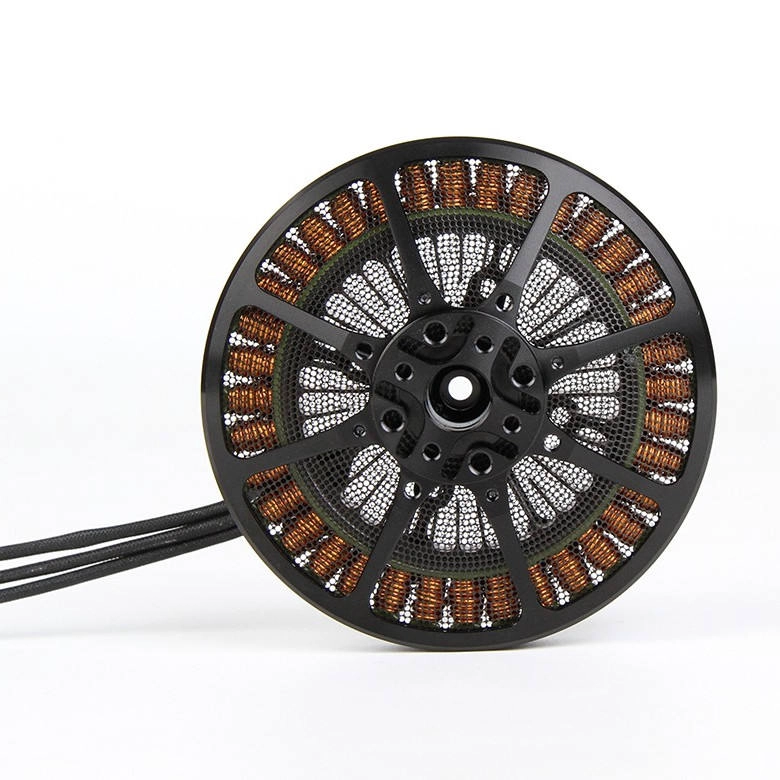

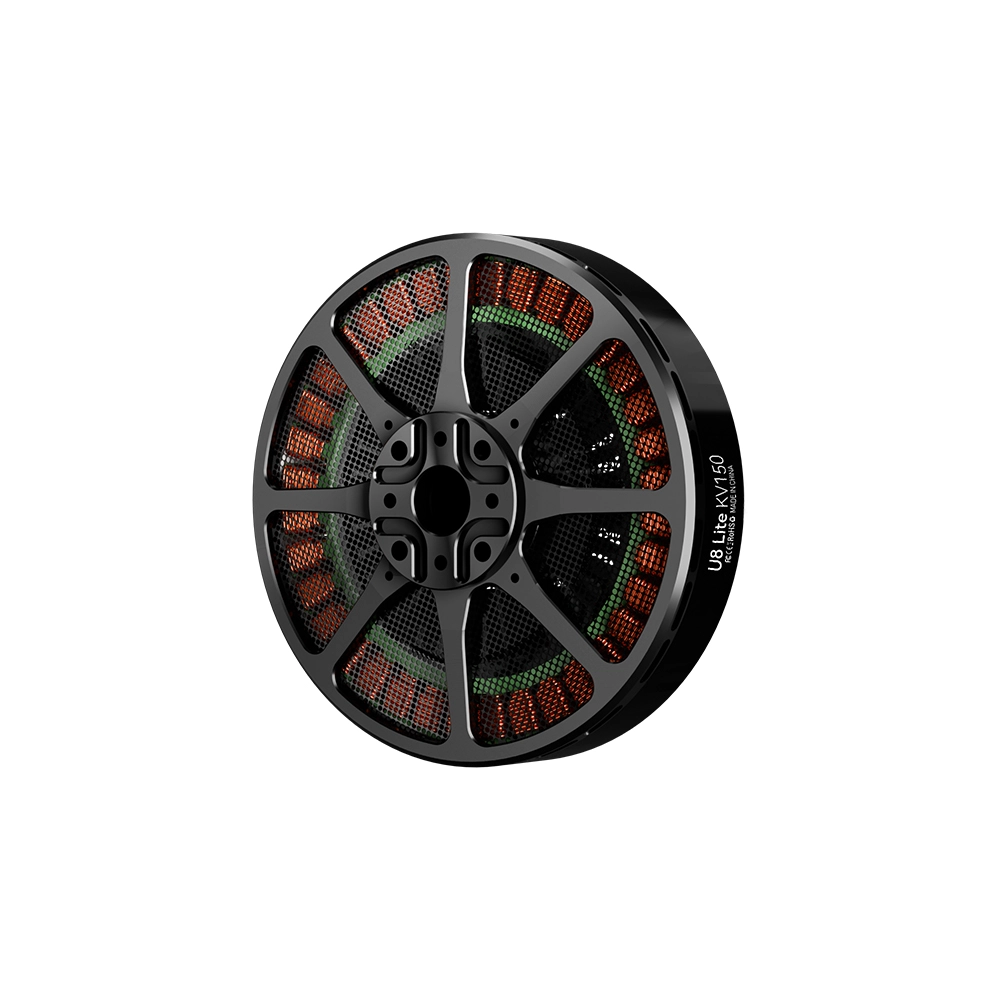

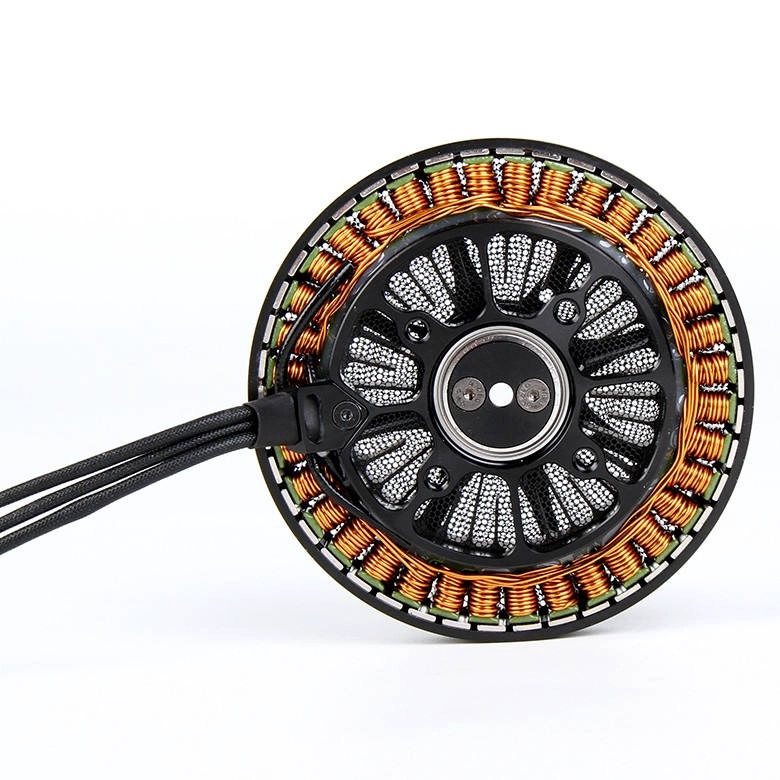

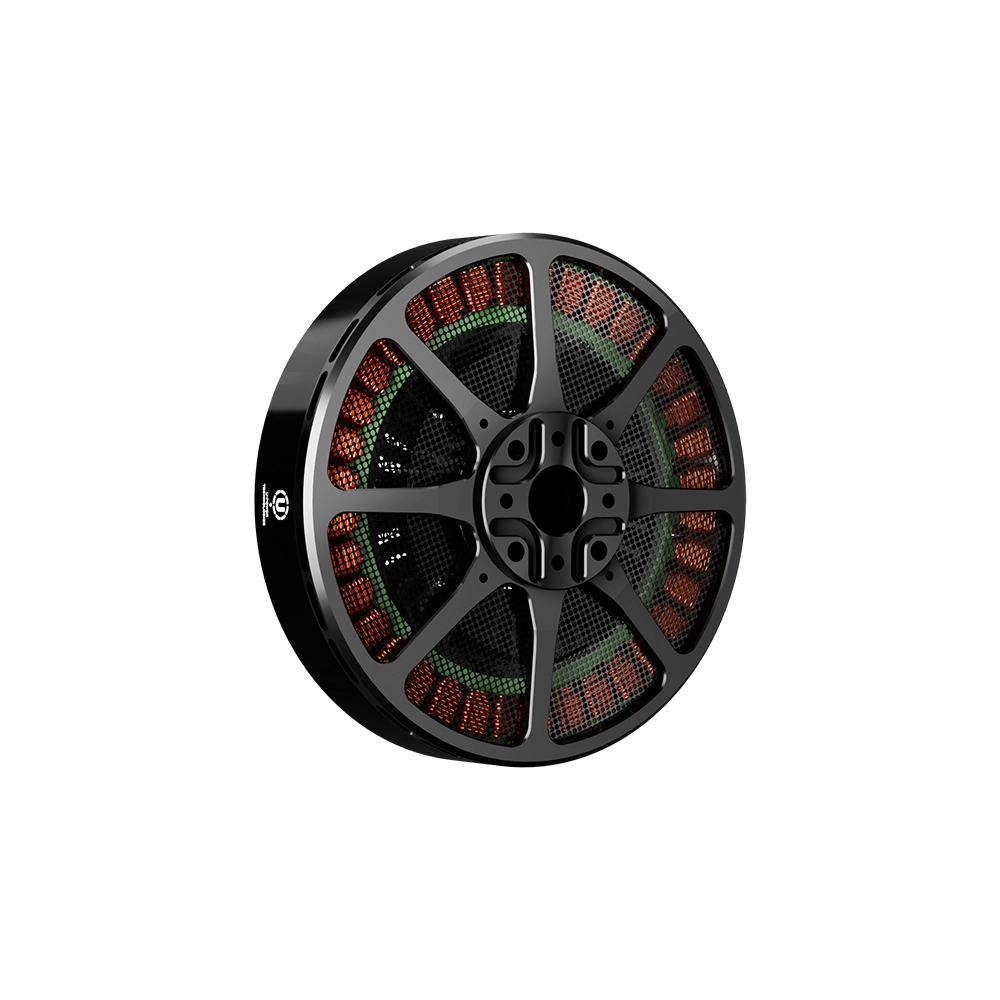

U8 Lite T-MOTOR DC Brushless Electric Strong Powerful Heavy Lift UAV Drone Motor Accessory
- 1.KV85
- 2.KV100
- 3.KV150
- 4.KV190

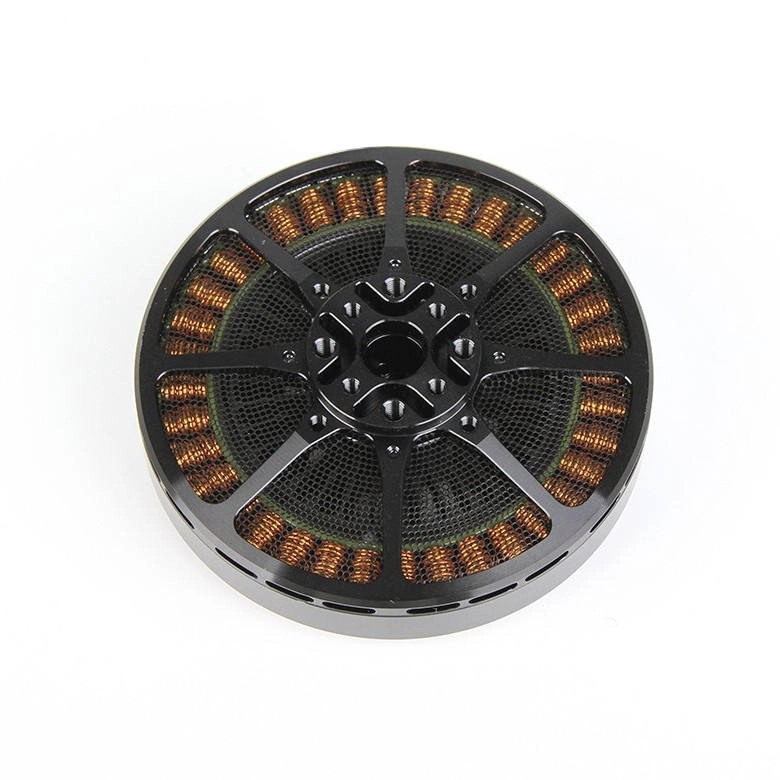

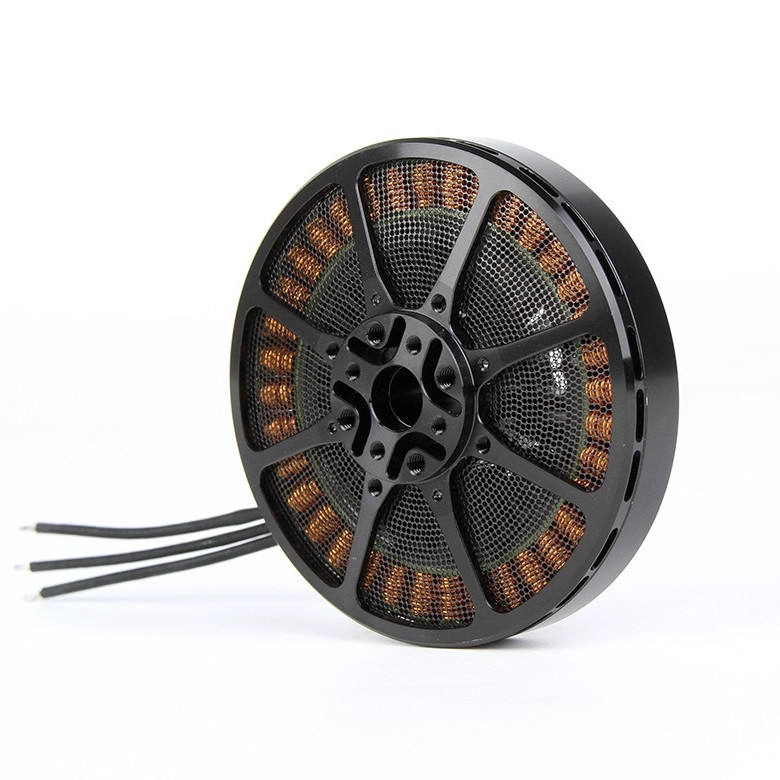

About T-MOTOR U8 Lite Power Efficiency Multirotor UAV Motor
T-Motor T-Motor U8 Lite Standard Version features an ultra-light design for extended flight times. With precise mesh protection, a self-cooling system, and heat-resistant wires, it ensures top efficiency and performance. Its curved magnet design unlocks maximum potential, making it a reliable high-performance brushless motor.
U8 Lite Highlights:
1.Max. thrust ：7.3kg
2.MTBF：About 1000hours
3.Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings
4.Industrial grade, dust proof, water proof.
Application Areas：
Surveillance, cruise, security and protection, surveying and mapping.

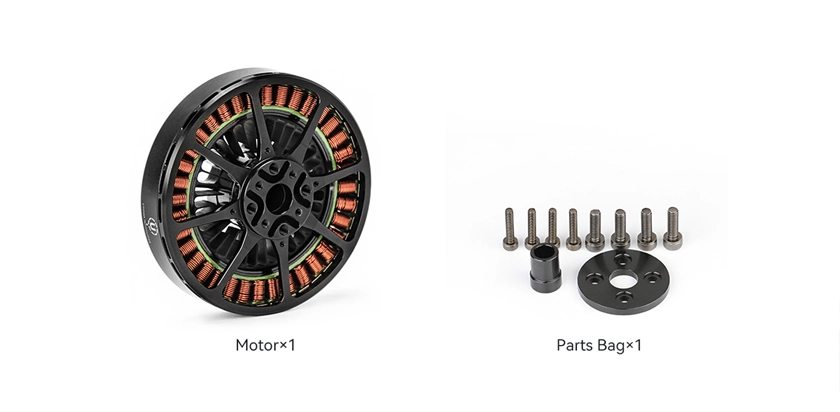

Packing List Includes:
1x T-MOTOR U8 Lite Motor

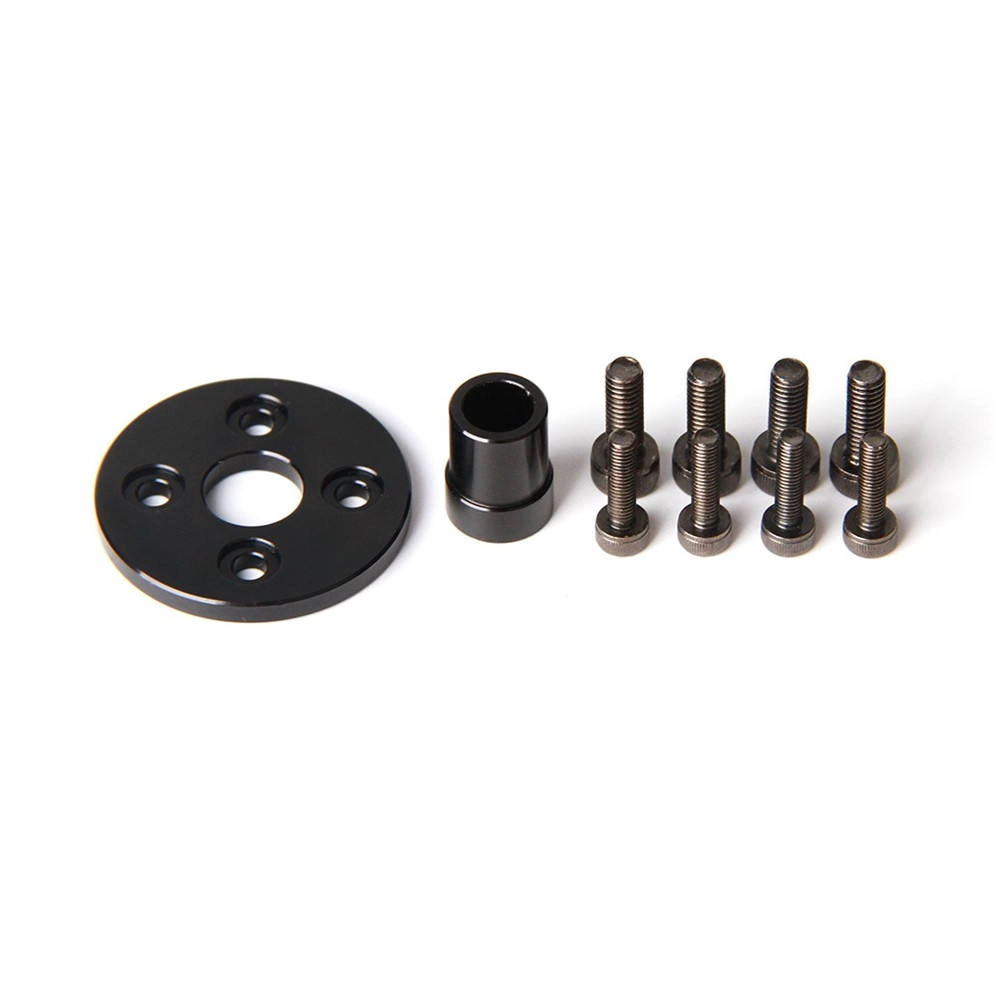

1x Hardware pack
"U Efficiency" motors (from U-series) are aimed for high end UAVs requiring long endurance. This kind of UAVs are usually for surveillance, cruise, security and protection, surveying and mapping.

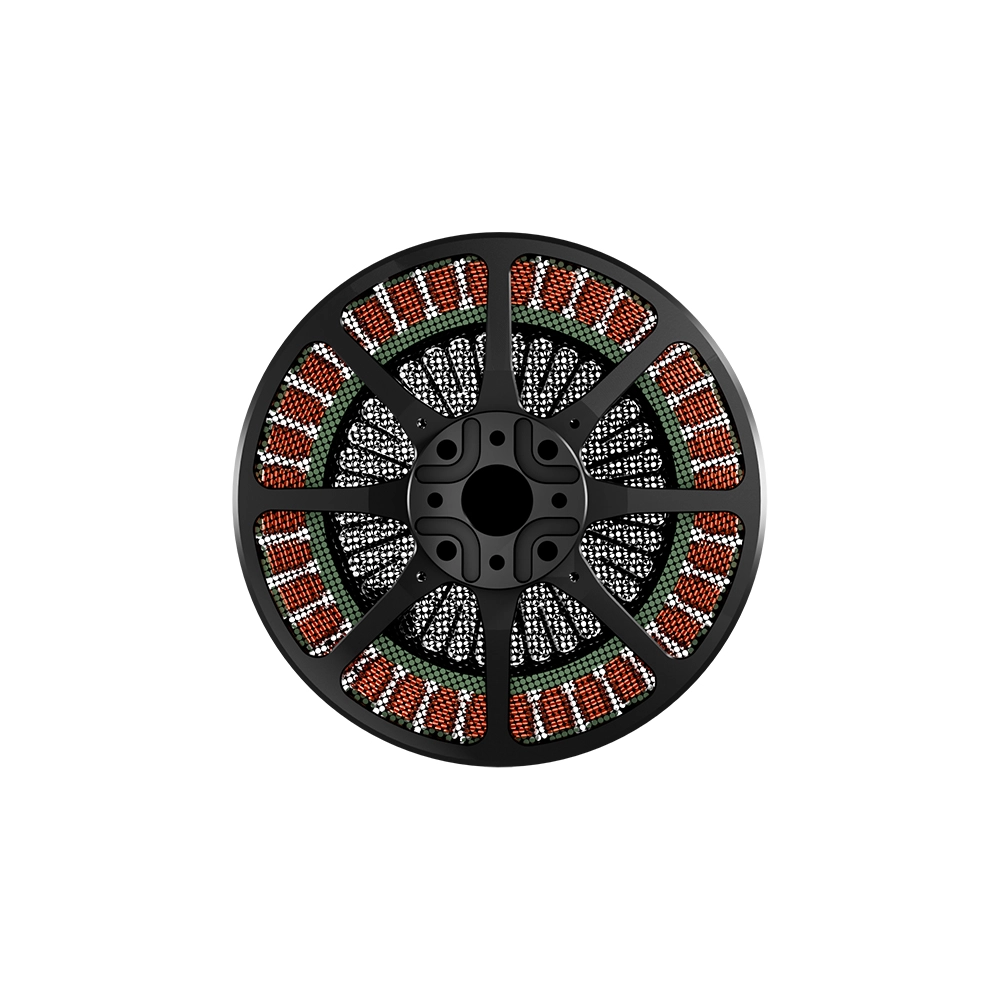

Lightweight design allows you to fly longer, Industrial-grade dustproof and waterproof and anti-aging, greatly extends the working life of the motor. Curved magnets with precise tolerance control and rational magnet space for optimal motor magnetic circuit help improve motor performance. The motor uses imported customized bearings to extend the service life of the motor and ensure smooth flight and longer flight time.

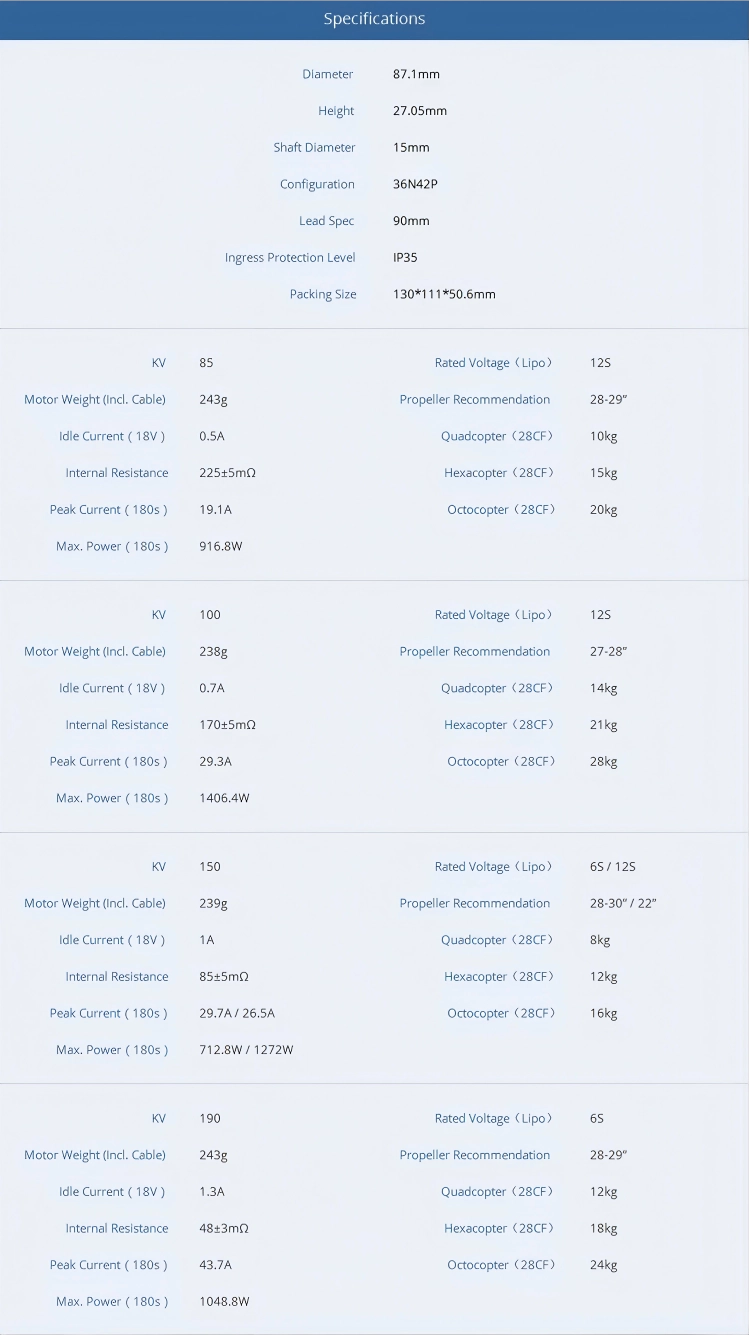

| U8 Lite | |||
| Configuration | 36N42P | Packing Size | 130*111*50.6mm |
| Motor Dimensions | A87.1*27.05*15 mm | Lead Spec. | 90mm |
| KV85 | |||
| Weight | 243g | Rated Voltage(Lipo) | 12S |
| Idle Current(18V) | 0.5A | Propeller Recommendation | 28-29" |
| Internal Resistance | 225±5mΩ | Quadcopter(28CF) | 10kg |
| Peak Current(180s) | 19.1A | Hexacopter(28CF) | 15kg |
| Max. Power(180s) | 916.8W | Octocopter(28CF) | 20kg |
| KV100 | |||
| Weight | 238g | Rated Voltage(Lipo) | 12S |
| Idle Current(18V) | 0.7A | Propeller Recommendation | 27-28" |
| Internal Resistance | 170±5mΩ | Quadcopter(28CF) | 14kg |
| Peak Current(180s) | 29.3A | Hexacopter(28CF) | 21kg |
| Max. Power(180s) | 1406.4W | Octocopter(28CF) | 28kg |
| KV150 | |||
| Weight | 239g | Rated Voltage(Lipo) | 6S / 12S |
| Idle Current(18V) | 1A | Propeller Recommendation | 28-30" / 22" |
| Internal Resistance | 85±5mΩ | Quadcopter(28CF) | 8kg |
| Peak Current(180s) | 29.7A / 26.5A | Hexacopter(28CF) | 12kg |
| Max. Power(180s) | 712.8W / 1272W | Octocopter(28CF) | 16kg |
| KV190 | |||
| Weight | 243g | Rated Voltage(Lipo) | 6S |
| Idle Current(18V) | 1.3A | Propeller Recommendation | 28-29" |
| Internal Resistance | 48±5mΩ | Quadcopter(28CF) | 12kg |
| Peak Current(180s) | 43.7A | Hexacopter(28CF) | 18kg |
| Max. Power(180s) | 1048.8W | Octocopter(28CF) | 24kg |
