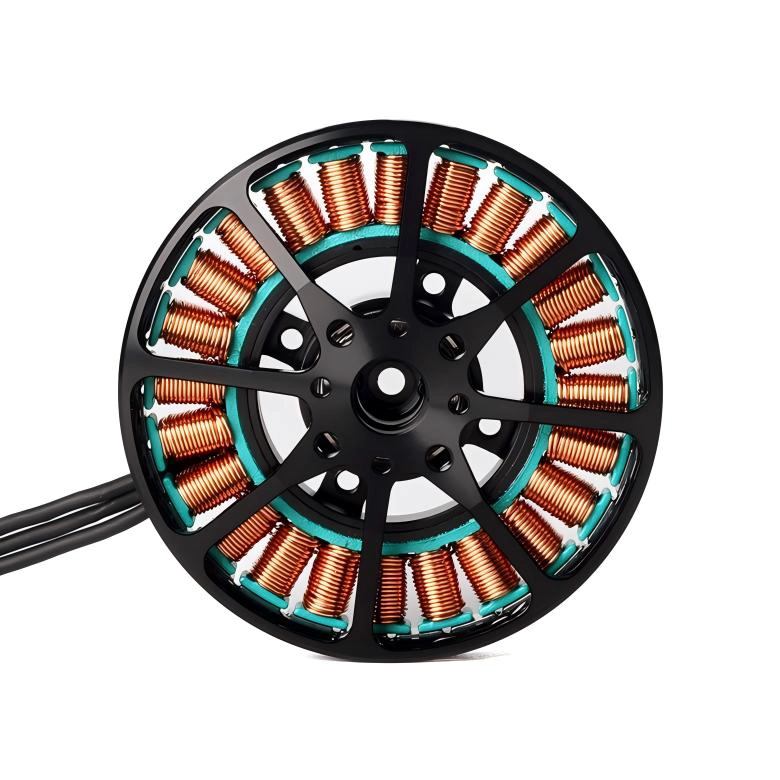

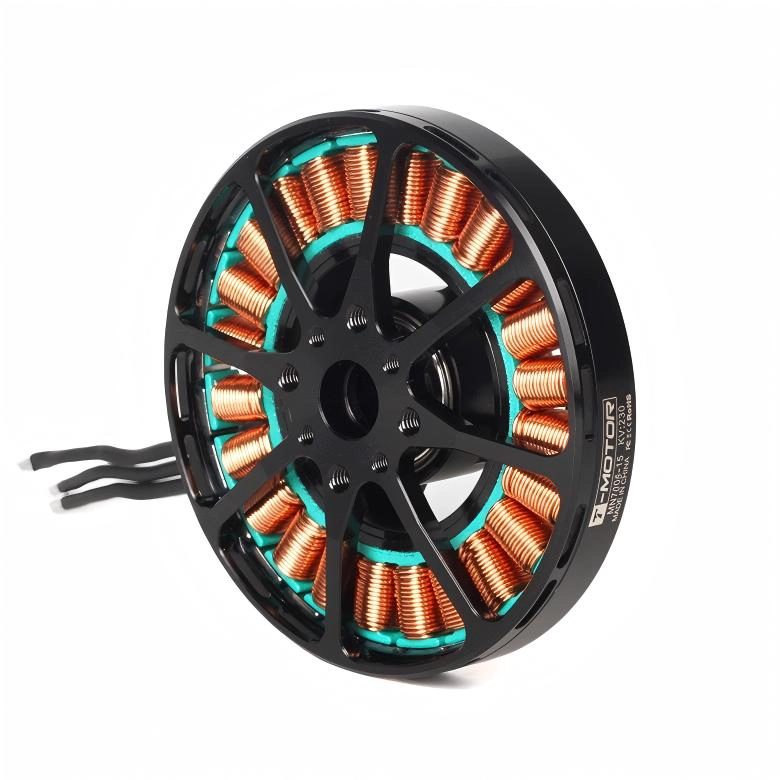

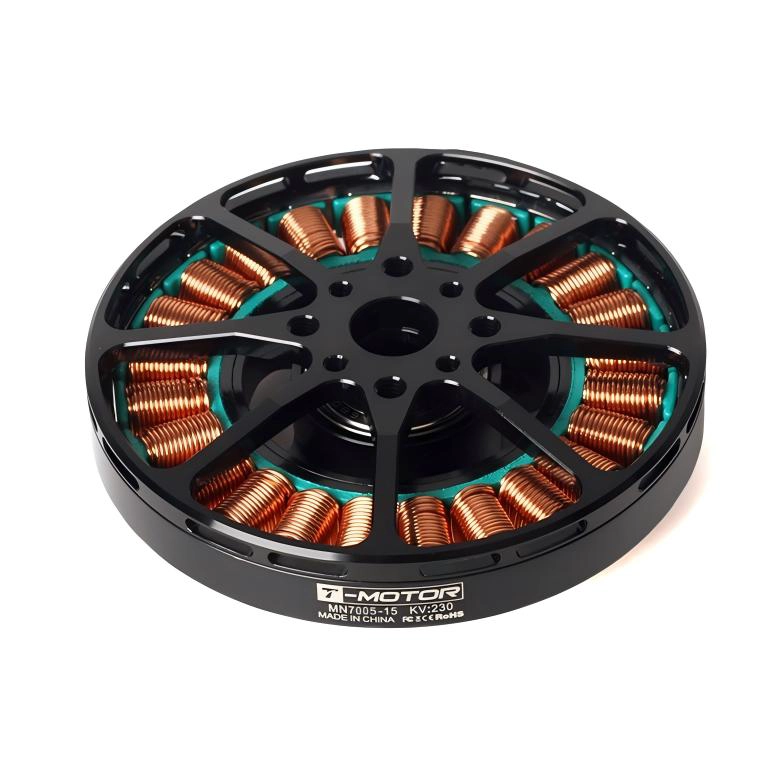

MN7005 T-MOTOR Antigravity Brushless Electric Motor UAV Skateboard Motor

1.KV115
2.KV230

About T-MOTOR MN7005 Multirotor VTOL UAV Motor

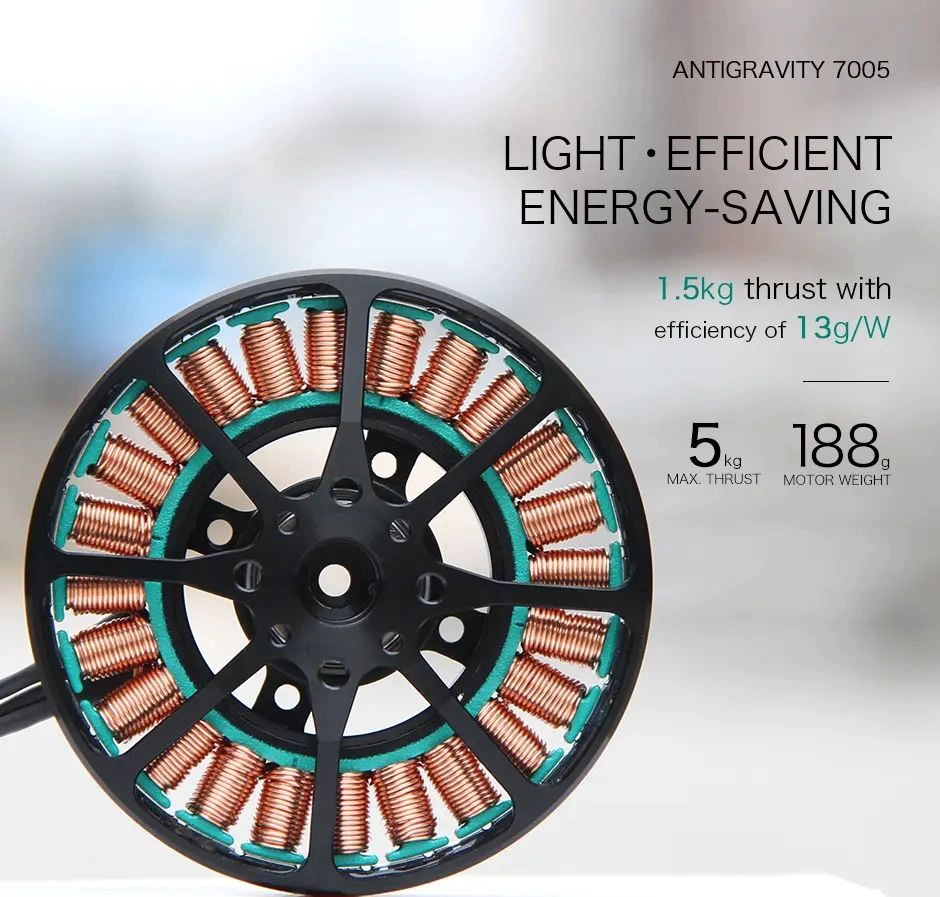

T-Motor Antigravity MN7005 KV115 offers an ultra-lightweight and energy-efficient solution for a variety of aerial applications. Whether you're engaged in aerial photography, surveying, or long-duration flights, the MN7005 delivers precision thrust, improved motor efficiency, and enhanced stability.Antigravity 7005 T-Motors are available with an anti-high temperature curved magnet which increases motor performance by 5%. Energy-saving Antigravity-type Tiger motors have 1.5kg thrust with an efficiency of 13g/W. up to 7kg thrust

Antigravity MN7005 Highlights:

* Imported German 7075 aviation aluminum

* Ultra Lightweight 188g only

* Anti-high temperature curved magnet with precise

* Motor performance increase by 5%

* ATA01123 prop adapter for P22inch prop

* MN7005 is for thrust requireme

* up to 7kg thrust

" Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.

Application Areas：

* Aerial Photography

* Surveying & Mapping

* Long-Duration Flights

* Environmental Monitoring

* Industrial & Commercial UAV Operations

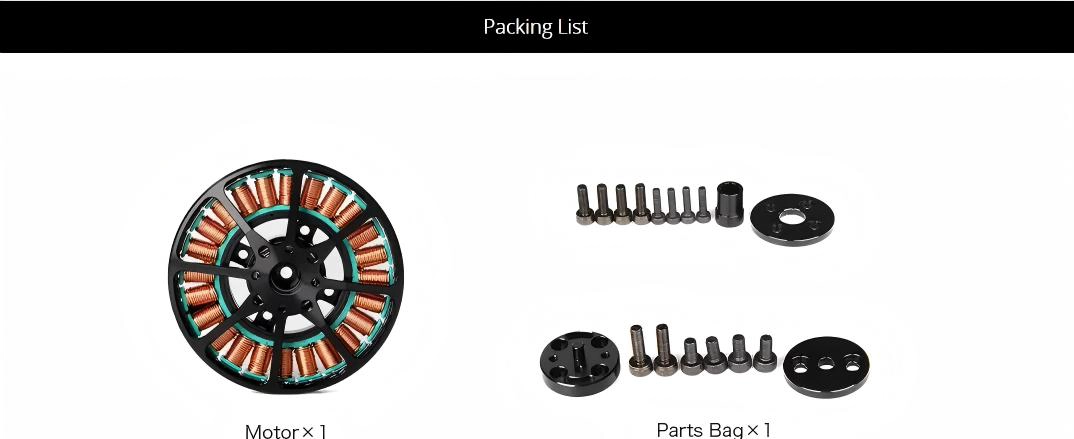

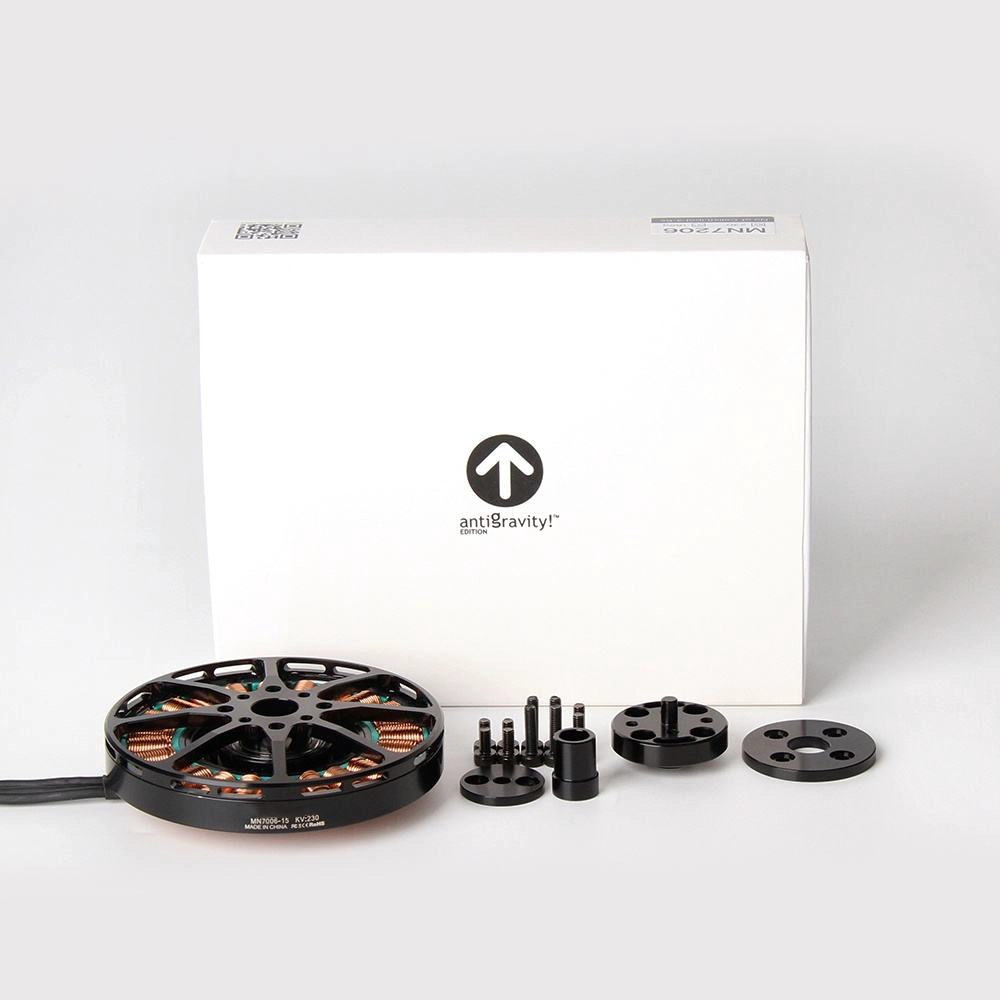

Packing List Includes:

1 x T-MOTOR MN7005 KV115/KV320( kv which you choose)

1 x Hardware pack

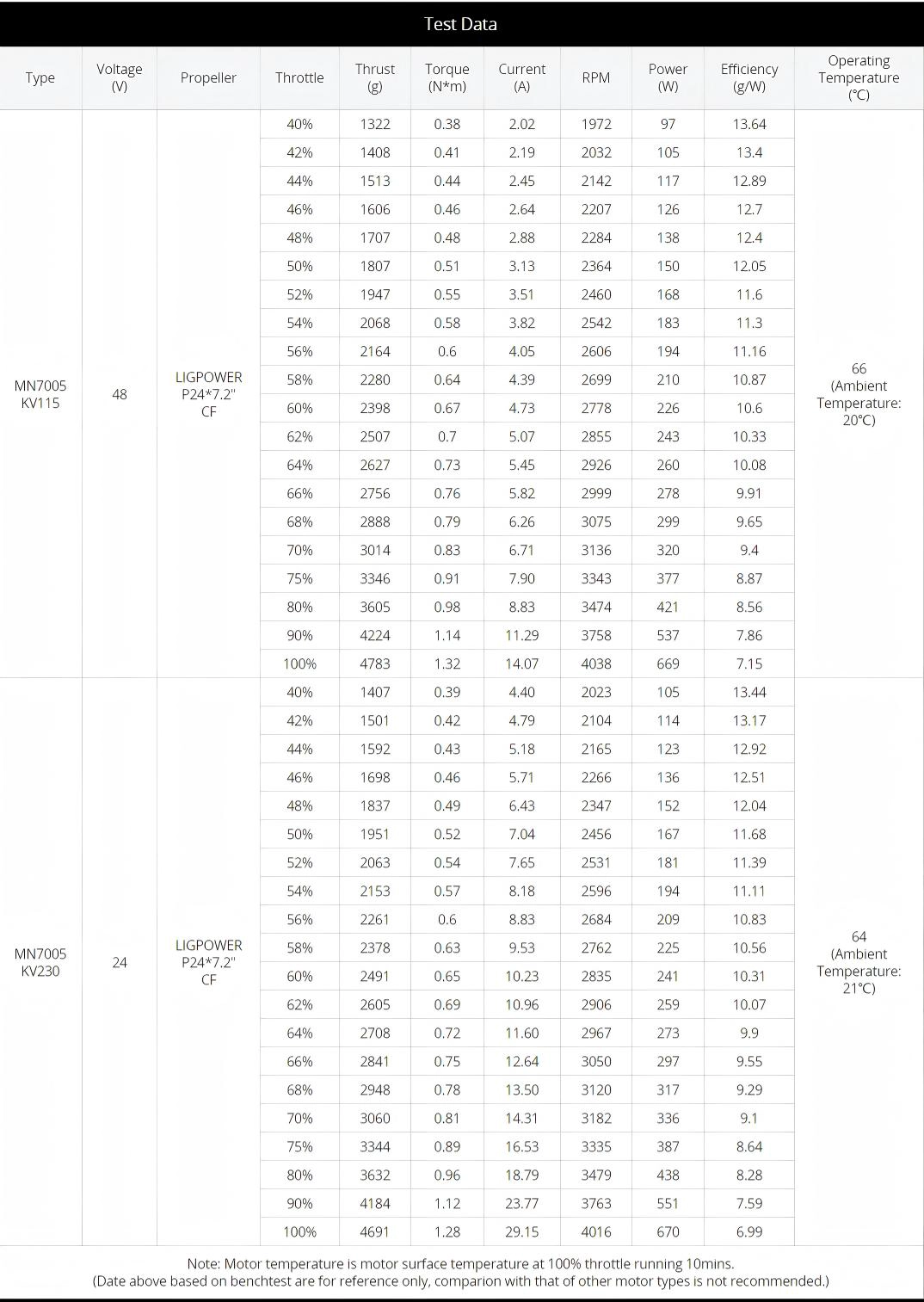

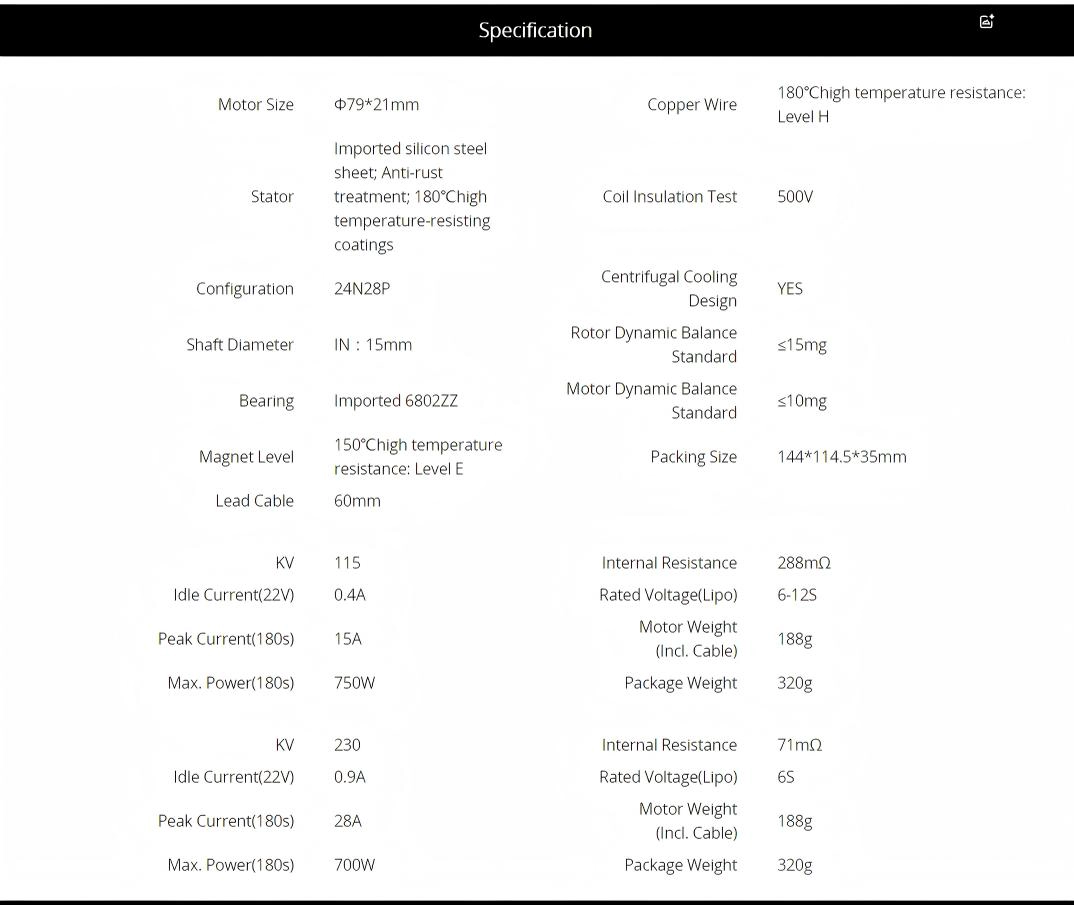

MN7005 Specification
Shaft Diameter	IN15mm
Motor Size(mm)	Φ79*21mm
Configuration	24N28P
Lead(mm)	Enameled Wire 60mm
Weight (Incl. Cable)	188g
MN7005 KV115
Internal Resistance	288mΩ
Max Continuous Power 180S	750W
Idle Current(22V)	0.4A
Max Continuous Current 180S	15A
Battery (lipo)/Voltage	6-12S
MN7005 KV230
Internal Resistance	71mΩ
Max Continuous Power 180S	700W
Idle Current(22V)	0.9A
Max Continuous Current 180S	28A
Battery (lipo)/Voltage	6S
