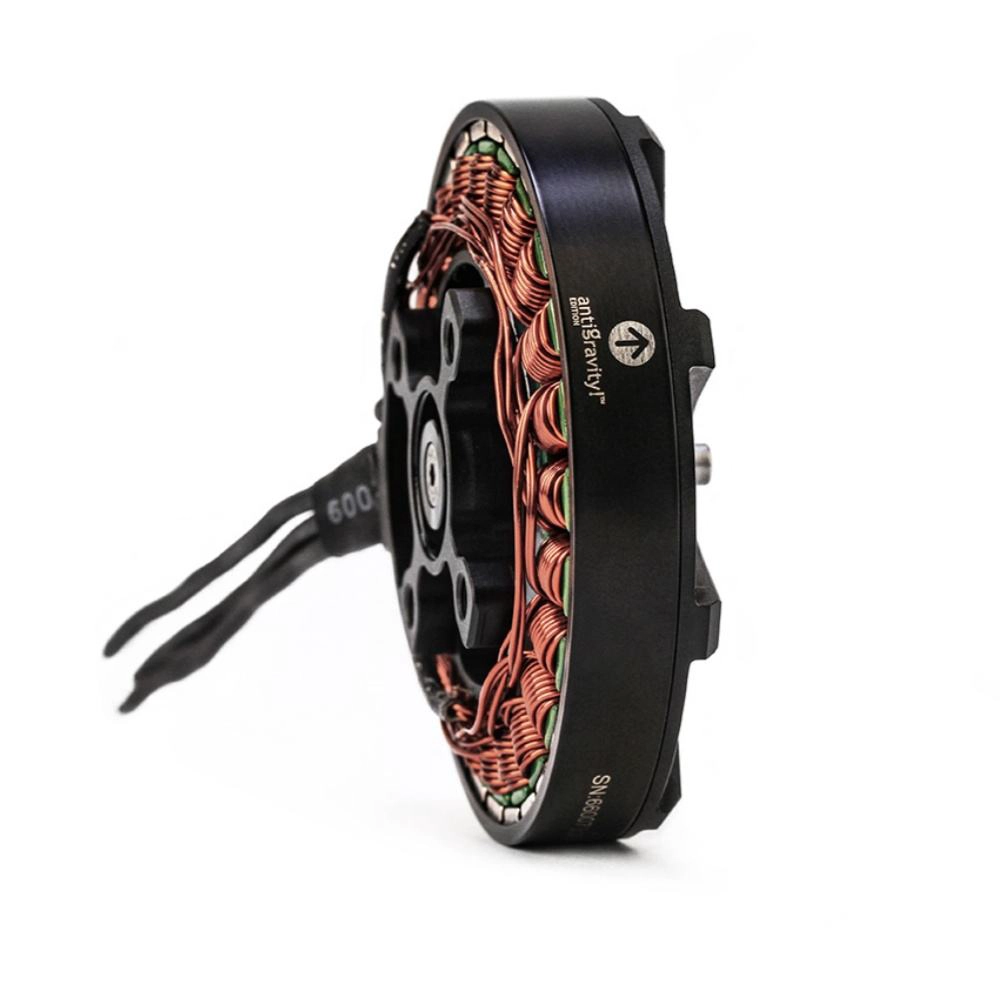

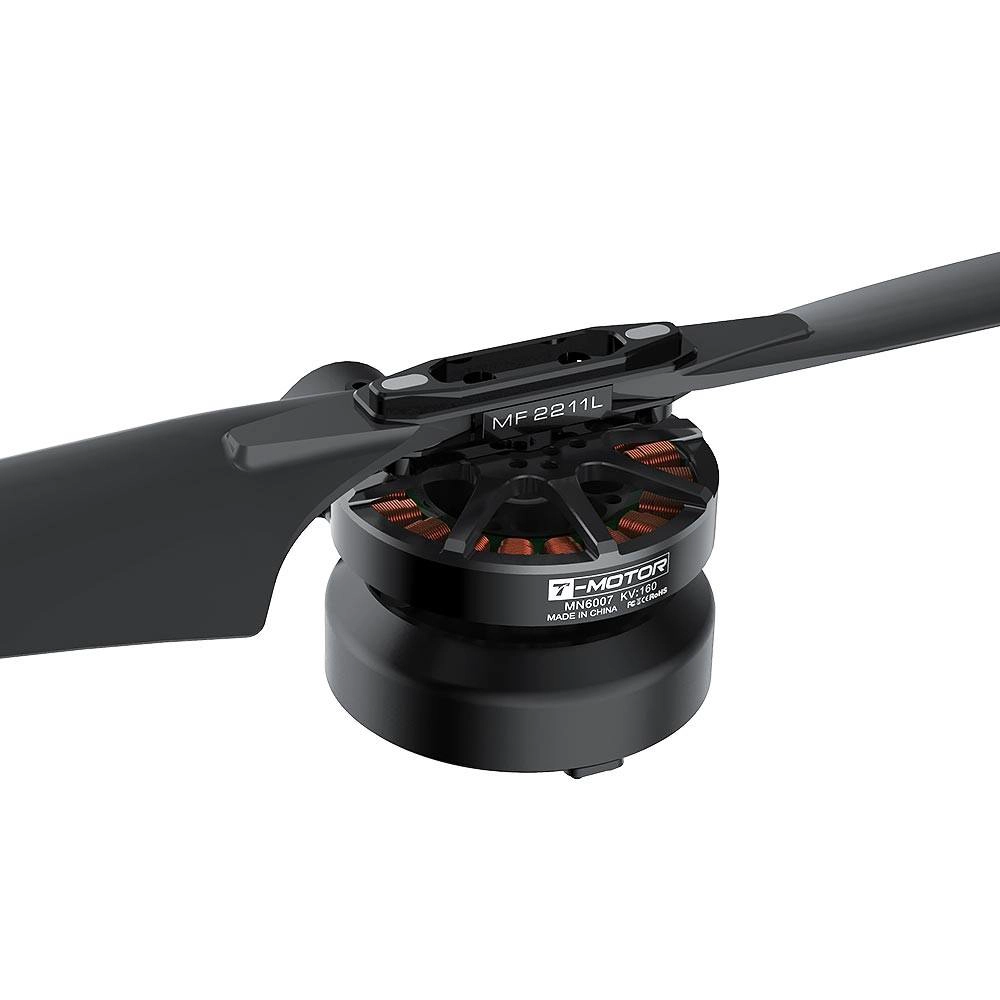

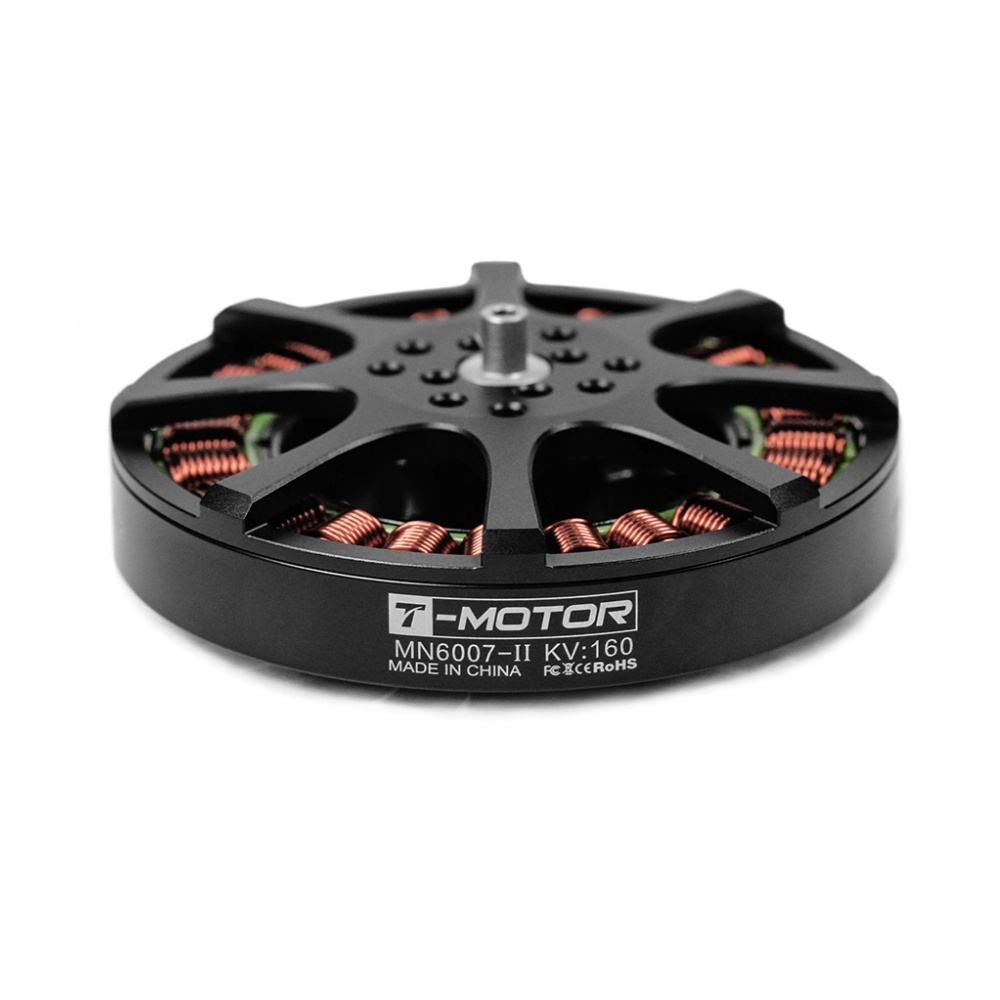

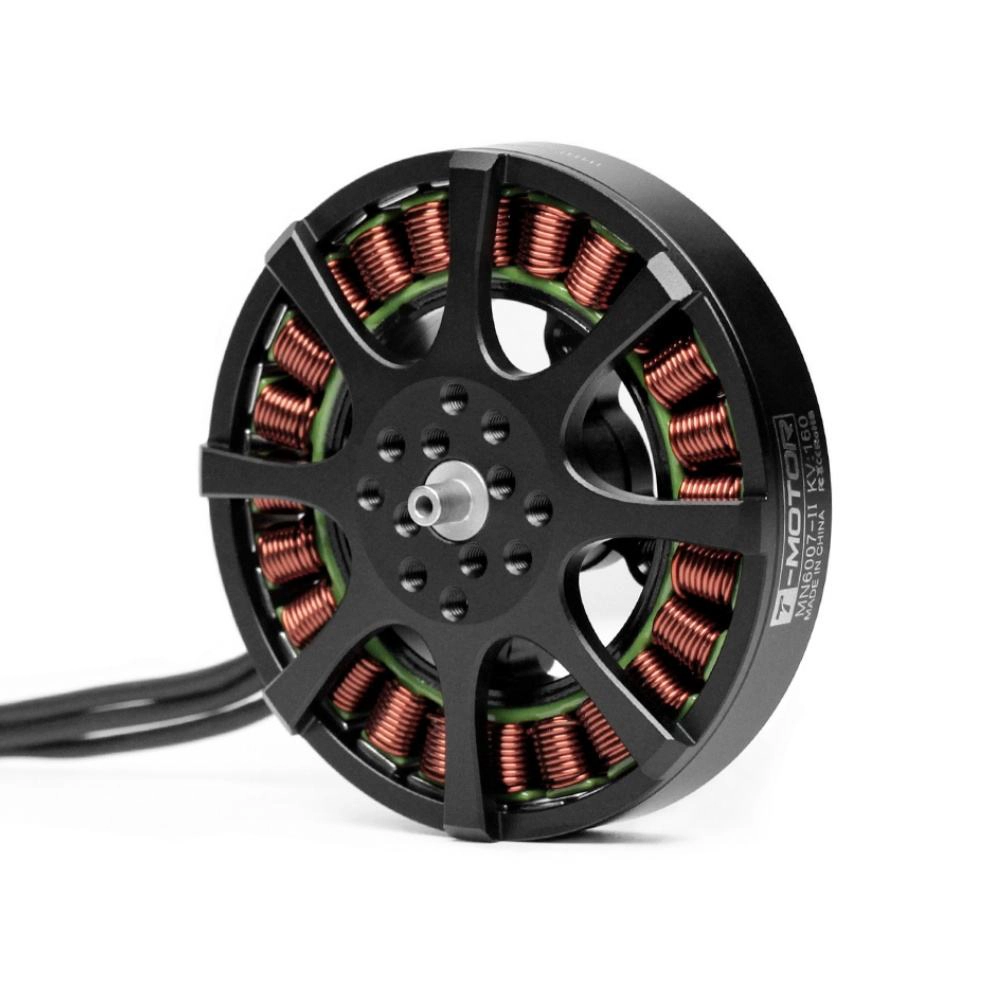

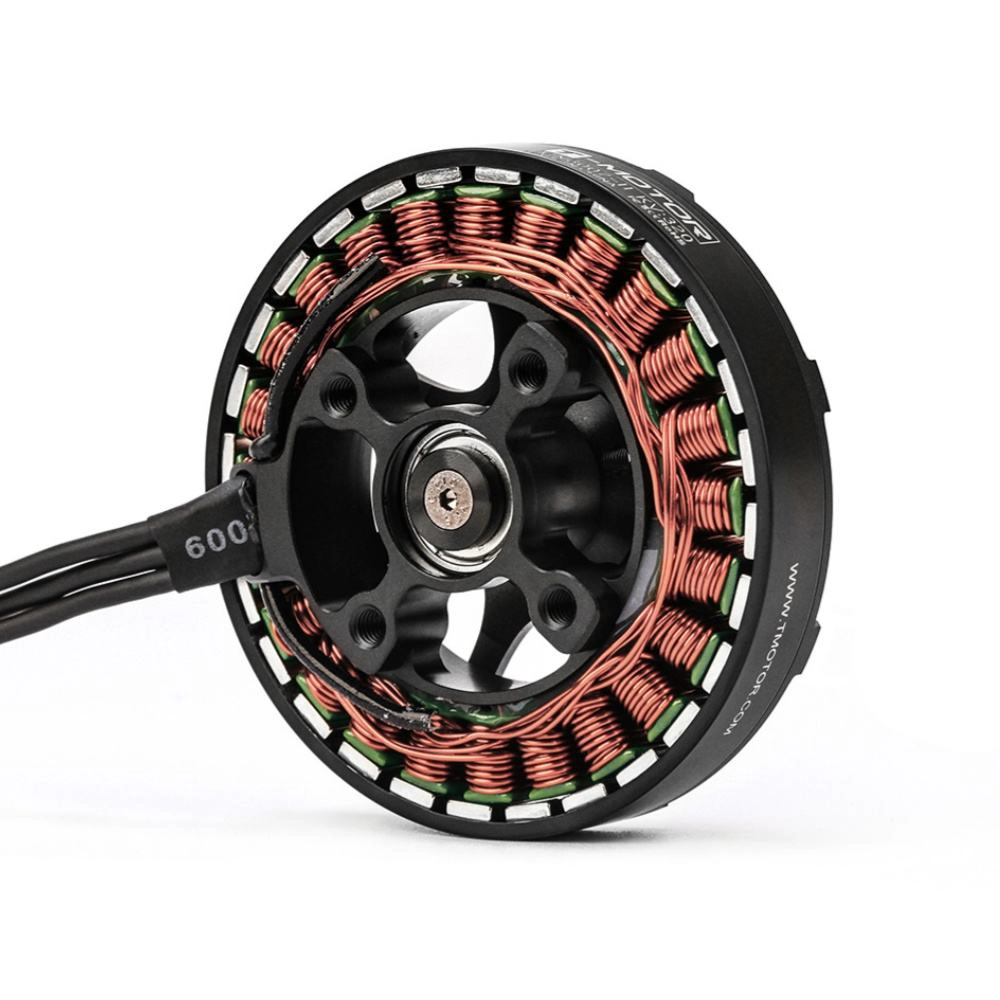

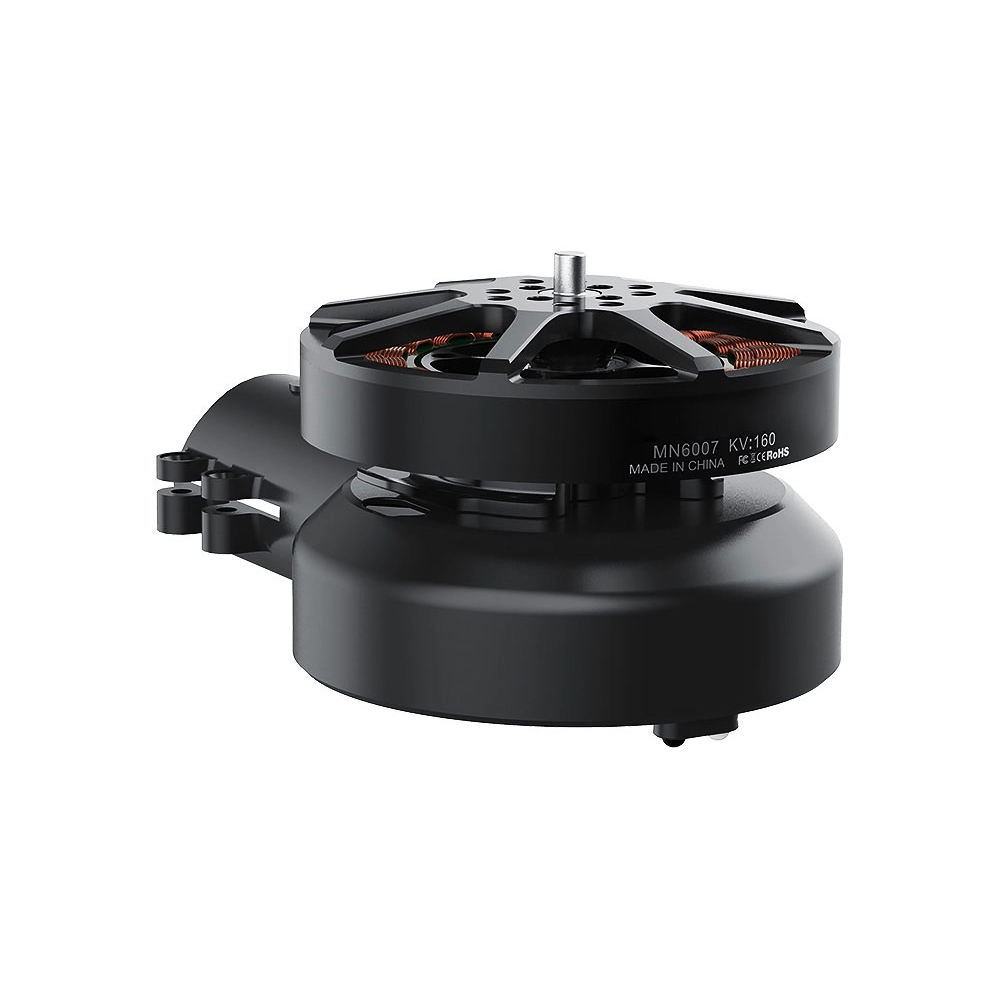

About T-MOTOR MN6007 II Multirotor VTOL UAV Motor KV160/KV320
T-Motor Antigravity MN6007II KV160/KV320 is a cutting-edge brushless motor designed to elevate the performance of your UAV to new heights. With an ultra-lightweight build and precision engineering, this motor is perfect for demanding applications like aerial photography, surveying, mapping, and rescue operations. Combining high efficiency, enhanced thrust, and a unique cooling system, the MN6007II ensures stable, reliable, and long-lasting flight performance.
Antigravity MN6007 II Highlights:
* Flight time up to 50 mins
* Max. thrust up to 5.5kg
* Lower coging torque
* Ultra light,high efficiency
* Test Item: KV320

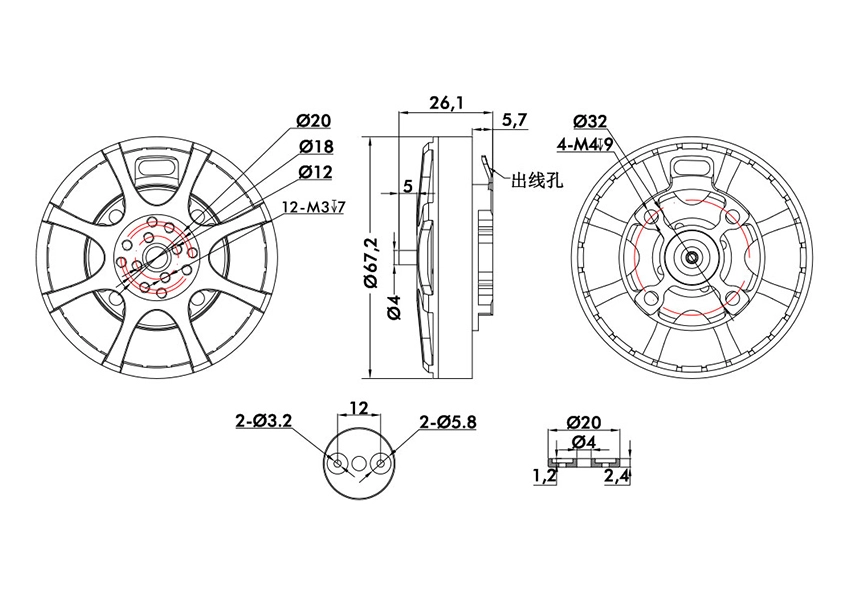

* Motor Dimensions: Φ67 x 30.1mm
* Lead: Enameled Wire 60mm
* Shaft Diameter: 6mm
" Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.
Application Areas：
* Multi-rotors, VTOL，UAVs，Heavy-duty professional drones
* Aerial photography
* Surveying and mapping
* Rescue

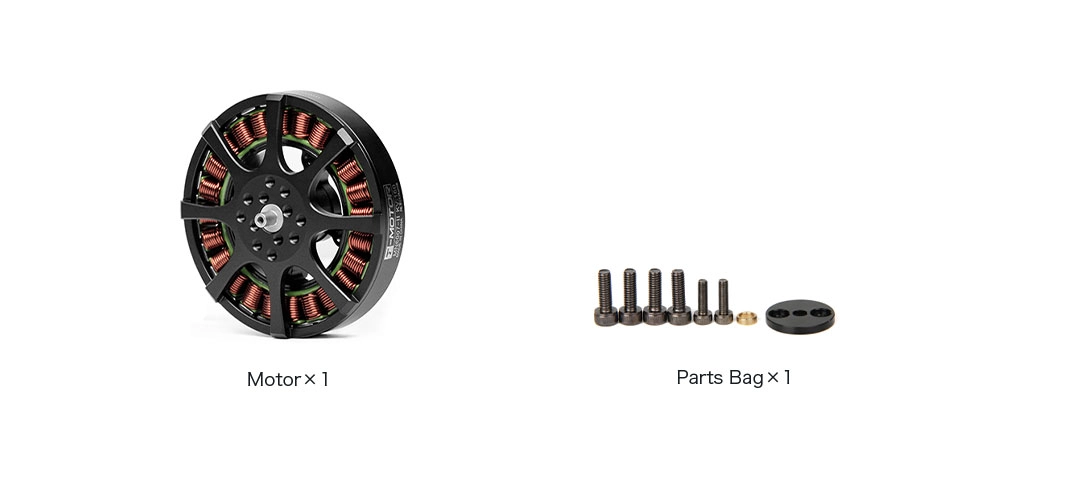

Packing List Includes:
1 x T-MOTOR MN6007II KV100( kv which you choose)
1 x Hardware pack

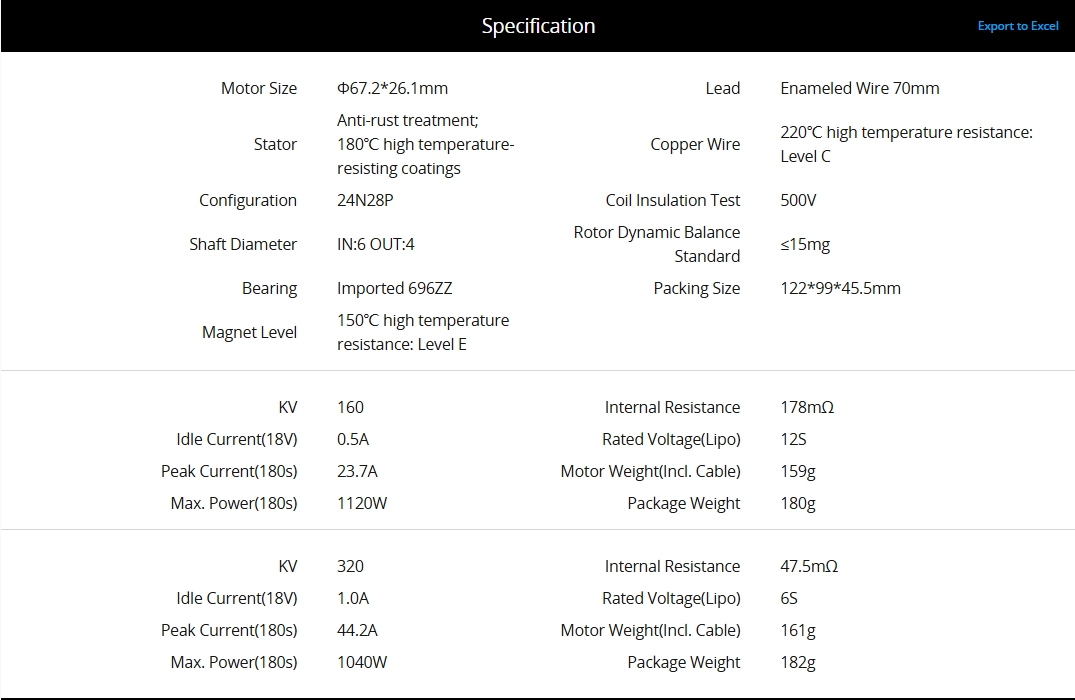

| MN6007II KV160 | |
| Motor Size(mm) | Φ67.2*26.1mm |
| Lead | Enameled Wire 70mm |
| Shaft Diameter | IN：6mm OUT：4mm |
| Idle Current(18V) | 0.5A |
| Max. Power(180s) | 1120W |
| Weight (Incl. Cable) | 159g |
| Internal Resistance | 178mΩ |
| Configuration | 24N28P |
| Rated Voltage(Lipo) | 12S |
| Peak Current(180s) | 23.7A |
| MN6007II KV320 | |
| Motor Size(mm) | Φ81.4*66.9mm |
| Lead | Enameled Wire 70mm |
| Shaft Diameter | IN：6mm OUT：4mm |
| Idle Current(18V) | 1.0A |
| Max. Power(180s) | 1040W |
| Weight (Incl. Cable) | 159g |
| Internal Resistance | 47.5mΩ |
| Configuration | 24N28P |
| Rated Voltage(Lipo) | 6S |
| Peak Current(180s) | 44.2A |
