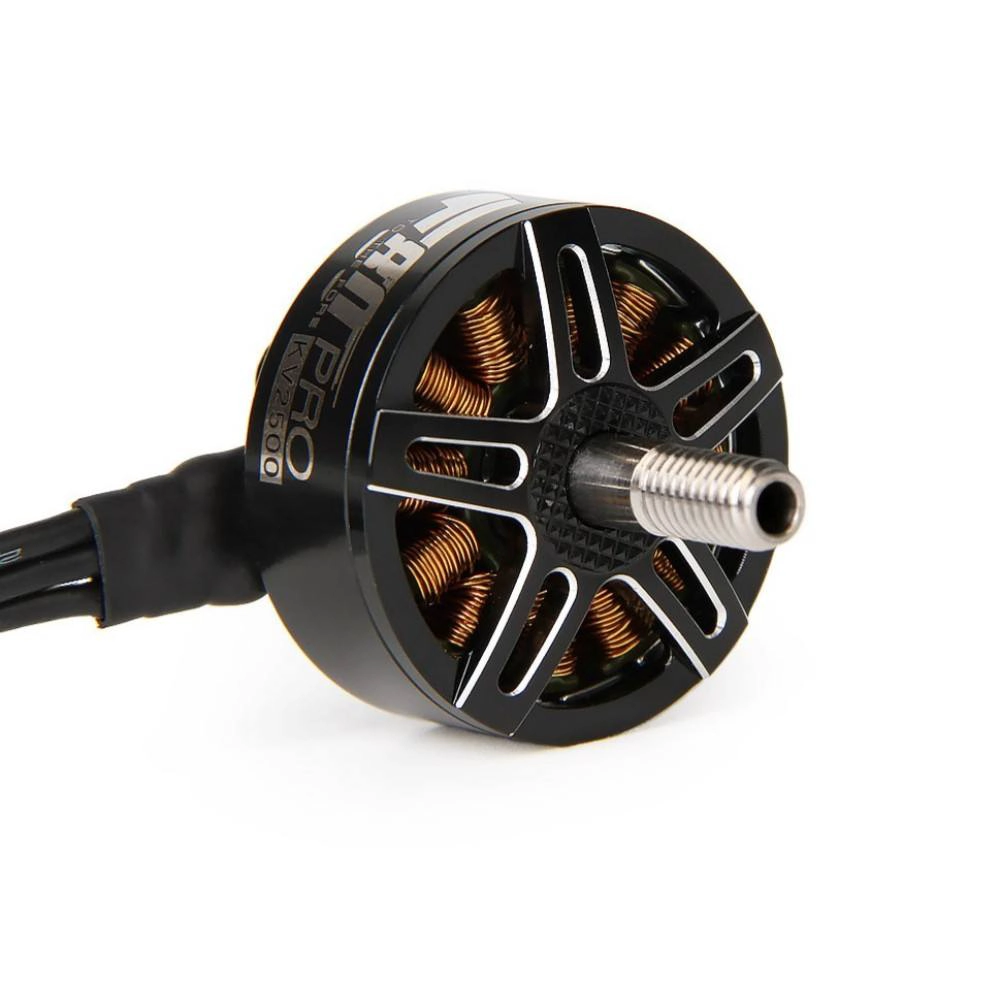

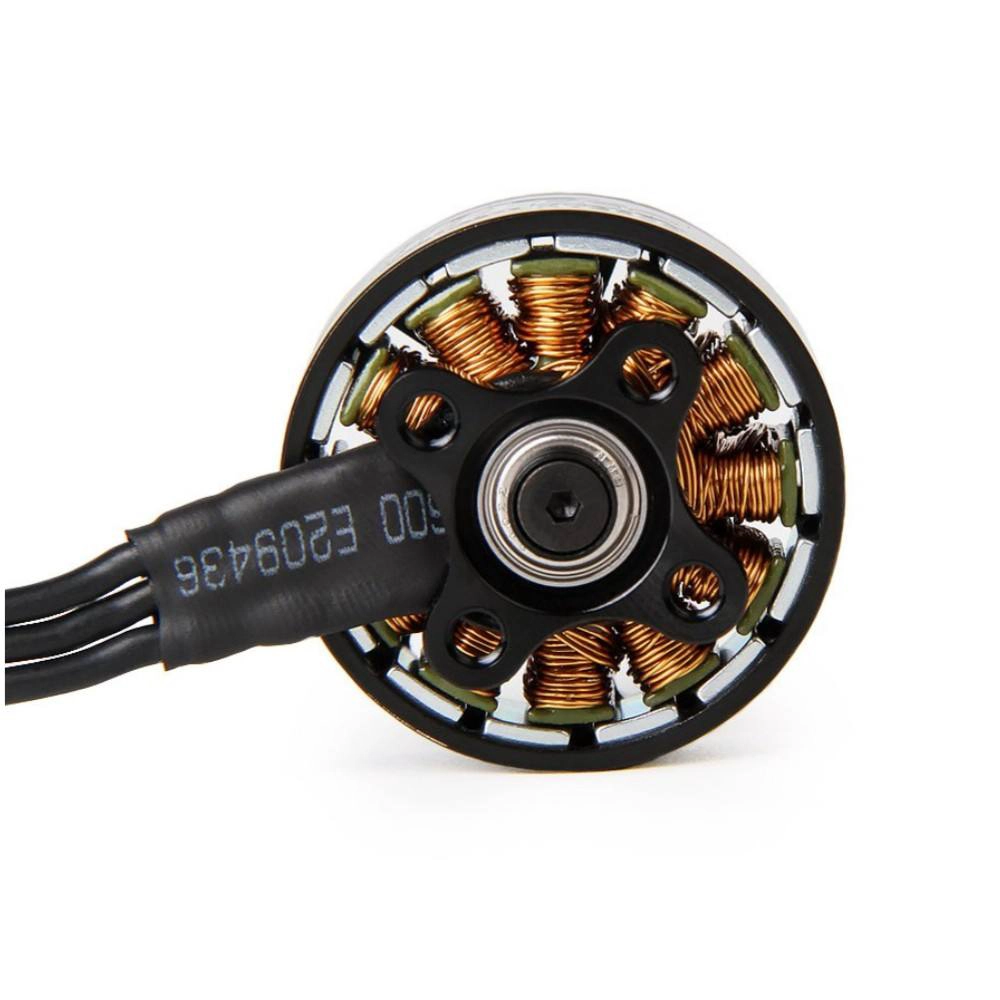

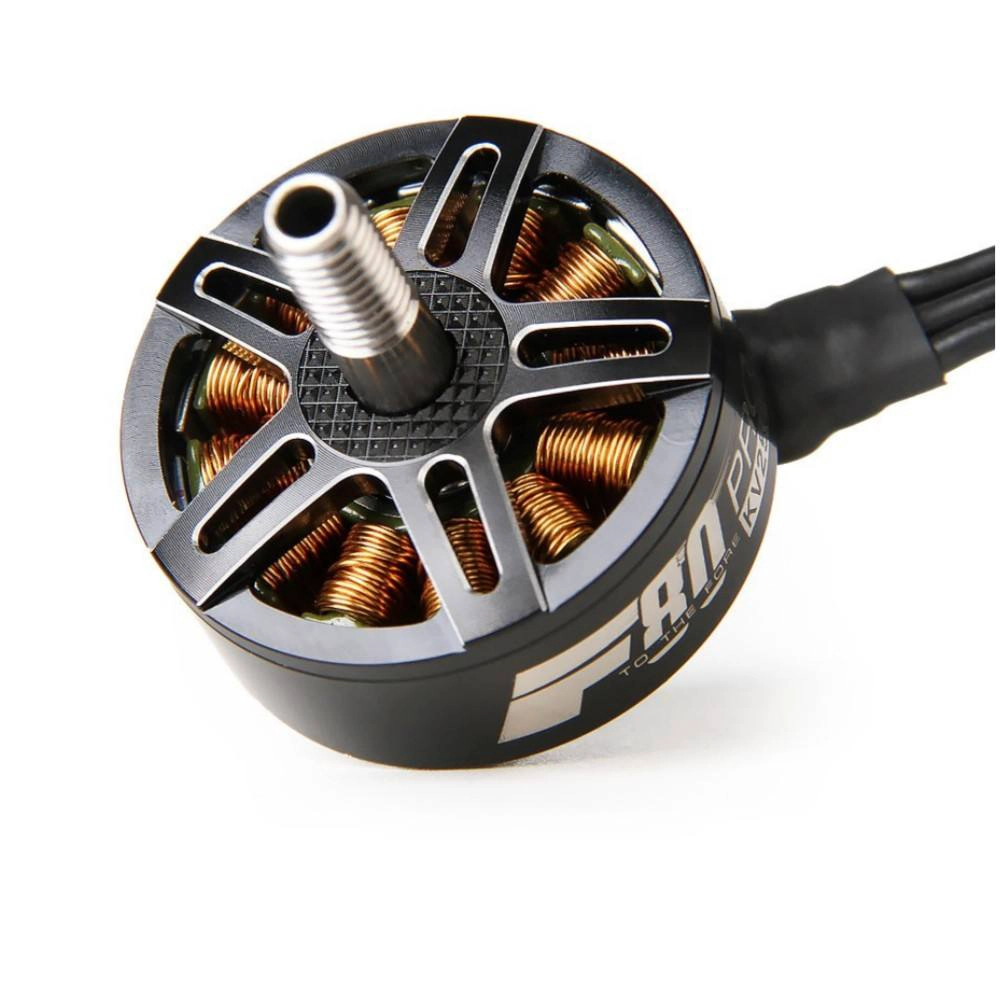

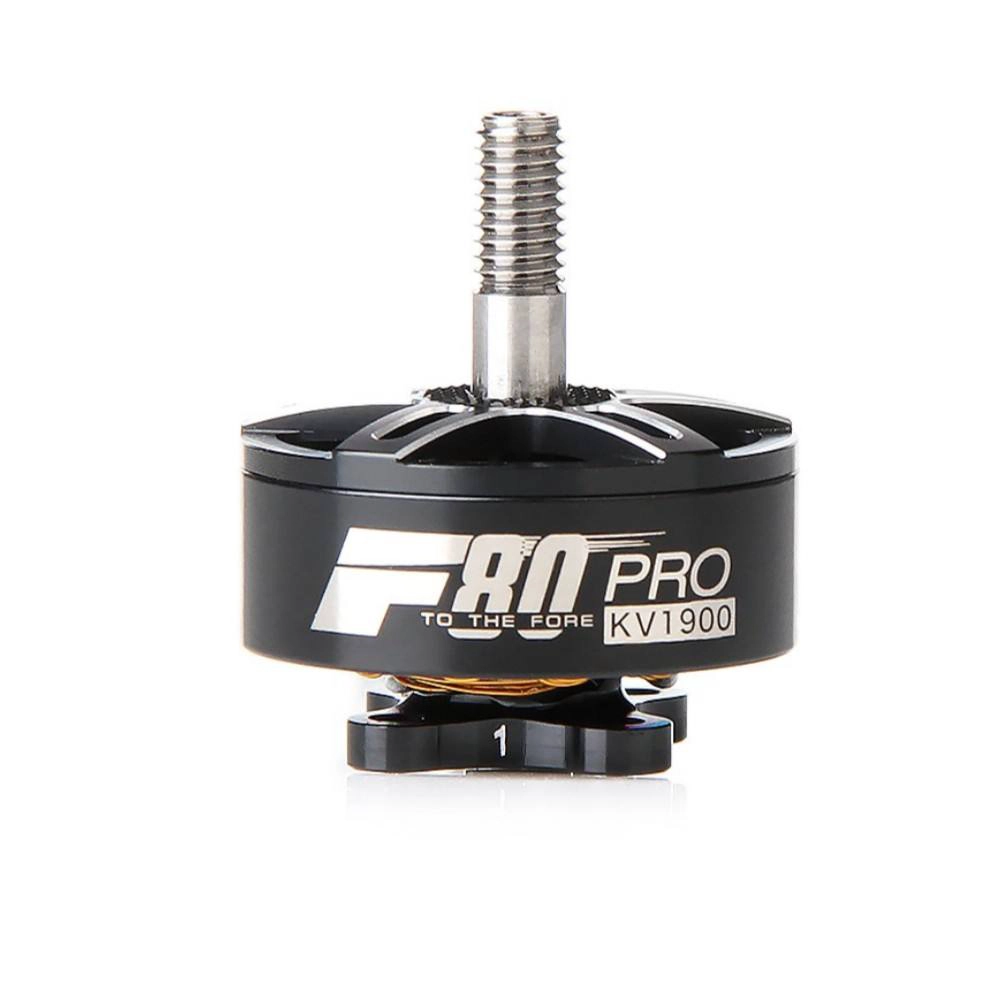

F80 PRO efficient lightweight drone motor — the ultimate upgrade for mini freestyle racing drones. The T-motor F80 PRO motor boosts pull force by 5%-10% (max 2115g) while weighing just 36.4g. Built for high-performance flight, the T-motor F80 PRO racing motor uses 240℃ high-temp resistant silver wire for stable power output during intense sessions.
This T-motor F80 PRO brushless motor features a high-strength titanium alloy shaft, earning its reputation as a high strength drone motor with unbeatable toughness and impact resistance. Its anti-slip slot design prevents propeller slippage for responsive control, and it excels as a long range FPV racing motor for speed-hungry pilots. A top pick for enthusiasts worldwide, it’s sourced from trusted China T-motor F80 PRO motor saler.

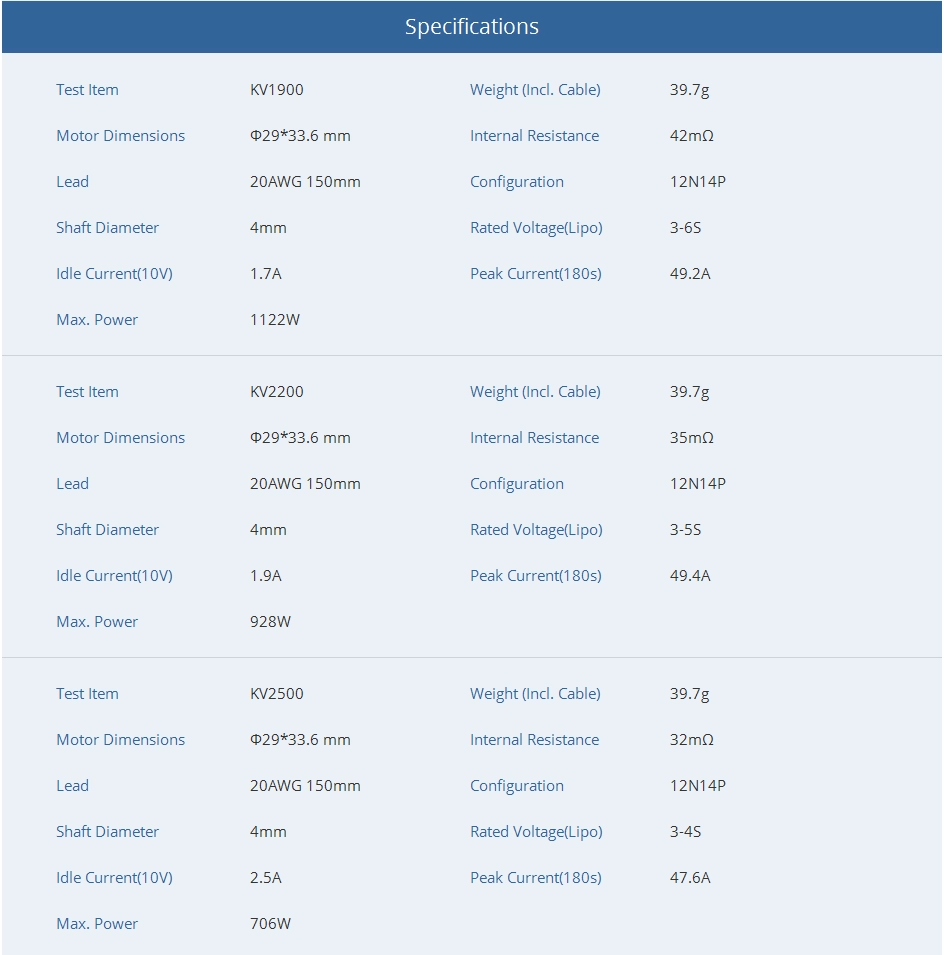

| F80 PRO KV1900 | |

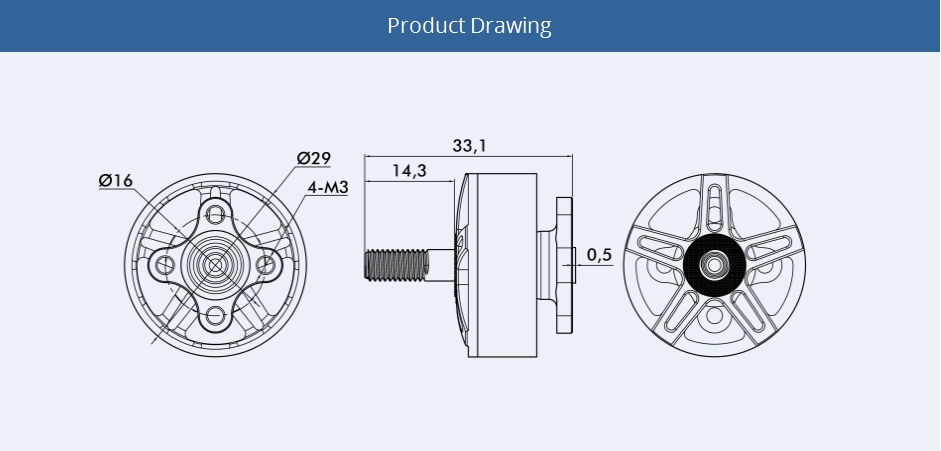

| Motor Size(mm) | Φ29*33.6mm |
| Lead | 20#AWG 150mm |
| Shaft Diameter | 4mm |
| Idle Current(10V) | 1.7A |
| Max. Power(60s) | 1122W |
| Weight (Incl. Cable) | 39.7g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 3-6S |
| Peak Current(180s) | 49.2A |
| F80 PRO KV2200 | |
| Motor Size(mm) | Φ29*33.6mm |
| Lead | 20#AWG 150mm |
| Shaft Diameter | 4mm |
| Idle Current(10V) | 1.9A |
| Max. Power(60s) | 928W |
| Weight (Incl. Cable) | 39.7g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 3-5S |
| Peak Current(180s) | 49.4A |
| F80 PRO KV2500 | |
| Motor Size(mm) | Φ29*33.6mm |
| Lead | 20#AWG 150mm |
| Shaft Diameter | 4mm |
| Idle Current(10V) | 2.5A |
| Max. Power(60s) | 706W |
| Weight (Incl. Cable) | 39.7g |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 47.6A |
