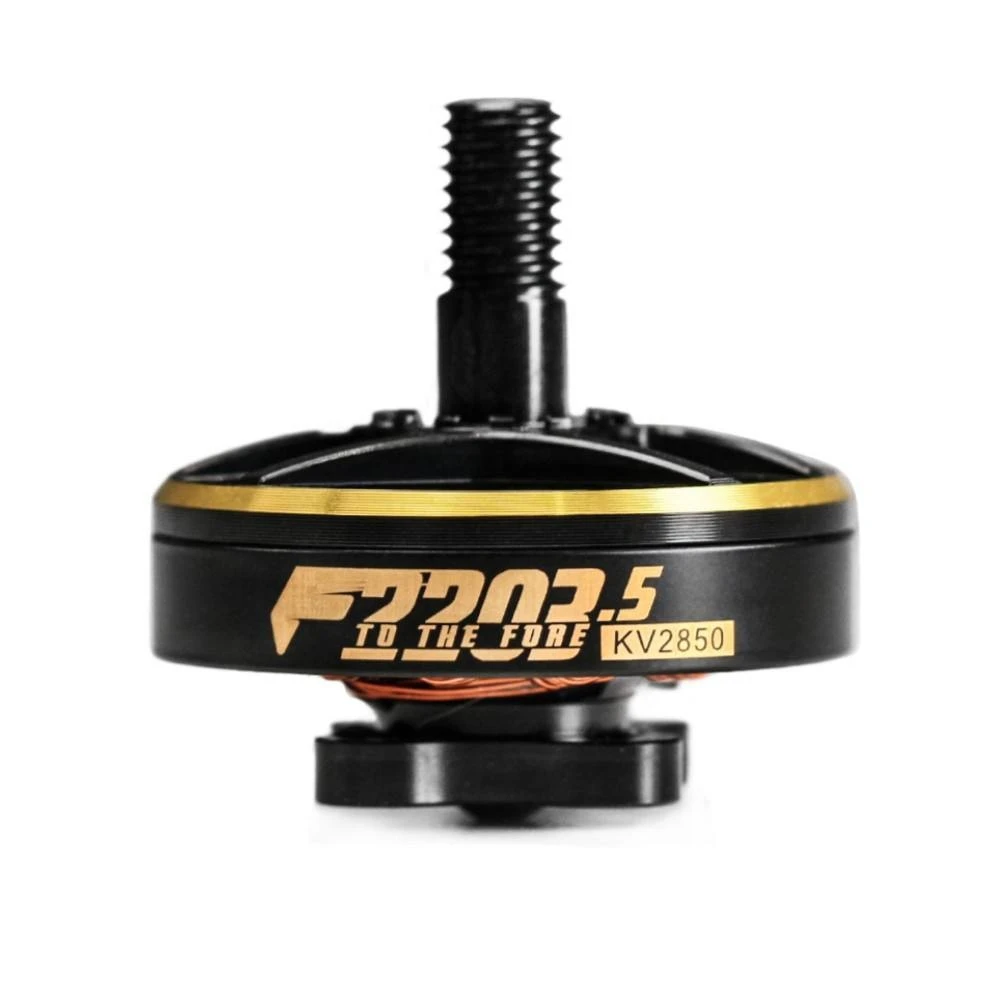

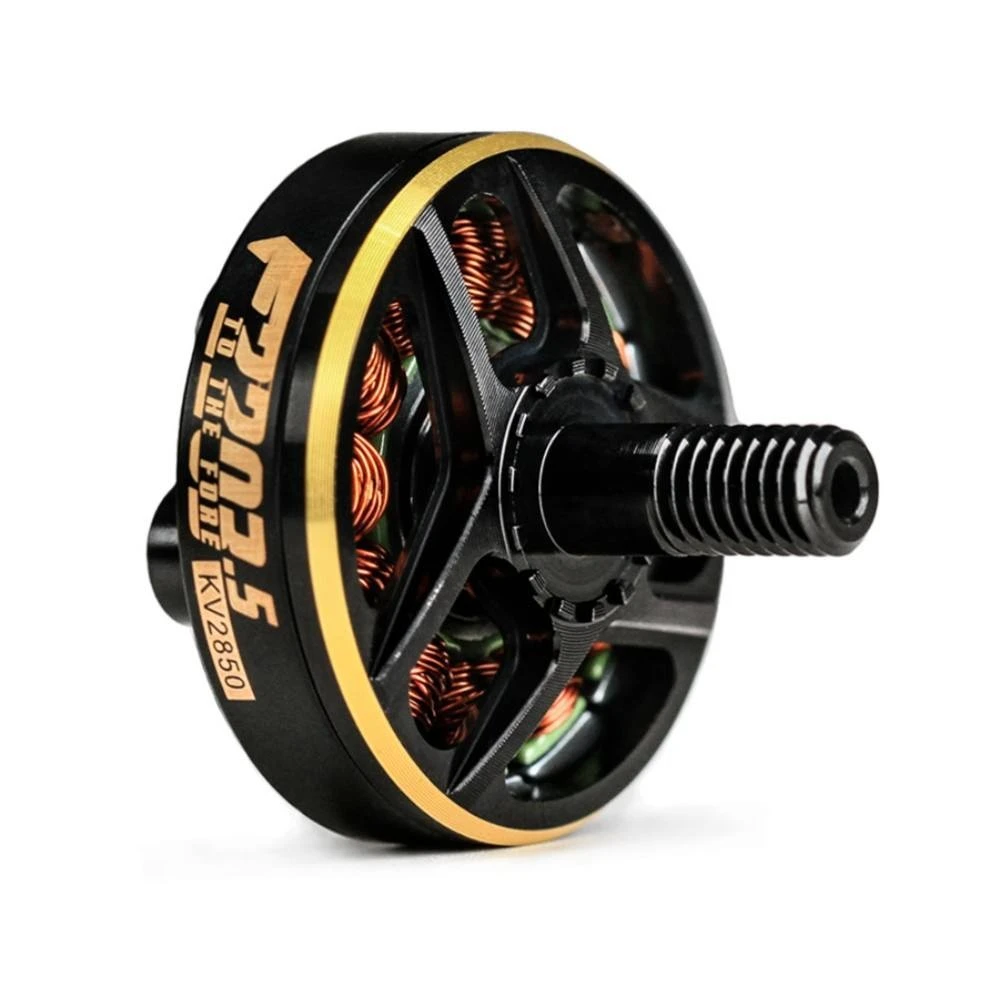

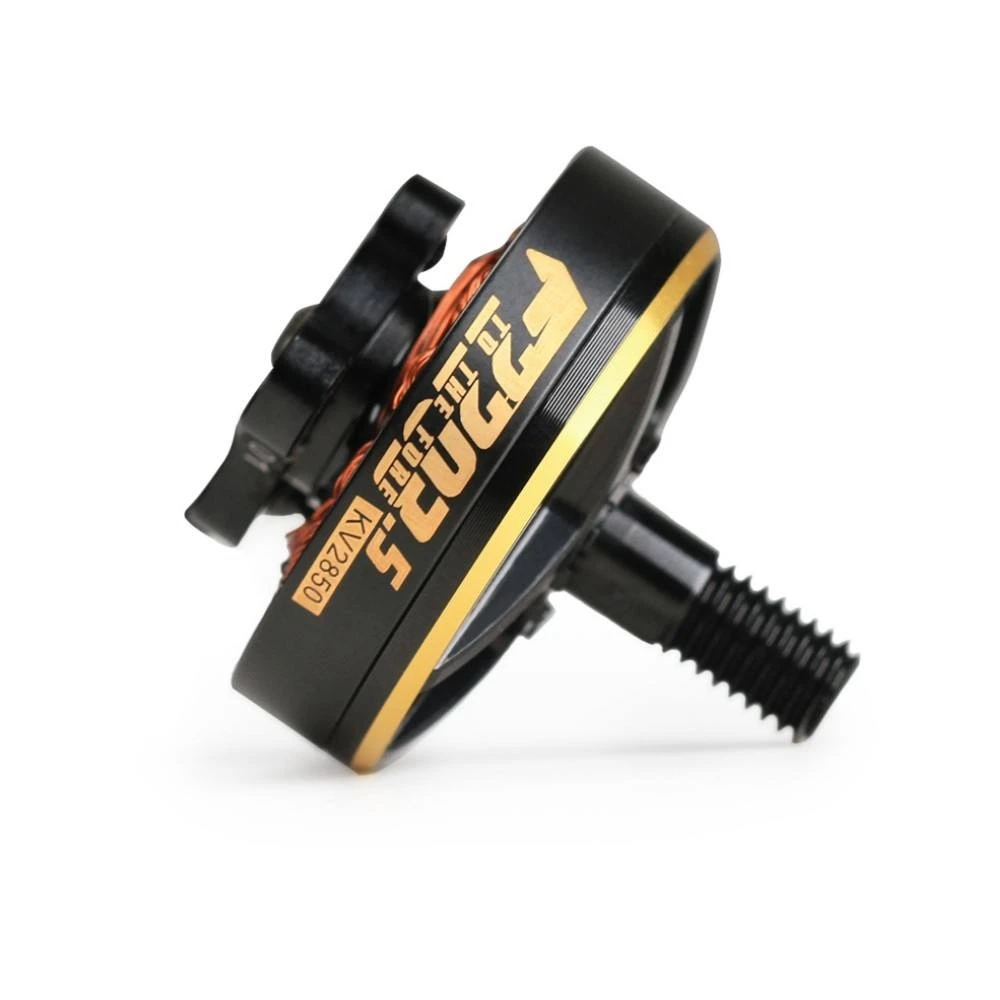

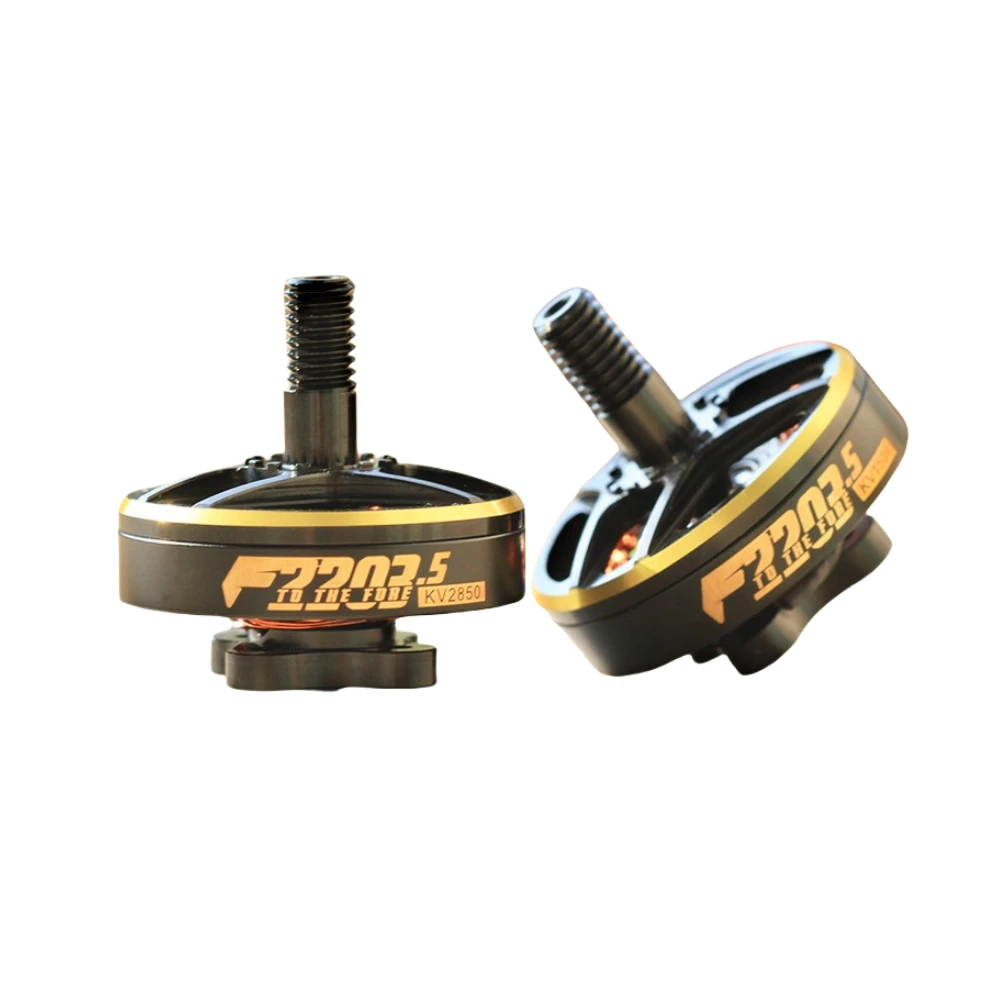

F2203.5 T-MOTORHOBBY Cinewhoop/Racingwhoop Brushless Motor

1.KV1550
2.KV2850
3.KV3550

Boasting a sleek new design and premium components, the T-MOTORHOBBY F2203.5 Motor (1500KV/2850KV/3550KV) is a standout Better Cooling Drone Motor that delivers more thrust for uncompromised performance, elevating your multirotor’s speed and visibility as a High-Speed Racing Drone Motor in freestyle and racing scenarios.

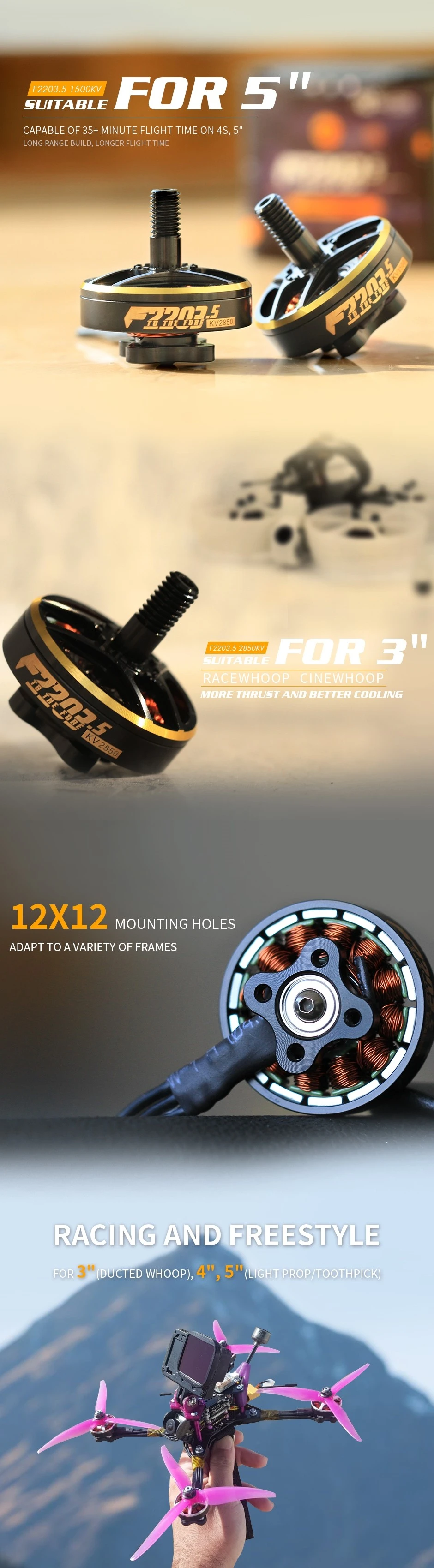

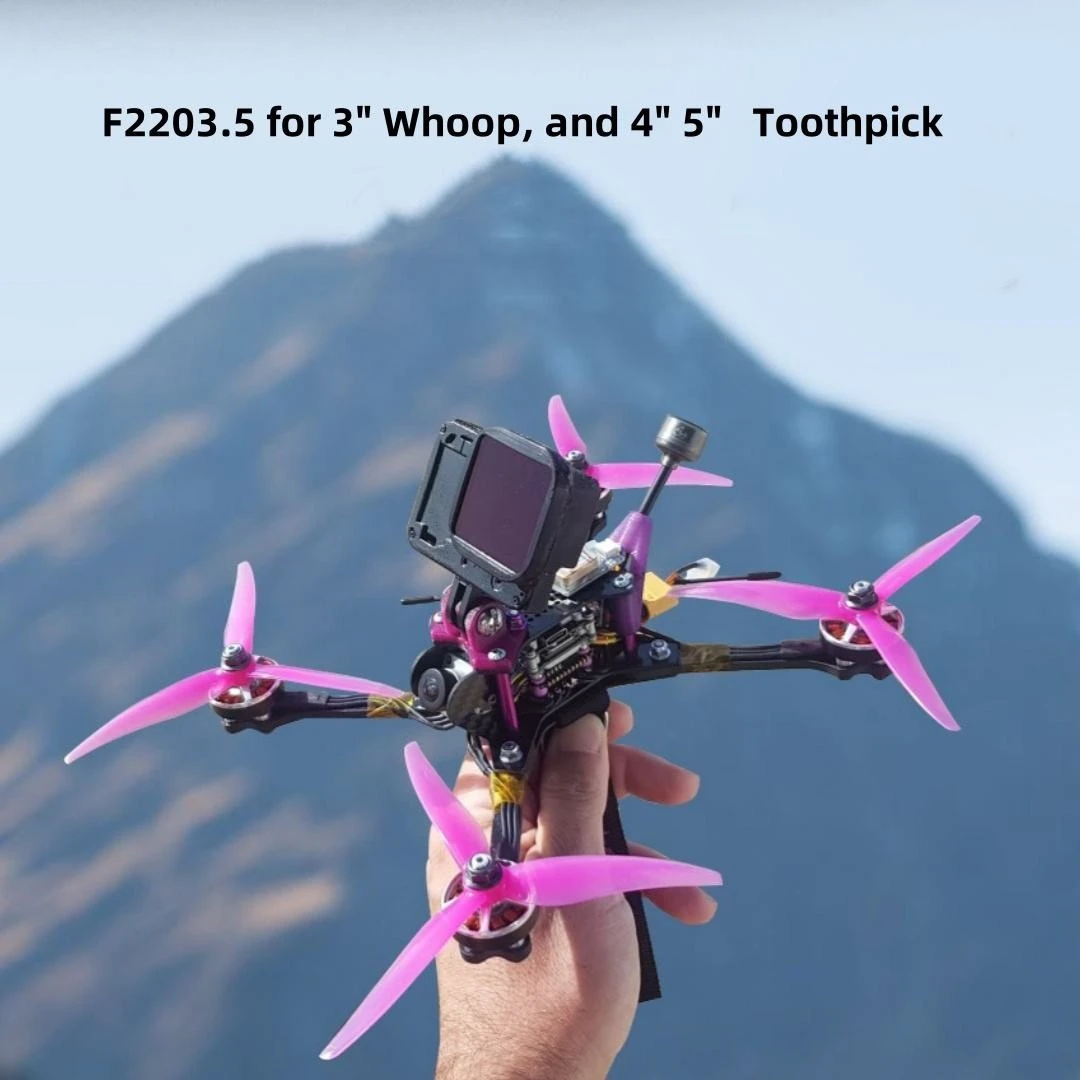

It caters to diverse drone builds with targeted KV options: the 1500KV variant is engineered as a Long-Range FPV Motor perfect for 5" long-range setups, acting as an Extended Flight Time FPV Motor with extended power support for longer flight time; the 2850KV version suits 3" Cinewhoop and Racewhoop builds, ensuring agile responsiveness for high-intensity maneuvers.
Ideal for hobbyists and pros alike, this motor balances power and durability to dominate every flight mission, whether you’re tackling long-distance treks or fast-paced races.

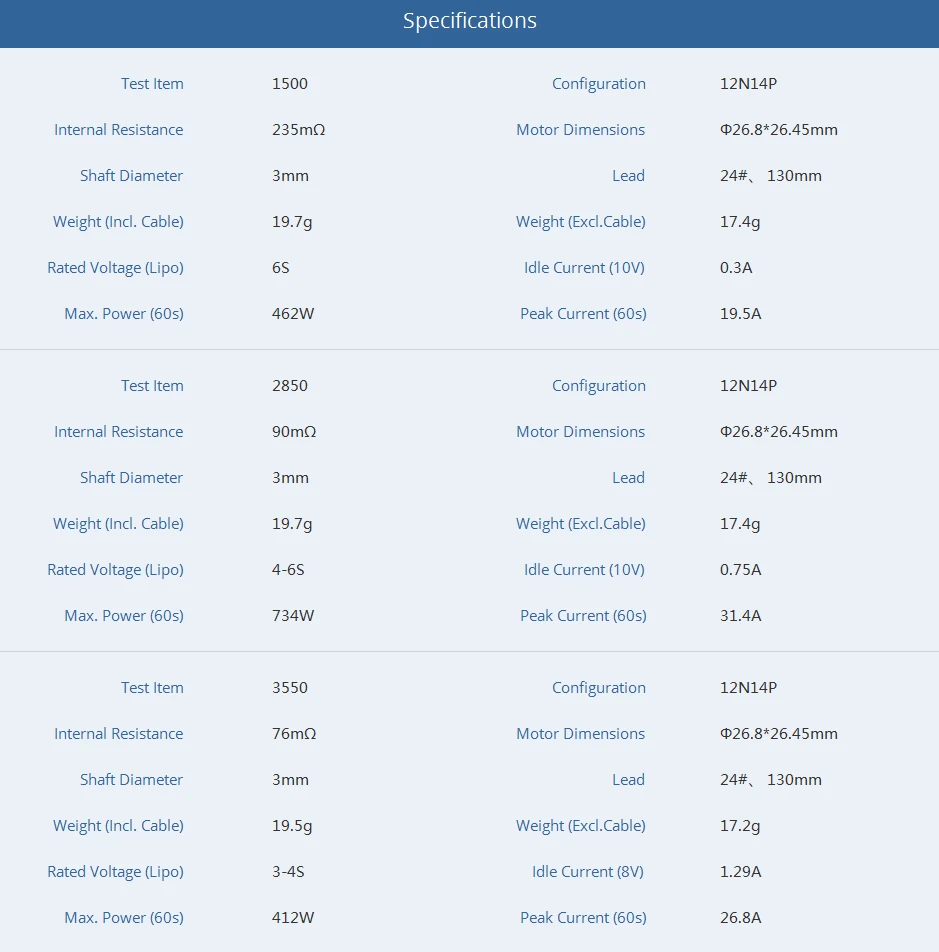

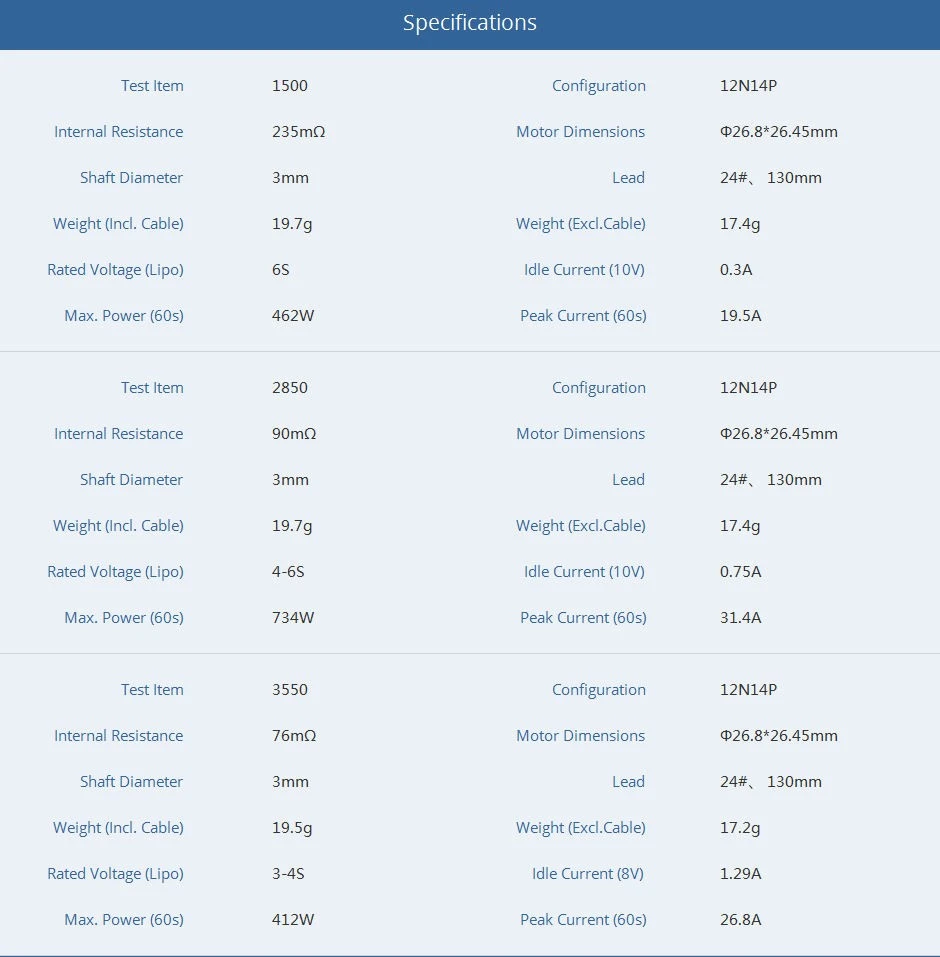

F2203.5 KV1500

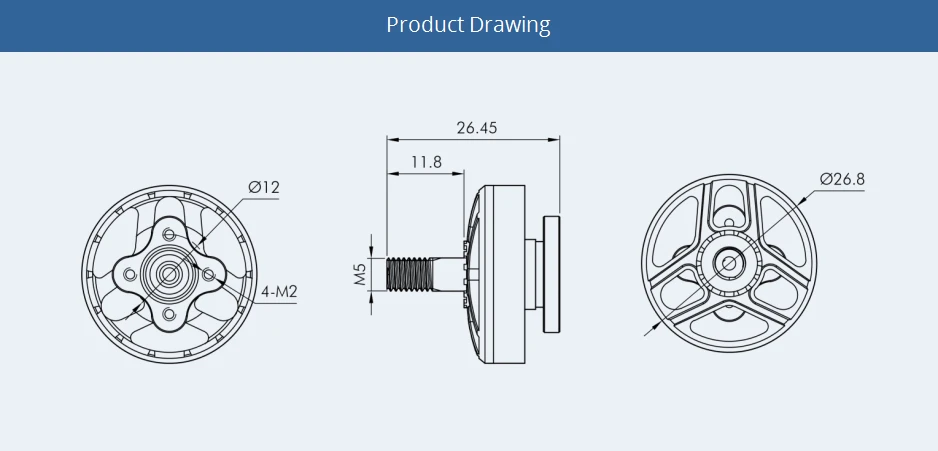

Motor Size(mm)	Φ26.8*26.45mm
Lead	24#、130mm
Shaft Diameter	3mm
Idle Current(10V)	0.3A
Max. Power(60s)	462W
Weight (Incl. Cable)	19.7g
Configuration	12N14P
Rated Voltage(Lipo)	6S
Peak Current(180s)	19.5A
F2203.5 KV2850
Motor Size(mm)	Φ26.8*26.45mm
Lead	24#、130mm
Shaft Diameter	3mm
Idle Current(10V)	0.75A
Max. Power(60s)	734W
Weight (Incl. Cable)	19.7g
Configuration	12N14P
Rated Voltage(Lipo)	4-6S
Peak Current(180s)	31.4A
F2203.5 KV3550
Motor Size(mm)	Φ26.8*26.45mm
Lead	24#、130mm
Shaft Diameter	3mm
Idle Current(10V)	1.29A
Max. Power(60s)	412W
Weight (Incl. Cable)	19.7g
Rated Voltage(Lipo)	3-4S
Peak Current(180s)	26.8A
