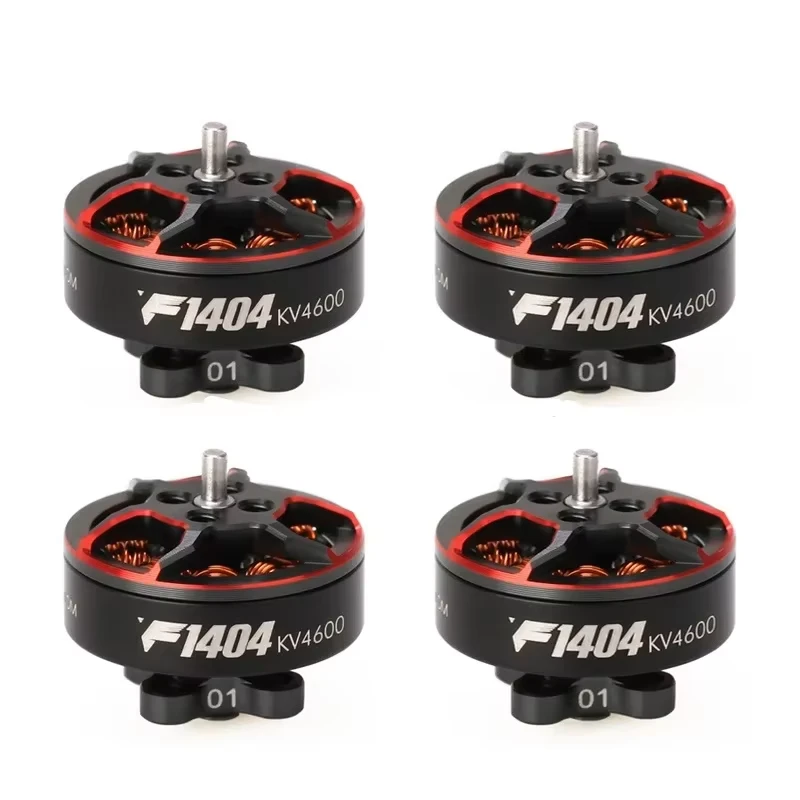

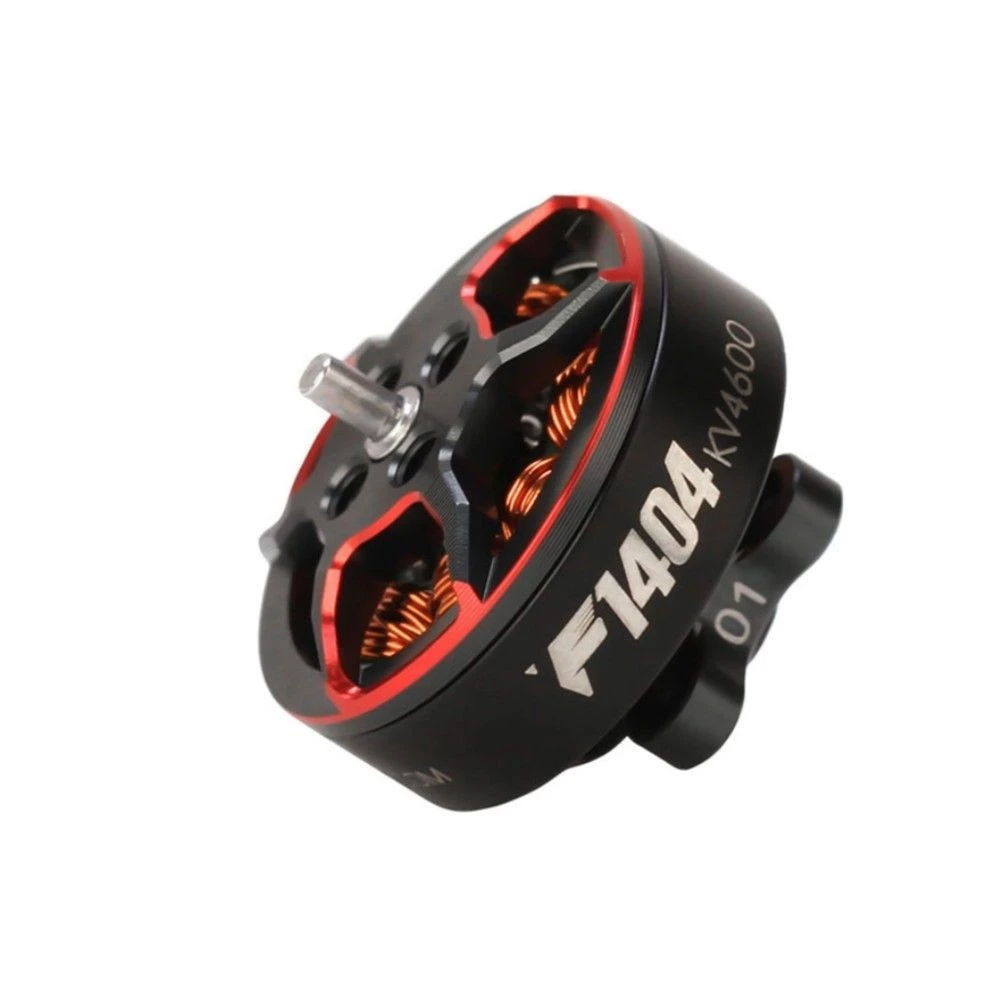

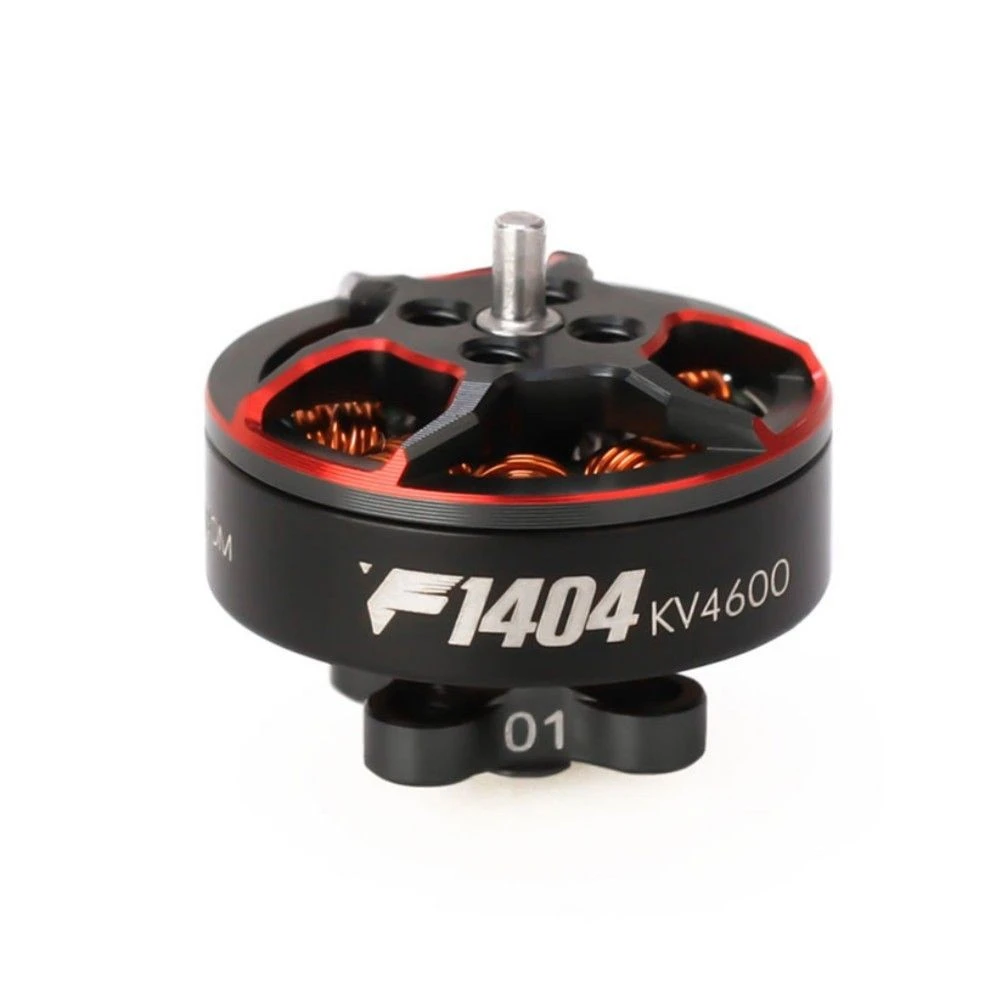

T-MOTORHOBBY F1404 Micro Multirotor Motor (3800KV/4600KV) is a factory-direct FPV Brushless Motor engineered for bulk procurement needs. Crafted with premium industrial-grade materials and an ultra-light, sleek new design, this High-Efficiency Drone Motor doubles as a reliable Long-Endurance Drone Motor, tailored perfectly for long-range flying applications.

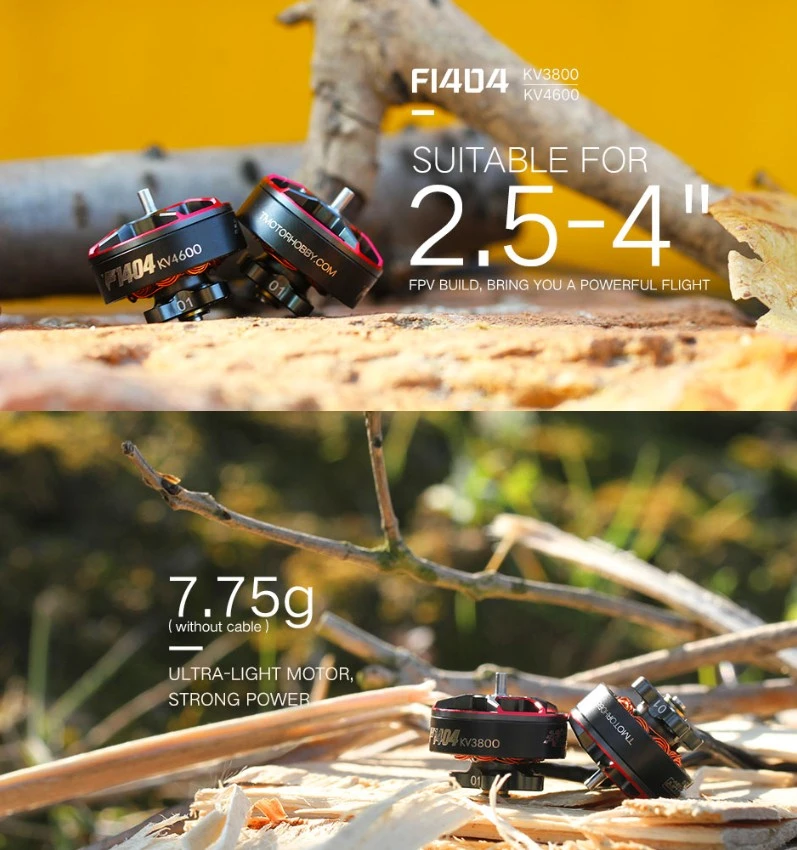

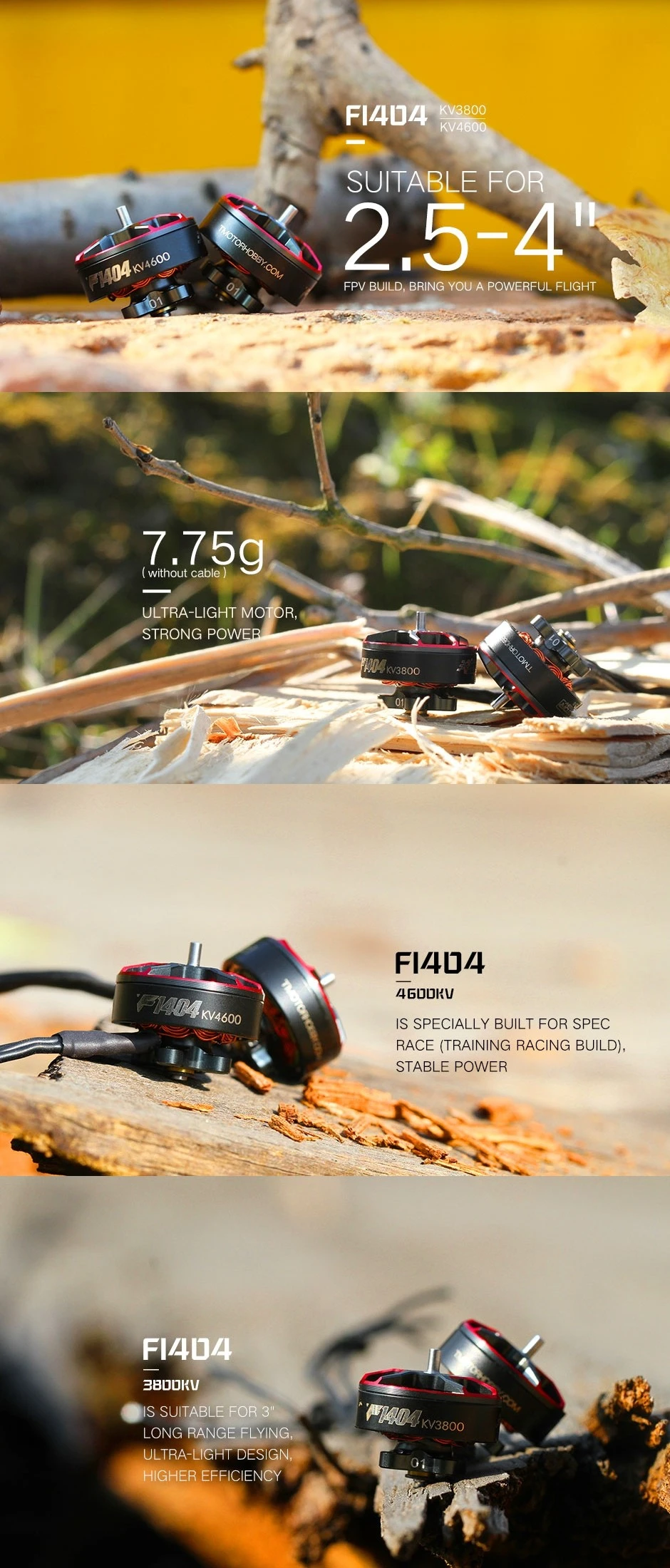

Ideal for 2.5–4 inch FPV builds (especially 3" drones), it delivers consistent speed and clear flight visibility to meet the quality standards of drone manufacturers, distributors and DIY kit suppliers, taking your multirotor production performance to the next level!

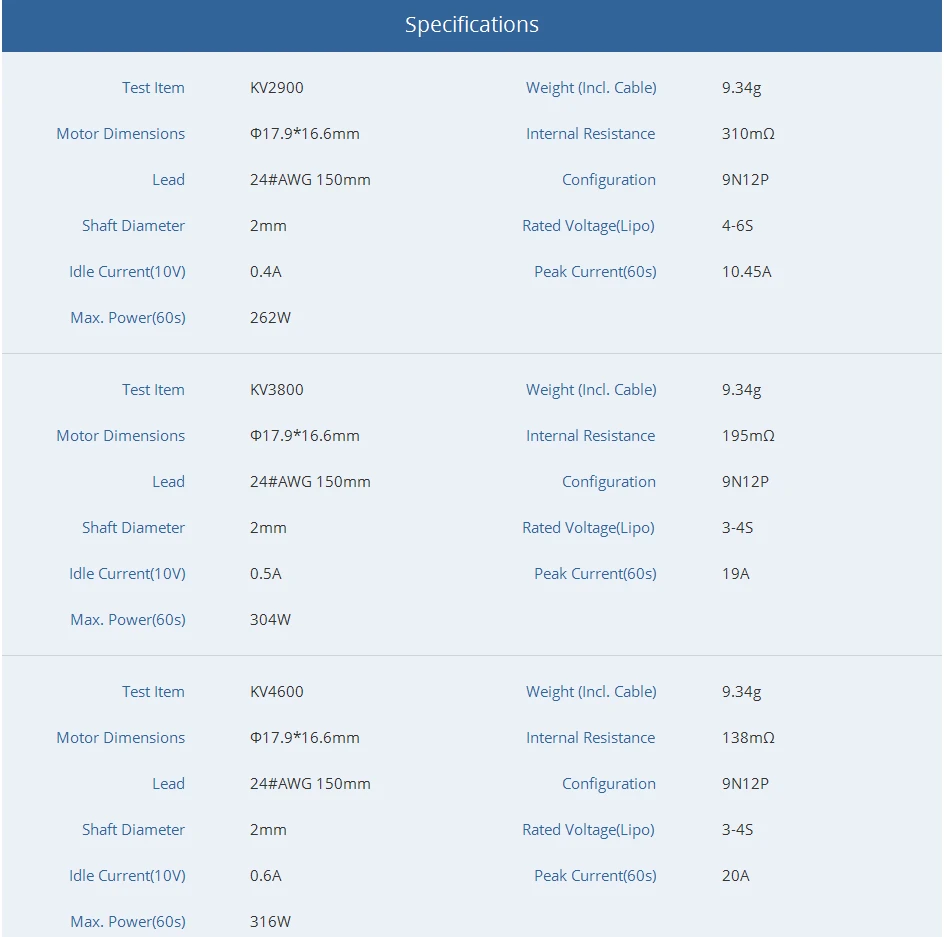

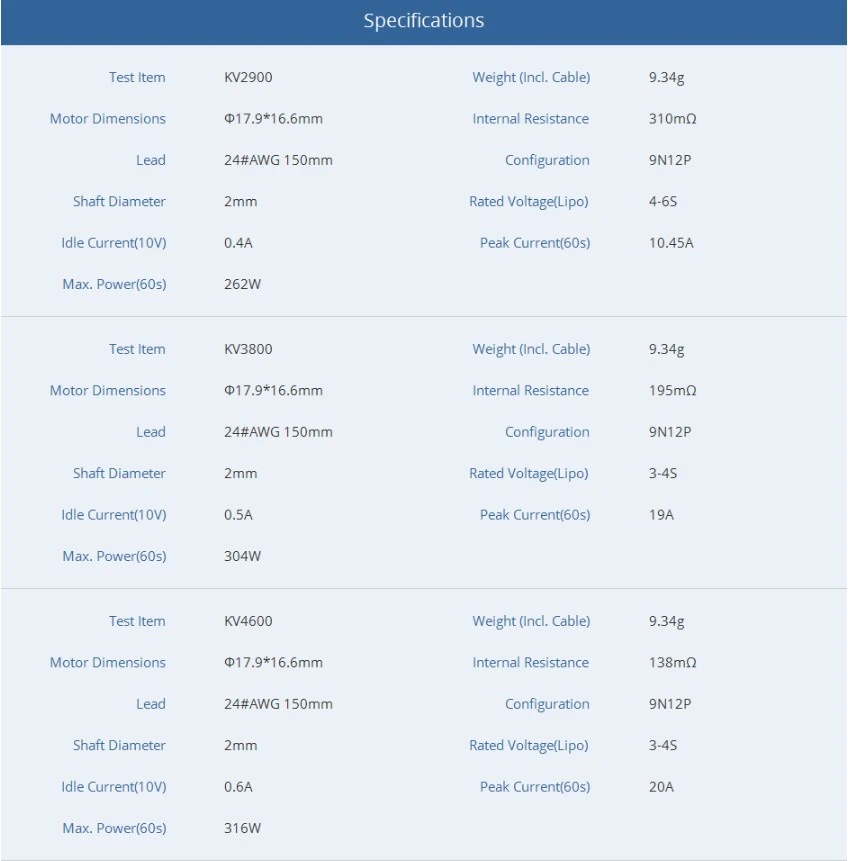

| F1404 KV2900 | |

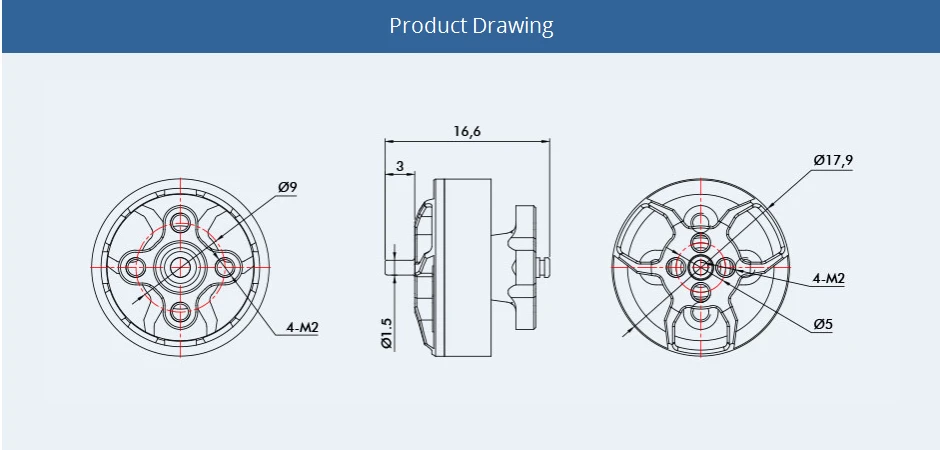

| Motor Size(mm) | Φ17.9*16.6mm |
| Lead | 24#AWG 150mm |
| Shaft Diameter | 2mm |
| Idle Current(10V) | 0.4A |
| Max. Power(60s) | 262W |
| Weight (Incl. Cable) | 9.34g |
| Configuration | 9N12P |
| Rated Voltage(Lipo) | 4-6S |
| Peak Current(180s) | 10.45A |
| F1404 KV3800 | |
| Motor Size(mm) | Φ17.9*16.6mm |
| Lead | 24#AWG 150mm |
| Shaft Diameter | 2mm |
| Idle Current(10V) | 0.5A |
| Max. Power(60s) | 304W |
| Weight (Incl. Cable) | 9.34g |
| Configuration | 9N12P |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 19A |
| F1404 KV4600 | |
| Motor Size(mm) | Φ17.9*16.6mm |
| Lead | 24#AWG 150mm |
| Shaft Diameter | 2mm |
| Idle Current(10V) | 0.6A |
| Max. Power(60s) | 316W |
| Weight (Incl. Cable) | 9.34g |
| Configuration | 9N12P |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 20A |
