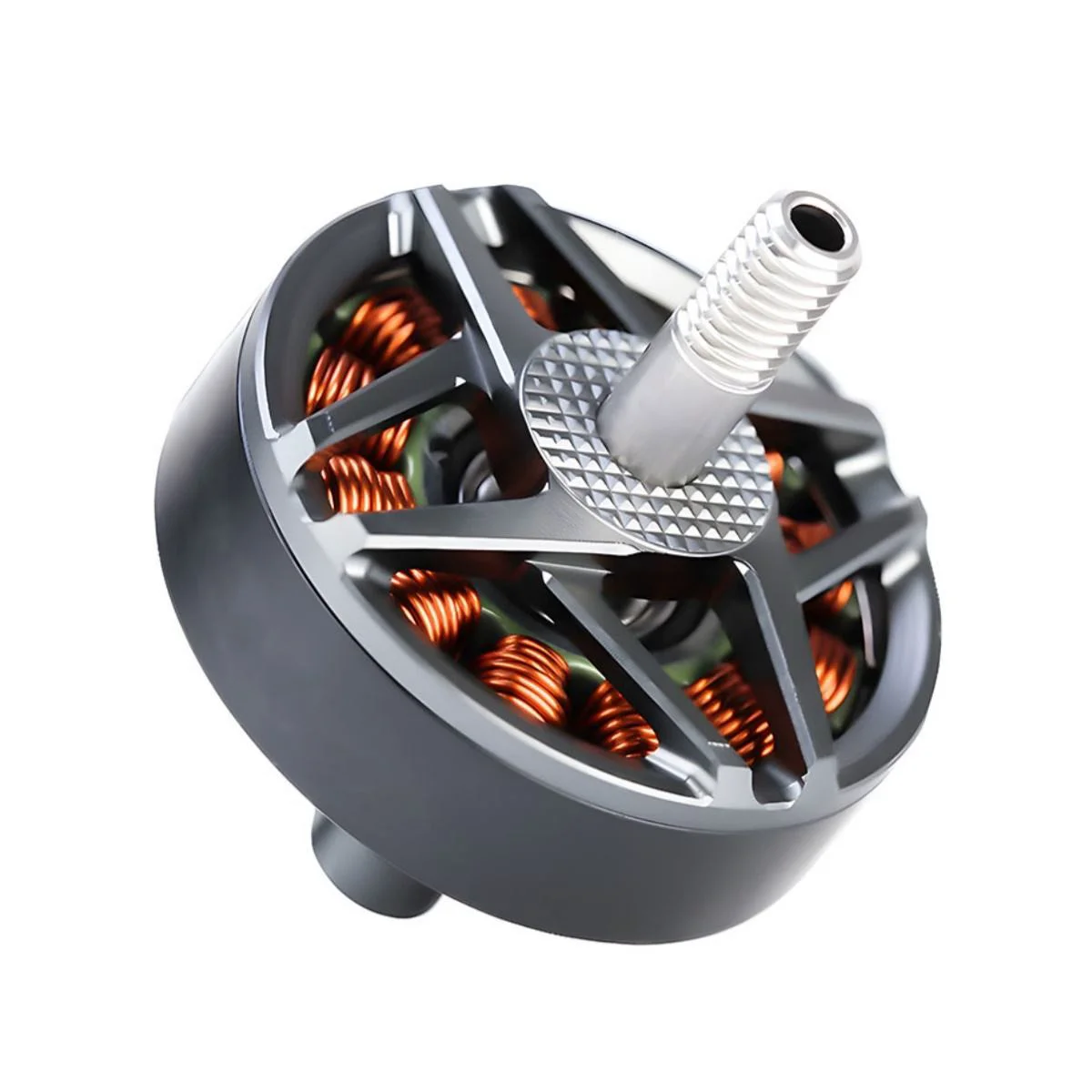

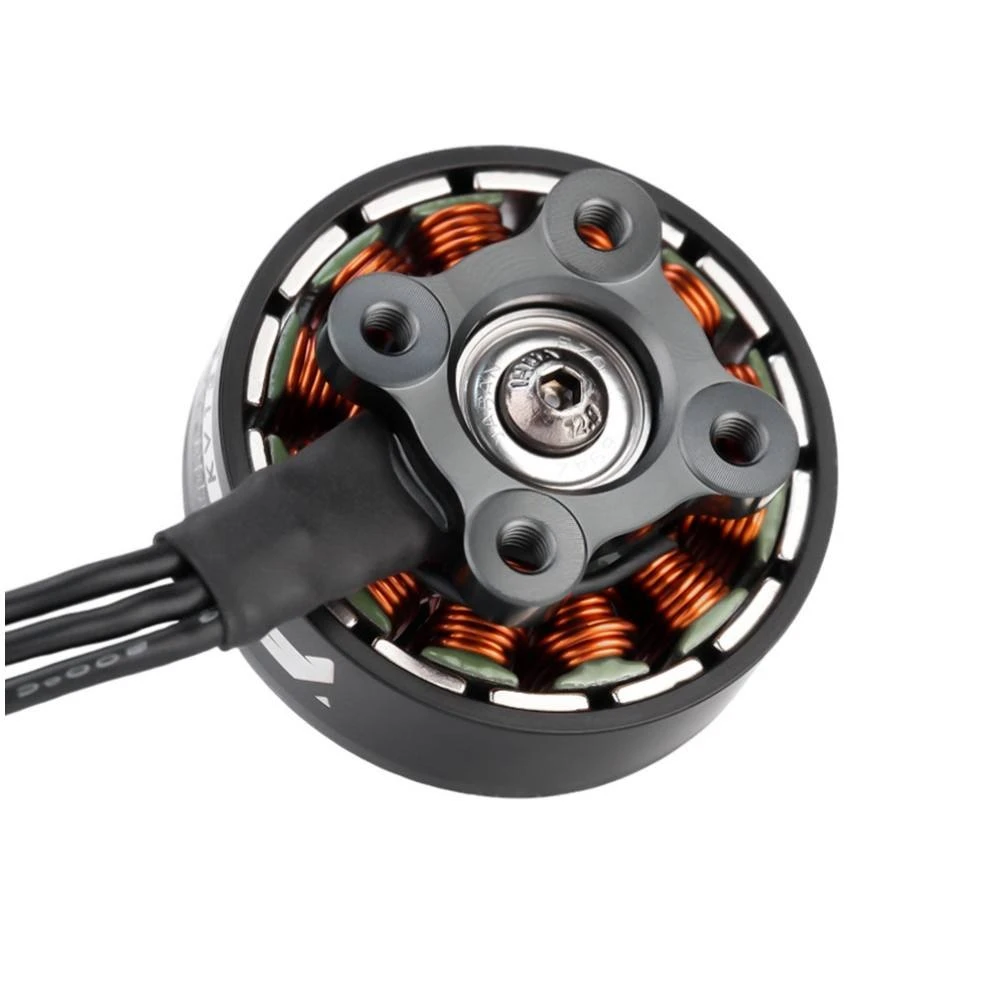

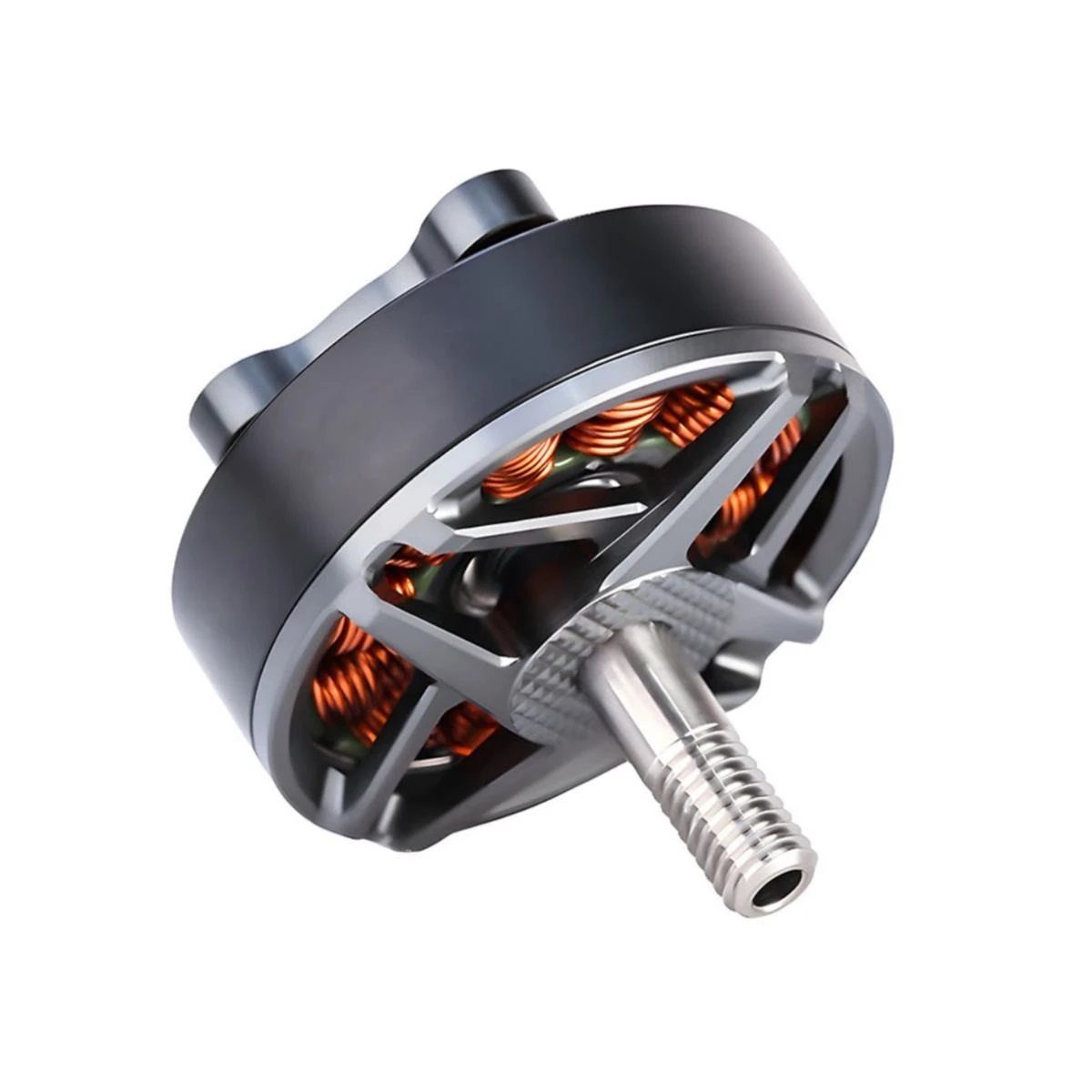

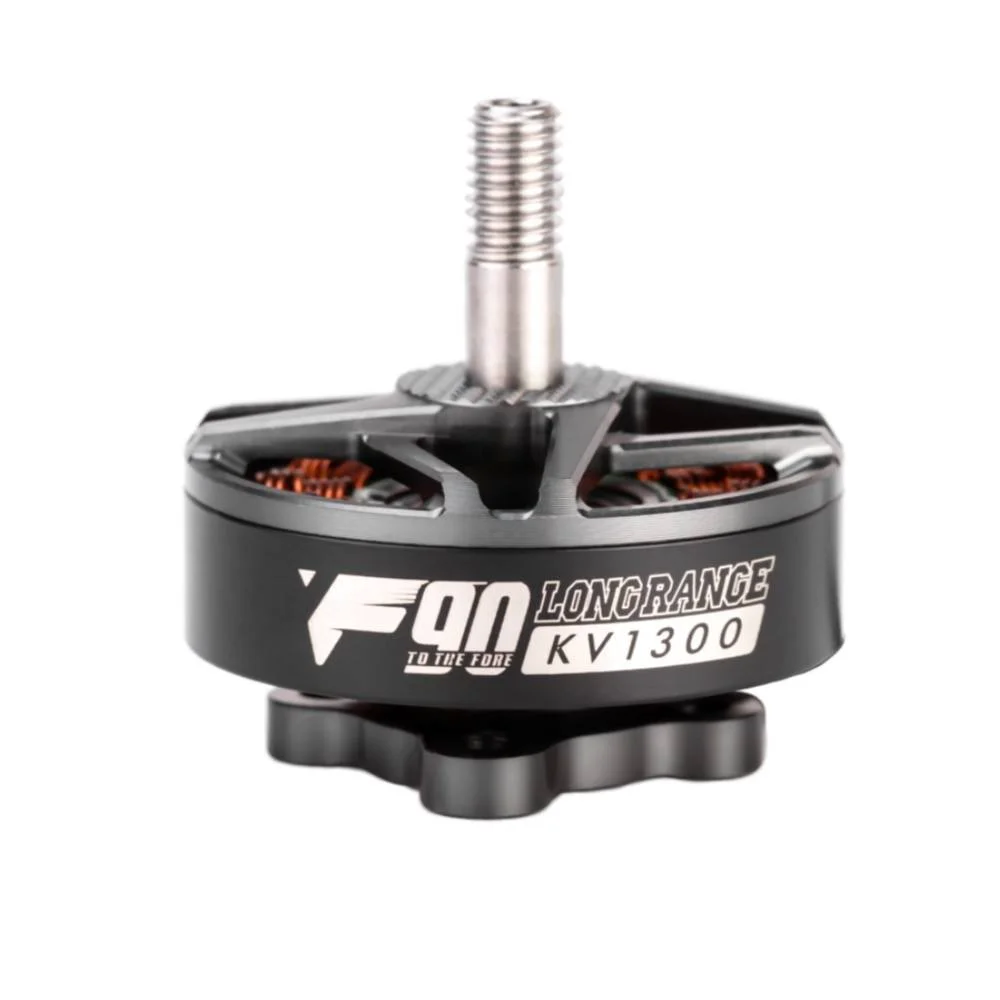

F90 2806.5 Long Range Brushless Motor

1.KV1300
2.KV1500
3.KV1950

Unlock seamless long-range flights over mountains, plains and coastlines with the F90 2806.5 Long Range Brushless Motor—a standout long range brushless motor engineered specifically for long-endurance FPV drones. As a dedicated T-MOTOR F90 2806.5 aerial shooting motor, it is ideal for immersive aerial photography and exploration, boasting a 2806.5 stator, 1300/1500/1950KV options and 5-6S compatibility.
This lightweight long flight time motor delivers stable, high-efficiency performance to maximize flight time, while its powerful thrust makes it perfect for Cinelifter X8, heavy-load camera drones and 6-8 inch long-endurance, freestyle and cinematic builds. The F90 2806.5 aerial shooting motor also offers tailored KV versions that match seamlessly with 6-8 inch propellers, striking the ideal balance between extended endurance, all-around versatility and high-speed explosive power for every aerial scenario.

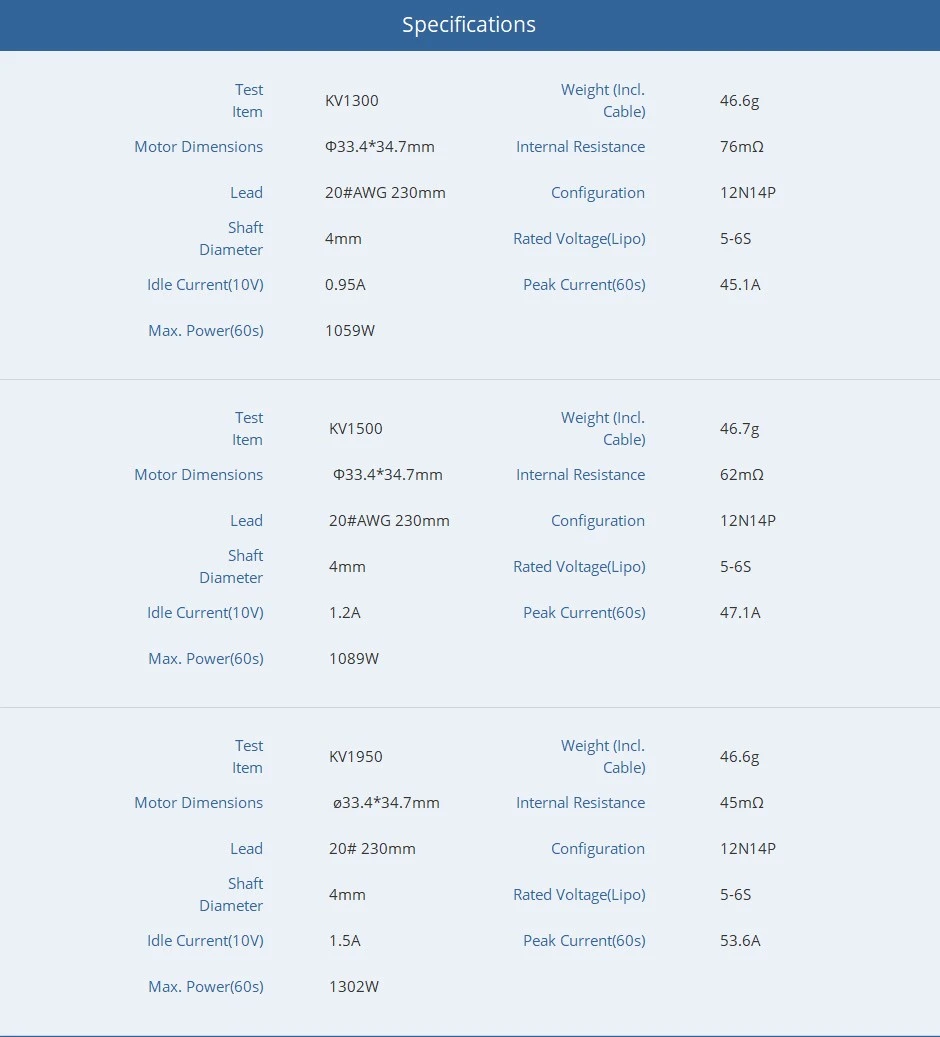

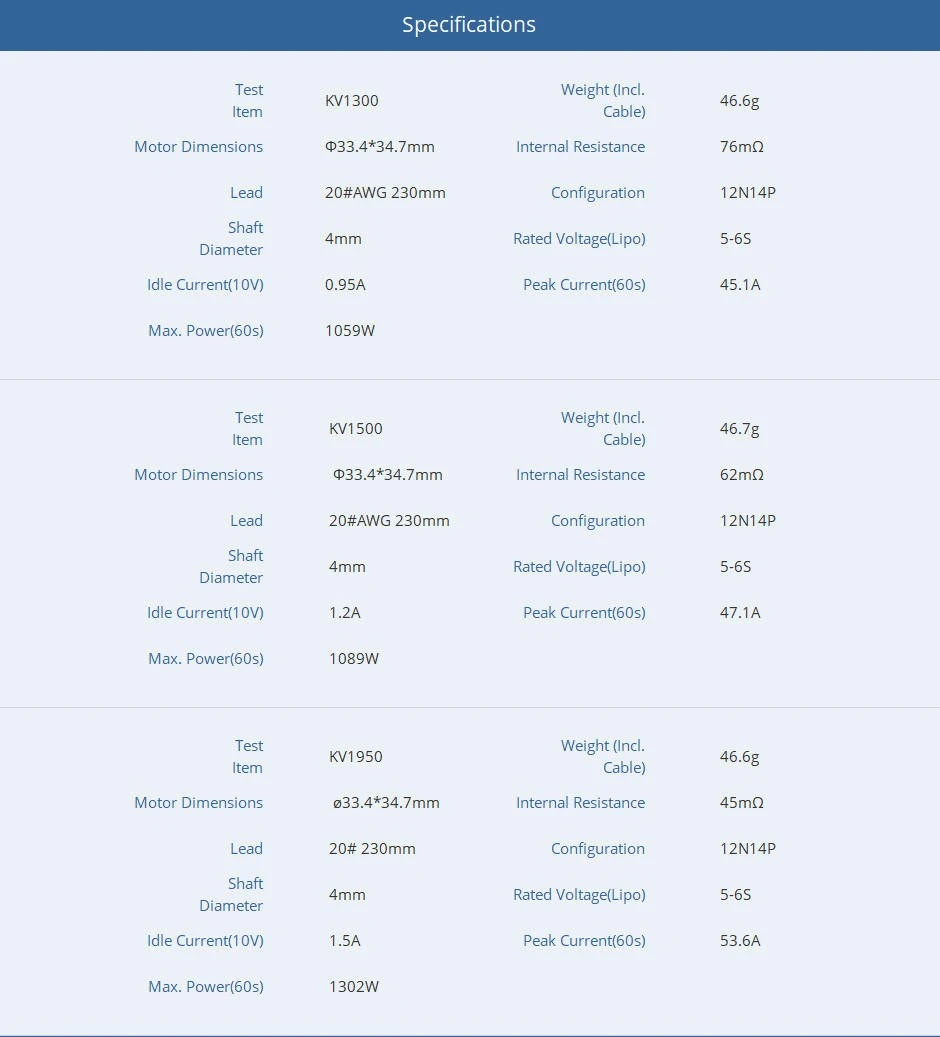

F90 KV1300

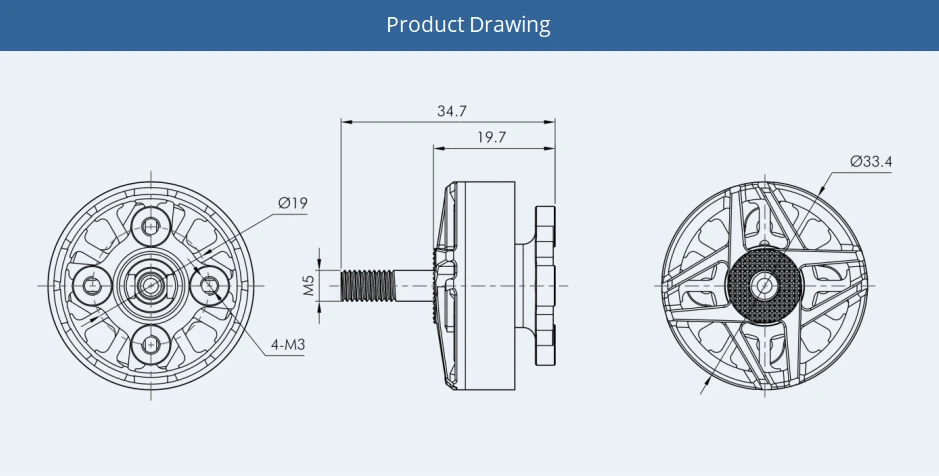

Motor Size(mm)	Φ33.4*34.7mm
Lead	20#AWG 230mm
Shaft Diameter	4mm
Idle Current(10V)	0.95A
Max. Power(60s)	1059W
Weight (Incl. Cable)	46.6g
Configuration	12N14P
Rated Voltage(Lipo)	5-6S
Peak Current(180s)	45.1A
F90 KV1500
Motor Size(mm)	Φ33.4*34.7mm
Lead	20#AWG 230mm
Shaft Diameter	4mm
Idle Current(10V)	1.2A
Max. Power(60s)	1089W
Weight (Incl. Cable)	46.6g
Configuration	12N14P
Rated Voltage(Lipo)	5-6S
Peak Current(180s)	47.4A
F90 KV1950
Motor Size(mm)	Φ33.4*34.7mm
Lead	20#AWG 230mm
Shaft Diameter	4mm
Idle Current(10V)	1.5A
Max. Power(60s)	1302W
Weight (Incl. Cable)	46.6g
Rated Voltage(Lipo)	5-6S
Peak Current(180s)	53.6A
