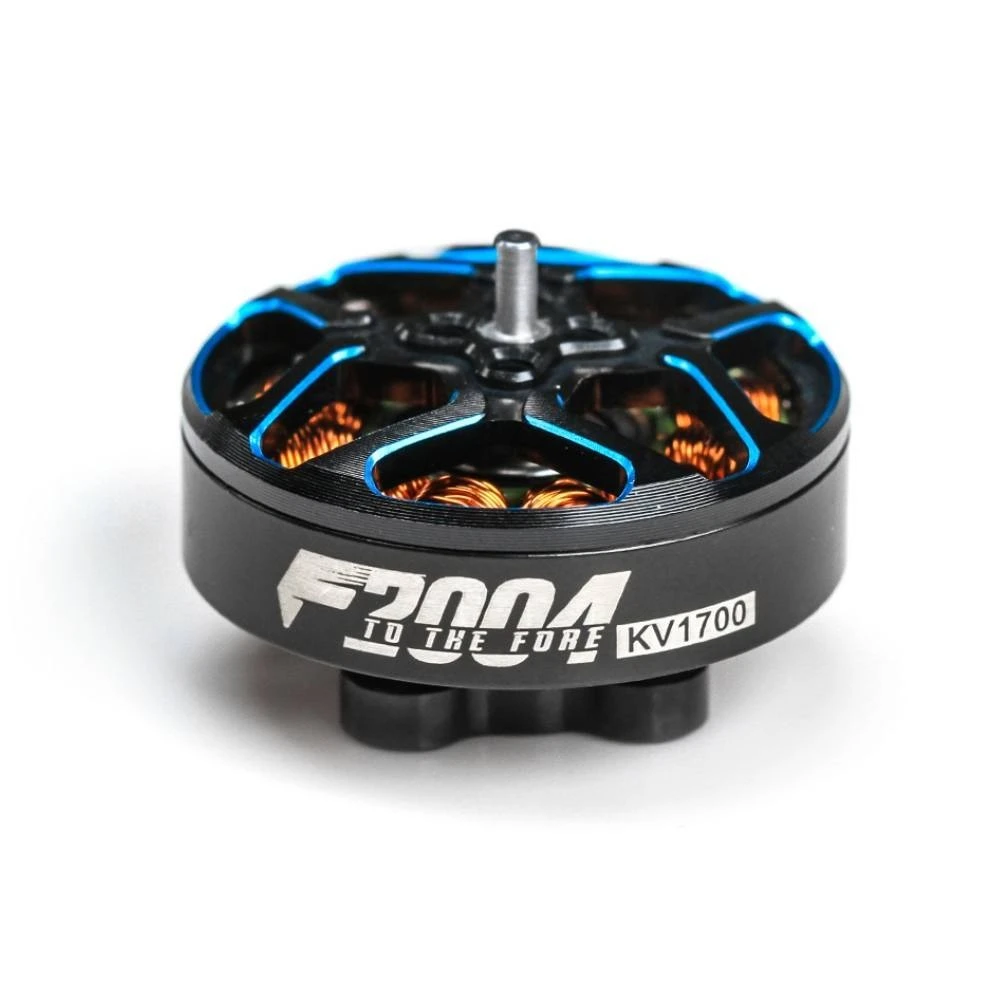

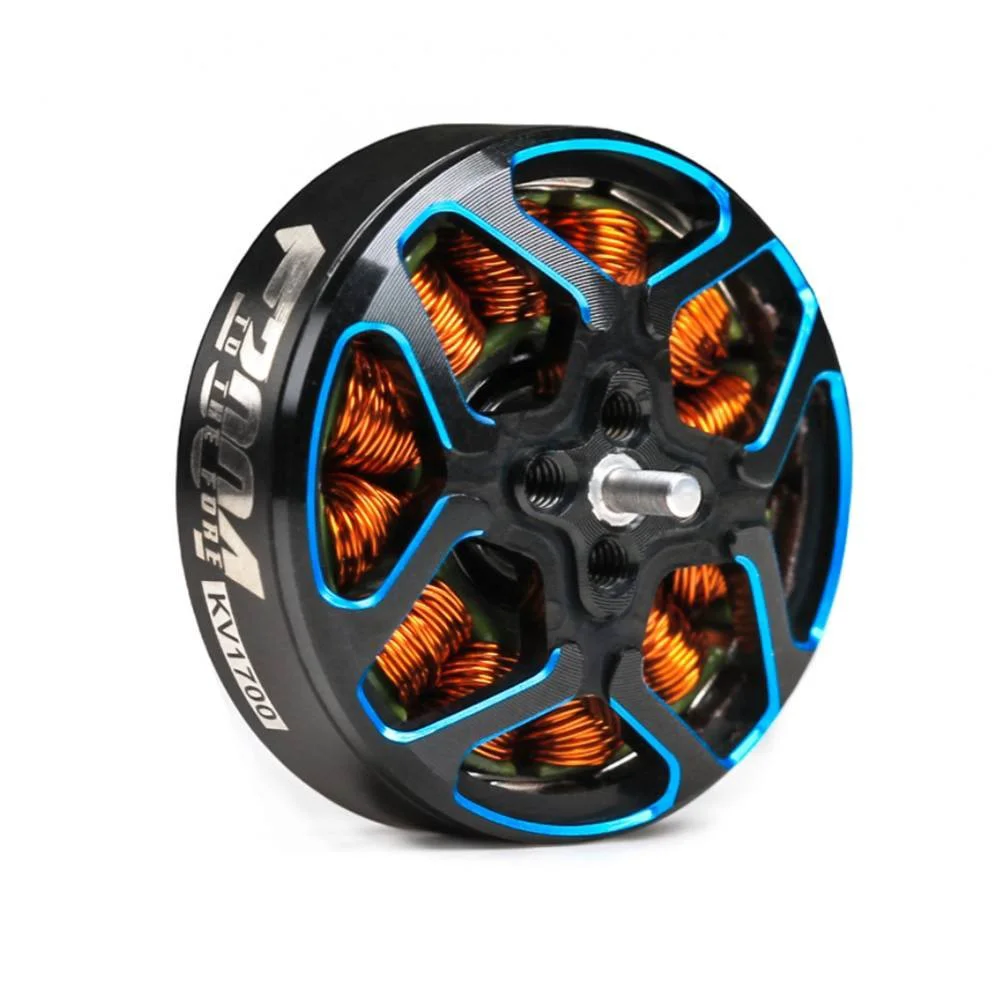

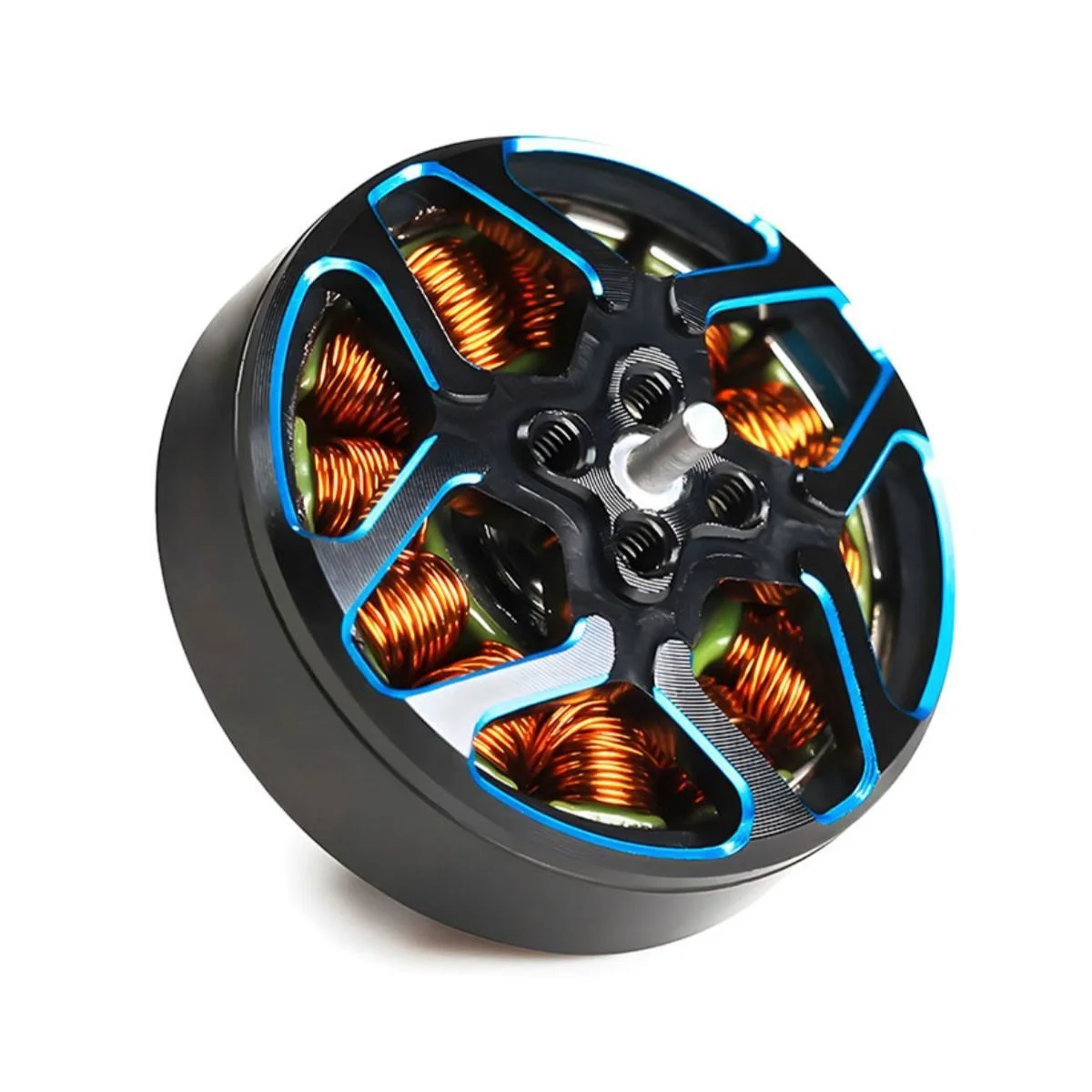

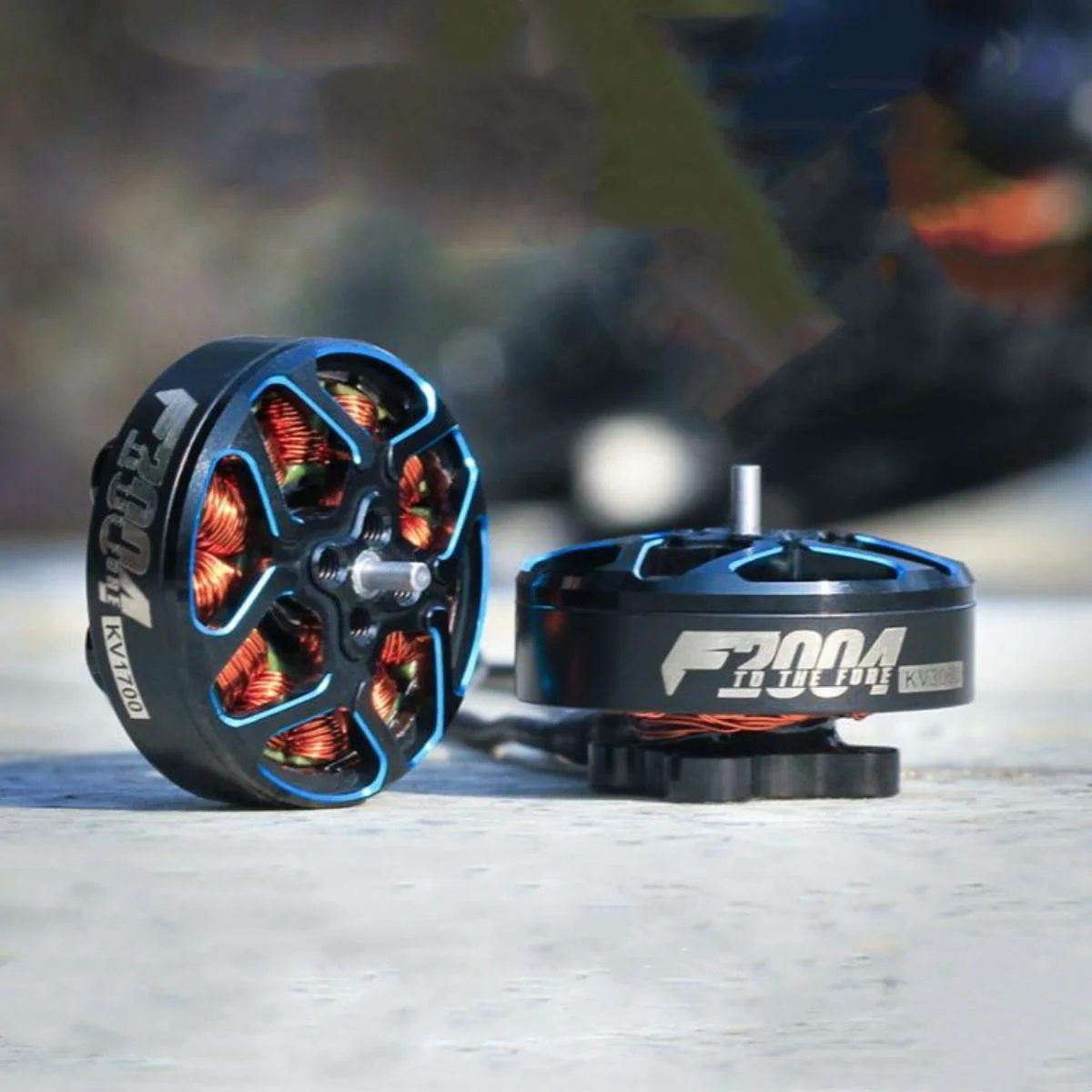

F2004 Long Range Freestyle Racing Motor

  • 1.KV1700
  • 2.KV3000

Boasting a sleek new design and premium components, this High Quality Brushless Motor delivers exceptional speed and flight visibility for multirotors, ideal for freestyle and racing drones.

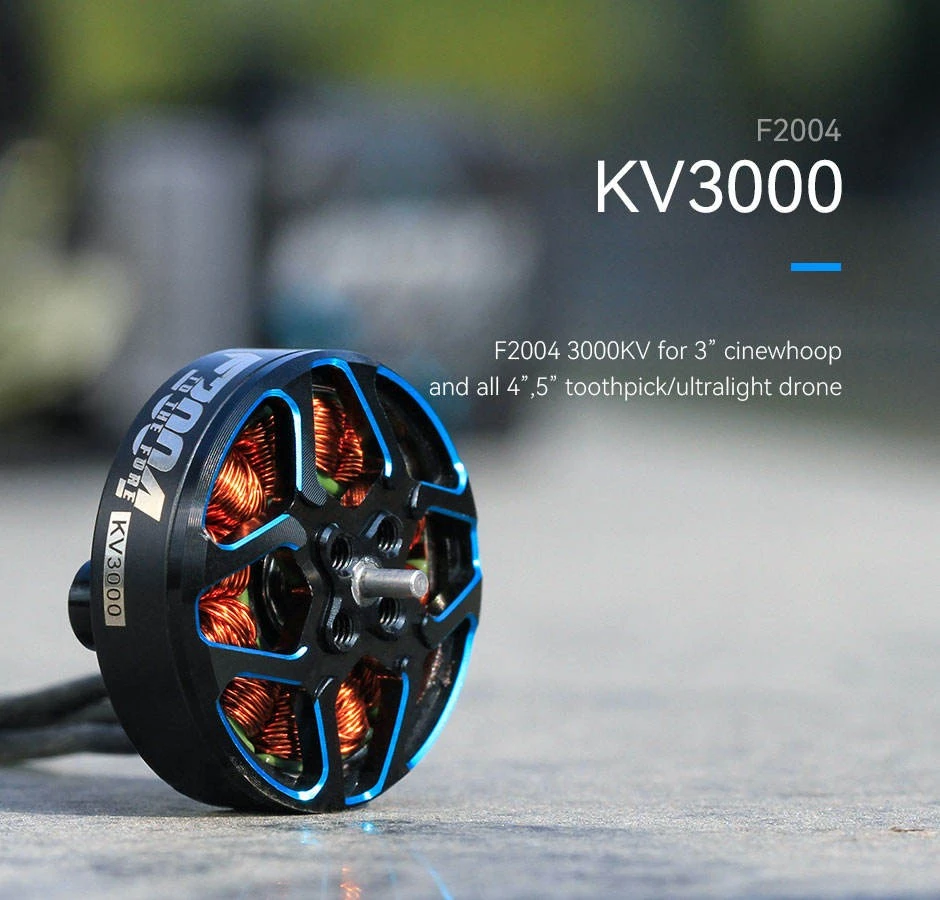

It caters to diverse build needs with two tailored options: the 1700KV version is optimized for 4-5" 6S ultralight drones, while the 3000KV variant suits 3" cinewhoops, 4-5" toothpick drones and ultralight models—making it a standout Long-Range FPV Motor for extended missions and high-adrenaline flights.
Featuring T-Mount propeller mounting and a 1.5mm shaft, this High-Speed FPV Motor ensures hassle-free installation and broad compatibility across various drone setups, balancing performance and versatility for every pilot’s needs.

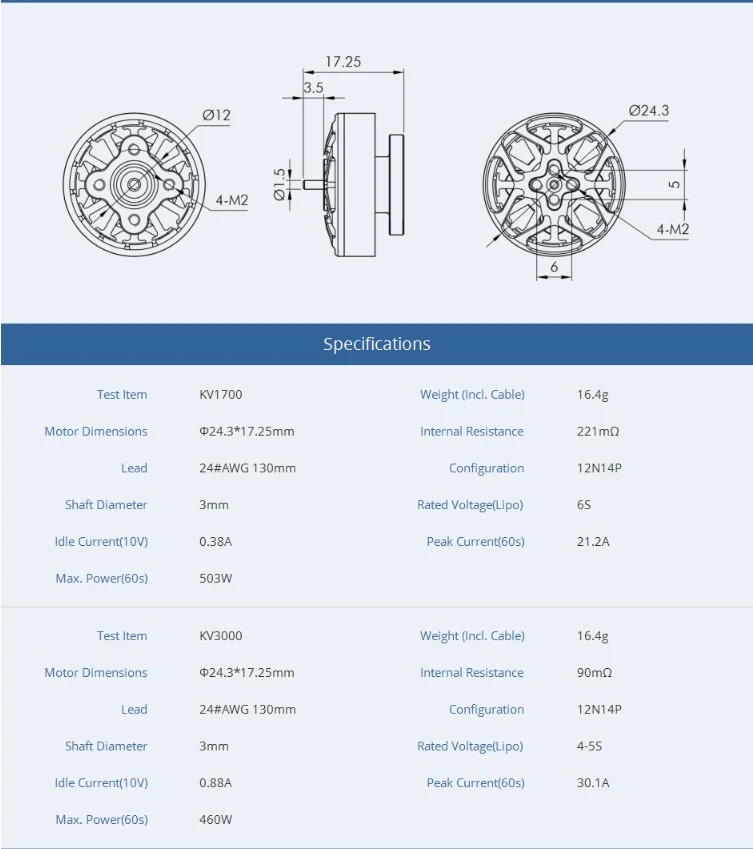

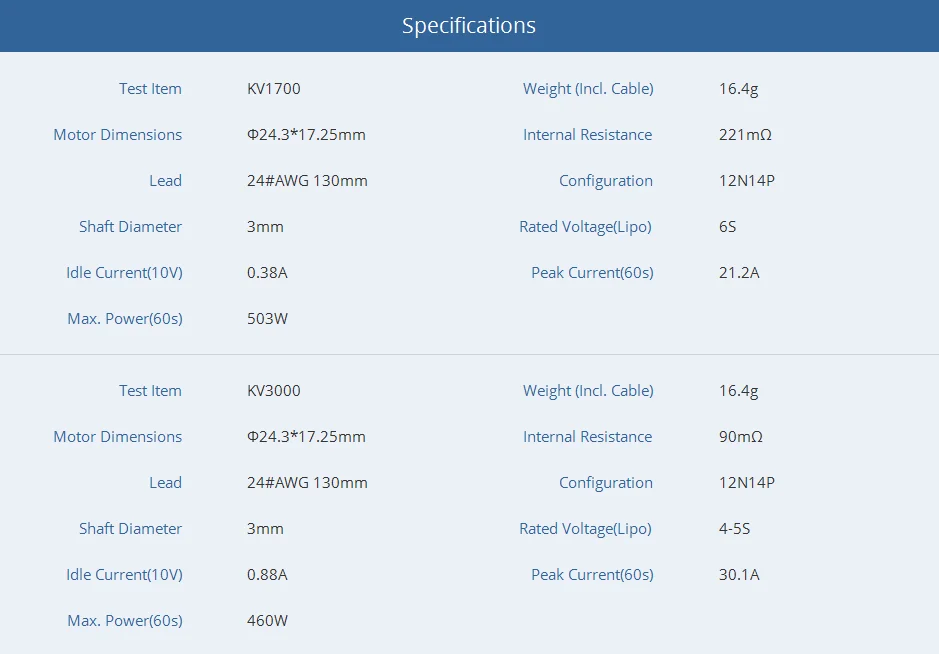

F2004 KV1700

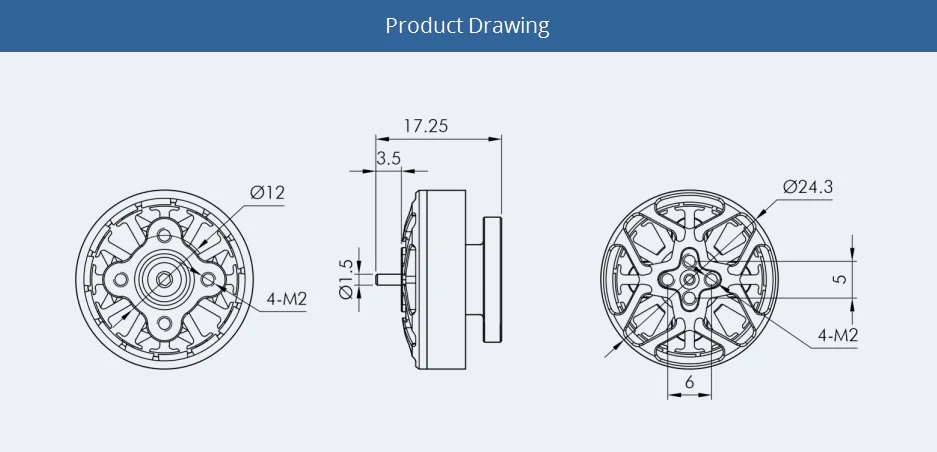

Motor Dimensions Φ24.3*17.25mm
Lead 24#AWG 130mm
Shaft Diameter 3mm
ldle Current(10v) 0.38A
Max. Power(60s) 503W
Weight (incl. Cable) 16.4g
Internal Resistance 221mΩ
Configuration 12N14P
Rated Voltage(Lipo) 6S
Peak Current(60s) 21.2A
F2004 KV3000
Motor Dimensions Φ24.3*17.25mm
Lead 24#AWG 130mm
Shaft Diameter 3mm
ldle Current(10v) 0.88A
Max. Power(60s) 460W
Weight (incl. Cable) 16.4g
Internal Resistance 90mΩ
Configuration 12N14P
Rated Voltage(Lipo) 4-5S
Peak Current(60s) 30.1A
