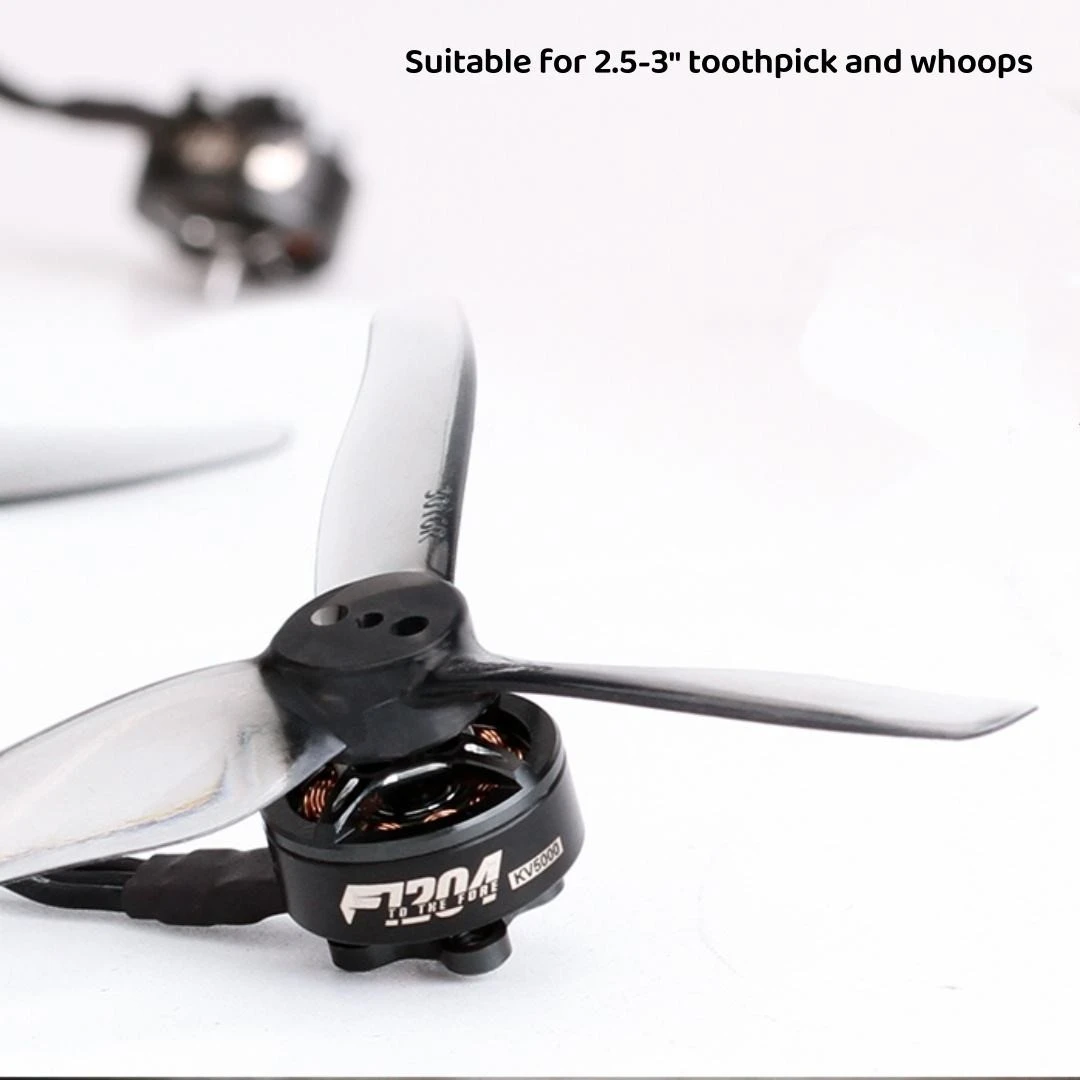

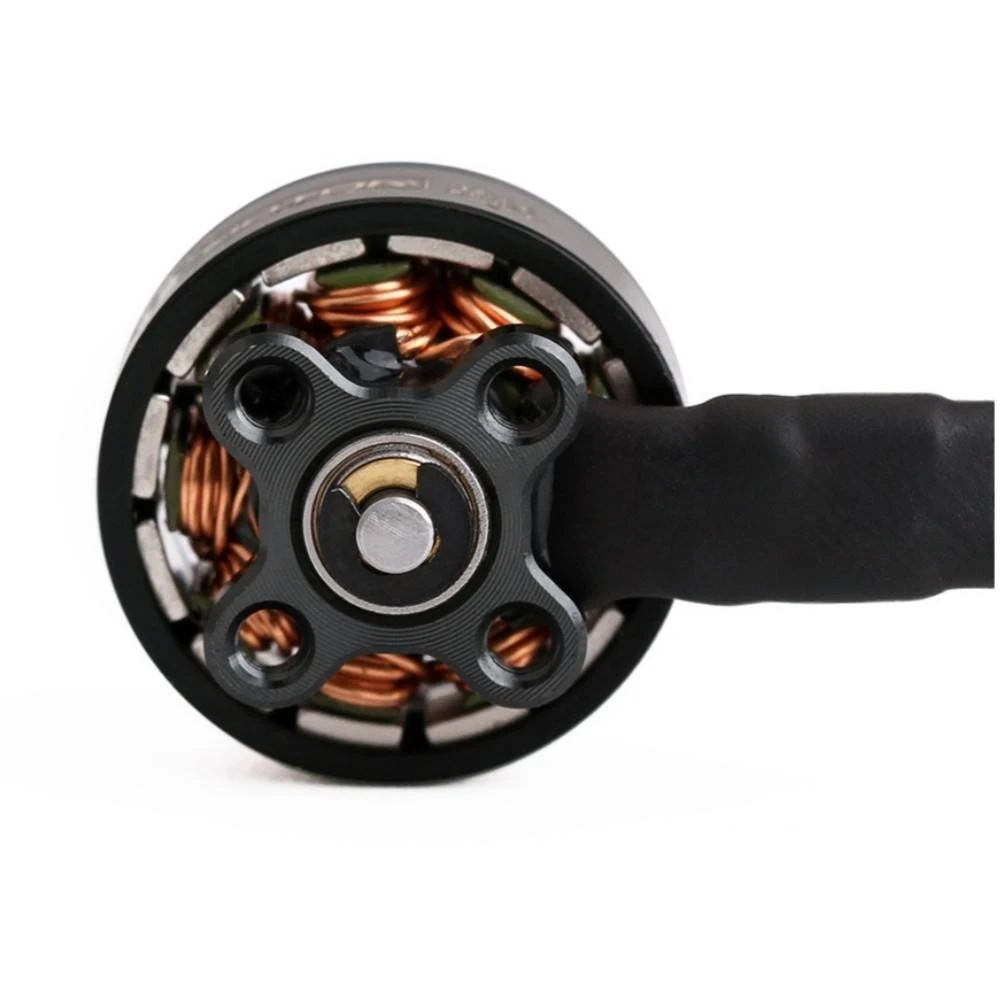

The F1204 FPV brushless motors from T-MOTORHOBBY are ultralight motors for micro drone builds, specially engineered for 2.5-3" toothpicks and whoops. As a flagship offering from a professional T-MOTORHOBBY FPV brushless motor factory and high-efficiency cooling FPV brushless motor exporter, this motor features a 1.5mm shaft that fits more props to unlock greater flight power.
Boasting the dual advantages of high efficiency and superior cooling performance, this micro brushless drone motor ensures stable operation even during high-intensity flights, while its fast response speed makes it a standout fast response micro drone motor for agile maneuvering. Ideal for compact 2.5-3 inch drone builds, it is a top choice for enthusiasts and a core supply item for any drone motor distributor and ultralight motor for micro drone builds manufacturer looking to stock reliable, high-performance components.

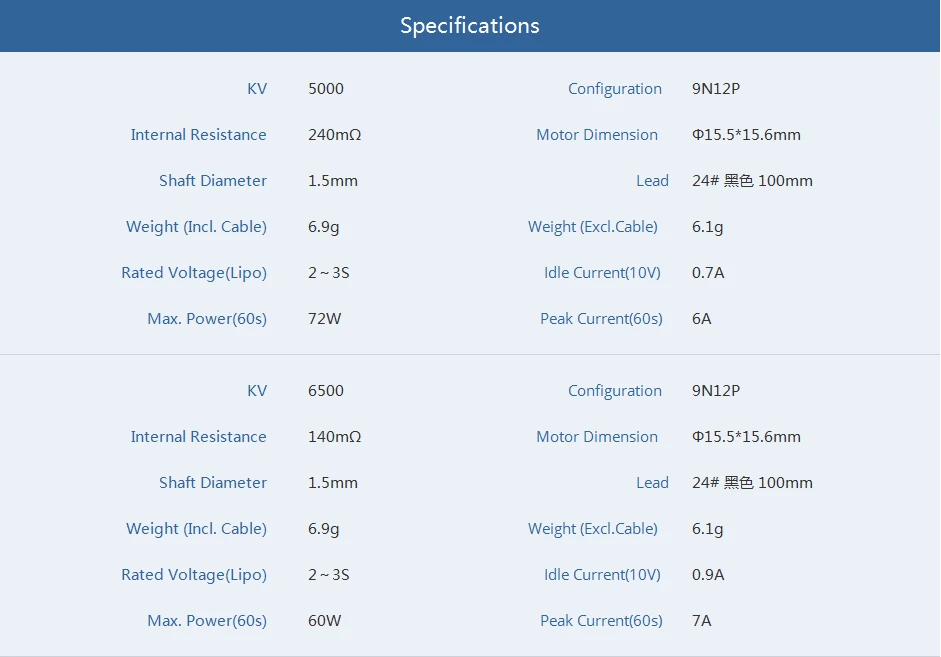

| F1204 KV5000 | |

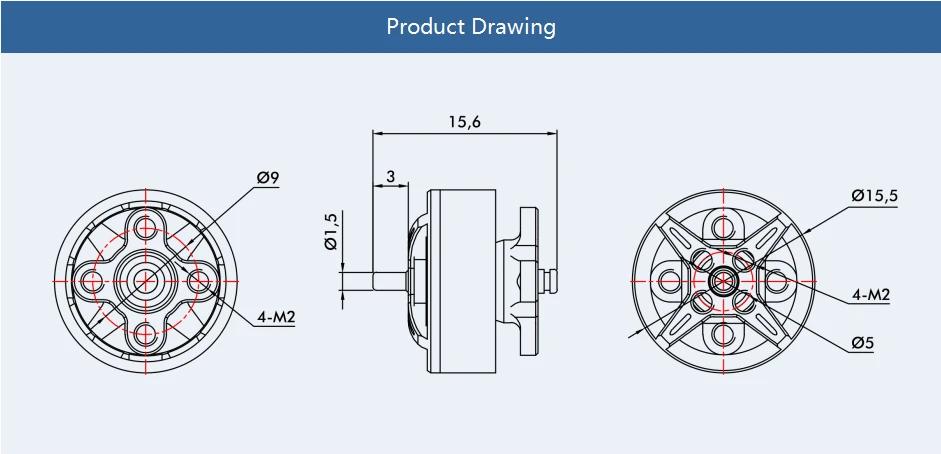

| Motor Size(mm) | A15.5*15.6mm |
| Lead | 24# black 100mm |
| Shaft Diameter | 1.5mm |
| Idle Current(10V) | 0.7A |
| Max. Power(60s) | 72W |
| Weight (Incl. Cable) | 6.9g |
| Configuration | 9N12P |
| Rated Voltage(Lipo) | 2~3S |
| Peak Current(180s) | 6A |

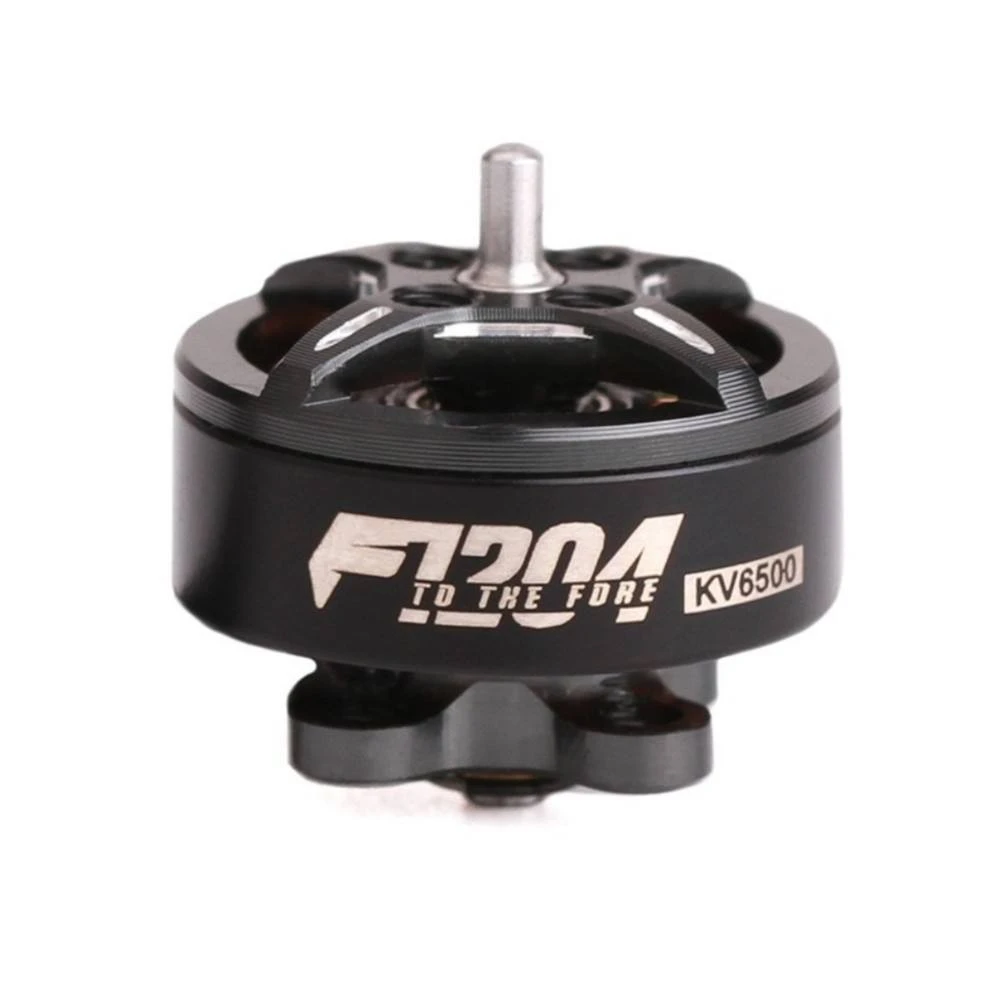

| F1204 KV6500 | |
| Motor Size(mm) | A15.5*15.6mm |
| Lead | 24# black 100mm |
| Shaft Diameter | 1.5mm |
| Idle Current(10V) | 0.9A |
| Max. Power(60s) | 60W |
| Weight (Incl. Cable) | 6.9g |
| Configuration | 9N12P |
| Rated Voltage(Lipo) | 2~3S |
| Peak Current(180s) | 7A |
