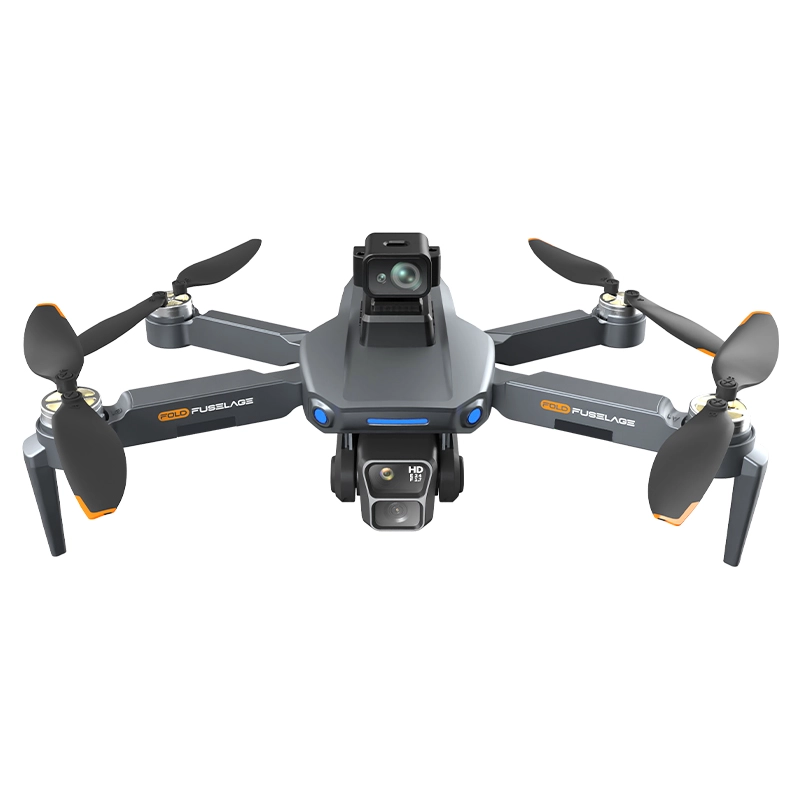

This safe flight drone is equipped with a 4.5-inch color screen remote control that supports real-time image transmission. It comes with a 4.4V pluggable intelligent lithium battery (backup battery optional) to ensure uninterrupted battery life. Integrating multiple safe return-to-home technologies, it also has multiple intelligent functions such as dual-mode smart follow and gesture control. Equipped with an adjustable angle camera and rich shooting modes, it also supports quick device recovery and multimedia sharing, fully meeting the needs of professional shooting and entertainment creation.
Main Features:
*Efficient Battery Life Configuration(optional spare for easy replacement & non-stop flight)
*GPS one-key/automatic return (low battery/signal loss) for safety
*Dual-Mode Smart Follow
*Convenient Gesture Control
*Autonomous Route Flight
*Flexible Fixed-Point Circling
*Quick Device Recovery
*Multimedia Sharing Function
*Adjustable Angle Camera

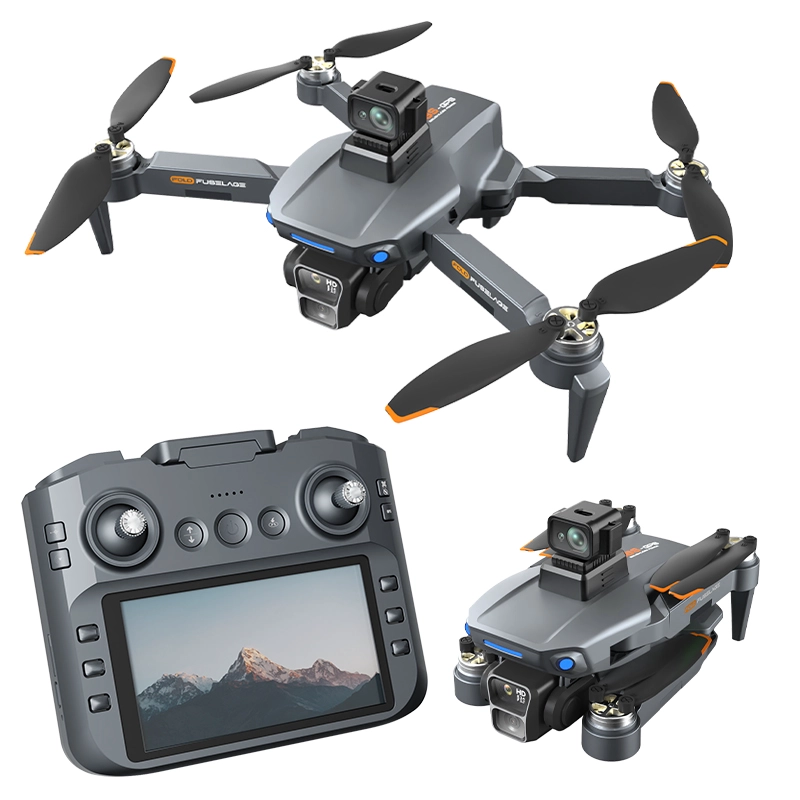

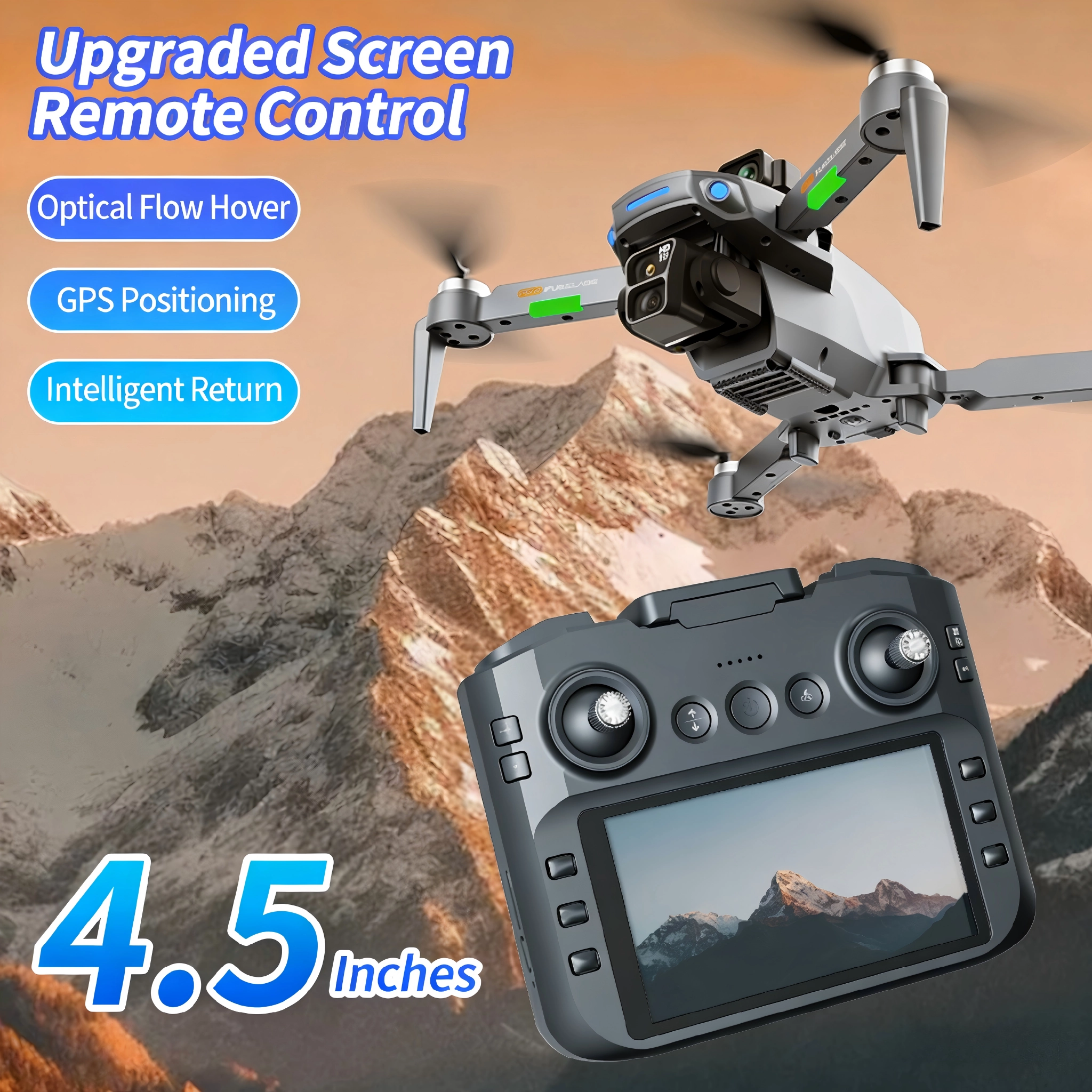

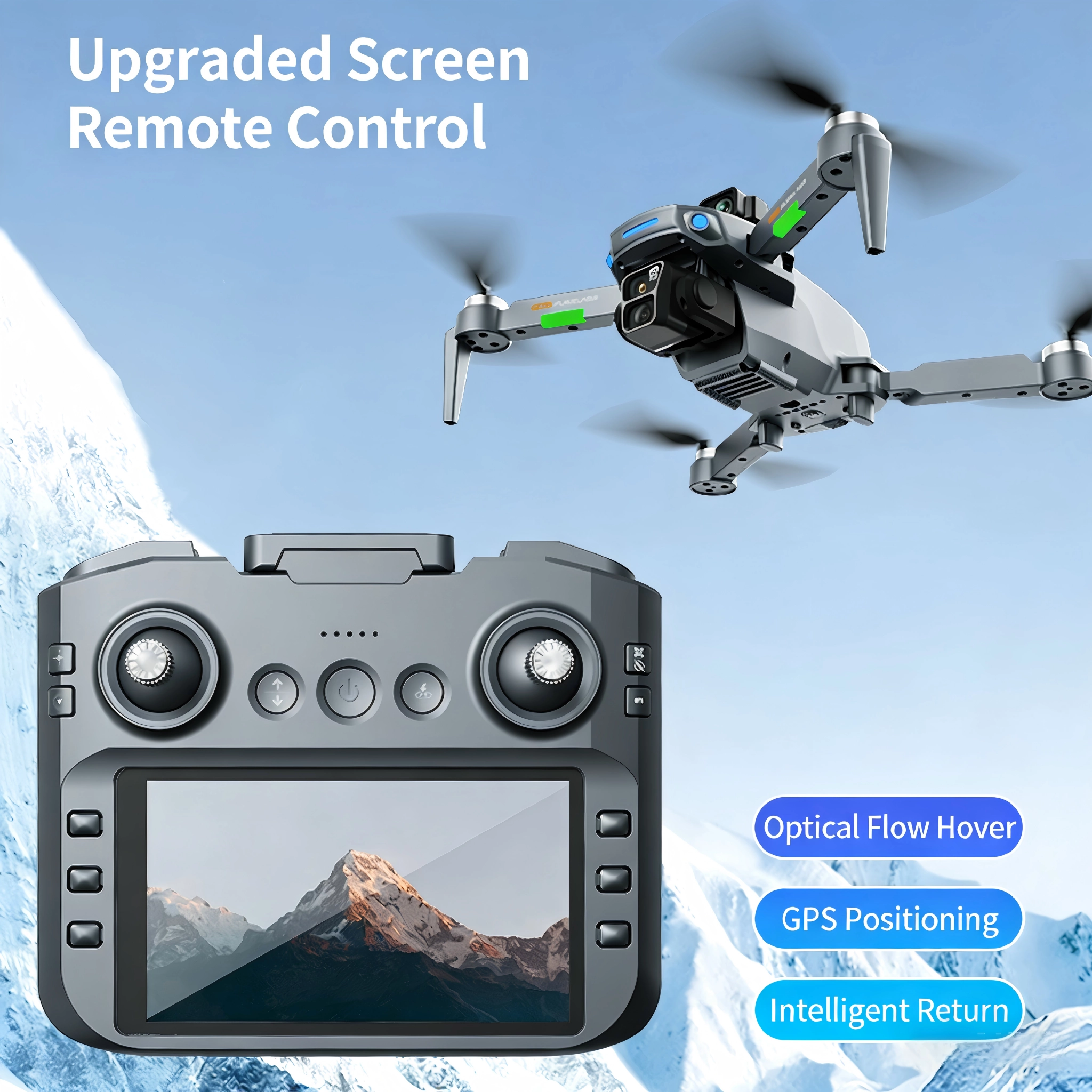

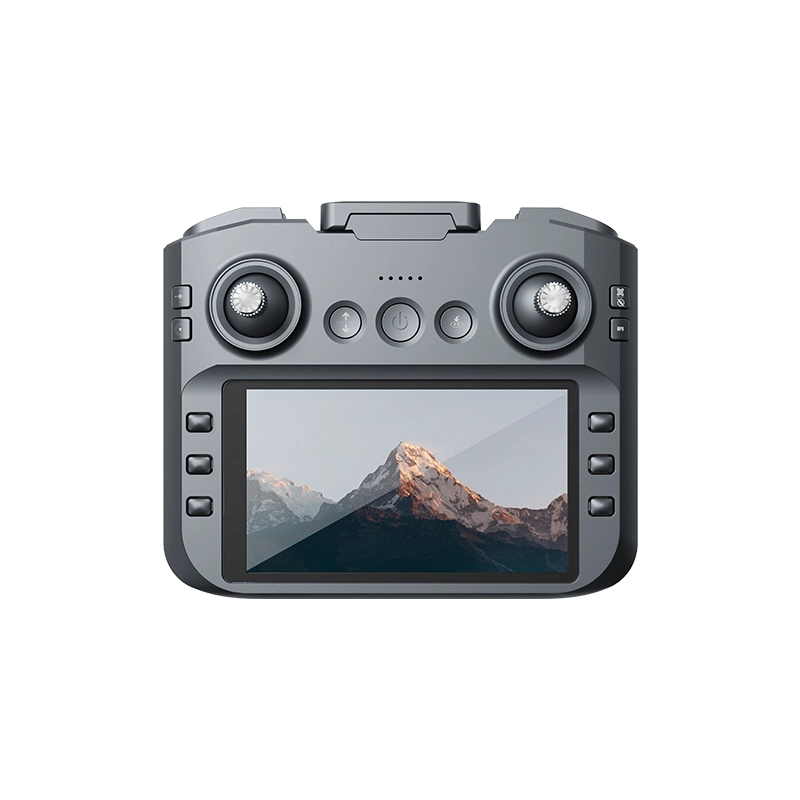

*4.5-Inch Color Screen Remote Control

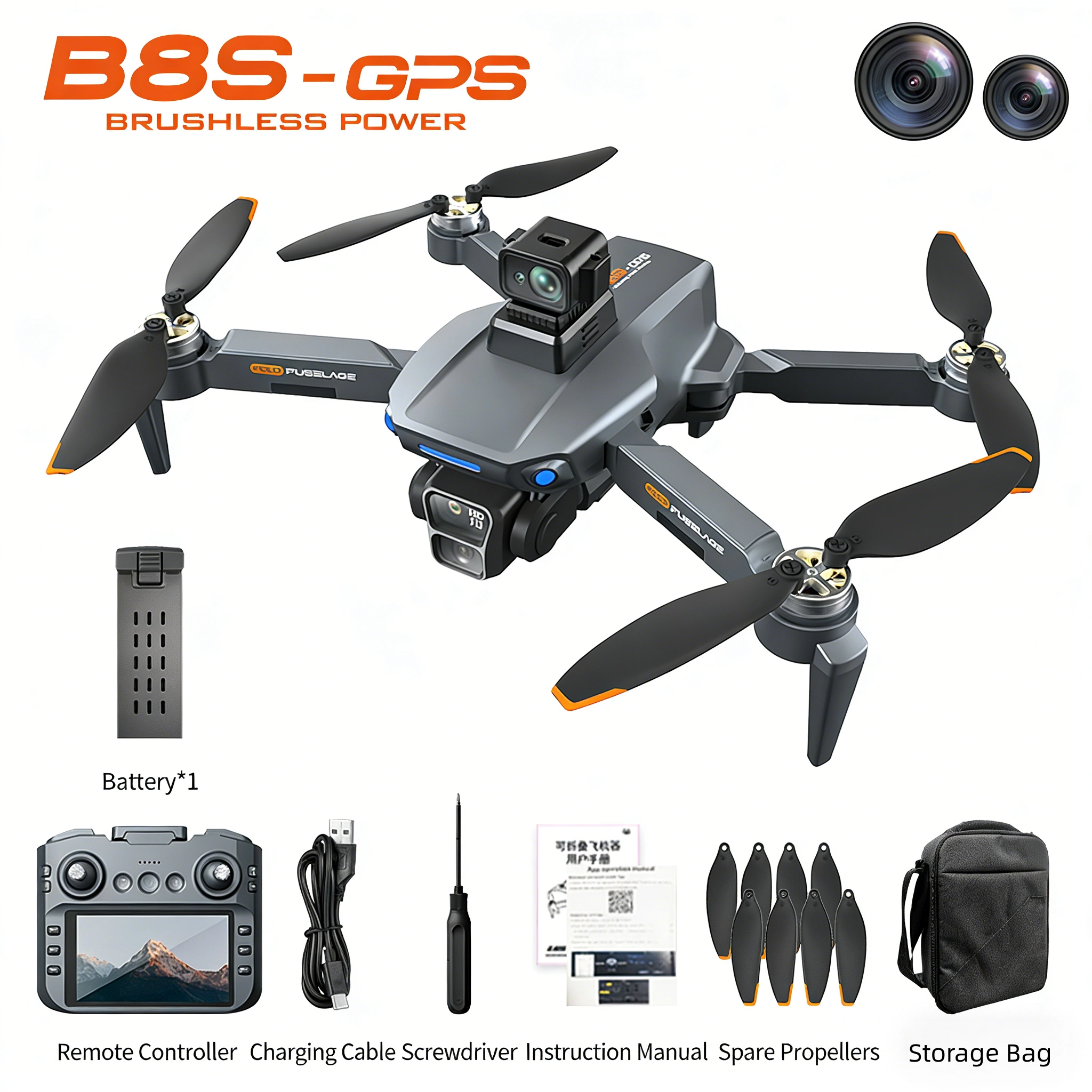

| B8S-Oled Screen RC Specifications | |
| 3-Axis Mechanical Gimbal Stabilization | None |
| Self-stabilizing EIS Lens | None |
| Diagonal Wheelbase | 256mm |
| Endurance/Remote Control Range (No interference, unobstructed) (max) | 300m (Interpolated 3000m) |
| Wind Resistance Level (max) | Level 3 |
| Image Transmission Range (No interference, unobstructed) | 300m (Interpolated 3000m) |
| Flight Altitude | 120m (Interpolated 300m) |
| Color | Silver Gray |
| Barometer | Height setting |
| Brushless Motor | 1504 |
| Motor Power | 9W |
| ESC | 10A |
| Receiving Method (Operating Frequency) | 2.4G |
| Electronically Adjustable Angle Camera | 90 degrees |
| Smart Li-ion Battery Capacity | 3.7V 2700mAh |
| Remote Control Phone Clip Size (Max Phone Supported) | 4.7 inch - 6.5 inch |
| Flight Time | 18-19 minutes |
| Charging Time | 3 hours |
| Charging Method USB (5V) | 5V |
| Remote Control Battery | 3.7V 1500mAh |
| Remote Control Charging Time | 1 hour |
| Remote Control Battery Life | 3 hours |
| Lens Angle | 0-90° |
| GPS Follow | Permanent Follow |
| Image Follow | Permanent Follow |
| Trajectory Flight | Yes |
| Point of Interest (Orbit) | Yes |
| Gesture Shooting Recognition | 1-3M |
| Photo/Video Sharing | Yes |
| Dual-mode Satellite Positioning | Yes |
| Video Recording Resolution | Remote Storage 1280*720P / SD Card 1280*720P |
| Photo Resolution | Remote Storage 1920*1080P / SD Card 1280*720P |
| Transmission Frame Rate | 30 fps |
| SD Card | None |
| Card Reader | None |
| Drone Specifications | |
| Max Ascent Speed | 3 m/s |
| Max Descent Speed | 3 m/s |
| Max Take-off Altitude | 5000m |
| Max Endurance Range | 300m |
| Max Hovering Time | 17-19 minutes |
| Max Flight Speed | 4.5 m/s |
| Operating Ambient Temperature | 0-40°C |
| Operating Frequency | 2.4G |
| Compass | Yes |
| IMU | 6-axis Gyroscope |
| Obstacle Avoidance Specifications | |
| Obstacle Detection Range | ±90 degrees (Infrared Obstacle Avoidance) |
| Obstacle Detection Distance | Indoor 1m |
| Battery Specifications | |
| Capacity | 3.7V 2700mAh |
| Standard Voltage | 3.7V |
| Charge Limit Voltage | 4.4V |
| Battery Type | Li-Polymer Battery |
| Energy | 20C |
| Weight | 65g |
| Charging Ambient Temperature | 0-40°C |
| Max Charging Power | 11.84Wh |
| Camera Specifications | |
| Image Sensor | GalaxyCore |
| Operating Frequency | 5G |
| Lens Field of View | 100° Horizontal |
| Lens Aperture | 1/3.2 inch |
| Digital Zoom Range | 10x |
| Photo Size | Remote Storage 1920*1080P / SD Card 1280*720P |
| Photo Format | JPG |
| Video Recording Resolution | Remote Storage 1280*720P / SD Card 1280*720P |
| Video Format | MP4 |
| Gimbal Specifications | |
| Number of Axes | 1-axis |
| Structural Design Range | Roll ±0 degrees |
| Pitch 0-90 degrees | |
| Controllable Adjustment Angle | 0-90 degrees |
| Remote Control Specifications | |
| Transmission Frequency | 2.4G |
| Battery Voltage/Capacity | 3.7V 1500mAh |
| Operating Temperature | 0-50°C |
| Mobile Device Size | 4.7 inch - 6.5 inch |
| Storage Card Specifications | |
| Supported Memory Card | 32-128G |
| Packaging Information | |
| Product Weight | 255g |
| Product Unfolded Size | 160x102x71mm |

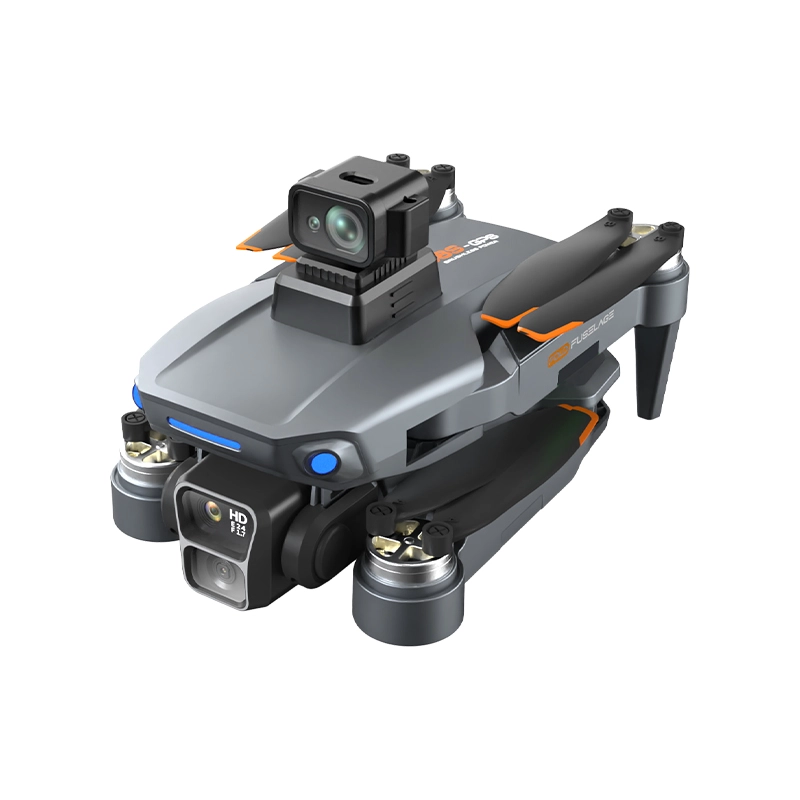

| Product Folded Size | 112*72*55mm |
| Product+ Backpack Weight | 753g |
| Single Box Packaging Size | 16*226*71mm |
| Single Box Gross/Net Weight | 1.2/1.1KG |
| Carton Quantity | 12 pcs/ctn |
| Carton Gross/Net Weight | 14.5/13.2KG |
| Carton Size | 65*33*49CM |
