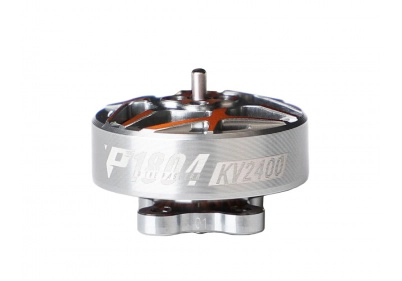

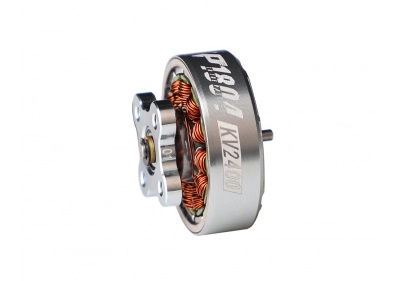

P1804 T-MOTORHOBBY Mini Brushless Outrunner Motor

1.KV2400
2.KV3400

As a professional Whoop Drone Motor, Toothpick Drone Motor and Freestyle Racing Drone Motor for FPV enthusiasts, we feature agile performance and durable build. Fully compatible with 3-4 inch FPV drones, our 13.2g ultra-light body (excl. wires) boosts flexibility and endurance, adapting to regular & freestyle racing scenarios effortlessly.

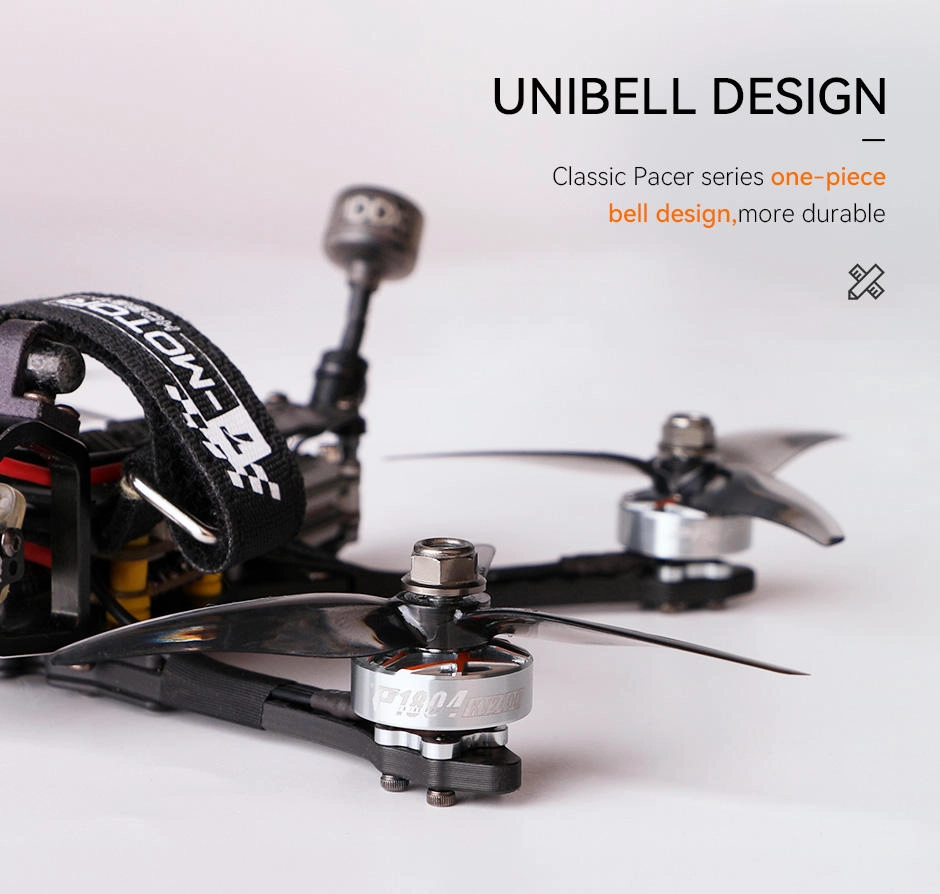

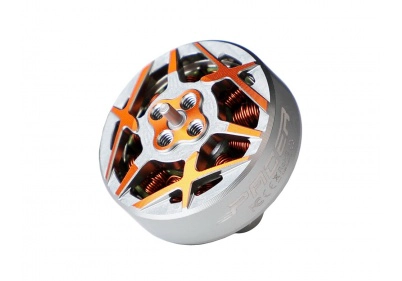

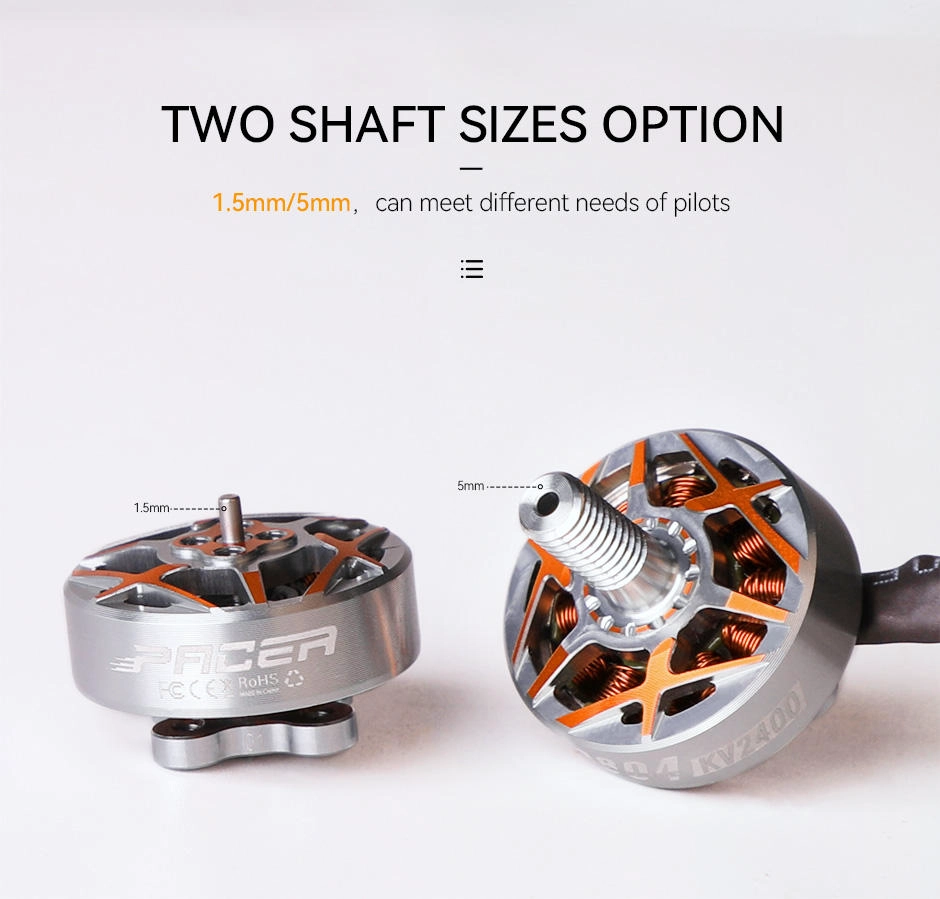

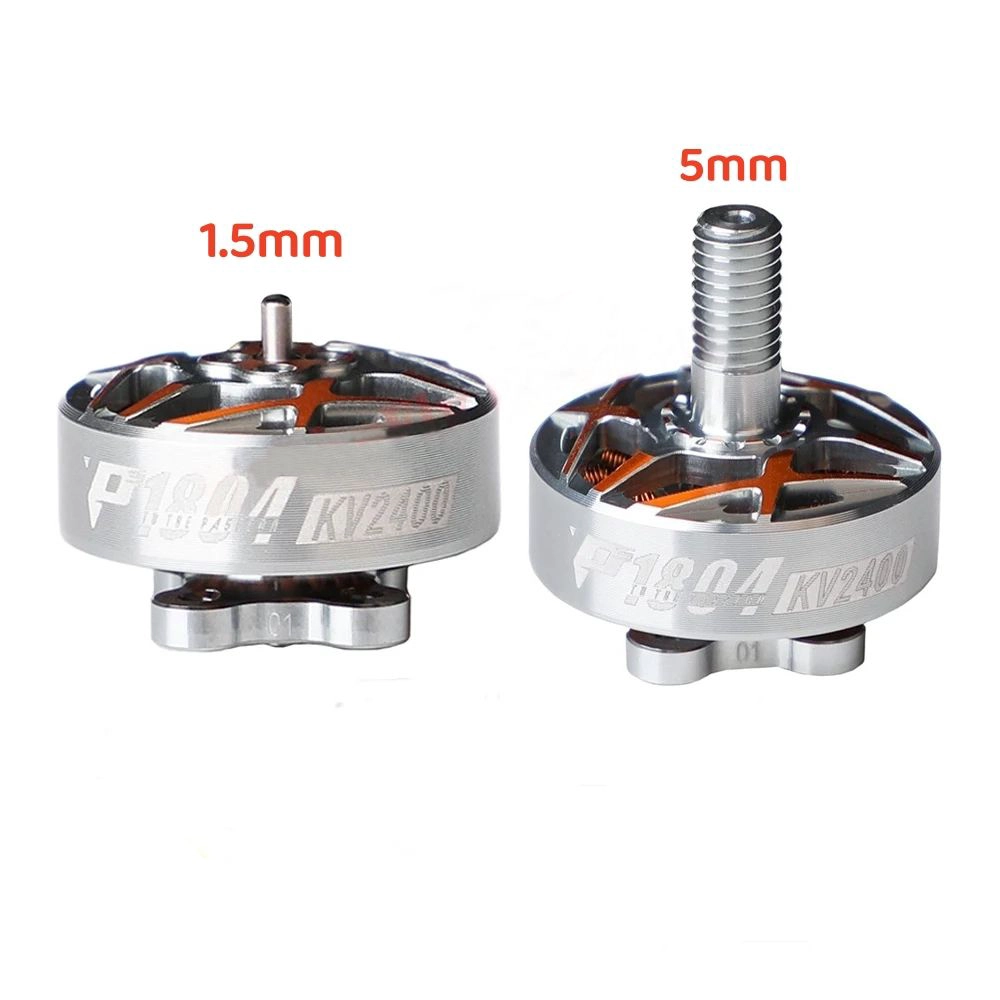

With dual KV options (KV2400/KV3400), we perfectly match 3-4 inch whoop/toothpick drones for smoothfreestyle racing flight. Adopting classic P-series integrated rotor & aluminum-clad protection, we offer excellent crash resistance. Dual output shafts (1.5mm/5mm) meet diverse pilot needs. All-round compatibility & reliability make us an ideal FPV motor choice.

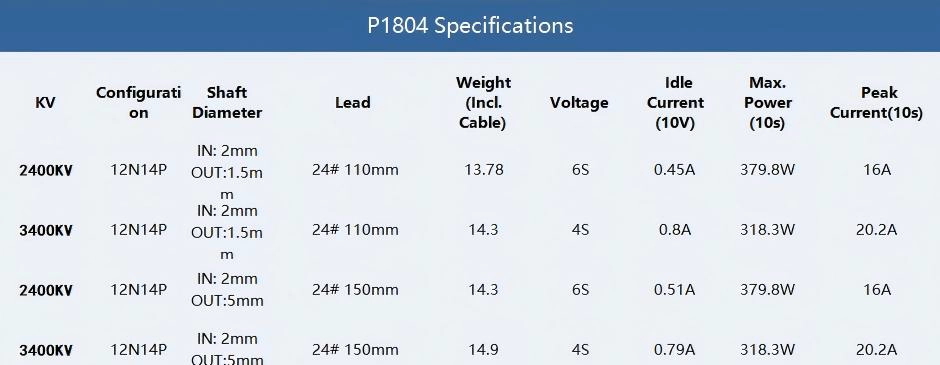

P1804 KV2400 1.5mm

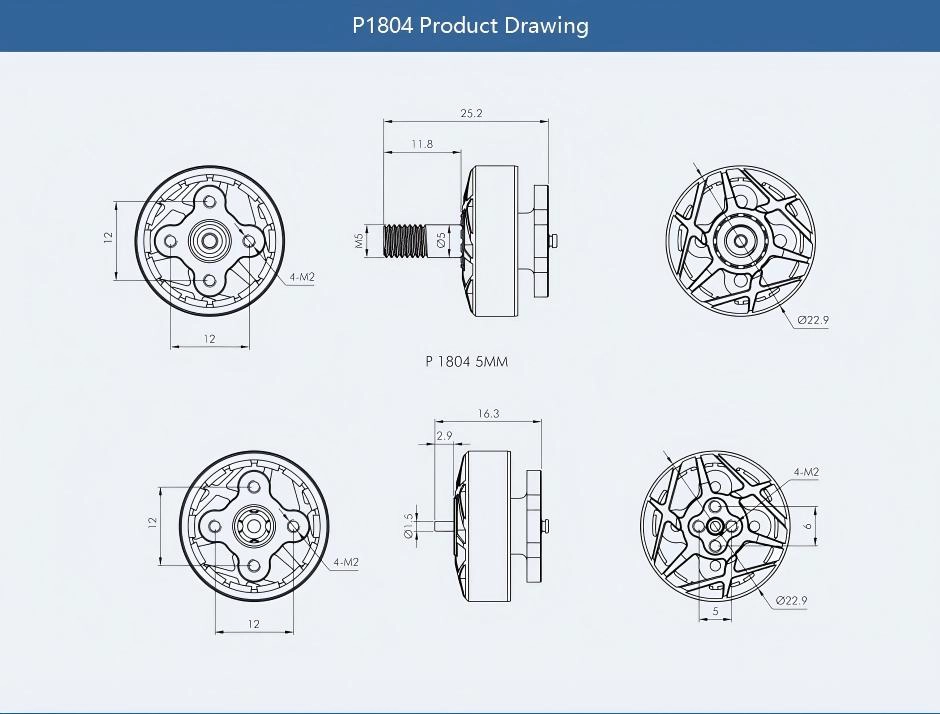

Motor Size(mm)	A16.3*22.9mm
Lead	24# 110mm
Shaft Diameter	IN: 2mm OUT:1.5mm
Idle Current(10V)	0.45A
Max. Power(60s)	379.8W
Weight (Incl. Cable)	13.78g
Configuration	12N14P
Rated Voltage(Lipo)	6S
Peak Current(180s)	16A
P1804 KV3400 1.5mm
Motor Size(mm)	A16.3*22.9mm
Lead	24# 110mm
Shaft Diameter	IN: 2mm OUT:1.5mm
Idle Current(10V)	0.8A
Max. Power(60s)	318.3W
Weight (Incl. Cable)	14.3g
Configuration	12N14P
Rated Voltage(Lipo)	4S
Peak Current(180s)	20.2A
P1804 KV2400 5mm
Motor Size(mm)	A16.3*22.9mm
Lead	24# 150mm
Shaft Diameter	IN: 2mm OUT:5mm
Idle Current(10V)	0.51A
Max. Power(60s)	379.8W
Weight (Incl. Cable)	14.3g
Rated Voltage(Lipo)	6S
Peak Current(180s)	16A
P1804 KV3400 5mm
Motor Size(mm)	A16.3*22.9mm
Lead	24# 150mm
Shaft Diameter	IN: 2mm OUT:5mm
Idle Current(10V)	0.79A
Max. Power(60s)	318.3W
Weight (Incl. Cable)	14.9g
Rated Voltage(Lipo)	4S
Peak Current(180s)	20.2A
