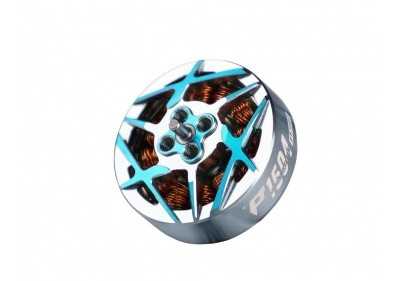

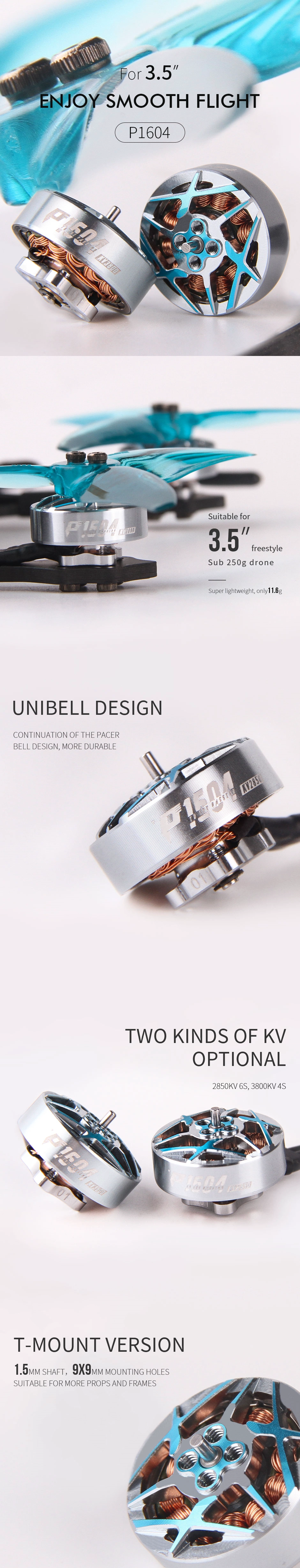

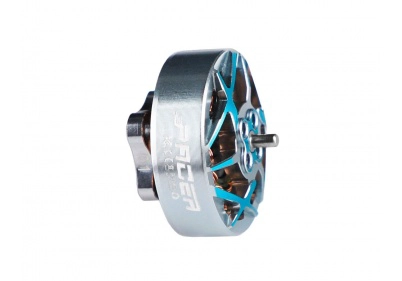

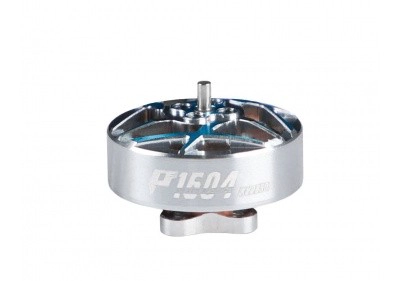

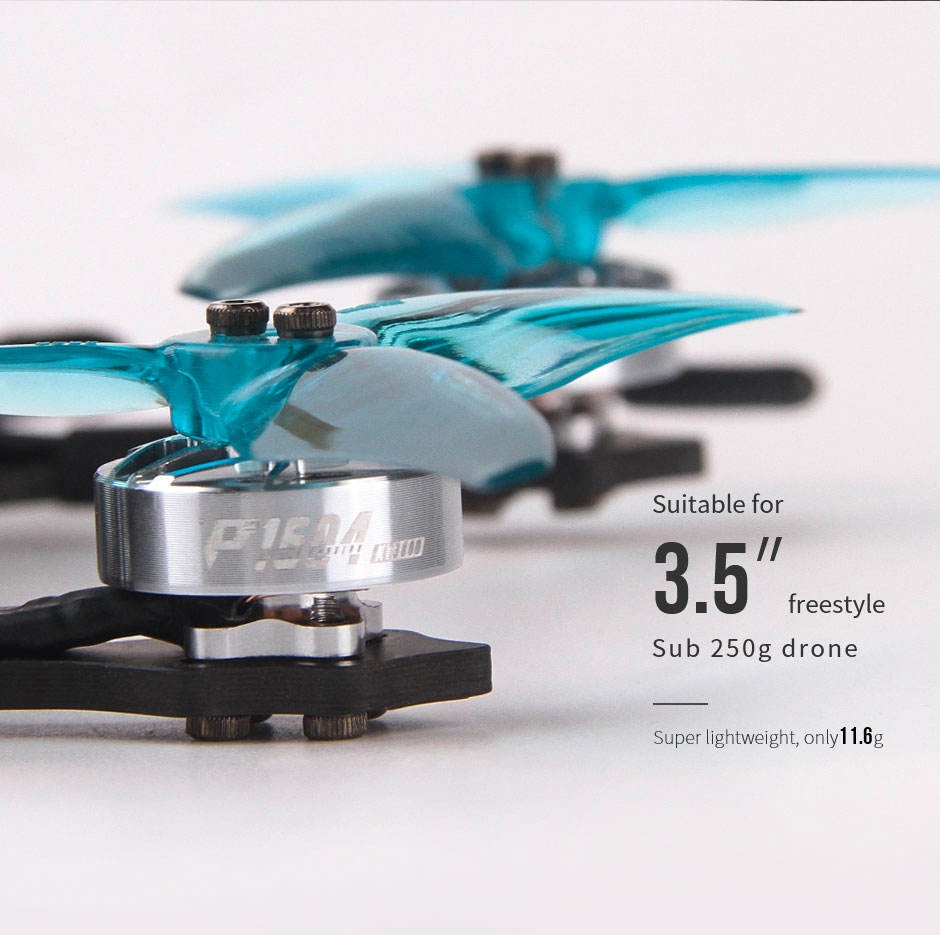

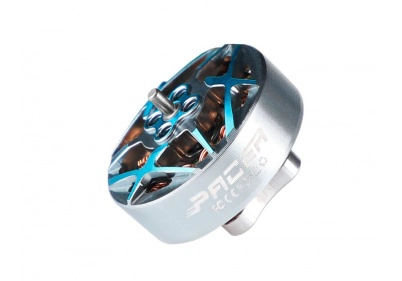

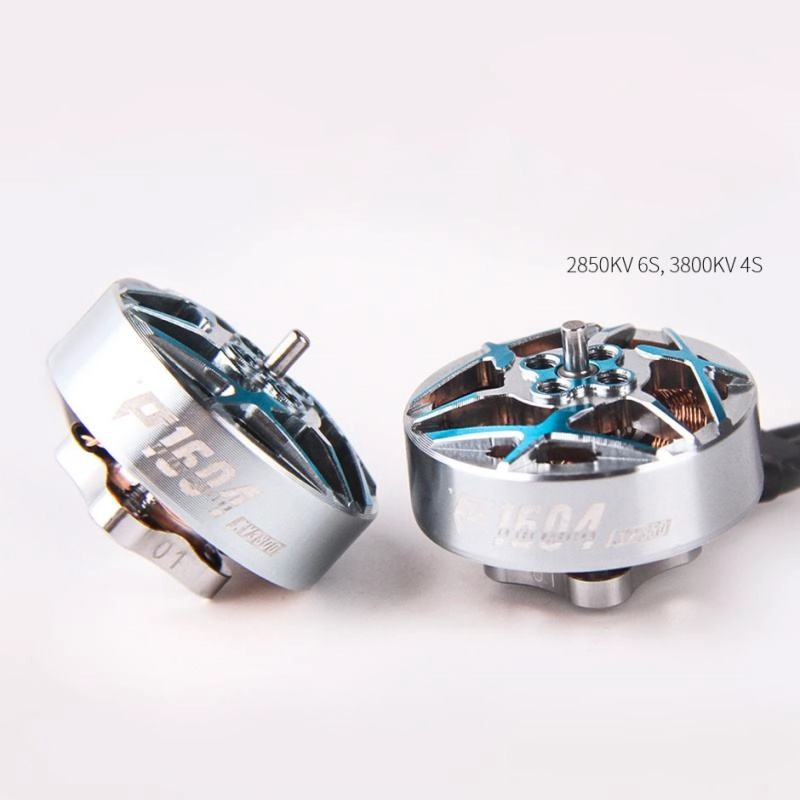

P1604 Brushless Freestyle FPV Drone Motor is premium Flower Flying Drone Parts and Multirotor Upgrade Motor, specifically designed for 3.5-inch flower flying. As a reliable FPV Propulsion Motor, it focuses on "smooth flight experience" (ENJOY SMOOTH FLIGHT) for pilots to enjoy effortless, stable flight. Boasting an ultra-light 11.6g design, it precisely fits 3.5-inch setups, reducing fuselage load for agile flight. Inheriting P-series aluminum cladding, it enhances rotor protection and anti-crash performance to handle in-flight impacts. Two power options (2850KV/6S & 3800KV/4S) meet diverse needs for thrust or endurance. With T-MOUNT propeller locking, 1.5mm output shaft and 9X9mm mounting holes, it enables quick propeller/frame assembly, fits various accessories, saves debugging time, and lets pilots fully enjoy flight control.

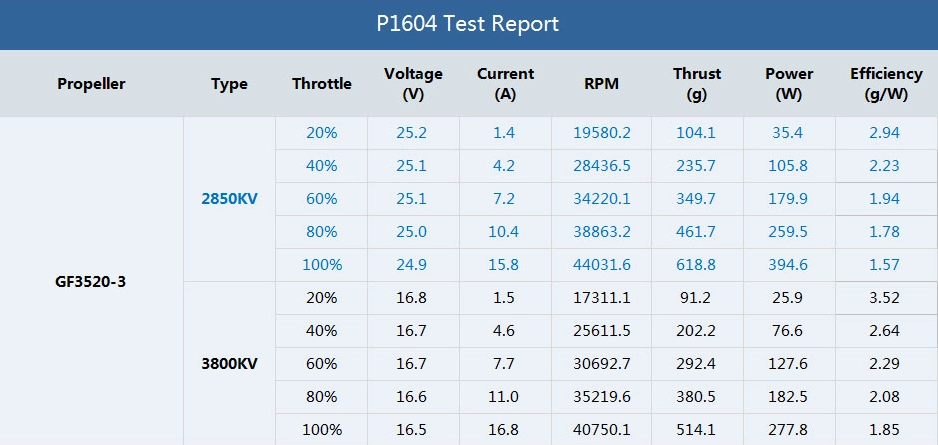

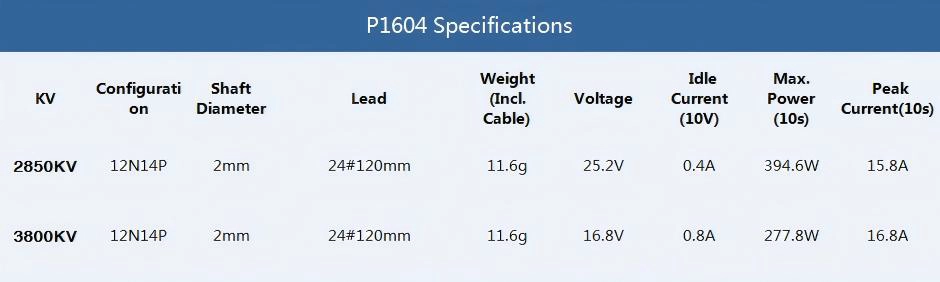

| P1604 KV2850 | |

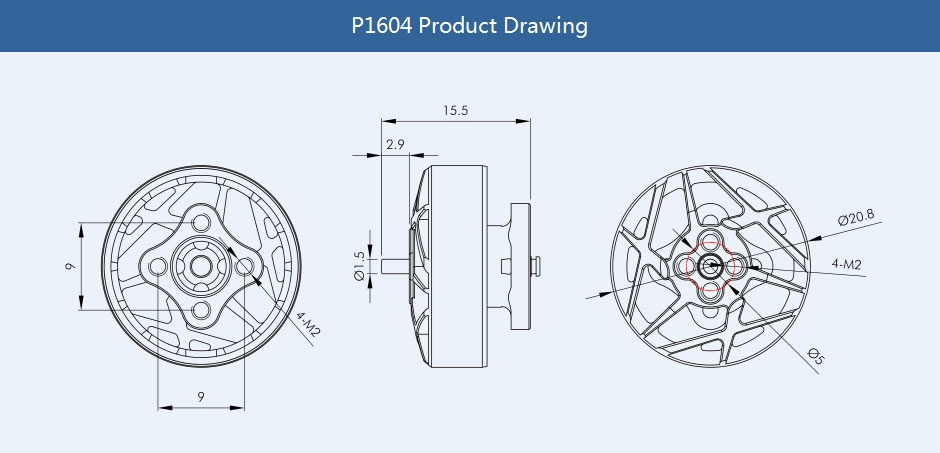

| Motor Size(mm) | A20.8*15.5 mm |
| Lead | 24#120mm |
| Shaft Diameter | 2mm |
| Idle Current(10V) | 0.4A |
| Max. Power(60s) | 394.6W |
| Weight (Incl. Cable) | 11.6g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 25.2V |
| Peak Current(180s) | 15.8A |
| P1604 KV3800 | |
| Motor Size(mm) | A20.8*15.5 mm |
| Lead | 24#120mm |
| Shaft Diameter | 2mm |
| Idle Current(10V) | 0.8A |
| Max. Power(60s) | 277.8W |
| Weight (Incl. Cable) | 11.6g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 16.8V |
| Peak Current(180s) | 31.4A |
