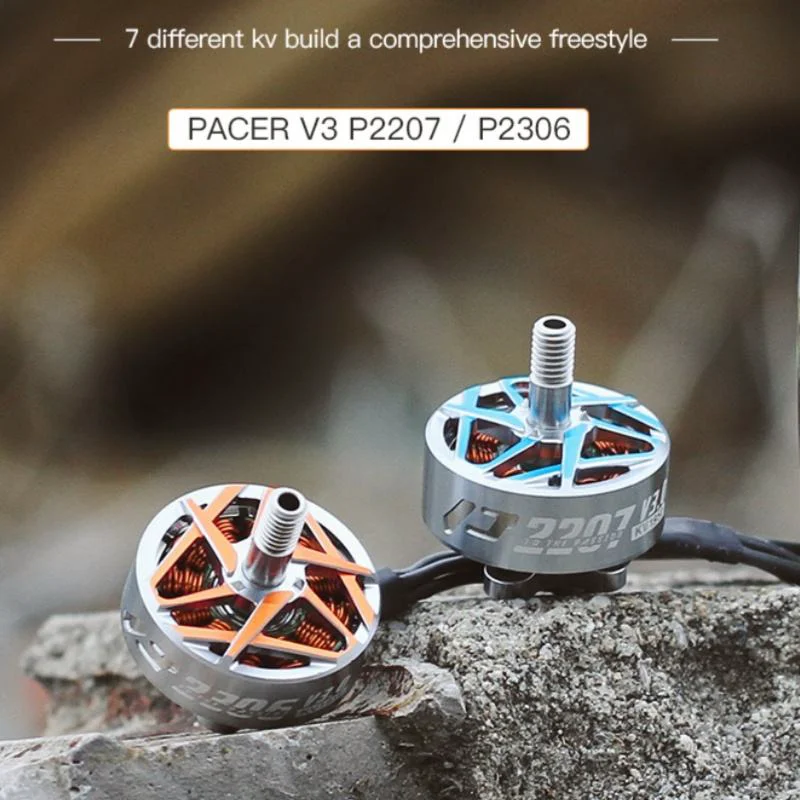

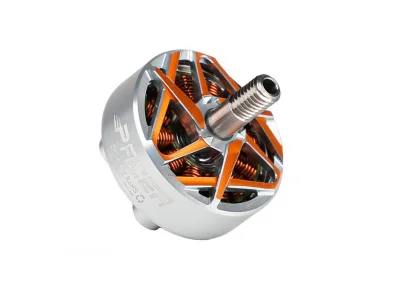

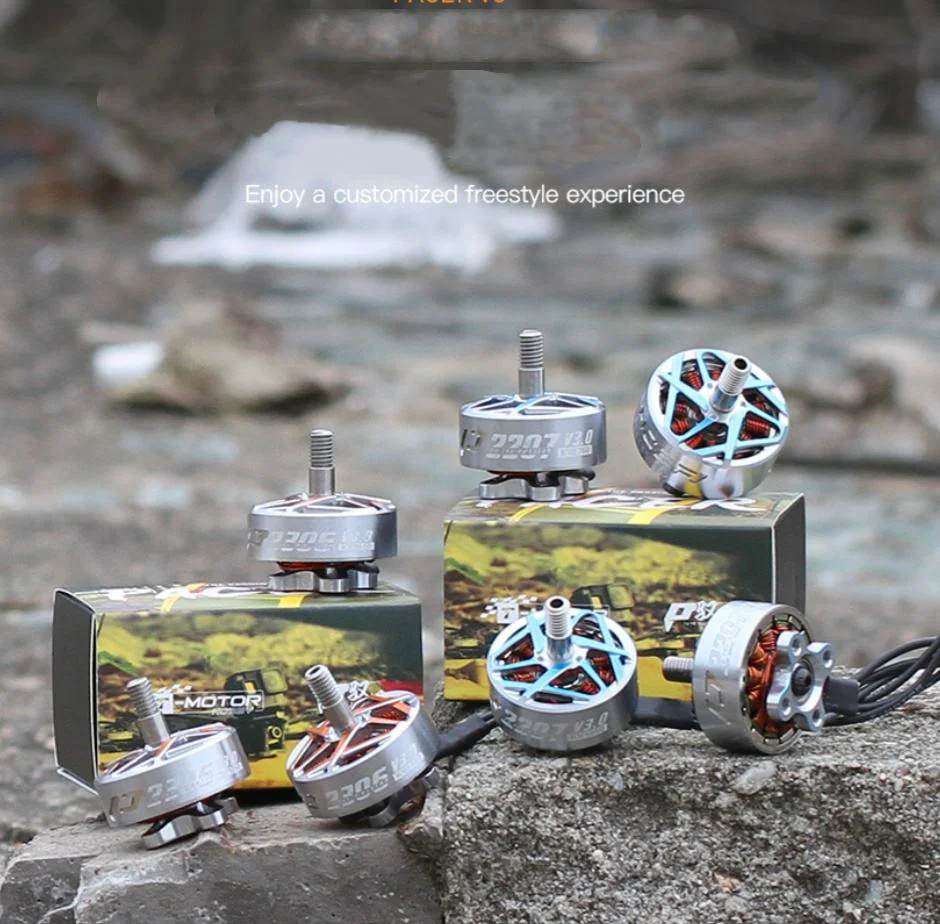

P2306 V3.0 PACER V3 Freestyle Waterproof Powerful Brushless Motor

1.KV1750
2.KV1950
3.KV2550

P2306 V3.0 Freestyle Motor (High Performance FPV Motor, Freestyle Drone Parts, All-Scenario Freestyle Motor) with multiple KV models for diverse styles. Reinforced rotor & N52 magnets, ideal for novices & pros.

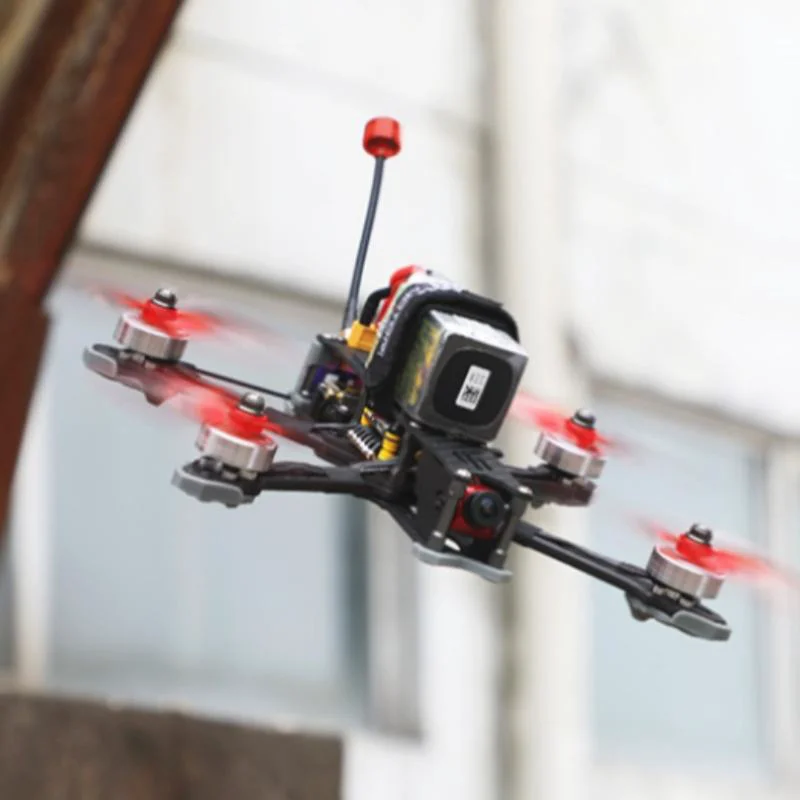

Meet the High Performance FPV Motor – PACER V3 Freestyle Motor, a top-tier option among Freestyle Drone Parts. It delivers comprehensive freestyle capabilities and precise positioning, paired with a reinforced rotor for excellent crash resistance and built-in N52 arc magnets for stable, powerful output, ensuring confidence in every flight.
Multiple KV models fit diverse flying styles: 1750KV (FLOW, smooth control), 1950KV (ARCO, precise movements), 2550KV (MIND-BENDING, explosive power for stunning visuals).
As an All-Scenario Freestyle Motor, PACER V3 covers full KV range, creating all-scenario flying experiences. Ideal for both novices and senior players, it perfectly meets your flying needs.

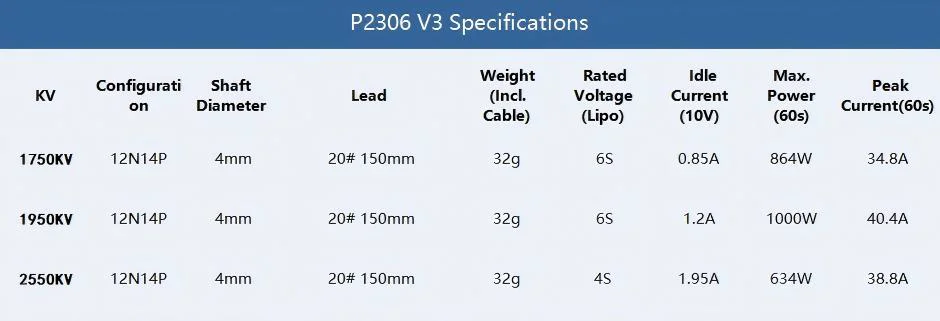

P2306 V3 KV1750

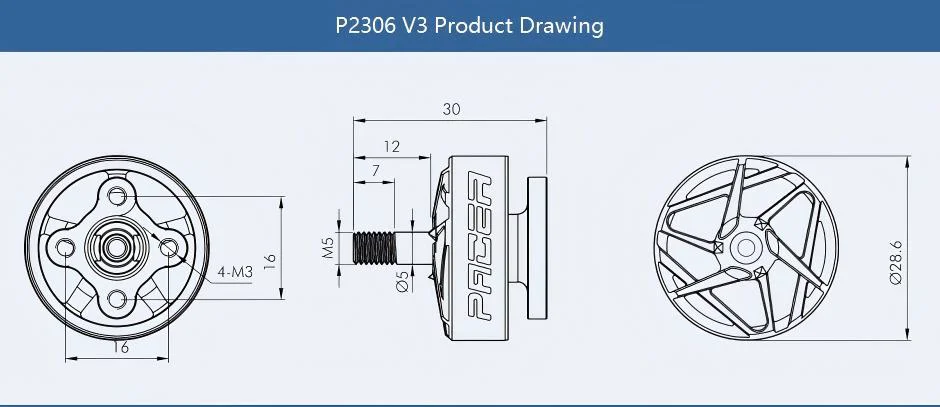

Motor Size(mm)	A28.6*30 mm
Lead	20#150mm
Shaft Diameter	4mm
Idle Current(10V)	0.85A
Max. Power(60s)	864W
Weight (Incl. Cable)	32g
Configuration	12N14P
Rated Voltage(Lipo)	6S
Peak Current(180s)	34.8A
P2306 V3 KV1950
Motor Size(mm)	A28.6*30 mm
Lead	20#150mm
Shaft Diameter	4mm
Idle Current(10V)	1.2A
Max. Power(60s)	1000W
Weight (Incl. Cable)	32g
Configuration	12N14P
Rated Voltage(Lipo)	6S
Peak Current(180s)	40.4A
P2306 V3 KV2550
Motor Size(mm)	A28.6*30 mm
Lead	20#150mm
Shaft Diameter	4mm
Idle Current(10V)	1.95A
Max. Power(60s)	634W
Weight (Incl. Cable)	32g
Rated Voltage(Lipo)	4S
Peak Current(180s)	38.8A
