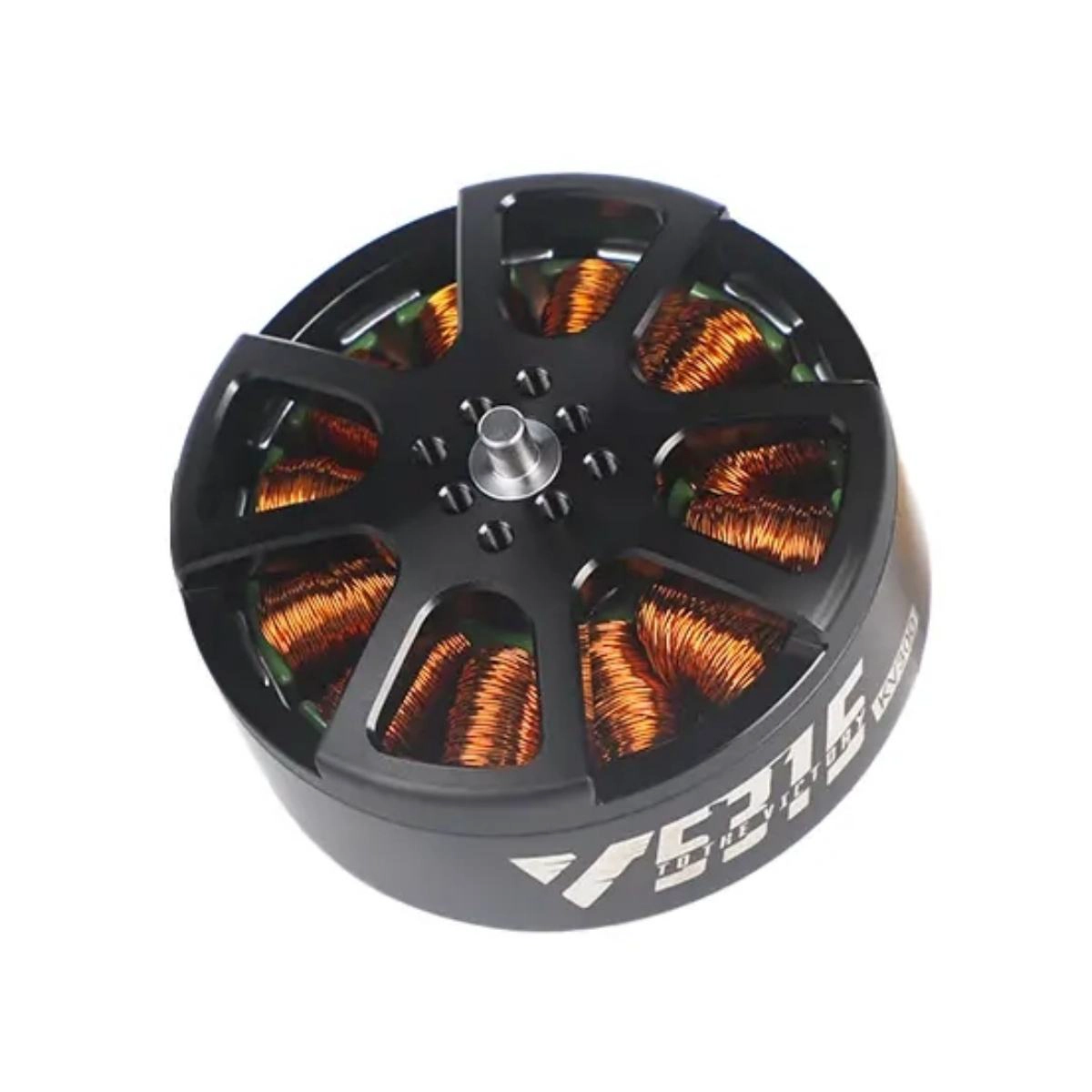

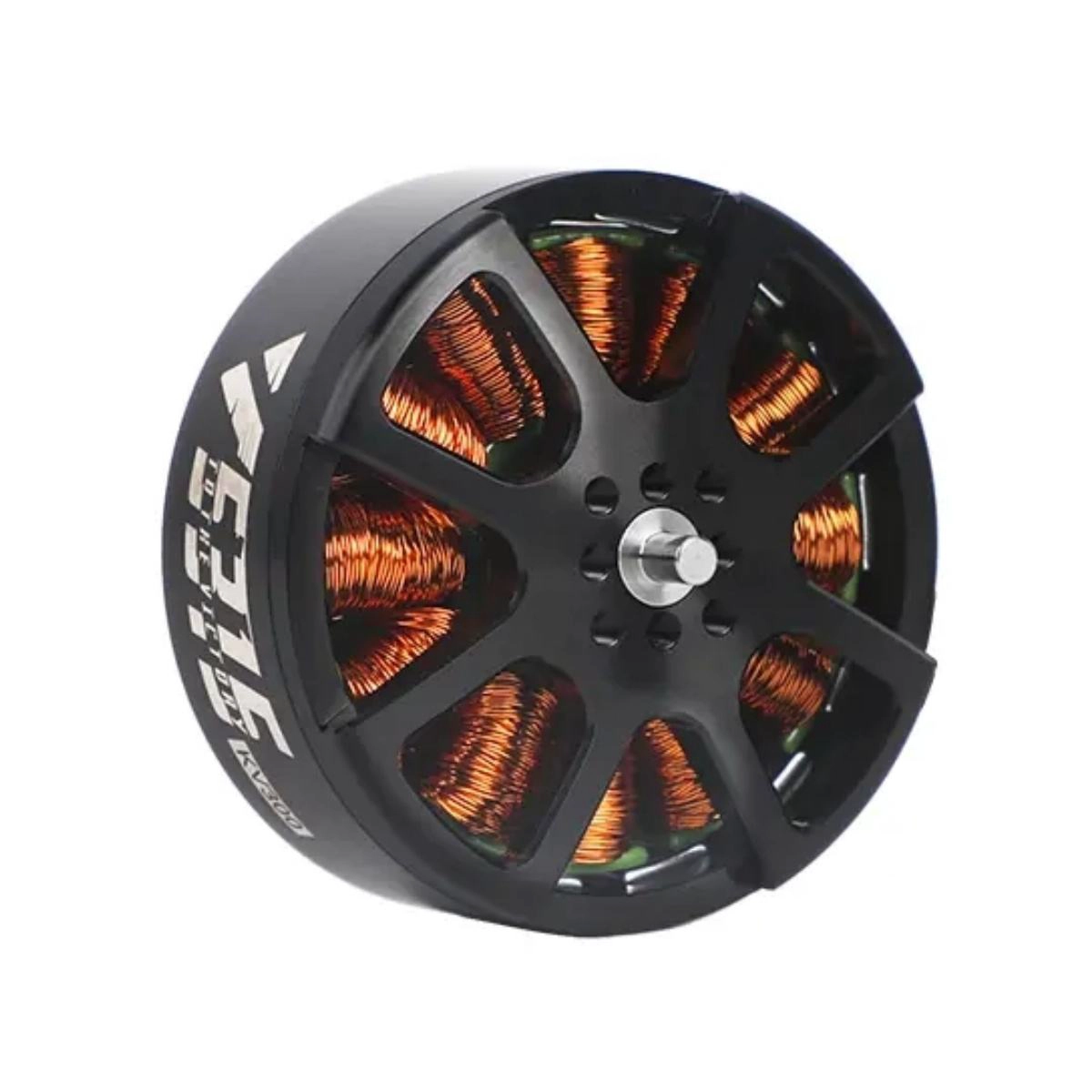

This Filming Drone Motor is specialized for 13-inch X4/X8 film and television UAVs, integrating powerful performance, long battery life and flexible adaptability to meet high shooting requirements. As a reliable Heavy Payload Drone Motor, it handles heavy loads effortlessly, while serving as an excellent Extended Flight Drone Motor for Filming with outstanding endurance. Its innovative design ensures strong installation compatibility for diverse scenarios.
Key Highlights:
- Fits 13-inch X4/X8 Film & TV UAVs
- Powerful Performance: Single Motor Max Pull >6.5kg
- Excellent Endurance: 15min Battery Life + 15km Range
- Strong Installation Compatibility: Fits Multiple Propeller Sizes
- Ensures Efficient & Smooth Professional Shooting

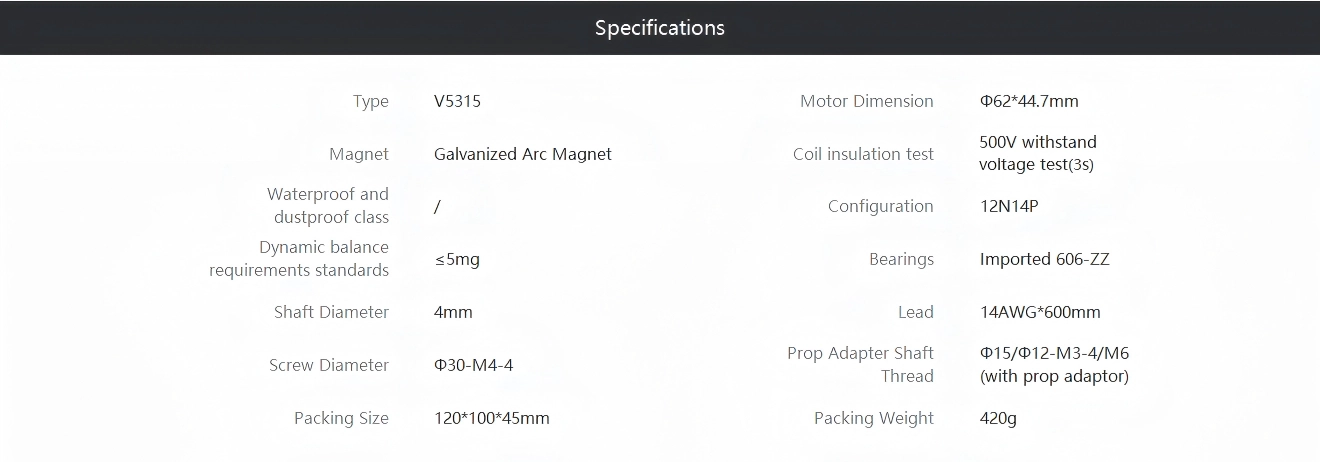

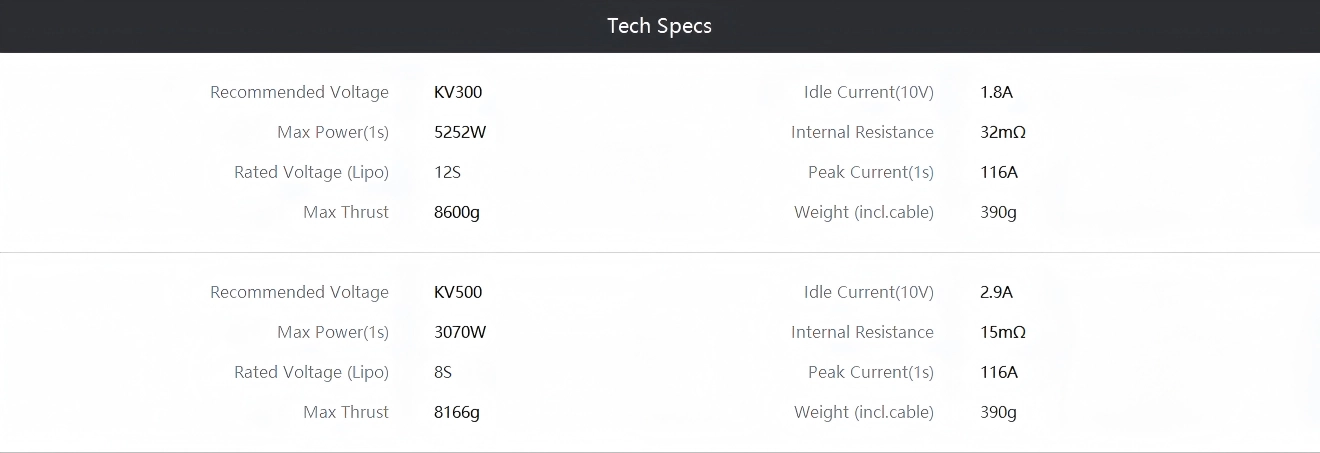

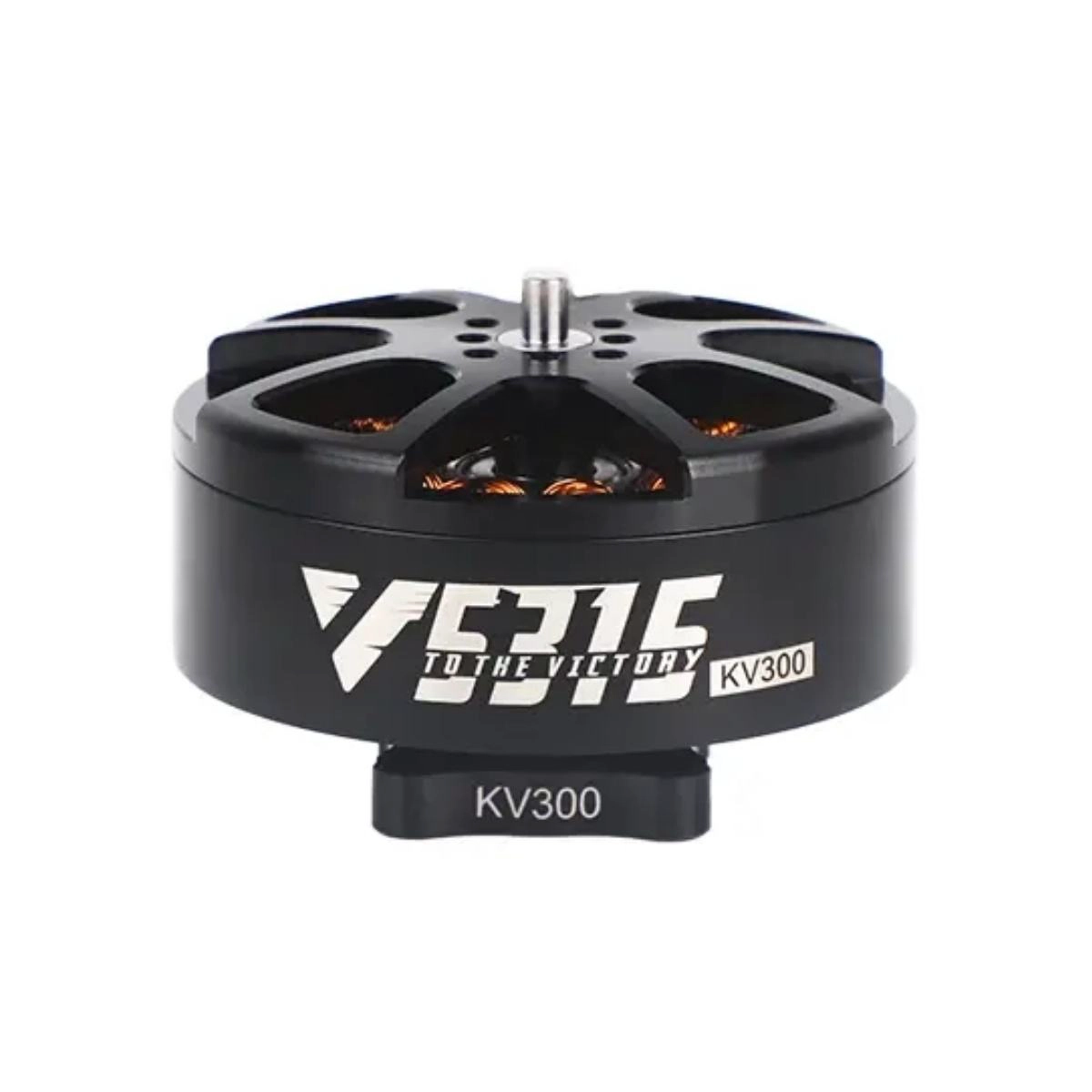

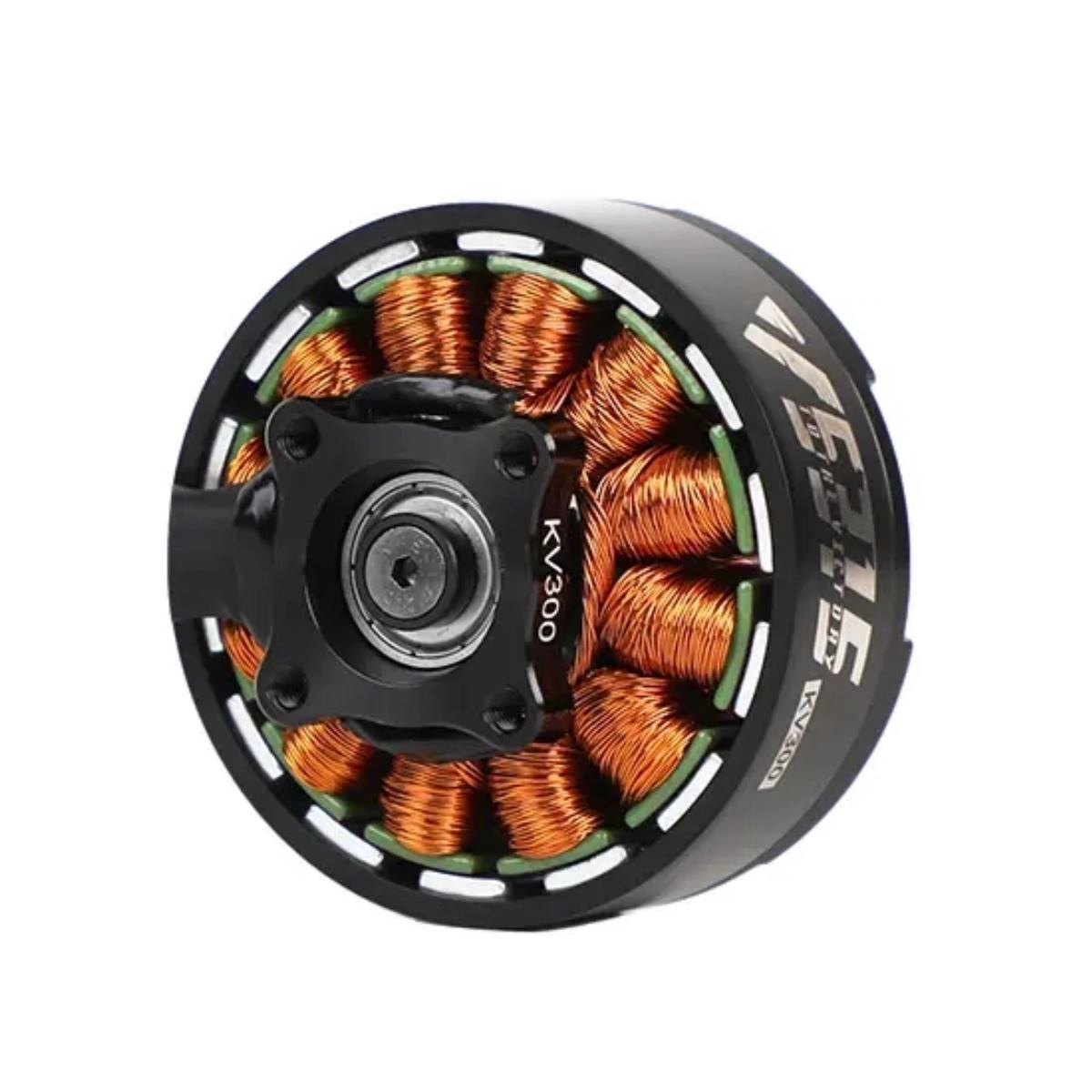

| V5315 KV300 | |

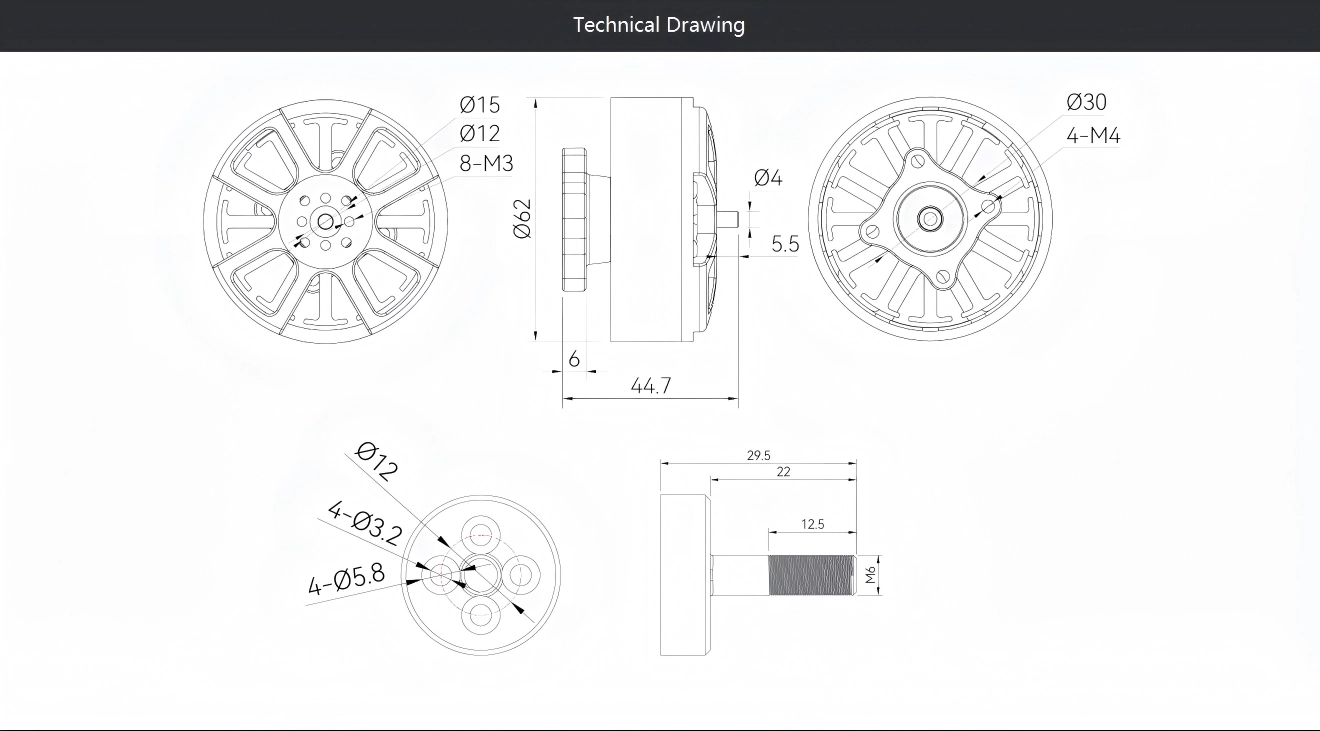

| Motor Size(mm) | Φ62 * 44.7mm |
| Lead | 14AWG * 600mm |
| Shaft Diameter | 4mm |
| Idle Current(10V) | 1.8A |
| Max. Power(60s) | 5252W |
| Weight (Incl. Cable) | 390g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 12S |
| Peak Current(180s) | 116A |
| V5315 KV500 | |
| Motor Size(mm) | Φ62*44.7 mm |
| Lead | 16AWG * 400mm |
| Shaft Diameter | 4mm |
| Idle Current(10V) | 2.9 A |
| Max. Power(60s) | 3070W |
| Weight (Incl. Cable) | 390g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 8S |
| Peak Current(180s) | 116A |
