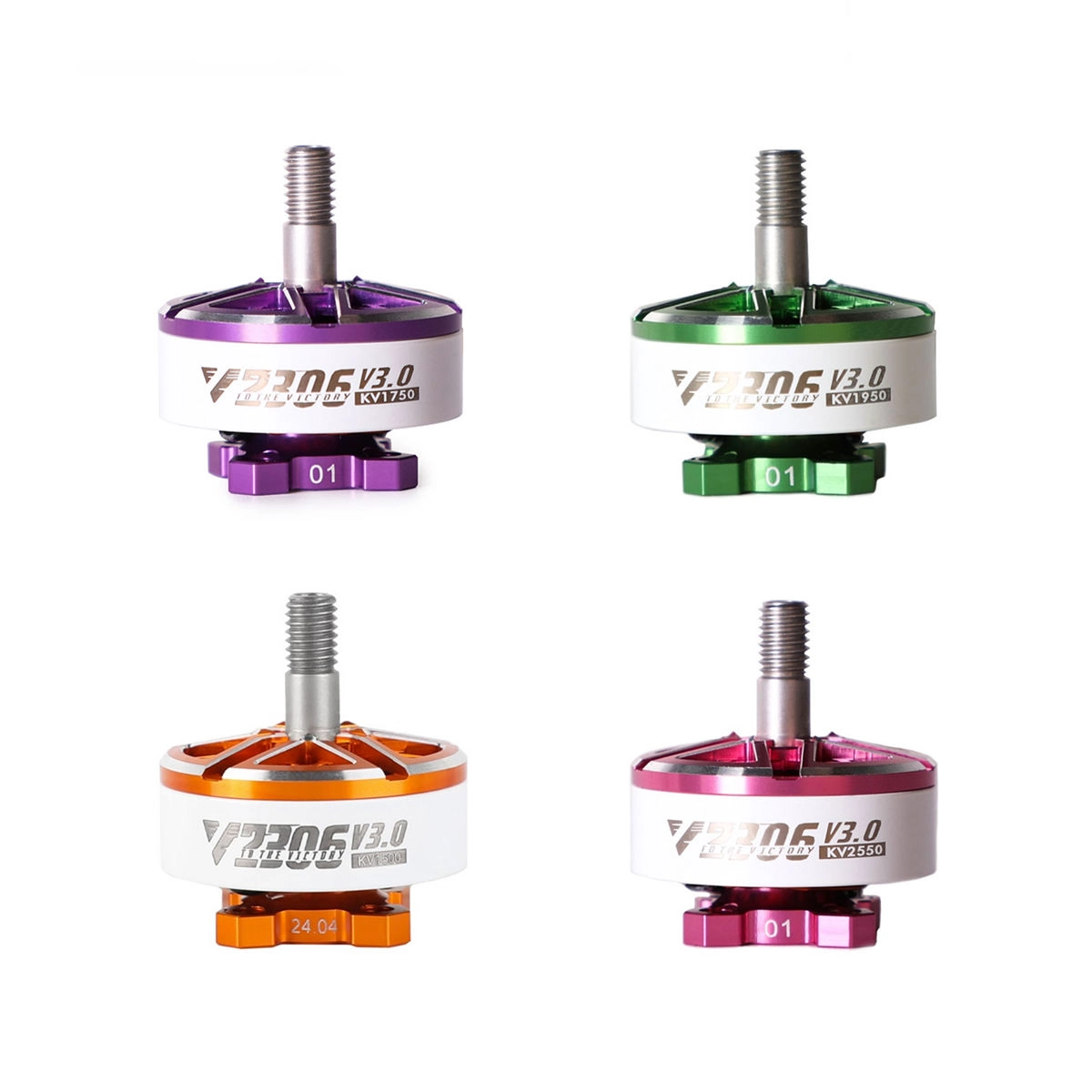

V2306 V3.0 high-performance FPV Racing Drone
- 1.KV rating：1500/1750/1950/2550
- 2.Colour:Red、Green、Purple、Orange

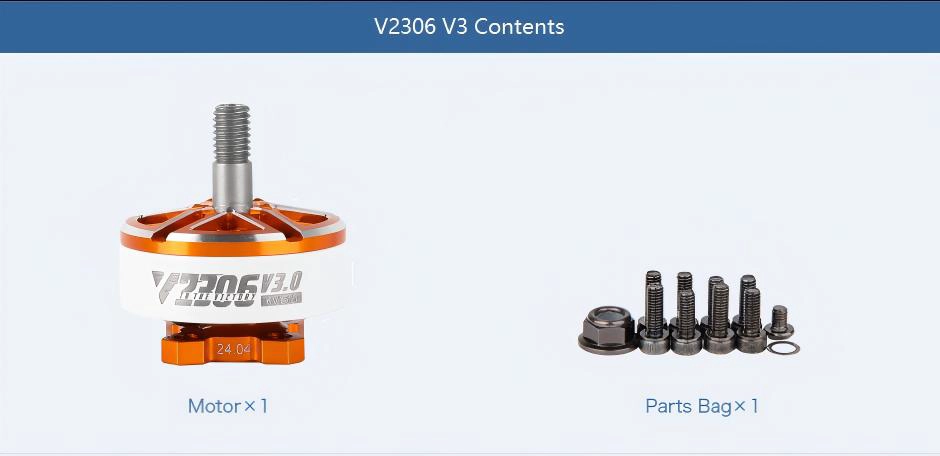

Introducing our V2306 V3.0 FPV Racing Drone motor core power system – V2306 V3.0, equipped with high-performance FPV Motor.
As a Professional FPV Racing Drone Motor, it offers 4 differentiated KV options for diverse scenarios:
*KV1500 (8S high-speed flight);
*KV1750 (enhanced low torque, ideal for Flow/bando);
*KV1950 (powerful for Acro stunts);
*KV2550 (4S compatible);
Recommended 8S power package: Velox V2207/2306 V3 1500KV motor, matched with F7 PRO + F55AIII (30*30mm) or F7 MINI V2 (5V BEC only) + F60A MINI (20*20mm) flight stack, and F5146 propellers, ensuring stability & power for high-intensity flight.

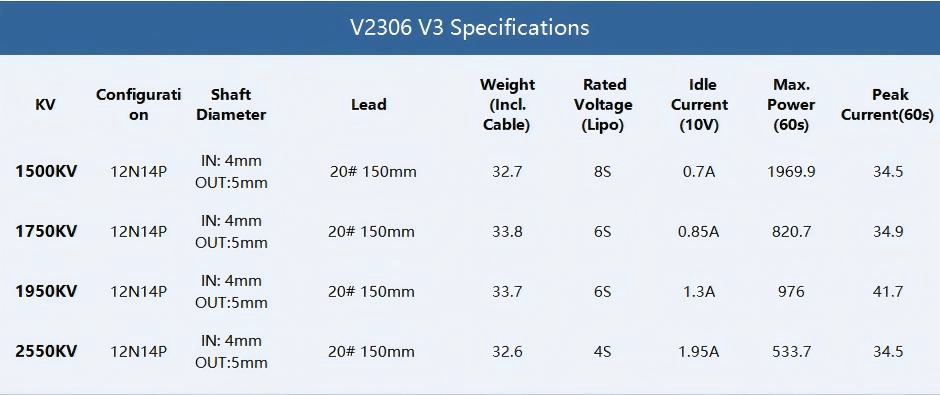

| Velox V2306 V3 KV1500 | |

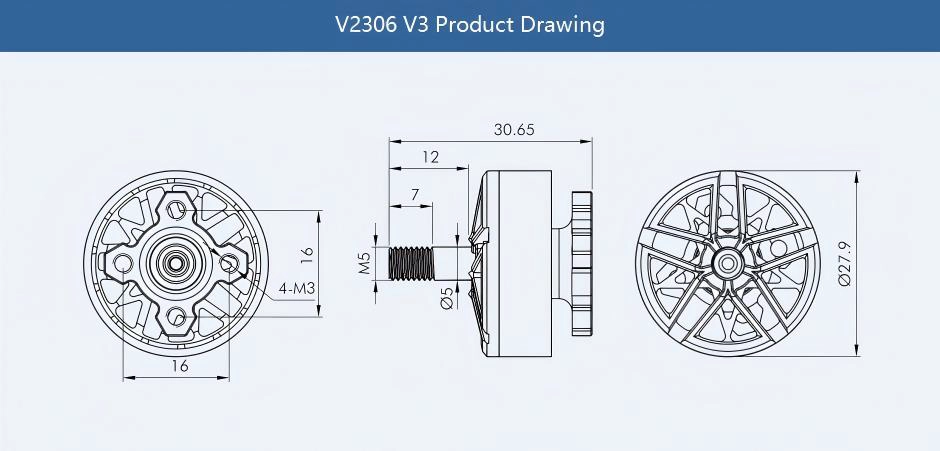

| Motor Size(mm) | A27.9*30.65 mm |
| Lead | 20#150mm |
| Shaft Diameter | IN: 4mm OUT:5mm |
| Idle Current(10V) | 0.7A |
| Max. Power(60s) | 1969.9W |
| Weight (Incl. Cable) | 33.8g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 8S |
| Peak Current(180s) | 34.5A |
| Velox V2306 V3 KV1750 | |
| Motor Size(mm) | A27.9*30.65 mm |
| Lead | 20#150mm |
| Shaft Diameter | IN: 4mm OUT:5mm |
| Idle Current(10V) | 0.85A |
| Max. Power(60s) | 820.7W |
| Weight (Incl. Cable) | 33.8g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 6S |
| Peak Current(180s) | 34.9A |
| Velox V2306 V3 KV1950 | |
| Motor Size(mm) | A27.9*30.65 mm |
| Lead | 20#150mm |
| Shaft Diameter | IN: 4mm OUT:5mm |
| Idle Current(10V) | 1.3A |
| Max. Power(60s) | 976W |
| Weight (Incl. Cable) | 33.8g |
| Rated Voltage(Lipo) | 6S |
| Peak Current(180s) | 41.7A |
| Velox V2306 V3 KV2550 | |
| Motor Size(mm) | A27.9*30.65 mm |
| Lead | 20#150mm |
| Shaft Diameter | IN: 4mm OUT:5mm |
| Idle Current(10V) | 1.95A |
| Max. Power(60s) | 533.7W |
| Weight (Incl. Cable) | 33.8g |
| Rated Voltage(Lipo) | 4S |
| Peak Current(180s) | 34.5A |
KV1550 RELEVANT PRODUCTS
KV1750 RELEVANT PRODUCTS
KV1950 RELEVANT PRODUCTS
KV2550 RELEVANT PRODUCTS
