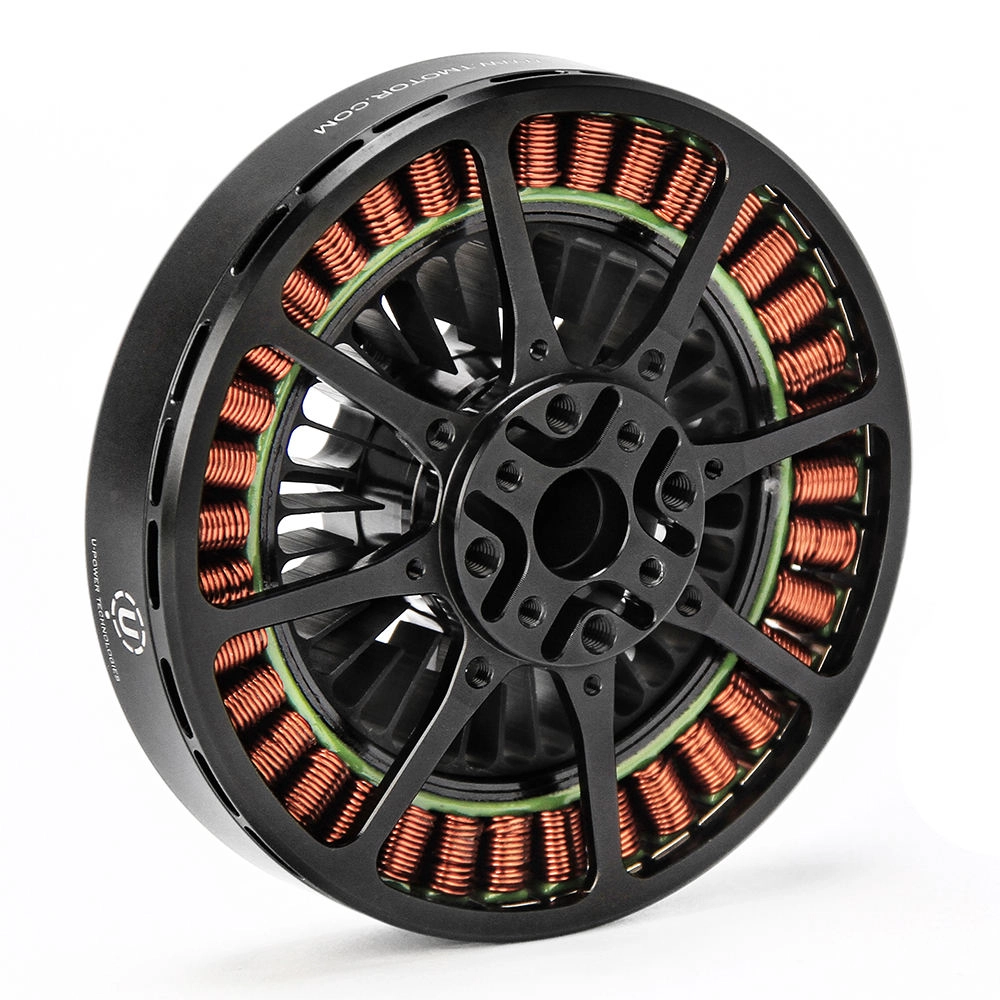

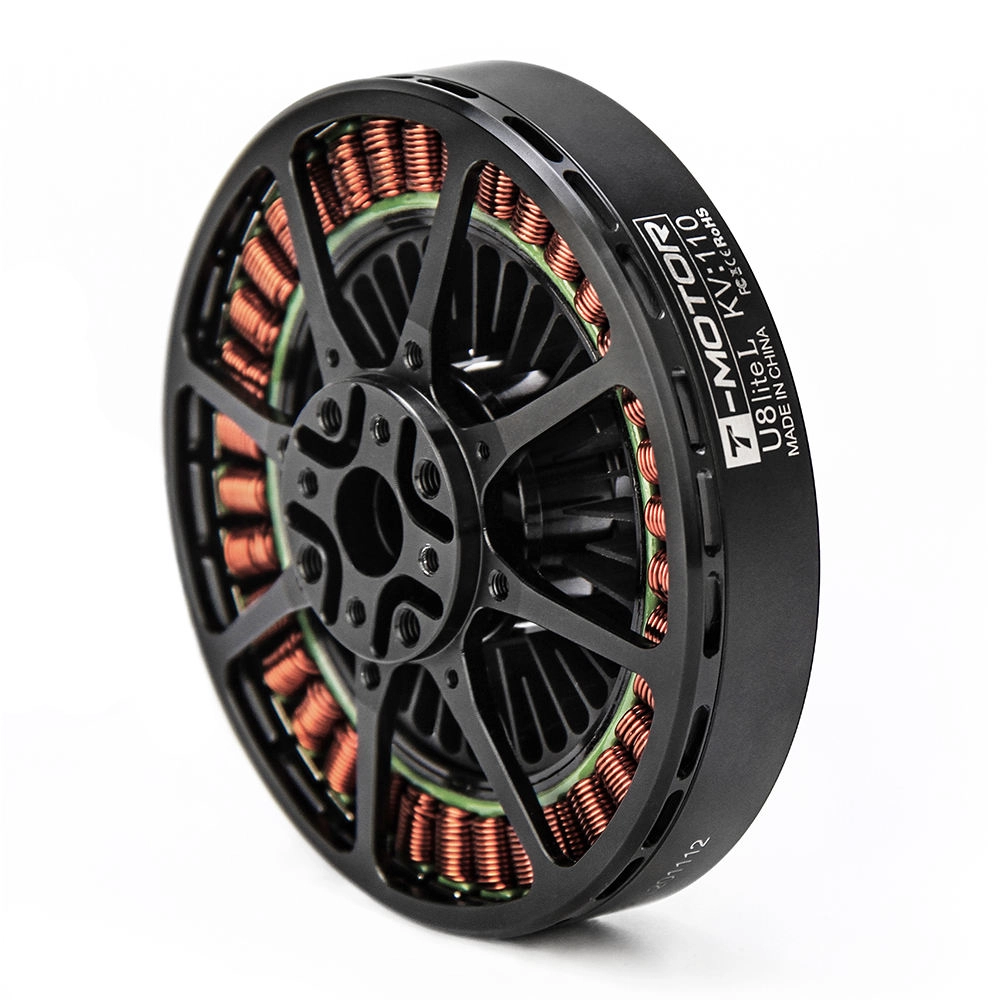

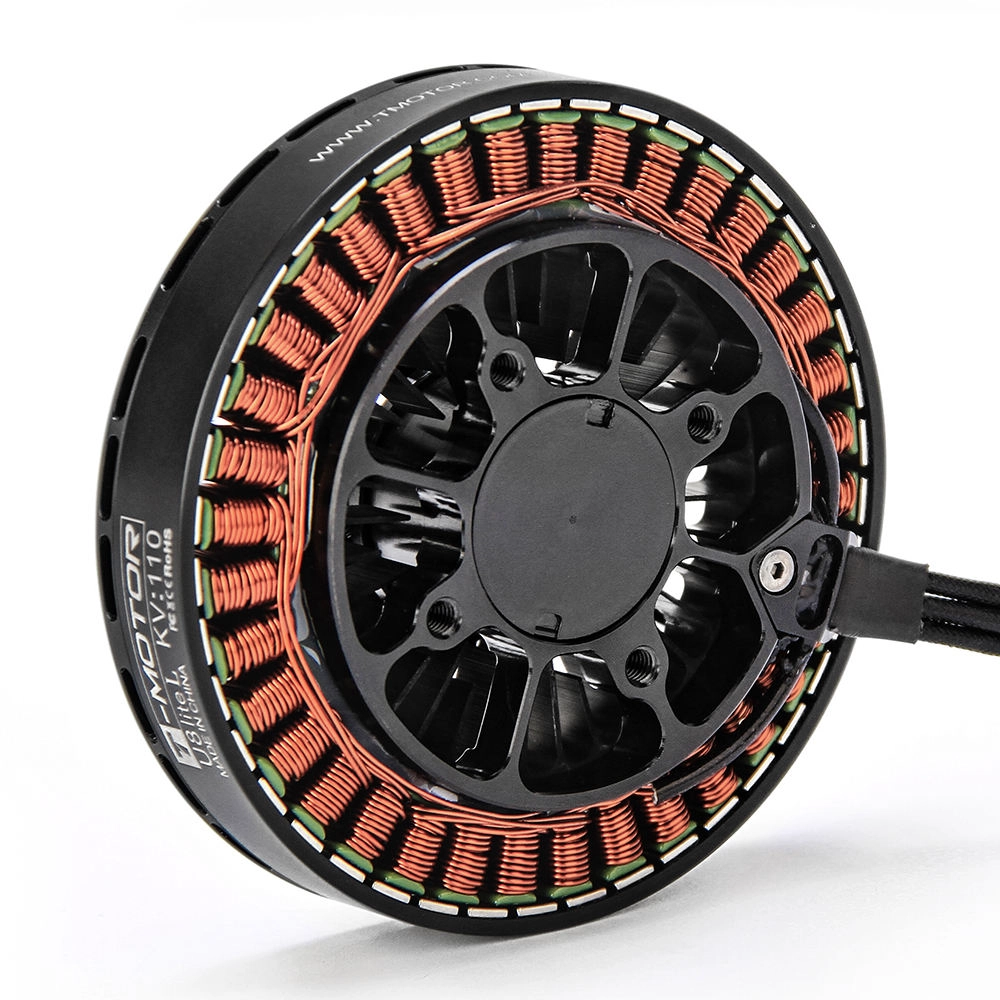

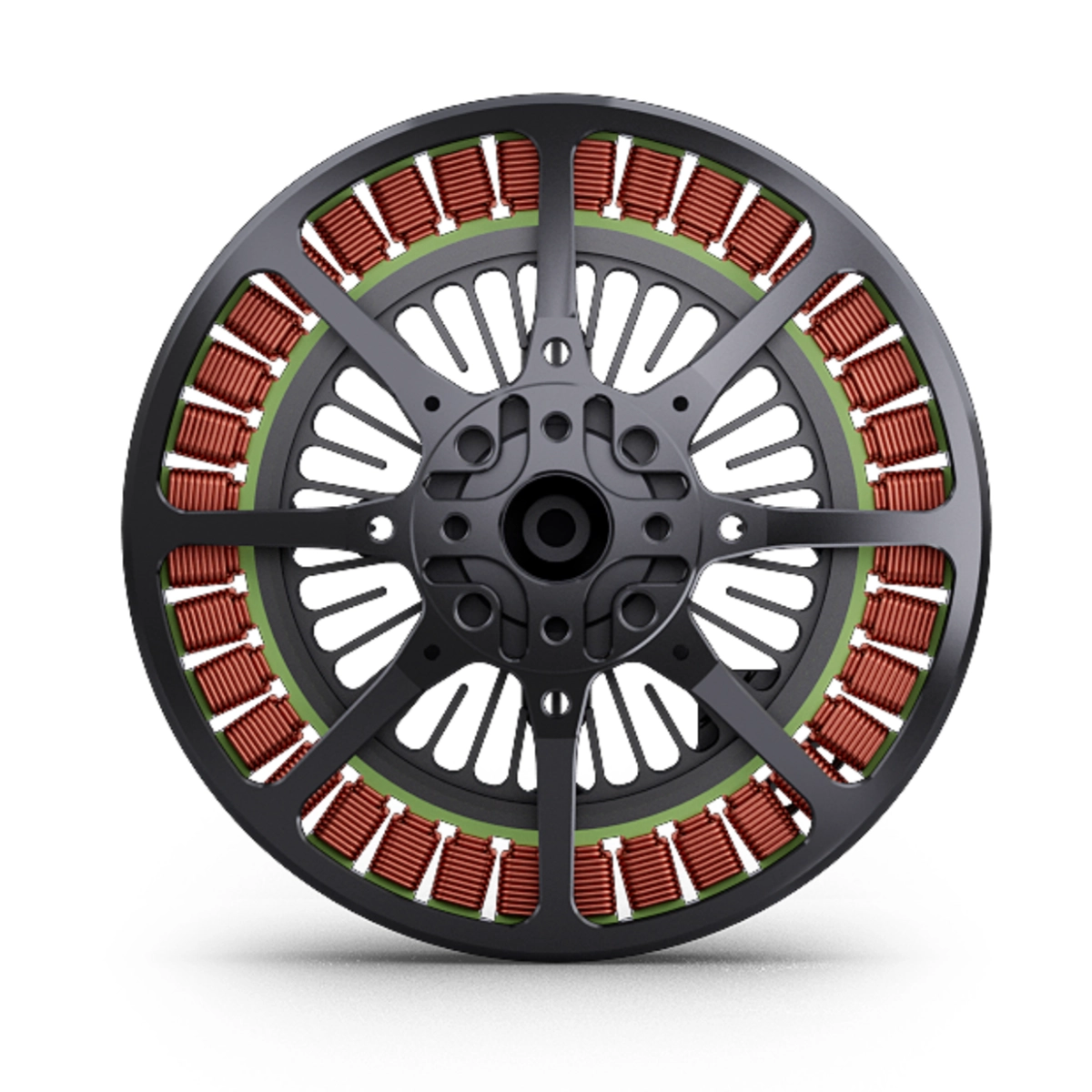

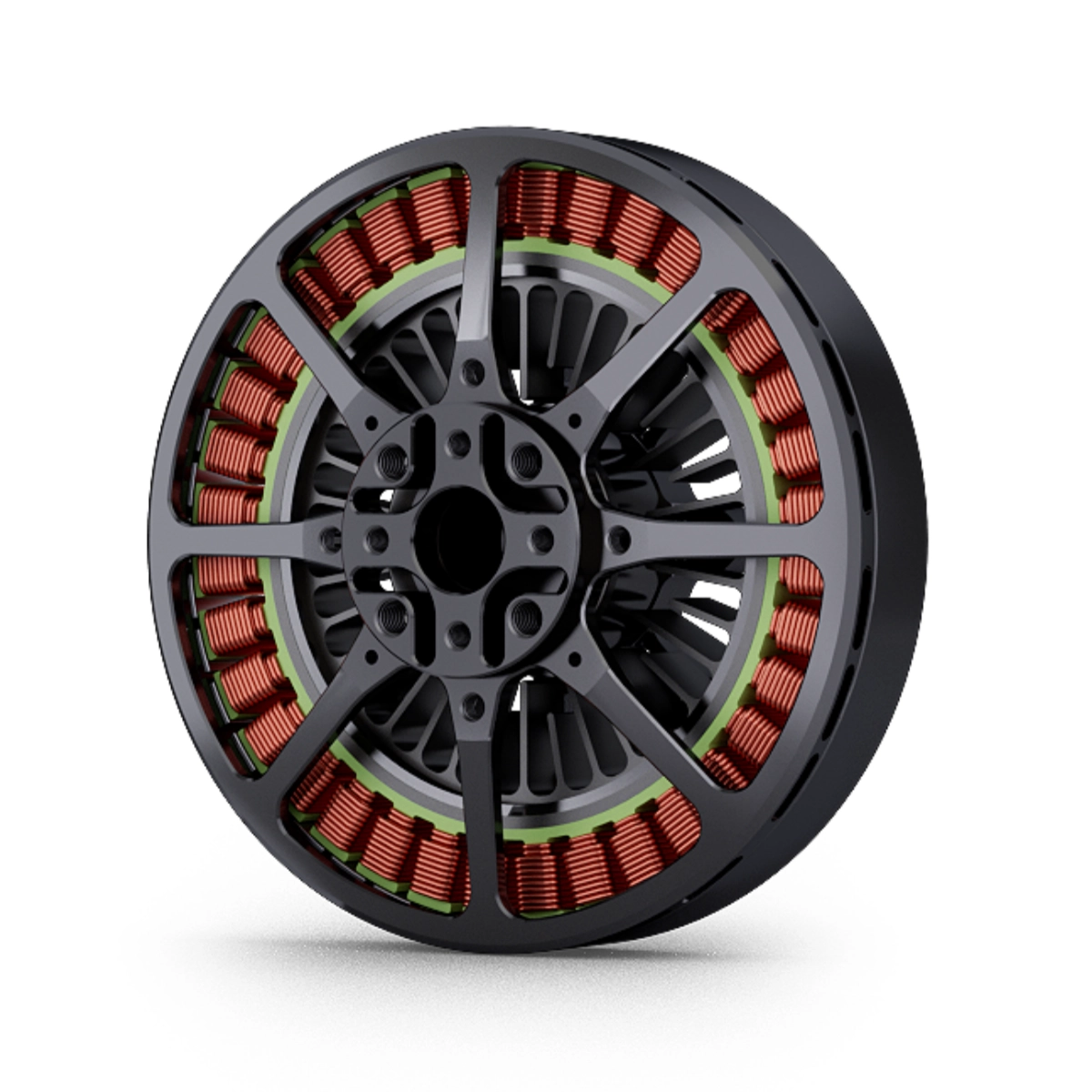

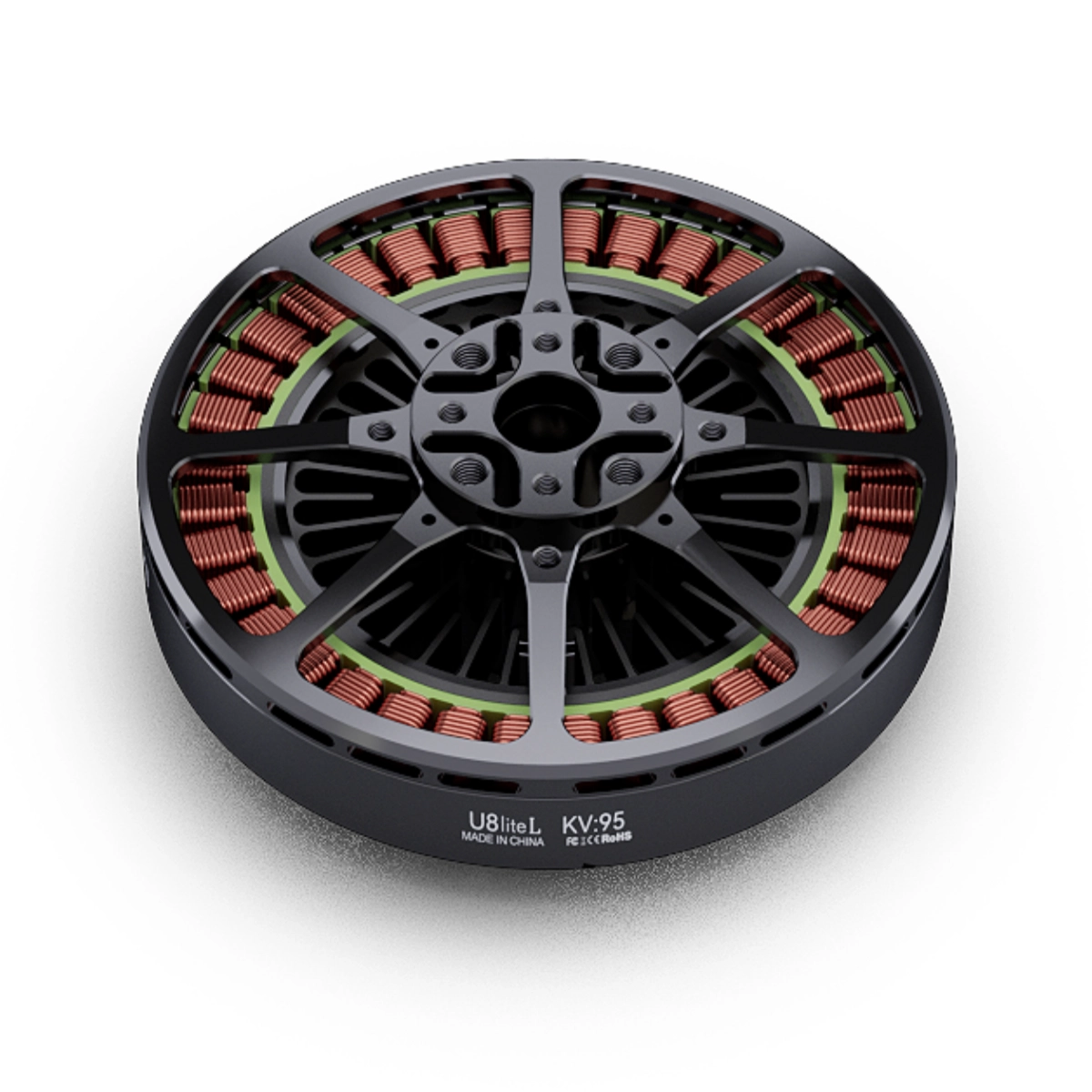

About T-MOTOR U8 Lite L Efficiency Multirotor UAV Motor
T-MOTOR U8 Lite L delivers exceptional thrust up to 11.2kg with an ultra-light design for extended flight durations. Built with imported custom bearings, it features a redesigned structure tested for axial and radial stresses, ensuring a lifespan of 1,000 operational hours and up to 1,500 flights. Its advanced magnetic circuit matches the efficiency of the U8 Lite, offering unmatched power and reliability.
U8 Lite L Highlights:
1.Max. thrust ：11.2kg
2.MTBF：About 1000hours
3.Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings
4.Industrial grade, dust proof, water proof.
Application Areas：
Surveillance, cruise, security and protection, surveying and mapping.

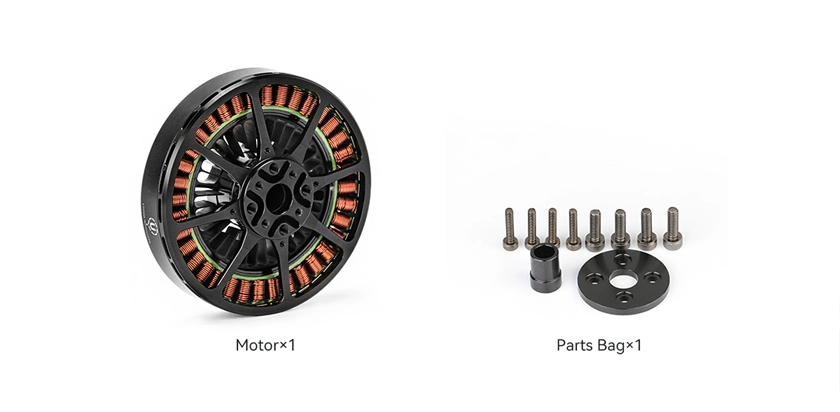

Packing List Includes:
1x T-MOTOR U8 Lite L Motor
1x Hardware pack
"U Efficiency" motors (from U-series) are aimed for high end UAVs requiring long endurance. This kind of UAVs are usually for surveillance, cruise, security and protection, surveying and mapping.
Lightweight design allows you to fly longer, Industrial-grade dustproof and waterproof and anti-aging, greatly extends the working life of the motor. Curved magnets with precise tolerance control and rational magnet space for optimal motor magnetic circuit help improve motor performance. The motor uses imported customized bearings to extend the service life of the motor and ensure smooth flight and longer flight time.

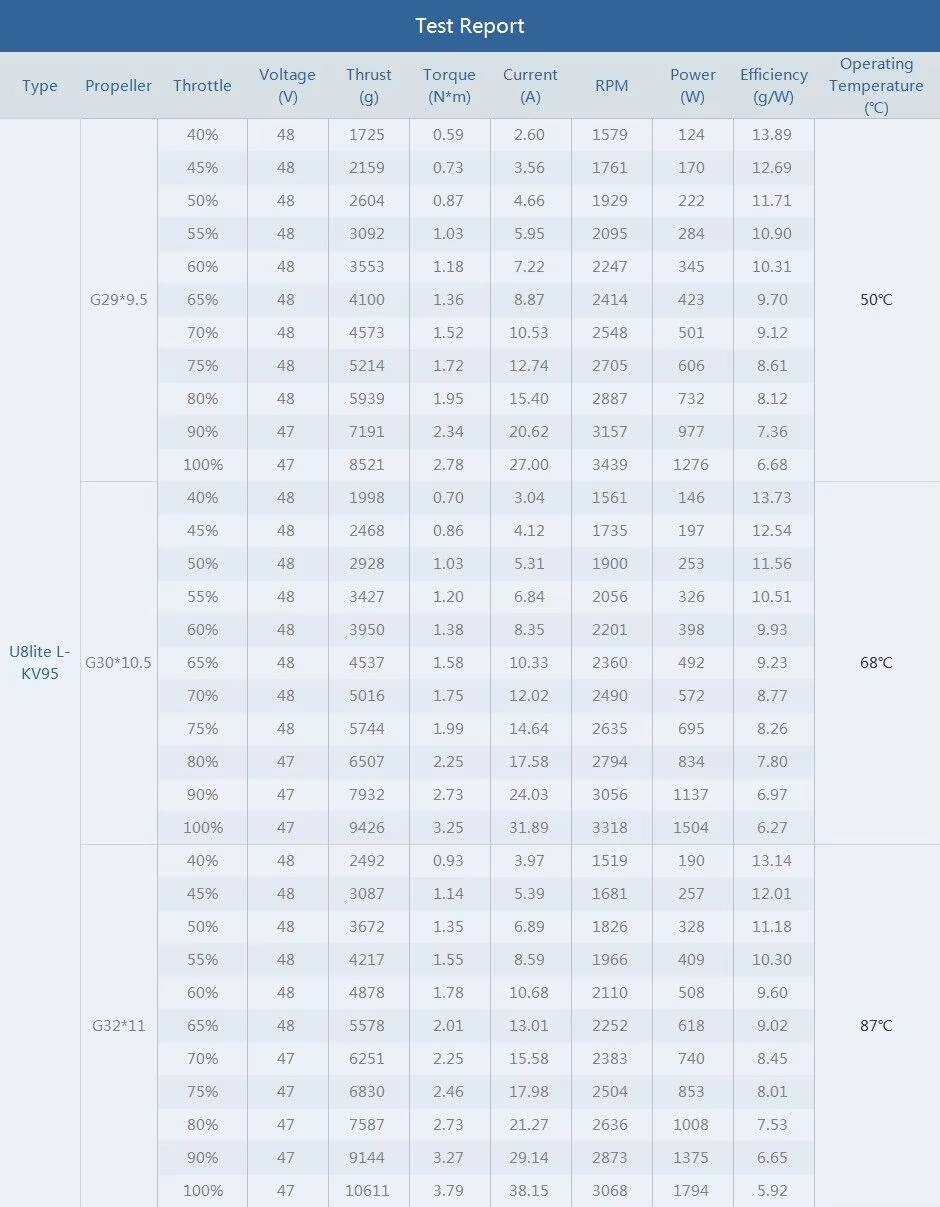

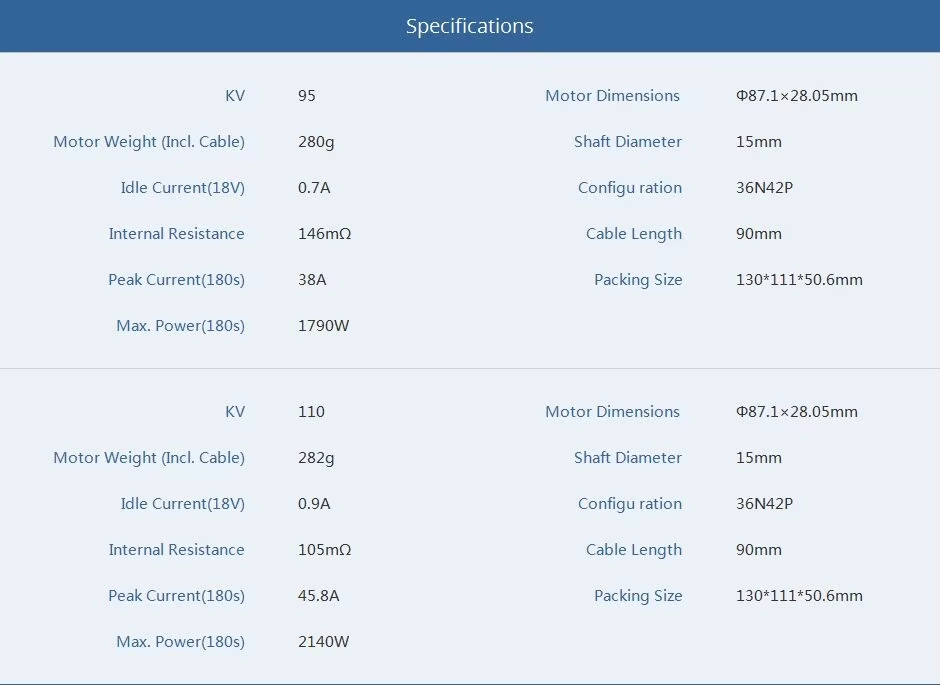

| U8 Lite L KV95 | |||
| Test Item | KV95 | Weight (Incl. Cable) | 280g |
| Motor Dimensions | A87.1*28.05mm | Internal Resistance | 146mΩ |
| Lead | 90mm | Configuration | 36N42P |
| Shaft Diameter | 15mm | Rated Voltage(Lipo) | 12S(4.2V/pc) / 48-52V |
| Shaft Diameter | 0.7A | Peak Current(180s) | 38A |
| Max. Power | 1790W | Certificates | CE. Rohs, ISO, FCC |

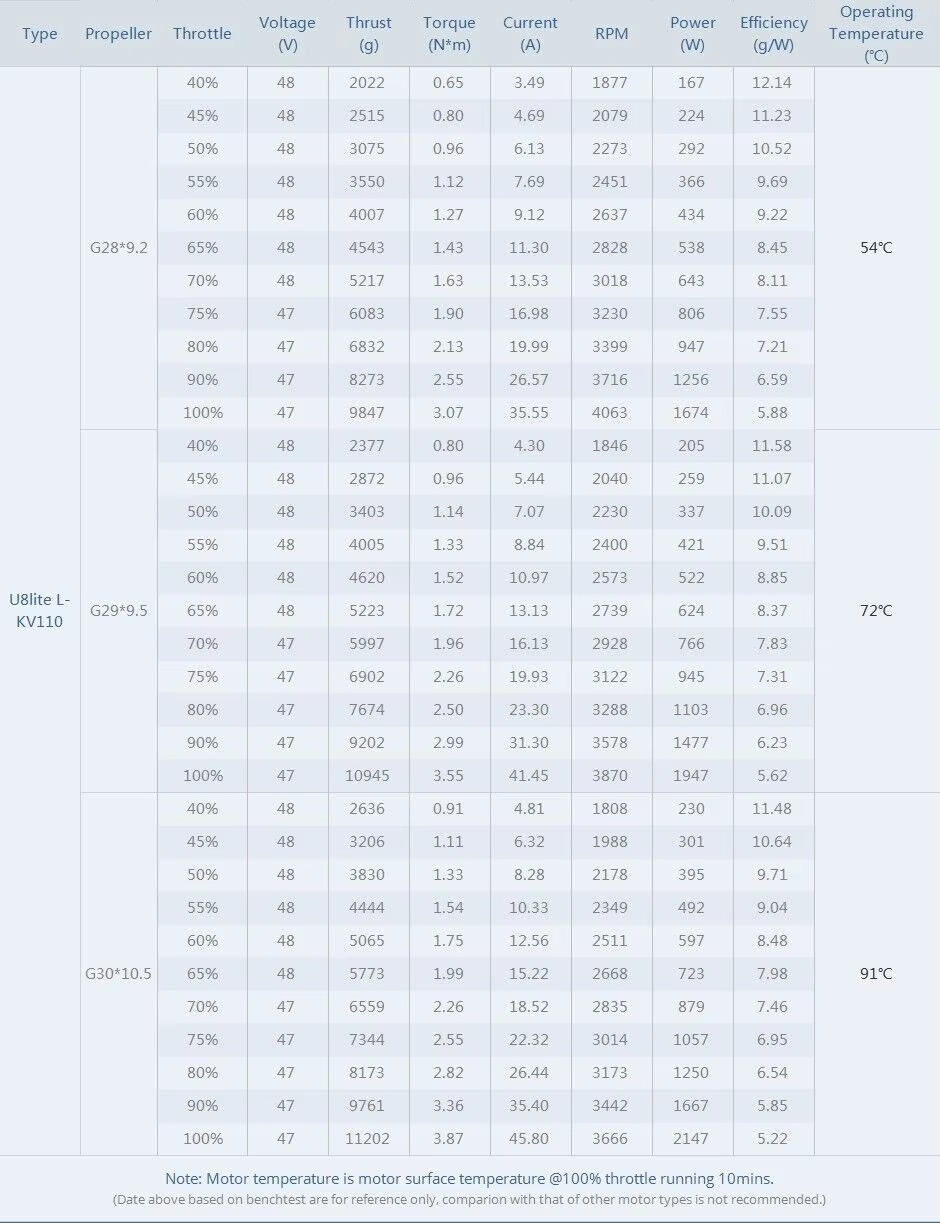

| U8 Lite L KV110 | |||
| Test Item | KV110 | Weight (Incl. Cable) | 282g |
| Motor Dimensions | A87.1*28.05mm | Internal Resistance | 105mΩ |
| Lead | Enameled Wire 90mm | Configuration | 36N42P |
| Shaft Diameter | 15mm | Rated Voltage(Lipo) | 12S(4.2V/pc) / 48-52V |
| Shaft Diameter | 0.9A | Peak Current(180s) | 45.8A |
| Max. Power | 2140W | Certificates | CE. Rohs, ISO, FCC |
