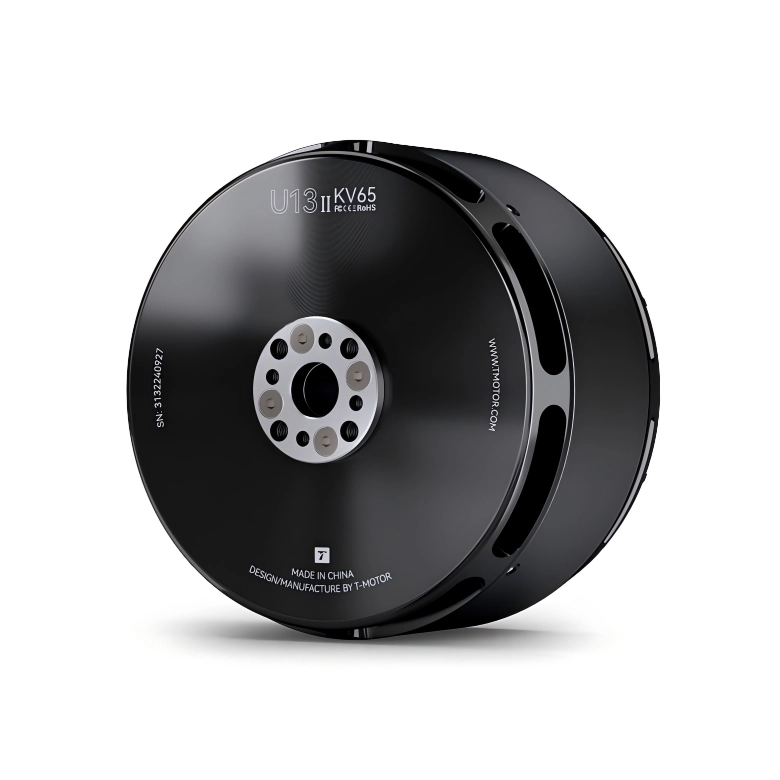

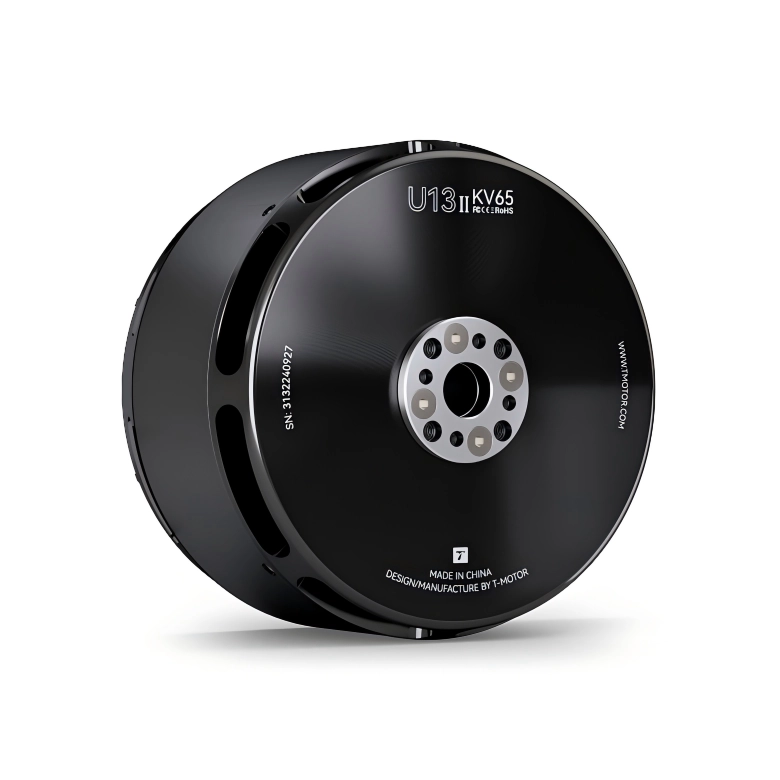

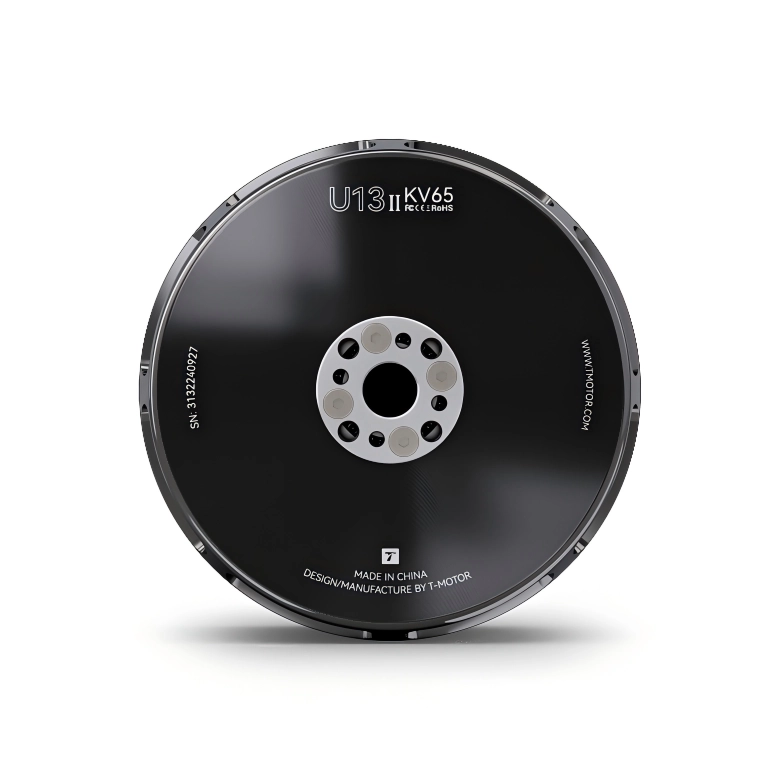

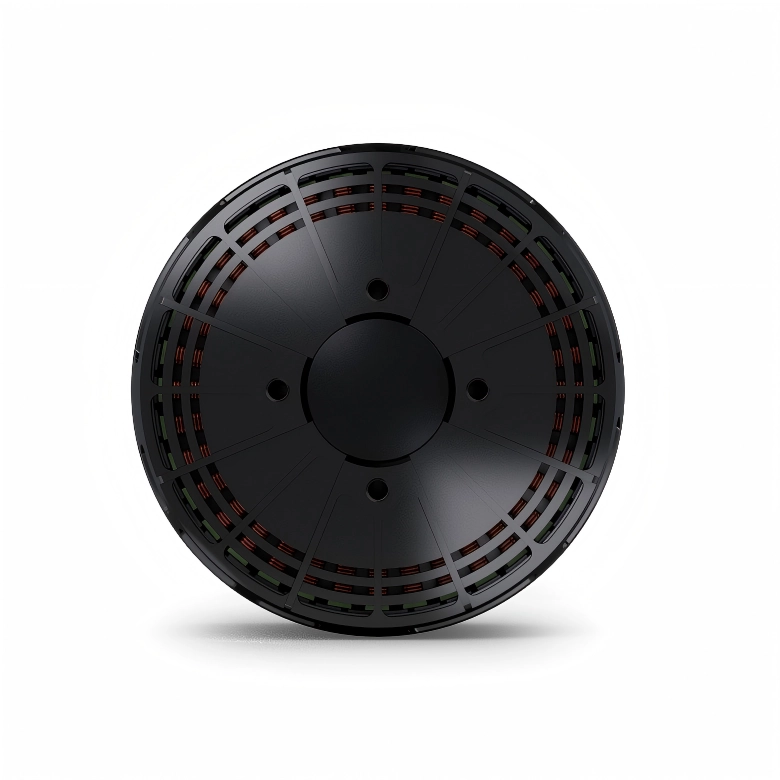

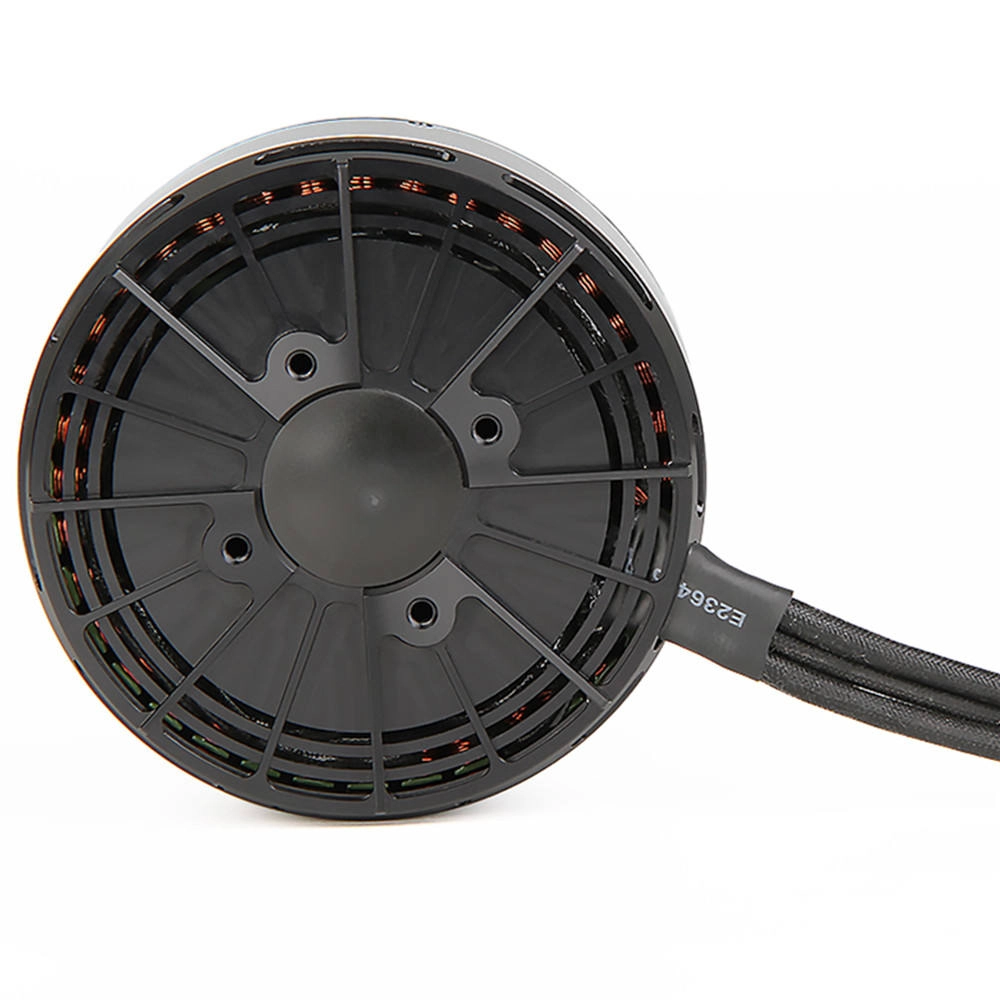

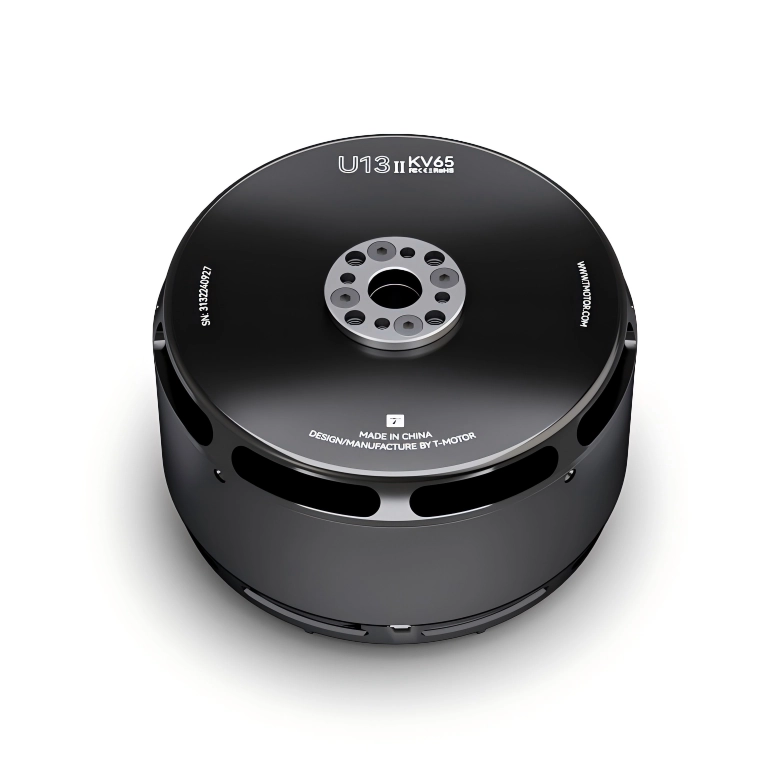

U13II T-MOTOR Heavy Load Electric Powerful Multirotor UAV Drone Motor

1.KV65
2.KV130

About T-MOTOR U13ⅡPower Type Multirotor UAV Motor KV65/KV30

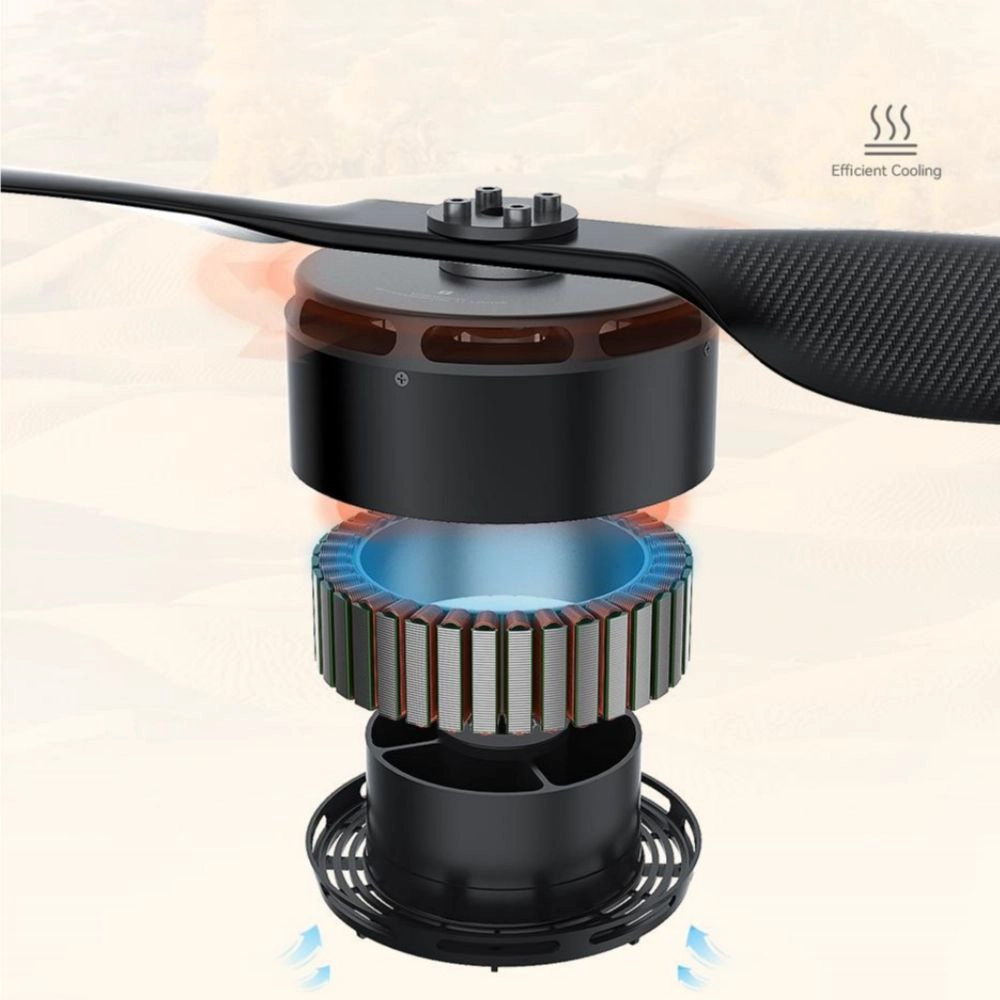

T-Motor UAV Brushless Multirotor Motor U13II KV65/KV130 delivers up to 24.3 kg thrust and has a 1000-hour service life. Designed for heavy loads and industrial use, it performs well at high temperatures. The newly redesigned iron core increases coil space and reduces weight, boosting the aircraft's payload capacity.

U13ⅡKV65/KV130 Highlights:

1.Max. thrust ：28.7kg

2.MTBF：About 1000hours

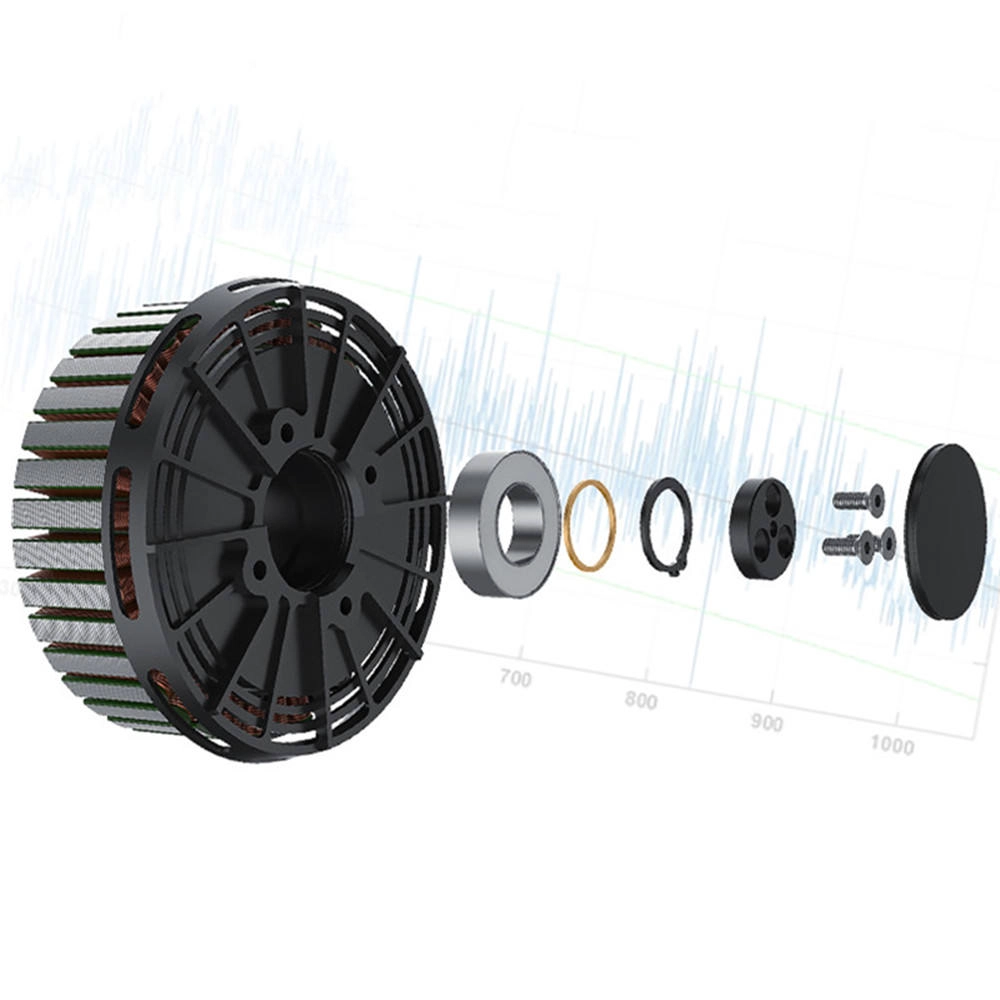

3.Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings

4.Industrial grade, dust proof, water proof.

Application Areas：

Aerial photography, Filming, Delivery service and Agriculture applications.

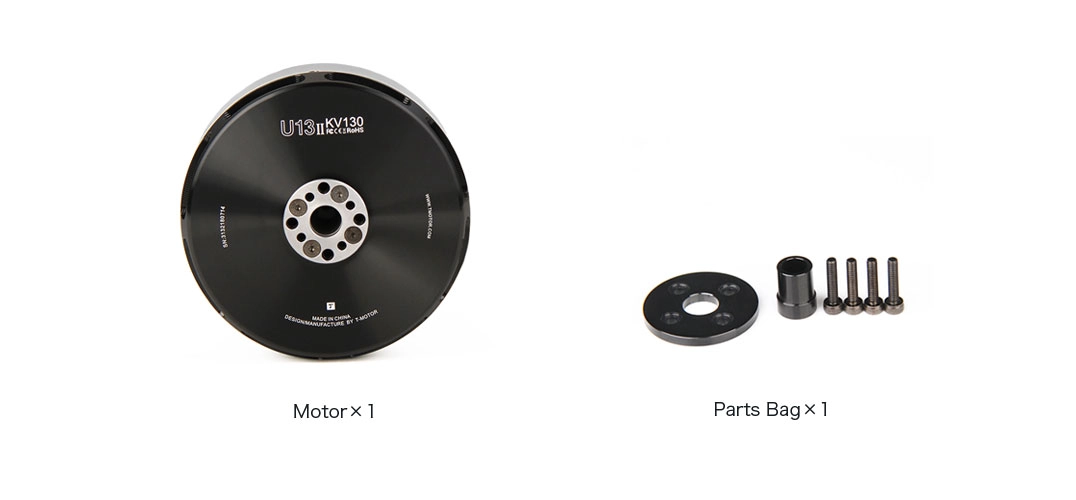

Packing List Includes:

1x T-MOTOR U13ⅡMotor KV65/KV130

1x Hardware pack

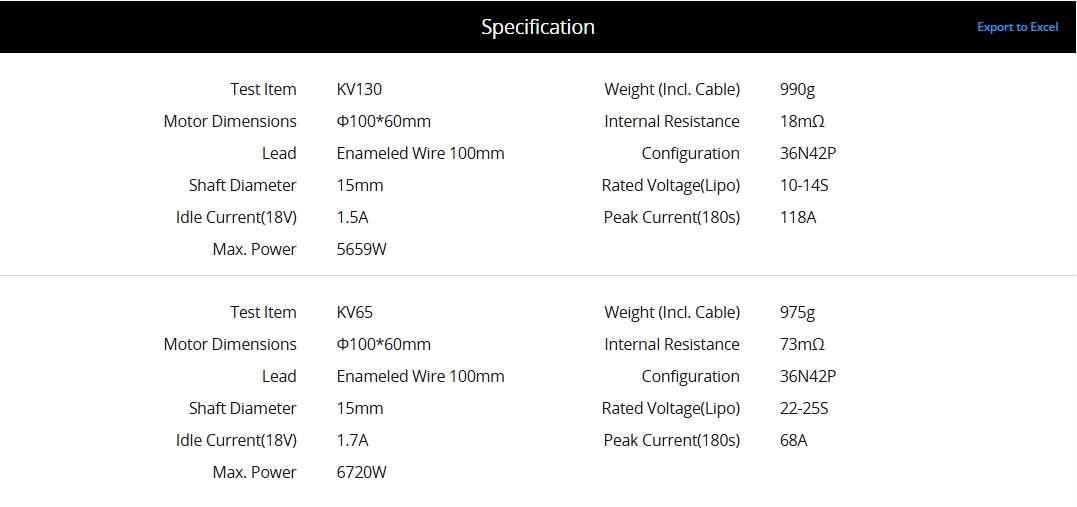

U13Ⅱ KV65
Test Item	KV65	Weight (Incl. Cable)	975g

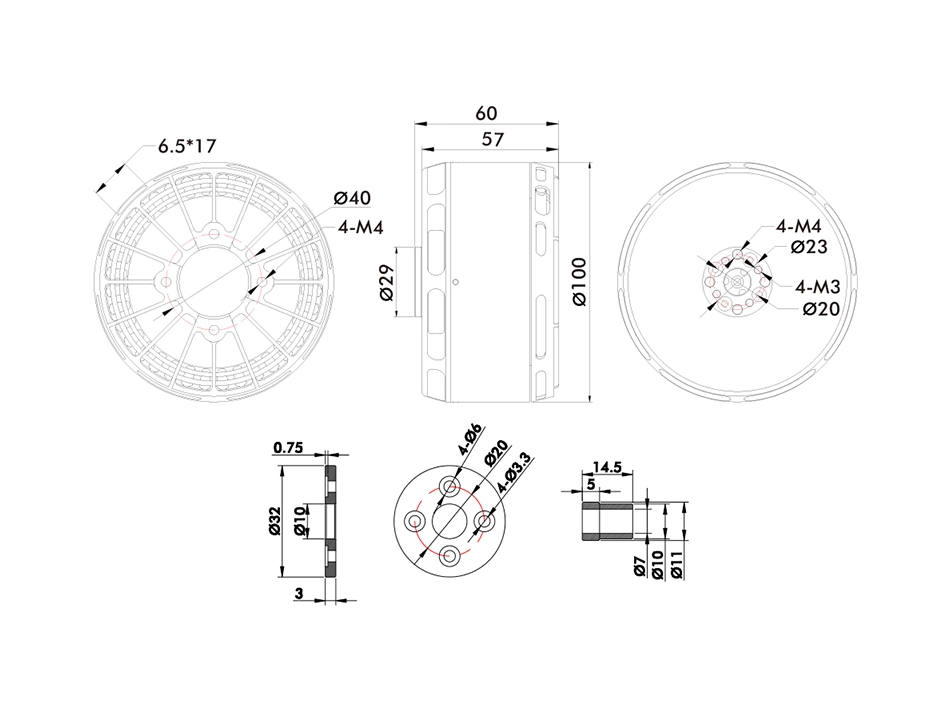

Motor Dimensions	A100*60mm	Internal Resistance	73mΩ
Lead	Enameled Wire 100mm	Configuration	36N42P
Shaft Diameter	15mm	Rated Voltage(Lipo)	22-25S
Shaft Diameter	1.7A	Peak Current(180s)	68A
Max. Power	6720W	Certificates	CE. Rohs, ISO, FCC

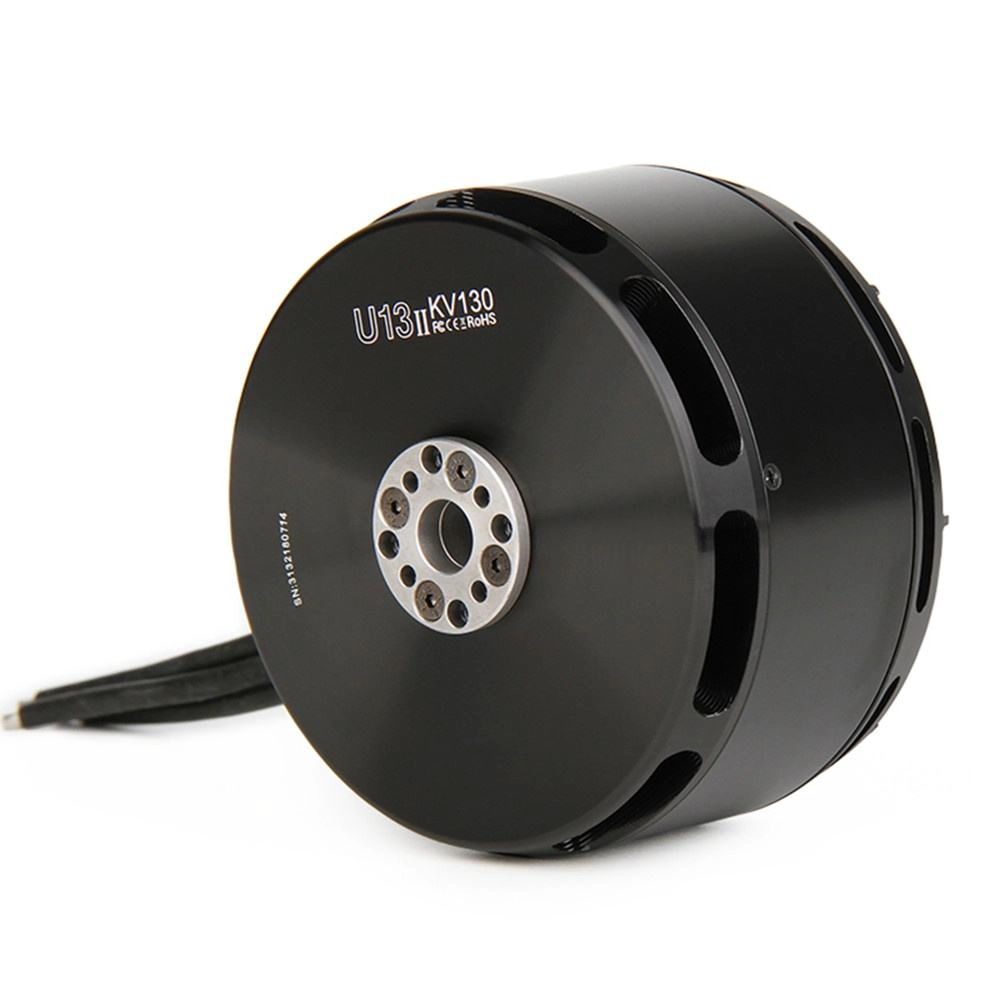

U13Ⅱ KV130
Test Item	KV130	Weight (Incl. Cable)	990g
Motor Dimensions	A100*60mm	Internal Resistance	18mΩ
Lead	Enameled Wire 100mm	Configuration	36N42P
Shaft Diameter	15mm	Rated Voltage(Lipo)	10-14S
Shaft Diameter	1.5A	Peak Current(180s)	118A
Max. Power	5659W	Certificates	CE. Rohs, ISO, FCC
