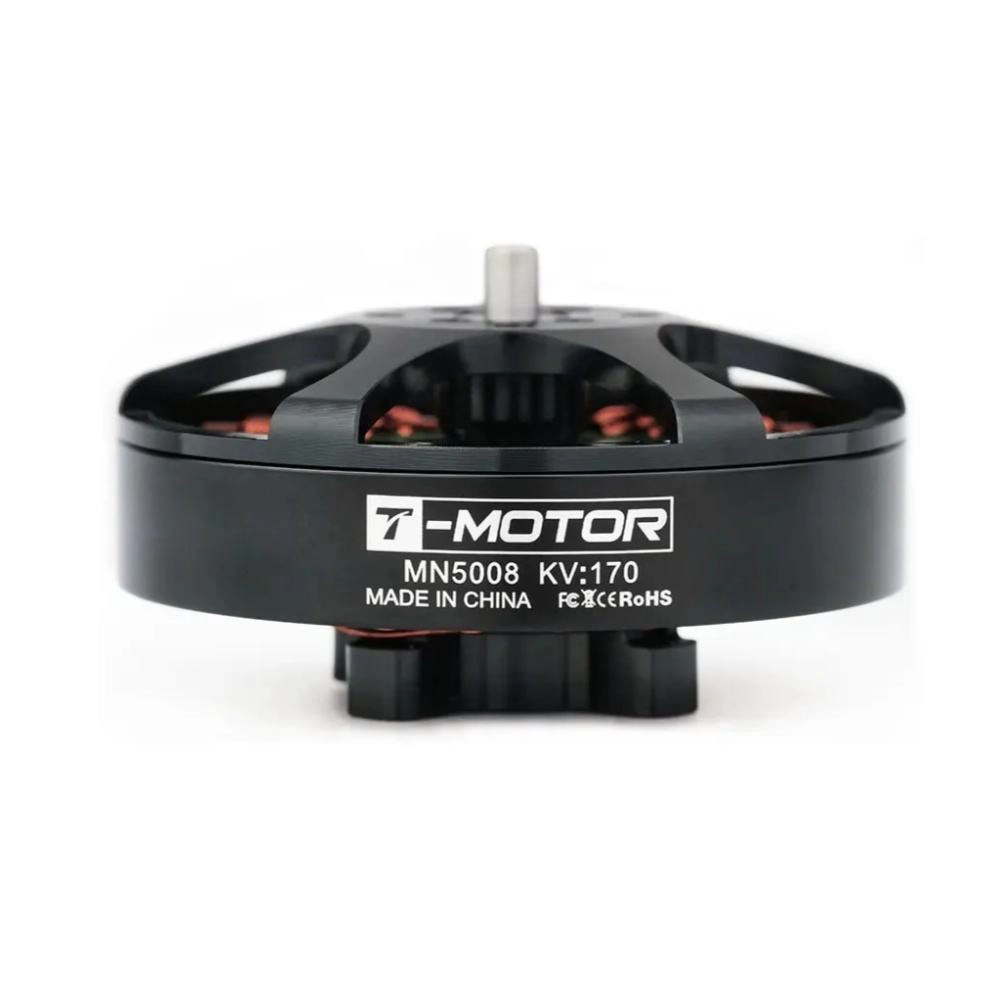

MN5008 T-MOTOR Multi-copter Outrunner Brushless Motor for RC Plane Delivery Drone
- 1.KV170
- 2.KV340
- 3.KV400

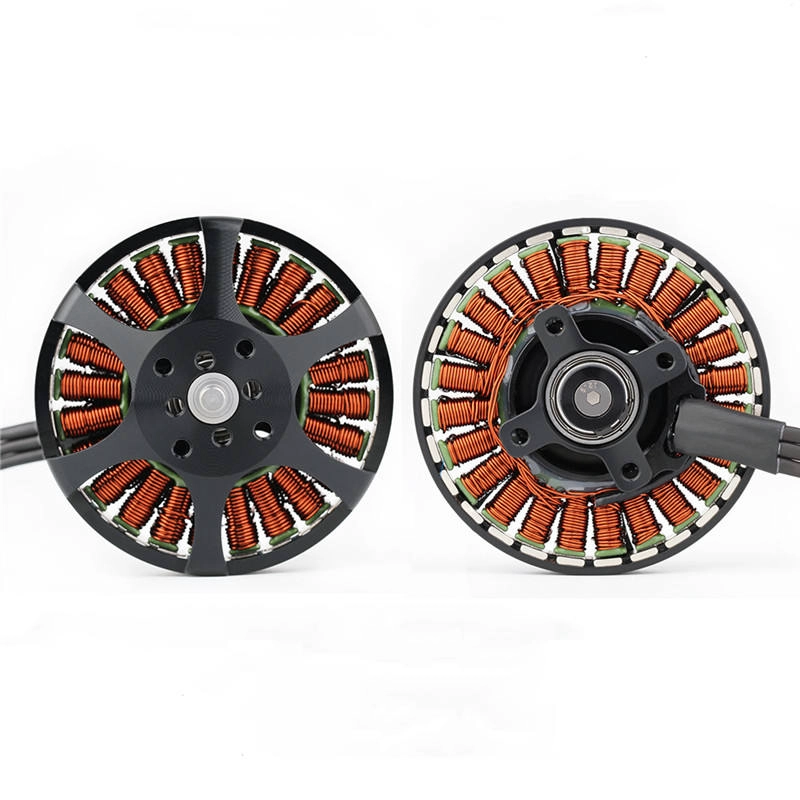

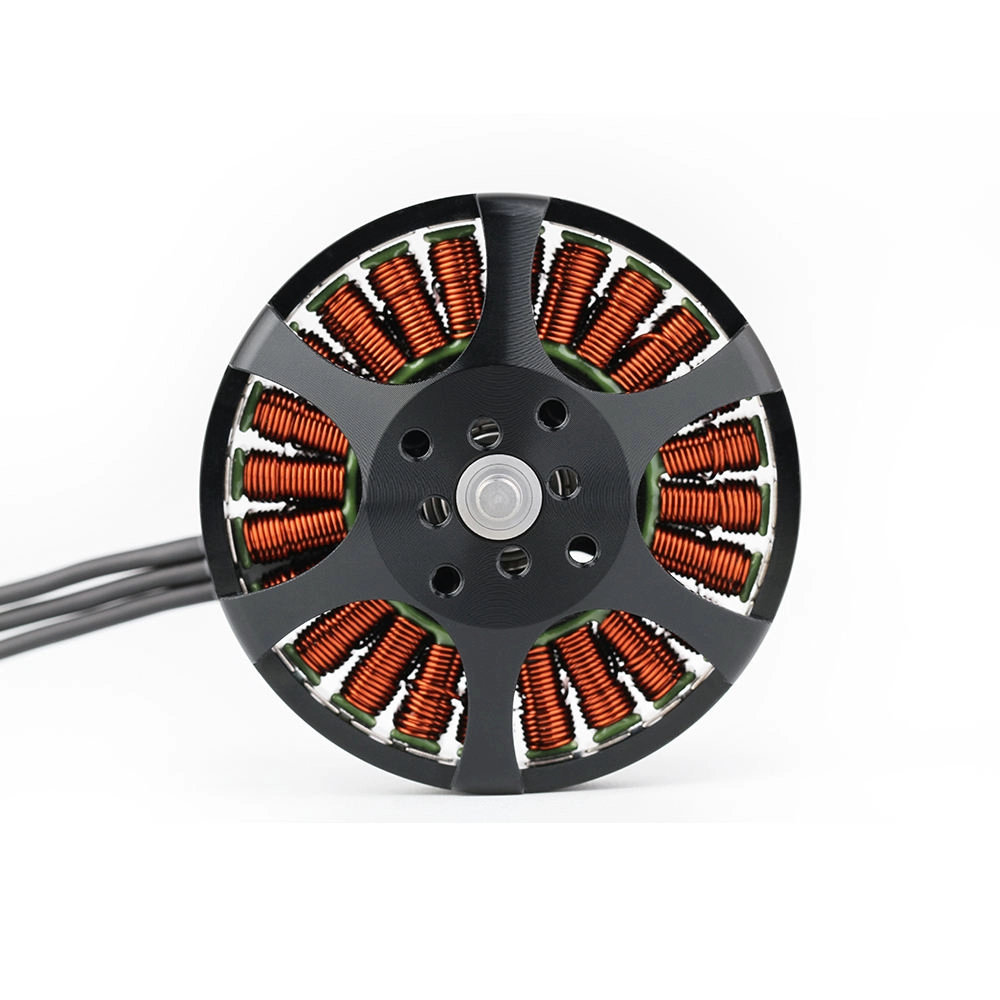

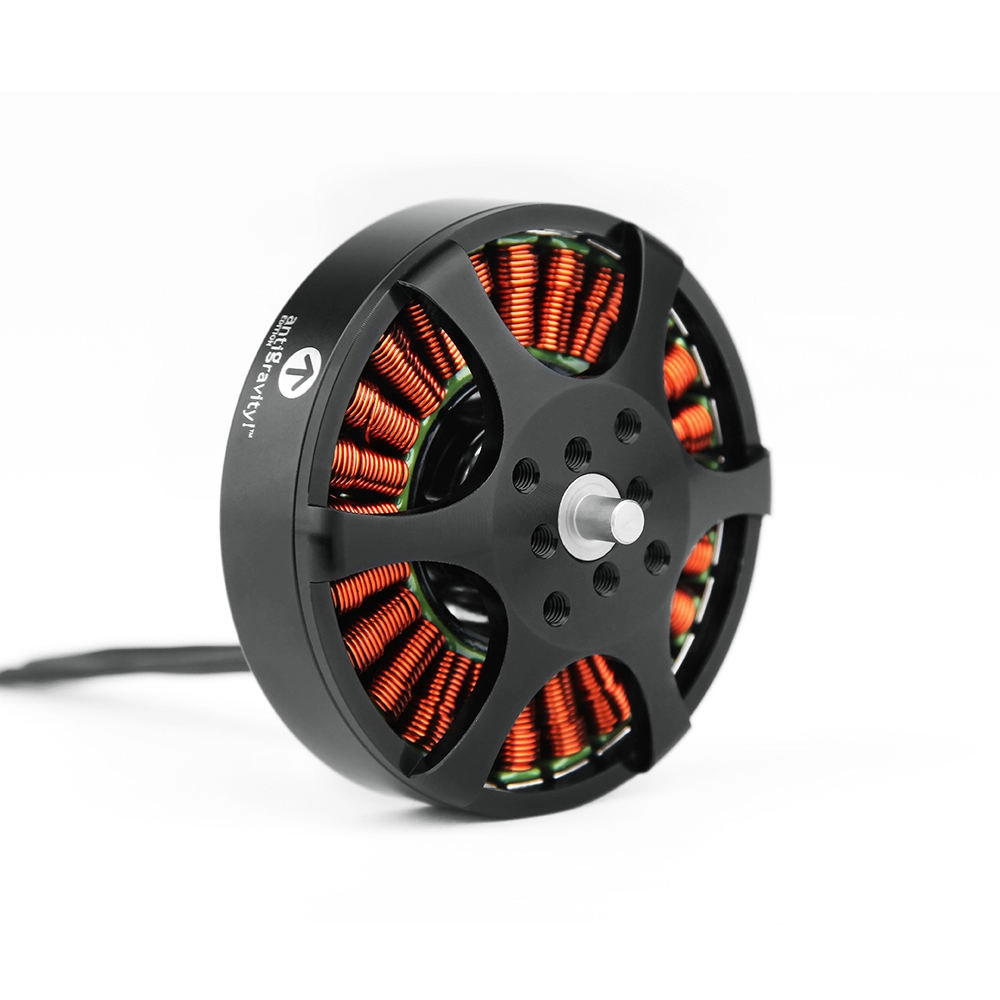

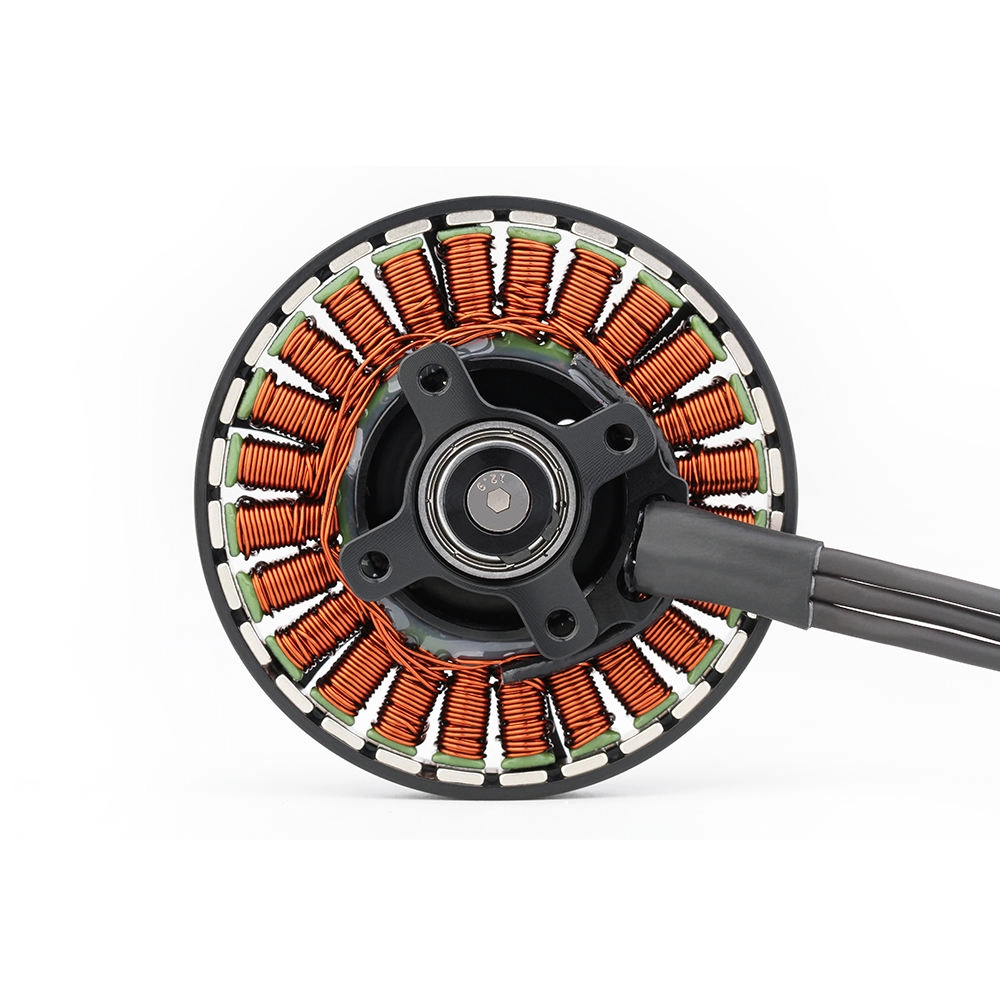

About T-MOTOR MN5008 Multirotor VTOL UAV Motor
T-Motor Antigravity MN5008 is a high-performance brushless motor designed for professionals who demand the best in power, efficiency, and stability. Whether you're capturing breathtaking aerial photography or performing detailed surveying, this ultralight motor ensures long flight times and exceptional maneuverability, even in challenging conditions.

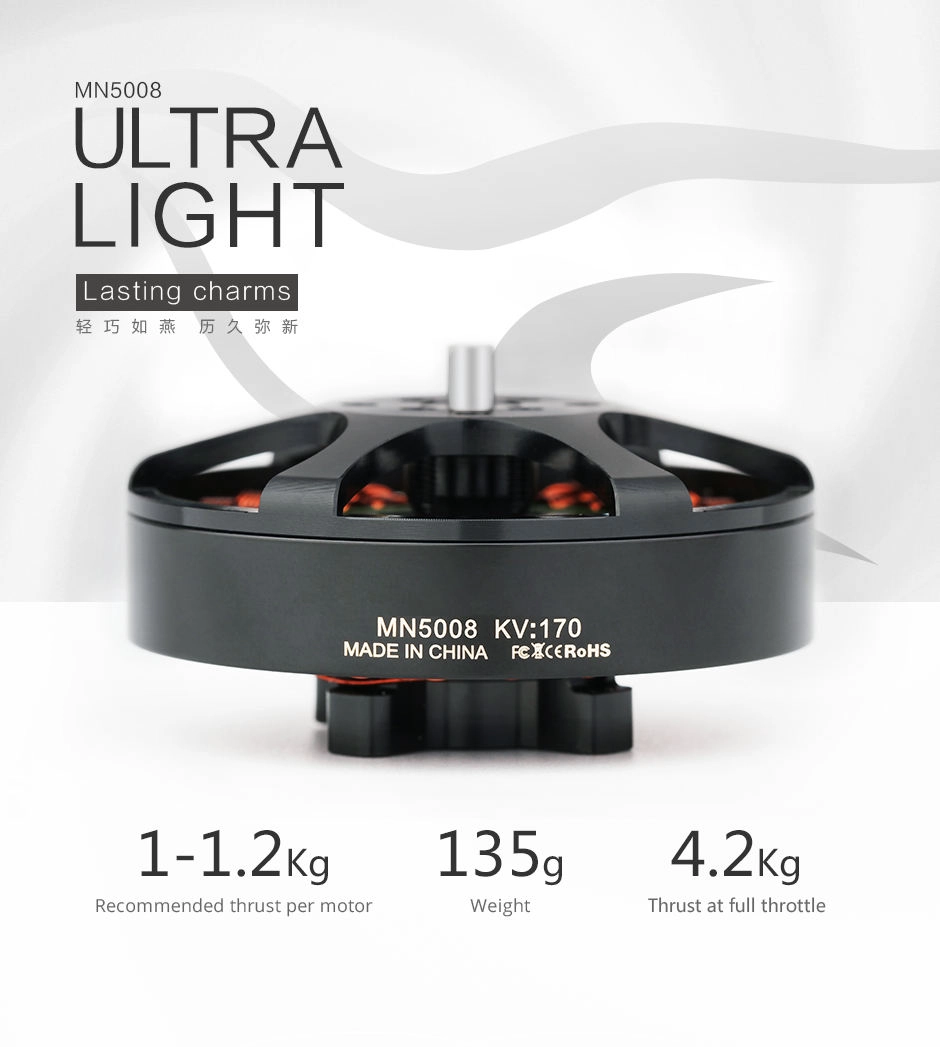

Antigravity MN5008 Highlights:
• Ultra light, high efficiency
• Devote to long flight
• Quadcopter of 4.2kg, 60mins flight time
• Run smoothly, low cogging torque
" Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.
Application Areas：
* Multi-rotors, VTOL，UAVs，Heavy-duty professional drones
* Aerial photography
* Surveying and mapping
* Rescue

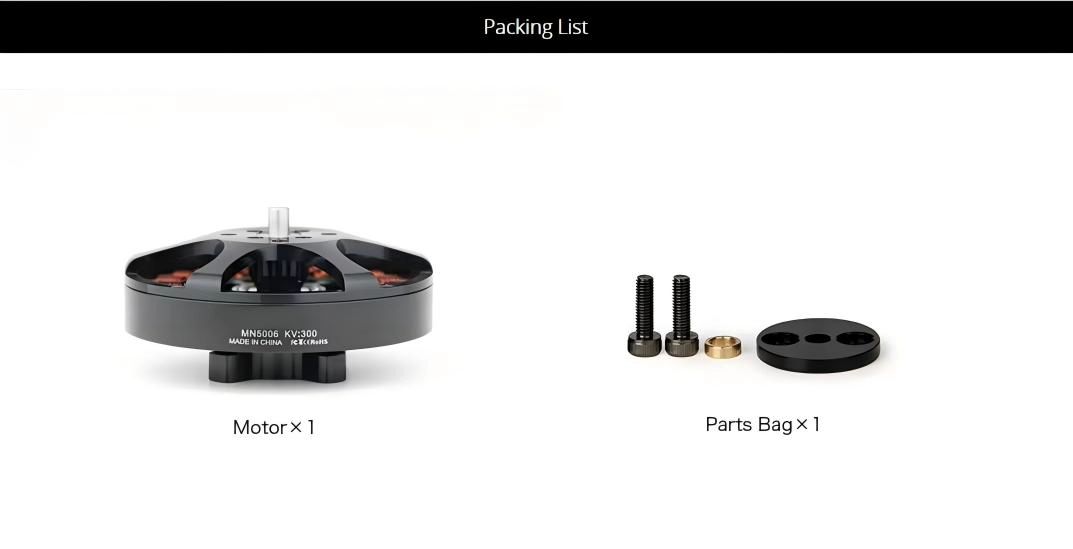

Packing List Includes:
1 x T-MOTOR MN5008 KV170( kv which you choose)
1 x Hardware pack

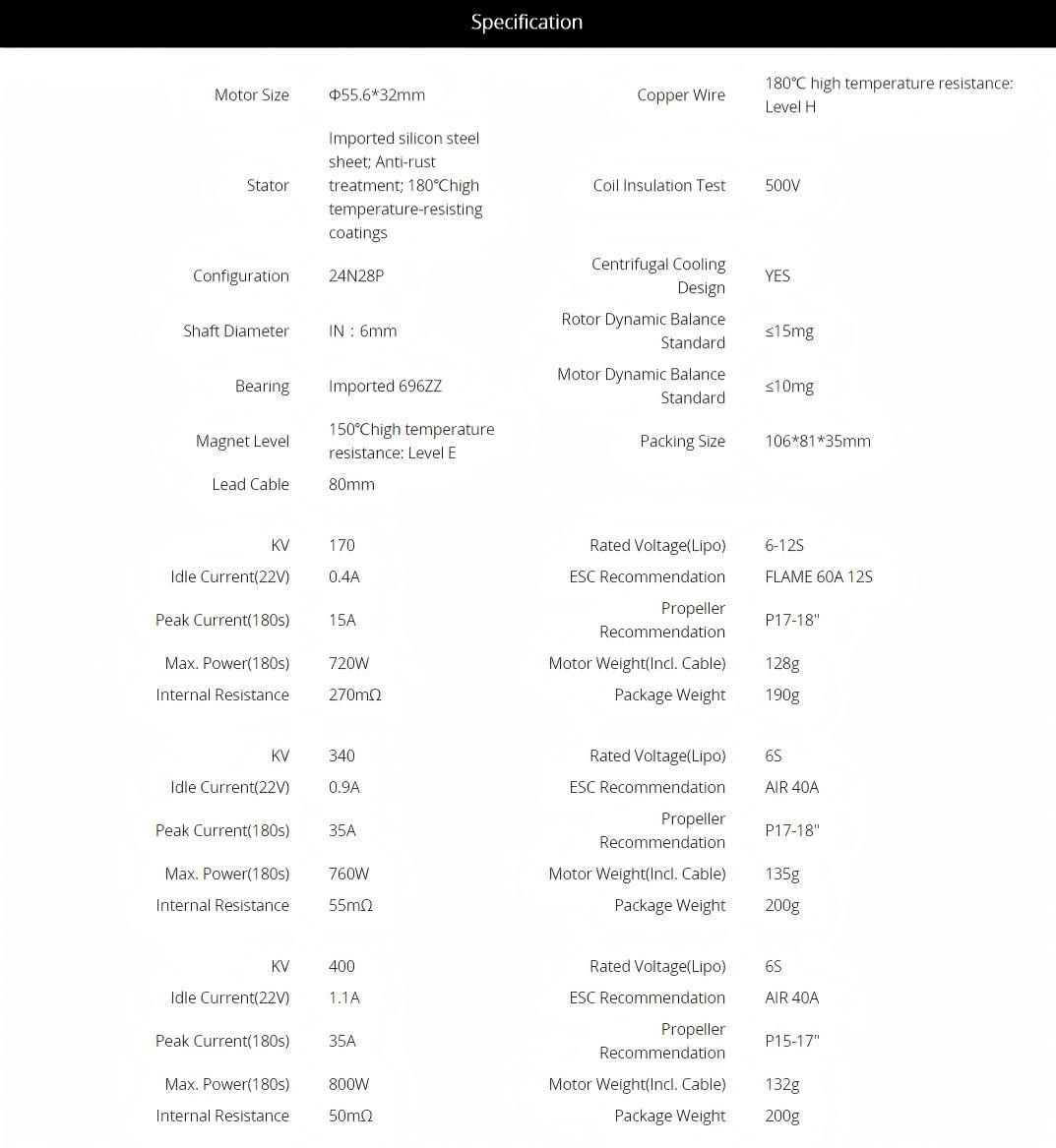

| MN5008 Specification | |
| Motor Weight(Incl. Cable) | 128g |

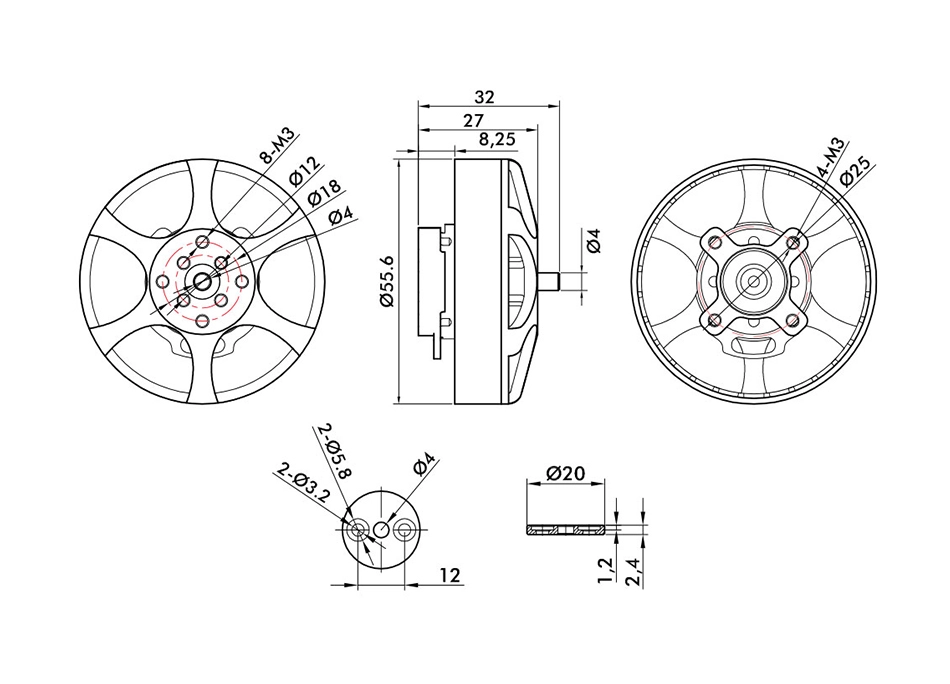

| Motor Size | Φ55.6*32mm |
| Shaft Diameter | IN6mm |
| Configuration | 24N28P |
| Lead Cable | 80mm |
| MOQ | 1 Pcs |
| MN5008 KV170 | |
| Internal Resistance | 270mΩ |
| Max Continuous Power 180S | 720W |
| Idle Current(22V) | 0.4A |
| Peak Current(180s) | 15A |
| Rated Voltage(Lipo) | 6-12S |
| MN5008 KV340 | |
| Internal Resistance | 55mΩ |
| Max Continuous Power 180S | 760W |
| Idle Current(22V) | 0.9A |
| Peak Current(180s) | 35A |
| Rated Voltage(Lipo) | 6S |
| MN5008KV400 | |
| Internal Resistance | 50mΩ |
| Max Continuous Power 180S | 800W |
| Idle Current(22V) | 1.1A |
| Peak Current(180s) | 35A |
| Rated Voltage(Lipo) | 6S |
