The T-Motor AM600 is a high torque brushless motor engineered for fixed-wing 3D freestyle flight. As a precision-engineered brushless motor for drones, it features a family-style hollow-out design and large-diameter structure, combining lightweight construction with exceptional strength. Boasting ultra-fast response and robust torque, it enables zero-lag control. With precise bearing clearance and a 6S power supply, it delivers 1700W power and an 8298g maximum pull force, making it a top-tier racing drone motor for reliable, high-performance extreme aerial maneuvers.
AM600 Highlights:
*Zero-lag 3D flight
*Ultra-fast response switching
*Lightweight hollow structure
*Large diameter, high torque
*8298g max pull force
*Hard Lock nut design
*3:1 ratio for better heat dissipation

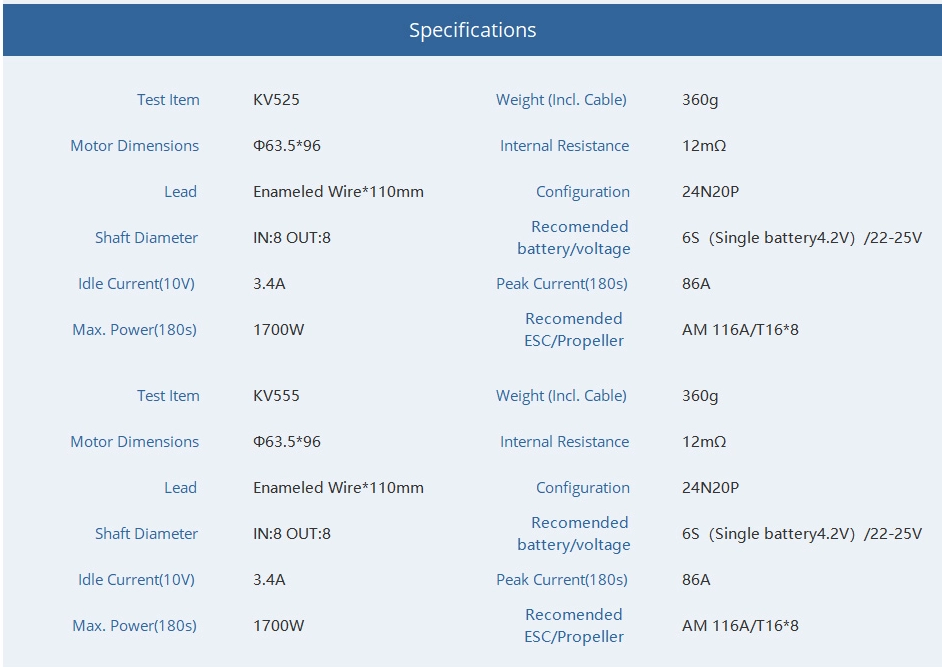

| AM600 KV525 | |

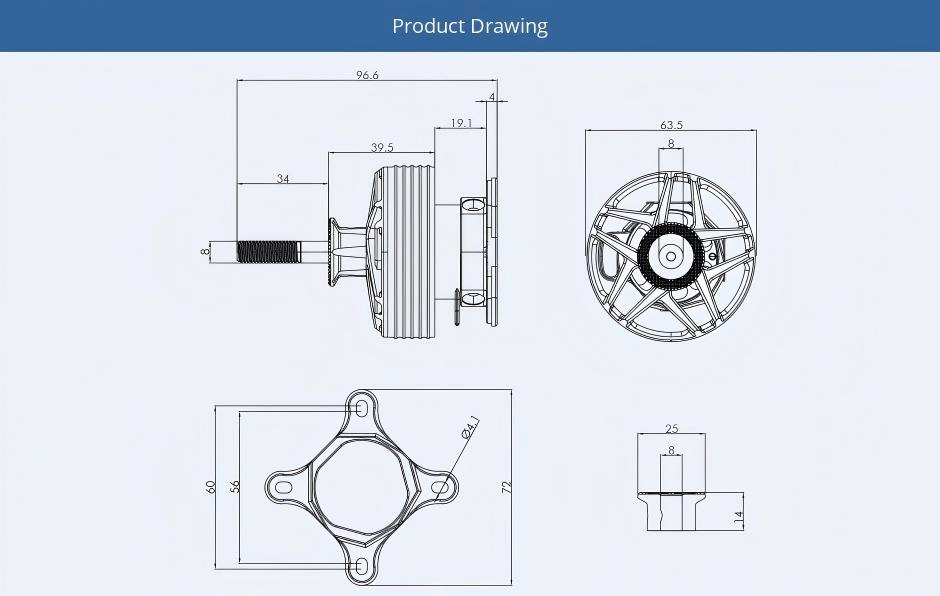

| Motor Size(mm) | A63.5*96 |
| Lead | Enameled Wire*110mm |
| Shaft Diameter | IN:8 OUT:8 |
| Idle Current(10V) | 3.4A |
| Max. Power(60s) | 1700W |
| Weight (Incl. Cable) | 360g |
| Configuration | 24N20P |
| Rated Voltage(Lipo) | 6S(Single battery4.2V)/22-25V |
| Peak Current(180s) | 86A |
| AM600 KV555 | |
| Motor Size(mm) | A63.5*96 |
| Lead | Enameled Wire*110mm |
| Shaft Diameter | IN:8 OUT:8 |
| Idle Current(10V) | 3.4A |
| Max. Power(60s) | 1700W |
| Weight (Incl. Cable) | 360g |
| Configuration | 24N20P |
| Rated Voltage(Lipo) | 6S(Single battery4.2V)/22-25V |
| Peak Current(180s) | 86A |
