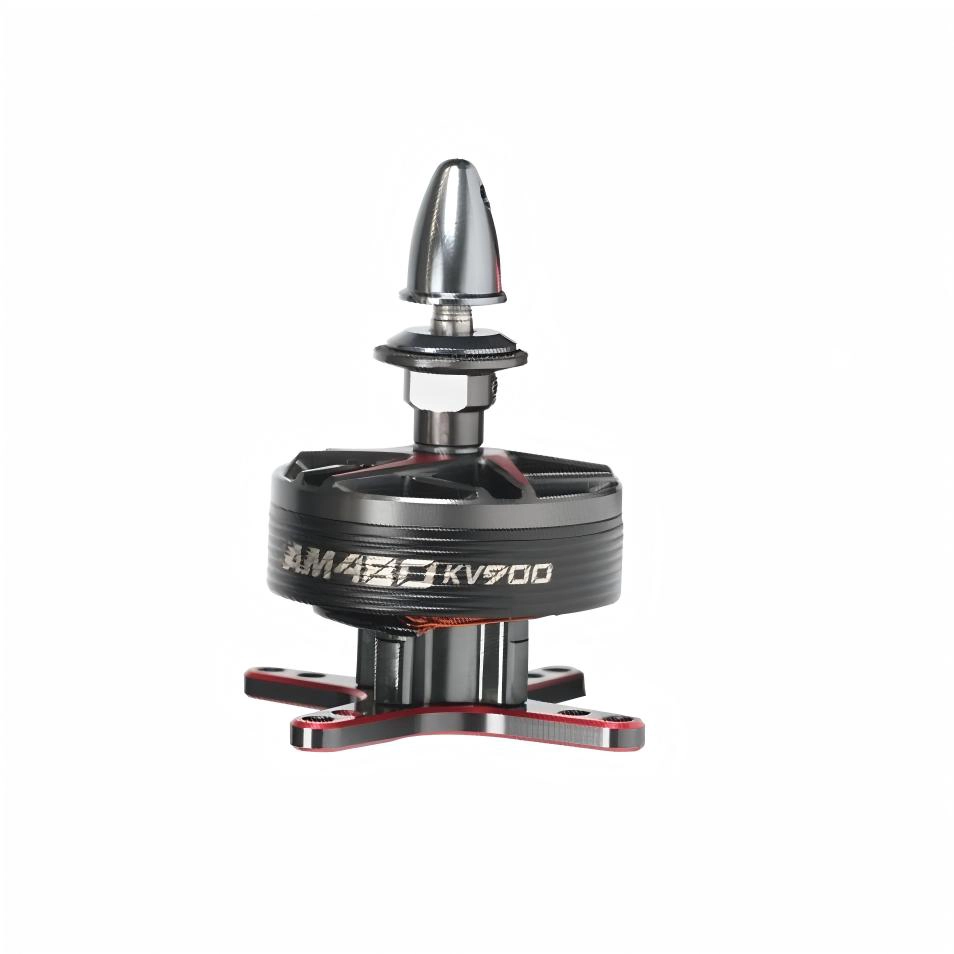

The T-Motor AM480 3D brushless motor is a low noise brushless motor engineered for fixed-wing and 3D freestyle flight. As a high efficiency drone motor, it delivers up to 1150W of power, ensuring strong torque and responsive performance. This durable brushless motor features a lightweight structure, high-strength front cover, and adjustable dual-color base, making it ideal for drones, model aircraft, and racing models. Available in KV600, KV650, and KV900 variants, it combines reliability and precision for demanding aerial applications.

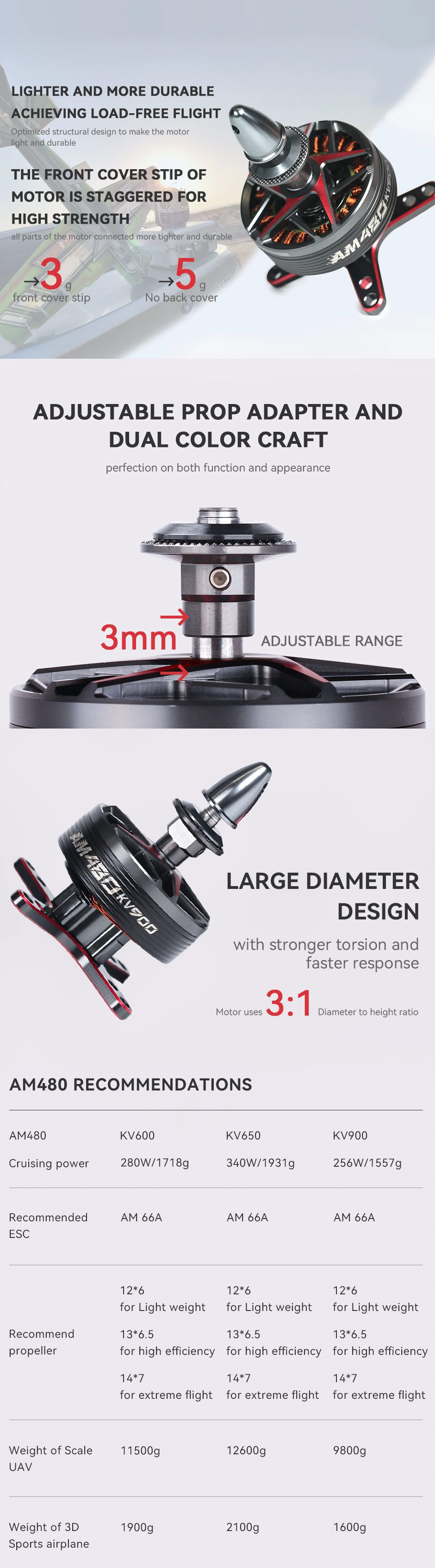

AM480 3D Highlights:
*Lightweight, explosion-resistant structure
*High-strength front cover design
*Adjustable dual-color prop mount
*Large diameter for high torque
*3:1 diameter-to-height ratio
*Low noise operation
*Versatile multi-scene use

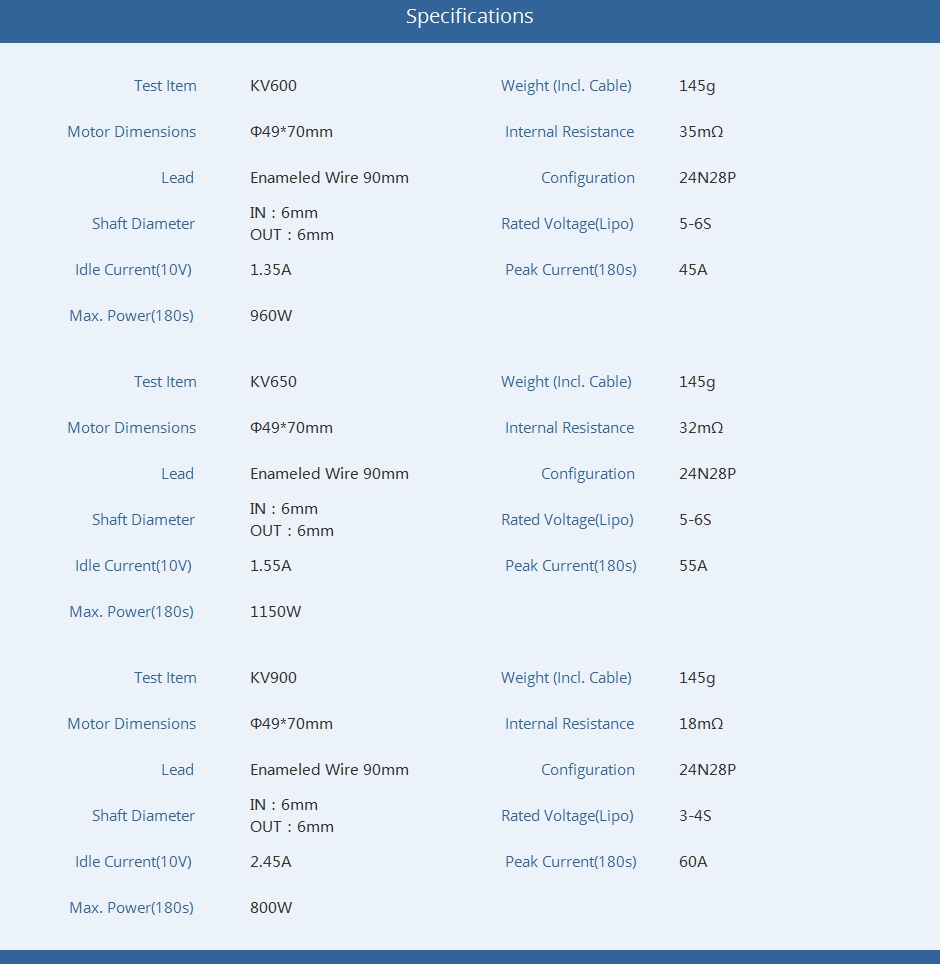

| AM480 KV600 | |

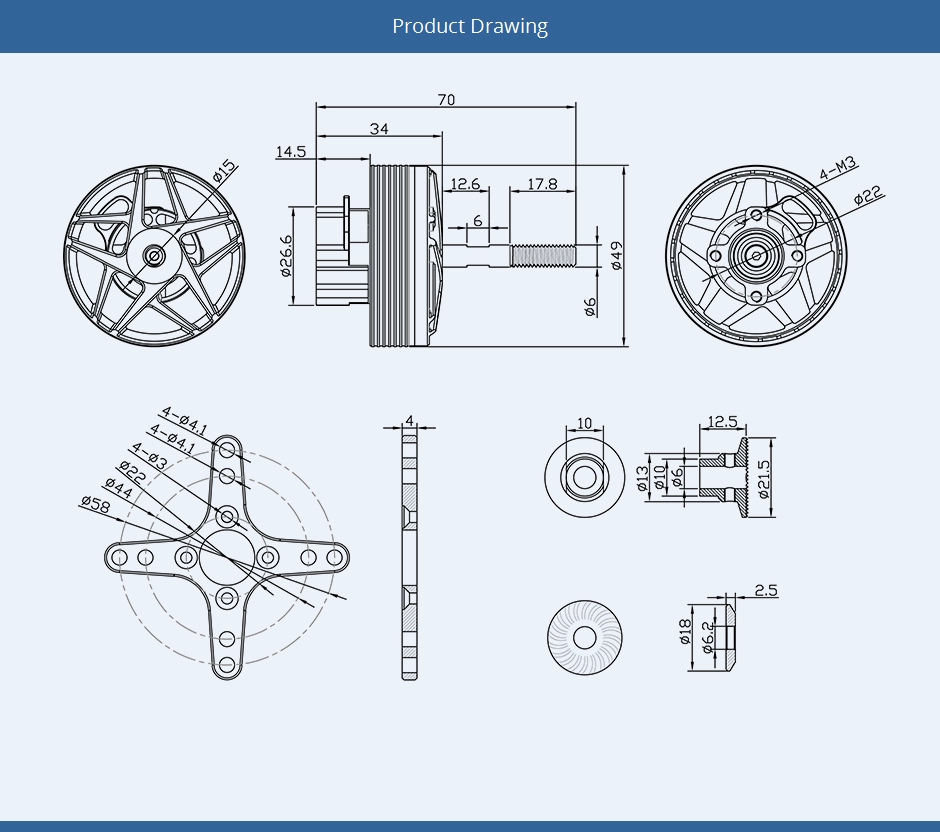

| Motor Size(mm) | Φ49*70mm |
| Lead | Enameled Wire 90mm |
| Shaft Diameter | IN：6mm OUT：6mm |
| Idle Current(10V) | 1.35A |
| Max. Power(60s) | 960W |
| Weight (Incl. Cable) | 145g |
| Configuration | 24N28P |
| Rated Voltage(Lipo) | 5-6S |
| Peak Current(180s) | 45A |
| AM480 KV650 | |
| Motor Size(mm) | Φ49*70mm |
| Lead | Enameled Wire 90mm |
| Shaft Diameter | IN：6mm OUT：6mm |
| Idle Current(10V) | 1.55A |
| Max. Power(60s) | 1150W |
| Weight (Incl. Cable) | 145g |
| Configuration | 24N28P |
| Rated Voltage(Lipo) | 5-6S |
| Peak Current(180s) | 55A |
| AM480 KV900 | |
| Motor Size(mm) | Φ49*70mm |
| Lead | Enameled Wire 90mm |
| Shaft Diameter | IN：6mm OUT：6mm |
| Idle Current(10V) | 2.45A |
| Max. Power(60s) | 800W |
| Weight (Incl. Cable) | 145g |
| Configuration | 24N28P |
| Rated Voltage(Lipo) | 3-4S |
| Peak Current(180s) | 60A |
