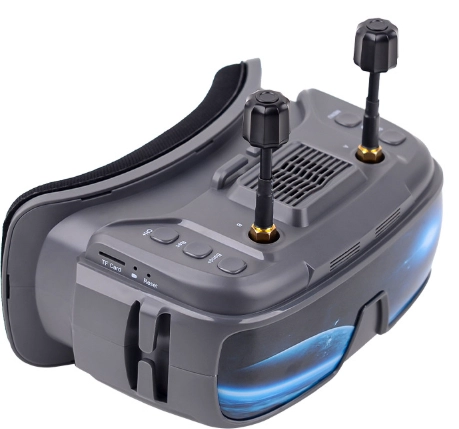

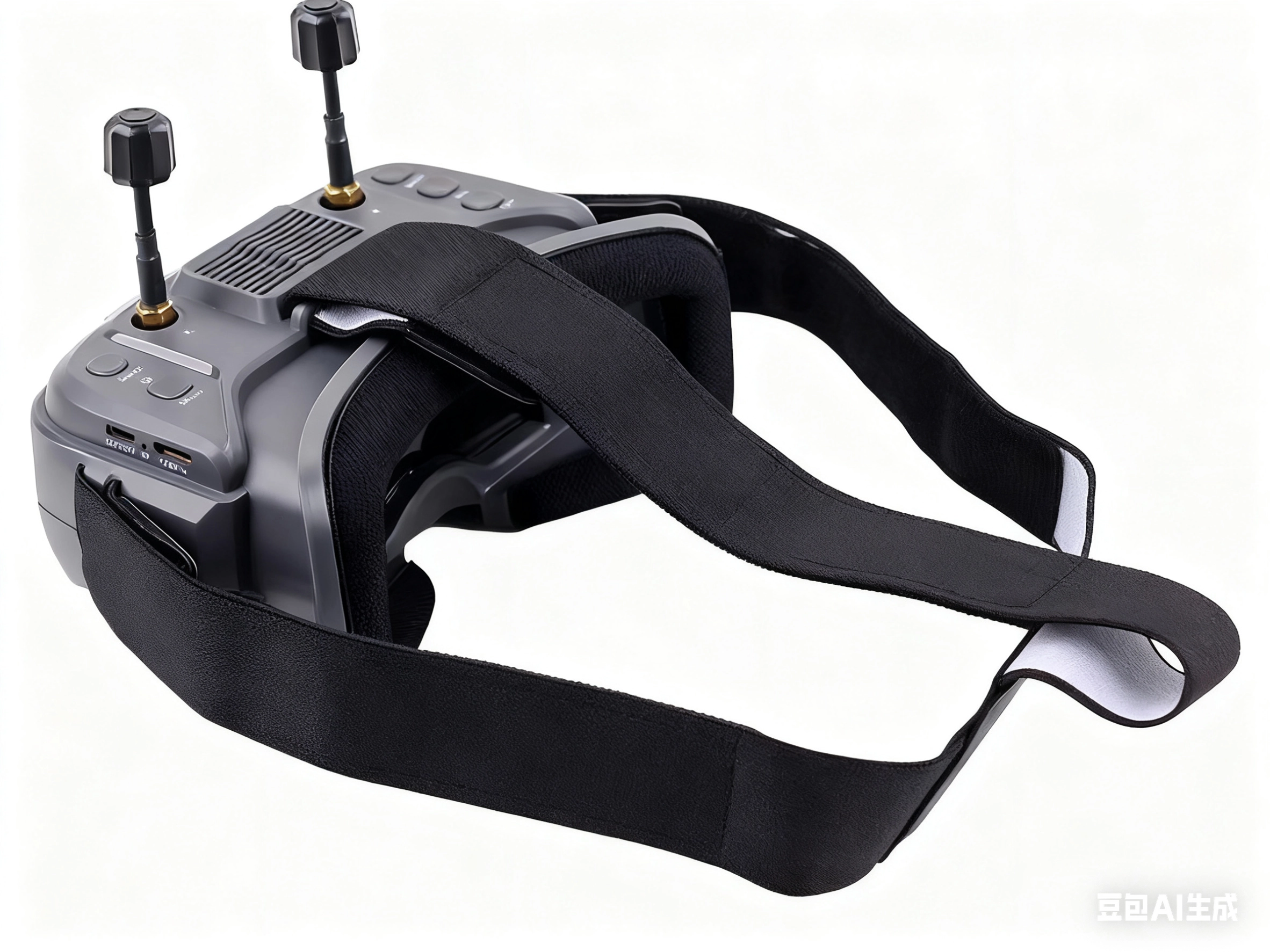

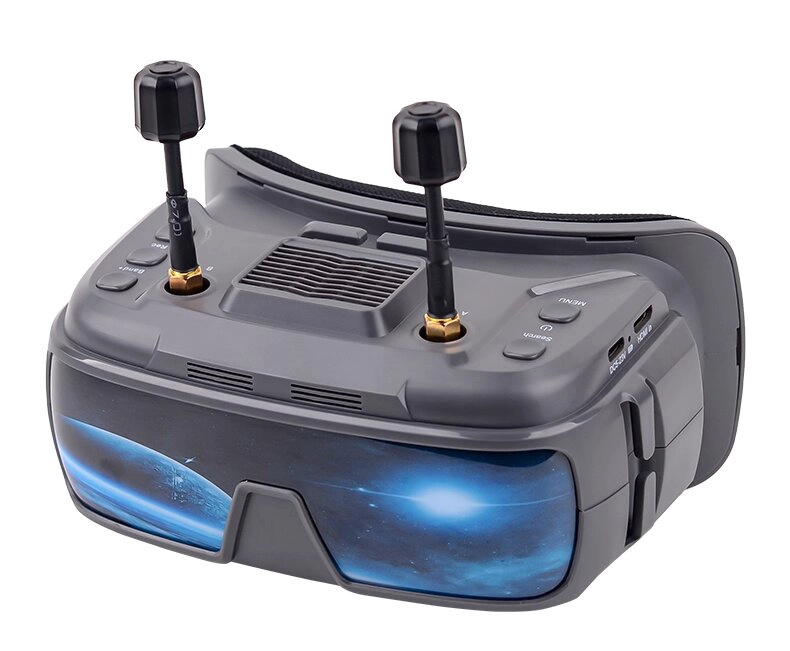

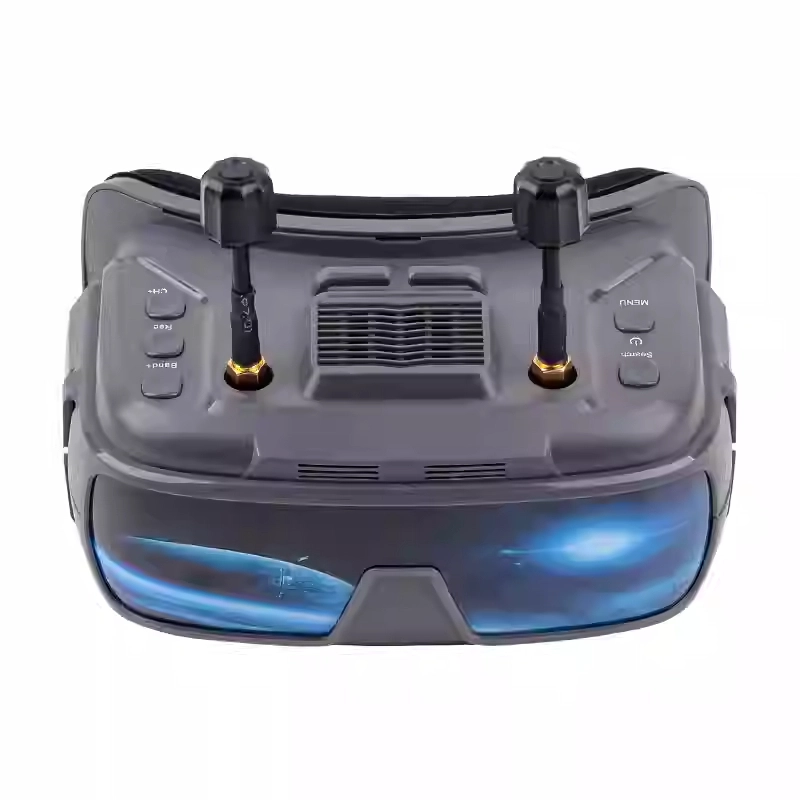

VR-200 HD Video Goggles with 0–700° Myopia Adjustment & 5.8G DVR Analog Video Transmission for FPV Drones

  • 1.VR-200

Our product features VR goggles with IPS High-Brightness Screen, delivering high-definition viewing. It has adjustable object distance (dual gears A/B) for 0-700 myopia users (no glasses needed), built-in DVR (max 32G), dual SMA antennas, multi-band switching, mini HDMI, TYPE-C wide-voltage charging, and a cooling fan for long-term stable VR goggles performance.


VR-200 Highlight:

- 0-700 myopia, no glasses
- Adjustable object distance
- Built-in DVR (max 32G)
- Dual SMA antennas
- Multi-band/frequency switching
- Mini HDMI interface
- TYPE-C wide-voltage charging
- Built-in cooling fan
- Humanized operation

Display Specifications:
Model VR200
Screen Material 3.5-inch IPS high-brightness panel
Resolution 1024*600
Aspect Ratio 16:9
Field of View 360-degree full-view
Backlight Brightness 500 cd/m²
Video Latency Less than 10ms

Interface Specifications:
Antenna Connector Internal pin antenna connector with SMA female port
Charging Port Type-C for internal battery charging (5-23V wide voltage charging)
HDMI Port HDMI jack supports video input
Menu Languages Chinese, English, Japanese, German, French, Spanish, Italian, Russian

DVR Specifications:
Recording Resolution VGA/D1/HD (three modes selectable)
Recording Duration Off/3 minutes/5 minutes/10 minutes (selectable)
Frame Rate 30 frames
Compression Format MJPEG
Recording File Format AVI

Battery & Power Consumption:
Power Adapter Recommended 12V2A or DC/5V2A charger
Battery Specifications Built-in 3.7V/2000mAh polymer battery
Power Consumption Operating current 1200mA; Full charge time approx. 1 hour, usage time approx. 1 hour
Dimensions 158mm x 116mm x 85mm

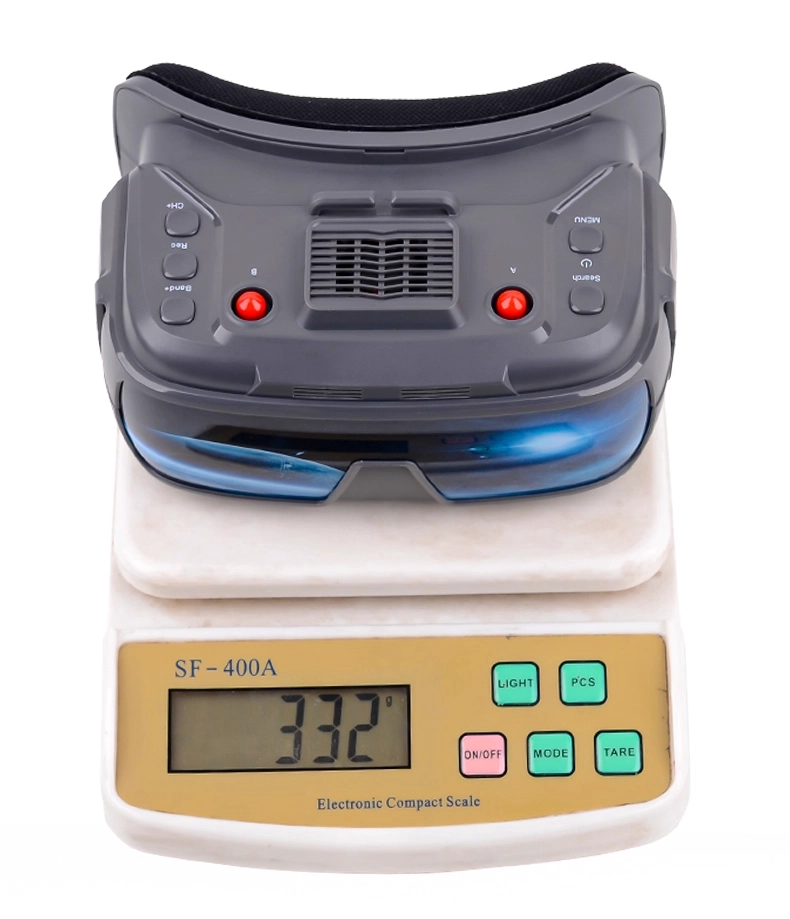

Weight 332g (excluding antenna)

Packing info:
Product net weight (g) 332g
Product dimension (mm) 158mmx116mmx85mm
