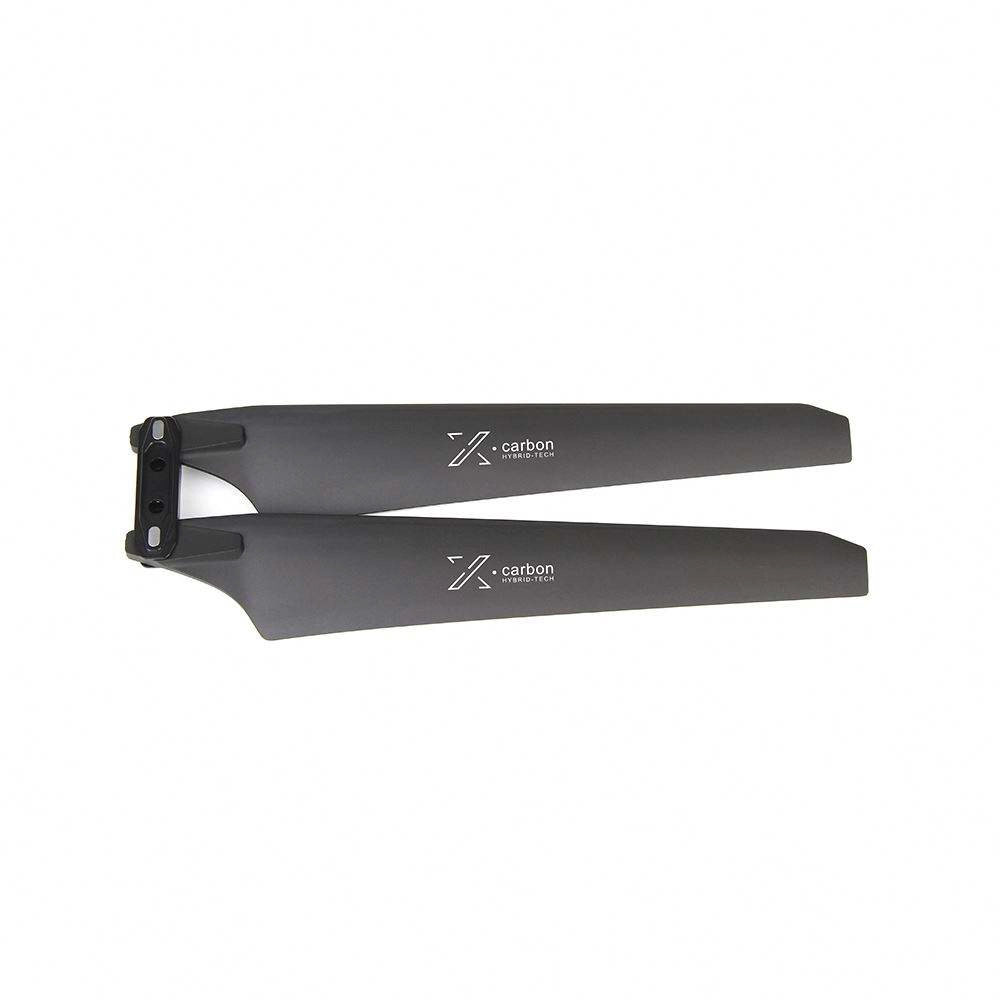

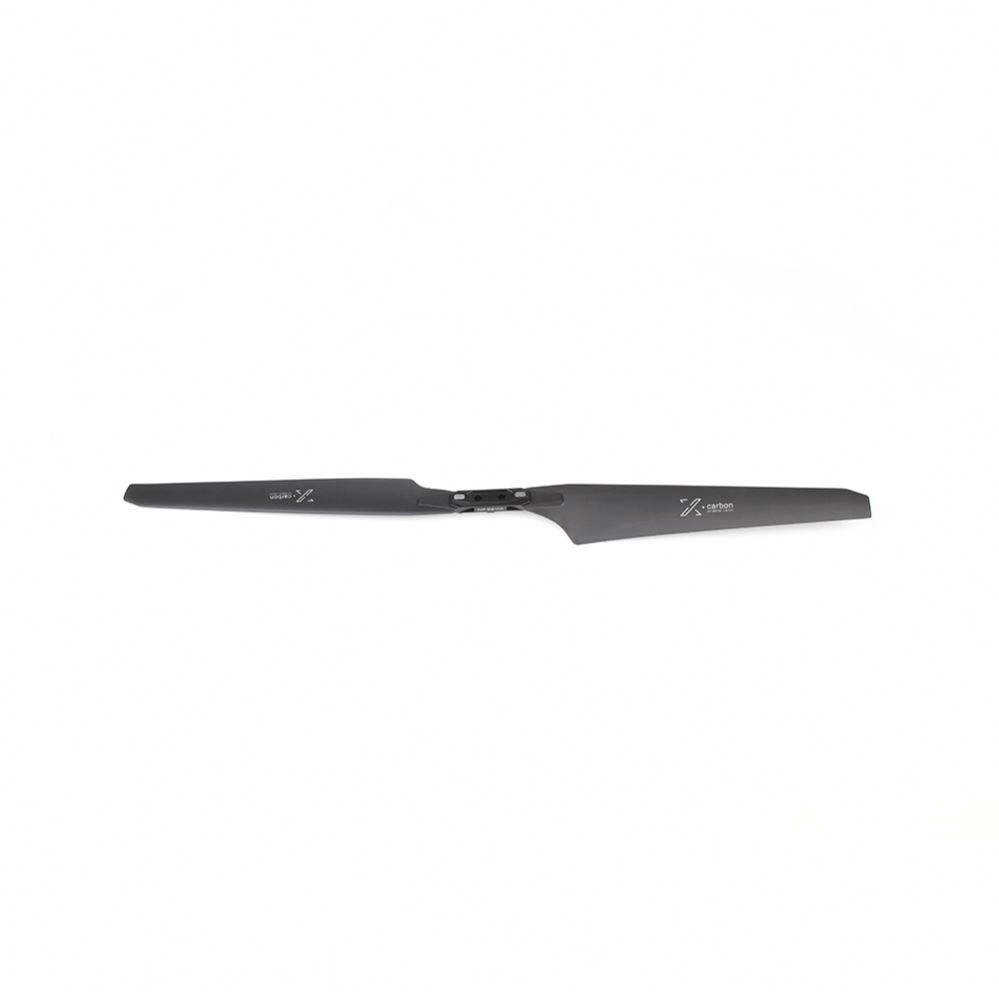

MF2211VP T-MOTOR Polymer Manual Variable Pitch Folding Propeller

1.MF2211VP

About The MF2211VP Polymer Manual Pitch Folding Propeller

The MF2211VP is a cutting-edge 22.4*8 inch polymer manual pitch folding propeller, expertly designed by T-MOTOR for multi-rotor and VTOL drones. In comparison with conventional propellers, the MF2211VP is engineered to address complex and variable flight conditions and diverse power requirements. Its design facilitates manual pitch adjustment with a straightforward replacement of the positioning block, eliminating the need for additional tools. This feature enhances the efficiency of professional model development in dynamic, multi-scenario environments.

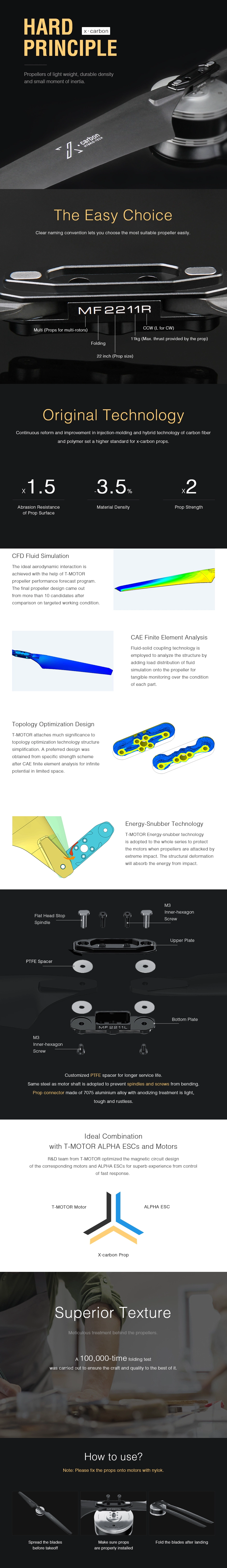

MF2211VP's Highlights:

* Its aerodynamic design enhances flight efficiency under high-speed and high-altitude conditions.

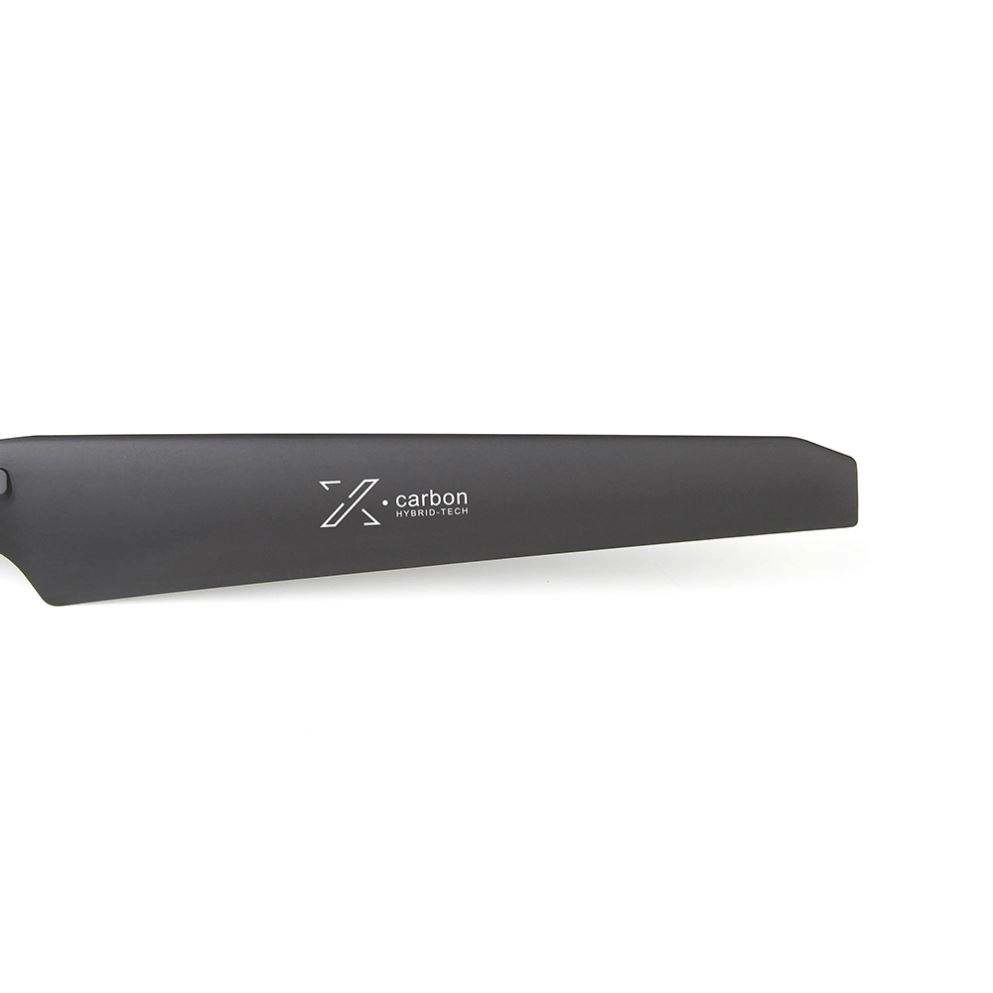

* The tip design, with its large swept back tip and downward curved winglets, optimizes tip vortex distribution, reducing energy consumption and vibration. This makes it ideal for professional users.

* The commonly used pulling force range is from 0.5 to 2.2 kilograms.

* The maximum pull force, when paired with the T-MOTOR MN4012 KV340 motor and FLAME 60A 12S V2.0 ESC, is 2.8kg at maximum throttle (with a 7.5° positioning block), and the recommended maximum pull force is 3kg.

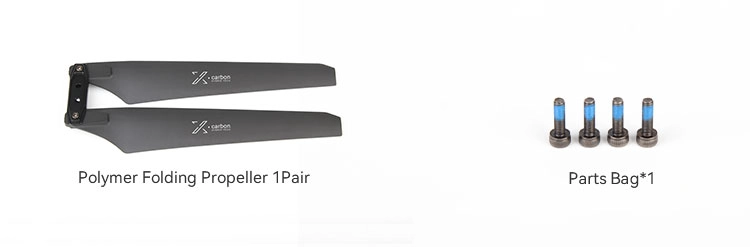

Packing List Includes:

Package size: 30010645mm
MF2211 center positioning block (+2.5°)-CCW1
MF2211 Center Positioning Block (+2.5°)-CW1
MF2211 Center Positioning Block (-2.5°)-CCW1
MF2211 Center Positioning Block (-2.5°)-CW1
MF2211 Center Positioning Block (+5°)-CCW1
MF2211 center locating block (+5°)-CW1
M310mm cup head socket head cap screws4

Model No.	MF2211VP	T-MOTOR Series	Folding
Weight(Single Blade)	86.5g	Material	Polymer+CF
Diameter	22.4inch(568.96mm)	Recommended Max Thrust	12kg
Pitch	8inch(203.2mm)	Storage Temp/Humidity	-10℃～50℃/＜85%
Ambient Temp	-40℃～65℃	Certificates	CE, Rohs, FCC, ISO
