M1103 Micro Motor Permanent RC Brushless Motor for Whoop and toothpick FPVs

  • 1.KV8000
  • 2.KV11000

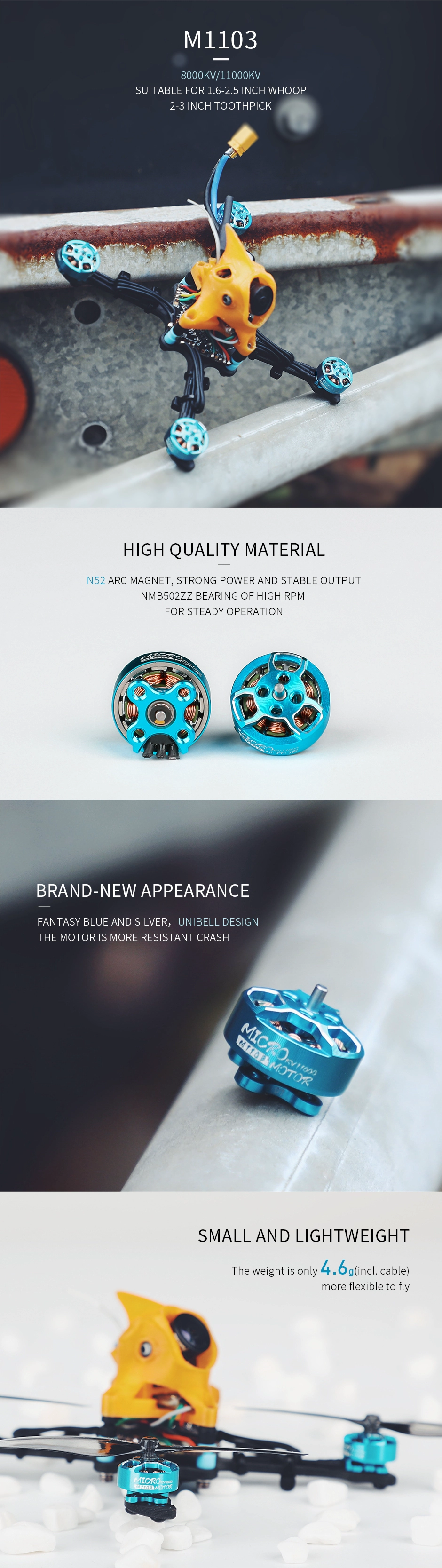

M1103, a high-performance Micro Motor for micro FPV drones, fits 1.6-2.5" WHOOP & 2-3" Toothpick, ideal as Indoor Flying FPV Drone Motor. 8000KV/11000KV dual specs for diverse scenarios. As High Power FPV Motor, it has N52 magnets (strong power) and NMB502ZZ bearings (stable operation). Upgraded dreamy blue + aluminum rotor (crash-resistant). 4.6g (w/ wire), ultra-light for flexible flight, delivering premium power & control experience.

Key Highlights:
• For micro FPV drones (1.6-2.5" WHOOP, 2-3" Toothpick)
• 8000KV/11000KV dual specs
• N52 magnets + NMB502ZZ bearings: Powerful & stable
• Upgraded dreamy blue + aluminum rotor: Crash-resistant
• 4.6g (w/ wire): Ultra-light & flexible flight

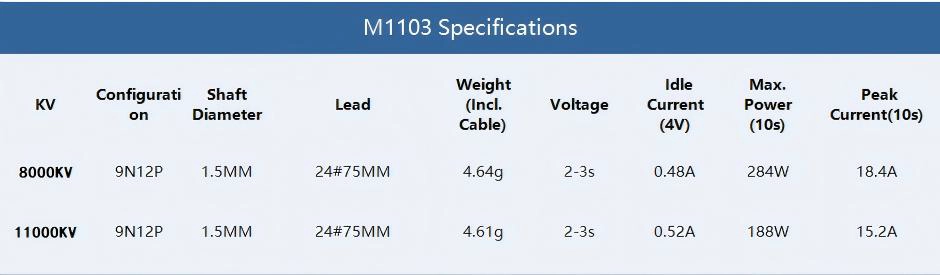

M1103 KV8000

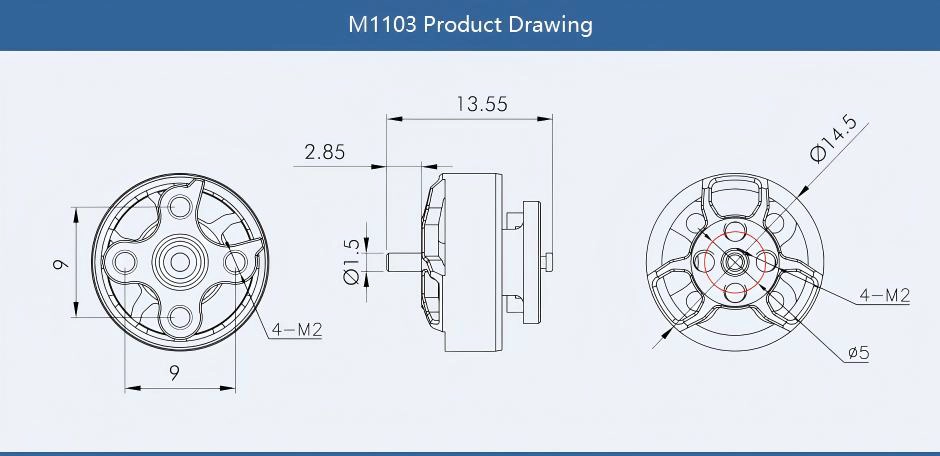

Motor Size(mm) A13.55*14.5mm
Lead 24#75MM
Shaft Diameter 1.5MM
Idle Current(10V) 0.48A
Max. Power(10s) 284W
Weight (Incl. Cable) 4.64g
Configuration 9N12P
Rated Voltage(Lipo) 2-3S
Peak Current(10s) 18.4A
M1103 KV11000
Motor Size(mm) A13.55*14.5mm
Lead 24#75MM
Shaft Diameter 1.5MM
Idle Current(10V) 0.52A
Max. Power(10s) 188W
Weight (Incl. Cable) 4.64g
Configuration 9N12P
Rated Voltage(Lipo) 2-3S
Peak Current(10s) 15.2A
