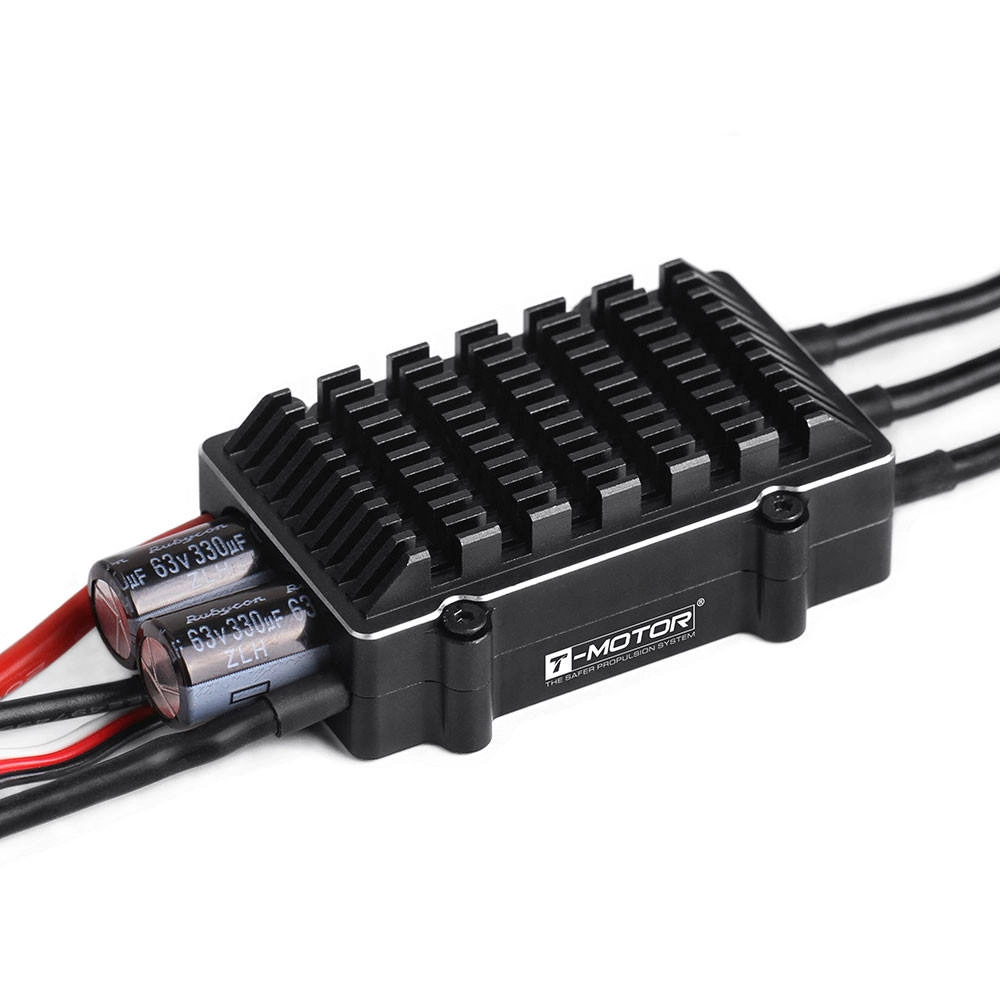

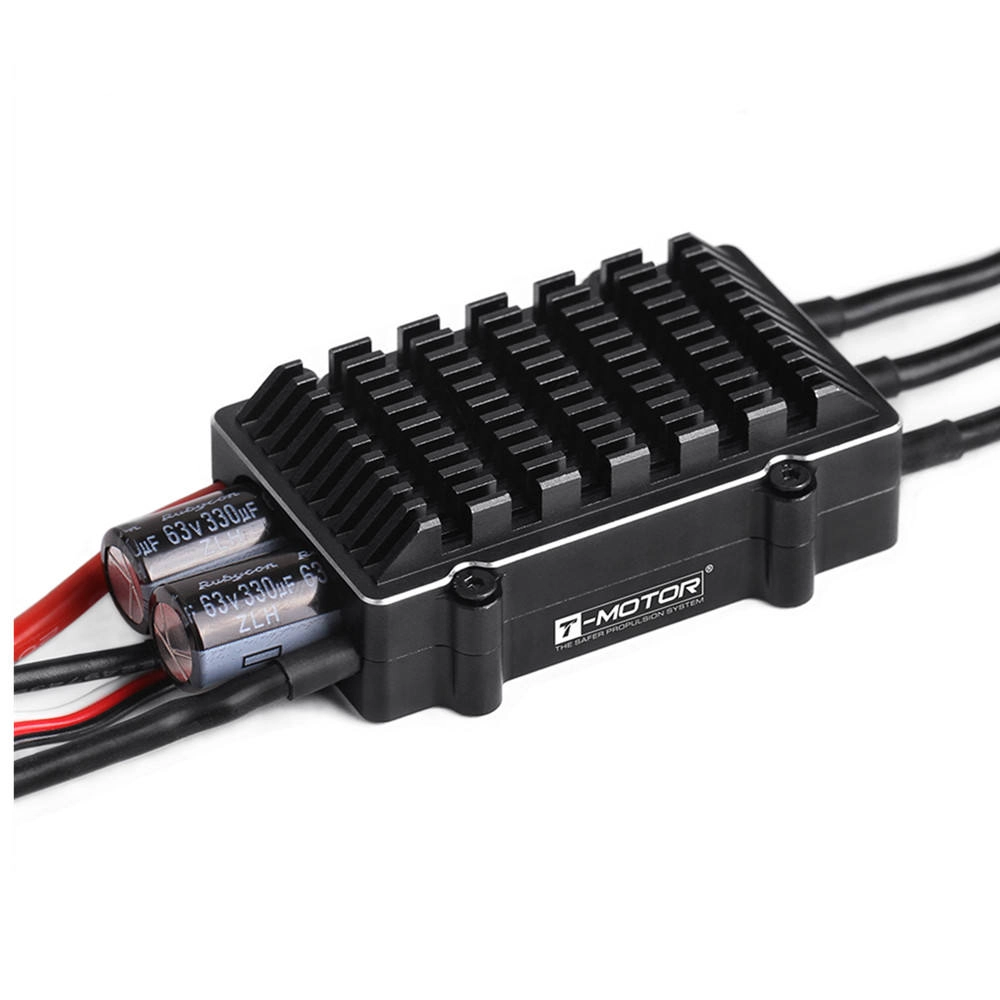

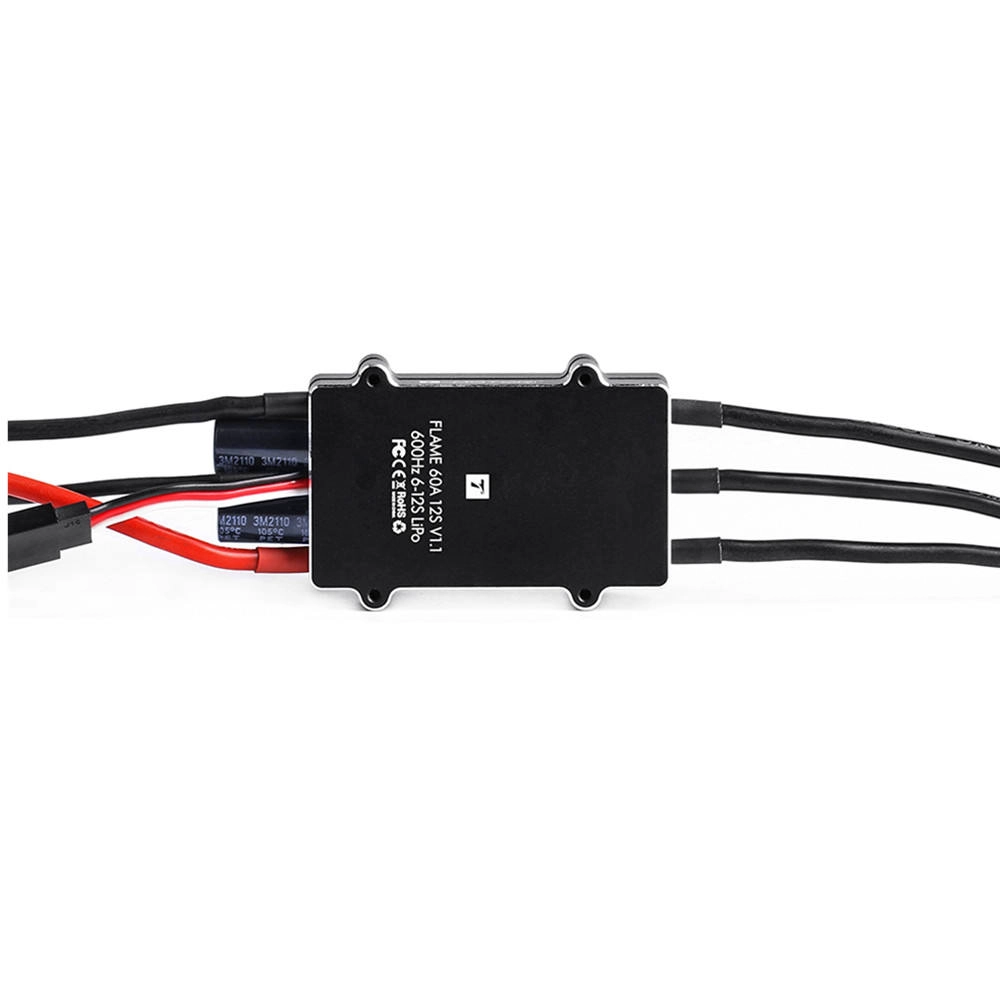

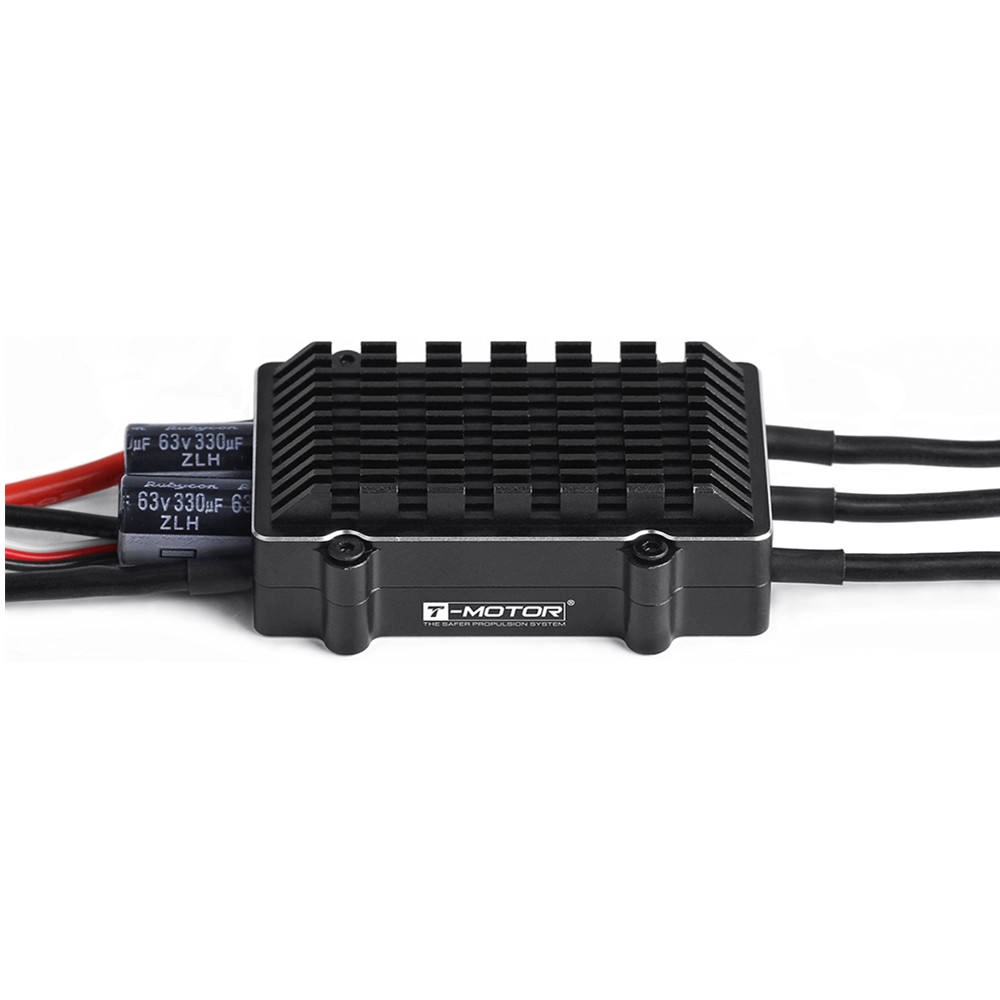

About T-MOTOR FLAME 60A 12S V2.0 Multirotor UAVs ESC
T-MOTOR FLAME 60A 12S ESC delivers 60A continuous and 80A peak power (10s), designed for multi-rotors and compatible with U12 motors. Supporting 6-12S LiPo, it features efficient heat dissipation and protections against start-up failure, throttle signal loss, motor lock-up, and overload, ensuring reliable and safe performance.
FLAME 60A 12S V2.0 ESC Highlights:
* Power Output: Delivers 60A continuous and 80A peak current (10 seconds), designed for high-performance multi-rotor UAVs.
* Compatibility: Specifically compatible with U12 motors and supports 6-12S LiPo batteries.
* Efficient Design: Features a layered structure for better heat dissipation and stable performance.
* Advanced Protections: Includes start-up protection, throttle signal loss protection, motor lock-up protection, and overload protection.
* Smart Safety Feature: Automatically shuts down the motor if it fails to start within 2 seconds, allowing easy troubleshooting.
* Professional Use: Designed for demanding applications in professional UAV operations.

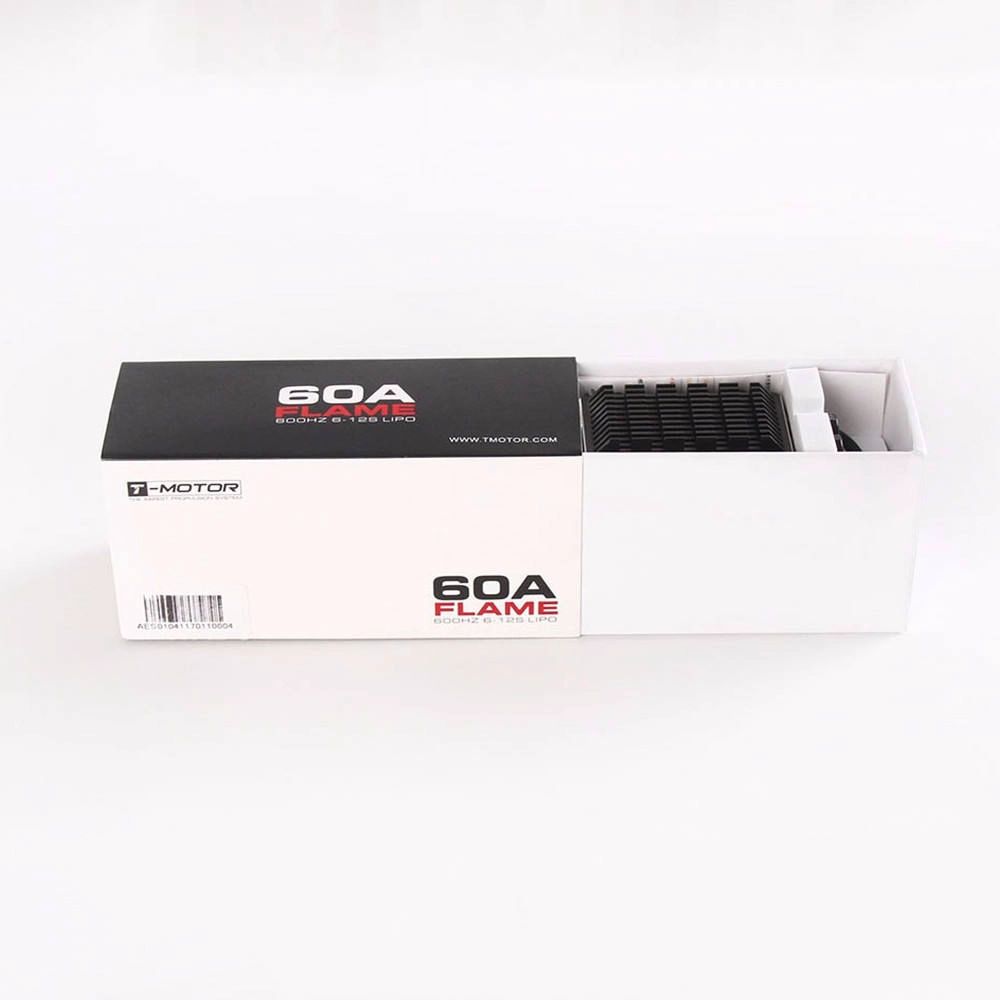

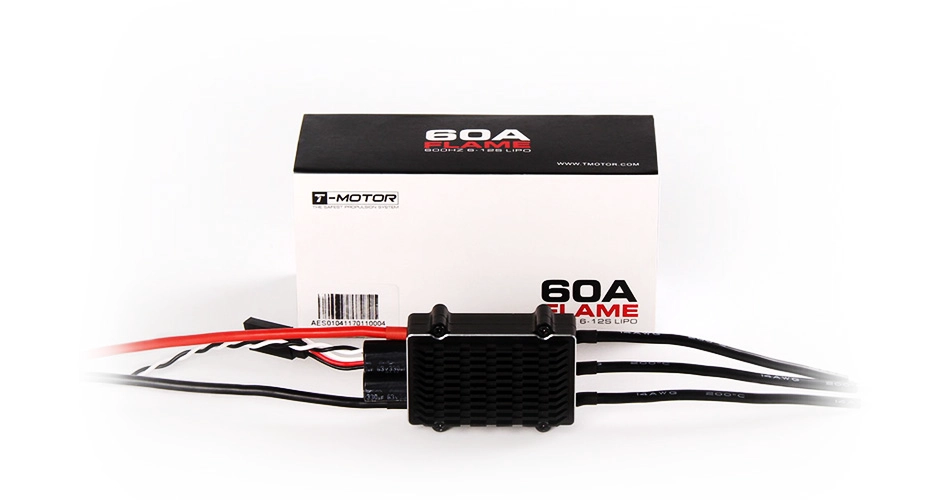

Packing List Includes:
1x T-Motor FLAME 60A 12S V2.0 ESC
1x Hardware Kit

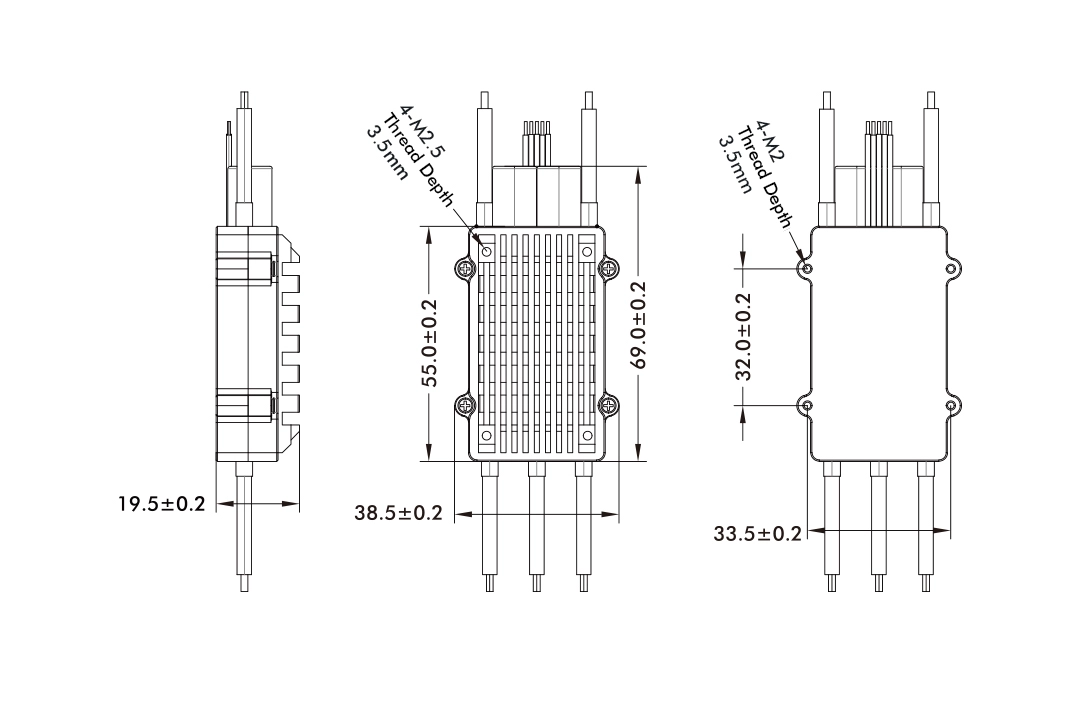

| Model | Continuous Current | Peak Current(10S) | BEC | Lipo | Programable | Weight | Size |
| ltem(s) | (g) | (mm) | |||||
| FLAME 60A 12S | 60A | 80A | NO | 6-12S | NO | 73.5 | 66.5*38.5*17.7 |
| FLAME 70A 6S | 70A | 80A | NO | 4-6S | NO | 55 | 56.6*36.4*16.1 |
| FLAME 80A 12S V2.0 | 80A | 120A | NO | 6-12S | NO | 109 | 84*35.5*19.5 |
| FLAME 100A 6S | 100A | 120A | NO | 4-8S | NO | 78.5 | 72.2*30.6*17.3 |
| FLAME 100A 14S | 100A | 120A | NO | 6-14S | NO | 139 | 86.1*54.1*24 |
| FLAME 180A 12S V2.0 | 180A | 200A | NO | 6-12S | NO | 279 | 112.2*50.5*35.5 |
| FLAME 200A 14S | 200A | 240A | NO | 6-14S | NO | 558 | 106*50*48.5 |
