The Cine77 is a high-performance Brushless Drone Motor and professional Cinematic FPV Drone Motor, engineered as a High Power Aerial Drone Motor to meet the rigorous demands of professional cinematic aerial photography. It integrates powerful thrust, long-lasting battery life and reliable stability, providing comprehensive protection for aerial creation with smooth footage, flexible control and safe flight performance.
Key Advantages:
- Max single thrust over 5kg, high maneuverability
- 7+ mins flight (6s/8s/12s) under 2.5kg load
- Ultra-wide diameter, enhanced torque for acrobatic flight
- Excellent heat dissipation, durable & anti-overheating

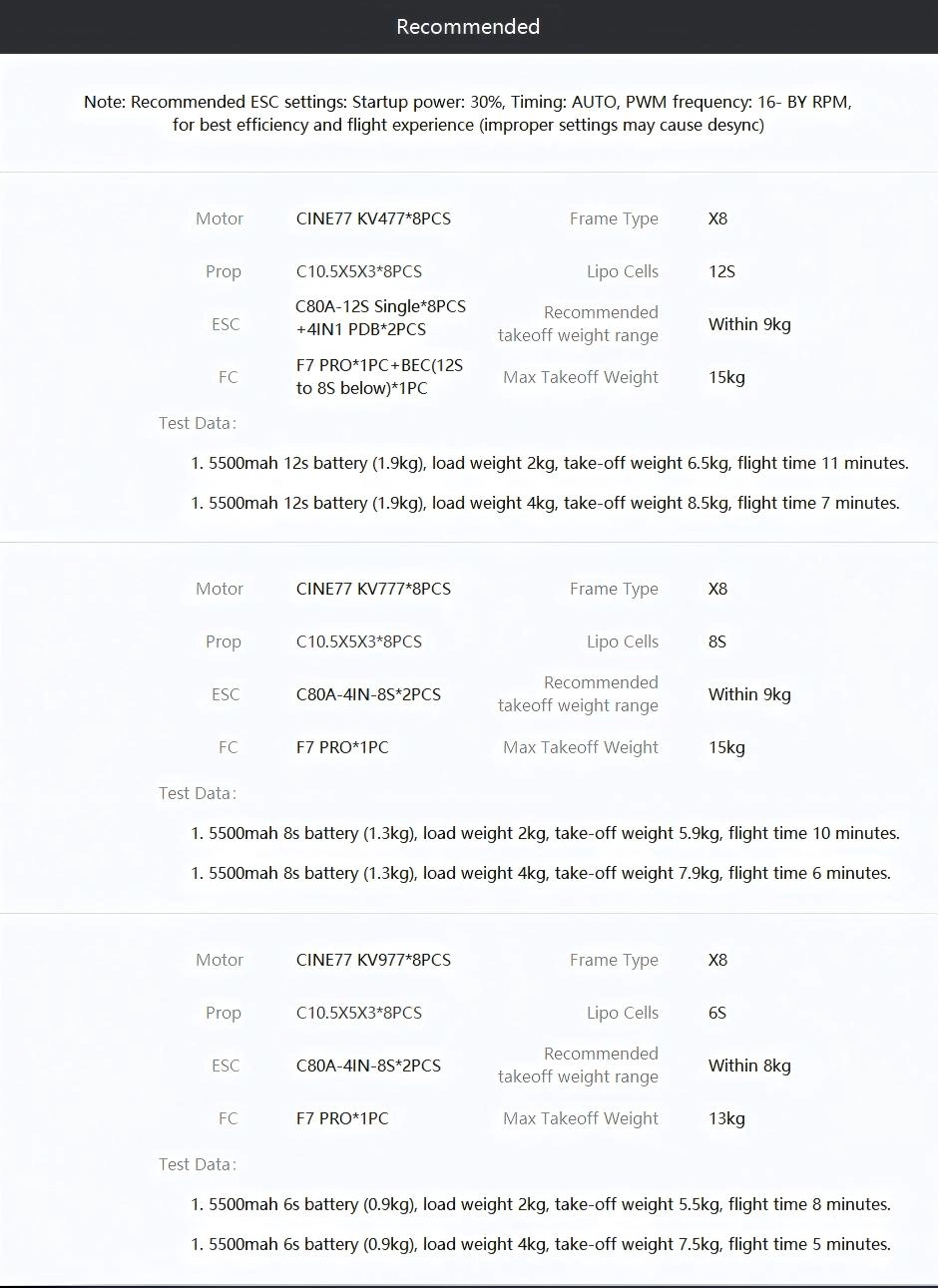

- Compatible with C80A 8S 4in1 ESC, step-free flight
- Precise low-throttle control

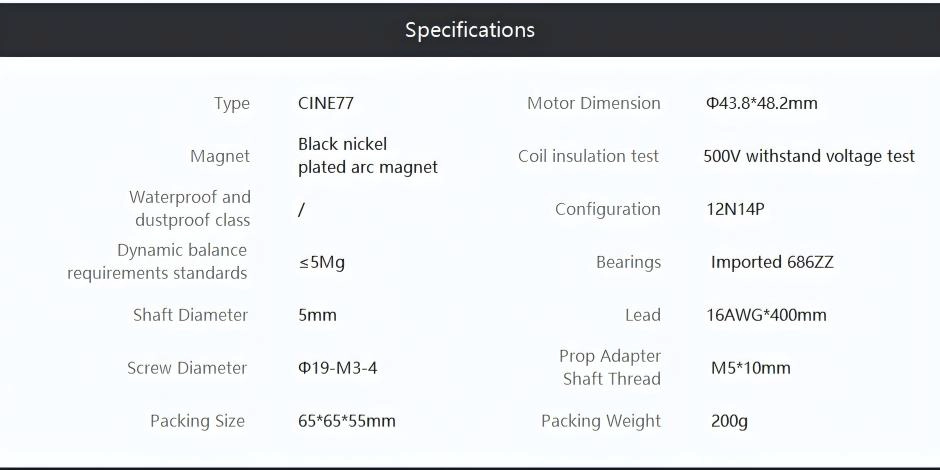

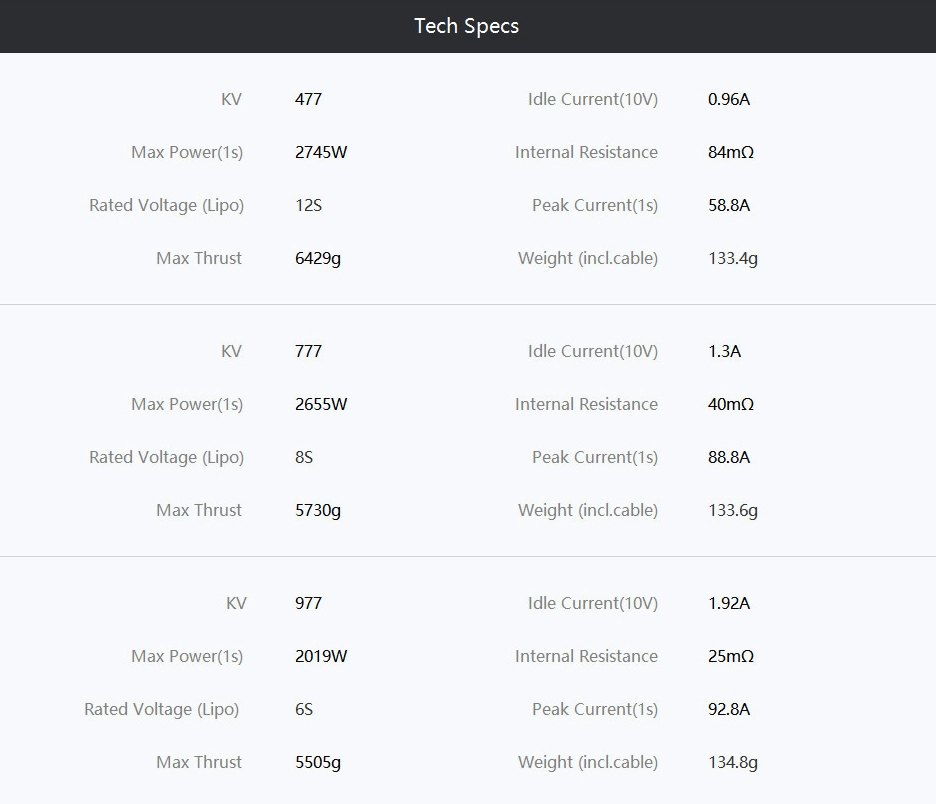

| CINE77 KV477 | |

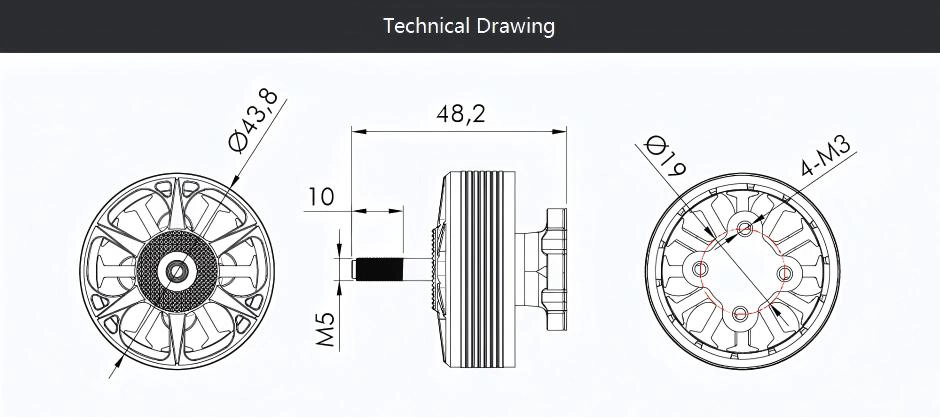

| Motor Size(mm) | Φ43.8 * 48.2mm |
| Lead | 16AWG * 400mm |
| Shaft Diameter | 5mm |
| Idle Current(10V) | 0.96A |
| Max. Power(60s) | 2745W |
| Weight (Incl. Cable) | 133.4g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 12S |
| Peak Current(180s) | 58.8A |
| CINE77 KV777 | |
| Motor Size(mm) | Φ43.8*48.2mm |
| Lead | 16AWG*400mm |
| Shaft Diameter | 5mm |
| Idle Current(10V) | 1.3A |
| Max. Power(60s) | 2655W |
| Weight (Incl. Cable) | 133.4g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 8S |
| Peak Current(180s) | 88.8A |
| CINE77 KV977 | |
| Motor Size(mm) | Φ43.8*48.2mm |
| Lead | 16AWG*400mm |
| Shaft Diameter | 5mm |
| Idle Current(10V) | 1.92A |
| Max. Power(60s) | 2019W |
| Weight (Incl. Cable) | 133.4g |
| Rated Voltage(Lipo) | 6S |
| Peak Current(180s) | 92.8A |
