AM60 V2: High-performance power core for 300-600g aircraft, reliable Aeromodelling motor. Ultra-light (32.2g) Lightweight aircraft motor, multi-installation & model compatible, seamless indoor/outdoor flight. 42x burst power, 1356g pulling force, race-dominating top RC plane motor. AM series hollow-out design, 15% higher shell strength, 11% better bidirectional thrust, enhanced impact resistance for stable flight, meeting enthusiasts' core demands.
Key Highlights:
- Tailored for 300-600g Aircraft
- Ultra-lightweight: 32.2g Net Weight
- Multi-installation & Model Compatible
- 42x Burst Power, 1356g Pulling Force
- Dual-scene: Indoor & Outdoor Flight
- AM Series Hollow-out Design
- 15% Higher Shell Strength
- 11% Enhanced Bidirectional Thrust
- Superior Impact Resistance

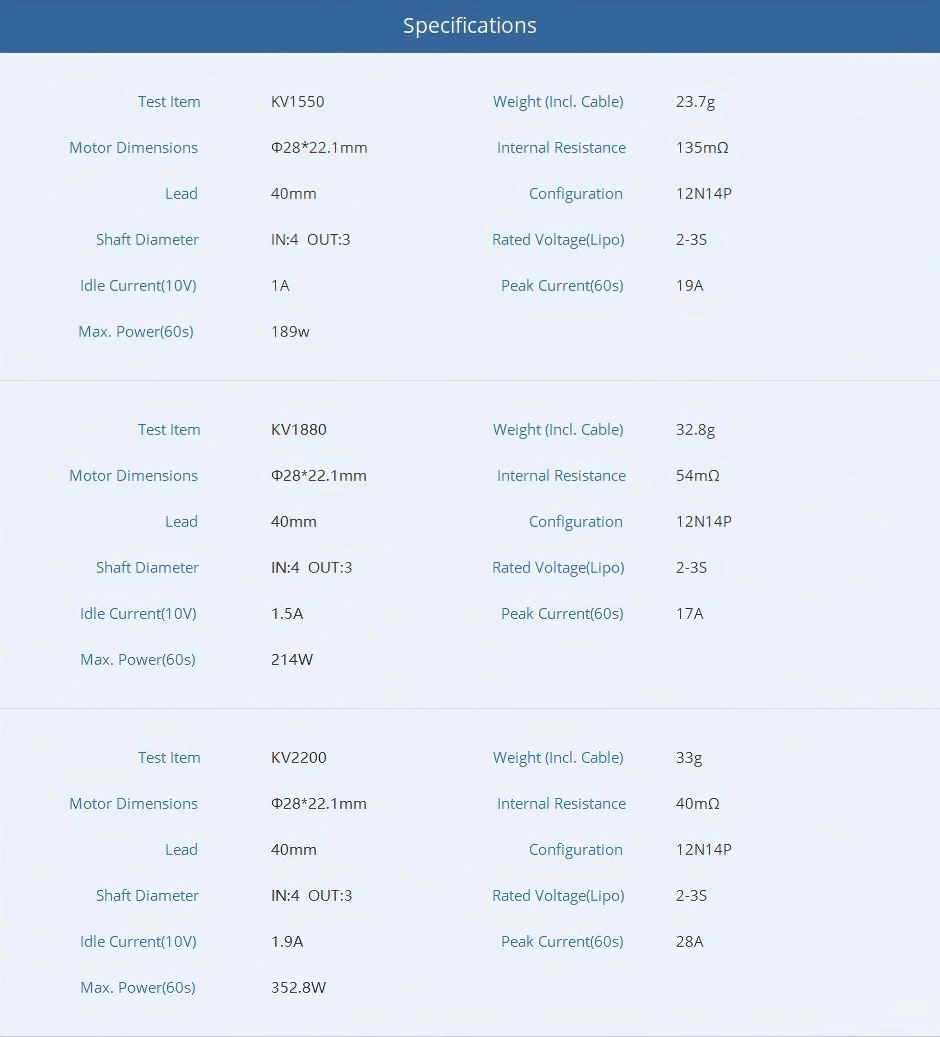

| AM60 V2 KV1550 | |

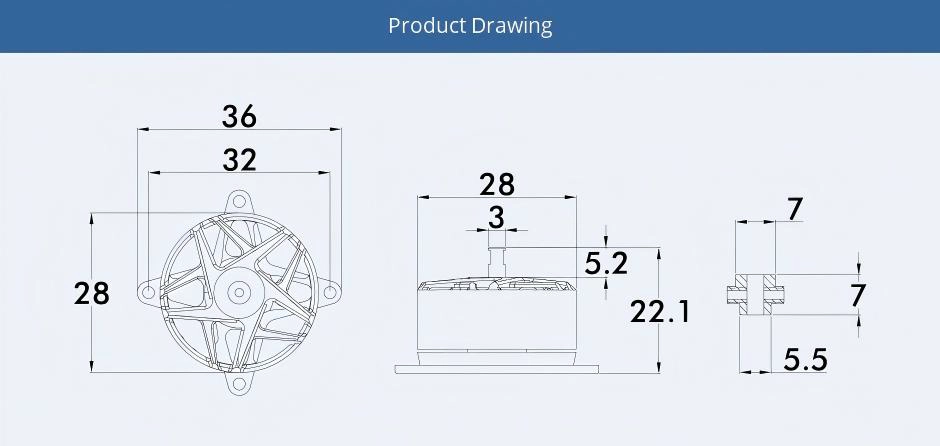

| Motor Size(mm) | Φ28*22.1mm |
| Lead | 40mm |
| Shaft Diameter | IN:4mm OUT:3mm |
| Idle Current(10V) | 1A |
| Max. Power(60s) | 189w |
| Weight (Incl. Cable) | 23.7g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 2-3S |
| Peak Current(180s) | 19A |
| AM60 V2 KV1880 | |
| Motor Size(mm) | Φ28*22.1mm |
| Lead | 40mm |
| Shaft Diameter | IN：4mm OUT：3mm |
| Idle Current(10V) | 1.5A |
| Max. Power(60s) | 214W |
| Weight (Incl. Cable) | 32.8g |
| Configuration | 12N14P |
| Rated Voltage(Lipo) | 2-3S |
| Peak Current(180s) | 17A |
| AM60 V2 KV2200 | |
| Motor Size(mm) | Φ28*22.1mm |
| Lead | 40mm |
| Shaft Diameter | IN:4mm OUT:3mm |
| Idle Current(10V) | 1.9A |
| Max. Power(60s) | 352.8W |
| Weight (Incl. Cable) | 33g |
| Rated Voltage(Lipo) | 2-3S |
| Peak Current(180s) | 28A |
