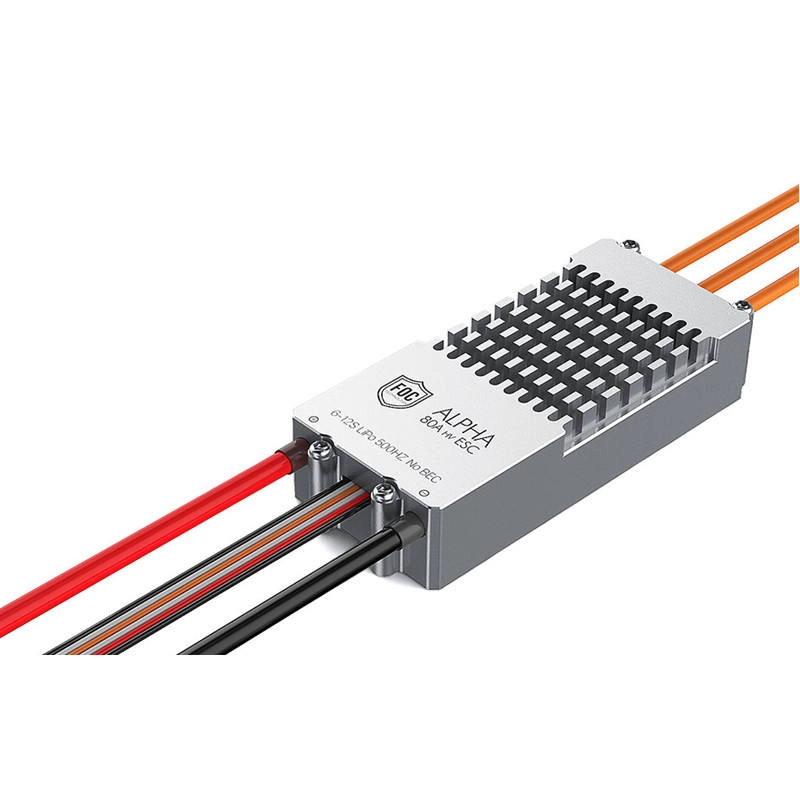

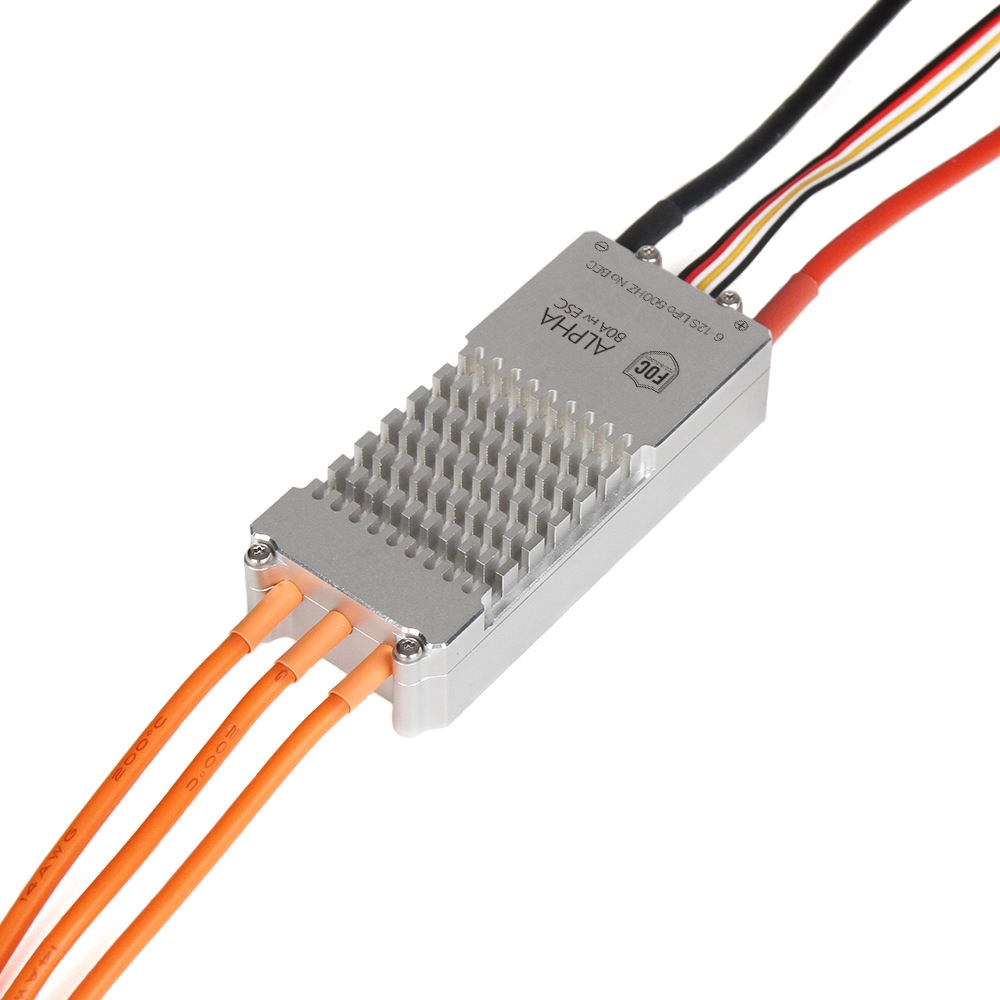

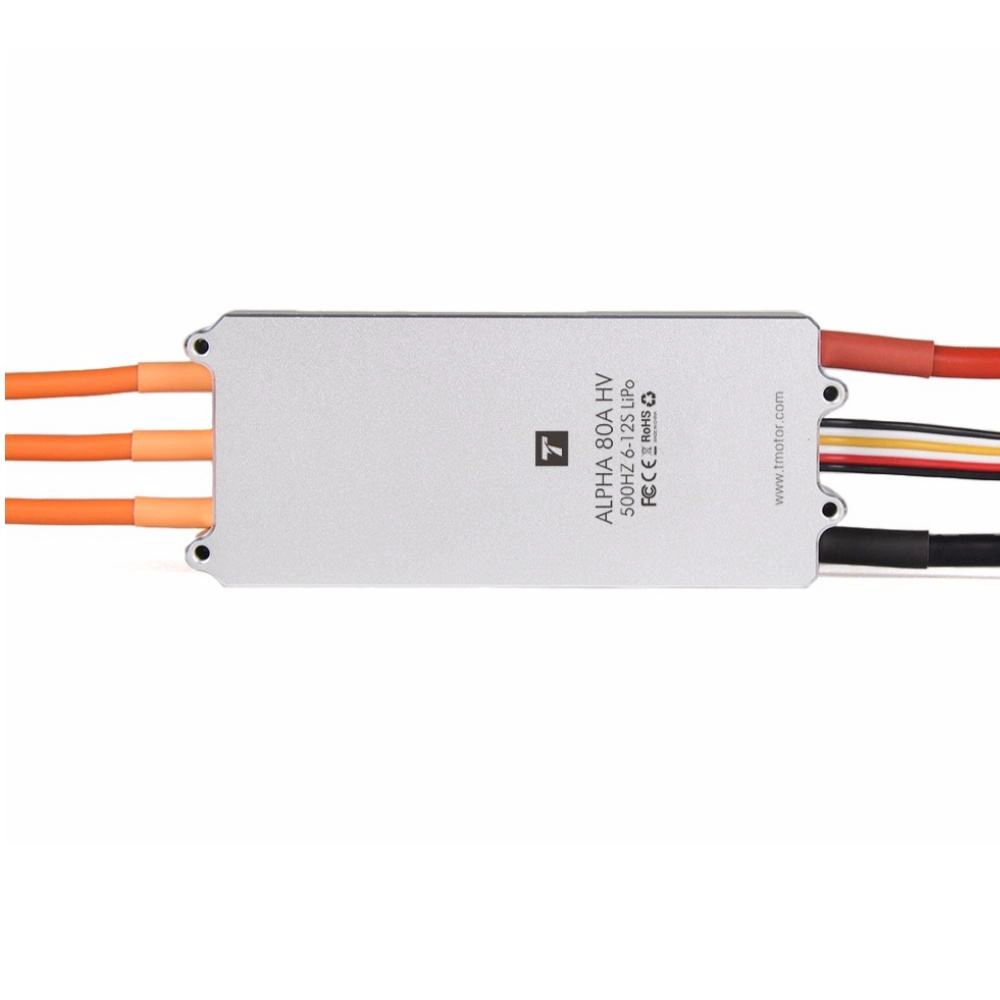

ALPHA 80A 12S T-MOTOR Multirotor Fernbedienung Bürstenloser Drohnen-Geschwindigkeitsregler ESC für UAV
- 1.ALPHA 80A 12S

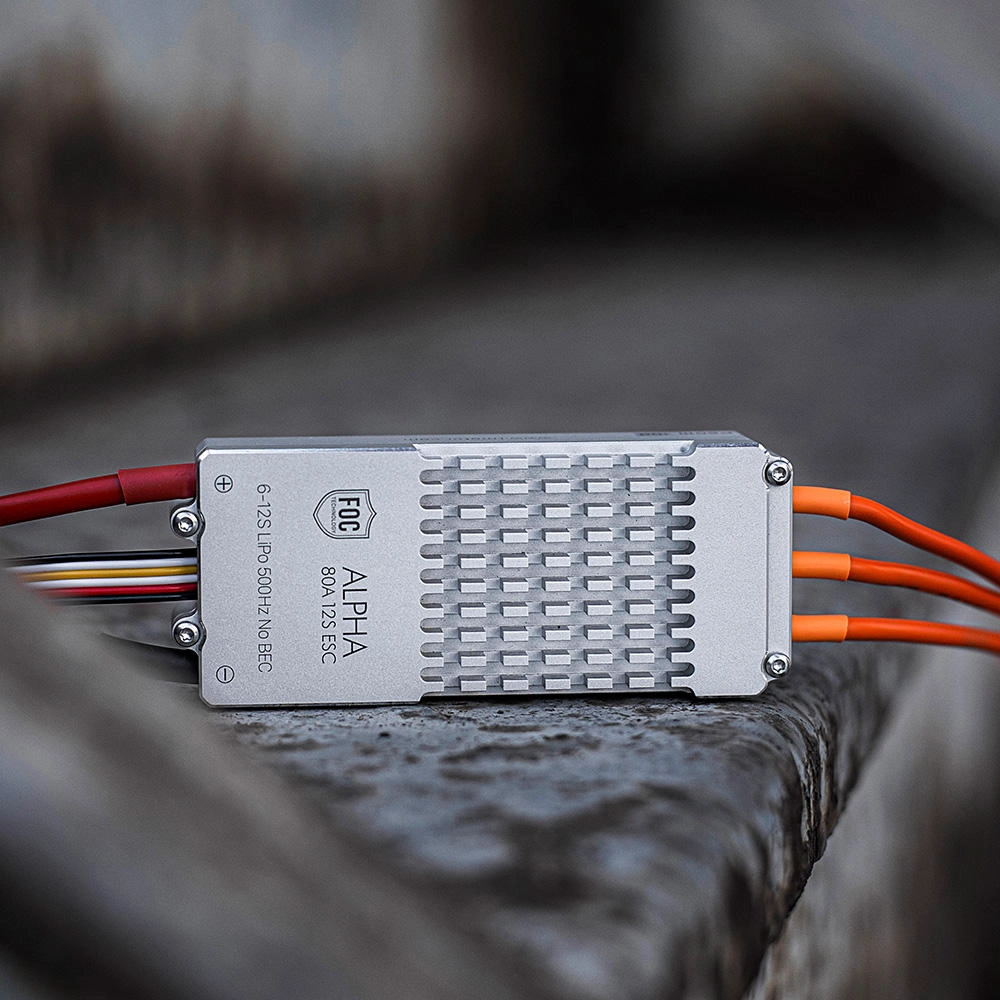

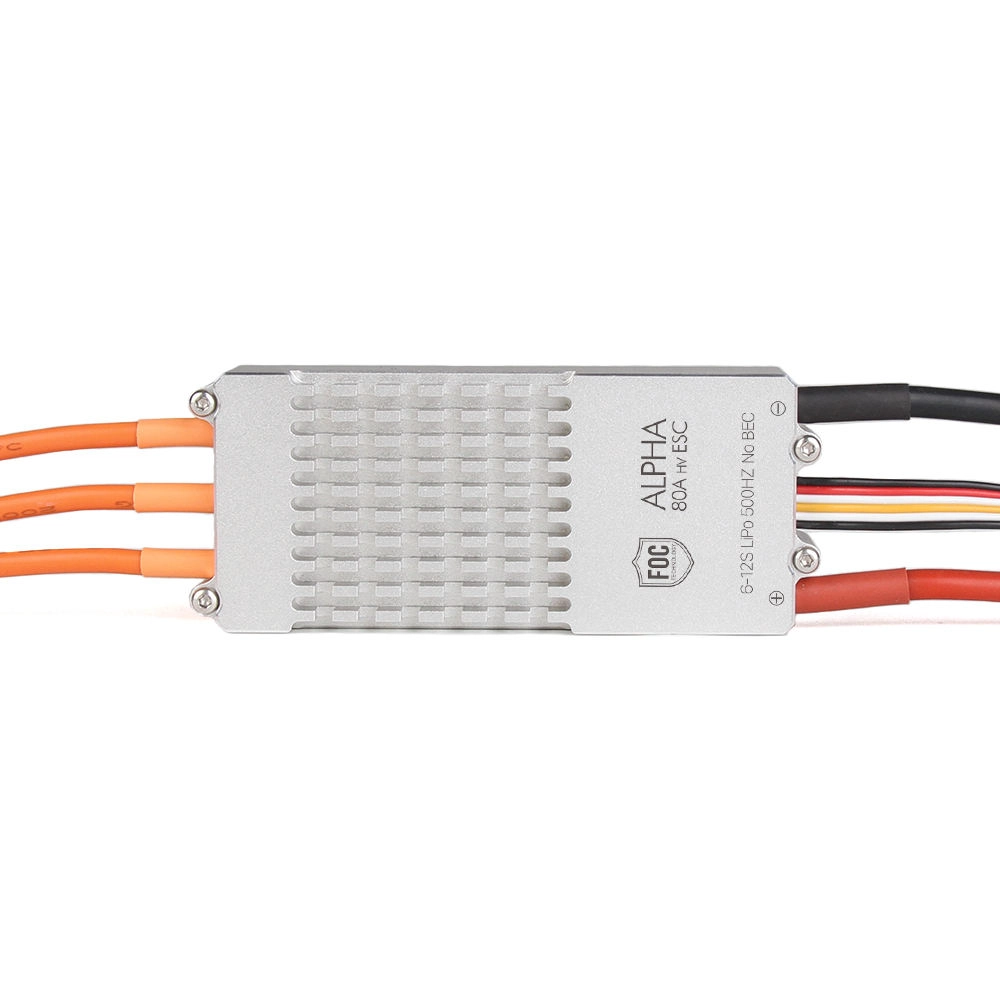

Über T-MOTOR ALPHA 80A 12S Multi-Rotor Drone FOC ESC
Der T-MOTOR Alpha 80A 12S ESC wurde für professionelle UAVs entwickelt und verfügt über FOC-Technologie (Sinuswelle) und intelligente Algorithmen für eine präzise, effiziente und stabile Motorsteuerung. Es sorgt für geringes Rauschen, niedrige Temperaturen und minimale Störungen und gewährleistet so eine zuverlässige Leistung. Mit schneller Gasannahme, hoher Effizienz und erweitertem Schutz erfüllt der Alpha 80A die Anforderungen großer UAVs und ist damit eine zuverlässige Wahl für professionelle Anwendungen.
ALPHA 80A 12S ESC-Highlights:
• Geringes Rauschen, geringe Temperatur und geringe Störungen
• Schnelle Reaktion, hohe Effizienz
ALPHA ESC verfügt im Vergleich zum herkömmlichen Rechteckwellenantrieb über schnellere Reaktionen mit weniger Impulsstrom und gleichmäßigem Anlauf.
Dieser T-MOTOR-Regler verfügt über einen Überstrom-/Motorblockier-/Kurzschluss-/Unterspannungsschutz.

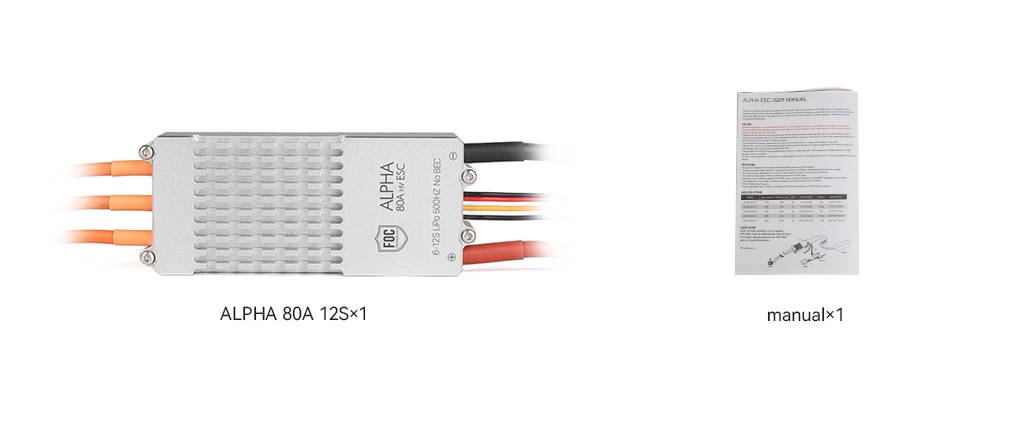

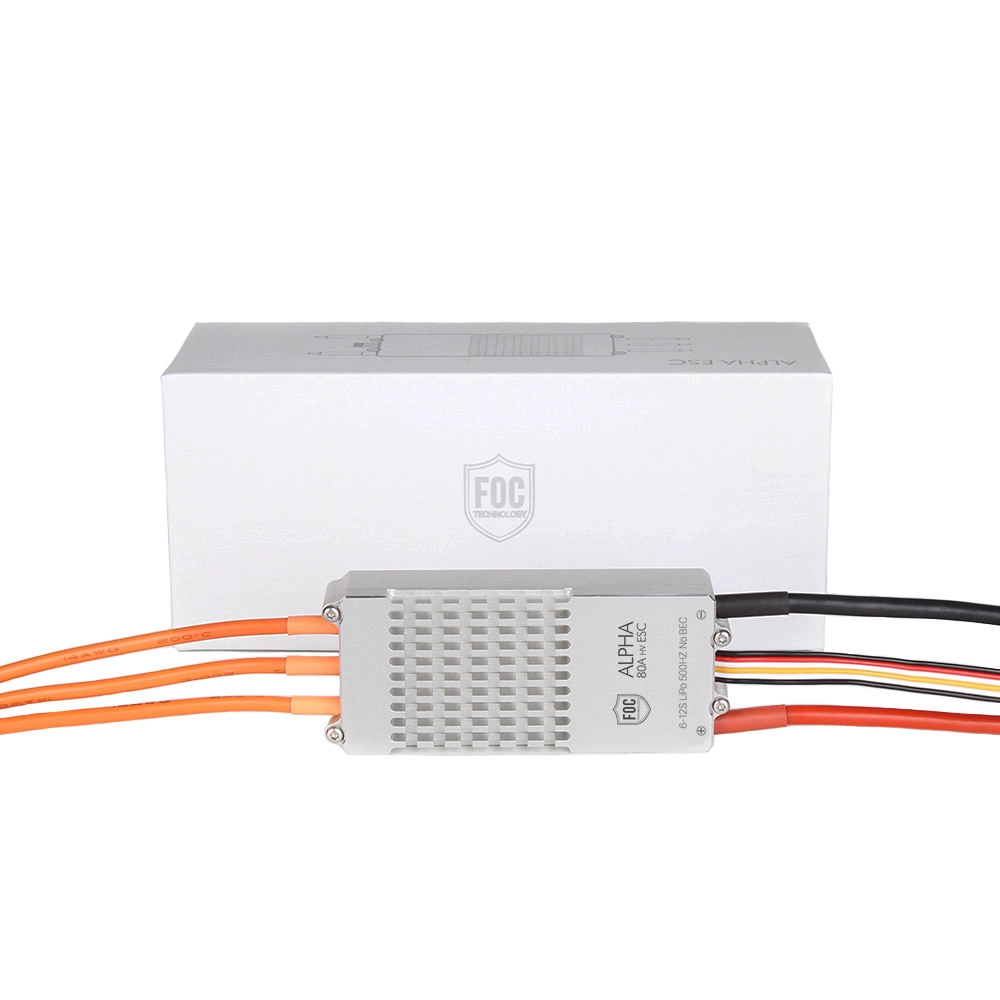

Die Packliste beinhaltet:
1x T-Motor ALPHA 80A 12S Regler
1x Hardware-Kit

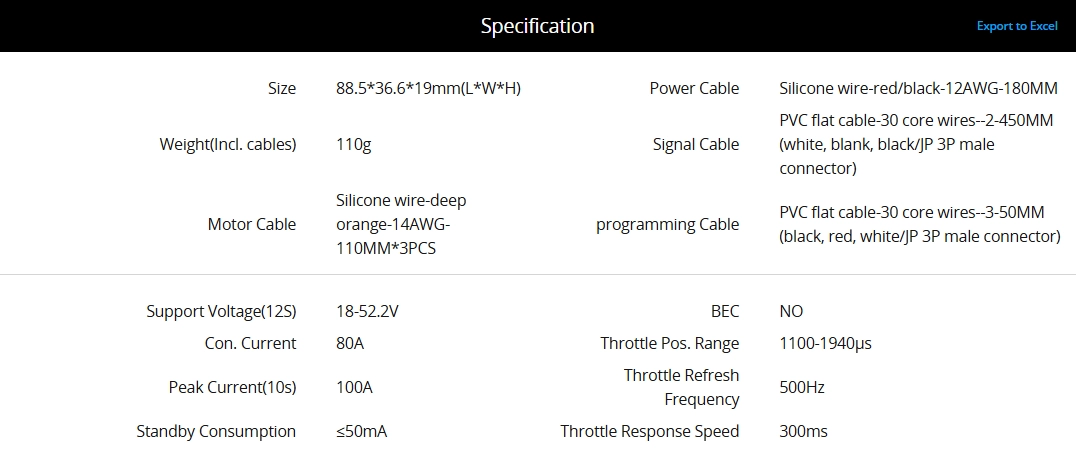

| ALPHA 80A 12S Spezifikation | |
| Stromkabel | Silikondraht-rot/schwarz-12AWG-180MM |
| Signalkabel |
PVC-Flachkabel – 30 Adern – 2–450 mm (weiß, leer, schwarz/JP 3P-Stecker) |
| Programmierkabel |
PVC-Flachkabel – 30 Adern – 3–50 mm (schwarz, rot, weiß/JP 3P-Stecker) |
| Motorkabel | Silikondraht, tieforange, 14 AWG, 110 mm, 3 Stück |
| Drosselpos. Reichweite | 1100–1940 μs |
| Häufigkeit der Drosselaktualisierung | 500Hz |
| Reaktionsgeschwindigkeit des Gashebels | 300ms |
| ALPHA ESC-Empfehlungen | ||||
| ESC | MOTOR | PC-Versionsname | Lipo (S) | Prop |
| ALPHA 40A 6S | U3-700KV | V2-U3-700KV | 4S | 12CF |
| U5-400KV | V2-U5-400KV | 6S | 16CF | |
| V1-U5-400KV | 16CF | |||
| MN4006-380KV | V1-MN4006-380KV | 16CF | ||
| MN4004 KV300 | V1-MN4004-300KV | P15*5/MF1503 | ||
| MN4014-400KV | V1-MN4014-400KV | 16CF | ||
| MN4014-330KV | V1-MN4014-330KV | 16CF | ||
| V2-MN4014-330KV | 16CF | |||
| MN501S-300KV | V1-MN501S-300KV | 20CF | ||
| V2-MN501S-300KV | 22CF | |||
| V2-MN501S-300KV-CBR | FA20,2*6,6R | |||
| MN501S-360KV | V1-MN501S-360KV | 18CF | ||
| V1-MN501S-360KV-TSO | 18CF | |||
| V1-MN501S-360KV-CBR | P18*6.1 | |||
| MN501S-240KV | V2-MN501S-240KV | 22CF | ||
| MN5006-300KV | V1-MN5006-300KV | 18CF | ||
| MN5006-450KV | V1-MN5006-450KV | 15CF | ||
| MN5008-400KV | V1-MN5008-400KV | 17CF | ||
| V2-MN5008-400KV | 17CF | |||
| MN5208-340KV | V1-MN5208-340KV | 16CF | ||
| MN5008-340KV | V1-MN5008-340KV | 18CF | ||
| MN5212-340KV | V1-MN5212-340KV | 18CF | ||
| MN601S-170KV | V1-MN601S-170KV | 22CF | ||
| MN6007II-160KV | V1-MN6007II-160KV-26CF | 26CF | ||
| MN6007II-320KV | V4-MN6007II-320KV | 22CF | ||
| MN7005-230KV | V1-MN7005-230KV | 24CF | ||
| V2-MN7005-230KV | 26CF | |||
| ALPHA 60A 6S | U8II-150KV | V1-U8II/L-150KV | 6S | 26CF |
| U8Lite-150KV | V1-U8LITE-150KV | 30CF | ||
| V2-U8L-150KV | 30CF | |||
| U8II-170KV | V1-U8II/L-170KV | 28CF | ||
| U8II-190KV | V1-U8II/L-190KV | 26CF | ||
| V1-U8II/L-190KV-TSO | 28CF | |||
| V2-U8II/L-190KV-TSO | CF28*9,2 | |||
| A8-160KV | V1-A8-160KV | 28CF | ||
| MN4006-380KV | V1-MN4006-380KV | 16CF | ||
| MN505S-320KV | V1-MN505S-320KV | 22CF | ||
| V1-MN505S-320KV-TSO | 22CF | |||
| MN505S-380KV | V1-MN505S-380KV | 18CF | ||
| MN601S-320KV | V1-MN601S-320KV | 22CF | ||
| MN605S-320KV | V1-MN605S-320KV | 22CF | ||
| V2-MN605S-320KV | 22CF | |||
| V3-MN605S-320KV | 22CF | |||
| MN6007-320KV | V1-MN6007-320KV | 22CF | ||
| 6007II-320KV | V1-6007II-320KV | 22CF | ||
| V1-6007II-320KV-AllNoTip | FA22,2x7,2 | |||
| V1-6007II-320KV-ThLossNoTip | FA22,2x7,2 | |||
| V2-6007II-320KV | 18CF | |||
| V3-6007II-320KV | 26CF | |||
| ALPHA 60A 12S | U5 KV880 | V3-U5-880KV | 8S | NS14x4,8 |
| V2-U5-880KV | FF16*8 | |||
| U7-420KV | V1-U7-420KV | 6S | 17CF | |
| V2-U7-420KV | 18CF | |||
| U8II-85KV | V1-U8II-85KV14S | 14S | 32CF | |
| V1-U8/II/L-85KV | 12S | 26CF | ||
| V3-U8/II/L-85KV | 29CF | |||
| V7-U8-85KV | 29CF | |||
| U8II LITE KV85 | V1-U8II_LITE_85KV | MF3016 | ||
| U8LITEL-95KV | V1-U8LL-95KV | 32CF | ||
| U8II-100KV | V1-U8/II/L-100KV | 28CF | ||
| V2-U8/II/L-100KV | 28CF | |||
| V1-U8II-100KV14S | 14S | 28CF | ||
| V4-U8/II/L-100KV | 12S | 28CF | ||
| V5-U8/II/L-100KV | 28CF | |||
| V7-U8II-100KV | 28CF | |||
| V9-U8II-100KV | 29CF | |||
| V9-U8II-100KV-TSO | 29CF | |||
| U8II PRO KV100 | V1-U8IIP-100KV | FA28,2*9,2 | ||
| U8L-II_100KV | V1-U8L-II-100KV | 30CF | ||
| V1-U8/II/L-100KV-NCP | 30CF | |||
| U8lite-kv100 | V1-U8II-100LT | 30CF | ||
| U8Lite-150K | V4-U8LITE-150KV | 24CF | ||
| U8II-150KV | V1-U8II-150KV | 22CF | ||
| V2-U8II-150KV14S | 14S | 22CF | ||
| V2-U8II-150KV14S-OCT | 22CF | |||
| U8II-170KV | V1-U8II-170KV | 12S | 22CF | |
| U8II-190_7 | V1-U8II/L-190_7 | 6S | 24CF | |
| U8LITEL-110KV | V1-U8LL-110KV | 12S | 30CF | |
| U8XL-110KV | V1-U8XL-110KV | 30CF | ||
| U8II-150KV | V1-U8II-150KV-8S | 6S | 28CF | |
| U10II-100KV | V2-U10II-100KV | 13S | 32CF | |
| V1-U10II-100KV | 12S | 30CF | ||
| V3-U10II-100KV-TLT | 30CF | |||
| V6-U10II-100KV | 30CF | |||
| MN501S-240KV | V2-MN501-240KV | 14S | 18CF | |
| MN505-190KV | V1-MN505-190KV | 12S | 21CF | |
| MN501S-240KV | V1-MN501S-240KV-22C | 6S | 22CF | |
| V1-MN501S-240KV | 12S | 15CF | ||
| MN5008-340KV | V1-MN5008-340KV | 6S | 18CF | |
| V3-5008-340KV | 7S | 18CF | ||
| MN601S-100KV | V1-MN601S-100KV | 12S | 24CF | |
| MN601S-135KV | V1-MN601S-135KV | 24CF | ||
| MN601S-150KV | V1-MN601S-150KV | 24CF | ||
| MN601S-170KV | V1-MN601S-170KV | 22CF | ||
| V3-MN601S-170KV | P22*6,6 | |||
| MN6007-160KV | V3-MN6007-160KV-14S | 14S | 22CF | |
| V4-MN6007II-160KV | 12S | 22CF | ||
| V1-MN6007-160KV | 22CF | |||
| MN6007II KV160 | V5-MN6007II-160KV | FA24,2*7,9 | ||
| MN605S-170KV | V1-MN605S-170KV | 22CF | ||
| V1-MN605S-170KV-F | 22CF | |||
| V2-MN605S-170KV | 22CF | |||
| V6-MN605S-170KV | ||||
| MN601S-320_7 | V1-MN601S-320_7 | 6S | 21CF | |
| MN605S-210KV | V1-MN605S-210KV | 12S | 18CF | |
| MN7005-115KV | V1-MN7005-115KV | 24CF | ||
| MN7005-230KV | V2-MN7005-230KV | 22CF | ||
| MN701S-135KV | V1-MN701S-135KV | 24CF | ||
| MN705S-125KV | V1-MN705S-125KV | 27CF | ||
| MN801S-120KV | V1-MN801S-120KV | 29CF | ||
| V2-MN801S-120KV | FA28寸折叠桨 | |||
| MN805S-120KV | V1-MN805S-120KV | 30CF | ||
| MN8012-100KV | V1-MN8012-100KV | 30CF | ||
| V2-MN8012-100KV-14S | 14S | 30CF | ||
| V3-MN8012-100KV-14S-NCP | 30CF | |||
| MN8014-100KV | V1-MN8014-100KV | 12S | 30CF | |
| V2-MN8014-100KV | MF3016 | |||
| MN1005-90KV | V1-MN1005-90KV | 32CF | ||
| V2-MN1005-90KV14 | 14S | 30CF | ||
| 6007II-160KV | V1-6007II-160KV | 12S | 21CF | |
| 6007II-320KV | V3-6007II-320KV | 6S | 18CF | |
| ALPHA 80A 12S | P60-170KV | V1-P60-170KV | 14S | 22CF |
| V2-P60-170KV | 12S | 22CF | ||
| P80-80KV | V1-P80-80KV | 14S | 32CF | |
| P80-100KV | V1-P80-100KV | 32CF | ||
| P80-120KV | V1-P80-120KV | 29CF | ||
| V1-P80-120KV-CBR | 12S | MF3016 | ||
| P80III-120KV | V1-P80III-120KV | 30CF | ||
| P80III-100KV | V1-P80III-100KV | 32CF | ||
| V1-P80III-100KV-F | MF3218 | |||
| V1-P80III-100KV-S | MF3218 | |||
| U12-90KV | V1-U12-90KV | 14S | 32CF | |
| U12-100KV | V1-U12-100KV | 32CF | ||
| U13-85KV | V1-U13-85KV | 32CF | ||
| U13-100KV | V1-U13-100KV | 30CF | ||
| U11-120KV | V1-U11-120KV | 28CF | ||
| MN801S-150KV | V1-MN801S-150KV | 12S | 26CF | |
| MN705S-125KV | V2-MN705S-125KV | 27CF | ||
| MN805S-150KV | V1-MN805S-150KV | 28CF | ||
| MN805S-170KV | V1-MN805S-170KV | 26CF | ||
| MN8017-90KV | V1-MN8017-90KV | 14S | 32CF | |
| MN8017-120KV | V1-MN8017-120KV | 12S | 30CF | |
| V605S-210KV | V1-V605S-210KV | 22CF | ||
| V2-V605S-210-OCP | 22CF | |||
| V605-KV210 | V1-V605-210KV | 22CF | ||
| V605 KV240 | V1-V605S-240KV | G20*6,5 | ||
| AT4130-300KV | V1-AT4130-300KV | 20CF | ||
| AT4130 KV230 | V1-AT4130-230KV | 14*8 | ||
| AT4130 KV180 | V1-AT4130-180KV | AMZ20*10 | ||
| AT5230-200KV | V1-AT5230-200KV | 18CF | ||
| AT5230A KV220 | V1-AT5230-220KV | APC17*12 | ||
| P80III-100KV | V1-P80III-100KV-14 | 14S | 32CF | |
| V3-P80III-100KV-SlowBrake | 12S | 32CF | ||
| U15II-80KV | V1-U15II-80KV | 40CF | ||
| U12II-120KV | V2-U12II-120KV | 30CF | ||
| U13II-130KV | V1-U13II-130KV | 32CF | ||
| P90-110KV | V1-P90-110KV | 34CF | ||
| 11010-90KV | V1-11010-90KV | 34CF | ||
| P80III-150KV | V1-P80III-150KV | 30CF | ||
| A8-129KV | V1-ASCG125 | 32CF | ||
| MN1015-130KV | V1-MN1015-130KV | 34CF | ||
| P80III-120KV | V2-P80III-120KV | 30CF | ||
| AT5220-A KV220 | V1-AT5220A-220KV | 18*8 | ||
| ALPHA 60A 24S | U15-37KV | V1-U15-37KV | 24S | 40CF |
| U12II-60KV | V1-U12II-60KV | 30CF | ||
| U13II-65KV | V1-U13II-65KV | 32CF | ||
| U12II-60KV | V2-U12II-60KV | 30CF | ||
| U13II-65KV | V2-U13II-65KV | 32CF | ||
| U13II KV90 | V2-U13II-90KV | G32*11 | ||
| U15II-40KV | V1-U15II-40KV | 40CF | ||
| MN1010-57KV | V1-MN1010-57KV-72V | 30CF | ||
