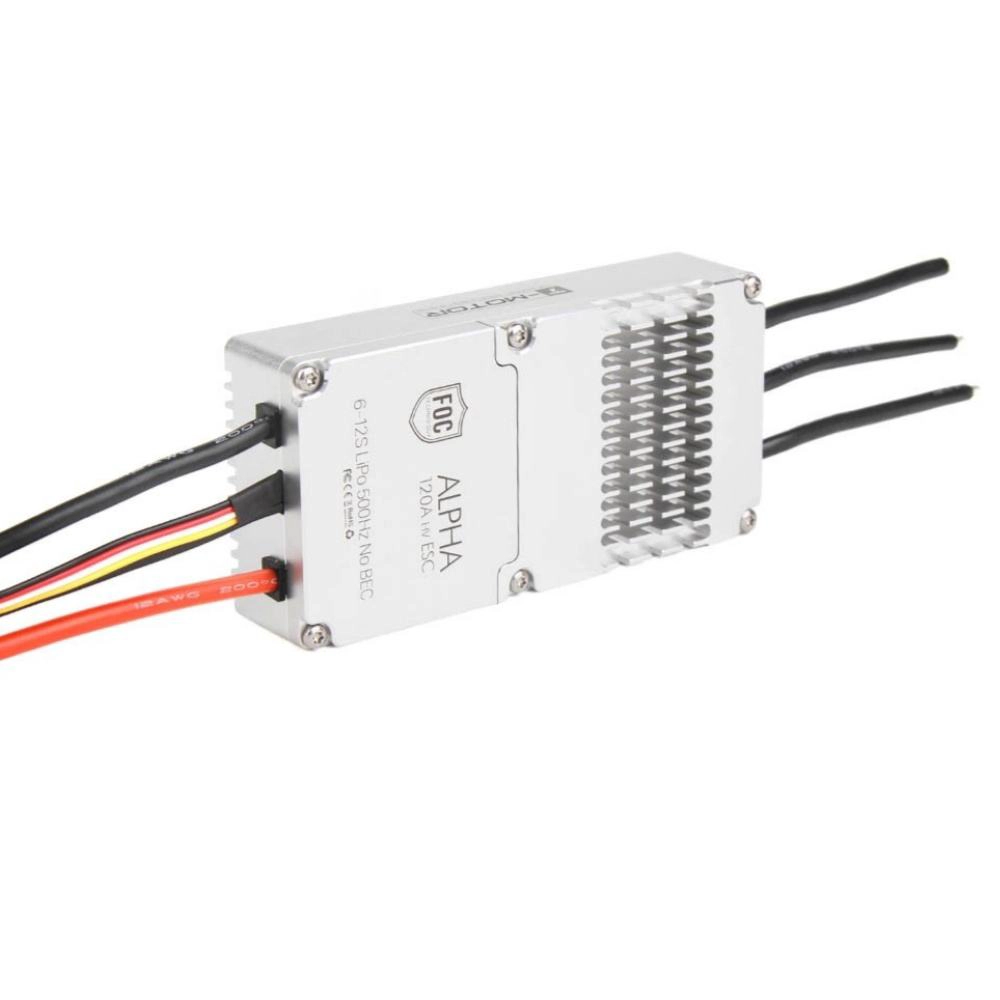

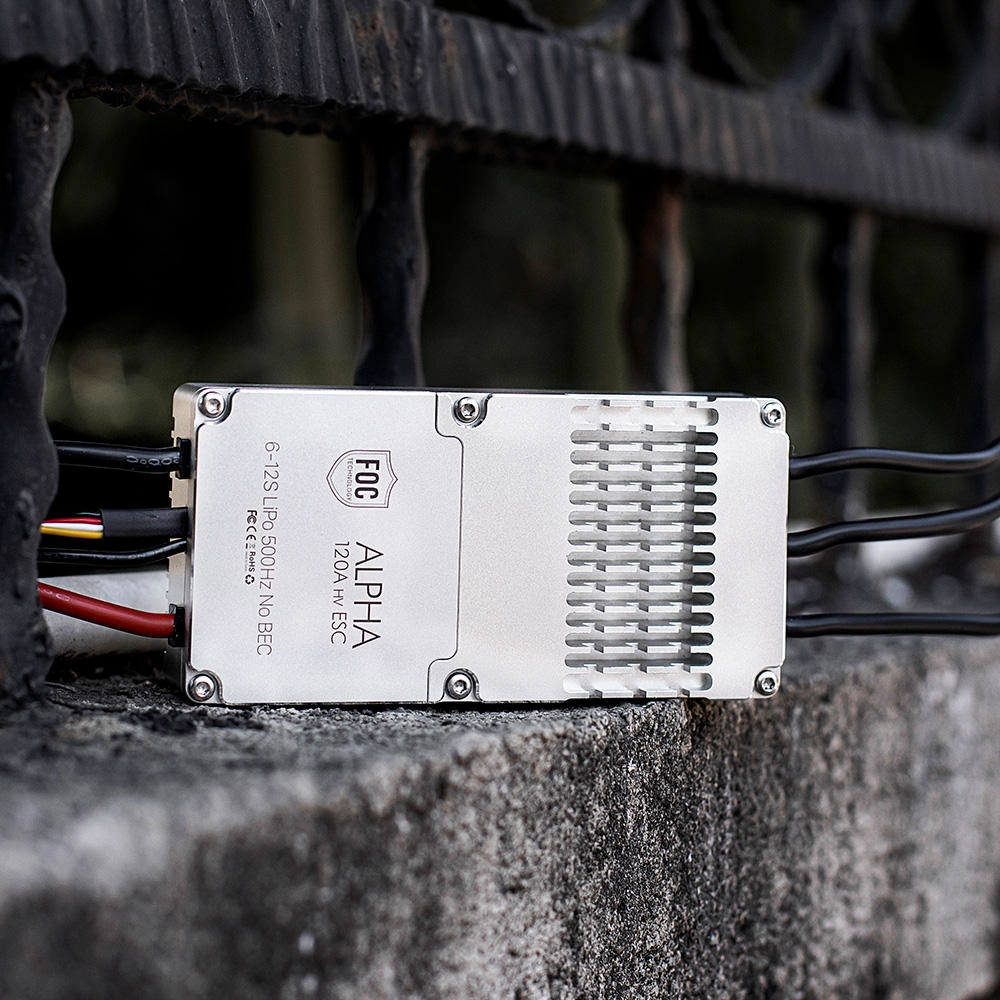

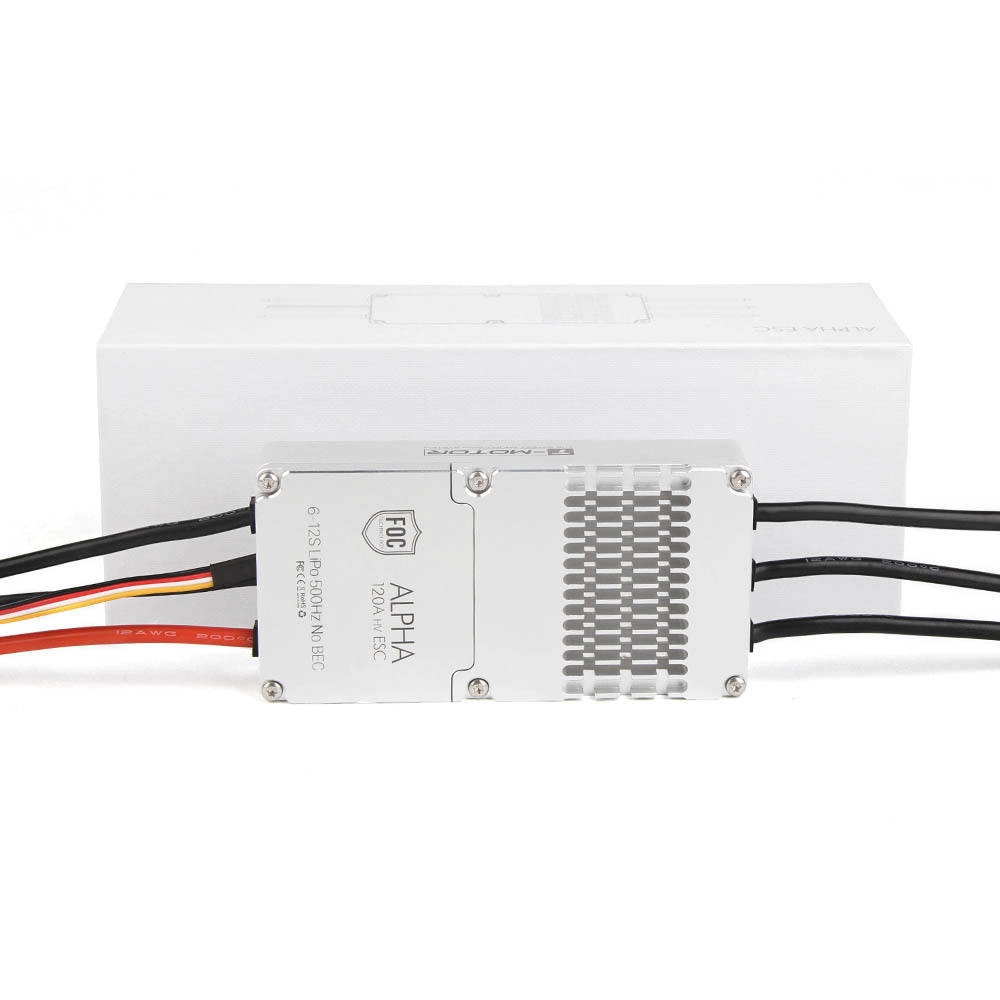

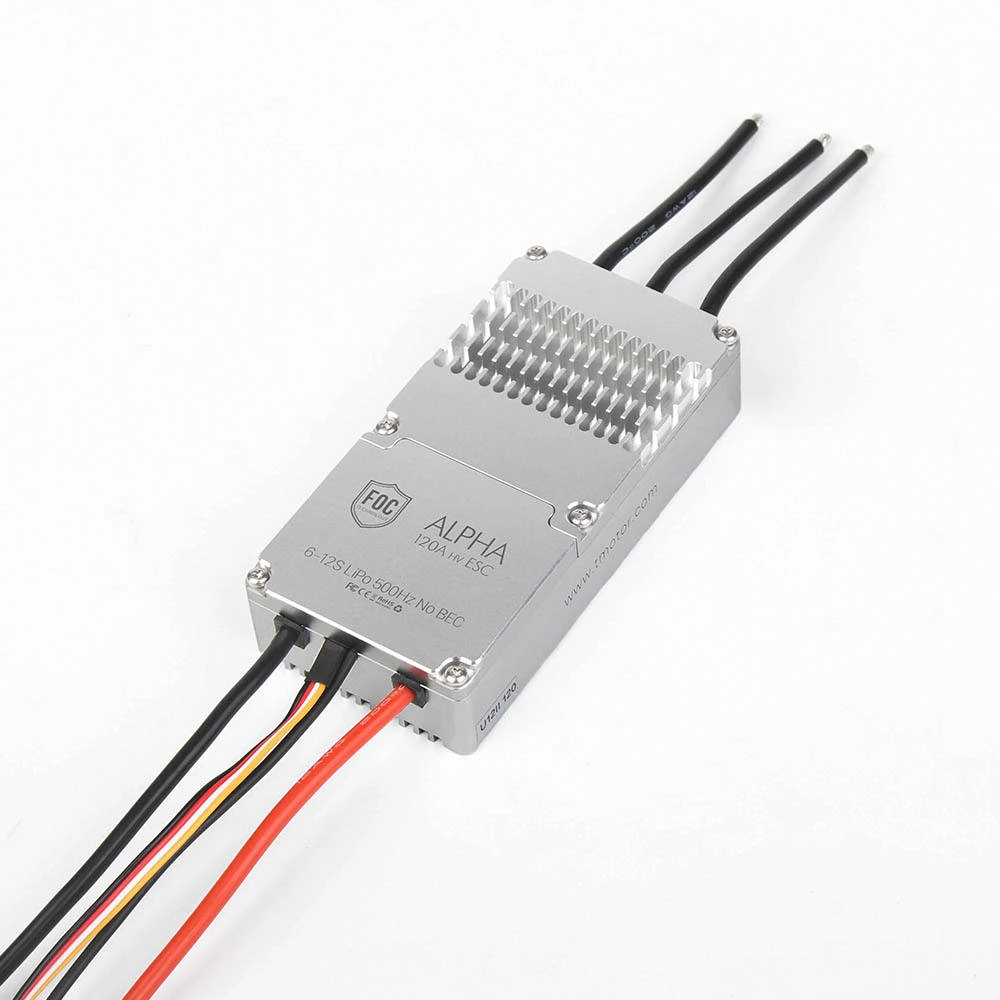

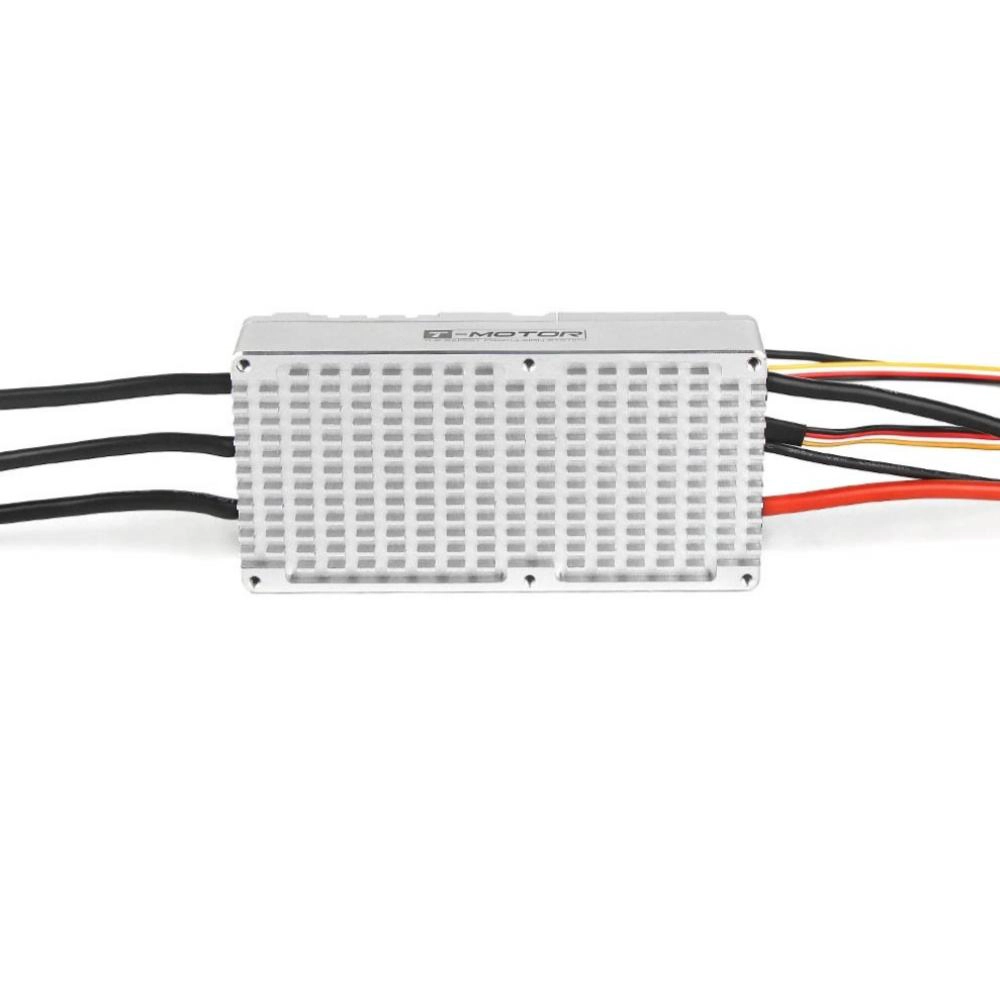

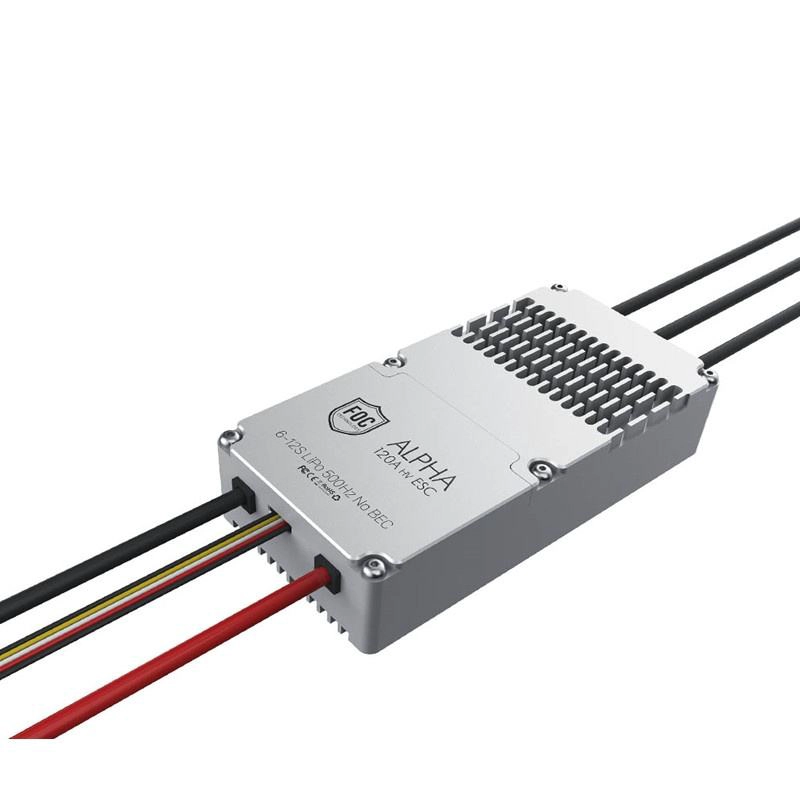

Tentang T-MOTOR ALPHA 120A 12S Multi-Rotor UAV FOC ESC

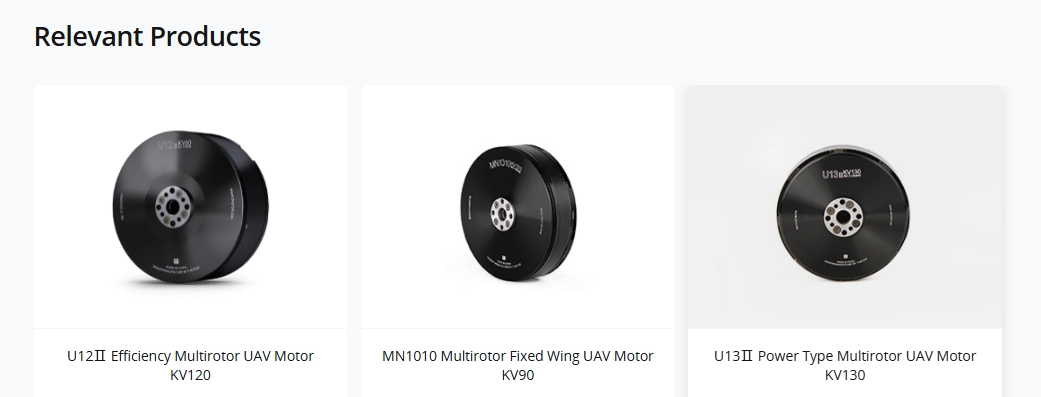

T-MOTOR Alpha 120A 12S ESC menghadirkan TIDAKise rendah, respons cepat, dan efisiensi tinggi untuk UAV multi-rotor. Dengan pengereman aktif, perlindungan IP55, dan pengaman bawaan, ini memastikan kinerja stabil dan tahan lama. Kompatibel dengan motor U12II-KV120, U13II-KV130, dan MN1010-KV90. Hubungi kami untuk tipe motor dan detail KV.
Sorotan ALPHA 120A 12S ESC:
* 500Hz, LiPo 6-12S
* Fungsi pengereman aktif - Saat melambat, motor mendaur ulang energi yang mengisi baterai secara terbalik untuk memperpanjang waktu penerbangan.
* Cangkang ultra ringan
* Tahan debu, tahan air dan anti korosi (IP55)
* Hubungan pendek, Tegangan rendah, Arus berlebih, Penguncian motor, dan perlindungan kehilangan Throttle
* Respon Cepat, Efisiensi Tinggi dan stabilitas
ALPHA ESC memiliki respons yang lebih cepat dengan arus pulsa yang lebih sedikit dan pengaktifan yang stabil dibandingkan dengan penggerak gelombang persegi tradisional.
ESC T-MOTOR ini berisi arus berlebih/Penguncian Motor/korsleting/perlindungan tegangan rendah.

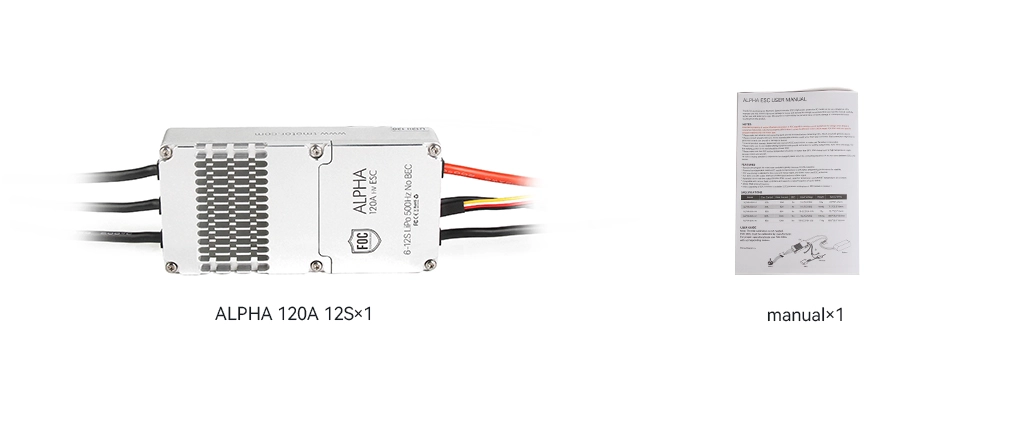

Daftar Kemasan Termasuk:
1x T-Motor ALPHA 120A 12S ESC
1x Perangkat Perangkat Keras

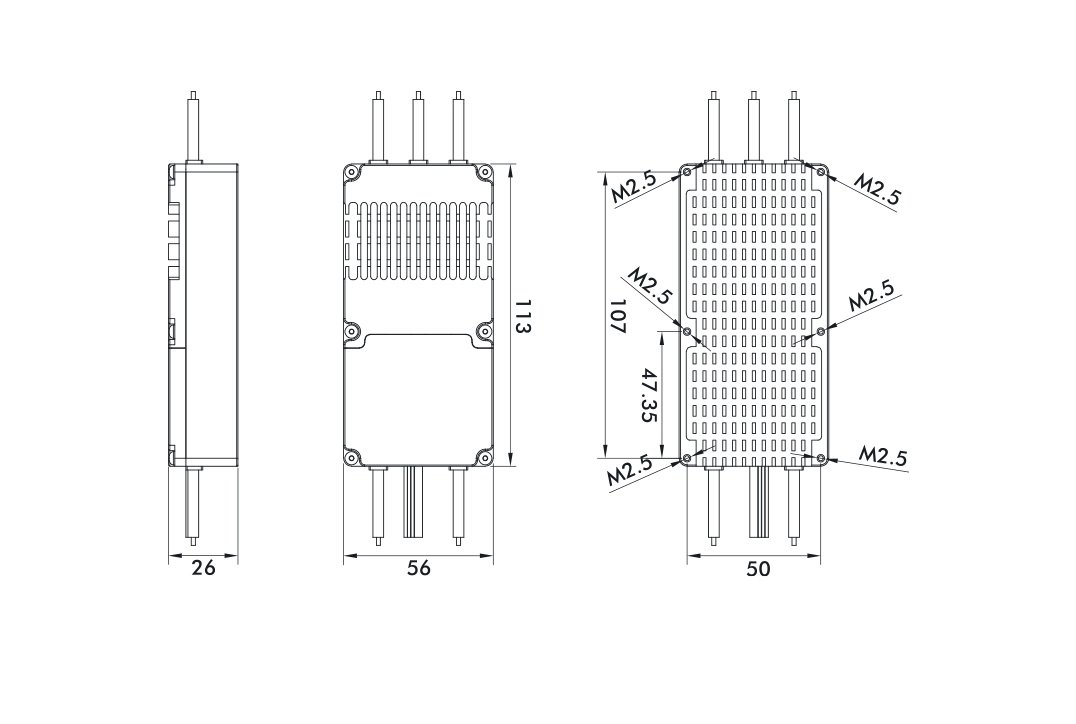

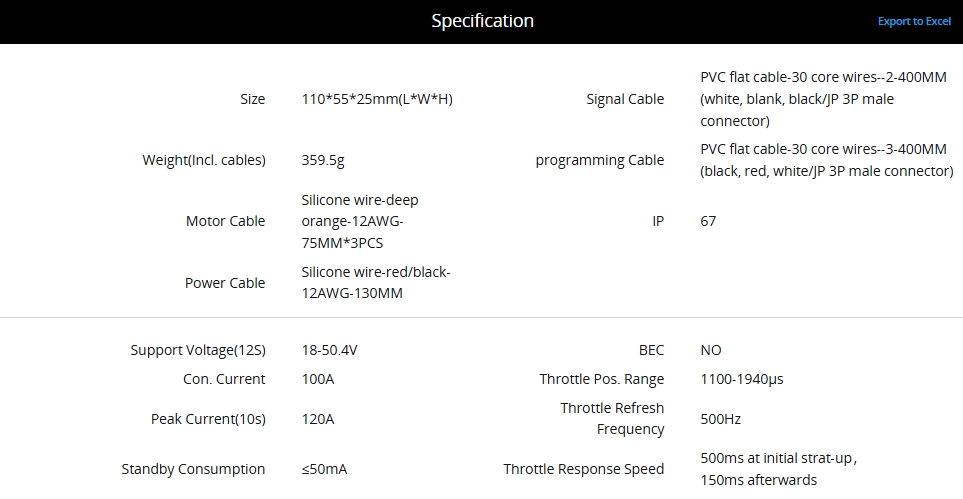

| Ukuran (mm P*L*T) | 110*55*25 | IP | 67 |
| Berat (Termasuk kabel) | 359,5 gram | Kabel Sinyal | Kabel datar PVC-30 kabel inti--2-400MM (konektor jantan putih, kosong, hitam/JP 3P) |
| BEC | NO | Kabel Pemrograman | Kabel datar PVC-30 kabel inti--3-400MM (konektor jantan hitam, merah, putih/JP 3P) |
| Tegangan Dukungan (12S) | 18-50.4V | Kabel Motor | Kawat silikon-oranye dalam-12AWG-75MM*3PCS |
| Menipu. Saat ini | 100A | Pos Throttle. Jangkauan | 1100-1940-an |
| Arus Puncak (10 detik) | 120A | Frekuensi Penyegaran Throttle | 500Hz |
| Konsumsi Siaga | ≤50mA | Kecepatan Respon Throttle | 500 md |
| Rekomendasi ALPHA ESC | ||||
| ESC | MOTOR | Nama Versi PC | Lipo (S) | Prop |
| ALPHA 40A 6S | U3-700KV | V2-U3-700KV | 4S | 12CF |
| U5-400KV | V2-U5-400KV | 6S | 16CF | |
| V1-U5-400KV | 16CF | |||
| MN4006-380KV | V1-MN4006-380KV | 16CF | ||
| MN4004 KV300 | V1-MN4004-300KV | P15*5/MF1503 | ||
| MN4014-400KV | V1-MN4014-400KV | 16CF | ||
| MN4014-330KV | V1-MN4014-330KV | 16CF | ||
| V2-MN4014-330KV | 16CF | |||
| MN501S-300KV | V1-MN501S-300KV | 20CF | ||
| V2-MN501S-300KV | 22CF | |||
| V2-MN501S-300KV-CBR | FA20.2*6.6R | |||
| MN501S-360KV | V1-MN501S-360KV | 18CF | ||
| V1-MN501S-360KV-TSO | 18CF | |||
| V1-MN501S-360KV-CBR | P18*6.1 | |||
| MN501S-240KV | V2-MN501S-240KV | 22CF | ||
| MN5006-300KV | V1-MN5006-300KV | 18CF | ||
| MN5006-450KV | V1-MN5006-450KV | 15CF | ||
| MN5008-400KV | V1-MN5008-400KV | 17CF | ||
| V2-MN5008-400KV | 17CF | |||
| MN5208-340KV | V1-MN5208-340KV | 16CF | ||
| MN5008-340KV | V1-MN5008-340KV | 18CF | ||
| MN5212-340KV | V1-MN5212-340KV | 18CF | ||
| MN601S-170KV | V1-MN601S-170KV | 22CF | ||
| MN6007II-160KV | V1-MN6007II-160KV-26CF | 26CF | ||
| MN6007II-320KV | V4-MN6007II-320KV | 22CF | ||
| MN7005-230KV | V1-MN7005-230KV | 24CF | ||
| V2-MN7005-230KV | 26CF | |||
| ALPHA 60A 6S | U8II-150KV | V1-U8II/L-150KV | 6S | 26CF |
| U8Lite-150KV | V1-U8LITE-150KV | 30CF | ||
| V2-U8L-150KV | 30CF | |||
| U8II-170KV | V1-U8II/L-170KV | 28CF | ||
| U8II-190KV | V1-U8II/L-190KV | 26CF | ||
| V1-U8II/L-190KV-TSO | 28CF | |||
| V2-U8II/L-190KV-TSO | CF28*9.2 | |||
| A8-160KV | V1-A8-160KV | 28CF | ||
| MN4006-380KV | V1-MN4006-380KV | 16CF | ||
| MN505S-320KV | V1-MN505S-320KV | 22CF | ||
| V1-MN505S-320KV-TSO | 22CF | |||
| MN505S-380KV | V1-MN505S-380KV | 18CF | ||
| MN601S-320KV | V1-MN601S-320KV | 22CF | ||
| MN605S-320KV | V1-MN605S-320KV | 22CF | ||
| V2-MN605S-320KV | 22CF | |||
| V3-MN605S-320KV | 22CF | |||
| MN6007-320KV | V1-MN6007-320KV | 22CF | ||
| 6007II-320KV | V1-6007II-320KV | 22CF | ||
| V1-6007II-320KV-SemuaTidakTip | FA22.2x7.2 | |||
| V1-6007II-320KV-ThLossNoTip | FA22.2x7.2 | |||
| V2-6007II-320KV | 18CF | |||
| V3-6007II-320KV | 26CF | |||
| ALPHA 60A 12S | U5 KV880 | V3-U5-880KV | 8S | NS14x4.8 |
| V2-U5-880KV | FF16*8 | |||
| U7-420KV | V1-U7-420KV | 6S | 17CF | |
| V2-U7-420KV | 18CF | |||
| U8II-85KV | V1-U8II-85KV14S | 14S | 32CF | |
| V1-U8/II/L-85KV | 12S | 26CF | ||
| V3-U8/II/L-85KV | 29CF | |||
| V7-U8-85KV | 29CF | |||
| U8II LITE KV85 | V1-U8II_LITE_85KV | MF3016 | ||
| U8LITEL-95KV | V1-U8LL-95KV | 32CF | ||
| U8II-100KV | V1-U8/II/L-100KV | 28CF | ||
| V2-U8/II/L-100KV | 28CF | |||
| V1-U8II-100KV14S | 14S | 28CF | ||
| V4-U8/II/L-100KV | 12S | 28CF | ||
| V5-U8/II/L-100KV | 28CF | |||
| V7-U8II-100KV | 28CF | |||
| V9-U8II-100KV | 29CF | |||
| V9-U8II-100KV-TSO | 29CF | |||
| U8II PRO KV100 | V1-U8IIP-100KV | FA28.2*9.2 | ||
| U8L-II_100KV | V1-U8L-II-100KV | 30CF | ||
| V1-U8/II/L-100KV-NCP | 30CF | |||
| U8lite-kv100 | V1-U8II-100LT | 30CF | ||
| U8Lite-150K | V4-U8LITE-150KV | 24CF | ||
| U8II-150KV | V1-U8II-150KV | 22CF | ||
| V2-U8II-150KV14S | 14S | 22CF | ||
| V2-U8II-150KV14S-OKT | 22CF | |||
| U8II-170KV | V1-U8II-170KV | 12S | 22CF | |
| U8II-190_7 | V1-U8II/L-190_7 | 6S | 24CF | |
| U8LITEL-110KV | V1-U8LL-110KV | 12S | 30CF | |
| U8XL-110KV | V1-U8XL-110KV | 30CF | ||
| U8II-150KV | V1-U8II-150KV-8S | 6S | 28CF | |
| U10II-100KV | V2-U10II-100KV | 13S | 32CF | |
| V1-U10II-100KV | 12S | 30CF | ||
| V3-U10II-100KV-TLT | 30CF | |||
| V6-U10II-100KV | 30CF | |||
| MN501S-240KV | V2-MN501-240KV | 14S | 18CF | |
| MN505-190KV | V1-MN505-190KV | 12S | 21CF | |
| MN501S-240KV | V1-MN501S-240KV-22C | 6S | 22CF | |
| V1-MN501S-240KV | 12S | 15CF | ||
| MN5008-340KV | V1-MN5008-340KV | 6S | 18CF | |
| V3-5008-340KV | 7S | 18CF | ||
| MN601S-100KV | V1-MN601S-100KV | 12S | 24CF | |
| MN601S-135KV | V1-MN601S-135KV | 24CF | ||
| MN601S-150KV | V1-MN601S-150KV | 24CF | ||
| MN601S-170KV | V1-MN601S-170KV | 22CF | ||
| V3-MN601S-170KV | P22*6.6 | |||
| MN6007-160KV | V3-MN6007-160KV-14S | 14S | 22CF | |
| V4-MN6007II-160KV | 12S | 22CF | ||
| V1-MN6007-160KV | 22CF | |||
| MN6007II KV160 | V5-MN6007II-160KV | FA24.2*7.9 | ||
| MN605S-170KV | V1-MN605S-170KV | 22CF | ||
| V1-MN605S-170KV-F | 22CF | |||
| V2-MN605S-170KV | 22CF | |||
| V6-MN605S-170KV | ||||
| MN601S-320_7 | V1-MN601S-320_7 | 6S | 21CF | |
| MN605S-210KV | V1-MN605S-210KV | 12S | 18CF | |
| MN7005-115KV | V1-MN7005-115KV | 24CF | ||
| MN7005-230KV | V2-MN7005-230KV | 22CF | ||
| MN701S-135KV | V1-MN701S-135KV | 24CF | ||
| MN705S-125KV | V1-MN705S-125KV | 27CF | ||
| MN801S-120KV | V1-MN801S-120KV | 29CF | ||
| V2-MN801S-120KV | FA28寸折叠桨 | |||
| MN805S-120KV | V1-MN805S-120KV | 30CF | ||
| MN8012-100KV | V1-MN8012-100KV | 30CF | ||
| V2-MN8012-100KV-14S | 14S | 30CF | ||
| V3-MN8012-100KV-14S-NCP | 30CF | |||
| MN8014-100KV | V1-MN8014-100KV | 12S | 30CF | |
| V2-MN8014-100KV | MF3016 | |||
| MN1005-90KV | V1-MN1005-90KV | 32CF | ||
| V2-MN1005-90KV14 | 14S | 30CF | ||
| 6007II-160KV | V1-6007II-160KV | 12S | 21CF | |
| 6007II-320KV | V3-6007II-320KV | 6S | 18CF | |
| ALPHA 80A 12S | P60-170KV | V1-P60-170KV | 14S | 22CF |
| V2-P60-170KV | 12S | 22CF | ||
| P80-80KV | V1-P80-80KV | 14S | 32CF | |
| P80-100KV | V1-P80-100KV | 32CF | ||
| P80-120KV | V1-P80-120KV | 29CF | ||
| V1-P80-120KV-CBR | 12S | MF3016 | ||
| P80III-120KV | V1-P80III-120KV | 30CF | ||
| P80III-100KV | V1-P80III-100KV | 32CF | ||
| V1-P80III-100KV-F | MF3218 | |||
| V1-P80III-100KV-S | MF3218 | |||
| U12-90KV | V1-U12-90KV | 14S | 32CF | |
| U12-100KV | V1-U12-100KV | 32CF | ||
| U13-85KV | V1-U13-85KV | 32CF | ||
| U13-100KV | V1-U13-100KV | 30CF | ||
| U11-120KV | V1-U11-120KV | 28CF | ||
| MN801S-150KV | V1-MN801S-150KV | 12S | 26CF | |
| MN705S-125KV | V2-MN705S-125KV | 27CF | ||
| MN805S-150KV | V1-MN805S-150KV | 28CF | ||
| MN805S-170KV | V1-MN805S-170KV | 26CF | ||
| MN8017-90KV | V1-MN8017-90KV | 14S | 32CF | |
| MN8017-120KV | V1-MN8017-120KV | 12S | 30CF | |
| V605S-210KV | V1-V605S-210KV | 22CF | ||
| V2-V605S-210-OCP | 22CF | |||
| V605-KV210 | V1-V605-210KV | 22CF | ||
| V605 KV240 | V1-V605S-240KV | G20*6.5 | ||
| AT4130-300KV | V1-AT4130-300KV | 20CF | ||
| AT4130 KV230 | V1-AT4130-230KV | 14*8 | ||
| AT4130 KV180 | V1-AT4130-180KV | AMZ20*10 | ||
| AT5230-200KV | V1-AT5230-200KV | 18CF | ||
| AT5230A KV220 | V1-AT5230-220KV | APC17*12 | ||
| P80III-100KV | V1-P80III-100KV-14 | 14S | 32CF | |
| V3-P80III-100KV-SlowBrake | 12S | 32CF | ||
| U15II-80KV | V1-U15II-80KV | 40CF | ||
| U12II-120KV | V2-U12II-120KV | 30CF | ||
| U13II-130KV | V1-U13II-130KV | 32CF | ||
| P90-110KV | V1-P90-110KV | 34CF | ||
| 11010-90KV | V1-11010-90KV | 34CF | ||
| P80III-150KV | V1-P80III-150KV | 30CF | ||
| A8-129KV | V1-ASCG125 | 32CF | ||
| MN1015-130KV | V1-MN1015-130KV | 34CF | ||
| P80III-120KV | V2-P80III-120KV | 30CF | ||
| AT5220-A KV220 | V1-AT5220A-220KV | 18*8 | ||
| ALPHA 60A 24S | U15-37KV | V1-U15-37KV | 24S | 40CF |
| U12II-60KV | V1-U12II-60KV | 30CF | ||
| U13II-65KV | V1-U13II-65KV | 32CF | ||
| U12II-60KV | V2-U12II-60KV | 30CF | ||
| U13II-65KV | V2-U13II-65KV | 32CF | ||
| U13II KV90 | V2-U13II-90KV | G32*11 | ||
| U15II-40KV | V1-U15II-40KV | 40CF | ||
| MN1010-57KV | V1-MN1010-57KV-72V | 30CF | ||
